Bouldin Corn: 2018-09-18 09:55:00 (DOY 261)
Author: Daphne Szutu
Others: Joe, Kuno

Summary: Corn harvest started, regular data collection/cleaning, clip plots, veg height, LAI

2018-09-18
Bouldin Corn

We arrived at 9:55. The gate was open. There was a big back up on 12W because of an earlier accident. It was cool and breezy, with clear skies.

They've started harvesting corn on Bouldin, and we saw multiple trucks going back and forth by our field. A few rows had been harvested along the southern edge of our field. Tyler had come out over the weekend to remove their chambers, and they helped pull our soil sensors out and coiled them up on the tower. Russ stopped by and Joe told him we were all clear of the field; Tyler also texted Ben to say they were good to harvest.

Joe put some of the soil senors back in the ground under the tower. All the soil moisture probes went back in vertically at the surface, the soil heat flux plates were buried at about -2cm, and one of the thermocouple profiles went back in. The other two thermocouple profiles need some repairs.

Joe and Kuno measured plant density on the field, and took veg height and biomass samples of 5 plants. One of the samples was two plants (1 large, 1 small) right next to each other. Kuno and I did 2-wand LAI measurements.

I collected met, camera, and USB GHG data. I also cleaned the flux and rad sensors. The Arable dome top is still splotchy; I'm not sure how much the toothpaste helped. The wash reservoir was mostly full; Kuno refilled it.

LI-7500 readings:
CO2 403ppm
H2O 607ppm
T 18.8C
P 100.9kPa
SS 87-->88

LI7700 readings
CH4 1.95ppm
RSSI 64 --> 91 after cleaning

We left at 10:40.

2 photos found

A few rows along the southern edge of the field have been harvested.
A few rows along the southern edge of the field have been harvested.

Joe on site
Joe on site

Graphs display:
6 sets found

17 BC_met graphs found

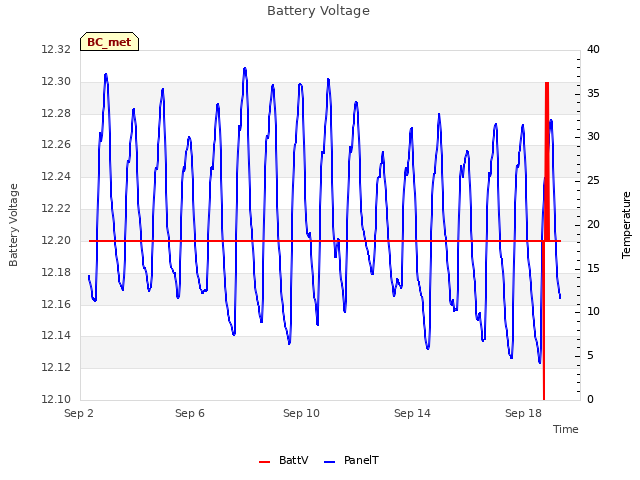

Explore the graph:Battery Voltage in a new window

Explore the graph:Soil Heat Flux in a new window

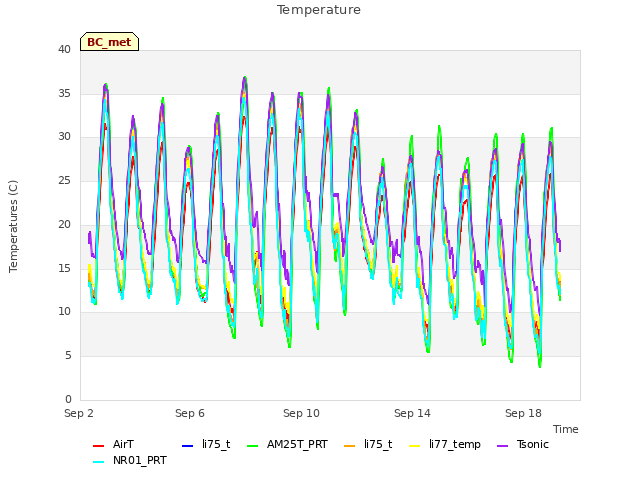

Explore the graph:Temperature in a new window

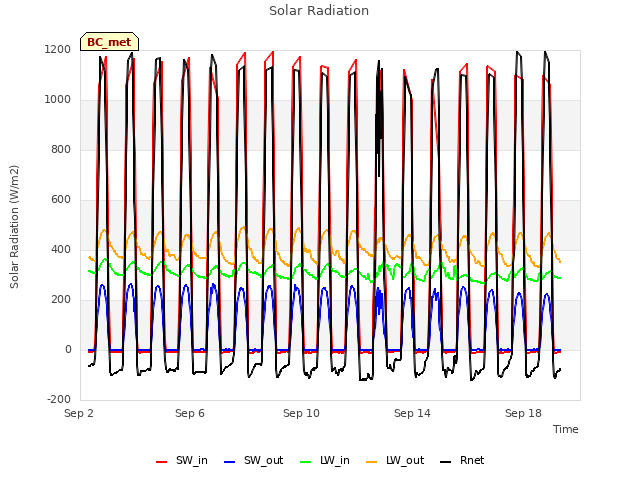

Explore the graph:Solar Radiation in a new window

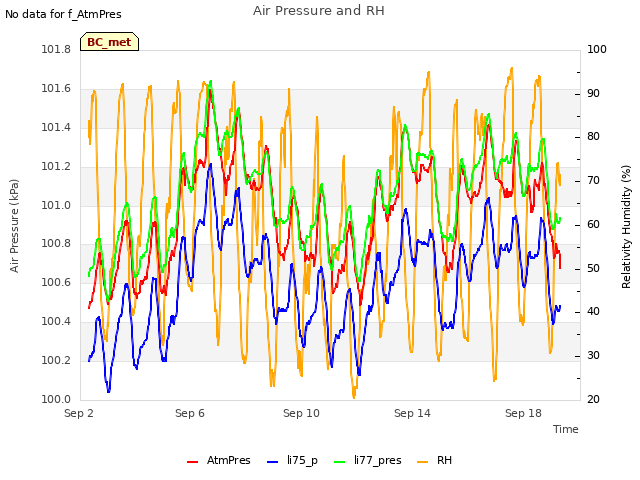

Explore the graph:Air Pressure and RH in a new window

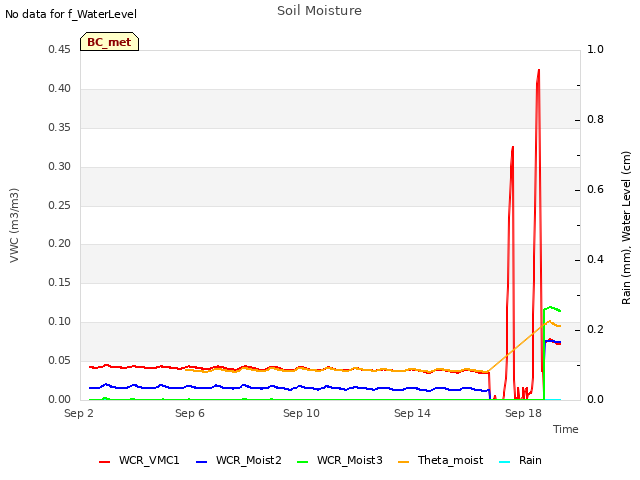

Explore the graph:Soil Moisture in a new window

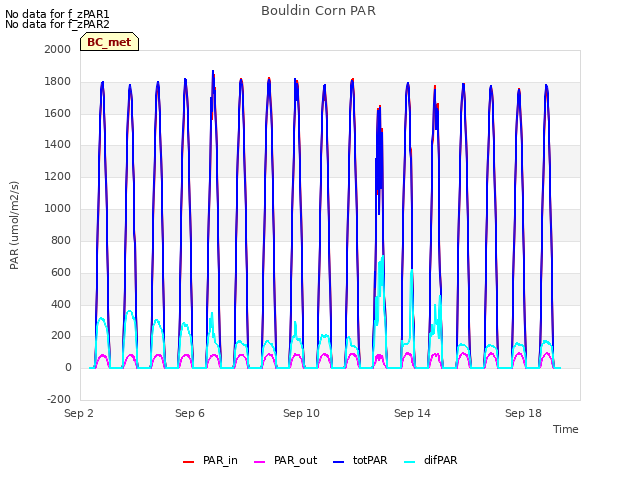

Explore the graph:Bouldin Corn PAR in a new window

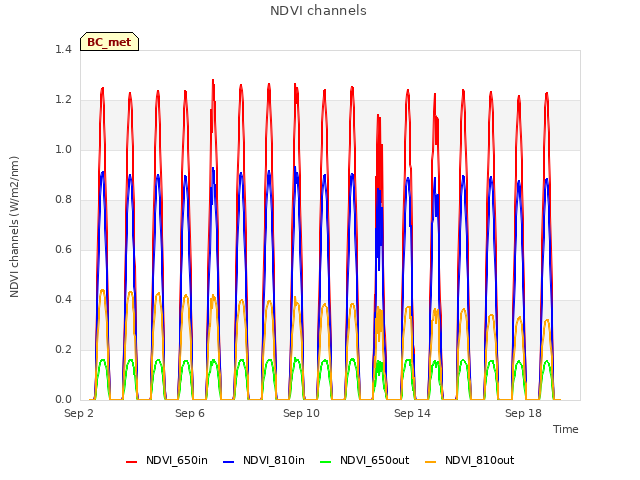

Explore the graph:NDVI channels in a new window

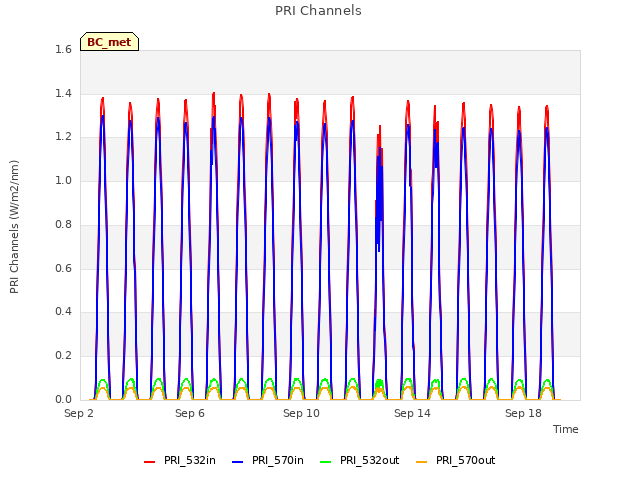

Explore the graph:PRI Channels in a new window

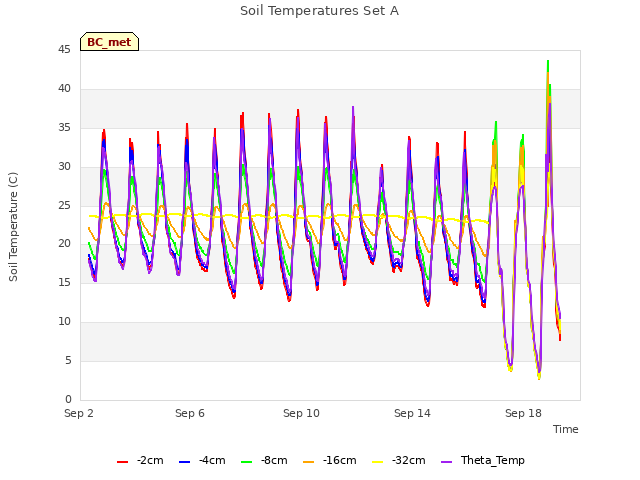

Explore the graph:Soil Temperatures Set A in a new window

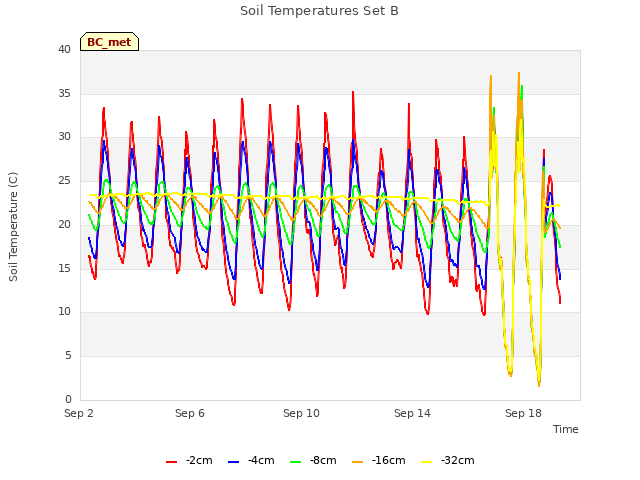

Explore the graph:Soil Temperatures Set B in a new window

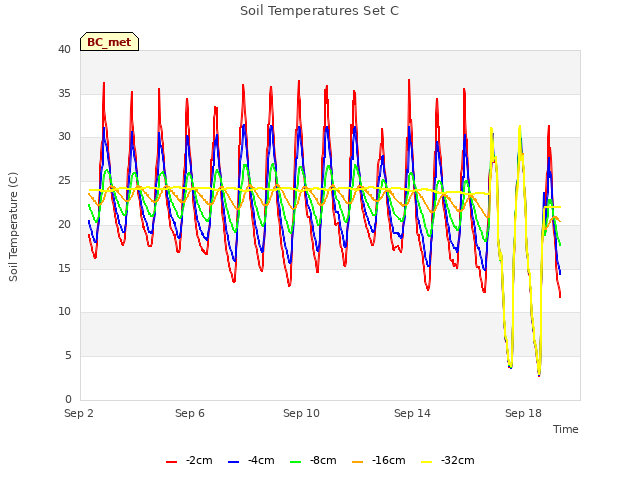

Explore the graph:Soil Temperatures Set C in a new window

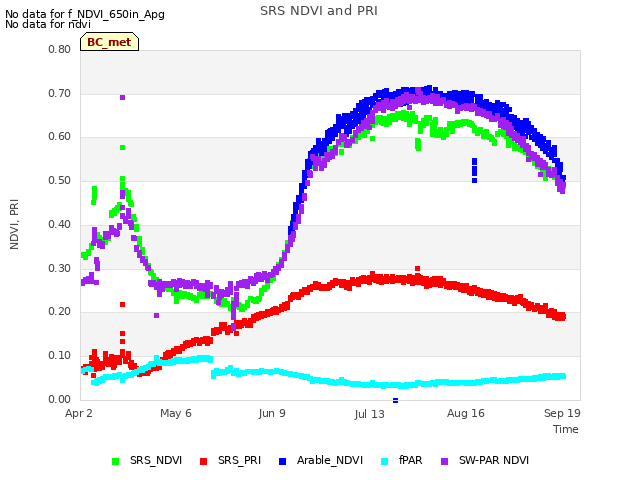

Explore the graph:SRS NDVI and PRI in a new window

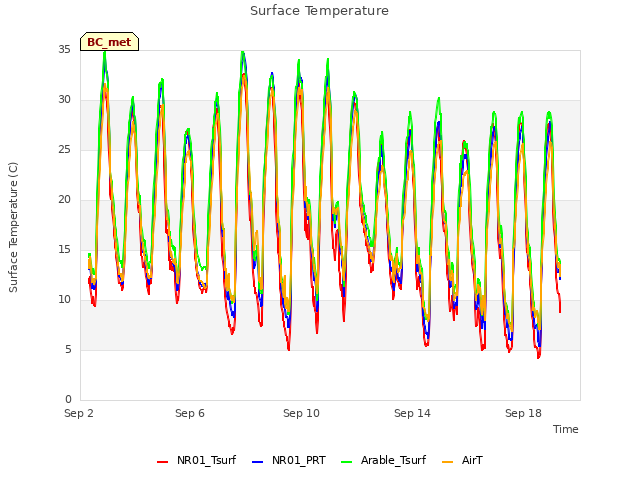

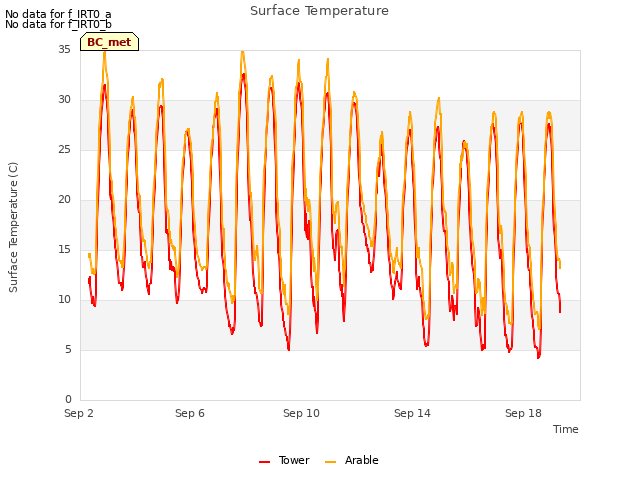

Explore the graph:Surface Temperature in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

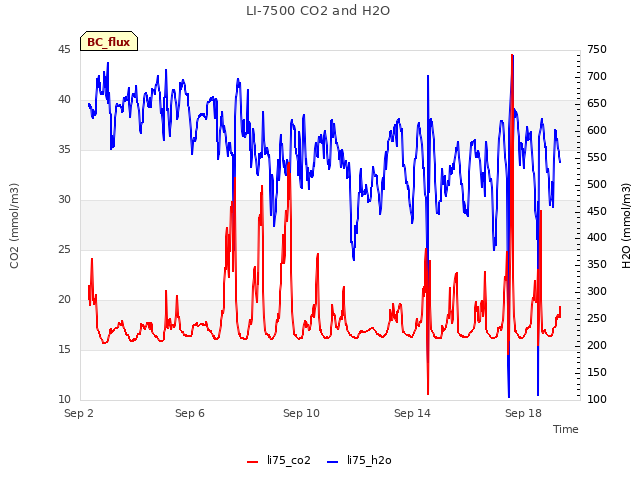

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

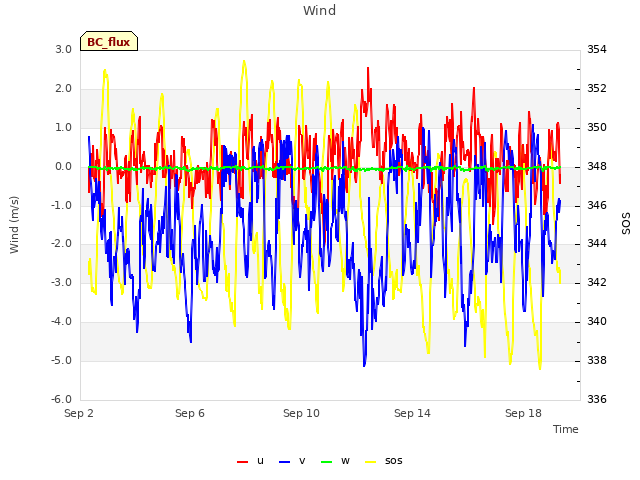

Explore the graph:Wind in a new window

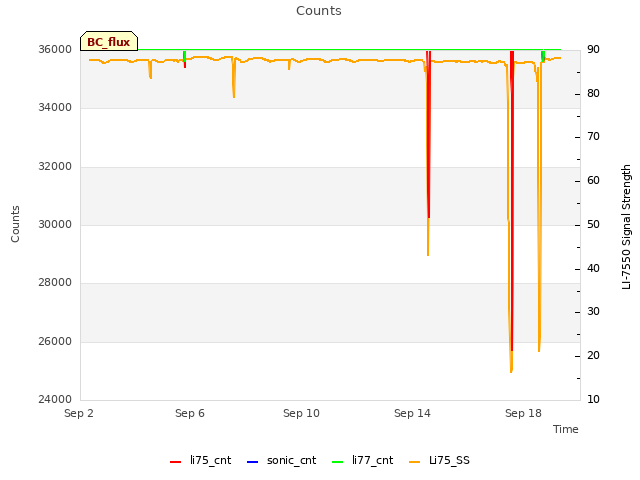

Explore the graph:Counts in a new window

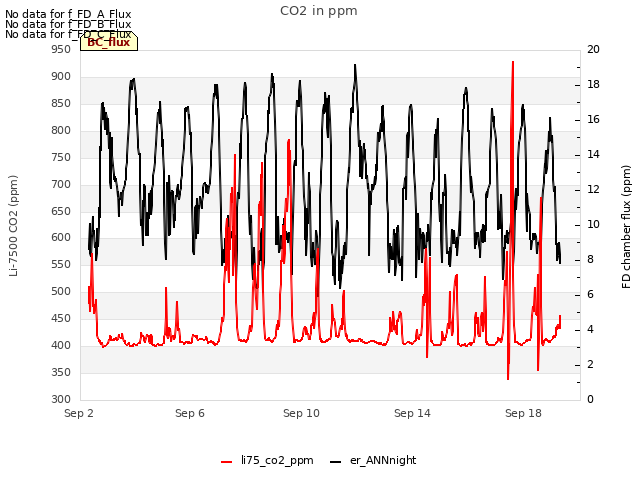

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
No data found for BC_pa.
1 BC_arable graphs found

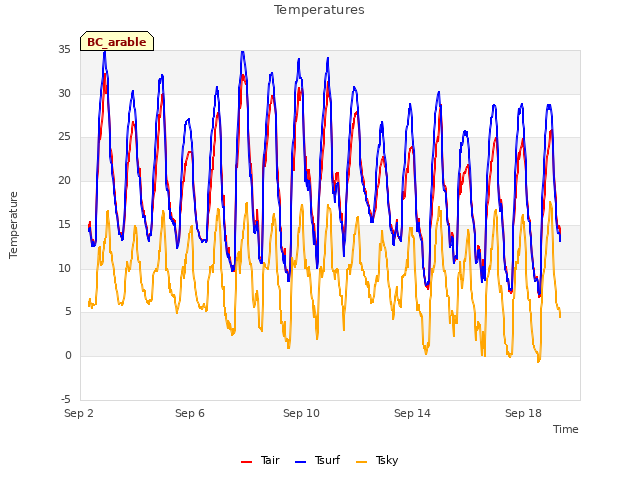

Explore the graph:Temperatures in a new window
