Sherman Barn: 2018-09-18 14:00:00 (DOY 261)
Author: Joe Verfaillie
Others: Daphne, Kuno

Summary: Standard data collection, levee work, Kuno restarted chamber system.

Sherman Barn
2018-09-18

I arrived at 14:00 with Daphne and Kuno. It was clear, sunny and warm. There is construction work all along the levee. Lots of trucks hauling dirt and tractors grading. Some of the field far to the west and a little north near the paved road is flooded.

The 7500 read: 400ppm CO2, 570mmol/m3 H2O, 25.0C, 100.9kPa, 103SS – 104 after cleaning
The 7700 read: 1.97ppm CH4, 55RSSI – 84 after cleaning
The wash reservoir was full

Daphne did spectral measurements files 70 to 89. First ten over yellow grass, second 10 over green grass.

The chamber system had locked up ten days ago. Kuno stayed behind to restart it. We picked him up at about 15:30. We will explore getting a cell modem to remotely monitor that system.

0 photos found

Graphs display:
3 sets found

4 SB_flux graphs found

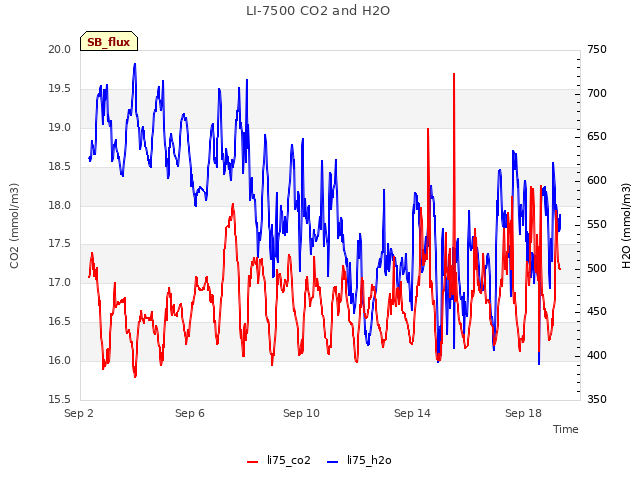

Explore the graph:LI-7500 CO2 and H2O in a new window

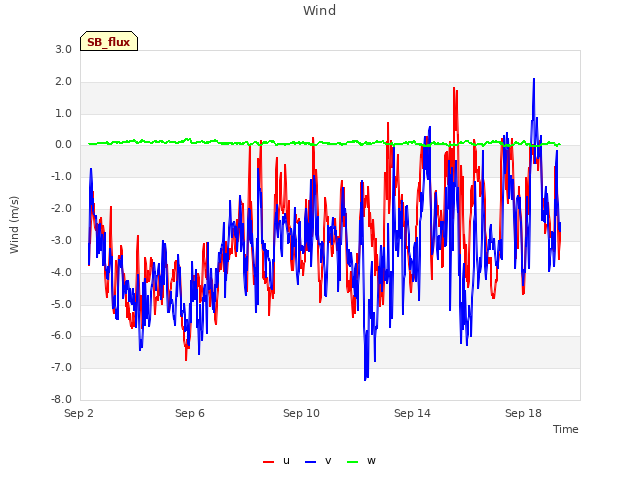

Explore the graph:Wind in a new window

Explore the graph:Counts in a new window

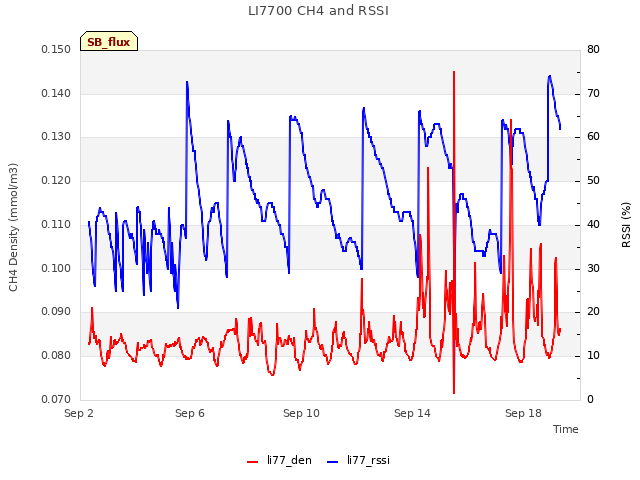

Explore the graph:LI7700 CH4 and RSSI in a new window

15 SB_met graphs found

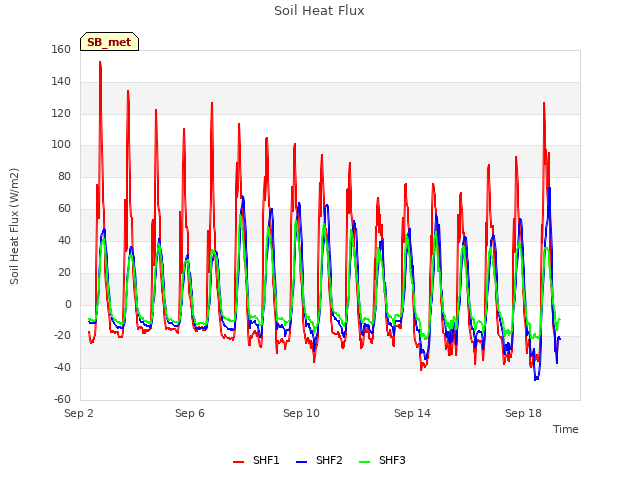

Explore the graph:Soil Heat Flux in a new window

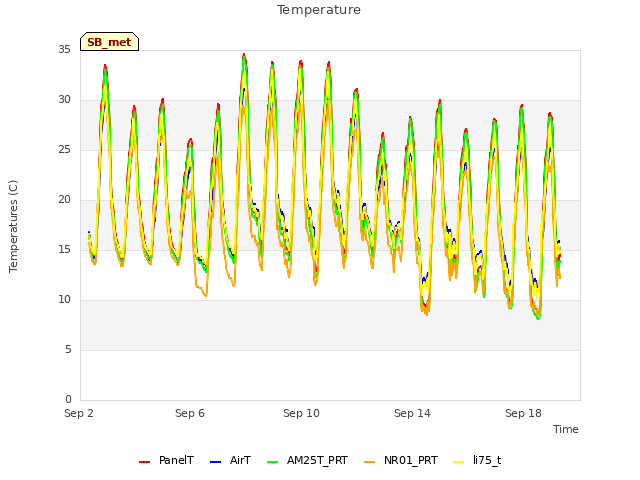

Explore the graph:Temperature in a new window

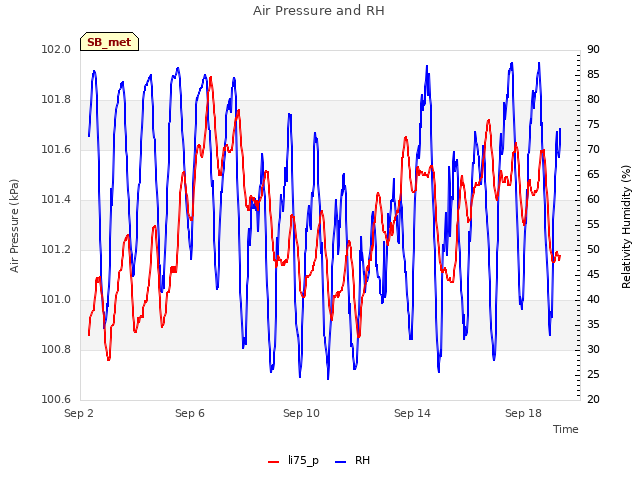

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

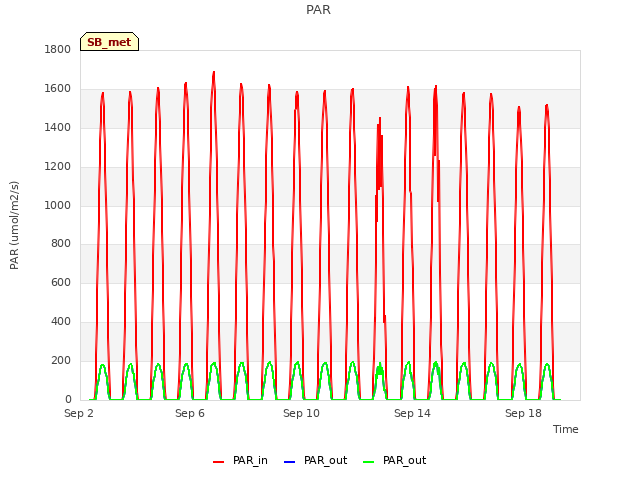

Explore the graph:PAR in a new window

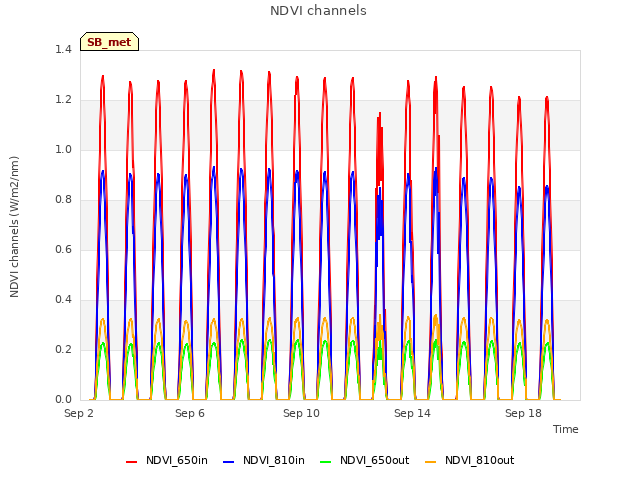

Explore the graph:NDVI channels in a new window

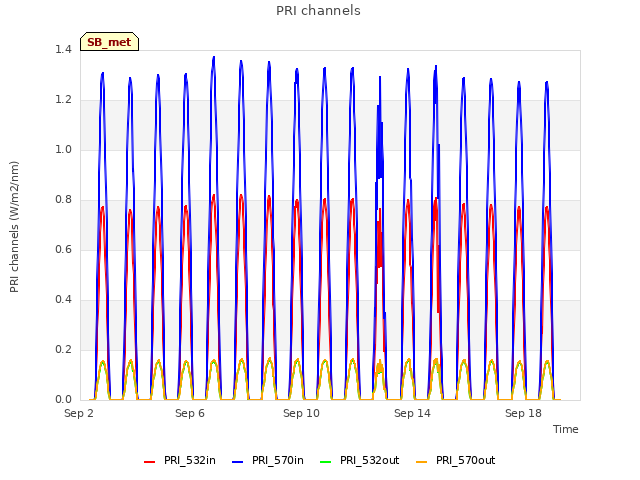

Explore the graph:PRI channels in a new window

Explore the graph:Solar Radiation in a new window

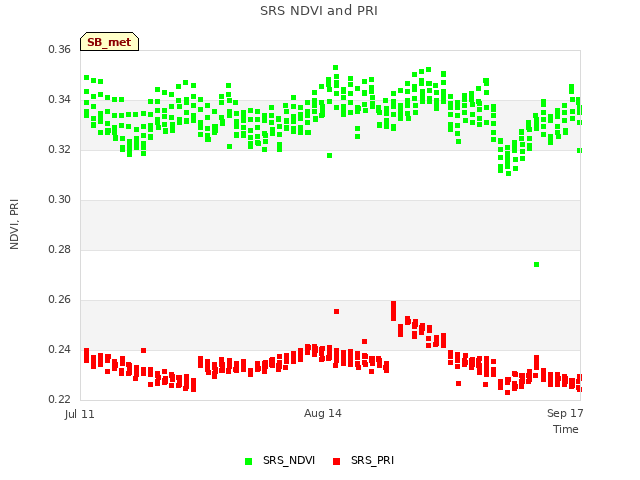

Explore the graph:SRS NDVI and PRI in a new window

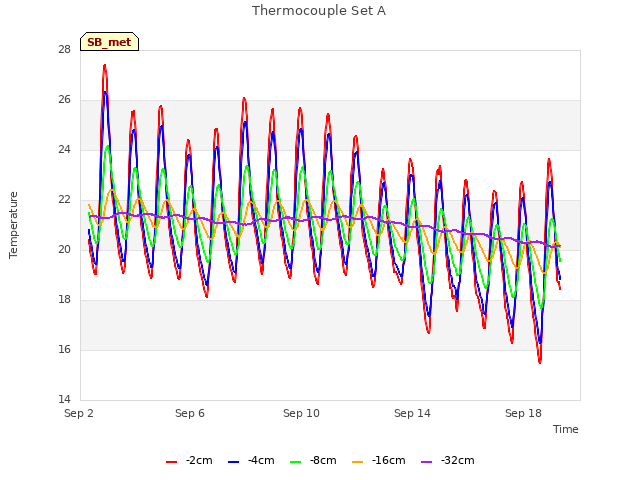

Explore the graph:Thermocouple Set A in a new window

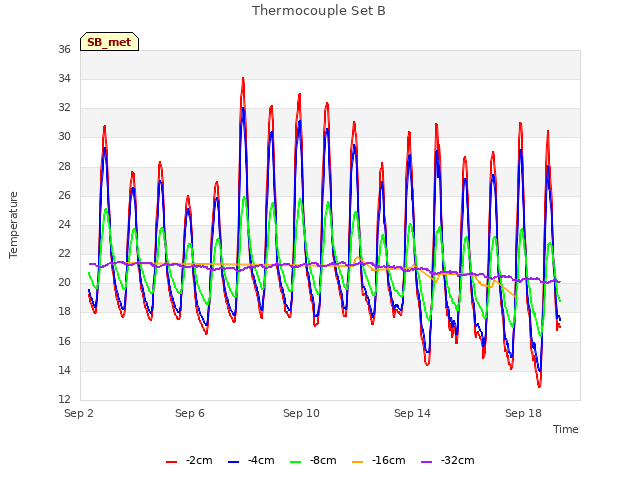

Explore the graph:Thermocouple Set B in a new window

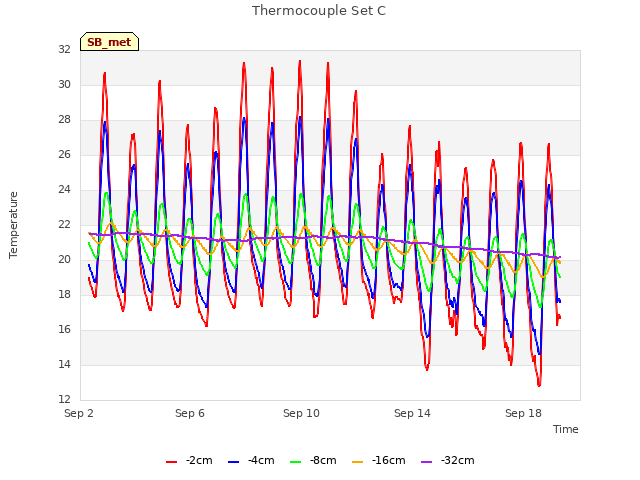

Explore the graph:Thermocouple Set C in a new window

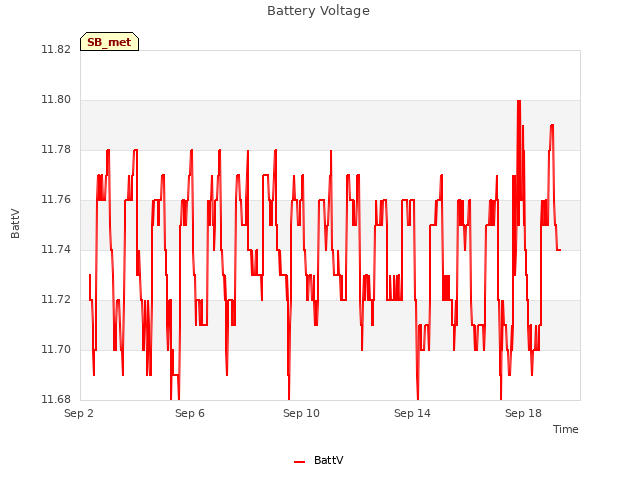

Explore the graph:Battery Voltage in a new window

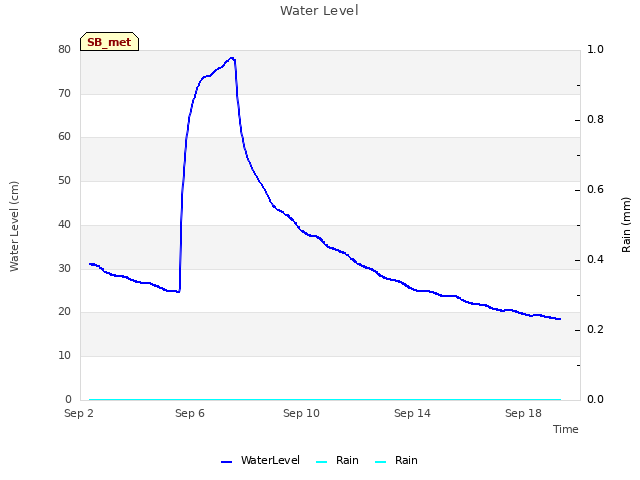

Explore the graph:Water Level in a new window

Explore the graph:Counts from Motion Sensor in a new window
