Mayberry: 2018-09-18 15:00:00 (DOY 261)
Author: Joe Verfaillie
Others: Daphne

Summary: Standard data collection, open water net radiometer covered in mud.

Mayberry
2018-09-18

I arrive at 15:00 with Daphne. It was clear sunny and warm with a light breeze. The water level was 52cm. The cattails are starting to yellow in places – because of recent draw down?

The 7500 read: 400ppm CO2, 570mmol/m3 H2O, 25.0C, 101.4kPa, 98SS – 99 after cleaning
The 7700 read: 1.96ppm CH4, 49RSSI – 74 after cleaning
The wash reservoir was full. The 7500 needs new bird spikes

The net radiometer over the water was covered in mud – cleaned.

We left at 15:20

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

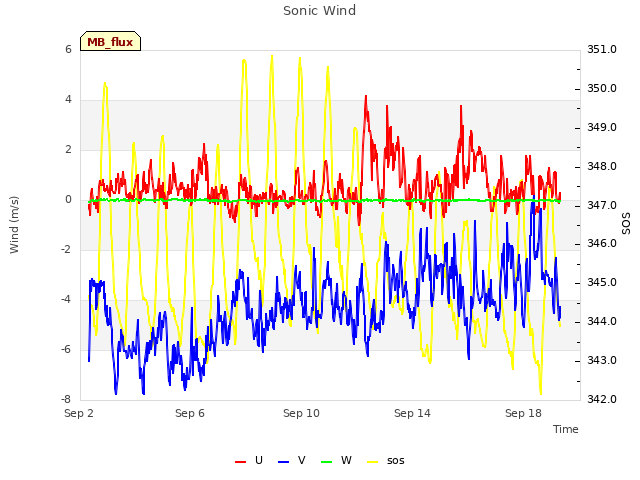

Sonic Wind

LI7700 mV signals

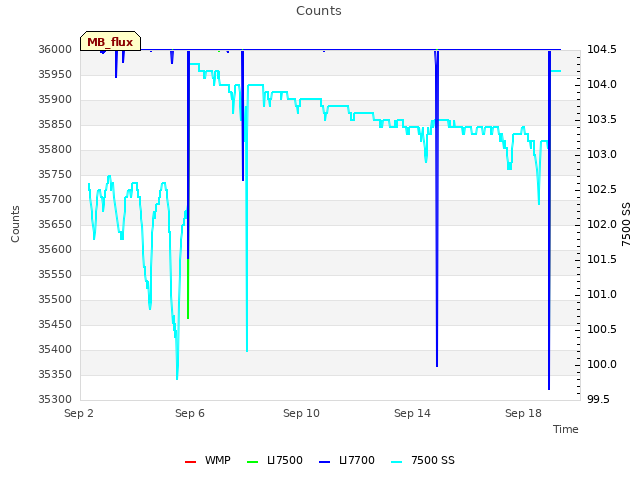

Counts

LI7700 CH4 from analog signal

LI7500 CO2 and H2O

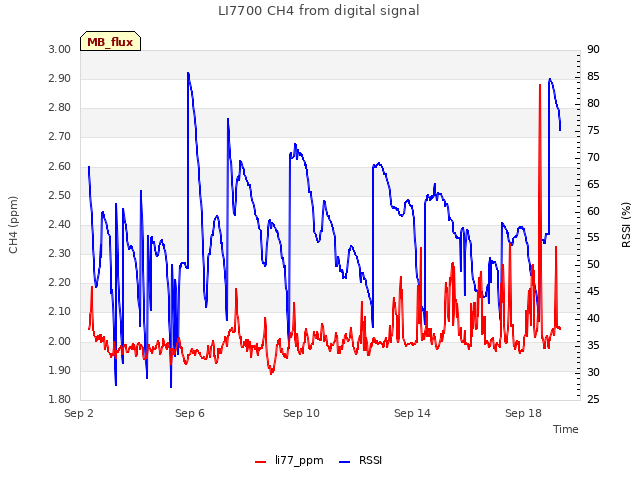

LI7700 CH4 from digital signal

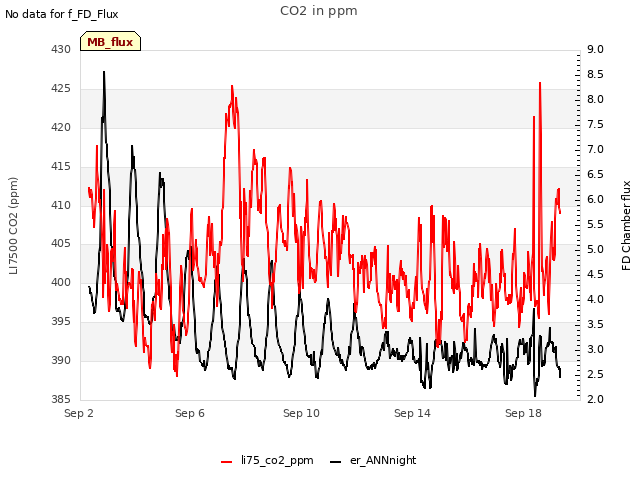

CO2 in ppm

No data found for MB_met.
27 MB_tule graphs found

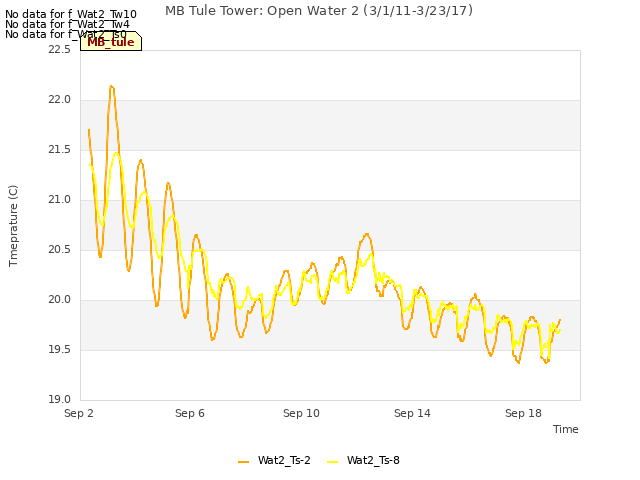

MB Tule Tower: Open Water 2 (3/1/11-3/23/17)

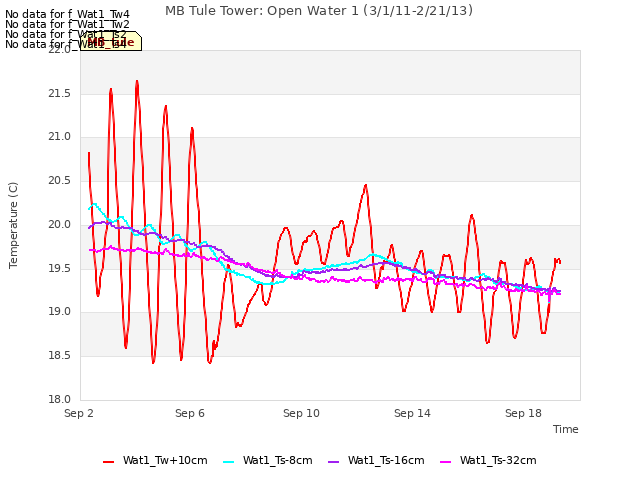

MB Tule Tower: Open Water 1 (3/1/11-2/21/13)

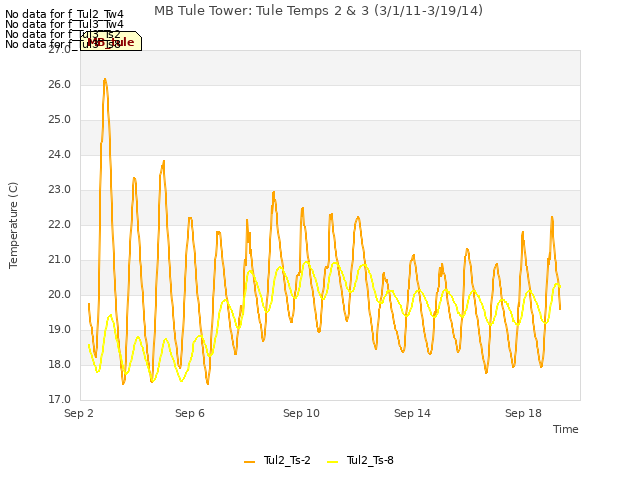

MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14)

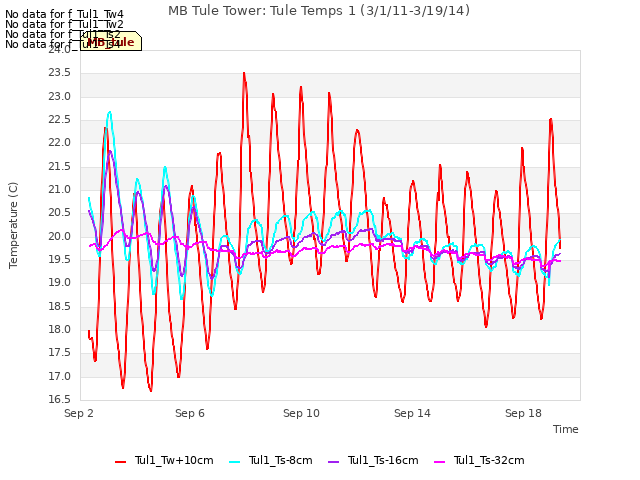

MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14)

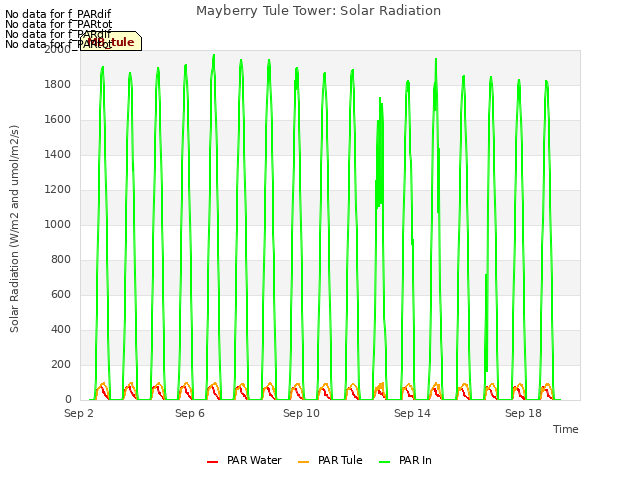

Mayberry Tule Tower: Solar Radiation

Mayberry Tule Tower: Disolved Oxygen

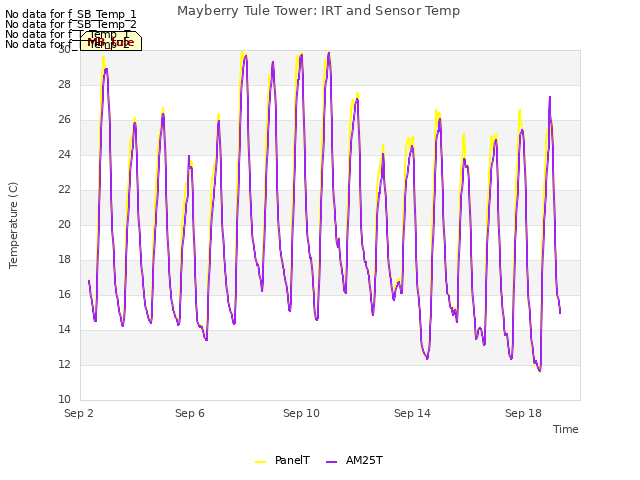

Mayberry Tule Tower: IRT and Sensor Temp

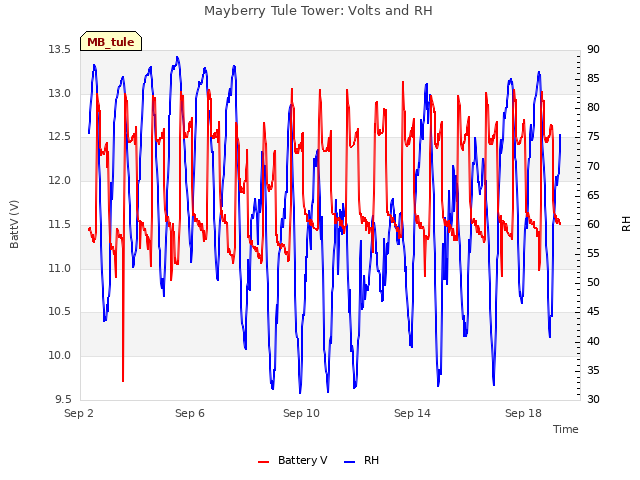

Mayberry Tule Tower: Volts and RH

LED NDVI Sensor

Water CO2

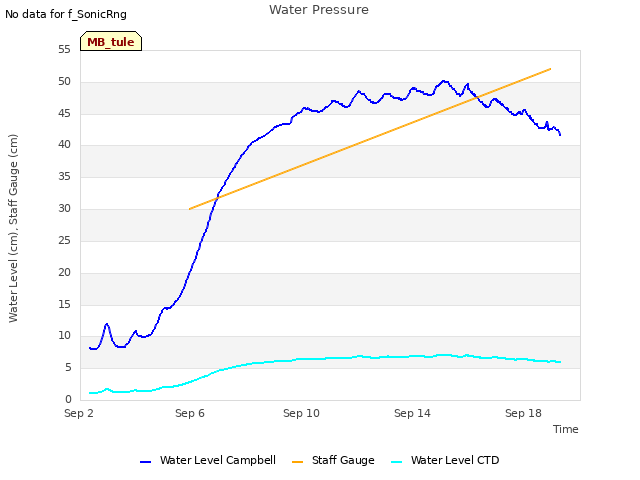

Water Pressure

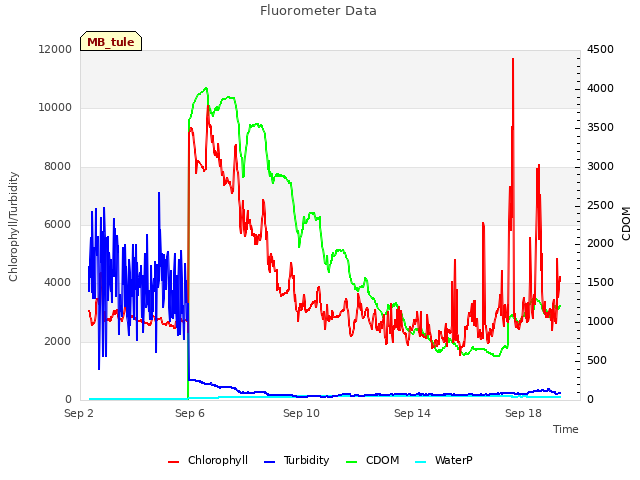

Fluorometer Data

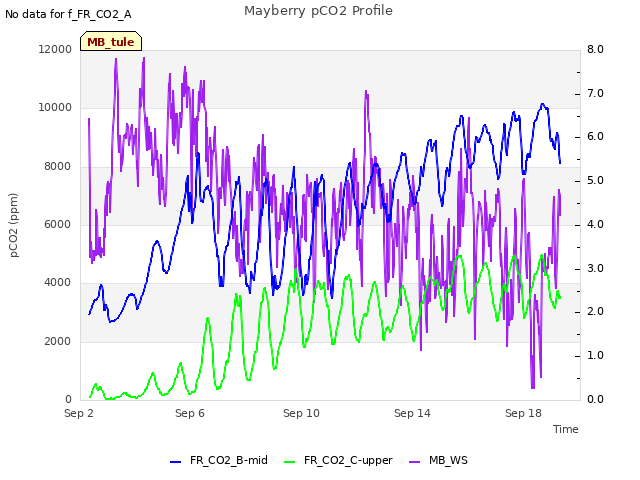

Mayberry pCO2 Profile

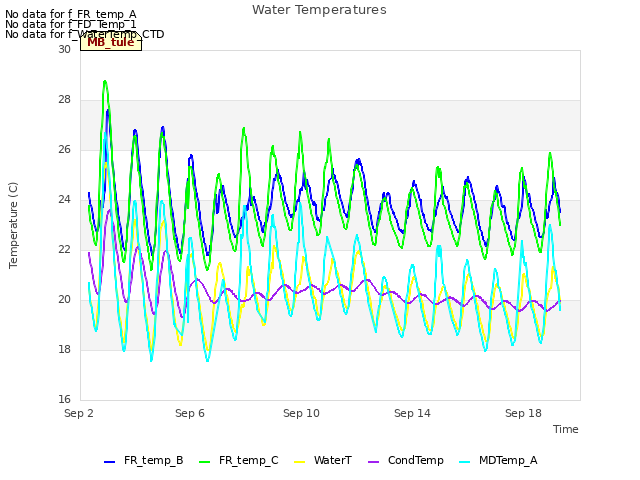

Water Temperatures

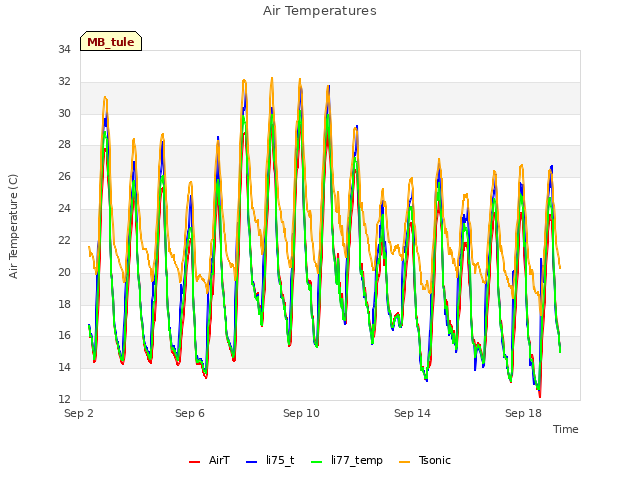

Air Temperatures

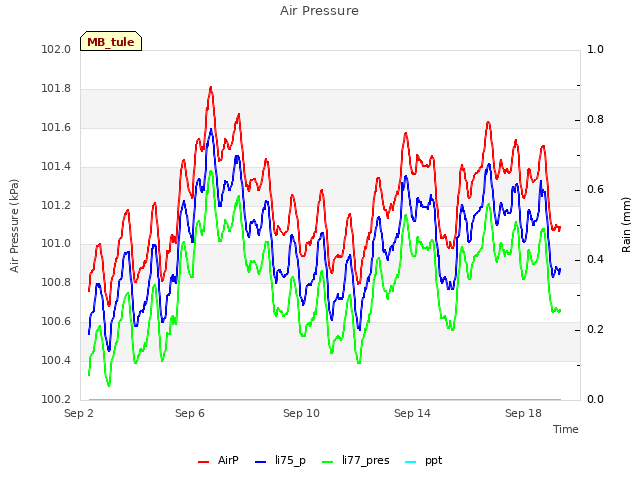

Air Pressure

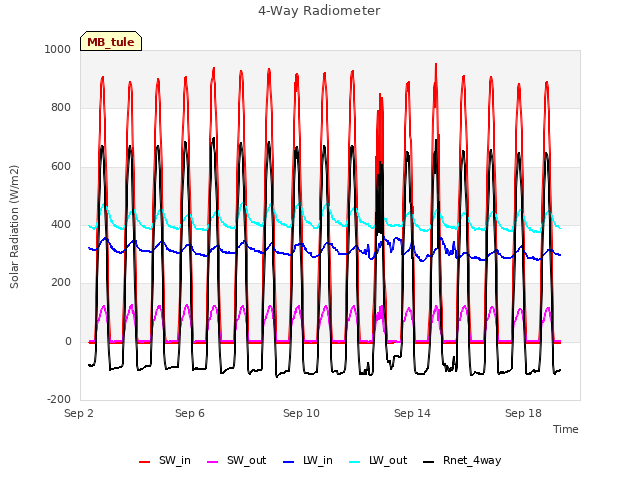

4-Way Radiometer

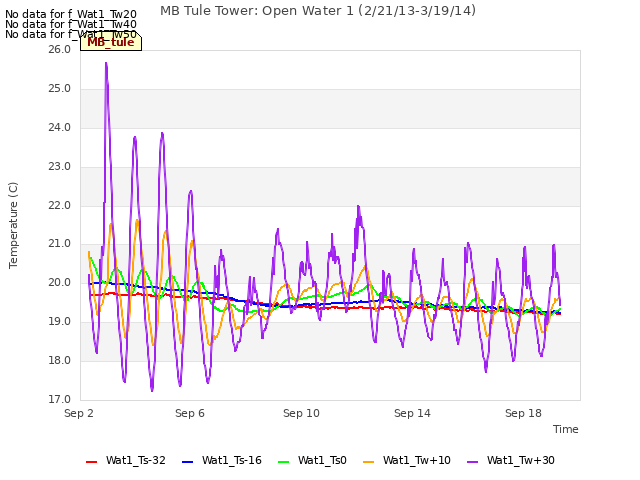

MB Tule Tower: Open Water 1 (2/21/13-3/19/14)

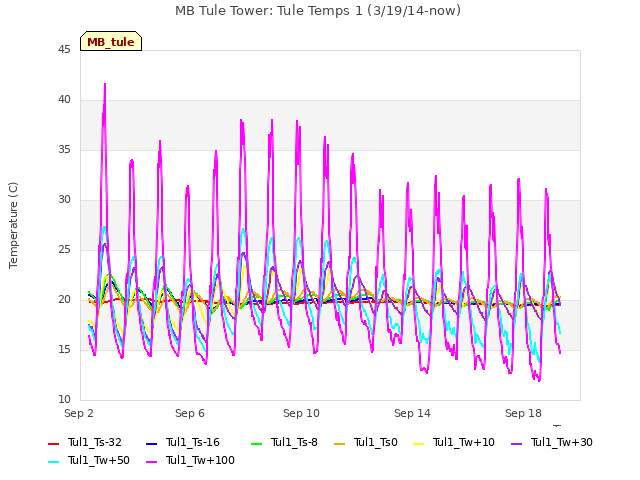

MB Tule Tower: Tule Temps 1 (3/19/14-now)

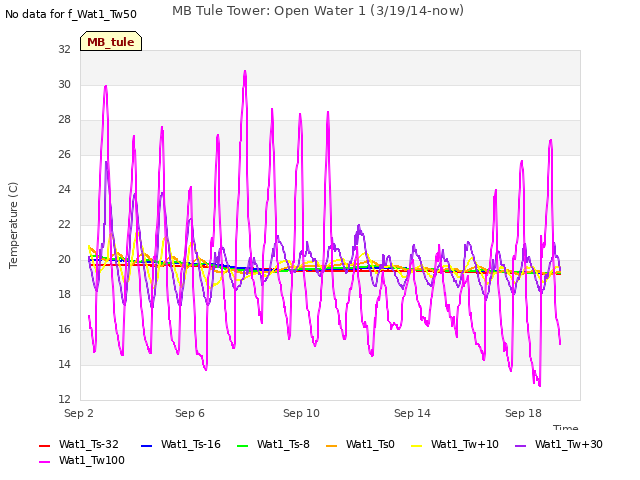

MB Tule Tower: Open Water 1 (3/19/14-now)

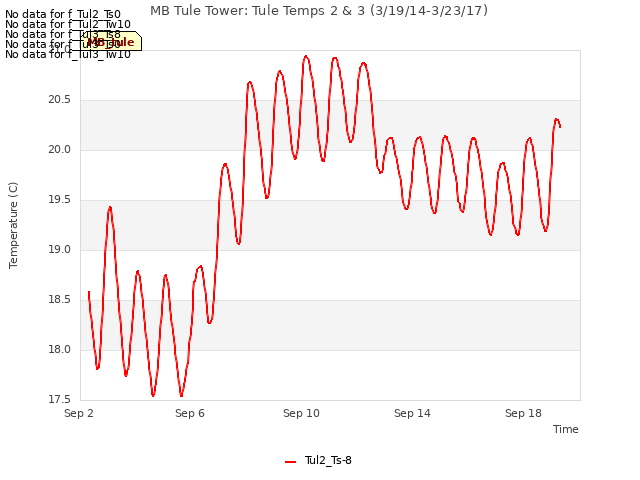

MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17)

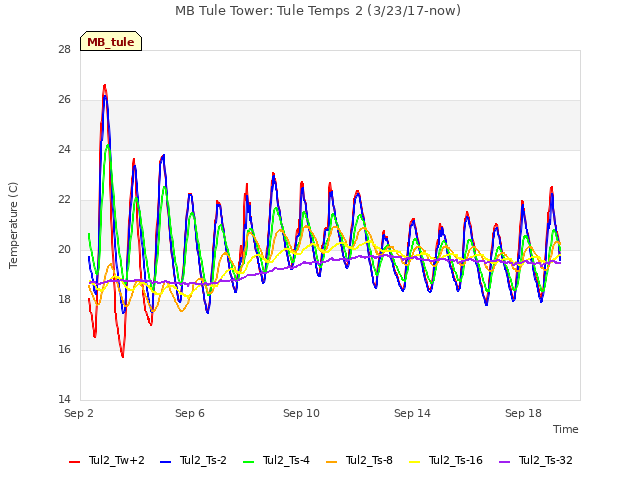

MB Tule Tower: Tule Temps 2 (3/23/17-now)

MB Tule Tower: Tule Temps 3 (3/23/17-now)

SRS NDVI Channels

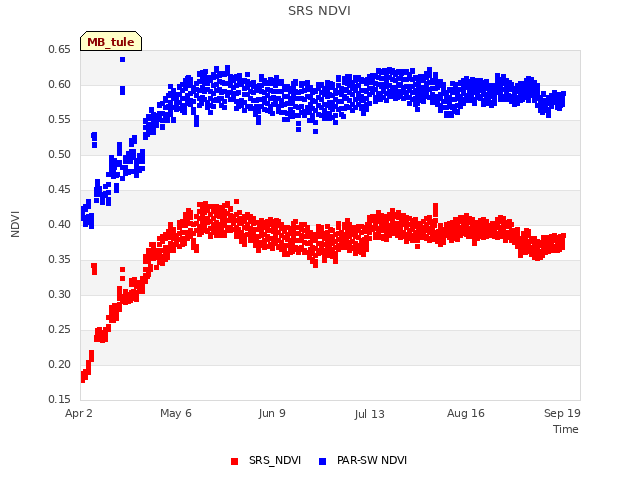

SRS NDVI

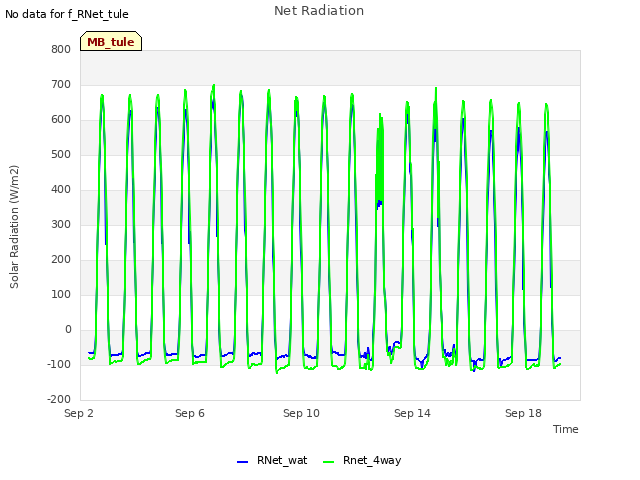

Net Radiation

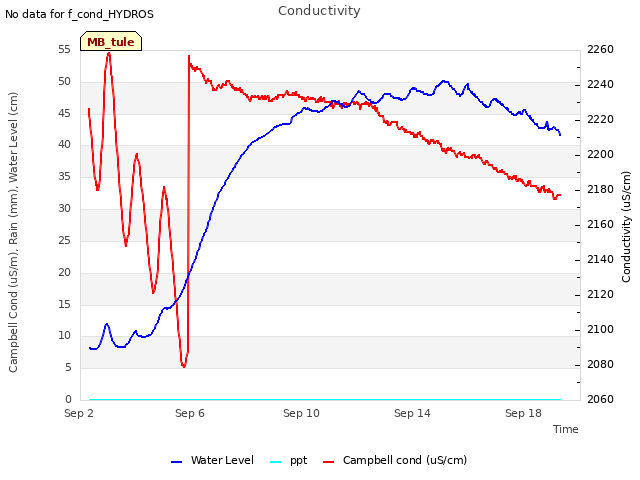

Conductivity

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

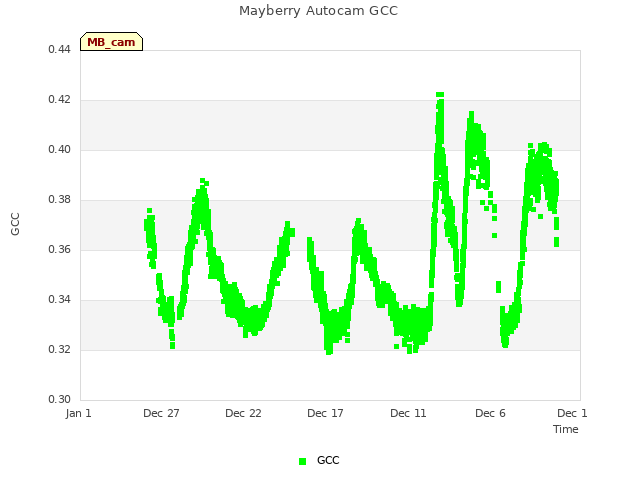

Mayberry Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

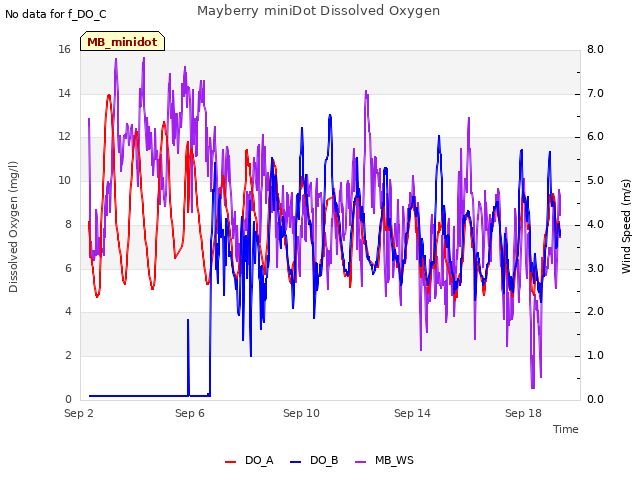

Mayberry miniDot Dissolved Oxygen

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

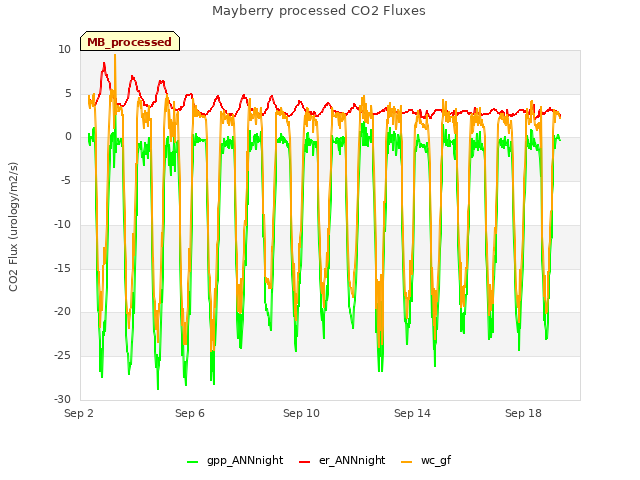

Mayberry processed CO2 Fluxes

Can't check MB_fd
1 MB_fd graphs found

Water Forced Diffusion CO2 Flux
