Field Notes

<--2023-03-13 11:50:00 | 2023-04-11 14:50:00-->
Other sites visited today: Gilbert Tract | Mayberry | West Pond | East End | Bouldin Corn | Hill Slough
Phenocam link: Searching...

Bouldin Alfalfa: 2023-04-03 15:45:00 (DOY 93)
Author: Daphne Szutu
Others: Carlos

Summary: Regular data collection/cleaning, field is slightly greener but very weedy, FD chamber data bad--needs replacement next time

2023-04-03
Bouldin Alfalfa

Carlos and I arrived at 15:45 PDT. The road leading up to the field was drier than I expected—only a little mud remains on that sharp right turn just past the ditch. It was mostly clear but there were many cumulus, rain clouds, and virga on the horizons to the W and NW. It was windy and cold.

The alfalfa field is looking greener than last time but still very weedy. I pulled one mustard plant between our tower and solar panel. Some of the alfalfa leaves have little holes in them. Maybe from insects or from herbicides? I need to call Ben about their plans for this alfalfa field.

Carlos took spectra measurements and cleaned flux and rad sensors. I downloaded met, cam USB GHG, FD, and IRT data. The FD software did not find the eosFD serial number upon connecting. That's happened a few times in the past and it seems to be ok, but this time the FD data also looked bad. This chamber might be done soon. I'll check again next time and bring a spare if we have one.

The Licor ET sensor looks clean. I meant to bring bird spikes to install but forgot. Next time.

The 7500 read: 420ppm CO2, 226mmol/m3 H2O, 16.2C, 101.8kPa, 105SS—106 after cleaning.

We left at 16:10 PDT and drove the back way to return to Bouldin Corn. I needed to send the Corteva IRT program to the CR1000X.

Next Mowing: 2023-05-10

0 photos found

Graphs display:
7 sets found

4 BA_flux graphs found

Explore the graph:Wind in a new window

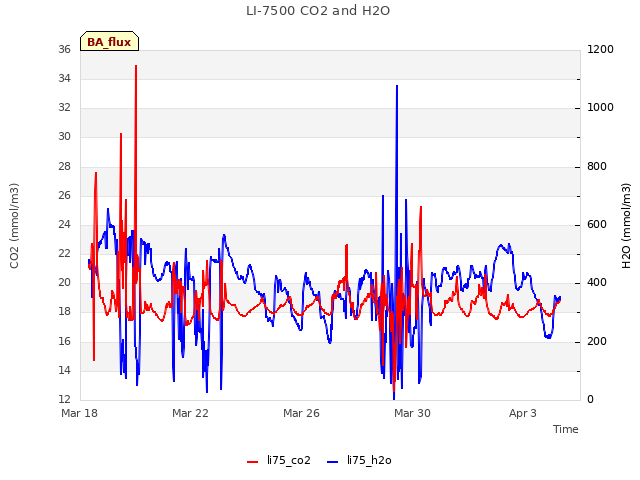

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

Explore the graph:Soil Temperatures Set A in a new window

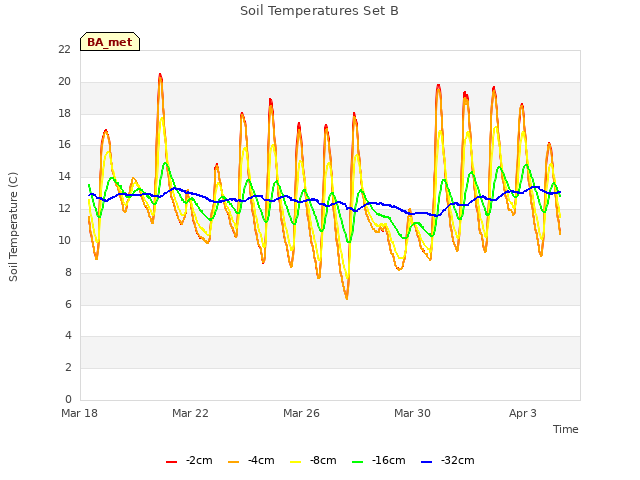

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

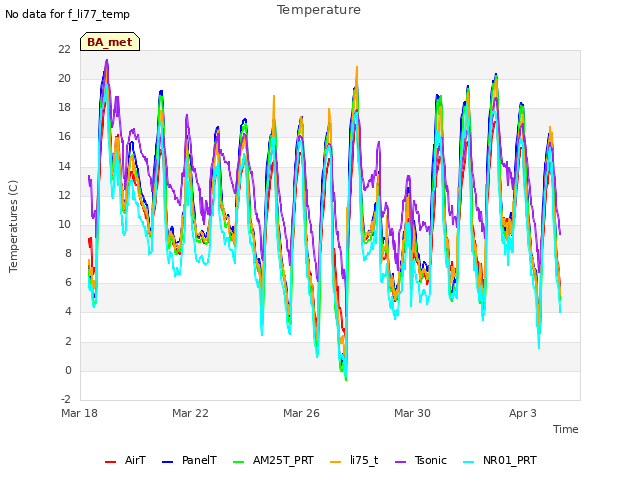

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

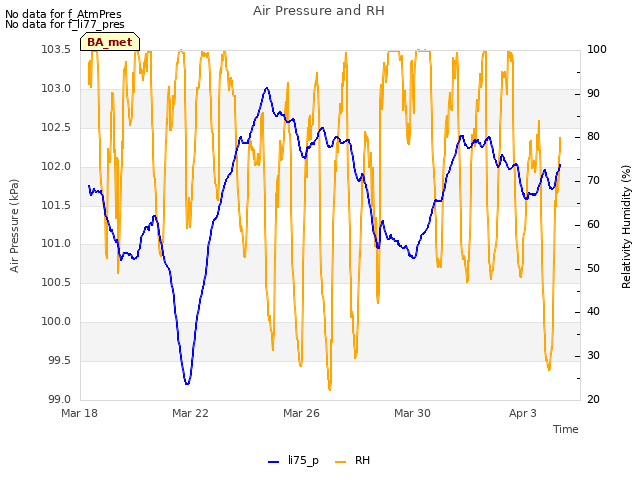

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

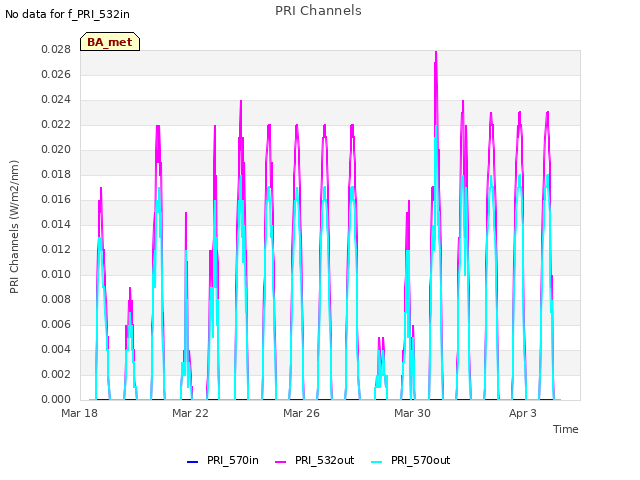

Explore the graph:PRI Channels in a new window

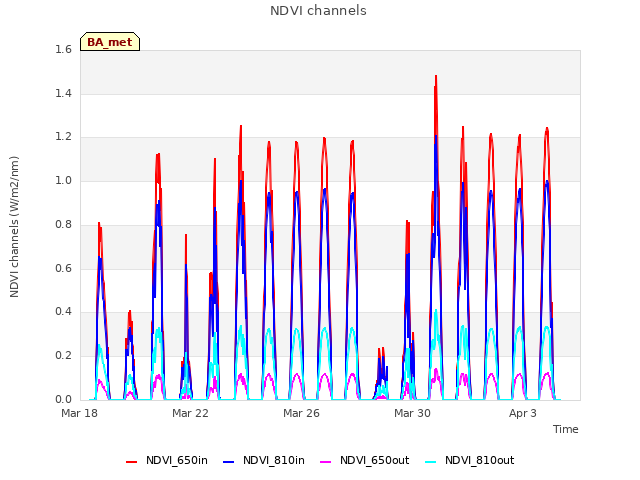

Explore the graph:NDVI channels in a new window

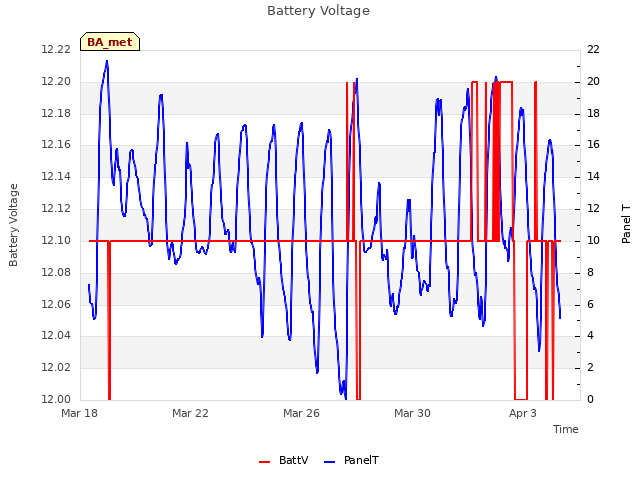

Explore the graph:Battery Voltage in a new window

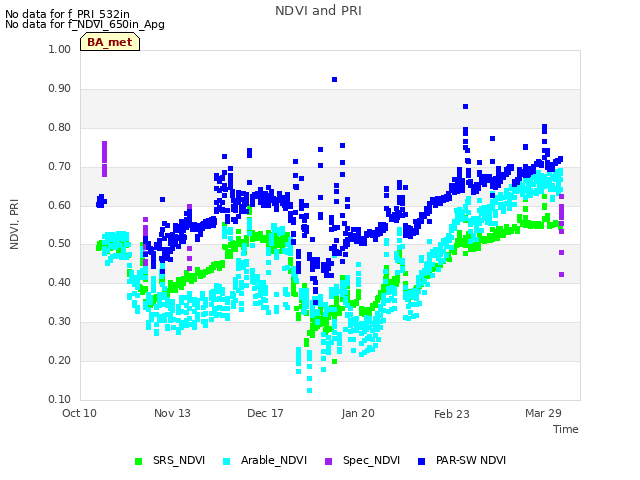

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

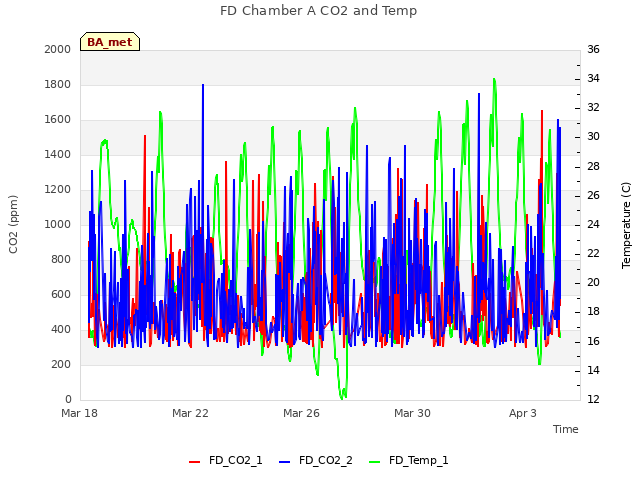

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

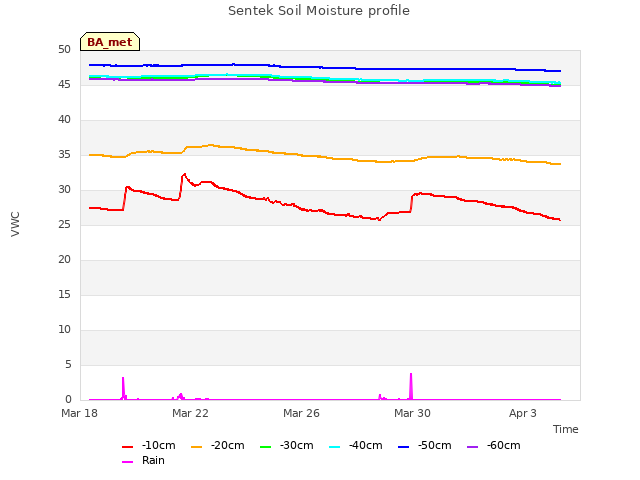

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

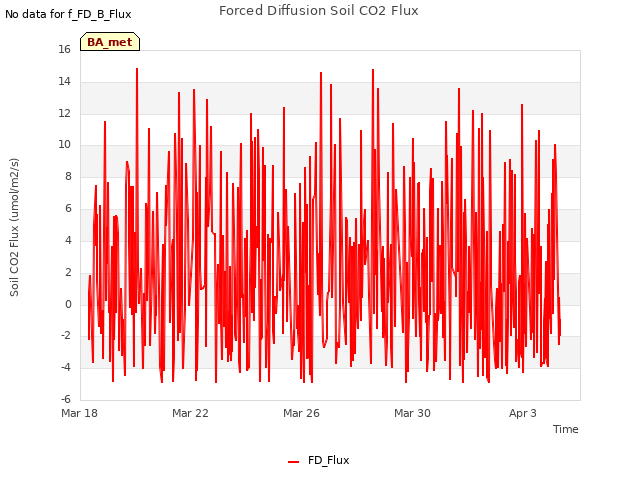

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

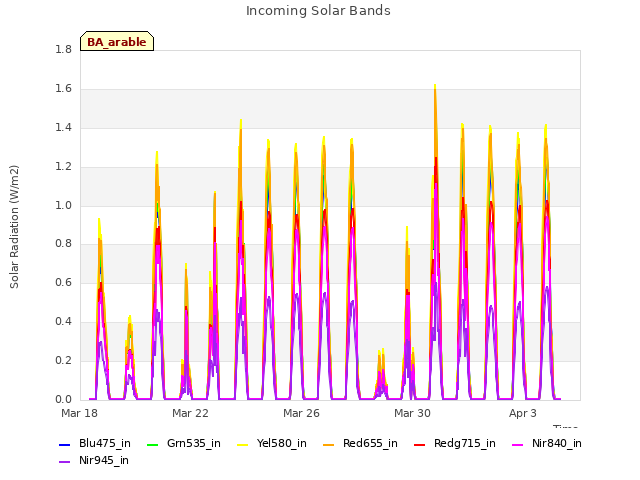

Explore the graph:Incoming Solar Bands in a new window

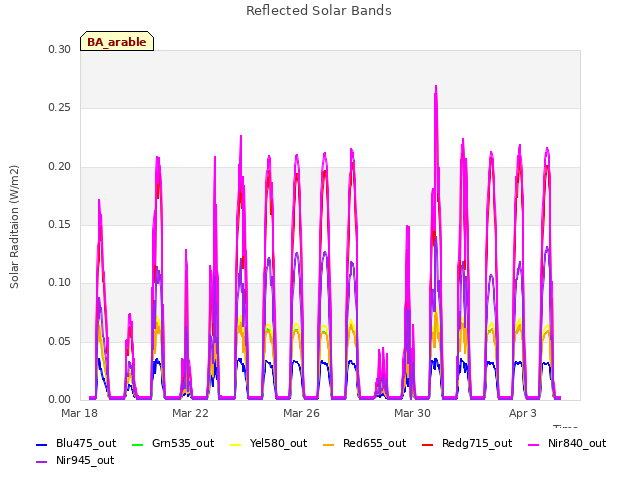

Explore the graph:Reflected Solar Bands in a new window

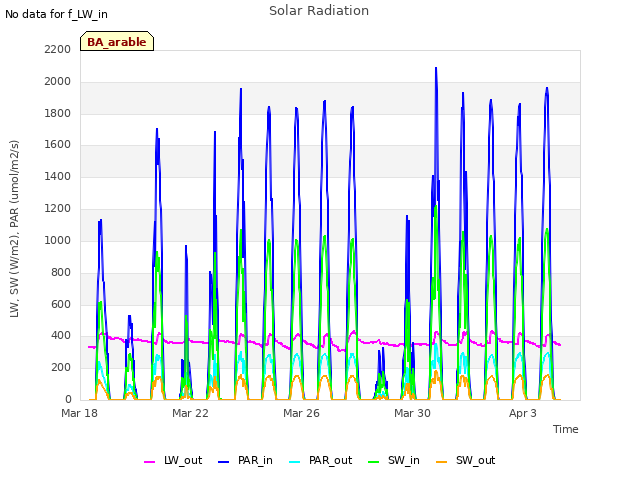

Explore the graph:Solar Radiation in a new window

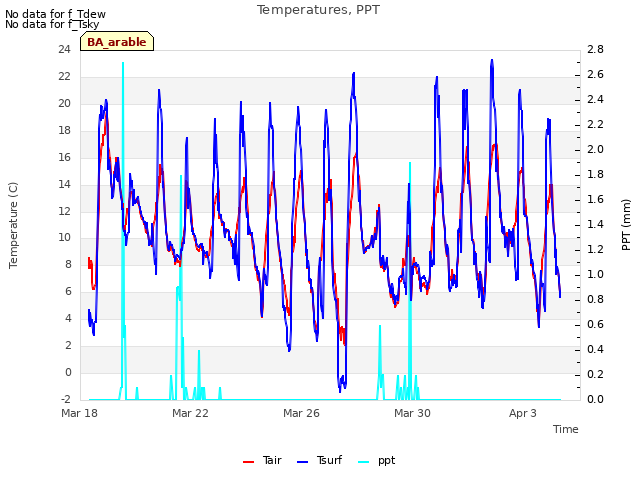

Explore the graph:Temperatures, PPT in a new window

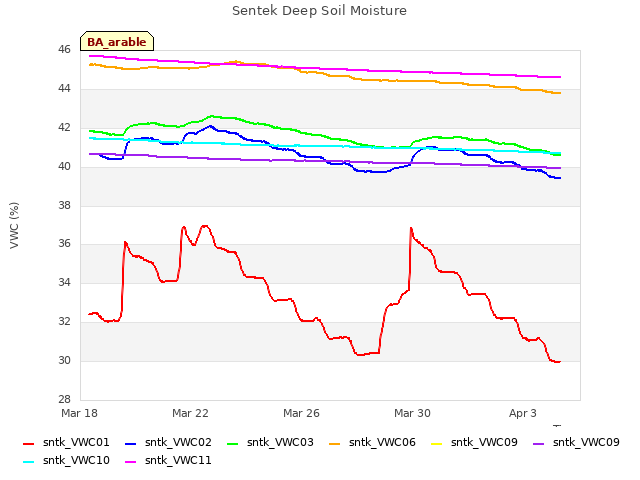

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

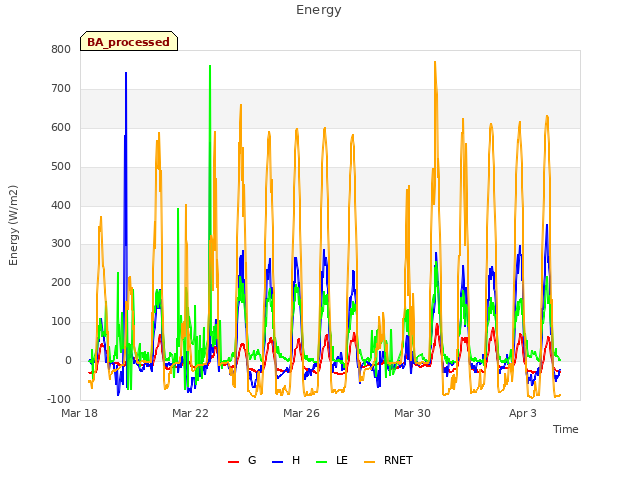

Explore the graph:Energy in a new window

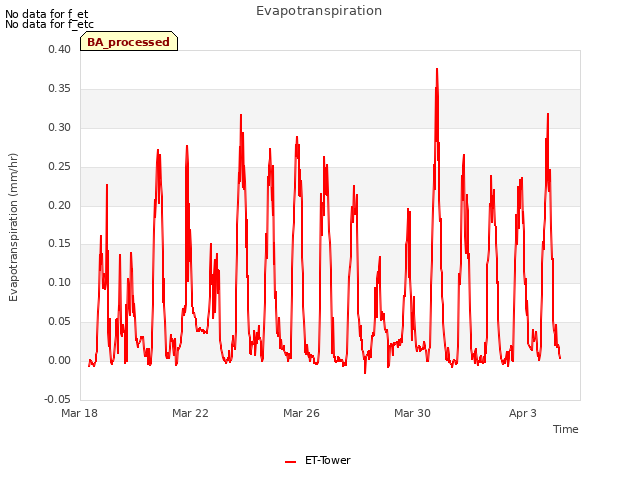

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
