Bouldin Alfalfa: 2024-02-28 16:05:00 (DOY 59)
Author: Daphne Szutu
Others: Joe

Summary: Field has been grazed by geese/swan, updated met program to fix typo in Bowen calculation

2024-02-28
Bouldin Alfalfa

Joe and I arrived at 16:05 PST. It was warm and sunny. We could smell whiffs of some and could see a small smoke plume to our south. Some of the fields we pass on the drive in have been sprayed and are all brown.

Birds have been grazing our field: the center of the field looks raggedy with veg height about 0. The sides of the field, and a ring around our tower, looks not bad, with veg height of about 10-25cm. Lots of weeds coming up everywhere.

Joe cleaned flux and rad sensors and cleaned off a small spider poop from inside the phenocam window.

He attempted spectral measurements but the spectrometer was having problems. The reflected light was brighter than the incoming reference. The sun was pretty low in the sky.

I downloaded met, cam, USB GHG, and FD data. I uploaded a new CR1000 program to correct a typo in the Bowen calculations: the qsat formula now uses esat instead of ea.

The 7500 read: 430ppm CO2, 330mmol/m3 H2O, 20.8C, 101.5kPa, 97SS – forgot to write down after cleaning

We left at 16:30 PST. I thought I saw the exit gate open as we drove in. However, it was closed (our usual code didn’t work) so I still had to exit eastbound onto Hwy 12 and turn around. I realized there are two gates at the exit: a grey one and a yellow one. Earlier I had seen the grey one was open and didn’t check the yellow gate. I’ll e-mail our Bouldin contact, Russ Ryan, for the updated code.

Next Mowing: 2024-04-29

0 photos found

Graphs display:
7 sets found

4 BA_flux graphs found

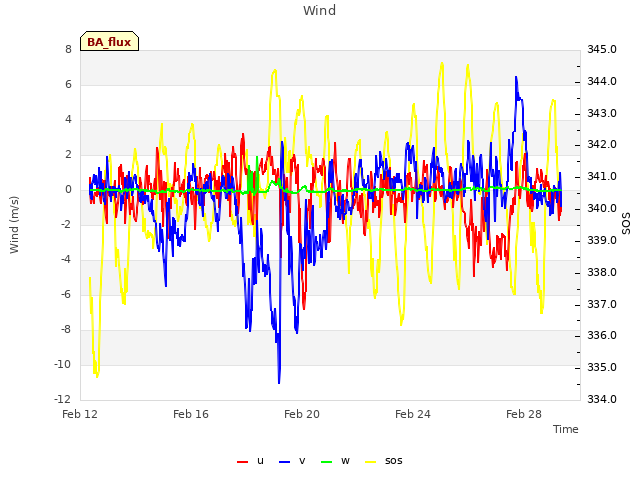

Explore the graph:Wind in a new window

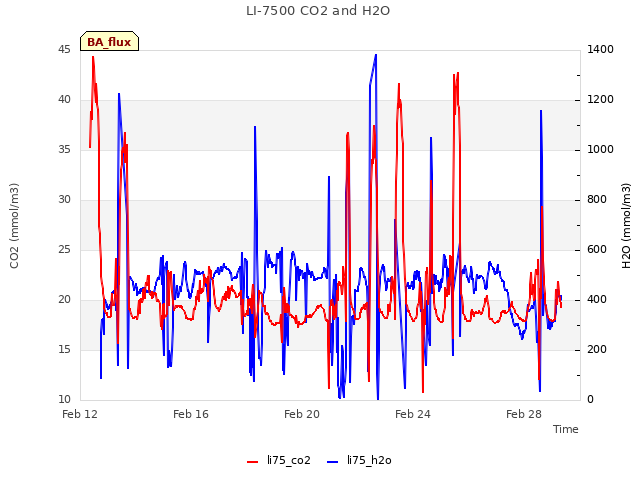

Explore the graph:LI-7500 CO2 and H2O in a new window

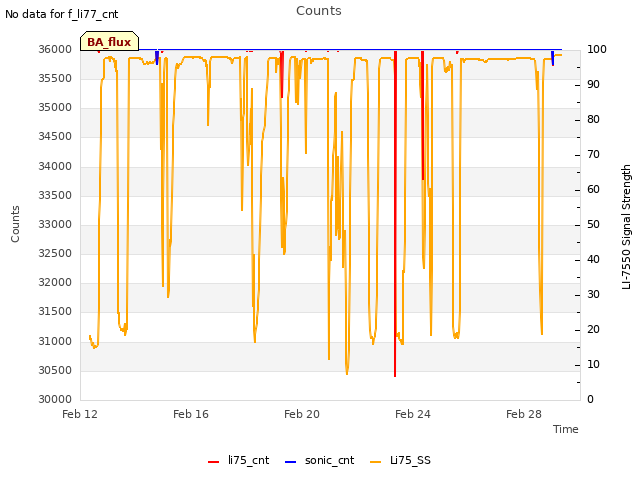

Explore the graph:Counts in a new window

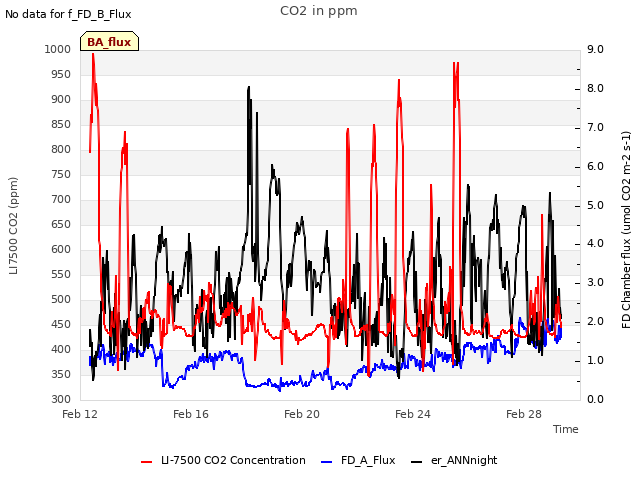

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

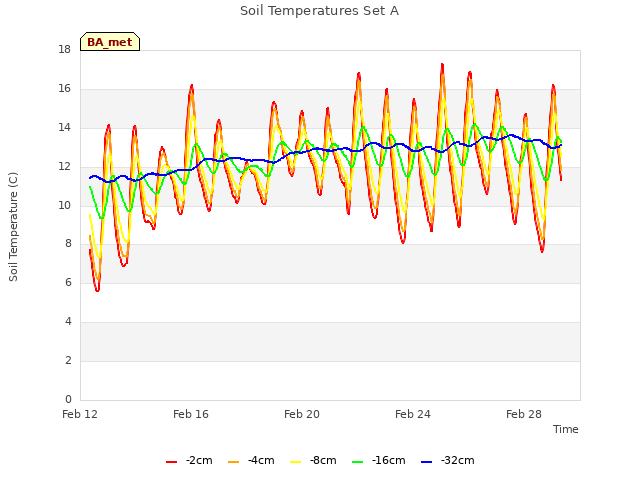

Explore the graph:Soil Temperatures Set A in a new window

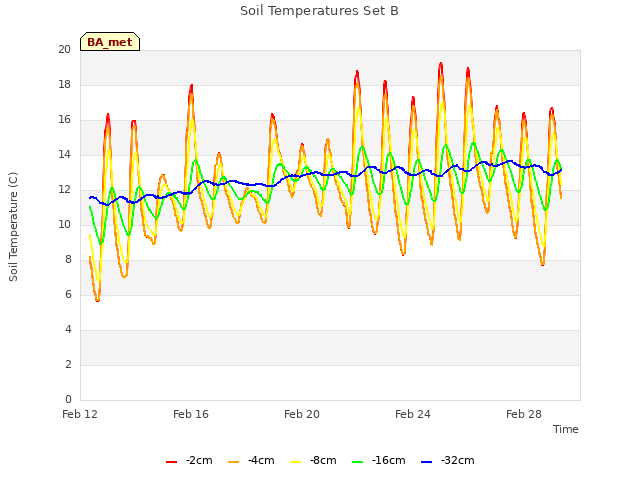

Explore the graph:Soil Temperatures Set B in a new window

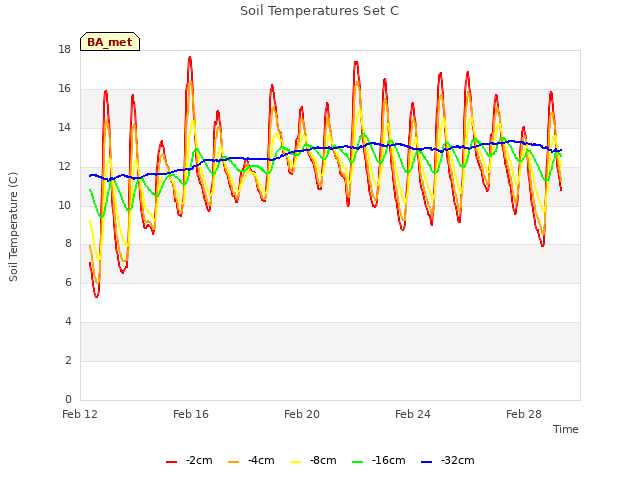

Explore the graph:Soil Temperatures Set C in a new window

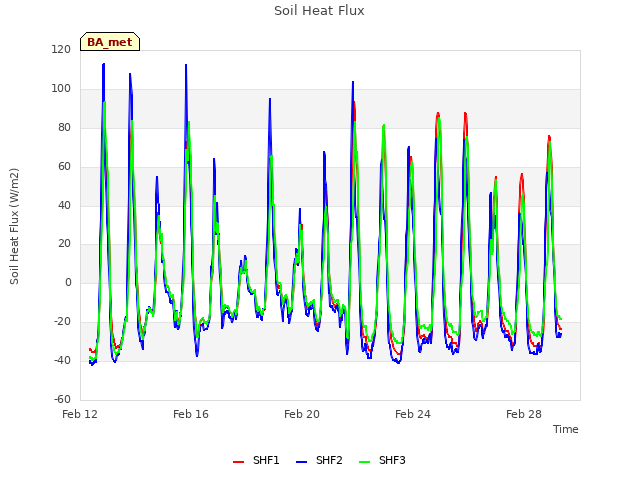

Explore the graph:Soil Heat Flux in a new window

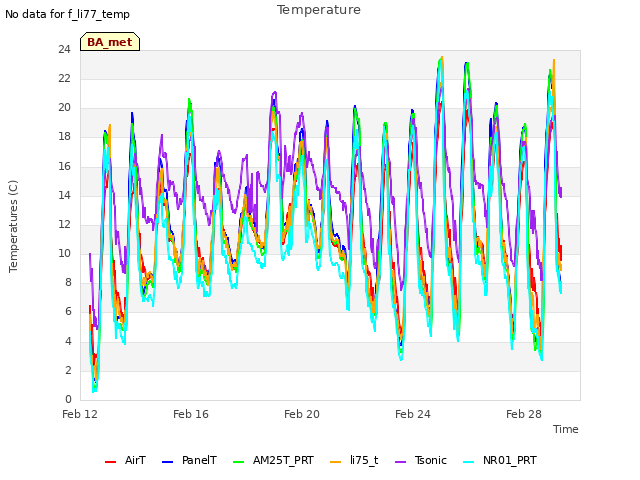

Explore the graph:Temperature in a new window

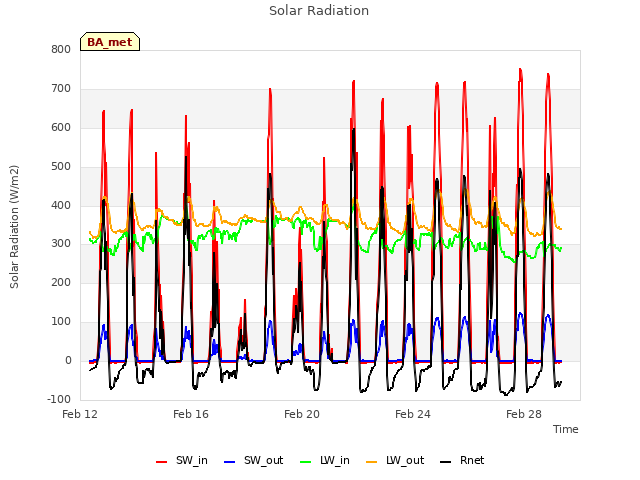

Explore the graph:Solar Radiation in a new window

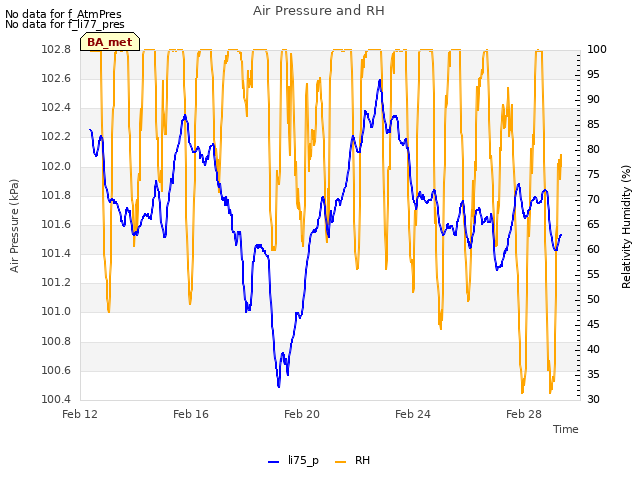

Explore the graph:Air Pressure and RH in a new window

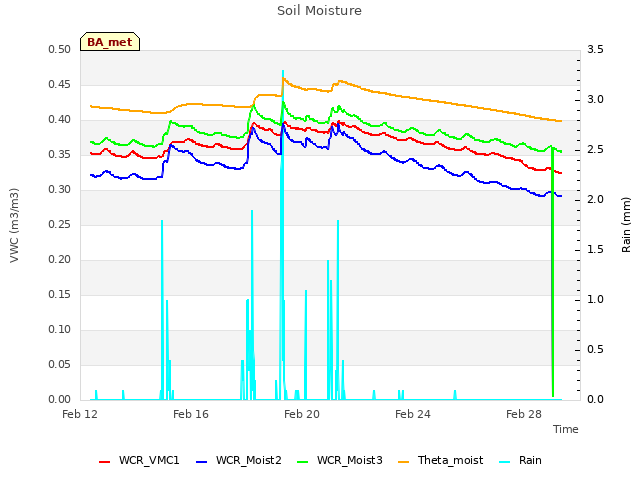

Explore the graph:Soil Moisture in a new window

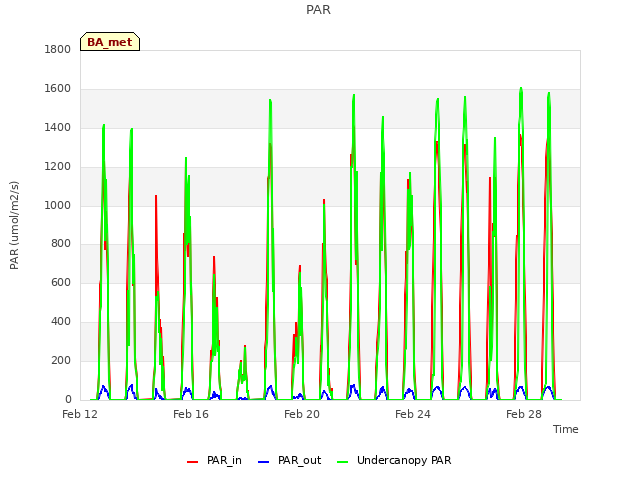

Explore the graph:PAR in a new window

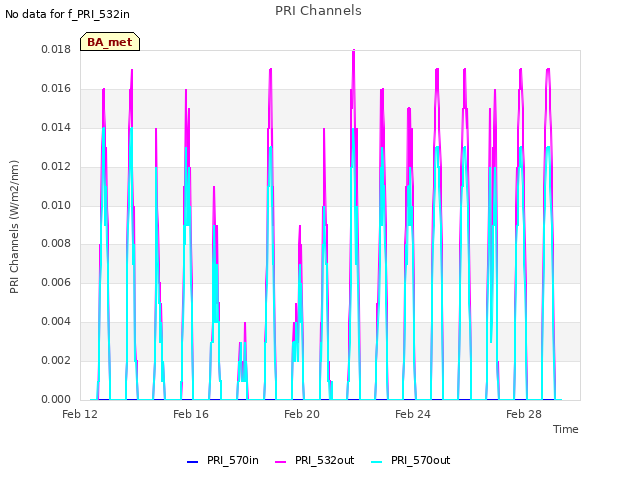

Explore the graph:PRI Channels in a new window

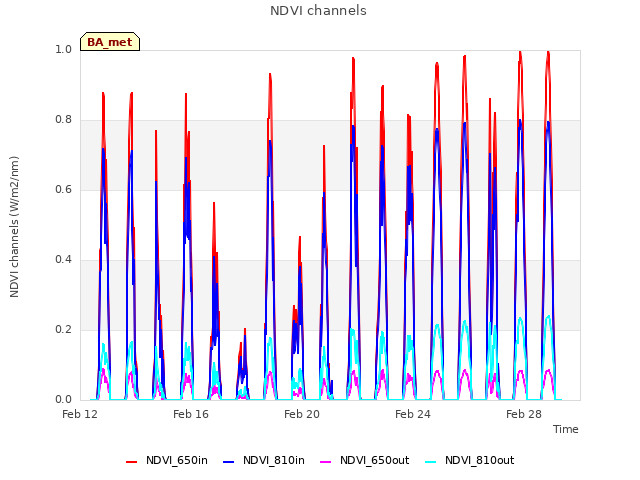

Explore the graph:NDVI channels in a new window

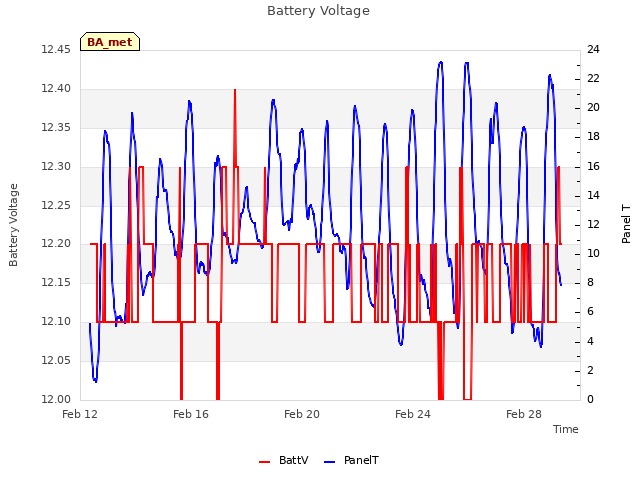

Explore the graph:Battery Voltage in a new window

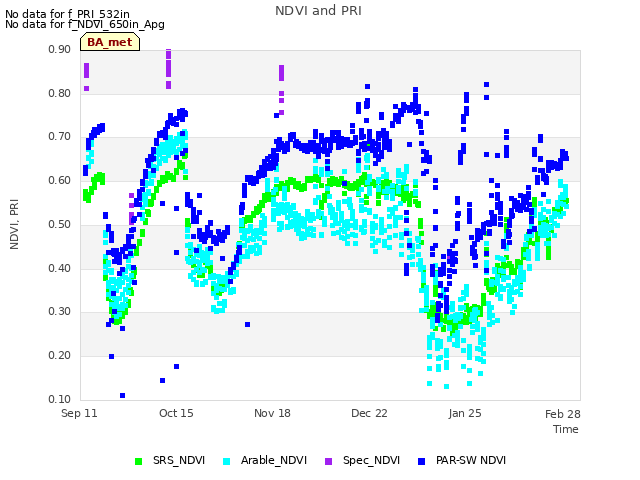

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

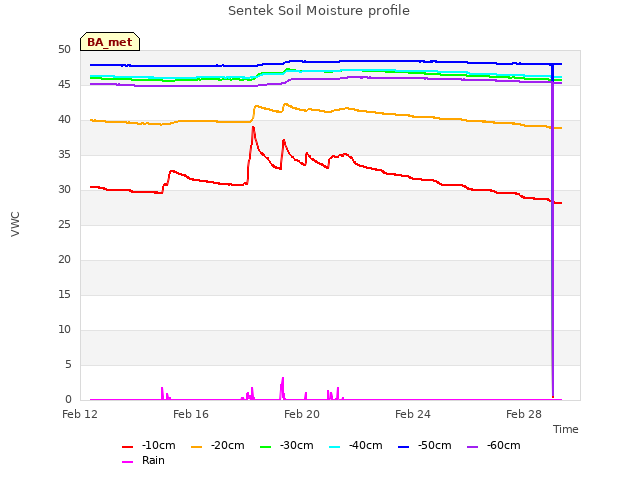

Explore the graph:Sentek Soil Moisture profile in a new window

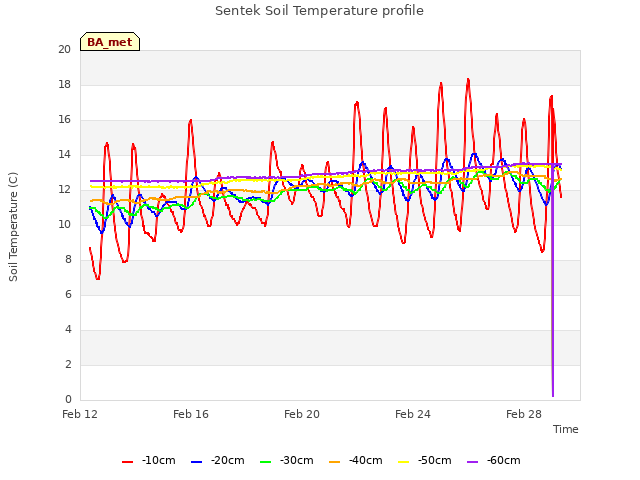

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

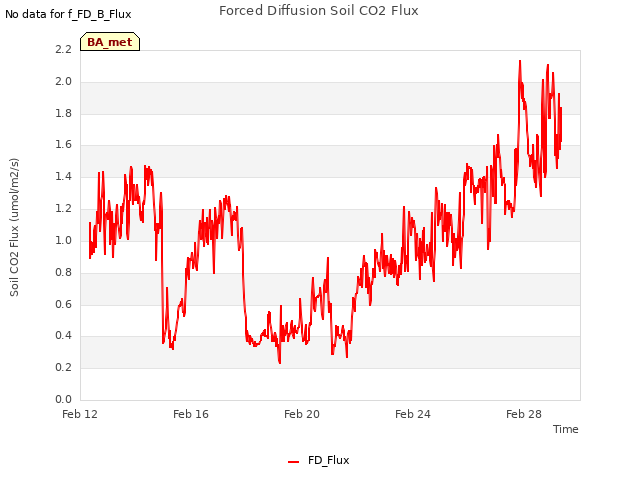

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

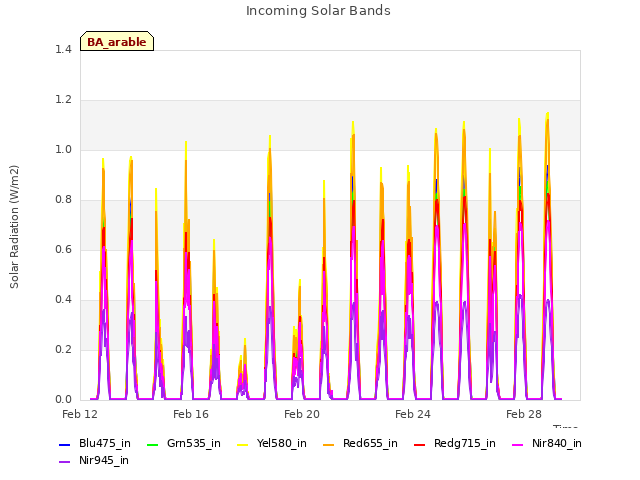

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

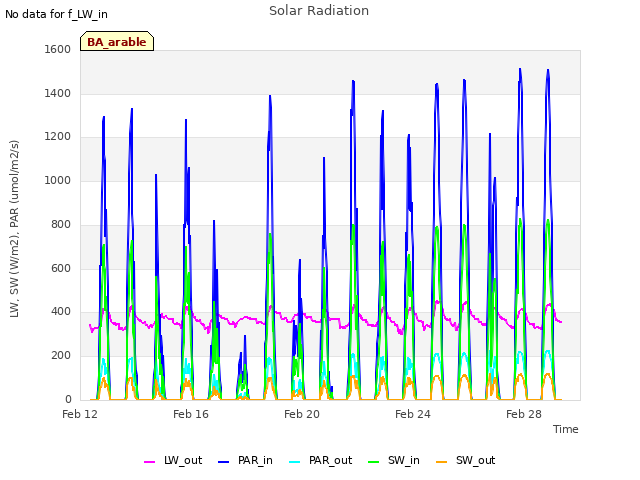

Explore the graph:Solar Radiation in a new window

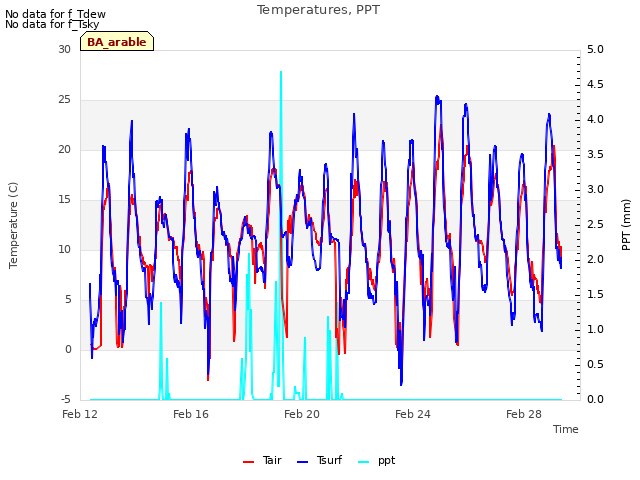

Explore the graph:Temperatures, PPT in a new window

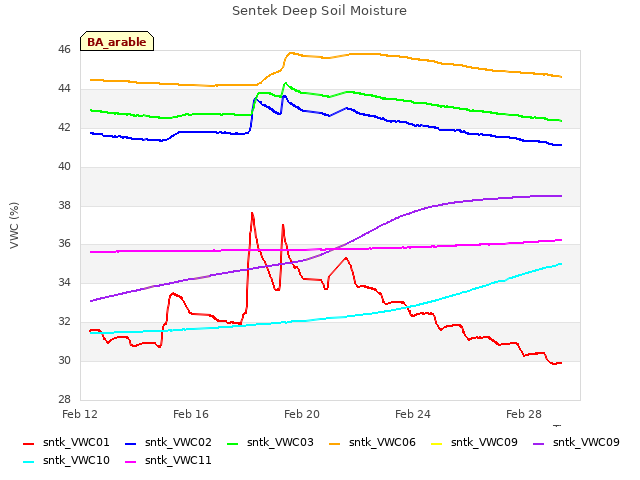

Explore the graph:Sentek Deep Soil Moisture in a new window

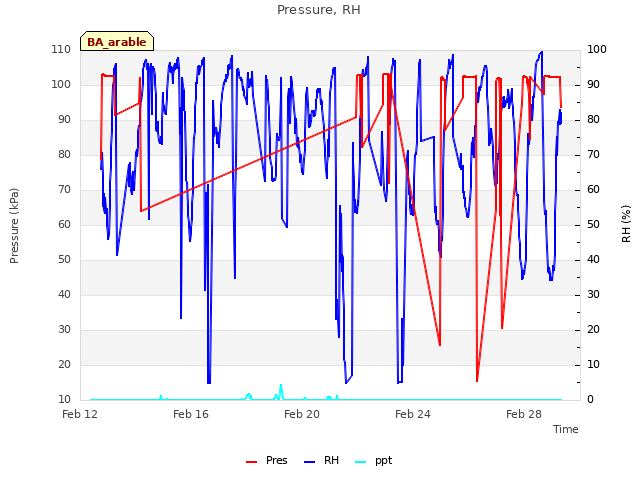

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

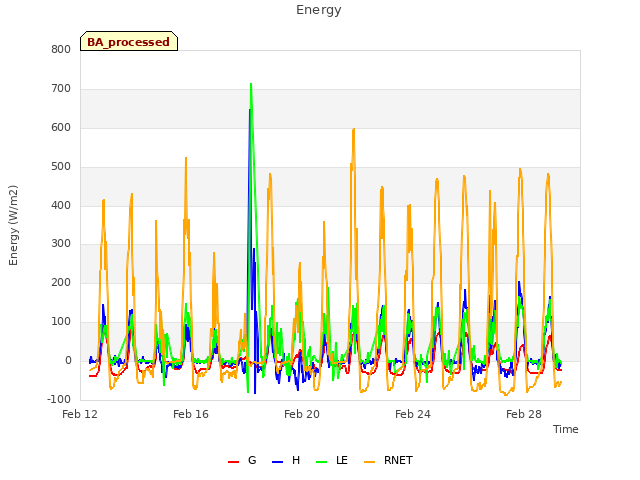

Explore the graph:Energy in a new window

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
