Field Notes

<--2024-01-30 14:35:00 | 2024-02-28 16:05:00-->
Other sites visited today: Bouldin Corn

Bouldin Alfalfa: 2024-02-14 10:00:00 (DOY 45)
Author: Joe Verfaillie
Others: Cove

Summary: Standard data collection, swapped Arable Mark 3, lots of weeds, spraying fields to our north.

Bouldin Alfalfa
2024-02-14

Cove and I arrived at about 10:00. There was a variable overcast with a cool breeze from the southeast with rain expected later today. Our field has somewhat recovered from grazing but still pretty sparse. Lots of weeds coming up everywhere. I pulled some thistles around our tower (I think Milk Thistle Silybum marianum). There were some bird of prey leftovers under the radiation boom. Fields to our east look in worse shape from grazing. They were spraying something (herbicide?) on the fields to our north.

We swapped out the Mark 3 Arable unit: sn B301045 came off and sn D006812 went on with 2D sonic sn 022365394. It took some work to figure out how to mount the unit so that the solar panel was somewhat south, the sonic didn’t shade the radiometers and the sensors were looking at field and not tower. We added a meter long arm off the south west corner near the tipping bucket. I initially forgot to turn the unit on so we had to come back after corn to push its button. Loreli at Arable said she would send me an adapter to connect the long Sentek soil moisture probe to the new Mark 3 and we could then also remove the old Mark 2.

I did the regular data collection, met, flux, camera and FD.
The 7500 read: 464.7ppm CO2, 501.7mmol/m3 H2O, 13.7C, 101.8kPa, 97.7SS

I decided not to do spectra because the light was changing fast. Veg height between 0 and 20cm, very patchy, on average probably on the low end.

We left for corn at 11:00. The automatic gate on the north side of Hwy12 wouldn’t open for our code. We went back around, over the bridge and looped around.

Next Mowing: 2024-02-16

1 photos found

Cove swapping Arable Mark 3
Cove swapping Arable Mark 3

Graphs display:
7 sets found

4 BA_flux graphs found

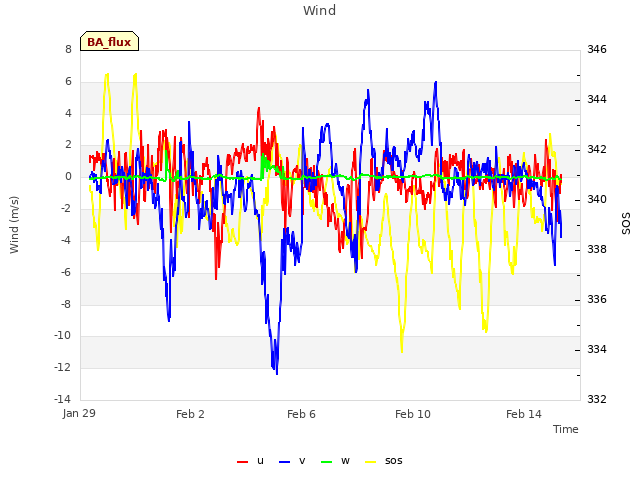

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

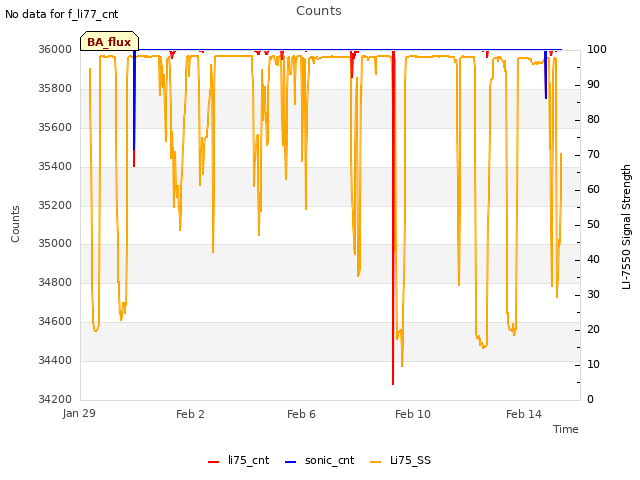

Explore the graph:Counts in a new window

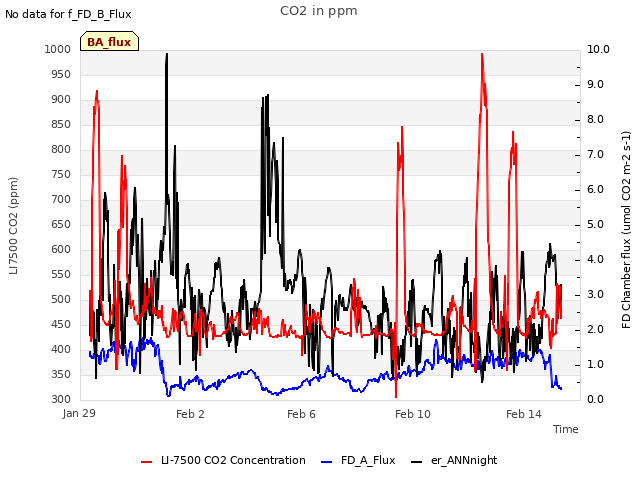

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

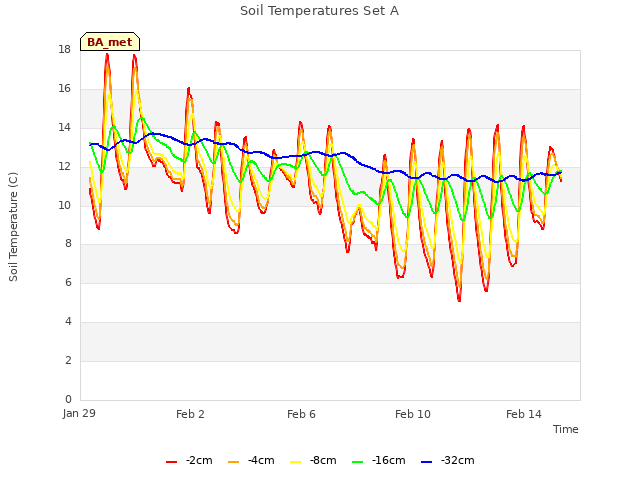

Explore the graph:Soil Temperatures Set A in a new window

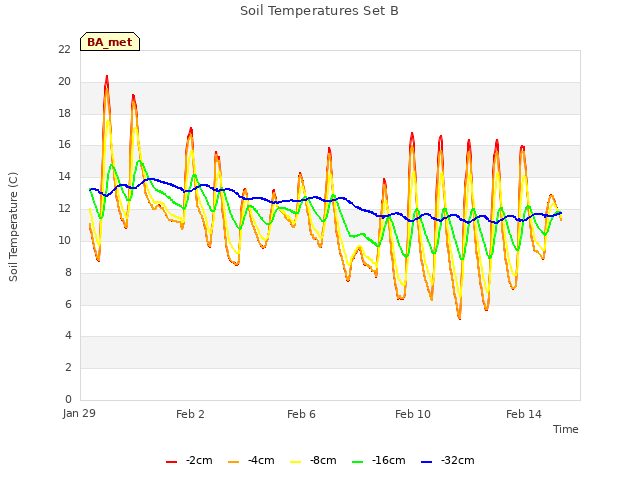

Explore the graph:Soil Temperatures Set B in a new window

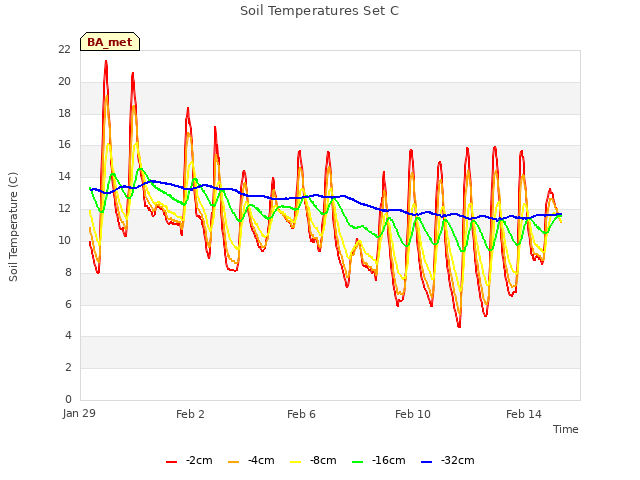

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

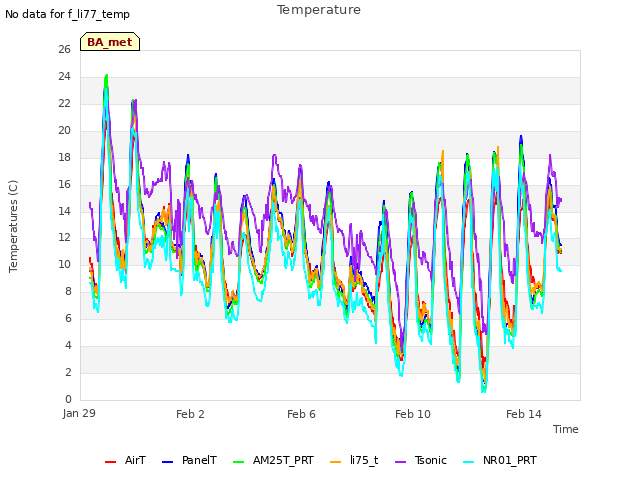

Explore the graph:Temperature in a new window

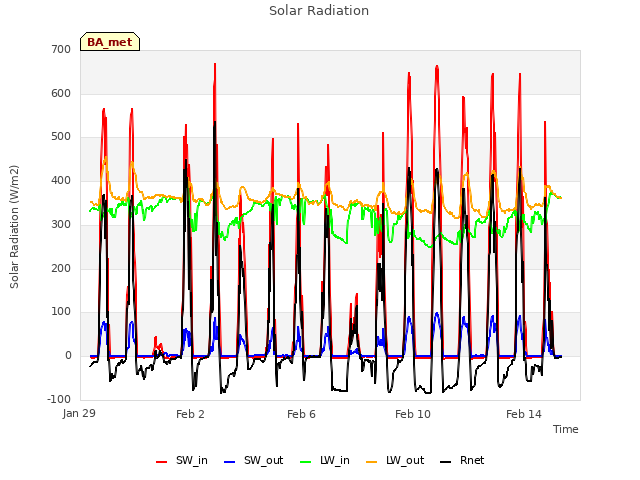

Explore the graph:Solar Radiation in a new window

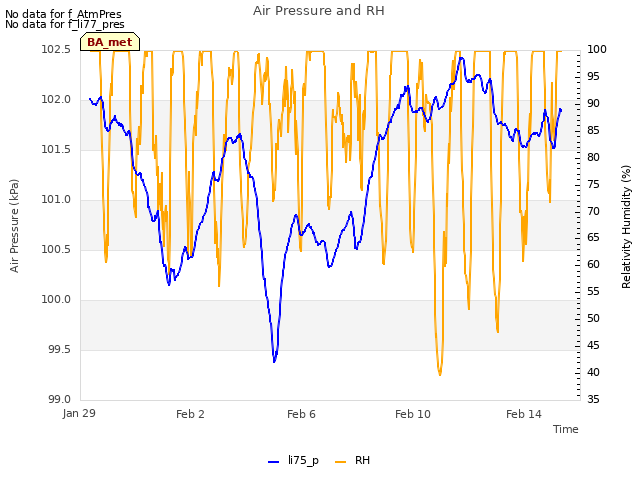

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

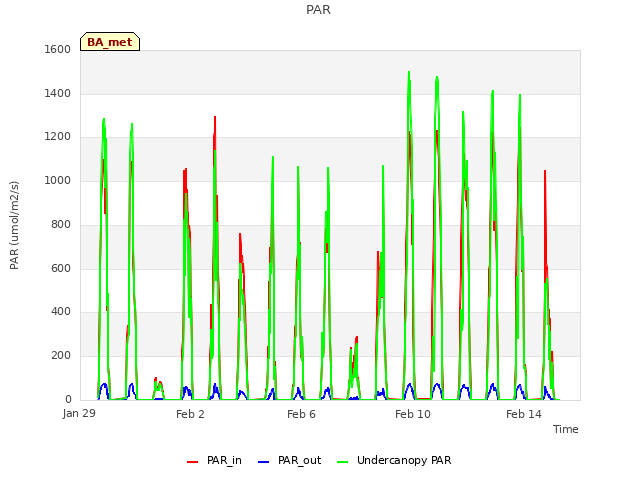

Explore the graph:PAR in a new window

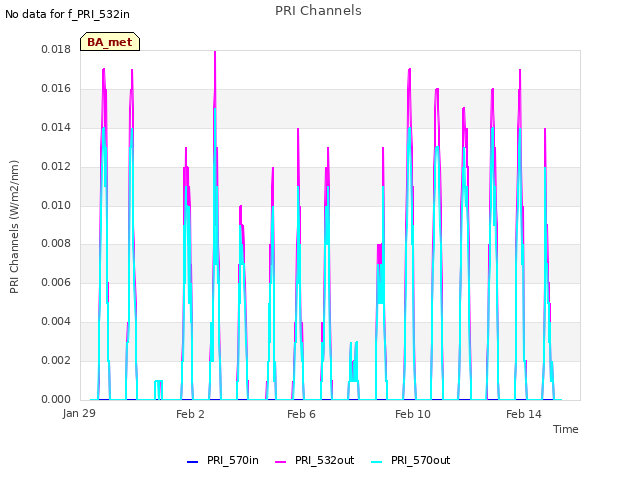

Explore the graph:PRI Channels in a new window

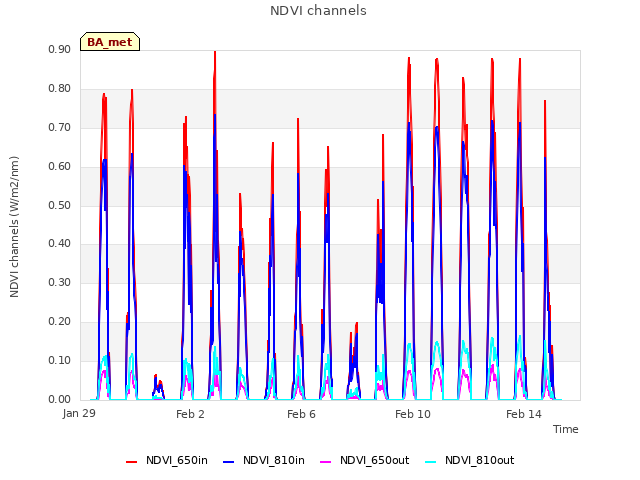

Explore the graph:NDVI channels in a new window

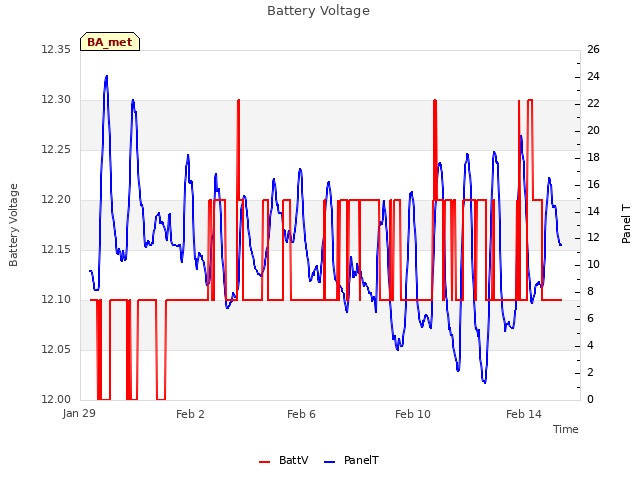

Explore the graph:Battery Voltage in a new window

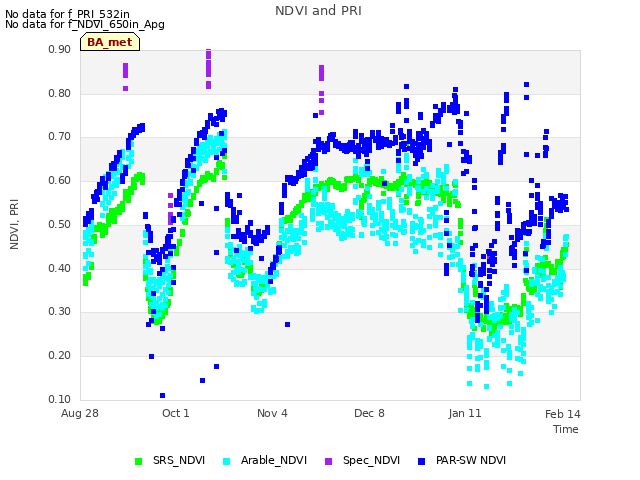

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

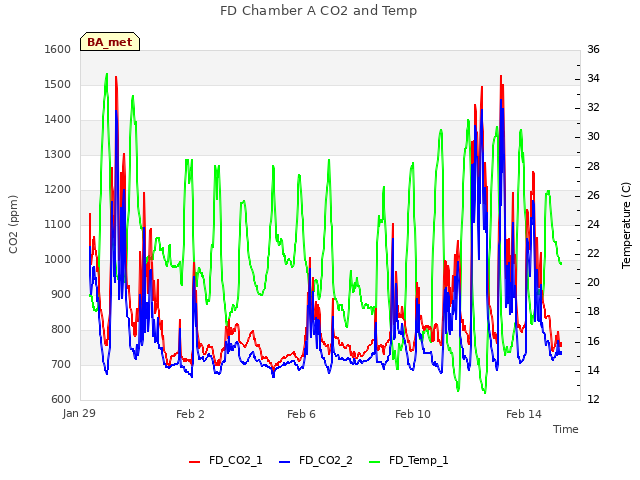

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

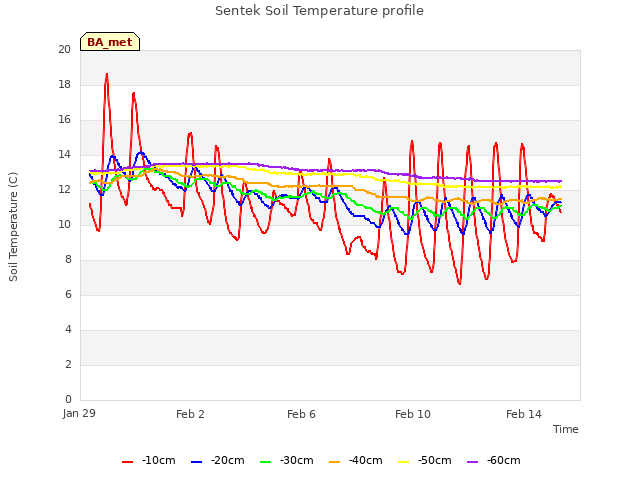

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

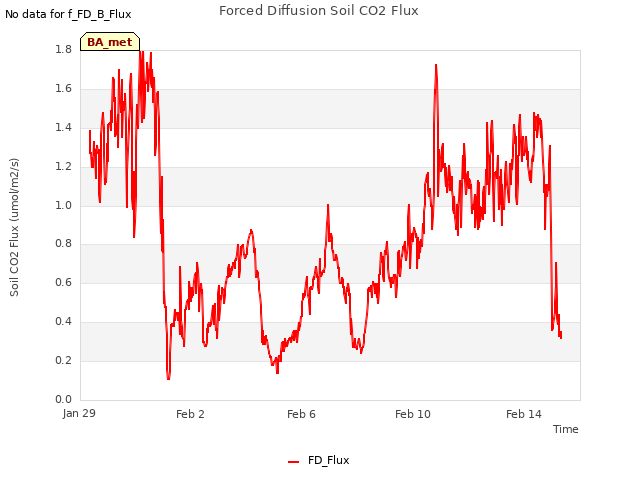

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

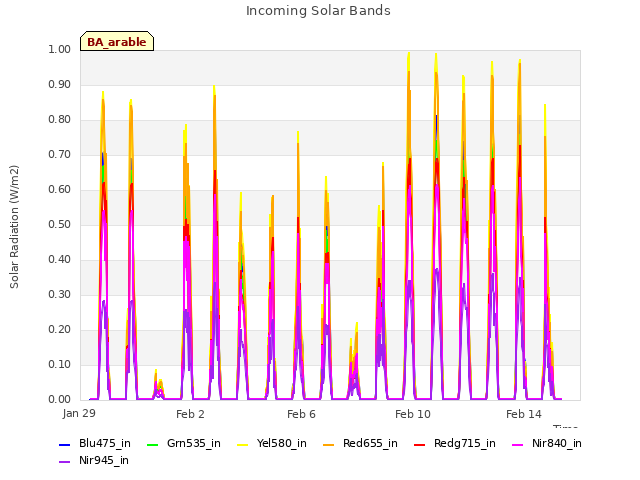

Explore the graph:Incoming Solar Bands in a new window

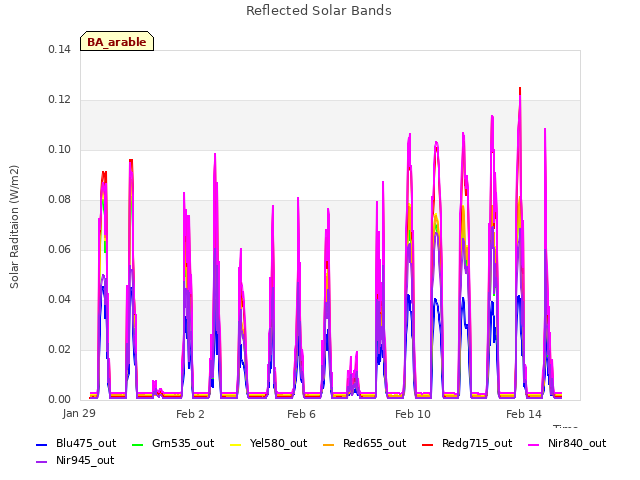

Explore the graph:Reflected Solar Bands in a new window

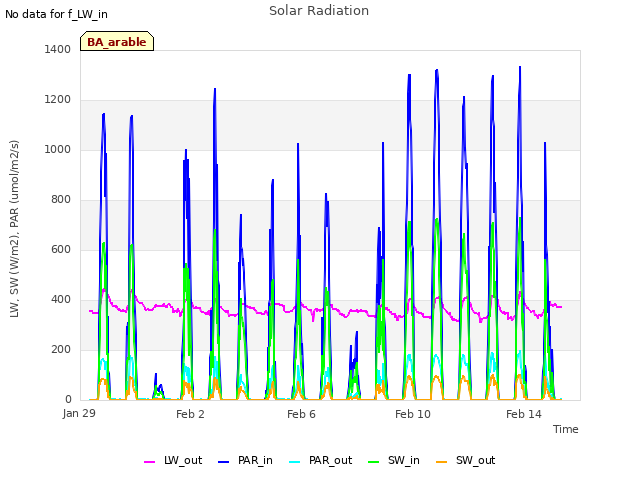

Explore the graph:Solar Radiation in a new window

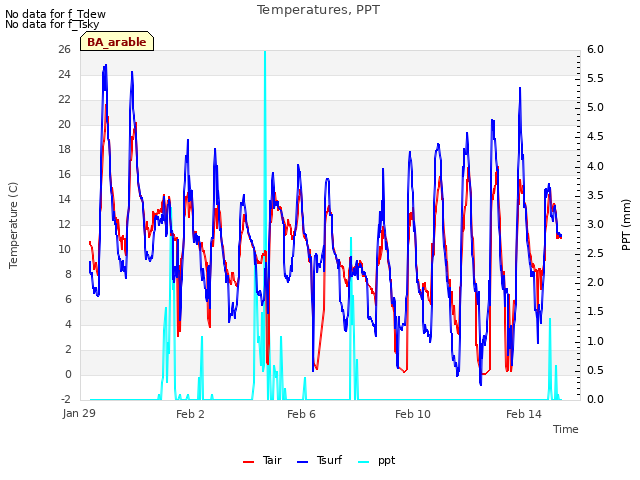

Explore the graph:Temperatures, PPT in a new window

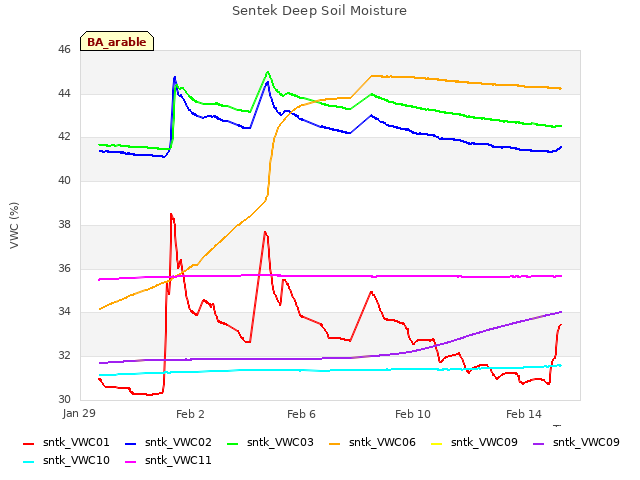

Explore the graph:Sentek Deep Soil Moisture in a new window

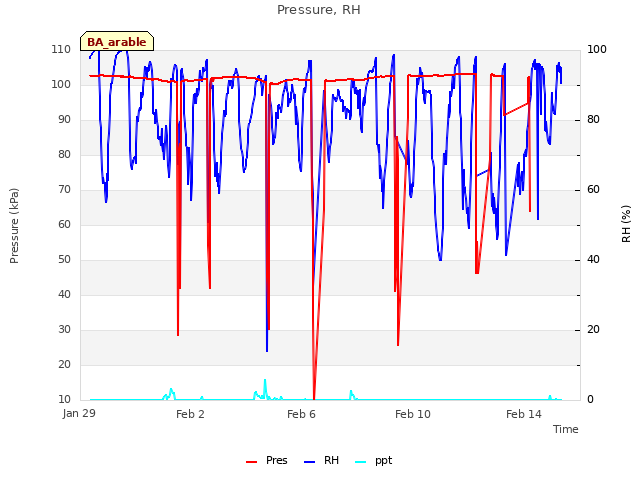

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
No data found for BA_processed.
No data found for BA_adex.
