Field Notes

Sherman Wetland: 2020-10-22 15:30:00 (DOY 296)
Author: Daphne Szutu
Others:

Summary: Permanent: Regular data collection/cleaning, still no water under tower, changed eddy clock +2min, lots of spiderwebs and cattail fluff
Temporary: Regular data collection/cleaning, installed Raspberry Pi camera, still a lot of wasps

2020-10-22
Sherman Wetland

I arrived at 15:30 PDT. It was a sunny, windy, and dusty day. There were blue skies above but sufficient haze at the horizons so that you could barely see Mt. Diablo. The RioVista AirNow station had a yellow AQI (Moderate). There is still no water under the tower. The staff gauge read -17cm (aka the water level was 17cm below the bottom of the staff gauge).

The wash reservoir was Â¾ full; I refilled it. I downloaded met, camera, and USB GHG data.

I changed the eddy clock from 14:50 to 14:52 to sync it with the laptop time, and then reset the box. There was a USB error, so I swapped USB. There was still a USB error, so I rebooted the instrument using the 7550 software. The USB was logging after that and the eddy clock matched the laptop clock.

I cleaned flux and met sensors and the phenocam windowâ€”lots of cattail fluff and spider webs. I carefully cleaned off the spider webs and cattail fluff from the globe thermometers and downloaded its data.

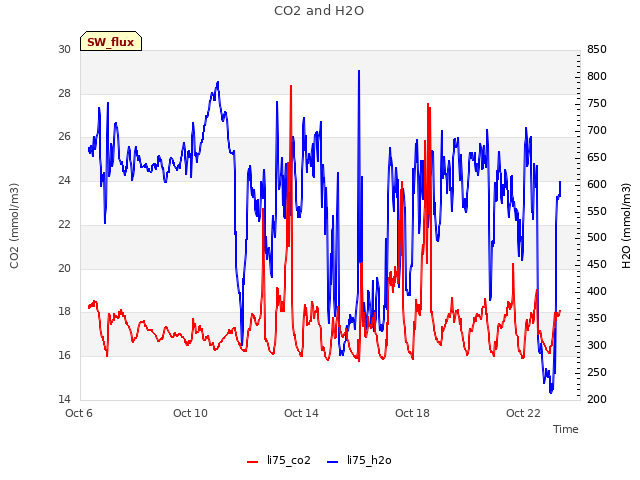

LI-7500 readings:
CO2 401ppm
H2O 268ppm
T 28.2C
P 100.9kPa

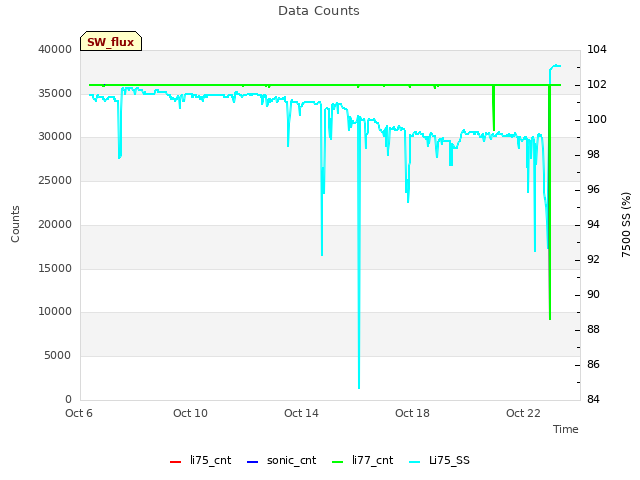

SS 98--> 102 after cleaning
LI7700 readings:
CH4 1.9 ppm
RSSI 20--> 81 after cleaning

I left at 16:00 PDT.

2020-10-22
Sherman Wetland Temporary Tower

I arrived around 16:10 PDT. It was a sunny, windy, and dusty day. There were blue skies above but sufficient haze at the horizons so that you could barely see Mt. Diablo. The RioVista AirNow station had a yellow AQI (Moderate). There were again many wasps in the met box, but they were sleepier than 2 weeks ago, and the breeze prevented them from flying anywhere too fast.

I put a new Raspberry Pi camera up, sn RPI0W-004. The one I removed last week had something broken with the computer-camera connection. I put the new camera up on the same mount.

The wash reservoir was 4/5 full; I refilled it. I downloaded met and USB GHG data. I think the eddy clock looked ok.
I cleaned flux and met sensorsâ€”lots of cattail fluff and spider webs.

LI-7500 readings:
CO2 400pm
H2O 376ppm
T 26.0C

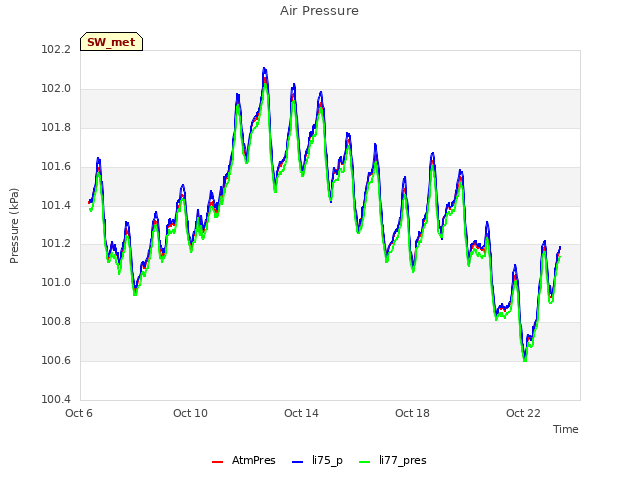

P 101.2kPa
SS 95--> 99 after cleaning

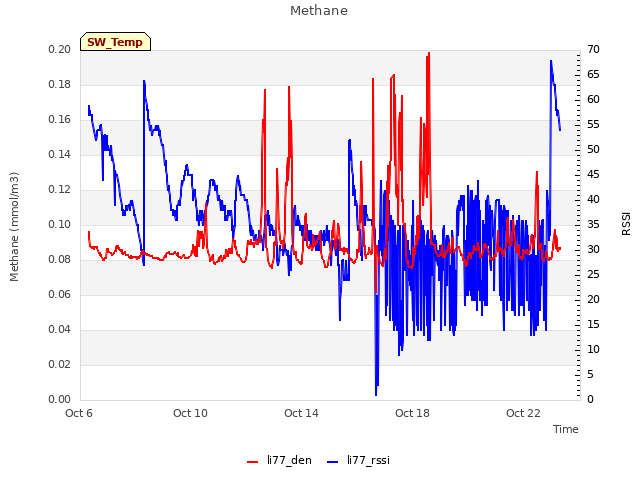

LI7700 readings:
CH4 2.0ppm
RSSI 30--> 67 after cleaning

I left at 16:50 PDT.

0 photos found

7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

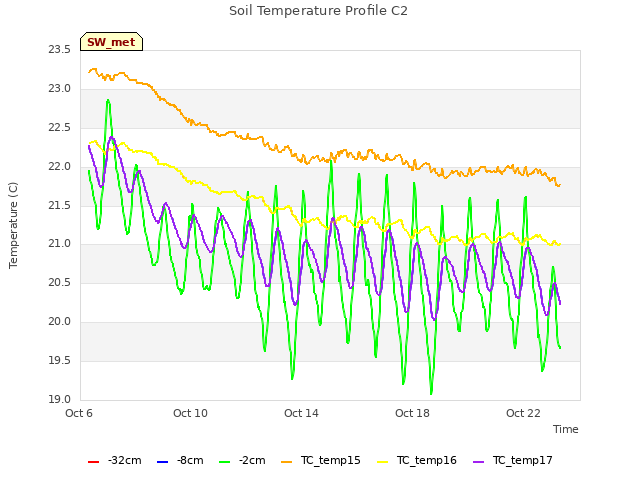

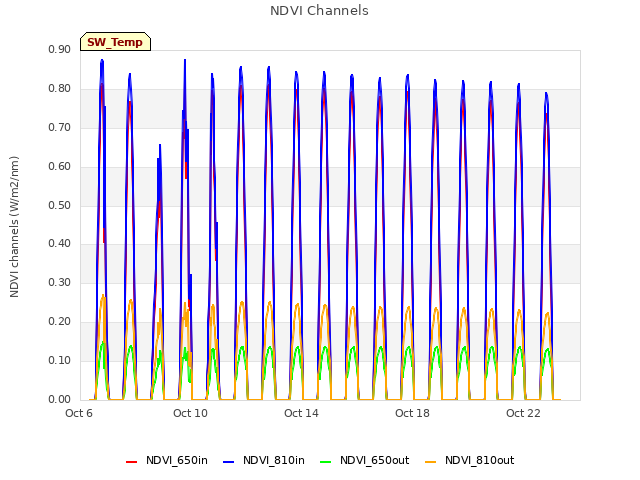

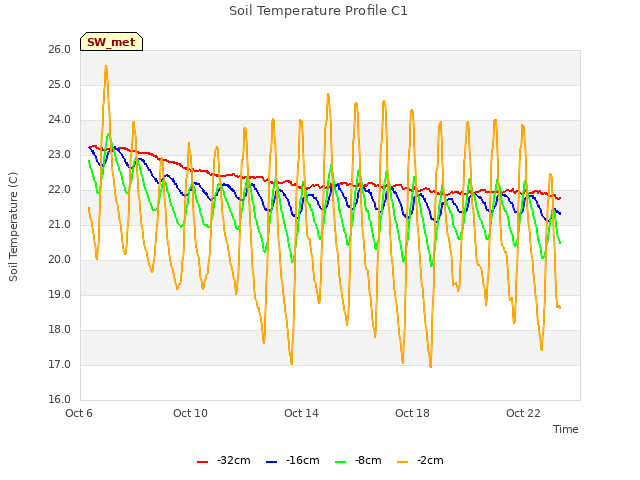

16 SW_met graphs found
