Bouldin Corn: 2020-10-22 09:00:00 (DOY 296)
Author: Daphne Szutu
Others: Joe

Summary: Regular data collection/cleaning, field has been harvested, swapped PurpleAir sensor, changed eddy clock +4min

2020-10-22
Bouldin Corn

Joe and I arrived around 9:00 PDT. It was a sunny, windy, and dusty day. There were blue skies above but sufficient dust/haze at the horizons to cover Mt. Diablo. Our field has been harvested, but the leftover corn stalks seemed higher than usual, about knee height instead of shin height. Our field has been disked on the eastern edge. The farmers were disking the field immediately to the west; luckily for us the dust was being blown to the south so we were not directly blasted by the dust.

Later that afternoon Tyler texted that the farmers had also disked our field after we had left. Tyler was planning to move his chambers into the field the following day.

There are still a lot of green weeds around and under our tower. Joe weeded under the tower and under the radiometers, so that when the weeds dry out maybe the reflected radiation will match that of the dry corn stover.

I had forgotten the USB-serial adapter for my laptop, but thankfully Joe had one with his field laptop so I could still download all the data. I downloaded met, camera, USB GHG and PA data. I downloaded the FD data but did not clear its memory. The eddy clock looked ok. When the phenocam clock read 8:13, I changed it to 8:17 to sync with the laptop time. Joe cleaned the flux and rad sensors. The wash reservoir was 3/4 full; he refilled it.

Joe swapped PA sensors. Sn 68c63acc07a9 came down because it’s tricky to get the microSD card seated correctly. Sn 84f3ebd5ffb1 went up; Joe changed the position of its microSD slot from the side to the underside of the sensor.

Joe checked and tightened the tower tie downs.

We left at 9:25 PDT.

1 photos found

Disking field
Disking field

Graphs display:
6 sets found

17 BC_met graphs found

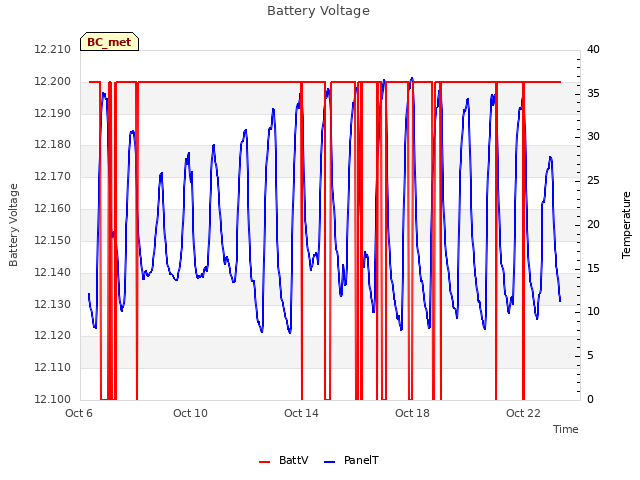

Explore the graph:Battery Voltage in a new window

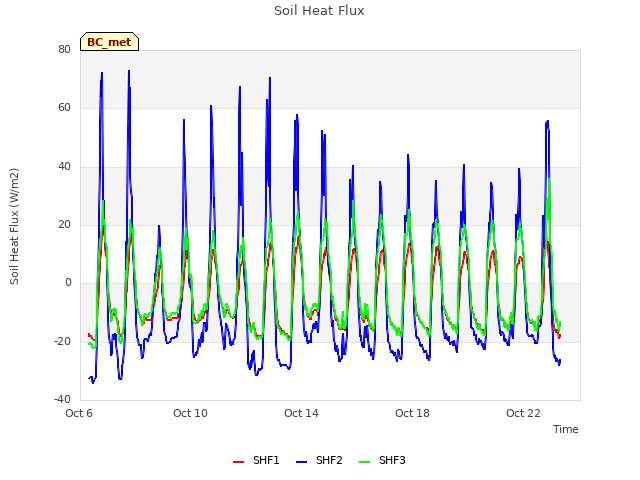

Explore the graph:Soil Heat Flux in a new window

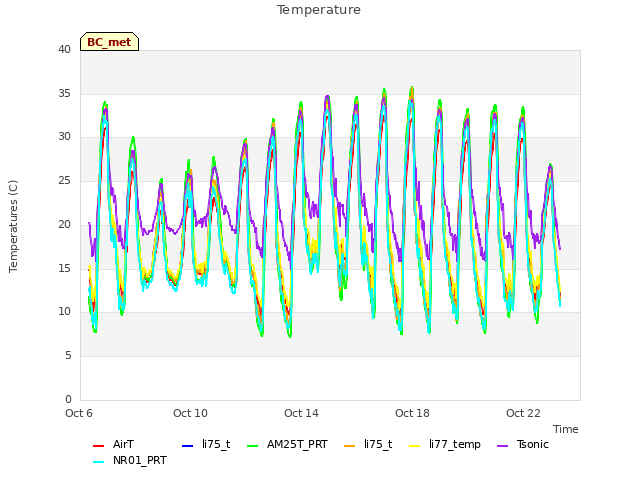

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

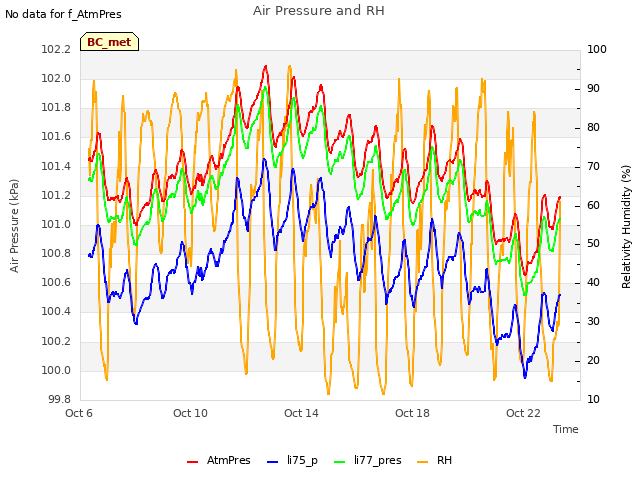

Explore the graph:Air Pressure and RH in a new window

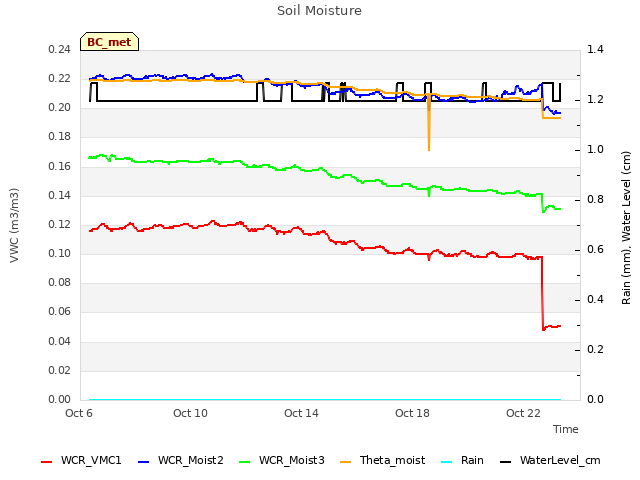

Explore the graph:Soil Moisture in a new window

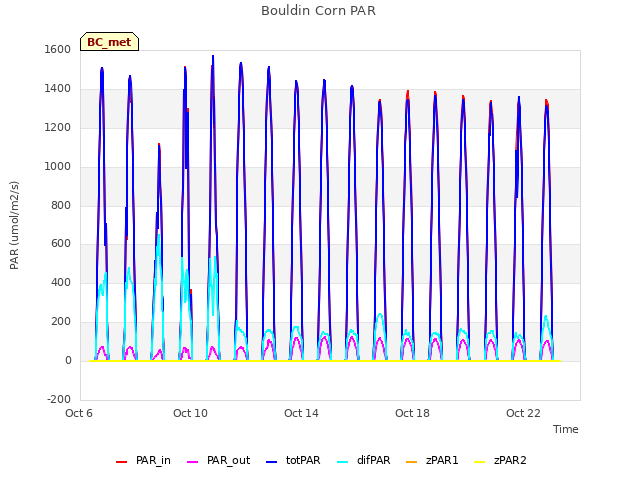

Explore the graph:Bouldin Corn PAR in a new window

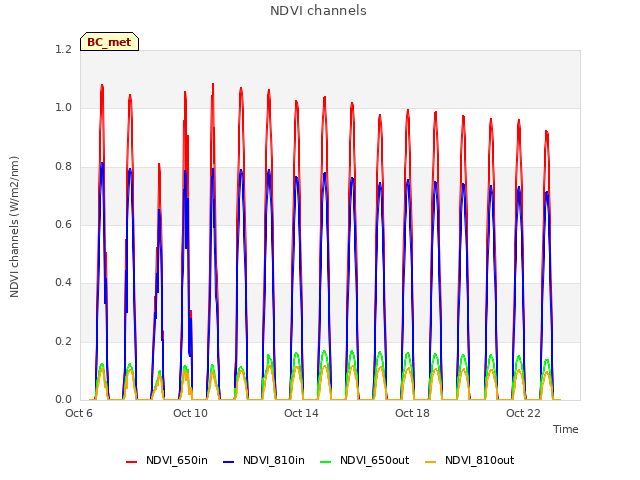

Explore the graph:NDVI channels in a new window

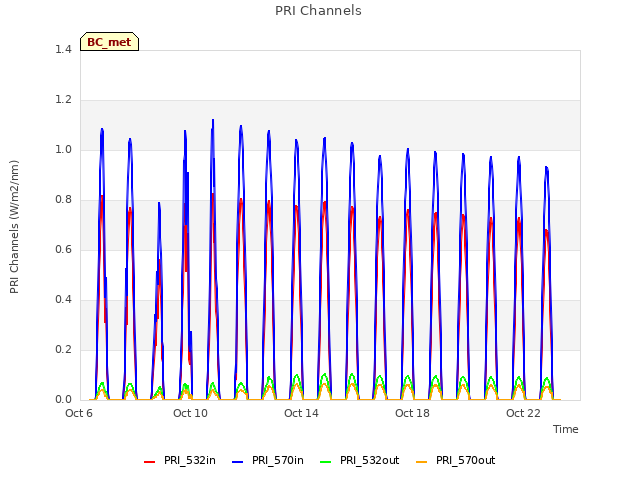

Explore the graph:PRI Channels in a new window

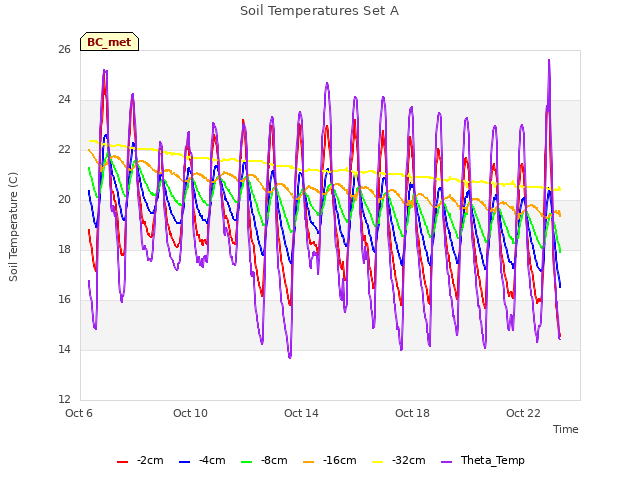

Explore the graph:Soil Temperatures Set A in a new window

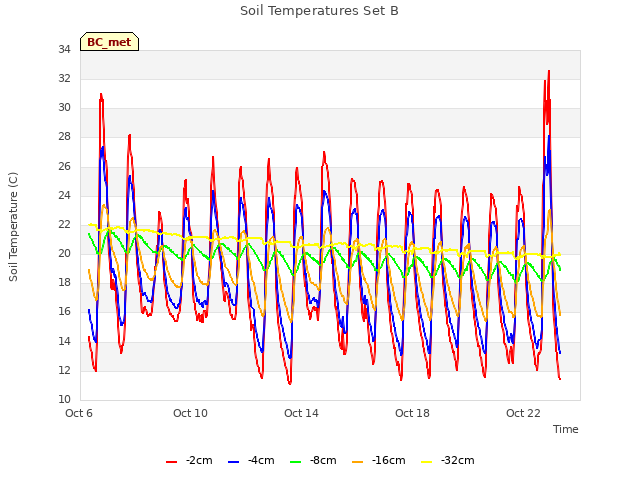

Explore the graph:Soil Temperatures Set B in a new window

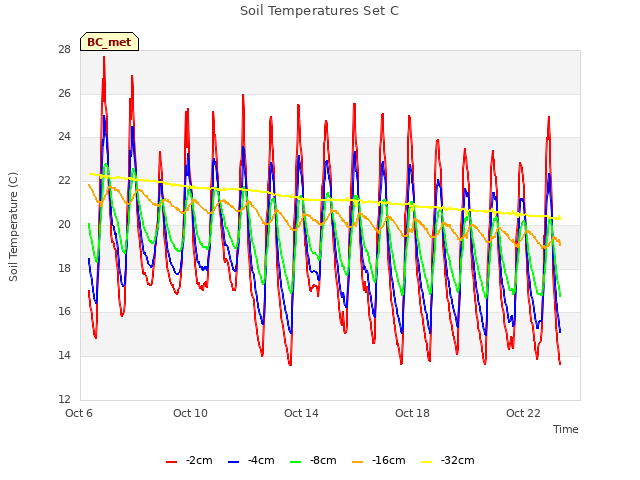

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:SRS NDVI and PRI in a new window

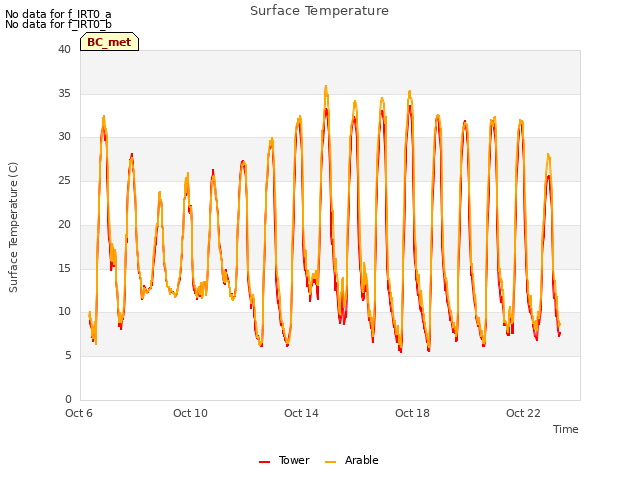

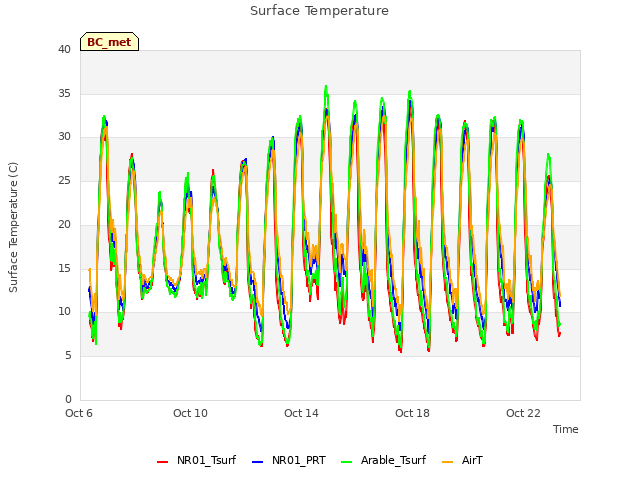

Explore the graph:Surface Temperature in a new window

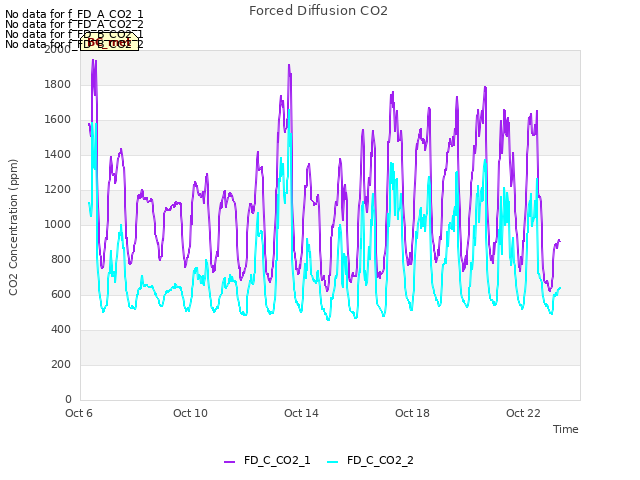

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

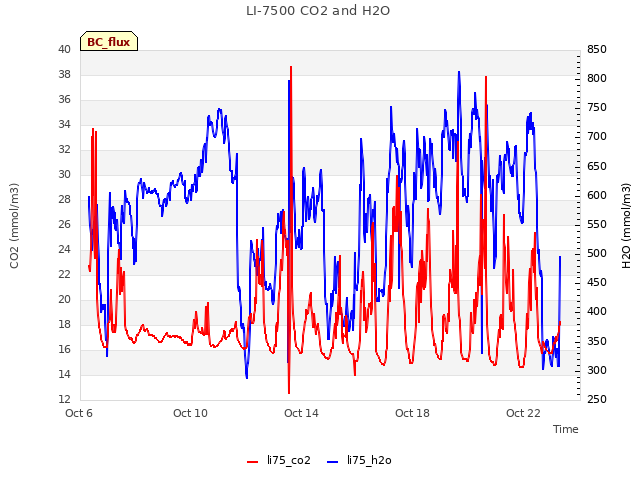

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

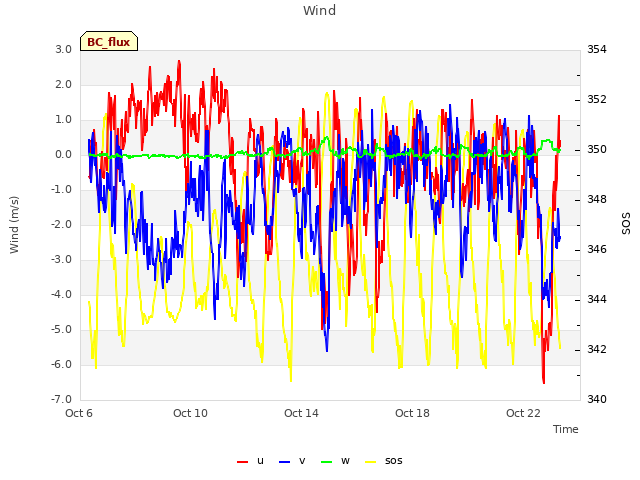

Explore the graph:Wind in a new window

Explore the graph:Counts in a new window

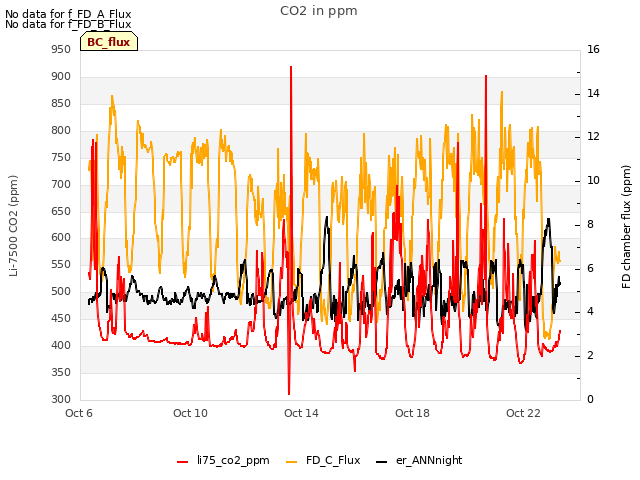

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

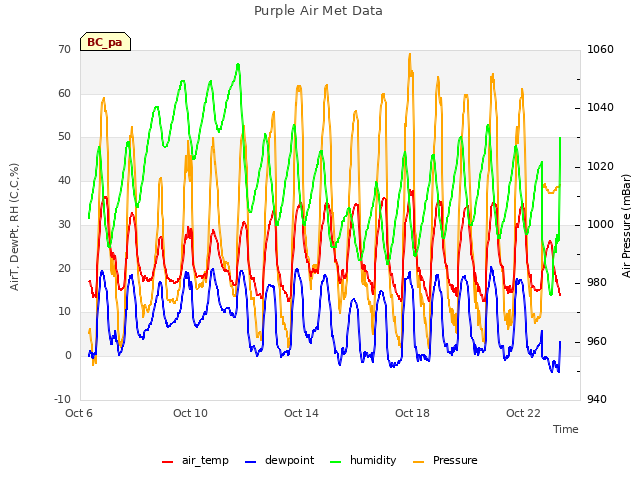

Explore the graph:Purple Air Met Data in a new window

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

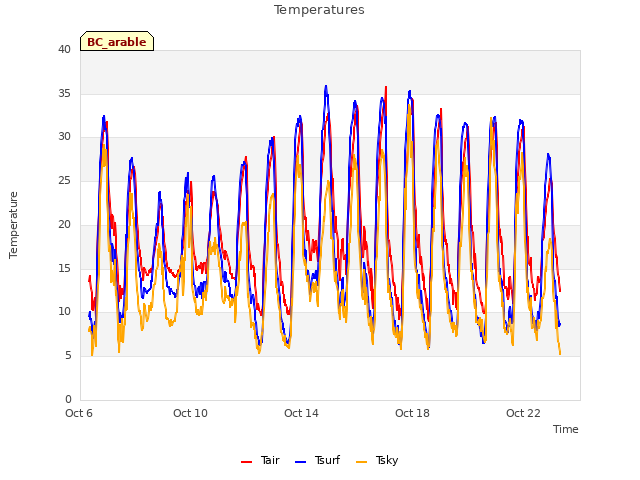

Explore the graph:Temperatures in a new window
