Field Notes

<--2020-09-29 10:20:00 | 2020-11-11 13:15:00-->
Other sites visited today: Tonzi | Bouldin Alfalfa | Bouldin Corn | East End | West Pond | Mayberry | Sherman Wetland

Vaira: 2020-10-22 11:45:00 (DOY 296)
Author: Joe Verfaillie
Others: Siyan

Summary: Tested tipping bucket, soil co2 gradient system down due to dead batteries - FD chamber running, fixed bad reading from Vaisala pressure sensor, Phenocam clock 20min ahead - fixed.

Vaira
2020-10-22

I arrived at about 11:45. Siyan was already there just finishing up and heading to Tonzi. I came by way of Bouldin Island where there was a strong north breeze but here there is a strong west breeze. No rain yet and the trees are hanging on to a few green leaves.

I tested the tipping bucket getting 104 out of 100 tips – good enough.

I collected the data and cleaned the radiometers. The soil CO2 system was acting oddly and missing data. I saw that the battery voltage was low and checked the solar system. The charge controller’s idiot lights were showing the batteries depleted at midday. I disconnected the batteries and isolated them. All four have voltages of around 6-8V – dead. The forced diffusion chamber is still running on the main solar system – I collected and clear the chamber’s memory. We need to discuss whether it is worthwhile revamping the soil co2 gradient system.

The 7500 read: 431.2ppm CO2, 334.2mmol/m3 H2O, 99.1kPa, 30.3C, 103.6SS

The Vaisala pressure sensors has been reading low (~95kPa). I reset its connector and pulled on its wires. A yellow wire broke off at the multiplexor. I fixed the wire connection and the reading seemed better ~99kPa.

The clock on the phenocam was about 20min ahead. I changed it from 12:09PST to 11:49PST

Siyan had collected the pond data, soil moisture and well measurement.

I left at about 12:30.

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2020-10-22VR_well59.6
2020-10-22TZ_floor31
2020-10-22TZ_tower35.6
2020-10-22TZ_road38.6
2020-10-22EE1.08
2020-10-22MB1.41
2020-10-22SW-0.56

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_West [3] => Soil_Transect_4 [4] => Soil_Transect_3 [5] => Soil_Transect_2 [6] => Soil_Transect_1 [7] => SoilCO2_West_A [8] => SoilCO2_West_B [9] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_West
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
Avg
Spacial Count
Measurement Count
2020-10-22 296 0 0-15cm 2.4 2.8 3.9 0.3 0.1 2.1 0.1 5.3 6.8 5.7
2020-10-22 296 0 15-30cm 10.3 10.3 6 5.7 12.1 11.2 4.2 5.7 1.2 10.6
2020-10-22 296 0 30-45cm 13.7 12.6 9.5 11.5 25.1 13.4 15.1 9.4 10.9
2020-10-22 296 0 45-60cm 16.6 4.2 16.8 10.7 17.9 24.5 13 13.9 11.1 17.9
2020-10-22 296 1 0-15cm 3 2.1 3.9 0.1 0.1 1.8 0.1 5.6 4.2 0.1
2020-10-22 296 1 15-30cm 2.7 10.3 4.8 5.7 12.1 10.9 3.9 6.3 1.2 10.6
2020-10-22 296 1 30-45cm 12.9 12.9 10.9 9.5 10.6 15.9 13.4 15.1 8.4 10.3
2020-10-22 296 1 45-60cm 17.6 3.9 18.2 10.2 18.2 23.9 13 14.5 11.1 18.5
2020-10-22 296 Avg 0-15cm 2.7 2.45 3.9 0.2 0.1 1.95 0.1 5.45 5.5 2.9 2.53 10 20
2020-10-22 296 Avg 15-30cm 6.5 10.3 5.4 5.7 12.1 11.05 4.05 6 1.2 10.6 7.29 10 20
2020-10-22 296 Avg 30-45cm 13.3 12.75 10.9 9.5 11.05 20.5 13.4 15.1 8.9 10.6 12.6 10 19
2020-10-22 296 Avg 45-60cm 17.1 4.05 17.5 10.45 18.05 24.2 13 14.2 11.1 18.2 14.79 10 20

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower [1] => Biomass_Cage )

Date DOY Rep Depth
Flux_Tower
Biomass_Cage
Avg
Spacial Count
Measurement Count
2020-10-22 296 0 0-15cm 0.7 0.1
2020-10-22 296 0 15-30cm 6.9 3.2
2020-10-22 296 0 30-45cm 3.7 13.4
2020-10-22 296 0 45-60cm 13.9 16.8
2020-10-22 296 1 0-15cm 1.3 0.4
2020-10-22 296 1 15-30cm 6.3 3.9
2020-10-22 296 1 30-45cm 4.9 12.6
2020-10-22 296 1 45-60cm 13 16.5
2020-10-22 296 Avg 0-15cm 1 0.25 0.63 2 4
2020-10-22 296 Avg 15-30cm 6.6 3.55 5.08 2 4
2020-10-22 296 Avg 30-45cm 4.3 13 8.65 2 4
2020-10-22 296 Avg 45-60cm 13.45 16.65 15.05 2 4

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

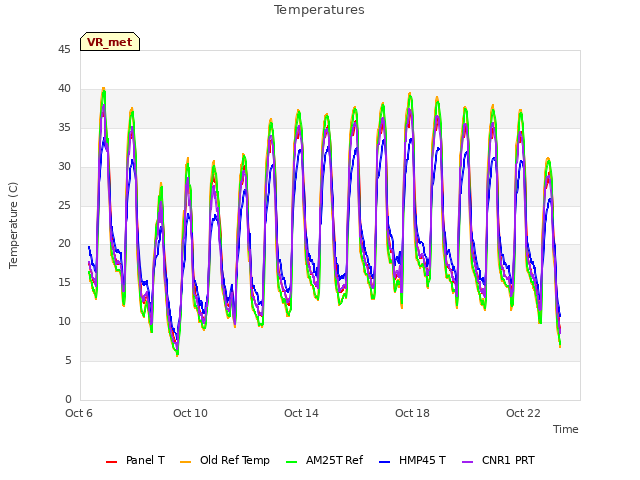

Explore the graph:Temperatures in a new window

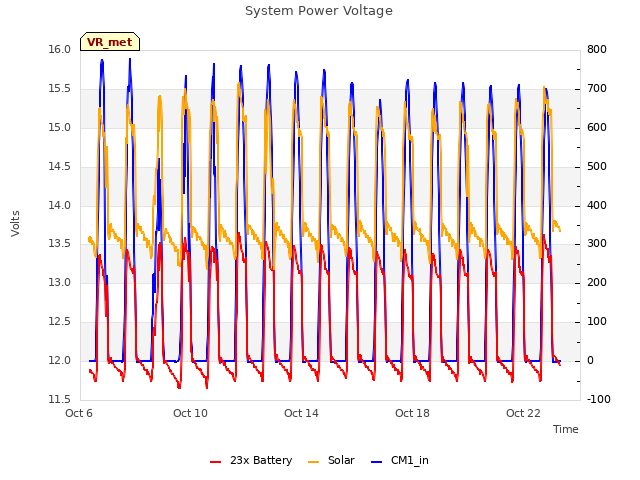

Explore the graph:System Power Voltage in a new window

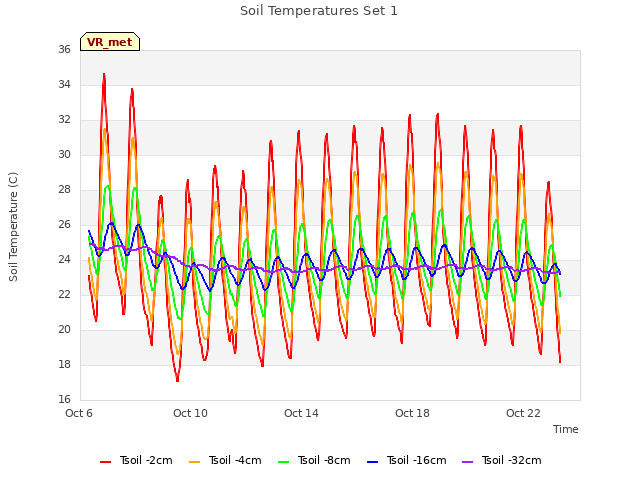

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

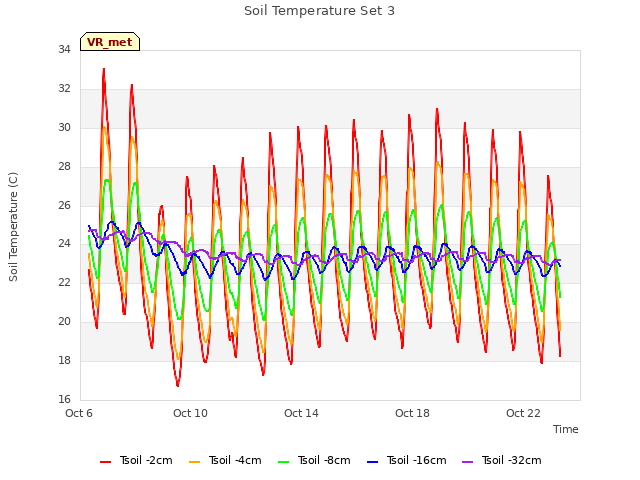

Explore the graph:Soil Temperature Set 3 in a new window

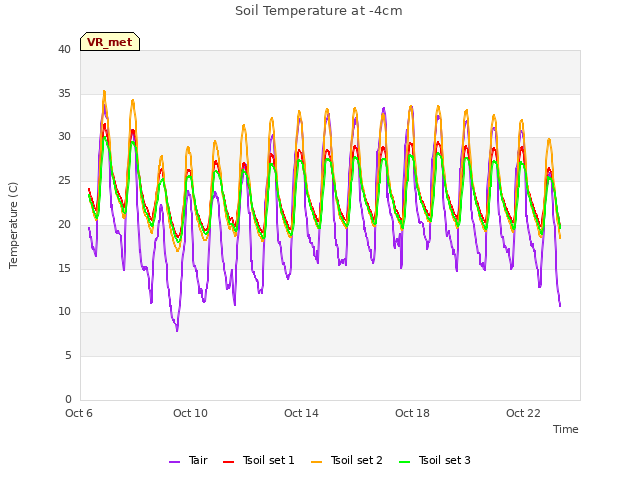

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

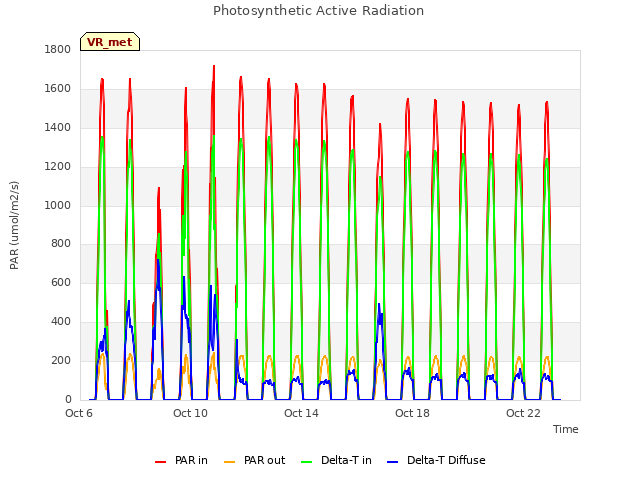

Explore the graph:Photosynthetic Active Radiation in a new window

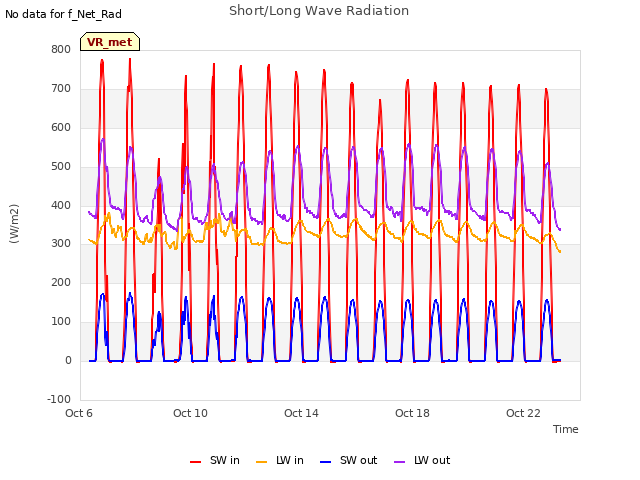

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

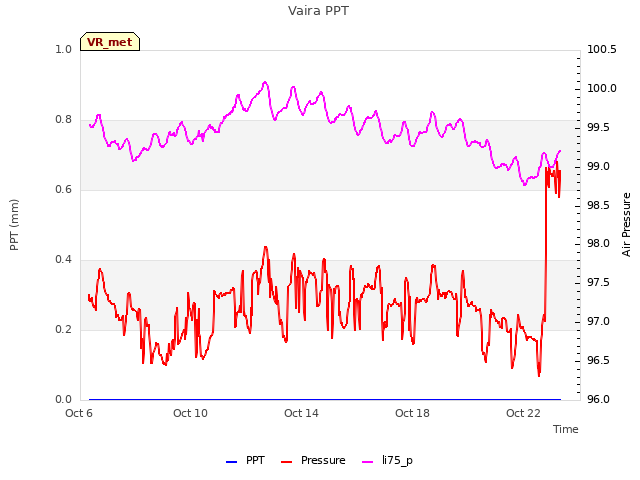

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

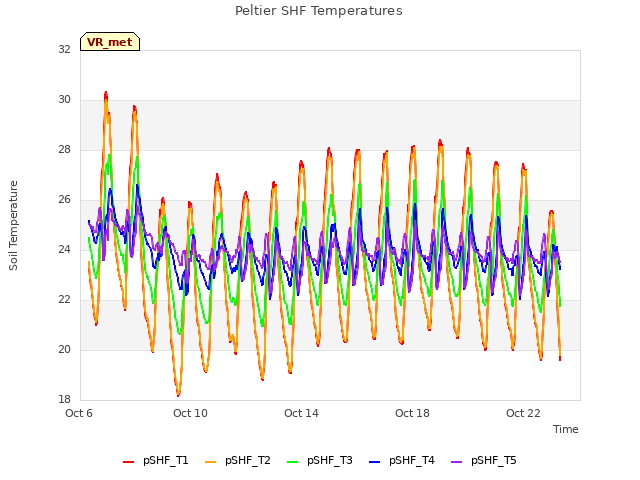

Explore the graph:Peltier SHF Temperatures in a new window

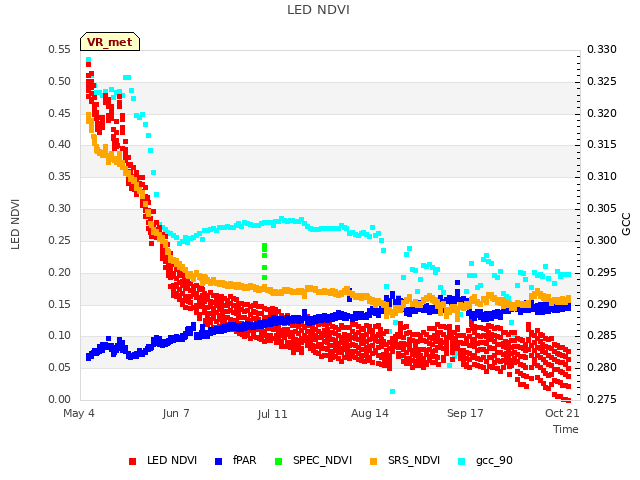

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

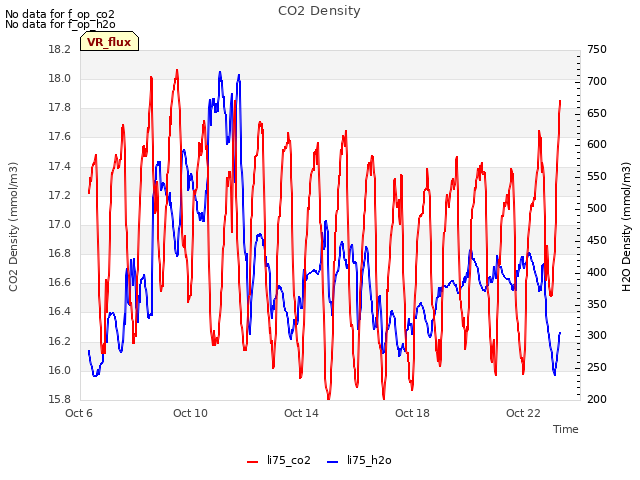

Explore the graph:CO2 Density in a new window

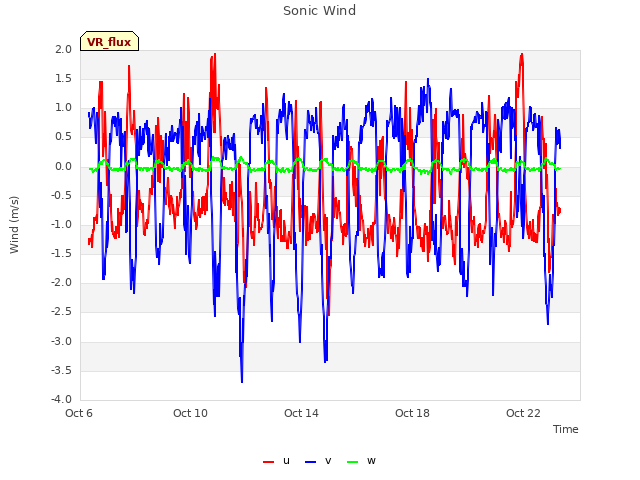

Explore the graph:Sonic Wind in a new window

6 VR_soilco2 graphs found

Explore the graph:VR West Eosense Profile in a new window

Explore the graph:VR North Vaisala Profile in a new window

Explore the graph:Soil CO2 West Temperatures in a new window

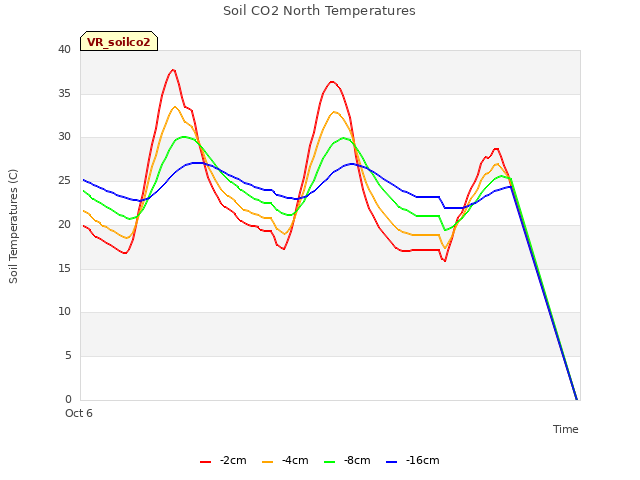

Explore the graph:Soil CO2 North Temperatures in a new window

Explore the graph:Soil CO2 East Temperatures in a new window

Explore the graph:VR East Vaisala Profile in a new window

2 VR_pond graphs found

Explore the graph:Pond Level and Rain in a new window

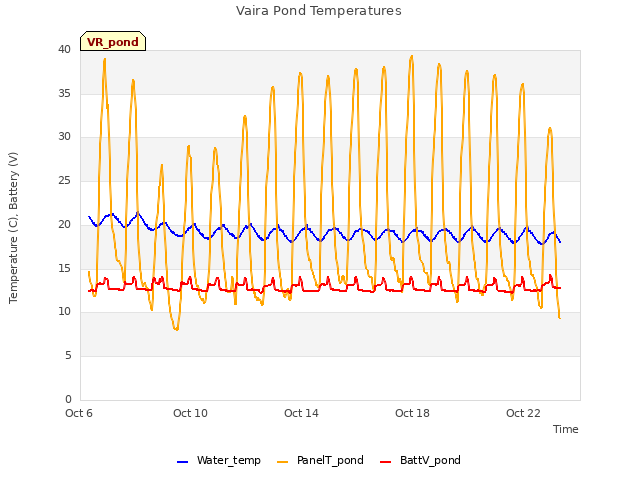

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

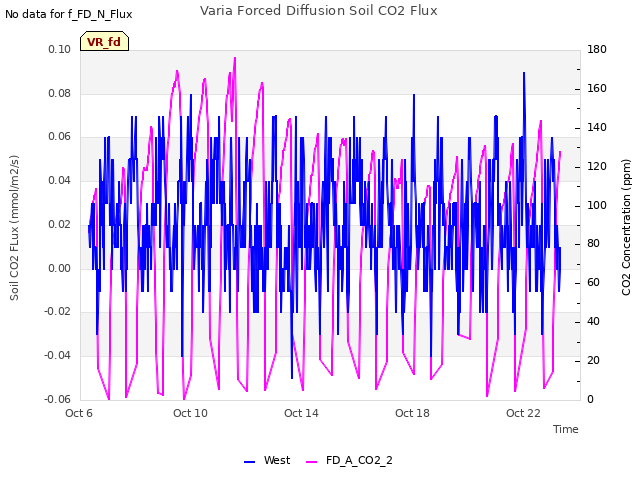

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

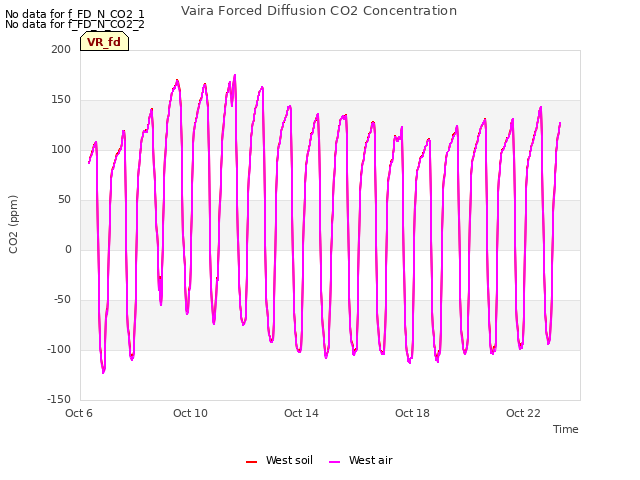

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

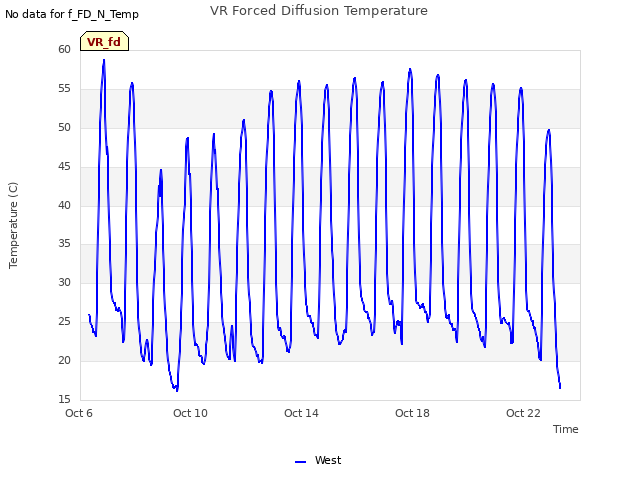

Explore the graph:VR Forced Diffusion Temperature in a new window

No data found for VR_processed.
4 VR_arable graphs found

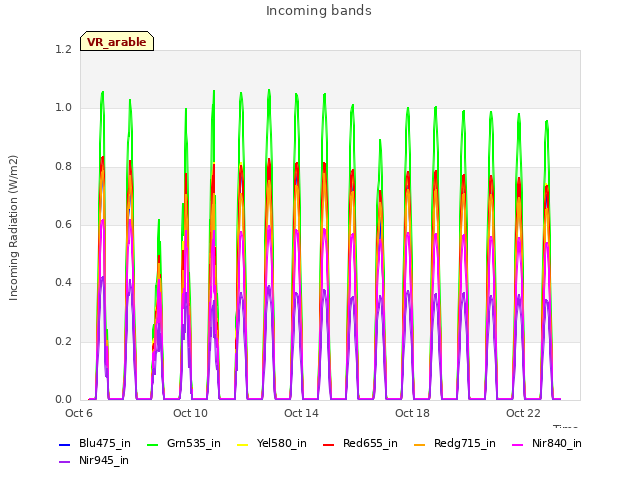

Explore the graph:Incoming bands in a new window

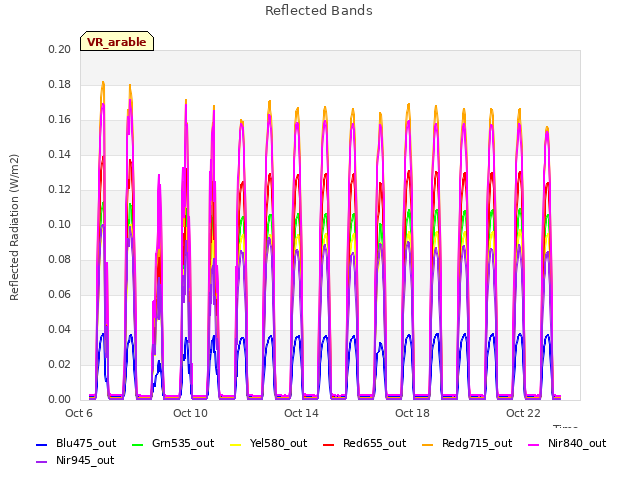

Explore the graph:Reflected Bands in a new window

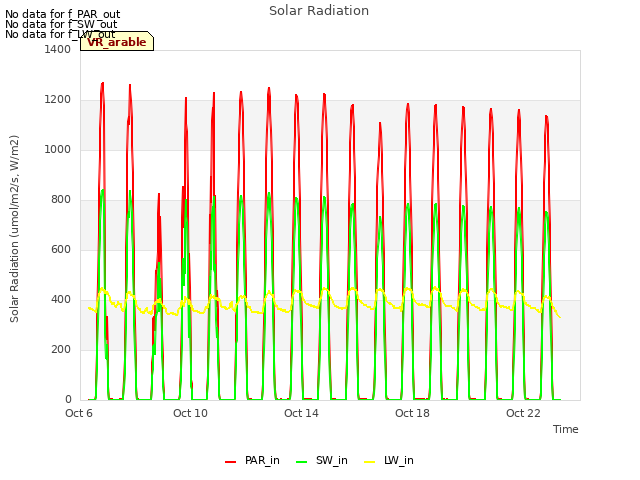

Explore the graph:Solar Radiation in a new window

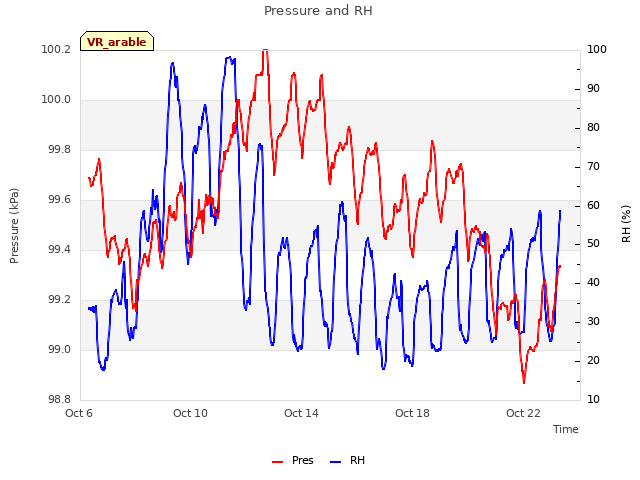

Explore the graph:Pressure and RH in a new window

No data found for VR_soilvue.
