East End: 2020-10-22 11:50:00 (DOY 296)
Author: Daphne Szutu
Others:

Summary: Regular data collection/cleaning, a little more water under the tower, adjusted water level sensor height, changed eddy clock -3min, lots of spiderwebs and cattail fluff

2020-10-22
East End

I arrived at 11:50 PDT. It was a sunny, windy, and dusty day. There were blue skies above but sufficient haze at the horizons to cover Mt. Diablo. Goats and a white van/truck were on the gravel road south of the tower. The water level was a little higher; the staff gauge read 33 cm. The wetland is maybe about ½ yellow, with more green reeds along the channel edges.

The water level sensor had been pulled up to the top of the well. I think an otter had maybe clambered over the sensor cable between the well and the tower, pulling the cable down and the sensor up. I lowered the sensor down to its max reach.

I downloaded met, camera, and USB GHG data. When the eddy clock read 11:05, I changed it to 11:02 to sync with the laptop time. I reset the 7550 box and all looked ok. I cleaned flux and met sensors—lots of cattail fluff and spider webs, and I left some prophylactic mothballs in the met box. The wash reservoir was empty; I refilled it.

There is one old battery on the boardwalk that needs to be taken back to the lab.

LI-7500 readings:
CO2 400ppm
H2O 350ppm
T 23.2C
P 101.1kPa
SS 99 --> 101 after cleaning
LI7700 readings:
CH4 2.7ppm --> 1.9 after cleaning
RSSI 3 --> 75 after cleaning

I left at 12:25 PDT.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

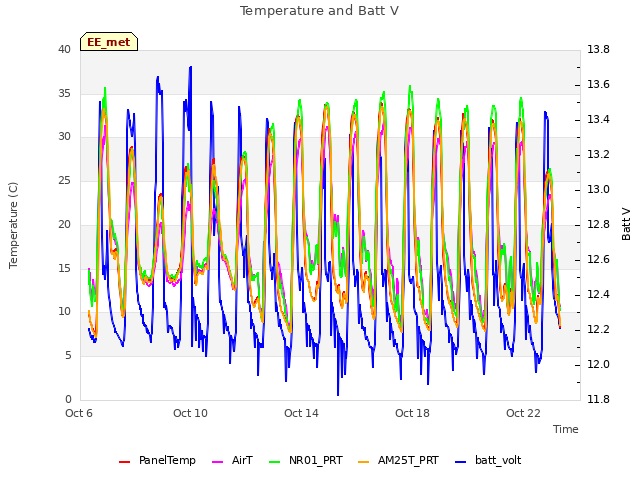

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

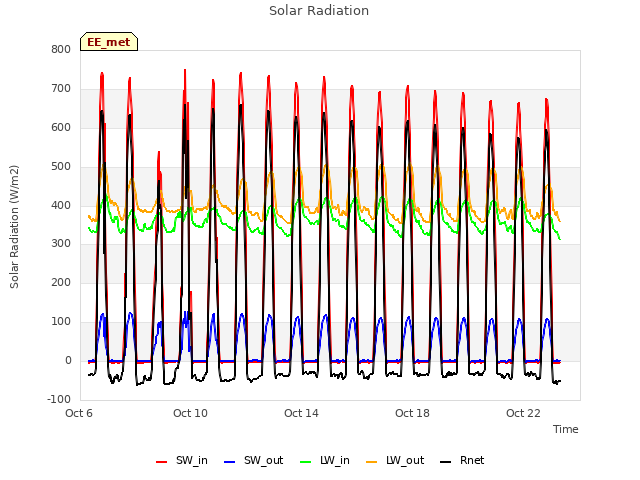

Explore the graph:Solar Radiation in a new window

Explore the graph:PAR in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Water Level and Rain in a new window

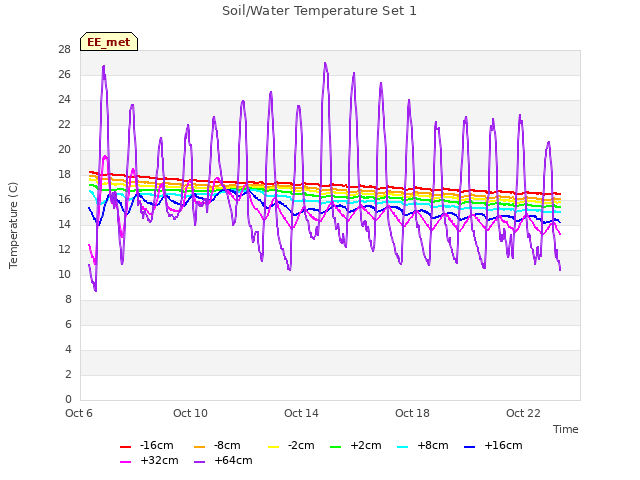

Explore the graph:Soil/Water Temperature Set 1 in a new window

Explore the graph:Soil/Water Temperature Set 2 in a new window

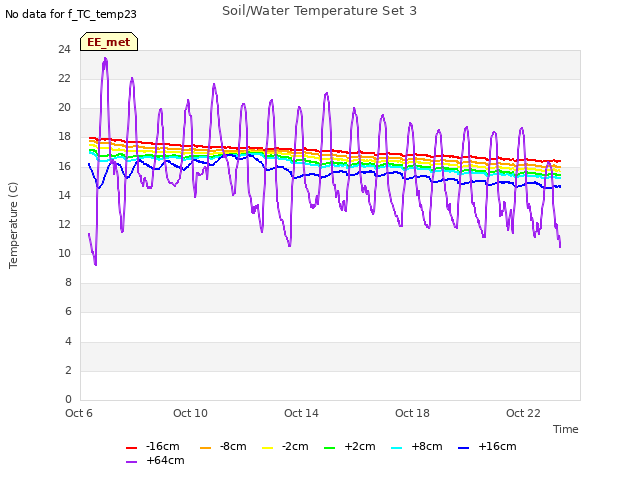

Explore the graph:Soil/Water Temperature Set 3 in a new window

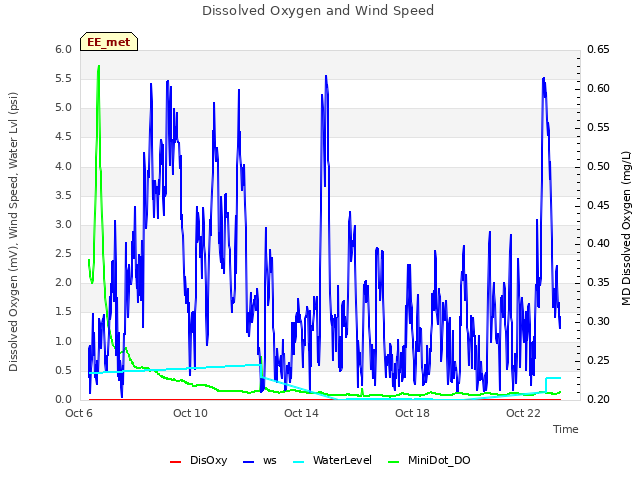

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

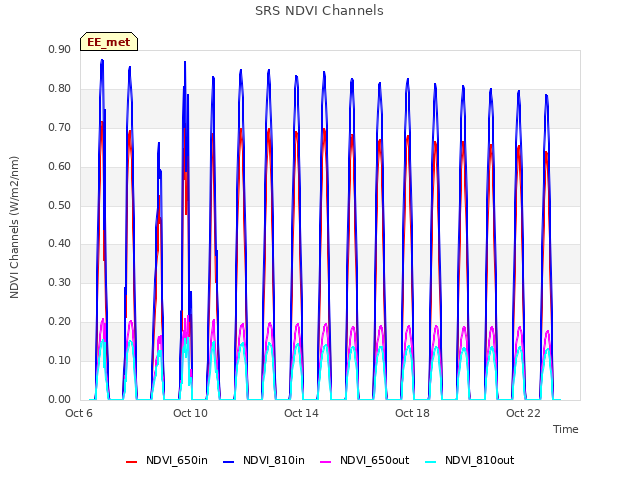

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:NDVI in a new window

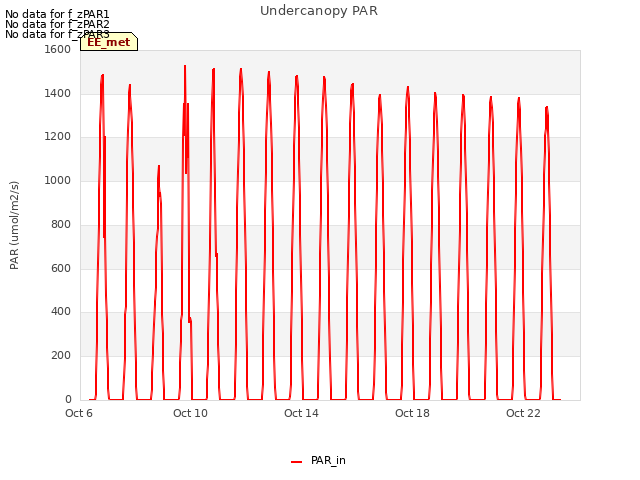

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

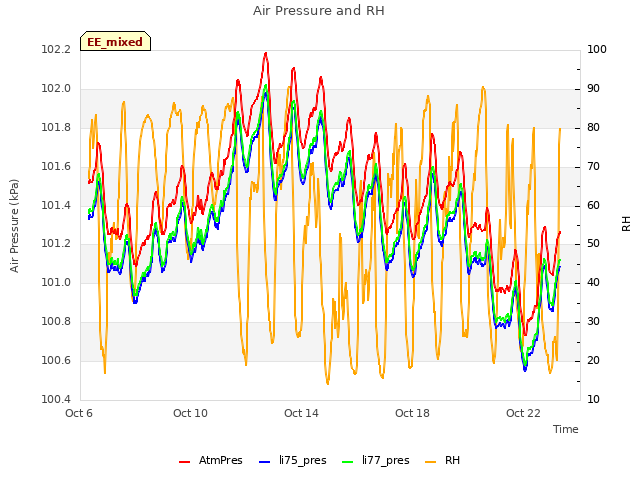

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

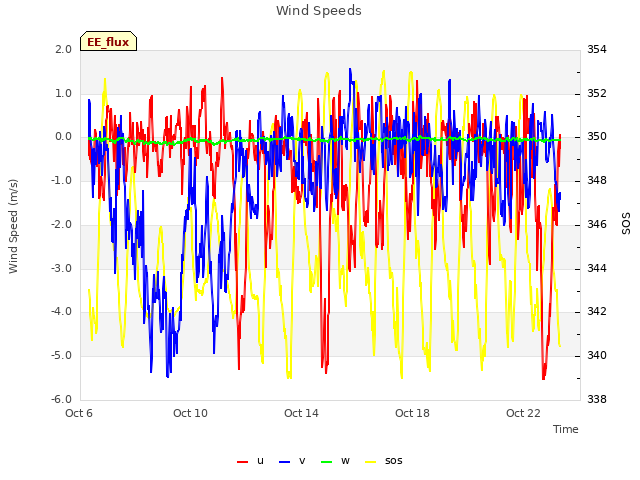

Explore the graph:Wind Speeds in a new window

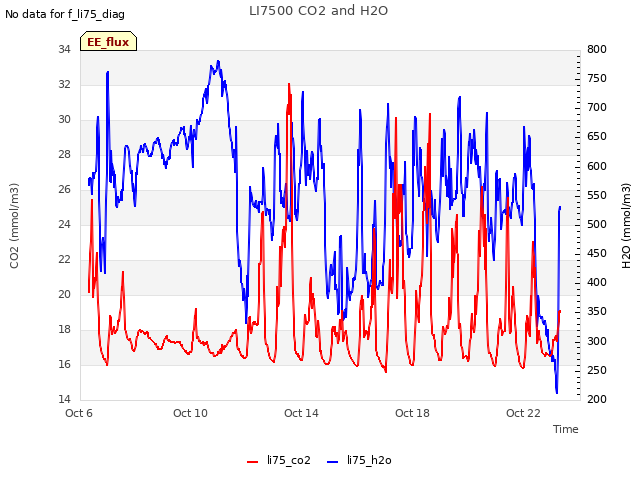

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

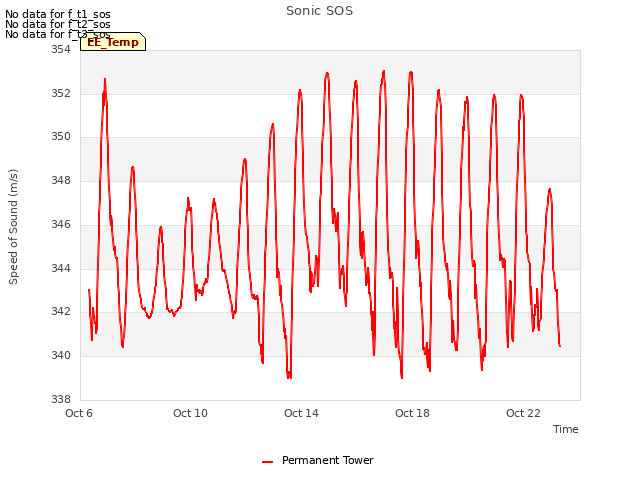

Explore the graph:Sonic SOS in a new window

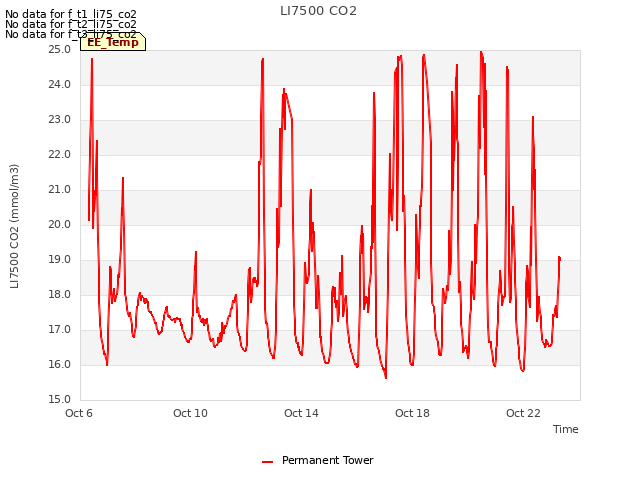

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

Explore the graph:LI-7700 CH4 in a new window

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

Explore the graph:CO2 Fluxes in a new window
