Bouldin Corn: 2020-11-03 08:15:00 (DOY 308)
Author: Daphne Szutu
Others: Ariane

Summary: Regular data collection/cleaning, field is disked but dry

2020-11-03
Bouldin Corn

Ariane and I arrived at 8:15 PST. It was a cool and crisp morning with clear skies and haze at the horizons. There might be a little rain late next week. The field has been disked but it is still dry. Some fields to the north of the highway are beginning to be flooded. Tyler’s chambers are in the field. The weeds that Joe pulled last time from under and west of the tower are now brown.

I downloaded met, camera, USB GHG, PA, and FD data. I did not clear the FD data after download. Ari cleaned flux and rad sensors. The lower 7700 mirror was pretty dusty. The wash reservoir was 2/3 full; we refilled it.

LI-7500 readings:
CO2 447ppm
H2O 836ppm
T 14.7C
P 101.2kPa
SS 88-->100 after cleaning
LI7700 readings:
CH4 3.3ppm -> 2.8 after cleaning
RSSI 7-->90 after cleaning

We left at 8:35 PST.

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

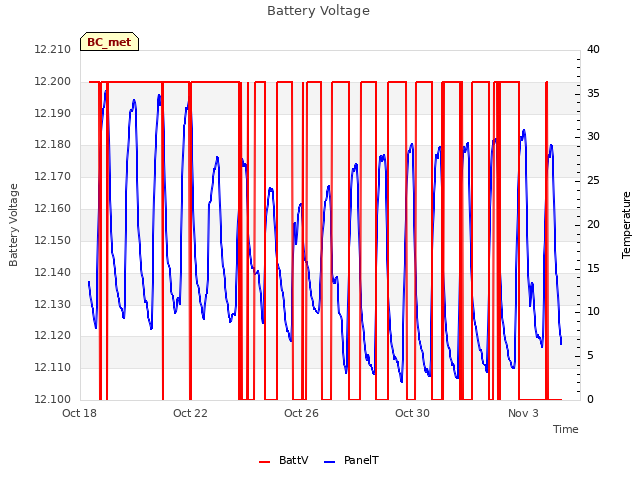

Explore the graph:Battery Voltage in a new window

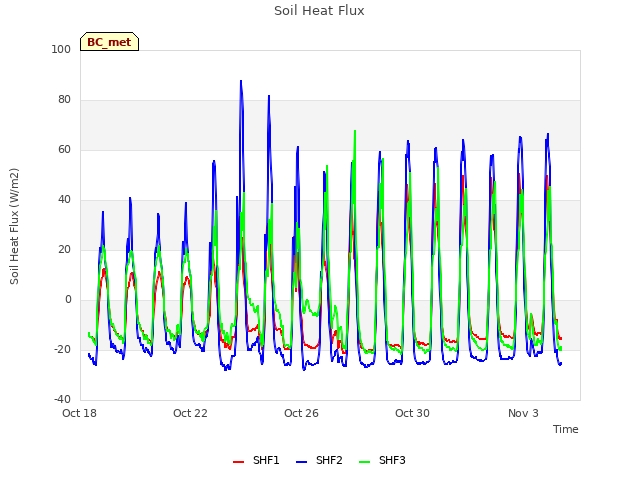

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

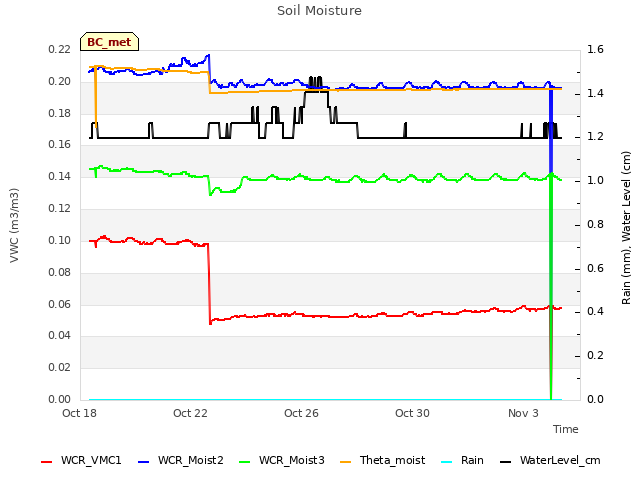

Explore the graph:Soil Moisture in a new window

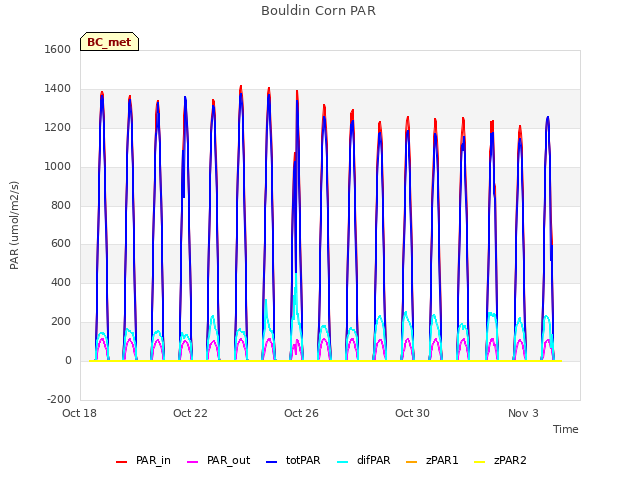

Explore the graph:Bouldin Corn PAR in a new window

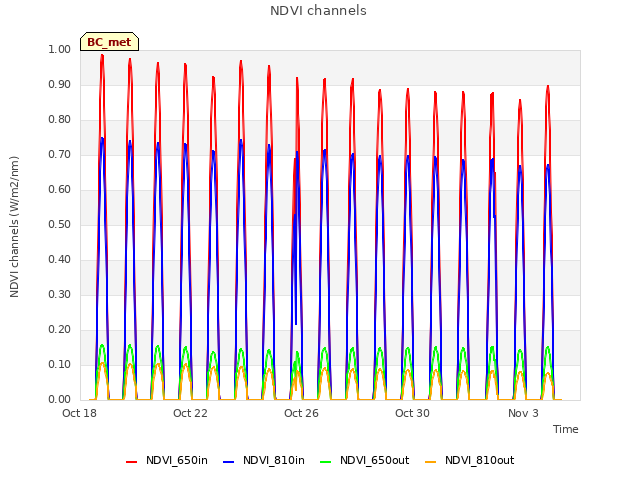

Explore the graph:NDVI channels in a new window

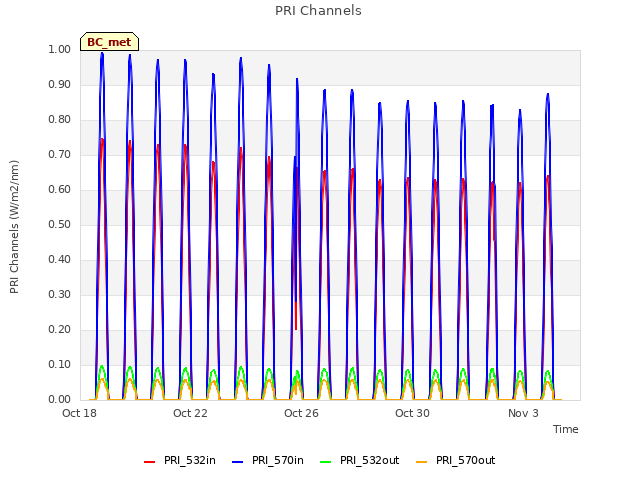

Explore the graph:PRI Channels in a new window

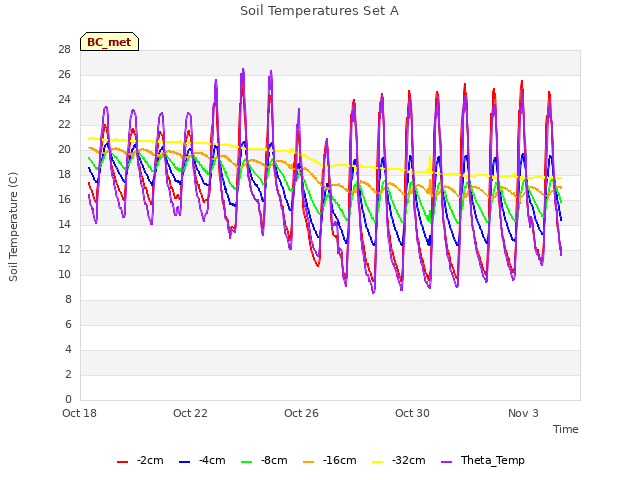

Explore the graph:Soil Temperatures Set A in a new window

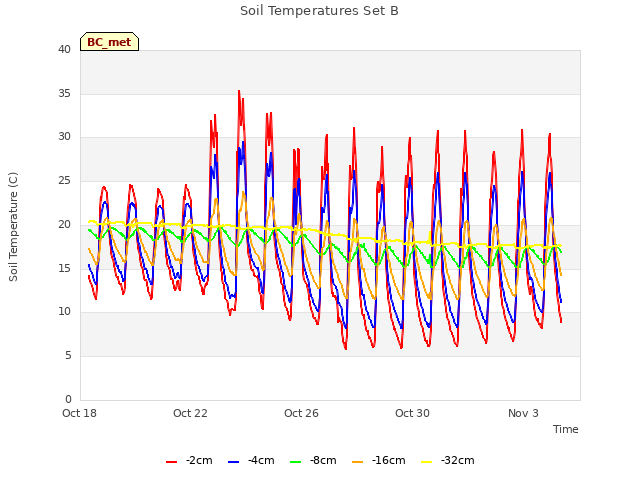

Explore the graph:Soil Temperatures Set B in a new window

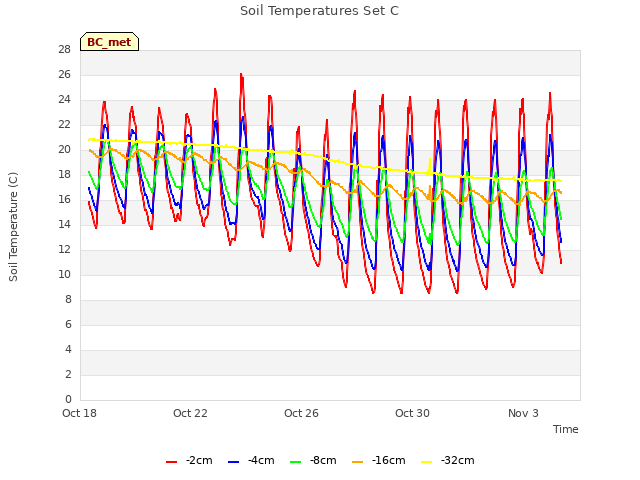

Explore the graph:Soil Temperatures Set C in a new window

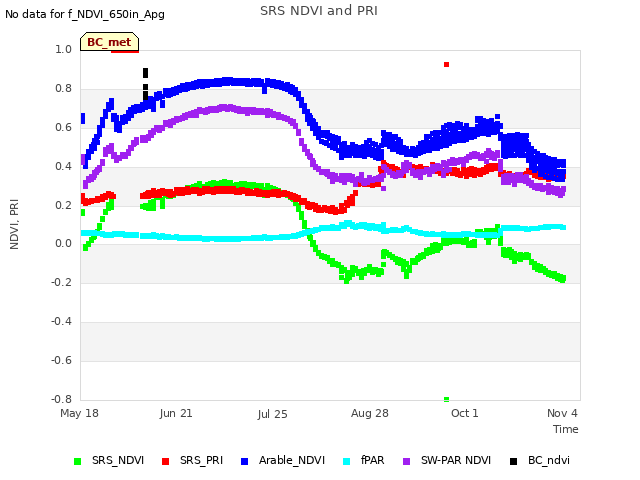

Explore the graph:SRS NDVI and PRI in a new window

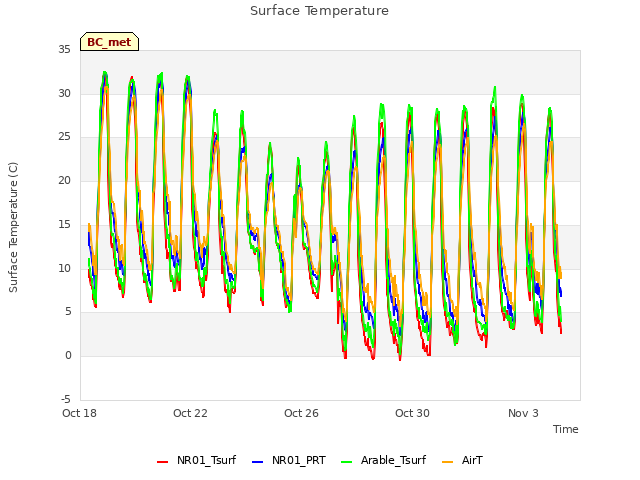

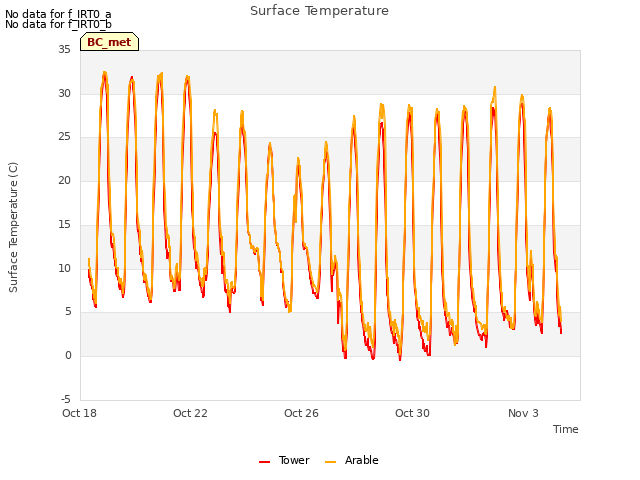

Explore the graph:Surface Temperature in a new window

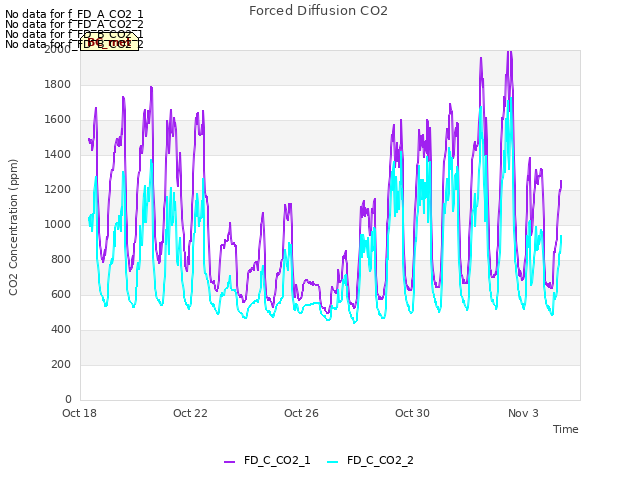

Explore the graph:Forced Diffusion CO2 in a new window

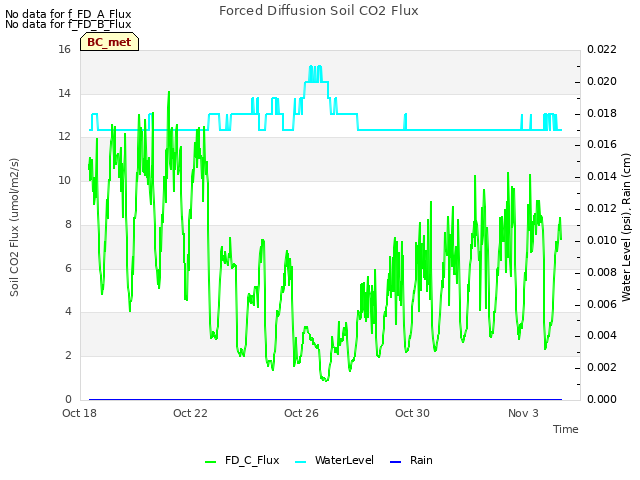

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

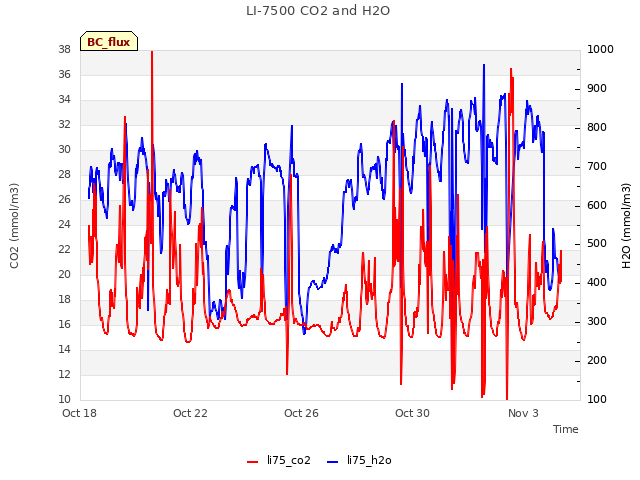

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Wind in a new window

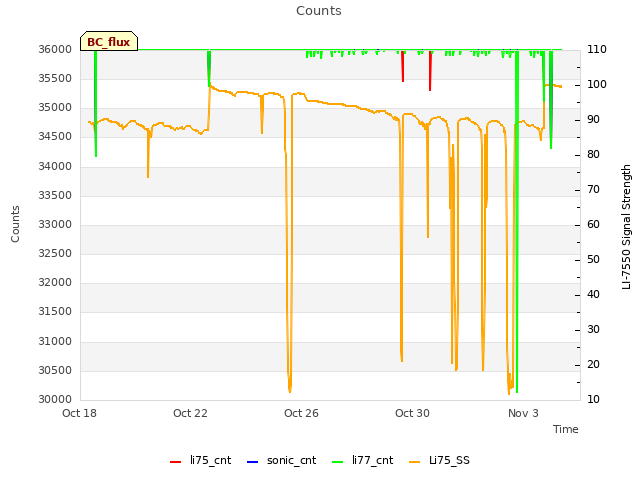

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

Explore the graph:Purple Air Met Data in a new window

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

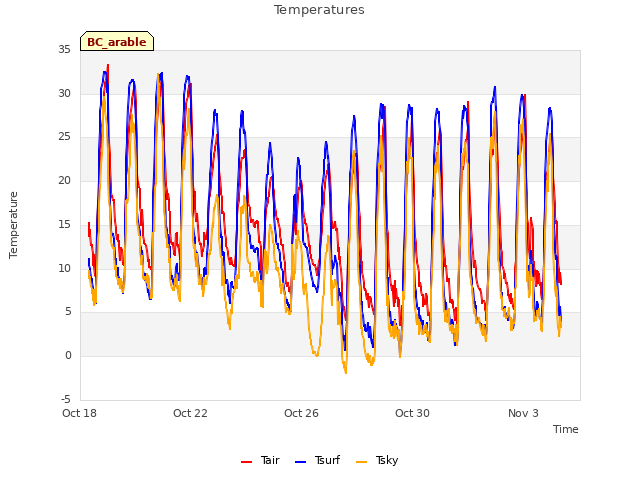

Explore the graph:Temperatures in a new window
