East End: 2021-10-07 11:50:00 (DOY 280)
Author: Daphne Szutu
Others: Dennis, Ari
Summary: Regular data collection/cleaning, swapped 7500 for calibration
| 2021-10-07 East End Dennis, Ari, and I arrived at 11:50 PDT. It was a pleasant day, mild and partly cloudy with a slight breeze. The staff gauge read 31cm. Ari cleaned the flux and rad sensor. Dennis topped off the wash reservoir. I downloaded met, cam, and USB GHG data. We swapped LI-7500s for calibration: sn 1594 came off and sn 75H-2667 went on. I uploaded a new config file, updated the pressure coefficients, changed the eddy clock ~+45sec to match the laptop time, and reset the box. I checked that the USB was logging and the 7700 was connected. LI-7500 readings (sn 1594 --> sn 75H-2667): CO2 390ppm --> 417 H2O 443ppm --> 380 T 20.7C --> 20.8 P 101.4kPa --> 101.4 SS 89--> 101 after cleaning LI7700 readings: CH4 2.0ppm RSSI 58--> 83 after cleaning We left at 12:10 PDT. |
0 photos found
11 sets found

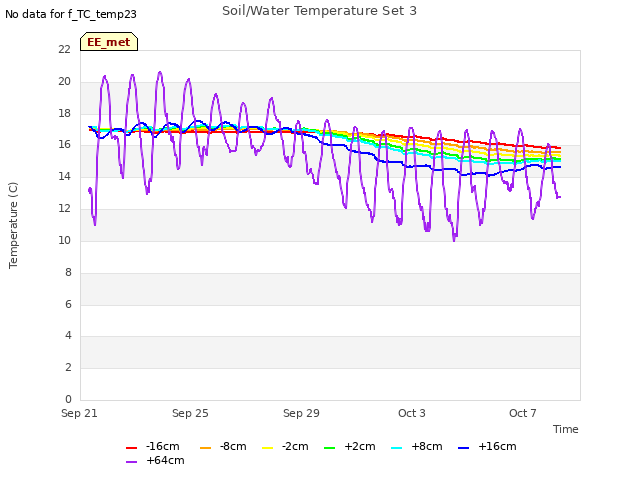

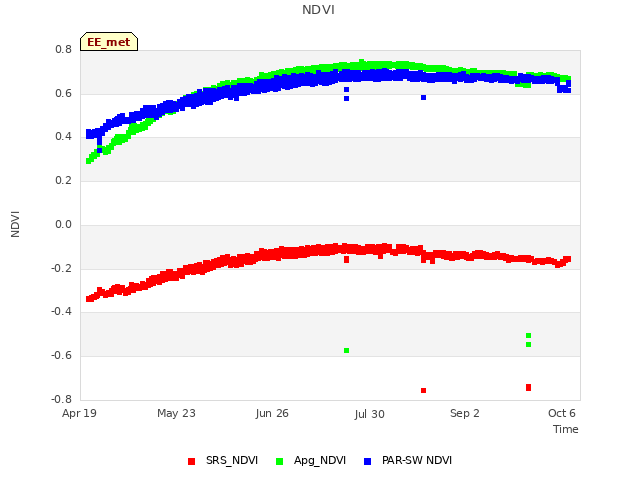

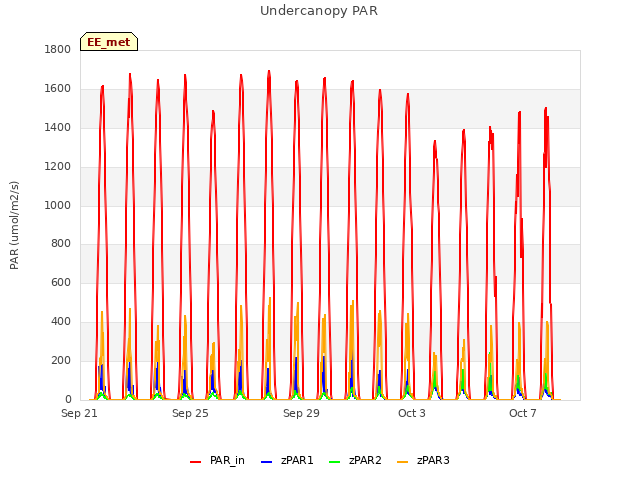

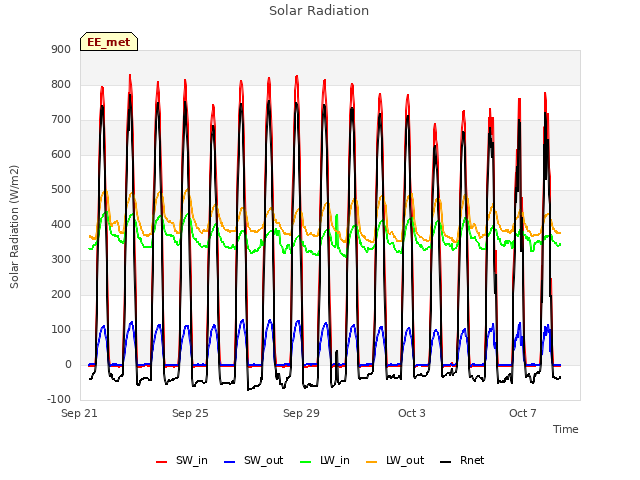

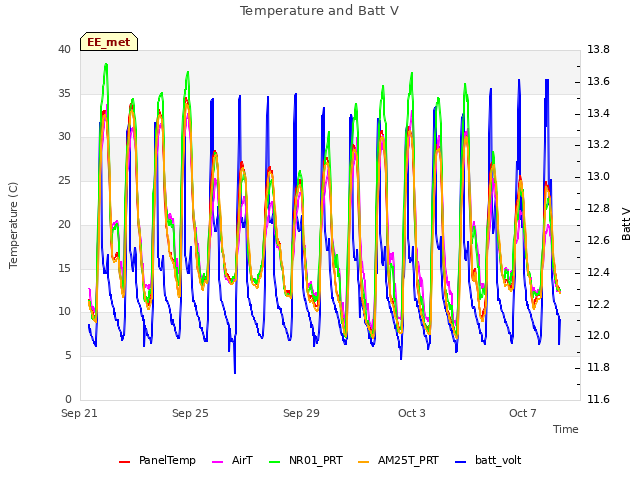

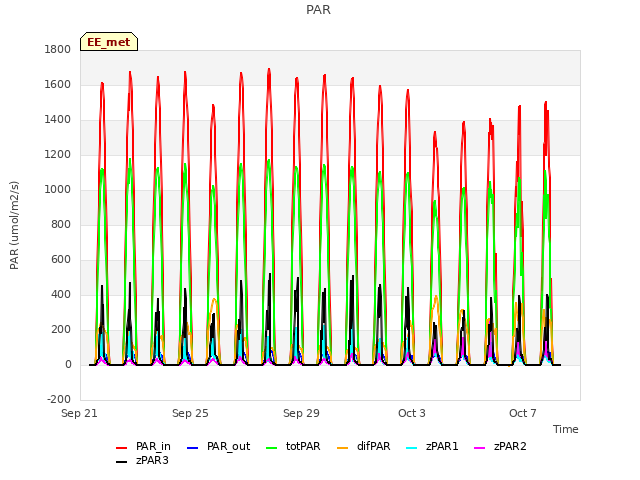

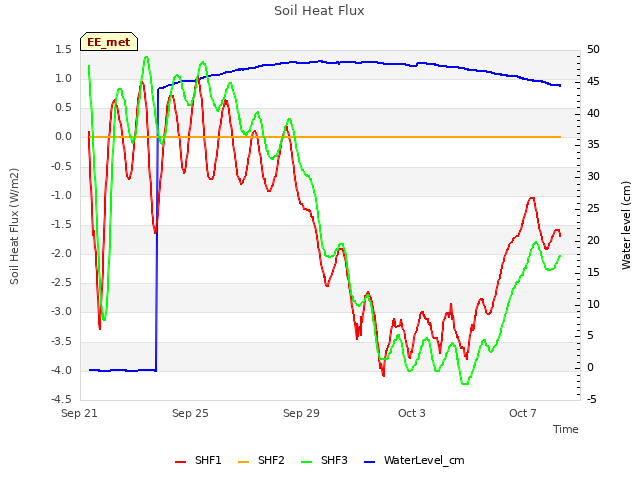

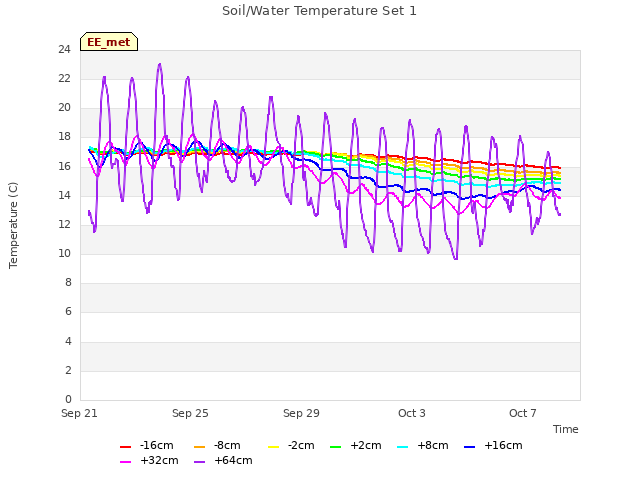

14 EE_met graphs found
Can't check EE_mixed

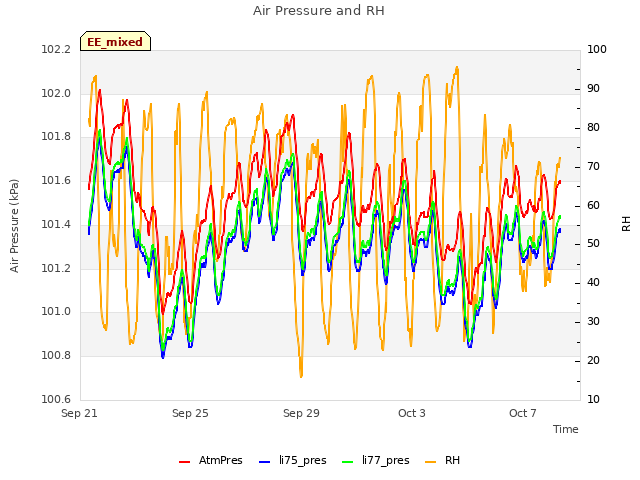

1 EE_mixed graphs found

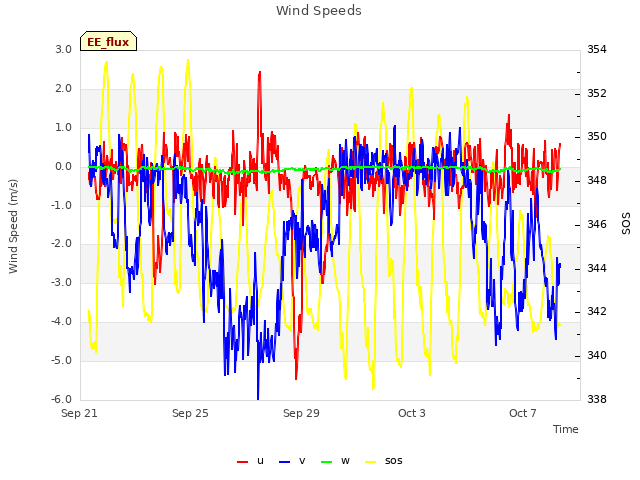

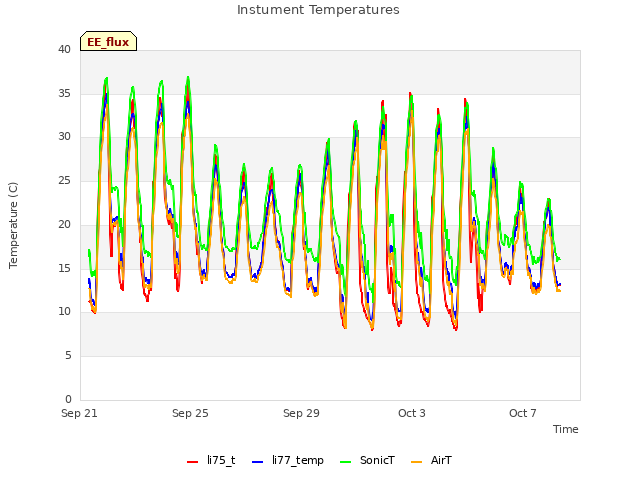

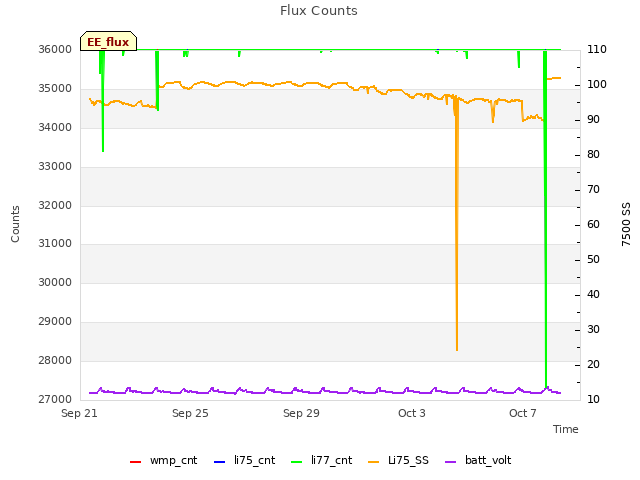

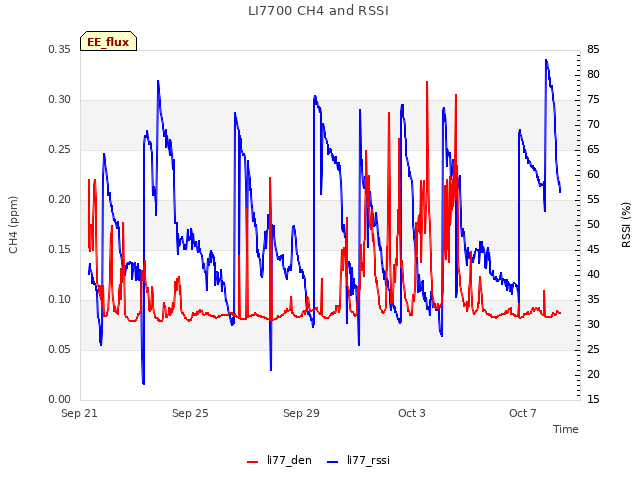

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed

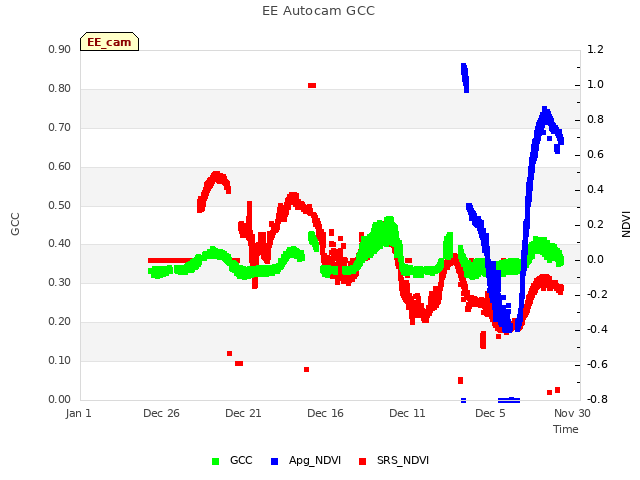

1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

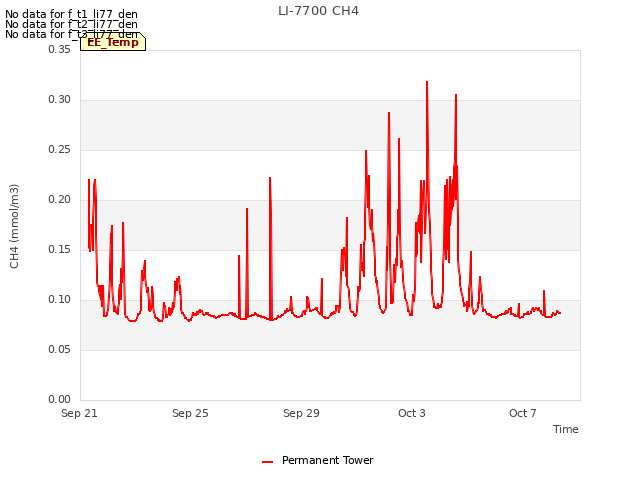

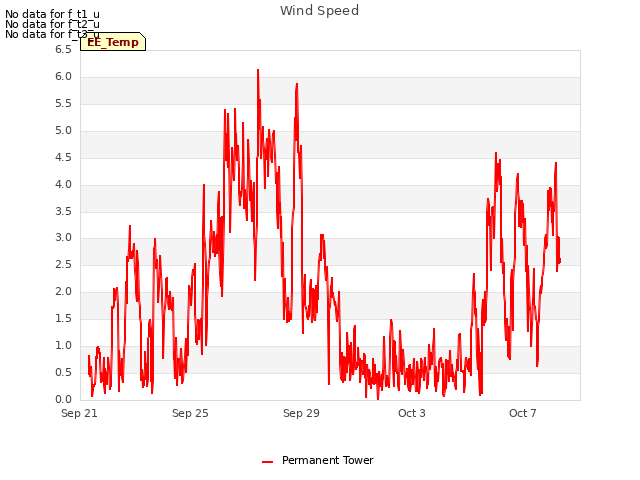

5 EE_Temp graphs found
Can't check EE_minidot

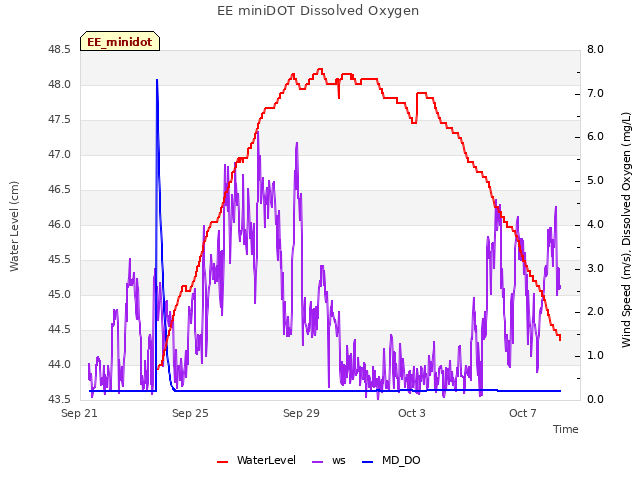

1 EE_minidot graphs found
Can't check MBSWEEWPBCBA
1 EE_processed graphs found
