Field Notes

East Pond: 2019-02-28 14:40:00 (DOY 59)
Author: Daphne Szutu
Others: Camilo, Robert

Summary: Regular data collection/cleaning, cleaned outlet drain, reference GCC photo, attached minidot to plastic chain

2019-02-28
East Pond

We arrived at 14:40. It was mostly sunny with a cool breeze, puffy clouds, and a clear view of Mt. Diablo. Robert and Camilo cleared out the outlet drain; there was about 30cm of sediment/plants on top and another 30 cm of decomposing veg below the sediment. The shovel was good for loosening the sediment and the hoe was good for removing material from the outlet. The water level at the tower was 54 cm.

I downloaded met, camera, USB, minidot, and HOBO data. Robert cleaned the flux and rad sensors and took a reference GCC photo. The wash reservoir was 1/3 empty; we refilled to Â¾ full to conserve water for other sites.

Camilo swapped the minidot desiccant and moved the minidot and HOBO from a string to a yellow plastic chain. The sensors were hanging off of a cross-brace on the S side of the tower, and they are now hanging off the scaffolding on the W side of the tower, next to the staff gauge. This will make the it easier to access the sensors from the lower boardwalk. He added a single chain link that can be snapped open to adjust the height of the chain, but it could probably be swapped for a stainless steel carabiner.

LI-7500 readings:
CO2 410ppm
H2O 351ppm
T 16.7C
P 102.3kPa
SS 97--> 98

LI7700 readings:
CH4 1.9ppm
RSSI 33 --> 71

We left at 15:15. We turned around and exited out of the green gate by the WP inlet.

0 photos found

5 sets found

Can't check MBEEWPSWEPGT_cam

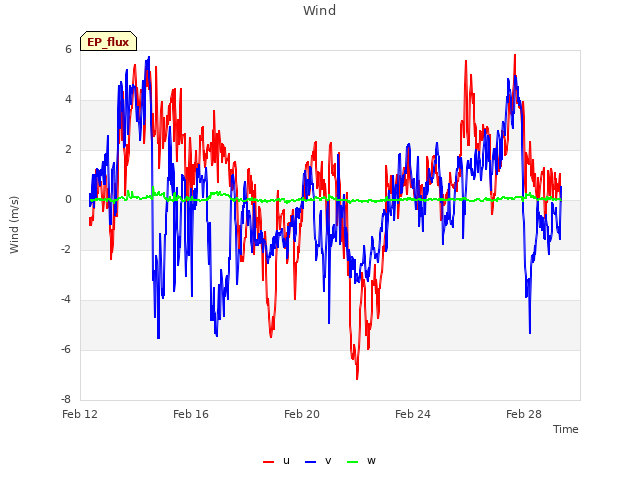

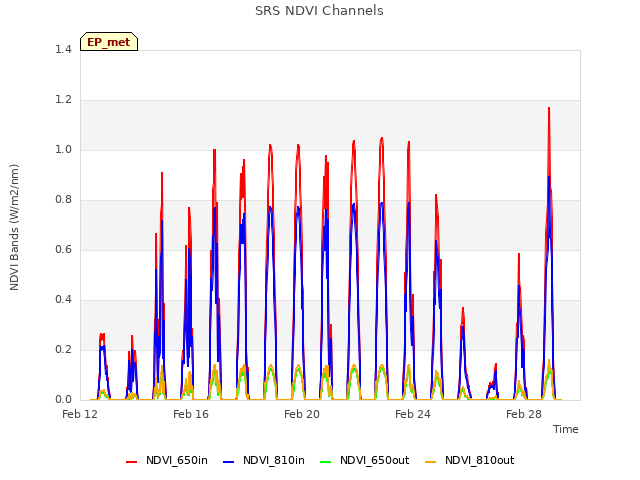

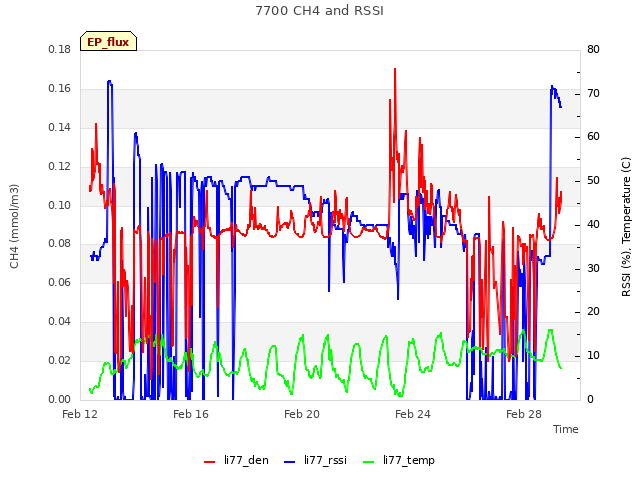

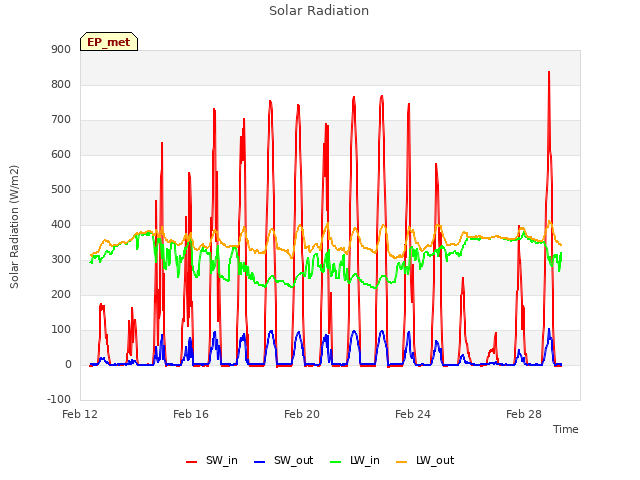

9 EP_met graphs found
