East Pond: 2019-03-14 12:42:00 (DOY 73)
Author: Camilo Rey-Sanchez
Others: Daphne, Alex

Summary: Regular data collection and cleaning, removed one board from outlet drain

2019-03-14
East Pond

We arrived at 12:42. It was sunny and breezy, with clear skies and some cirrus clouds. Wetland is mostly brown. The water level was at 49 cm. Daphne lowered the water sensors because they were above the water level but they were resting on loose sediment so a small puddle was created by stepping lightly on the area below the sensor and allow the sensor to float. Alex cleaned out the outlet and removed a small board to let more water drain down.

Daphne downloaded met, camera, and USB GHG data. Camilo cleaned the flux and rad sensors. Camilo checked the sonic heading and measured 0 deg N.

LI-7500 readings:
CO2 447ppm
H2O 190ppm
T 18.8C
P 102.8kPa
SS 92--> 98 after cleaning
LI7700 readings:
CH4 1.96ppm
RSSI 40--> 73 after cleaning

We left at 13:05.

0 photos found

Graphs display:
5 sets found

Can't check MBEEWPSWEPGT_cam
9 EP_met graphs found

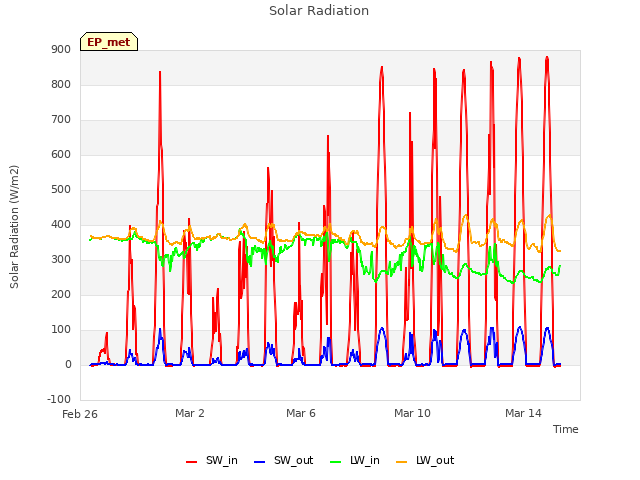

Explore the graph:Solar Radiation in a new window

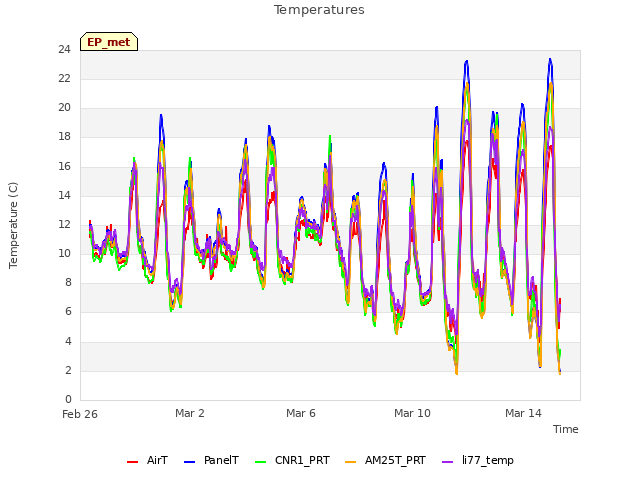

Explore the graph:Temperatures in a new window

Explore the graph:RH and Batt V in a new window

Explore the graph:PAR in a new window

Explore the graph:Water Level and TDR Conductivity in a new window

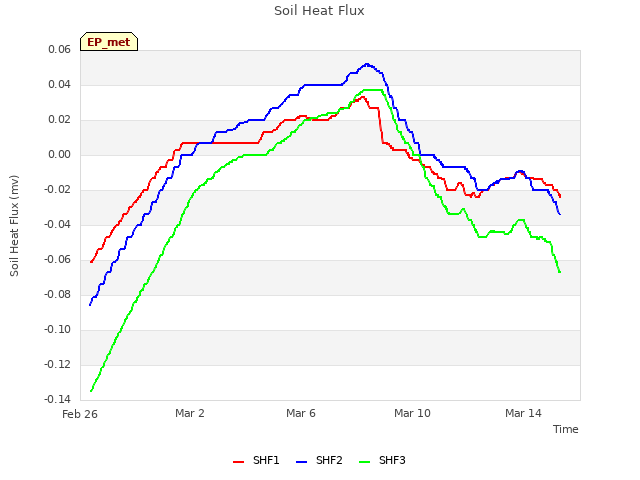

Explore the graph:Soil Heat Flux in a new window

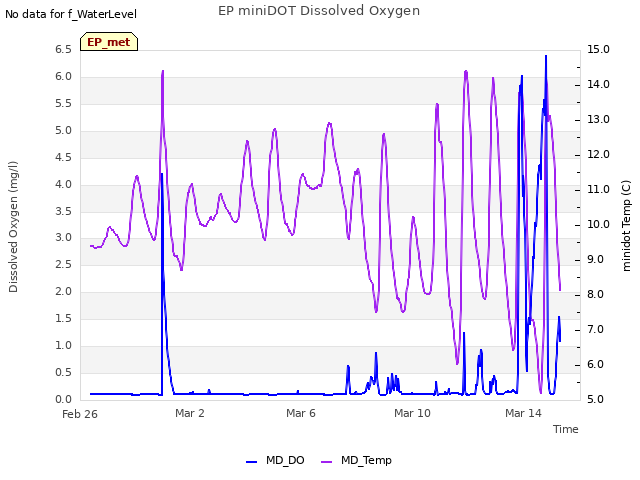

Explore the graph:EP miniDOT Dissolved Oxygen in a new window

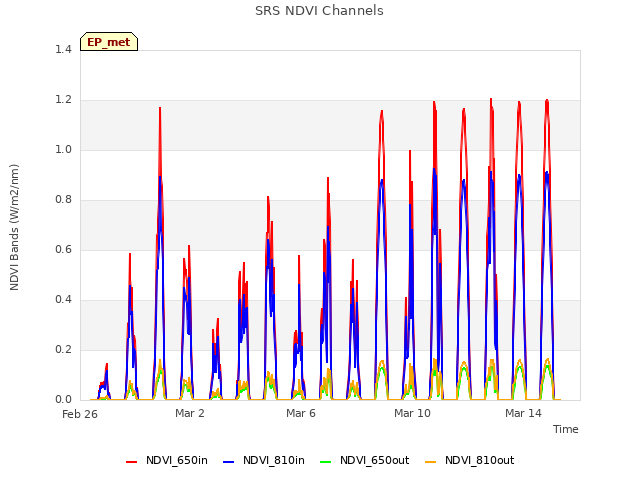

Explore the graph:SRS NDVI Channels in a new window

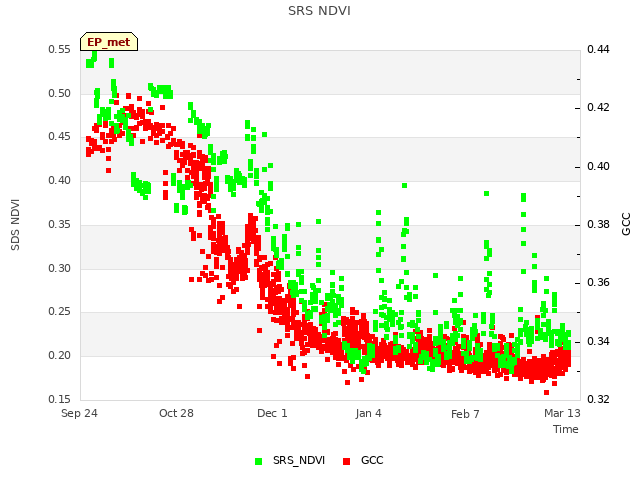

Explore the graph:SRS NDVI in a new window

4 EP_flux graphs found

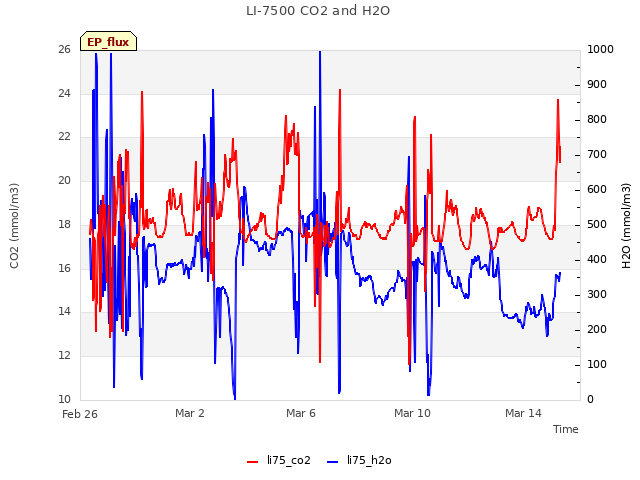

Explore the graph:LI-7500 CO2 and H2O in a new window

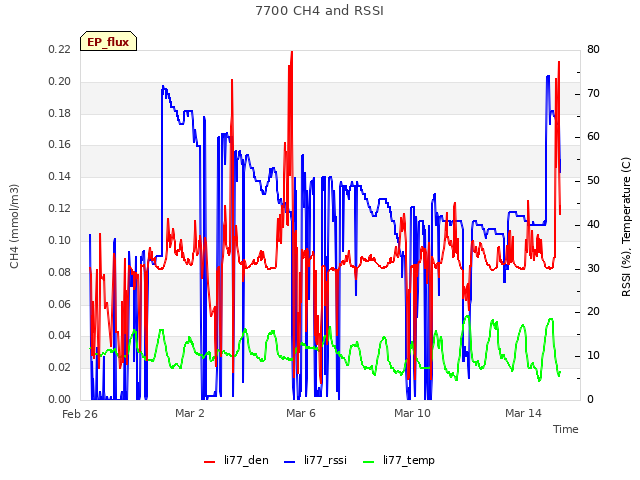

Explore the graph:7700 CH4 and RSSI in a new window

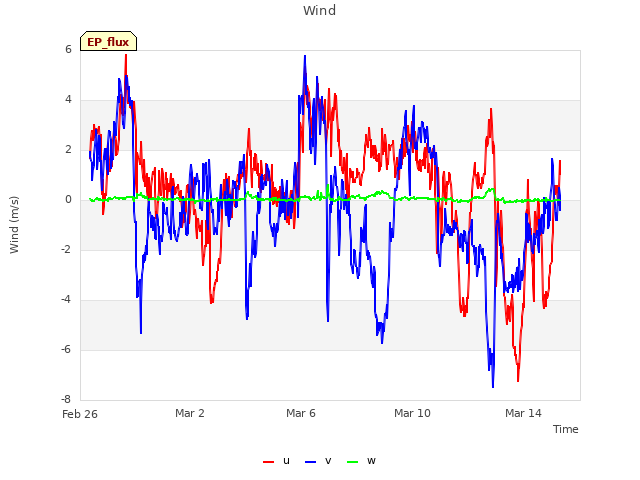

Explore the graph:Wind in a new window

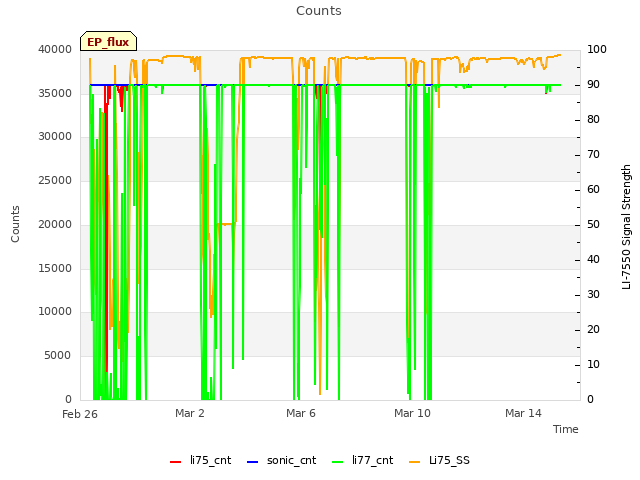

Explore the graph:Counts in a new window

Can't check EP_hobo
1 EP_hobo graphs found

Explore the graph:Hobo Conductivity in a new window

Can't check EP_level1
3 EP_level1 graphs found

Explore the graph:Heat Fluxes in a new window

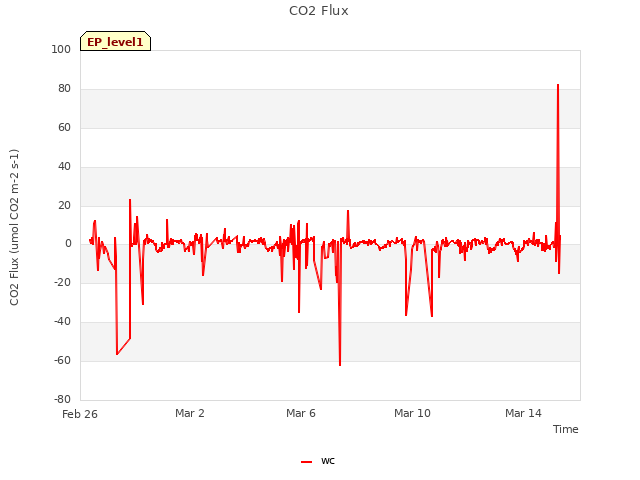

Explore the graph:CO2 Flux in a new window

Explore the graph:CH4 Fluxes in a new window
