Sherman Wetland: 2019-02-28 10:20:00 (DOY 59)
Author: Daphne Szutu
Others: Camilo, Robert

Summary: Regular data collection/cleaning, green cattails coming up

2019-02-28
Sherman Wetland

We arrived at 10:20. It was breezy and partly cloudy, although it was mostly sunny by the time we left. The wetland is mostly brown, but there were still green bunches of tule and some green cattails on the edge of dead cattail patches. The water level was 78 cm.

I downloaded camera, USB GHG, and miniDOT data, but forgot about met. Next time I should download the data since 2019-02-12. Robert cleaned the flux and rad sensors. Camilo swapped the minidot desiccant and put in a new screen for the precipitation bucket. Since we upgraded the 7700 firmware on our last visit, I checked the GHG columns—they still looked good.

LI-7500 readings:
CO2 417ppm
H2O 337ppm
T 12.7C
P 102.2kPa
SS 97--> 98

LI7700 readings:
CH4 2.0ppm
RSSI 56 --> 81 after cleaning

We left at 10:55.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

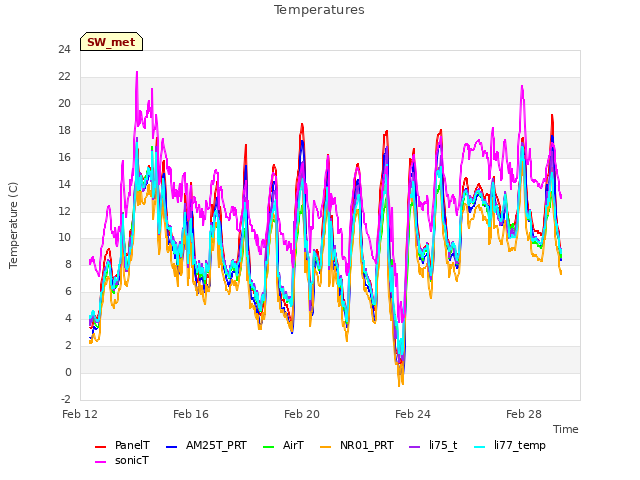

Explore the graph:Temperatures in a new window

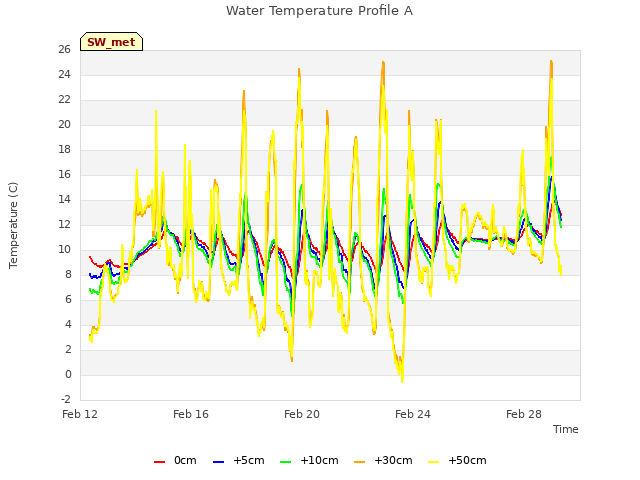

Explore the graph:Water Temperature Profile A in a new window

Explore the graph:Water Temperature Profile B in a new window

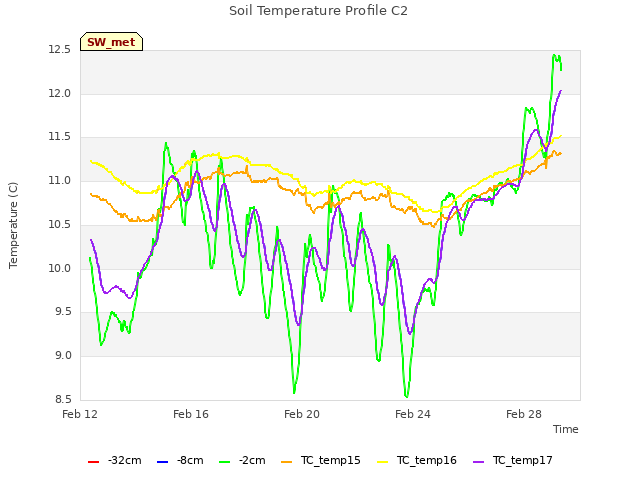

Explore the graph:Soil Temperature Profile C2 in a new window

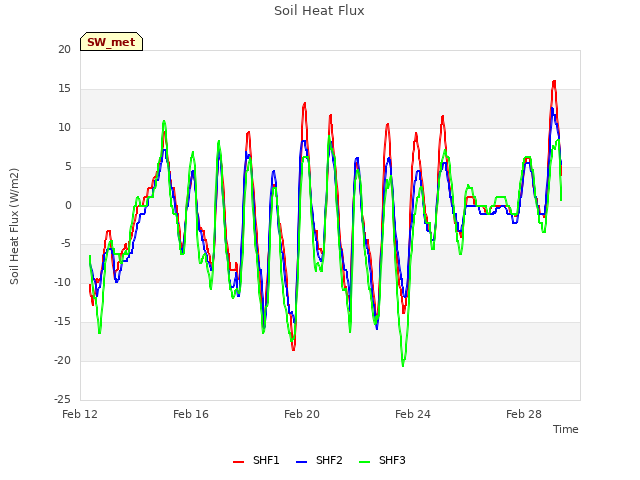

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four channel Radiometer in a new window

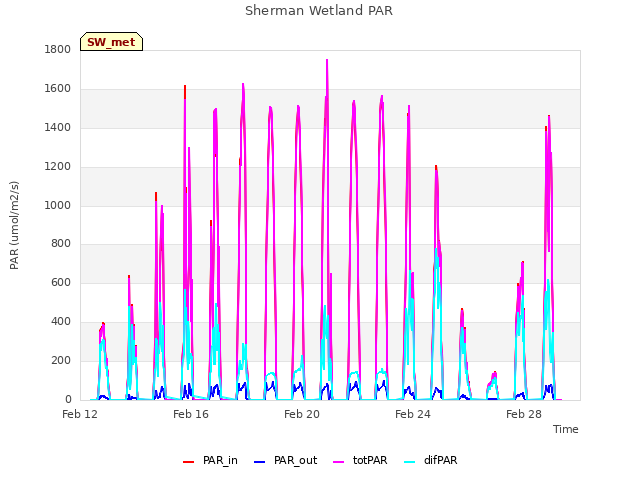

Explore the graph:Sherman Wetland PAR in a new window

Explore the graph:PRI Channels in a new window

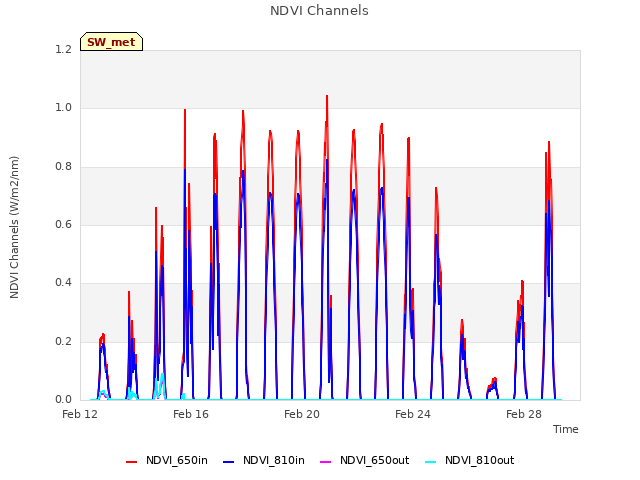

Explore the graph:NDVI Channels in a new window

Explore the graph:Water level and Rain in a new window

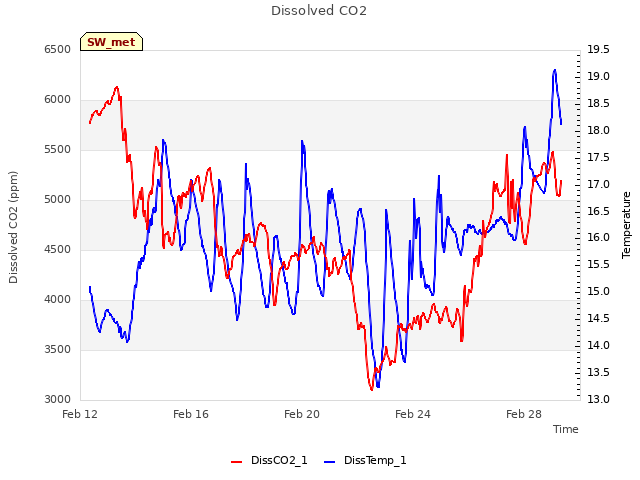

Explore the graph:Dissolved CO2 in a new window

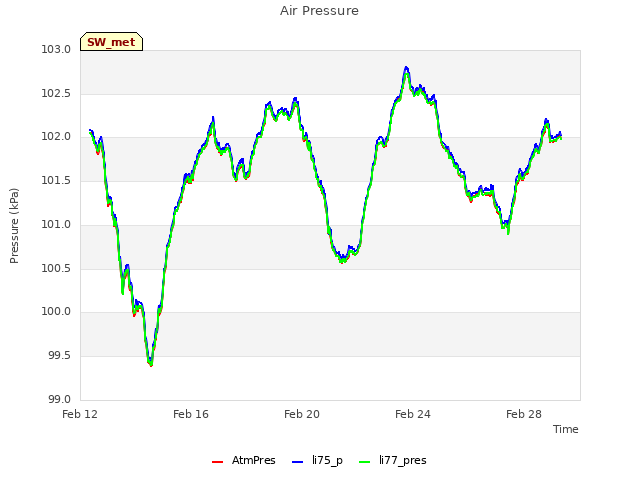

Explore the graph:Air Pressure in a new window

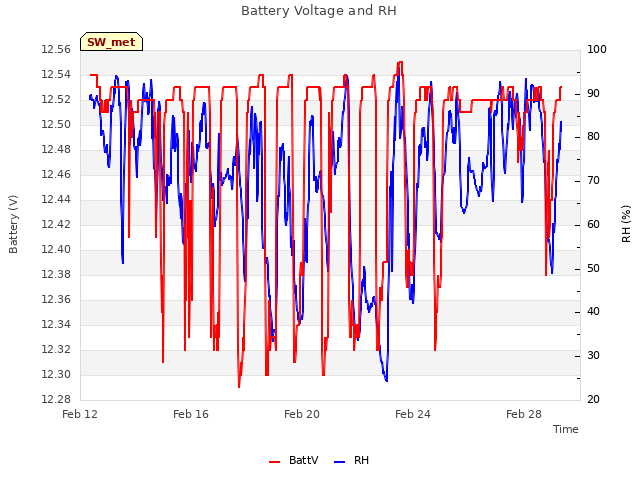

Explore the graph:Battery Voltage and RH in a new window

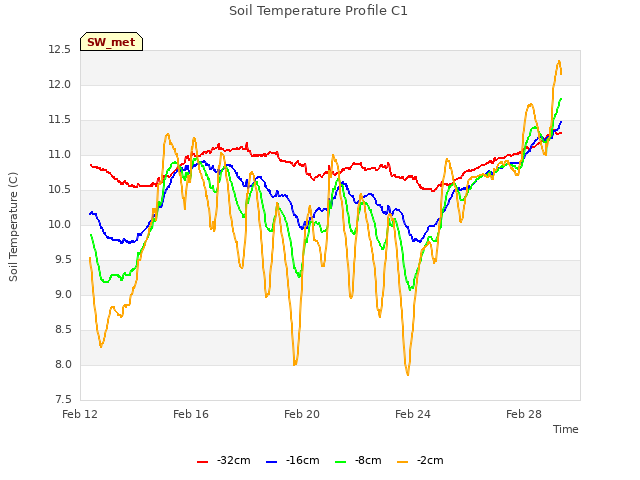

Explore the graph:Soil Temperature Profile C1 in a new window

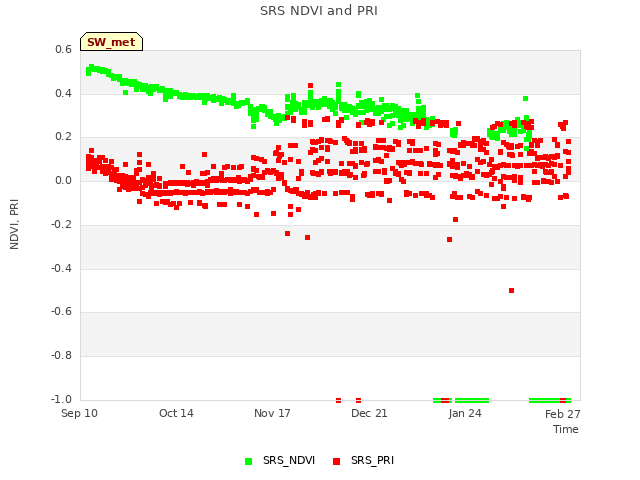

Explore the graph:SRS NDVI and PRI in a new window

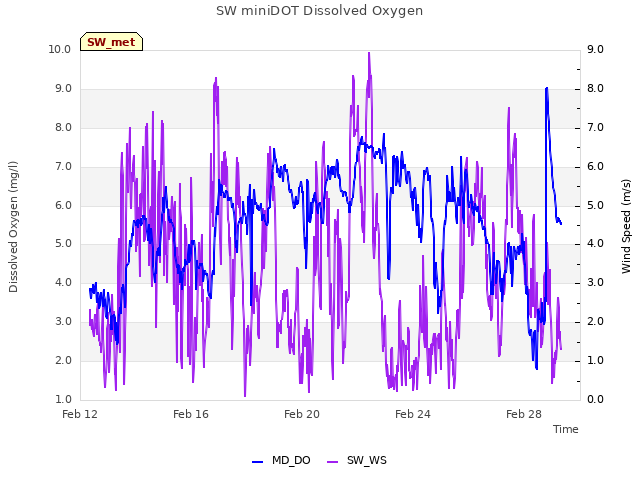

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

Explore the graph:CO2 and H2O in a new window

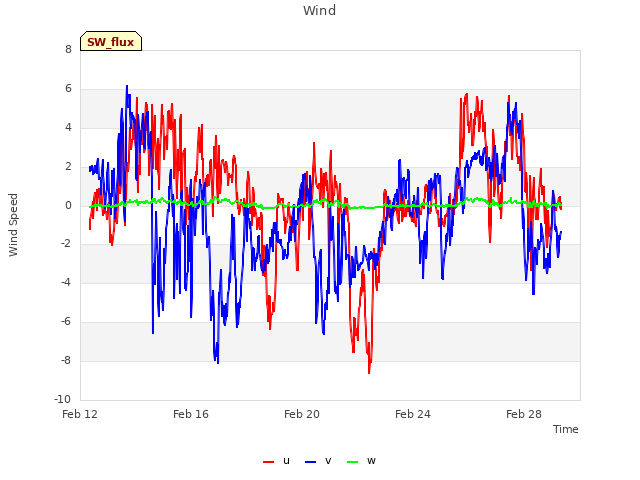

Explore the graph:Wind in a new window

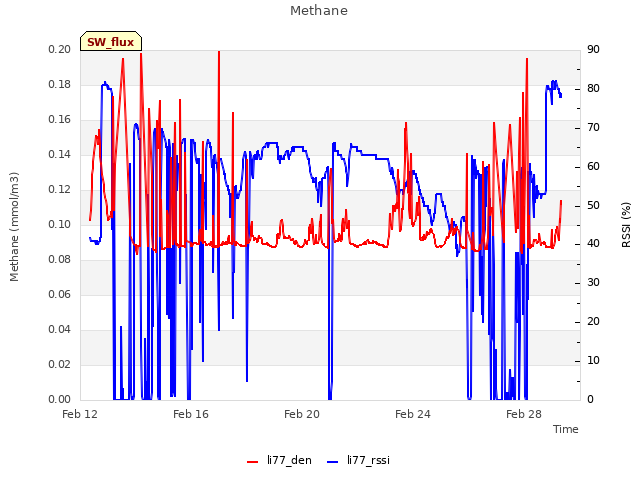

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
