Sherman Barn: 2019-02-28 09:20:00 (DOY 59)
Author: Daphne Szutu
Others: Camilo, Robert

Summary: Regular data collection/cleaning, still no sign of cows, gaps in SWout

2019-02-28
Sherman Barn

We arrived at 9:20. It was cool with patchy sun. The grass is still tall and green and there were puddles north of the tower.

Camilo downloaded met, camera, and USB GHG data. Robert cleaned the flux and rad sensors. We didn’t take spectral measurements because we forgot the measurement tube. The wash reservoir was 10% full; we re-filled it. There are some major gaps in SWout that I need to fix, by either moving it to another channel (although the sensors are already clustered toward the highest channel numbers) or swapping out for a new mux.

LI-7500 readings:
CO2 412ppm
H2O 400ppm
T 11.1C
P 102.3kPa
SS 96--> 97 after cleaning

LI7700 readings:
CH4 2.0ppm
RSSI 38--> 73 after cleaning

We left at 9:55.

0 photos found

Graphs display:
3 sets found

4 SB_flux graphs found

Explore the graph:LI-7500 CO2 and H2O in a new window

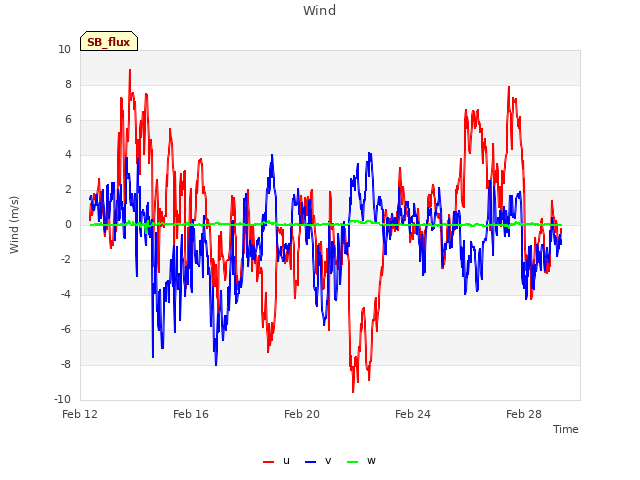

Explore the graph:Wind in a new window

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

15 SB_met graphs found

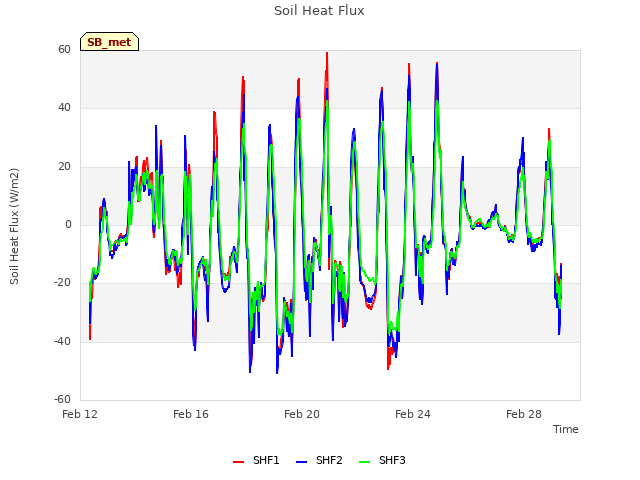

Explore the graph:Soil Heat Flux in a new window

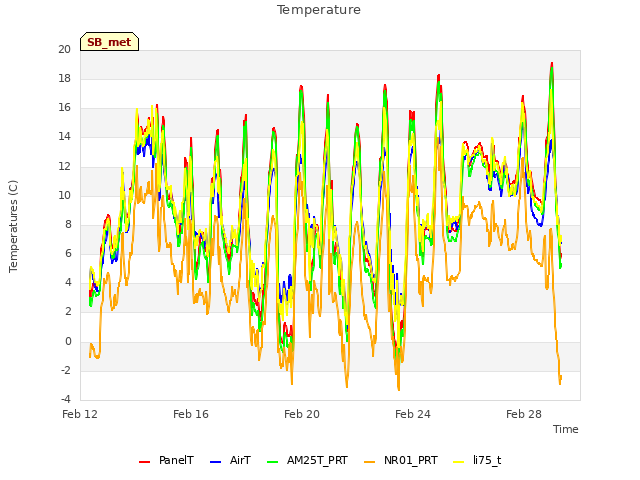

Explore the graph:Temperature in a new window

Explore the graph:Air Pressure and RH in a new window

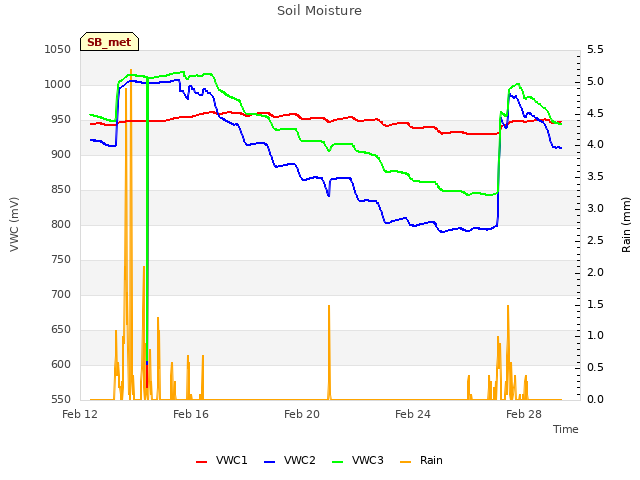

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

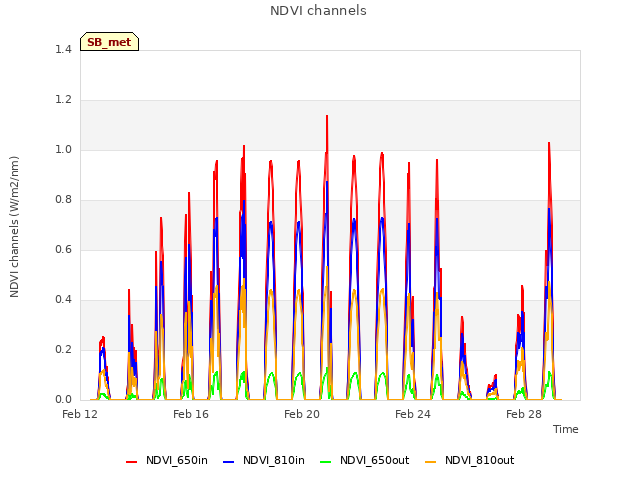

Explore the graph:NDVI channels in a new window

Explore the graph:PRI channels in a new window

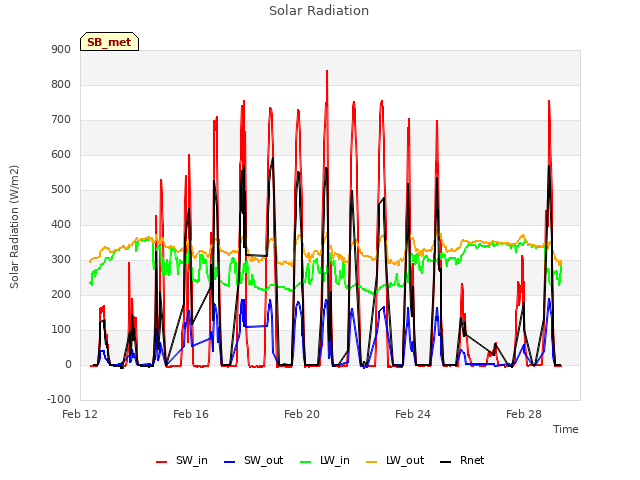

Explore the graph:Solar Radiation in a new window

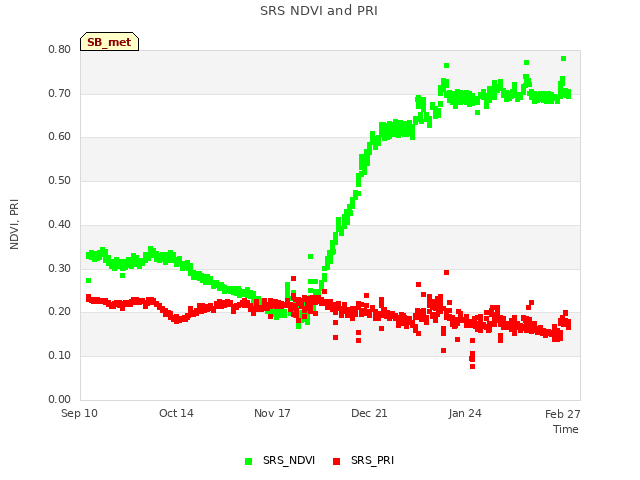

Explore the graph:SRS NDVI and PRI in a new window

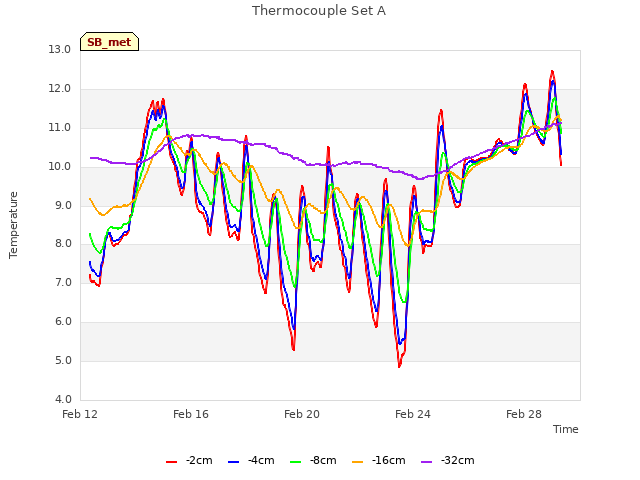

Explore the graph:Thermocouple Set A in a new window

Explore the graph:Thermocouple Set B in a new window

Explore the graph:Thermocouple Set C in a new window

Explore the graph:Battery Voltage in a new window

Explore the graph:Water Level in a new window

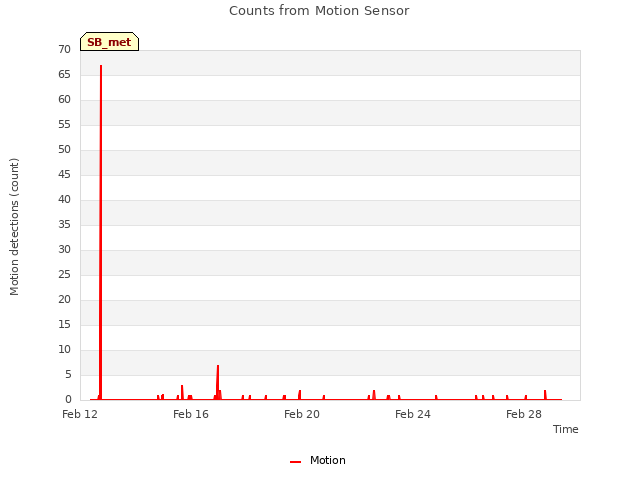

Explore the graph:Counts from Motion Sensor in a new window

Can't check TATWBABCSB_cam
