Field Notes

<--2025-05-15 02:20:00 |
Other sites visited today: Gilbert Tract | East End | Tonzi
Phenocam link: Searching...

Vaira: 2025-05-28 14:40:00 (DOY 148)
Author: Joe Verfaillie
Others: Kuno

Summary: Standard data collection, still missing some met data from the previous visit, getting dry, the pond water was very green

Vaira
2025-05-28

Kuno and I arrived at about 15:40 PDT. It was dry sunny and warm with a nice breeze. The grass is brown with the tallest stems reaching about waist high. The water hole is about half full. The stream from the pond is still full. We didn't see any cows around. I've started leaving the electric fence off since last visit.

Kuno did the well reading.

I collected the flux, met and camera data. I was missing the 5min met data from last time but it appears there wasn't any there to collect even when I tried a date range collection. Maybe the program I used to test the reflected PAR didn’t call that table. Seems I'm missing the soilvue table too from the previous visit.
The 7500 read: 434.0ppm CO2, 500.0mmol/m3 H2O, 34.6C, 99.3kPa, 101.2SS

I cleaned the outside of the phenocam window - it looked clean on the inside. I cleaned the radiometers.

We went to the pond. It's gone down a bunch since last month and the water was green like pea soup.

We left at about 16:10 PDT

Field Data

No tank data

No VR Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display:
9 sets found

16 VR_met graphs found

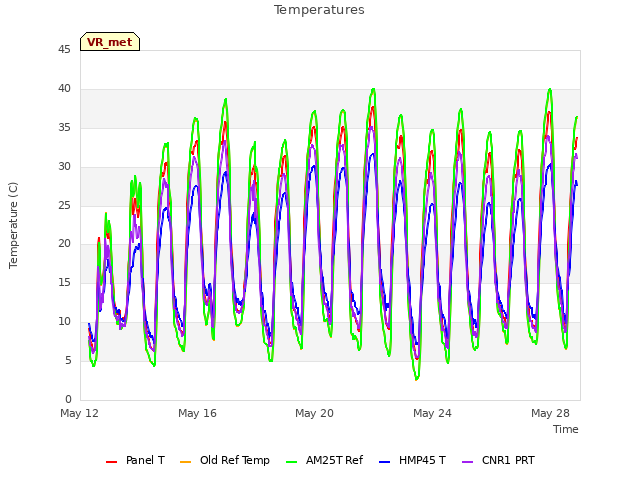

Explore the graph:Temperatures in a new window

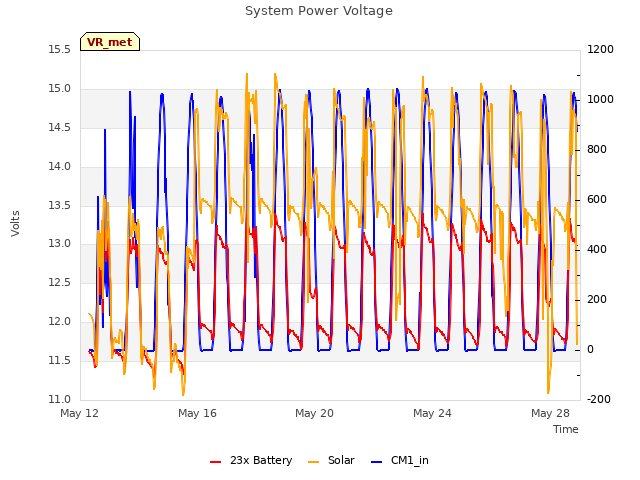

Explore the graph:System Power Voltage in a new window

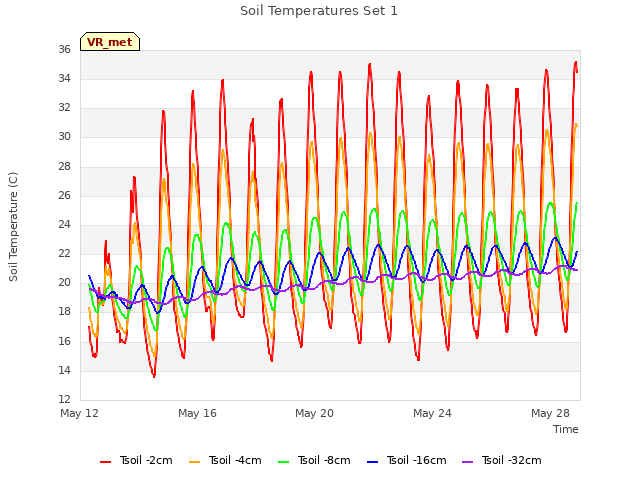

Explore the graph:Soil Temperatures Set 1 in a new window

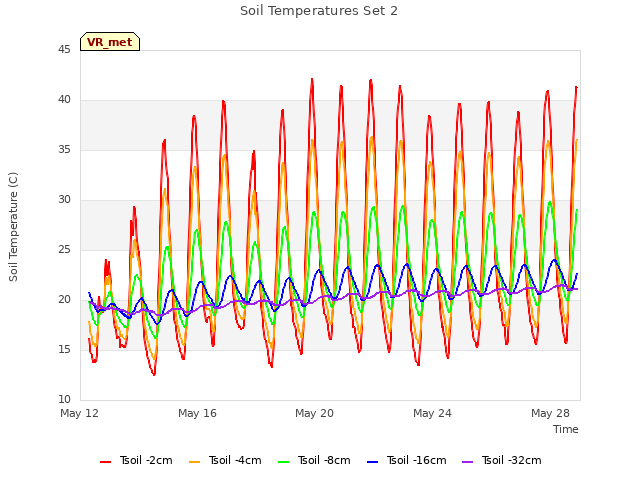

Explore the graph:Soil Temperatures Set 2 in a new window

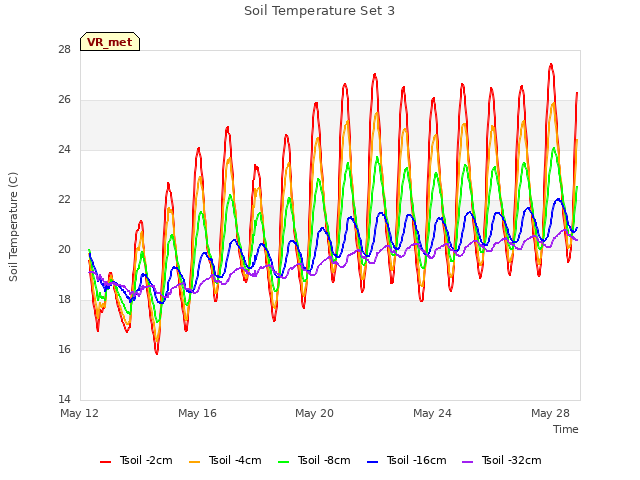

Explore the graph:Soil Temperature Set 3 in a new window

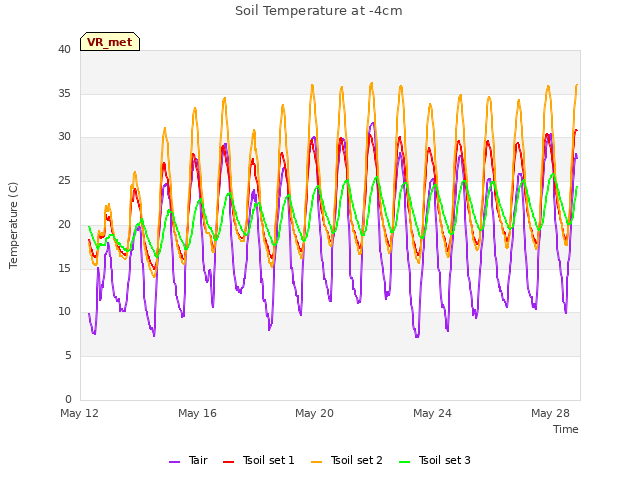

Explore the graph:Soil Temperature at -4cm in a new window

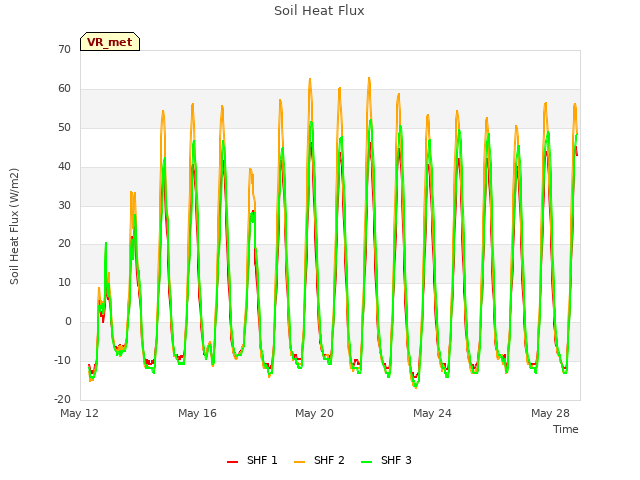

Explore the graph:Soil Heat Flux in a new window

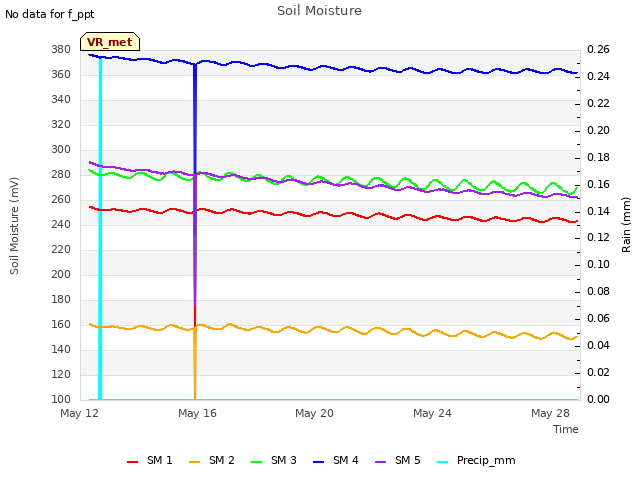

Explore the graph:Soil Moisture in a new window

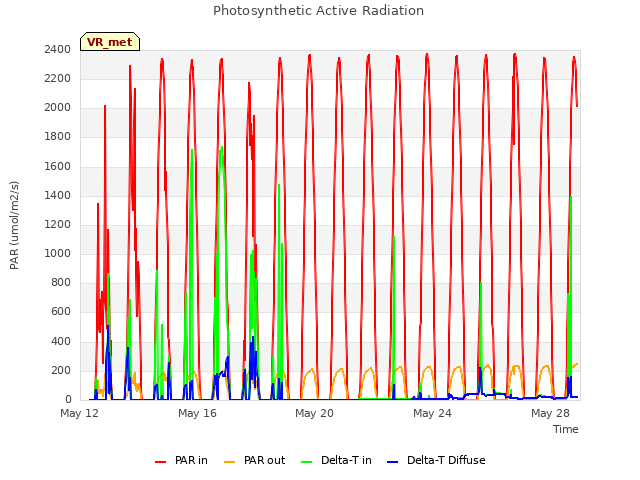

Explore the graph:Photosynthetic Active Radiation in a new window

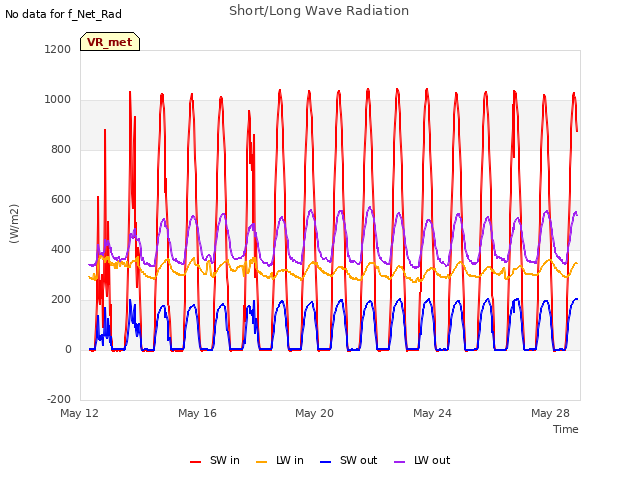

Explore the graph:Short/Long Wave Radiation in a new window

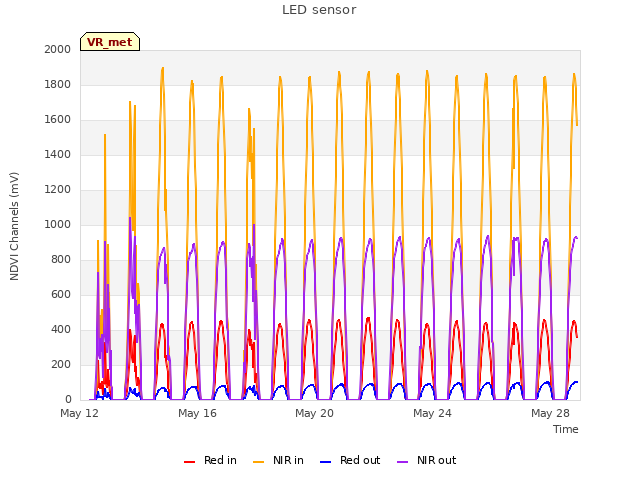

Explore the graph:LED sensor in a new window

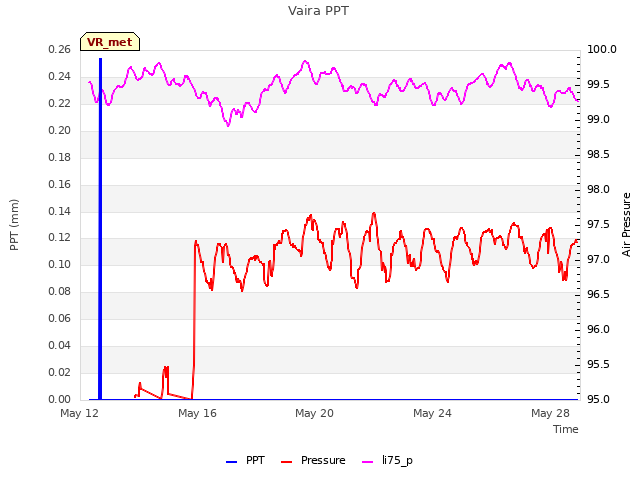

Explore the graph:Vaira PPT in a new window

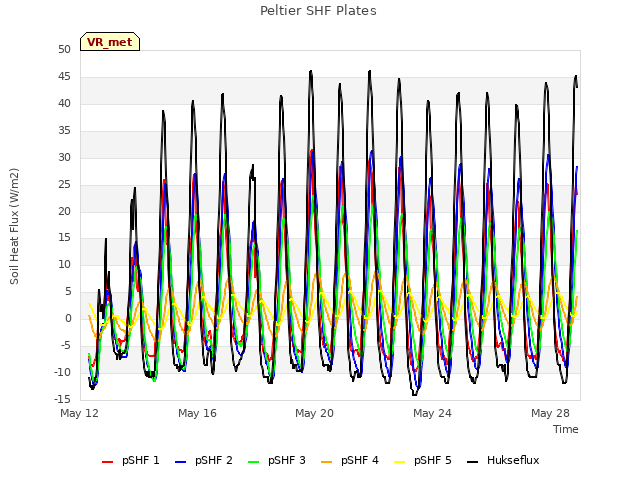

Explore the graph:Peltier SHF Plates in a new window

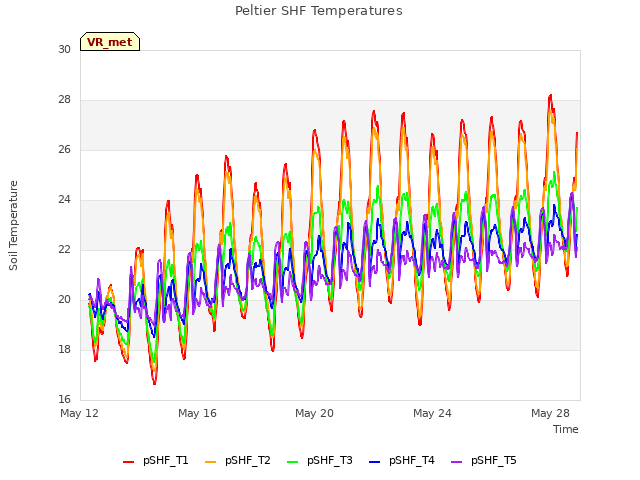

Explore the graph:Peltier SHF Temperatures in a new window

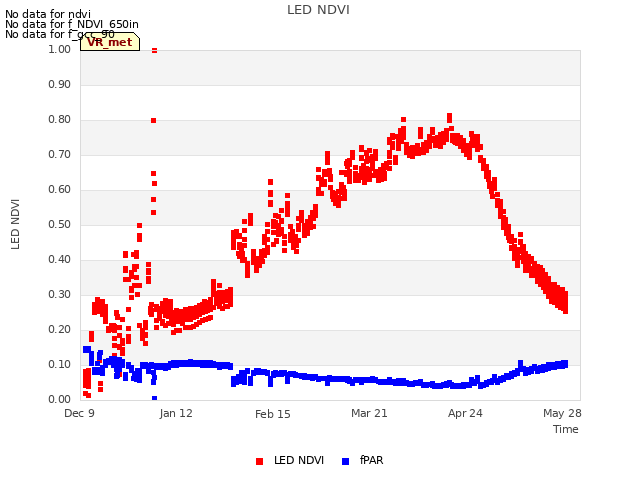

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

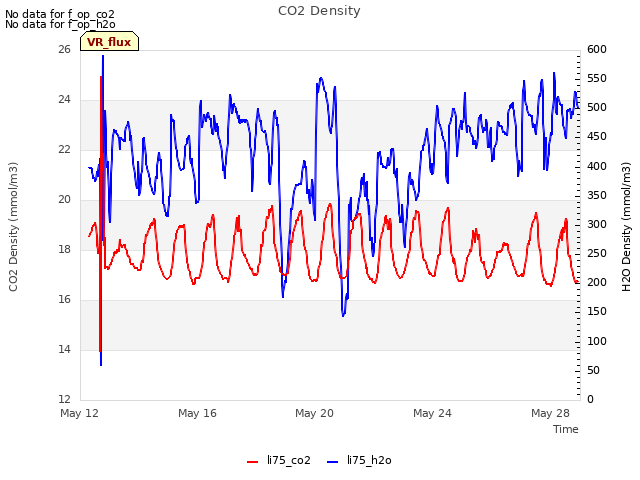

Explore the graph:CO2 Density in a new window

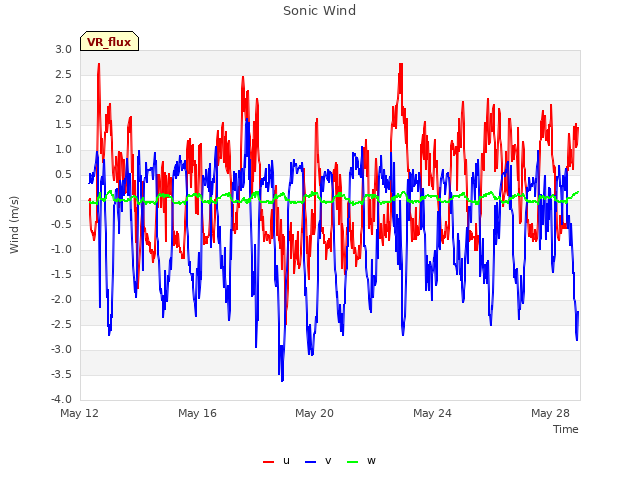

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

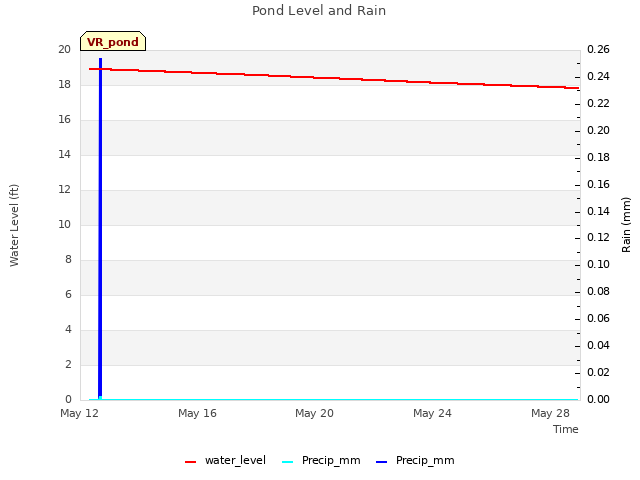

Explore the graph:Pond Level and Rain in a new window

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

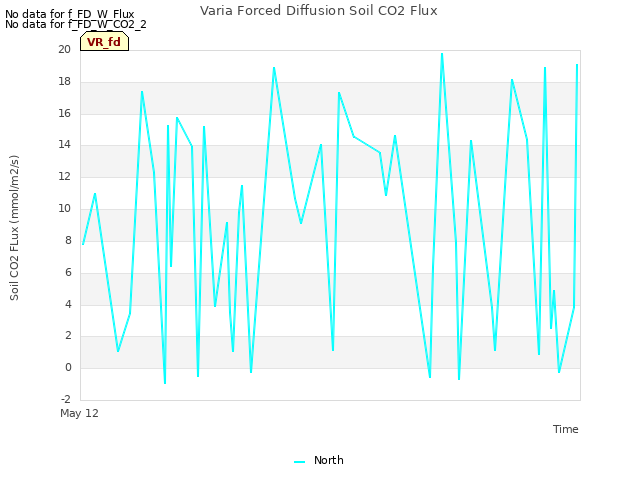

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

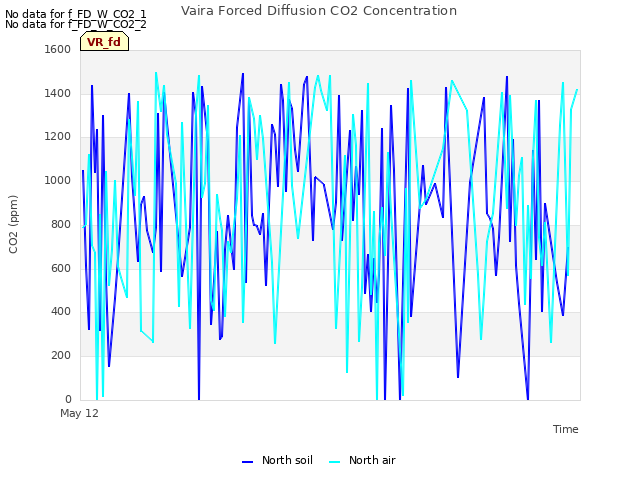

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

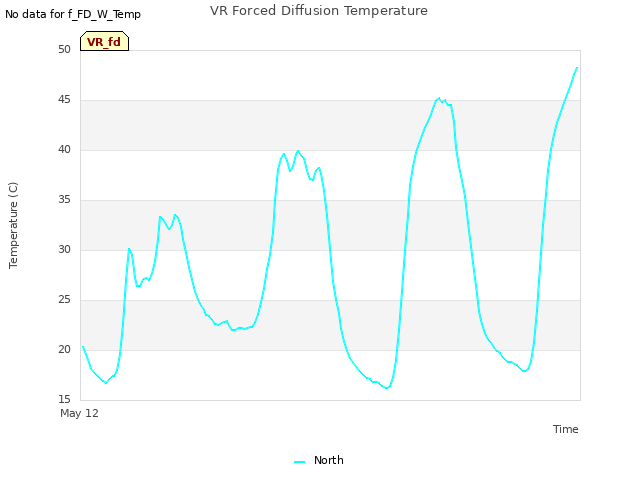

Explore the graph:VR Forced Diffusion Temperature in a new window

No data found for VR_processed.
4 VR_arable graphs found

Explore the graph:Incoming bands in a new window

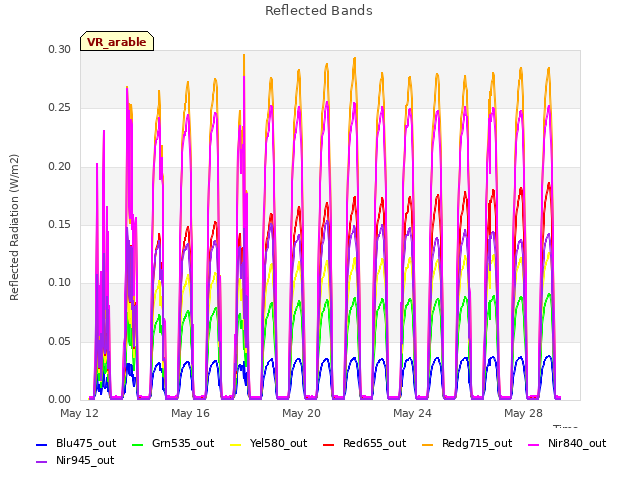

Explore the graph:Reflected Bands in a new window

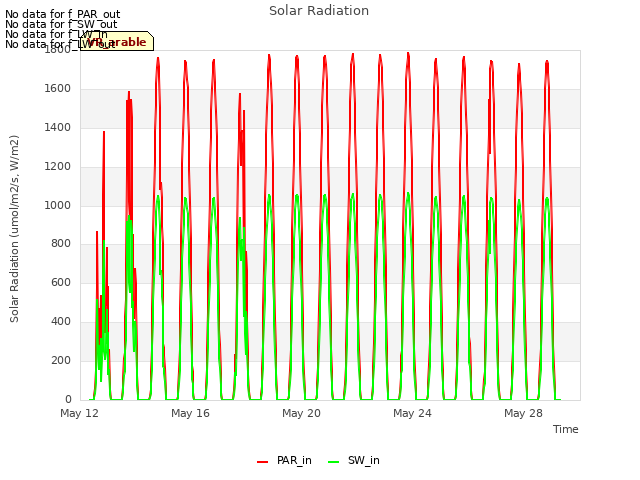

Explore the graph:Solar Radiation in a new window

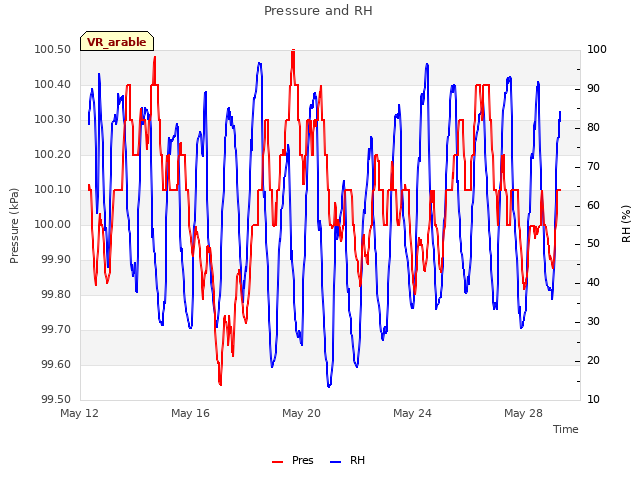

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

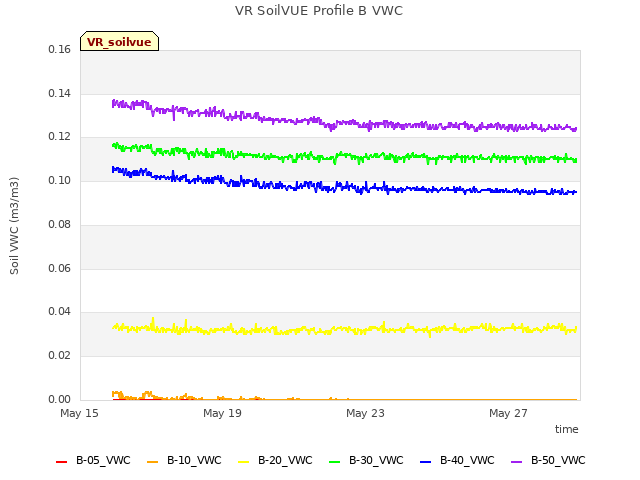

Explore the graph:VR SoilVUE Profile B VWC in a new window

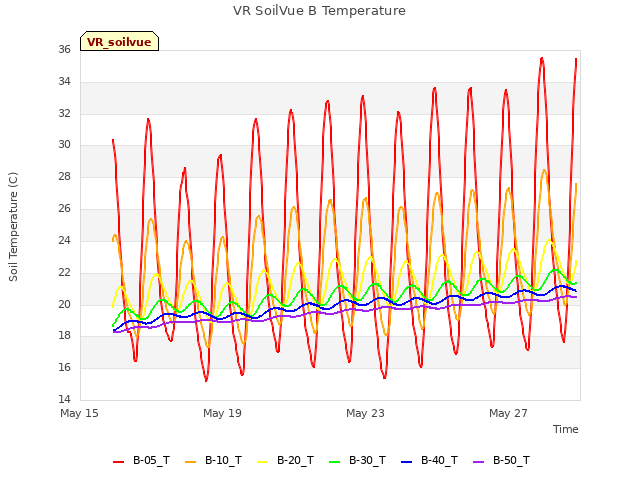

Explore the graph:VR SoilVue B Temperature in a new window

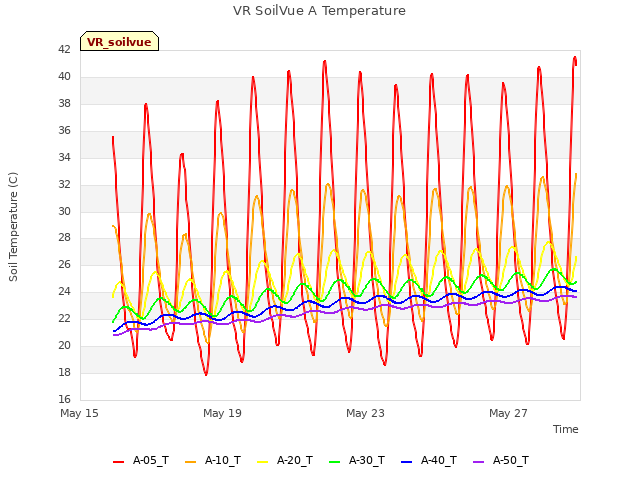

Explore the graph:VR SoilVue A Temperature in a new window

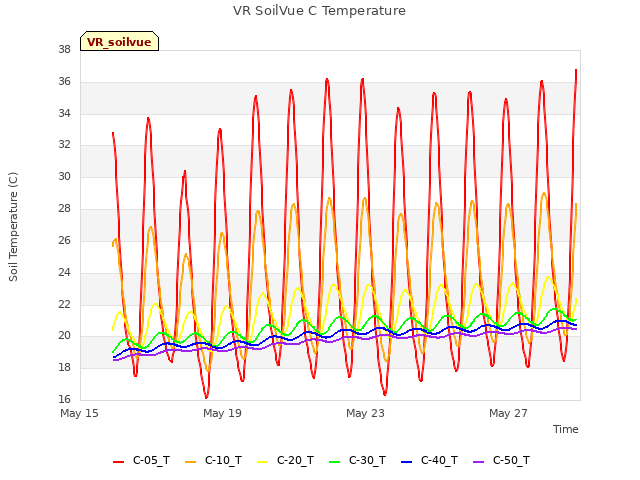

Explore the graph:VR SoilVue C Temperature in a new window

Explore the graph:VR SoilVUE Profile A VWC in a new window

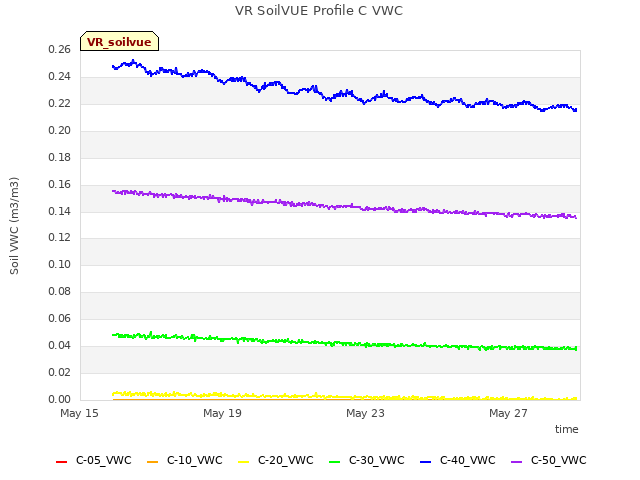

Explore the graph:VR SoilVUE Profile C VWC in a new window
