Sherman Barn: 2018-09-05 13:55:00 (DOY 248)
Author: Daphne Szutu
Others: Sam, Alex

Summary: Regular data collection/cleaning, spectral, construction on the levee road

2018-09-05
Sherman Barn

We arrived at 13:55. It was sunny and very windy. The sky was clear, with hazy horizons. They are moving earth around on the levee between the barn and the levee road. The workers were parked next to the barn, and we had to navigate around machinery to get to/from our gate.

It looked like the eastern chamber corral had been pushed: the chambers were still inside the corral (one was knocked over), but they were bunched up on one side. One collar was outside the corral. We put the collar inside and righted the chamber where it was.

I collected met, camera, and USB data. Sam cleaned flux and rad sensors. Alex took spectral measurements and refilled the wash reservoir; it was ½ full.

LI-7500 readings:
CO2 393ppm
H2O 675ppm
T 22.2C
P 101.4kPa
SS 97-->99

LI7700 readings
CH4 1.9ppm
RSSI 36ppm --> 74ppm after cleaning

We left at 14:15.

0 photos found

Graphs display:
3 sets found

4 SB_flux graphs found

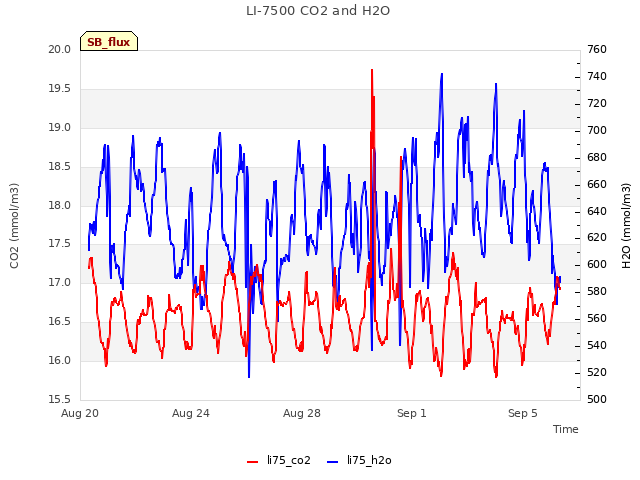

Explore the graph:LI-7500 CO2 and H2O in a new window

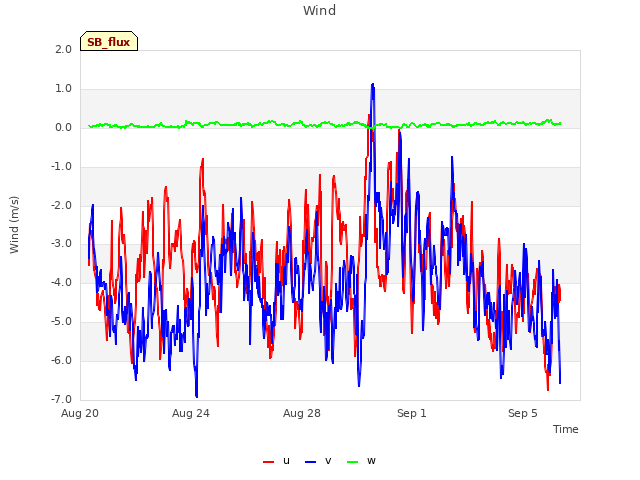

Explore the graph:Wind in a new window

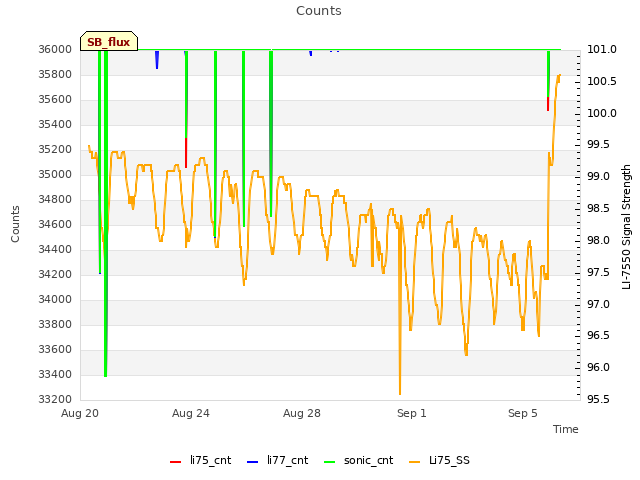

Explore the graph:Counts in a new window

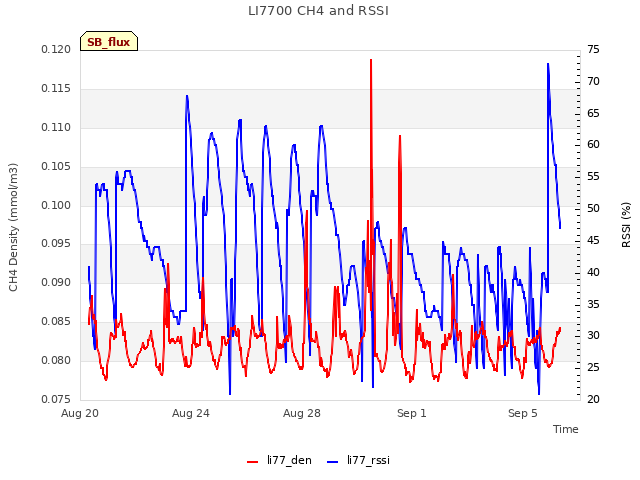

Explore the graph:LI7700 CH4 and RSSI in a new window

15 SB_met graphs found

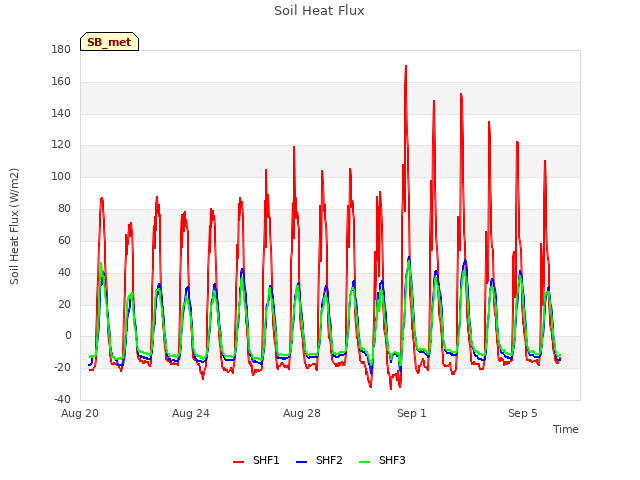

Explore the graph:Soil Heat Flux in a new window

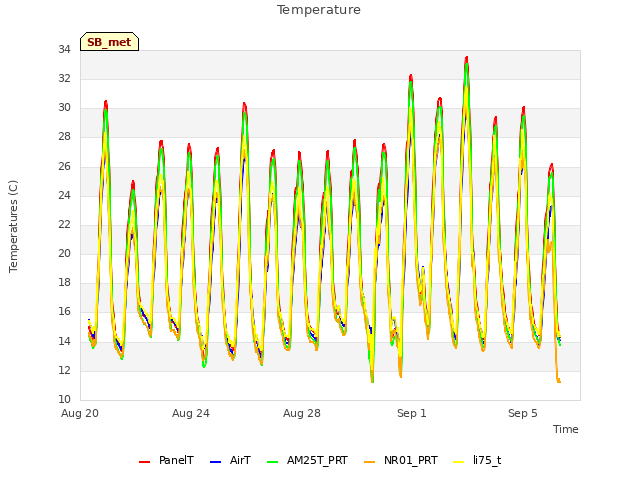

Explore the graph:Temperature in a new window

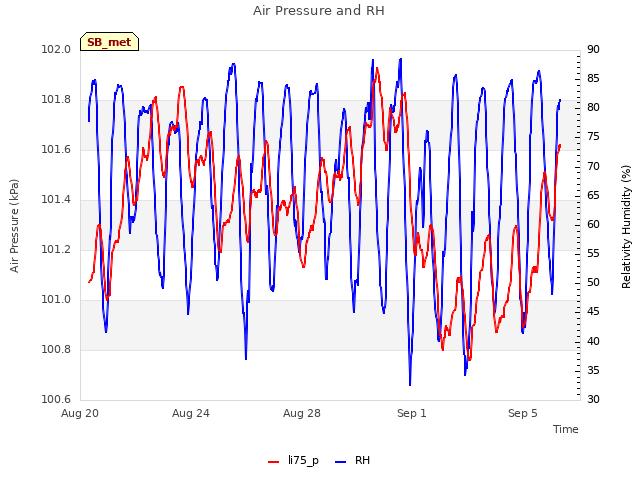

Explore the graph:Air Pressure and RH in a new window

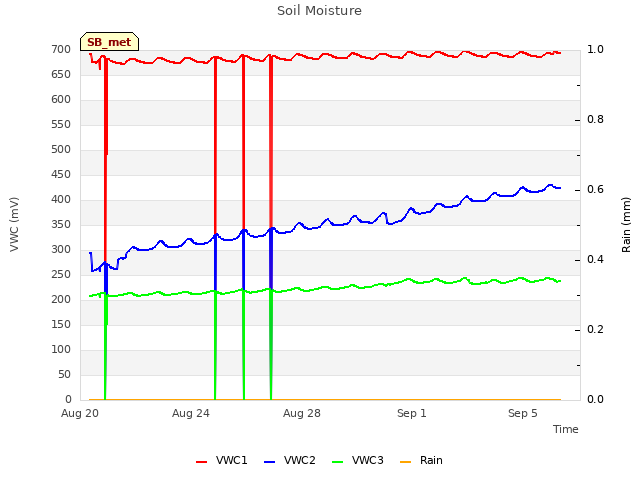

Explore the graph:Soil Moisture in a new window

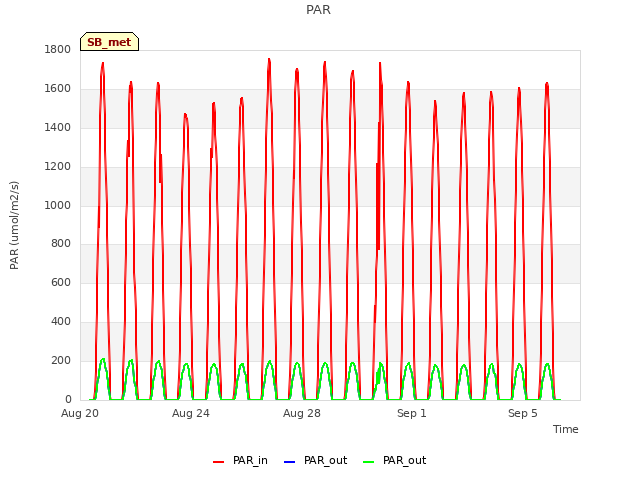

Explore the graph:PAR in a new window

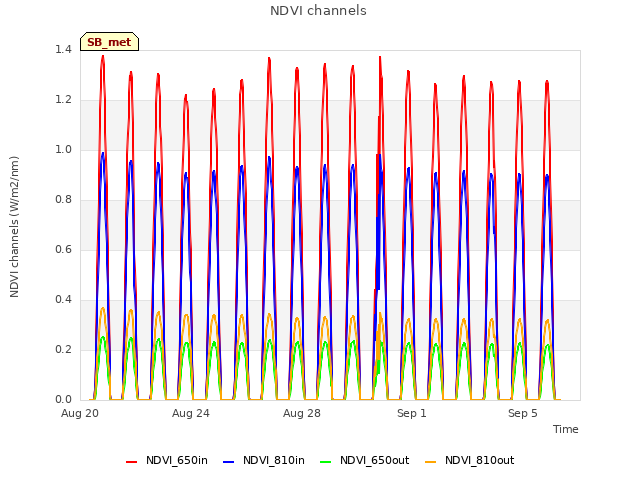

Explore the graph:NDVI channels in a new window

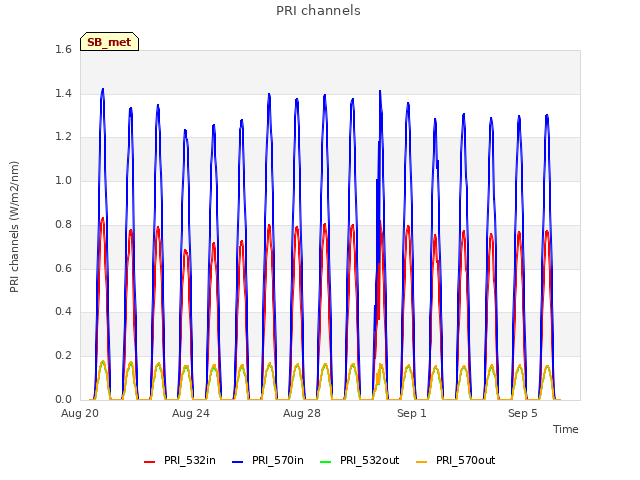

Explore the graph:PRI channels in a new window

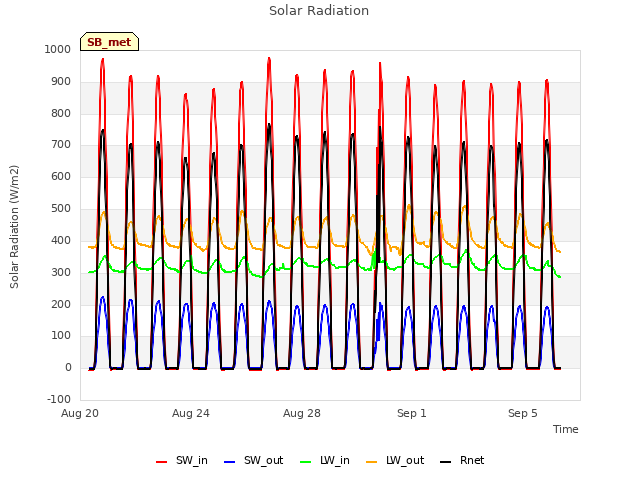

Explore the graph:Solar Radiation in a new window

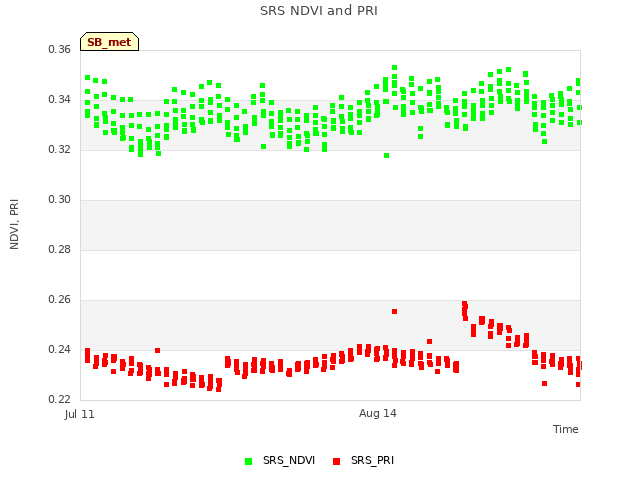

Explore the graph:SRS NDVI and PRI in a new window

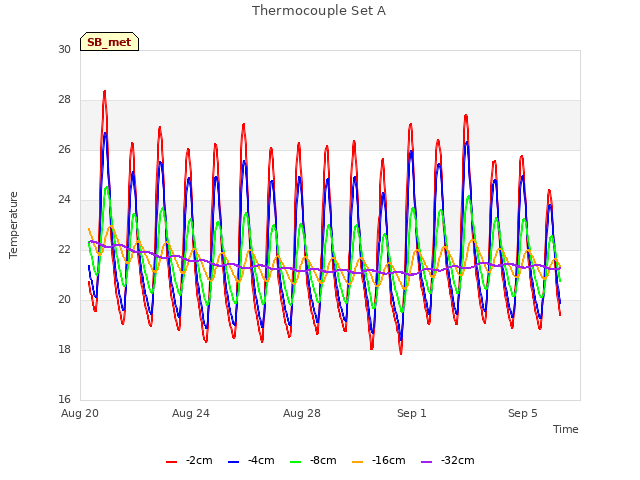

Explore the graph:Thermocouple Set A in a new window

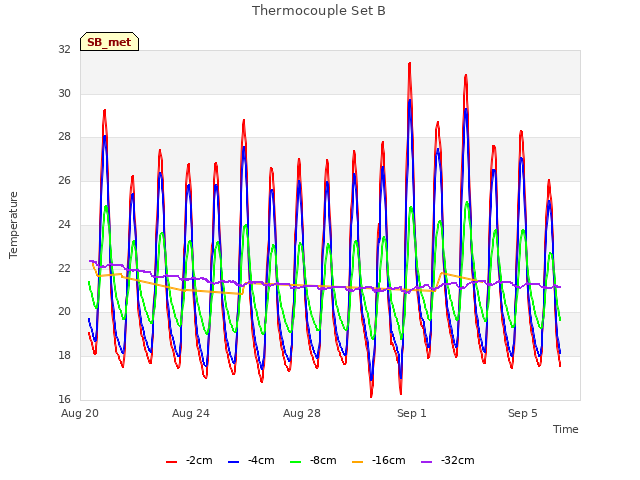

Explore the graph:Thermocouple Set B in a new window

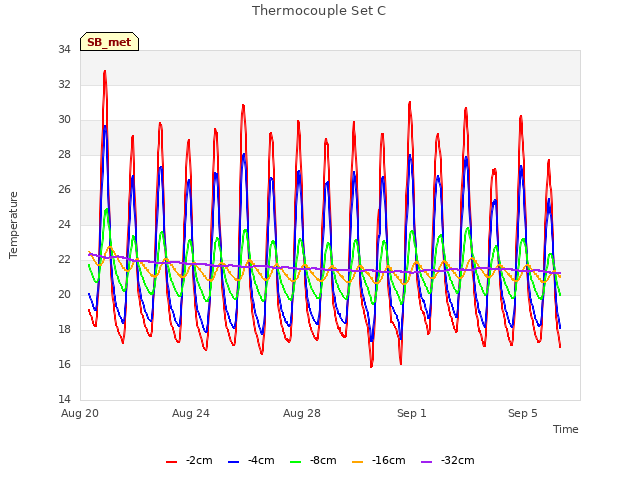

Explore the graph:Thermocouple Set C in a new window

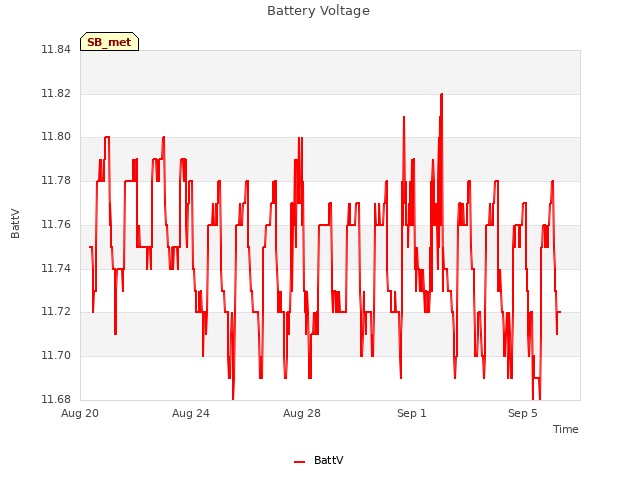

Explore the graph:Battery Voltage in a new window

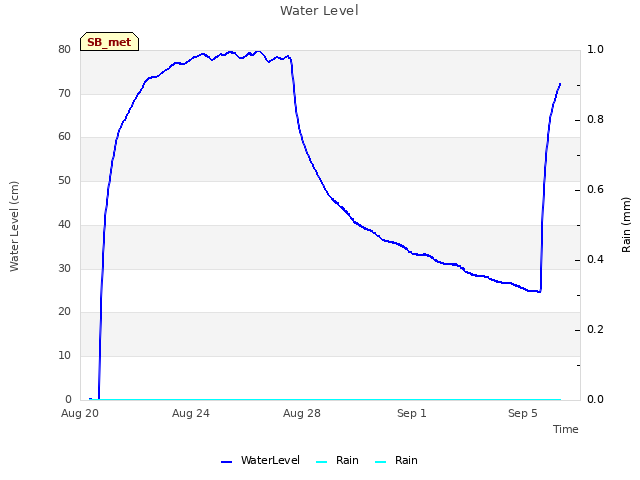

Explore the graph:Water Level in a new window

Explore the graph:Counts from Motion Sensor in a new window
