Twitchell Rice: 2012-07-19 14:30:00 (DOY 201)
Author: Joe Verfaillie
Others: Sara, Carina, Cristina

Summary: Field cropdusted with herbicide earlier today, collected data, standard fieldwork, cleaned herbicide off sensors.

Twitchell
2012-07-19

I arrived about 2:30PDT with Sara, Carina and Cristina. It was clear, sunny and hot with little to no wind. The rice still looks poor and overgrown with weeds.

We originally got there about noontime but there was a crop dusted working the fields to the west, so we decided to do the other Twitchell sites first. When we returned the crop duster was gone. There was a sticky film over all of our equipment which probably got sprayed by the crop duster earlier in the day. Jim stopped by a little later and said it was an herbicide. We wore the waders in the field and washed up after we finished.

I collected all the data.

The 7700’s RSSI was 22. It looked like the mirror had been auto washed as the edges were clean but the center was still sticky. It was difficult to get the oily film off the mirror. After several cleanings I got the RSSI up to 69.

I cleaned the 7500, the sonic transducers, the pyranometer, the autocam window and the solar panels. Sara rotated the radiation boom and cleaned the PAR and net radiometer.

I help Jim hitch up the generator to be towed out of the field. We can get it back if we want to run an LGR here later.

2 photos found

Dew
Dew

Fieldwork
Fieldwork

Graphs display:
6 sets found

12 TW_met graphs found

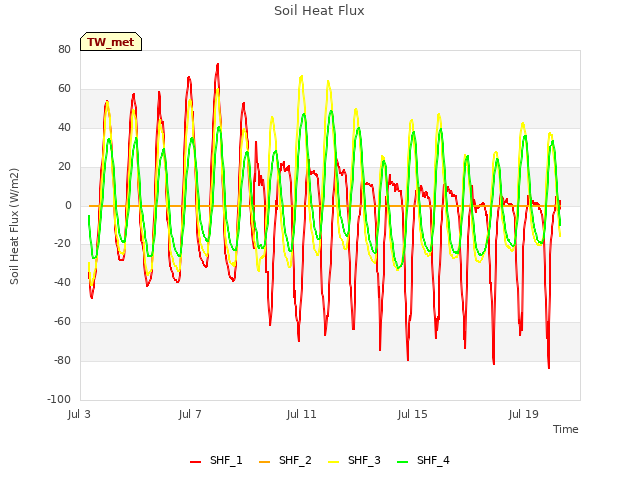

Explore the graph:Soil Heat Flux in a new window

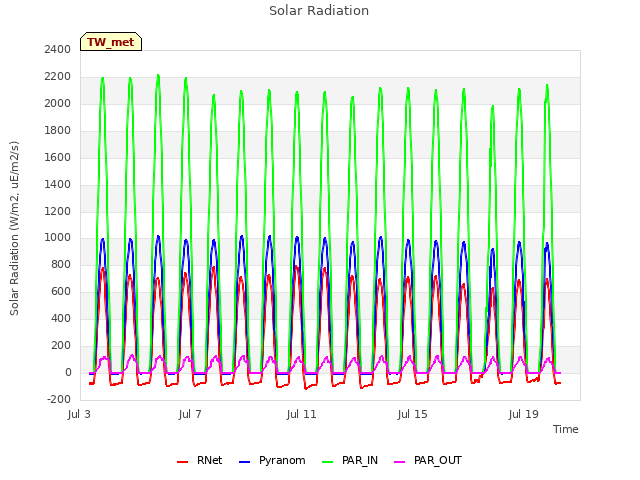

Explore the graph:Solar Radiation in a new window

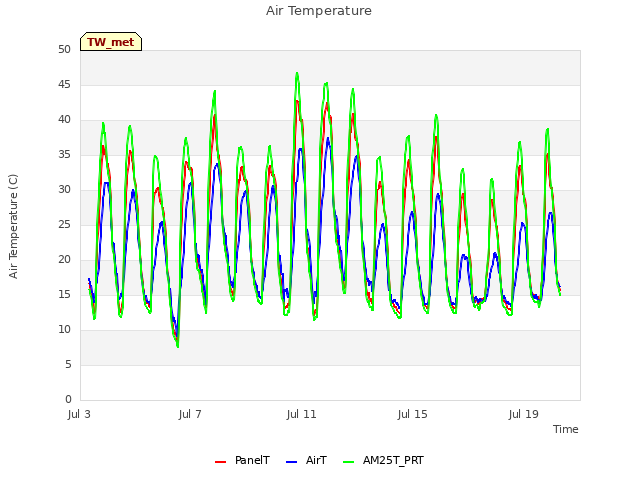

Explore the graph:Air Temperature in a new window

Explore the graph:Soil Temperature Set 1 in a new window

Explore the graph:Soil Temperature Set 2 in a new window

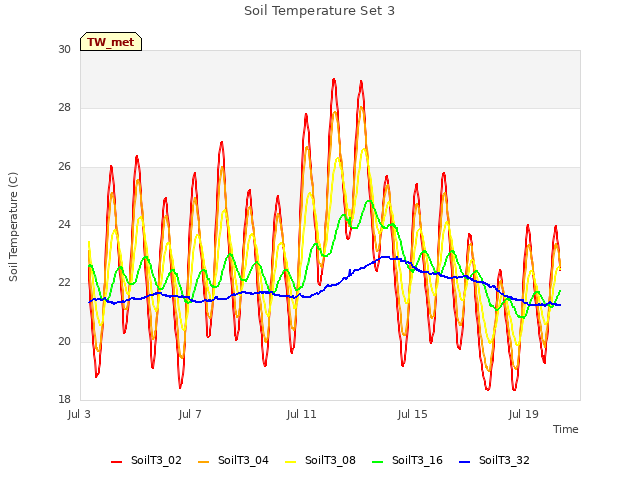

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Water Temperature in a new window

Explore the graph:RH and Pressure in a new window

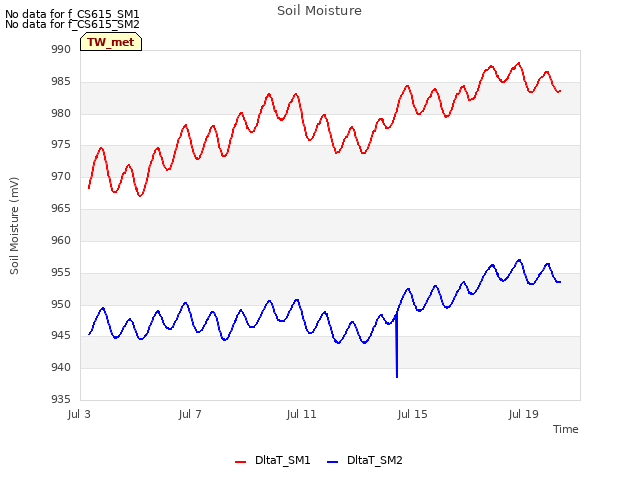

Explore the graph:Soil Moisture in a new window

Explore the graph:Rain and Water Level in a new window

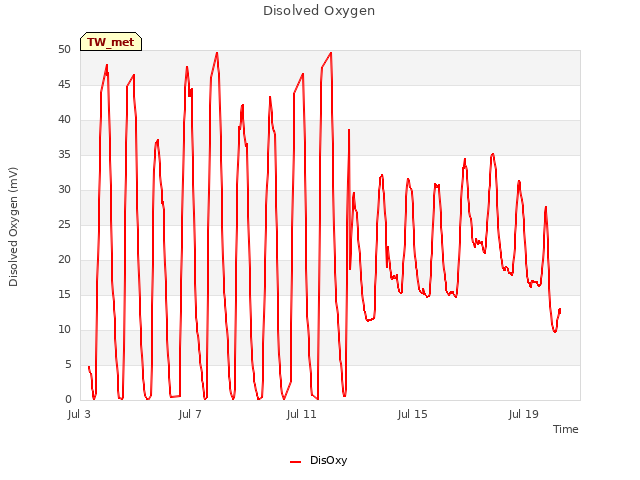

Explore the graph:Disolved Oxygen in a new window

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

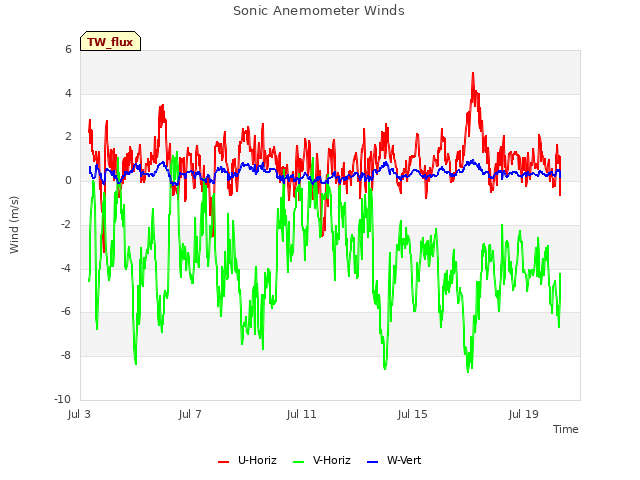

Explore the graph:Sonic Anemometer Winds in a new window

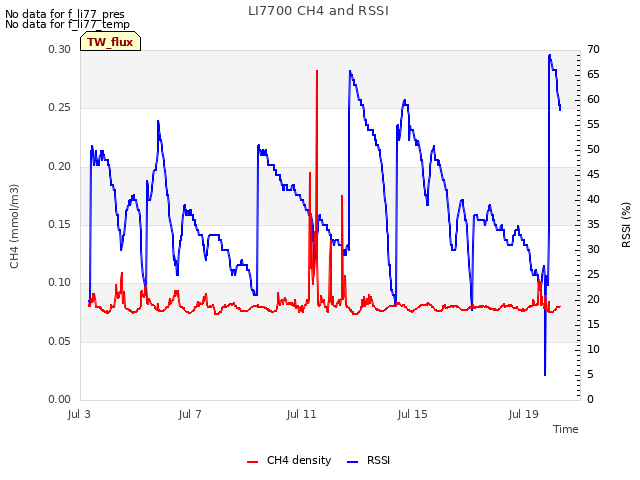

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Twitchell CH4 in a new window

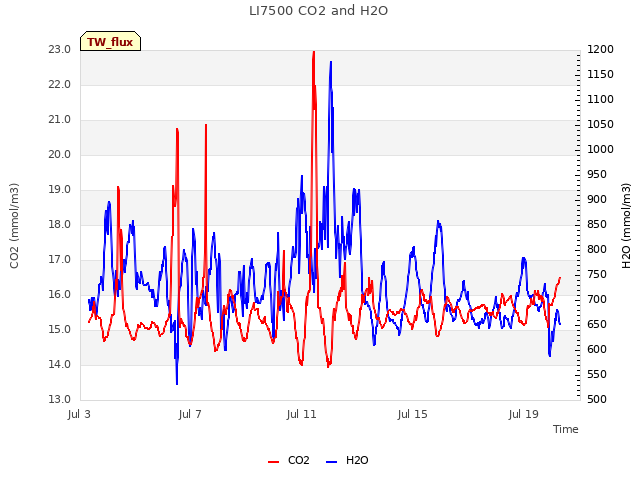

Explore the graph:LI7500 CO2 and H2O in a new window

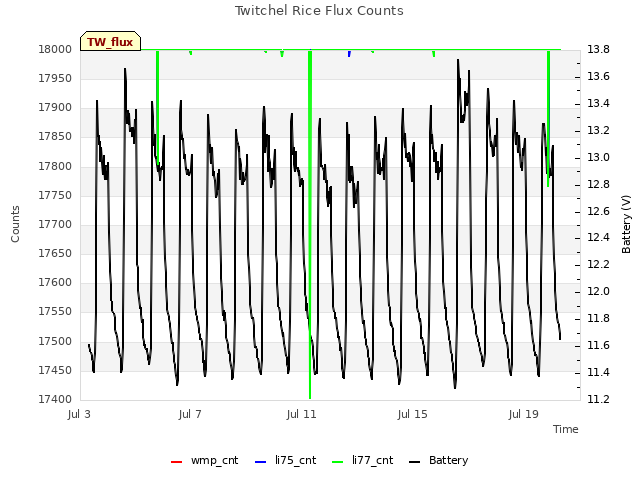

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
