Bouldin Corn: 2024-05-01 12:45:00 (DOY 122)
Author: Daphne Szutu
Others: Joe

Summary: Windy day, camera card issue - files corrupted and no photos recovered, no planting yet

2024-05-01
Bouldin Corn

Joe and I arrived at 12:45 PST (13:45 PDT). It was warm with a strong wind from the north. Driving along Hwy 12, we could see many dust plumes from various tractor work on the fields. At least one field looks like it was getting planted with corn.

Our field looks the same as our last visit I think, plowed, but I don’t think there’s been any work recently because the top soil surface looks all dry. Charlotte’s chambers are all out in the field. Plenty of tall grass on the levee slopes.

I downloaded met, cam, USB GHG, and PA data. Joe cleaned flux and rad sensors and improved the Mark 3 mount. He cleaned the phenocam window inside and out. I topped off the wash reservoir.

Charlotte has been in touch with the farmers. After they finish planting, we plan to move our tower closer to the corn plants (if needed), then put the soil sensors out again.

The 7500 read: 418ppm CO2, 233mmol/m3 H2O, 24.5C, 101.4kPa, 98SS –100 after cleaning
The 7700 read: 1.99ppm CH4, 50RSSI – 76 after cleaning

We left around 13:00 PST (14:00 PDT).

Back in the lab, the camera card had garbled folder/file names. I tried to repair it through Properties>Tools, which completed but then the card was empty. I think there's another tool I can use to fix the card and preserve the files. I then ran Recuva, but didn't unearth any photos since the last download. I reformatted the camera card.

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

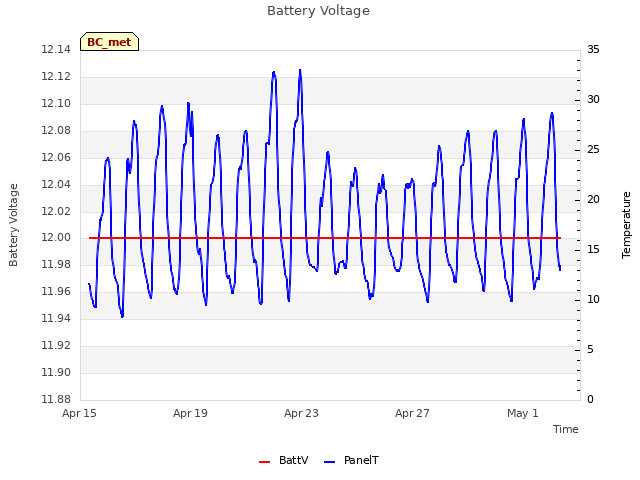

Explore the graph:Battery Voltage in a new window

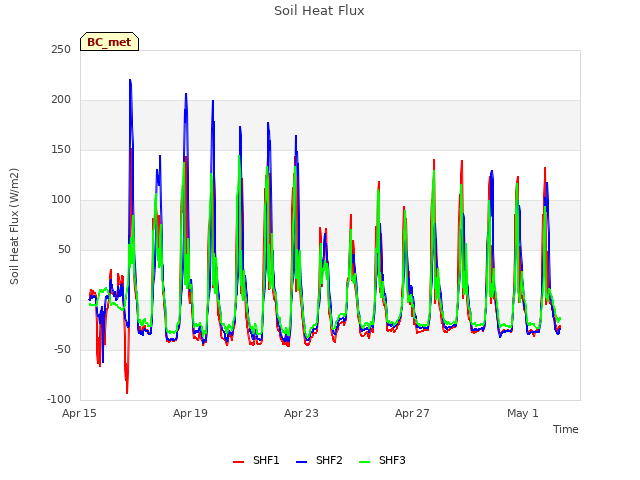

Explore the graph:Soil Heat Flux in a new window

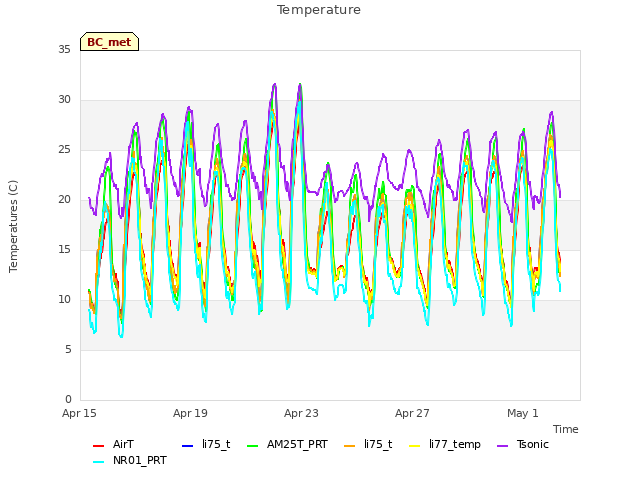

Explore the graph:Temperature in a new window

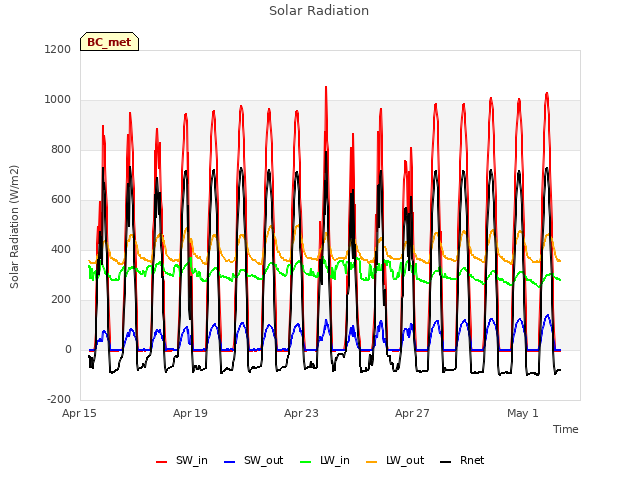

Explore the graph:Solar Radiation in a new window

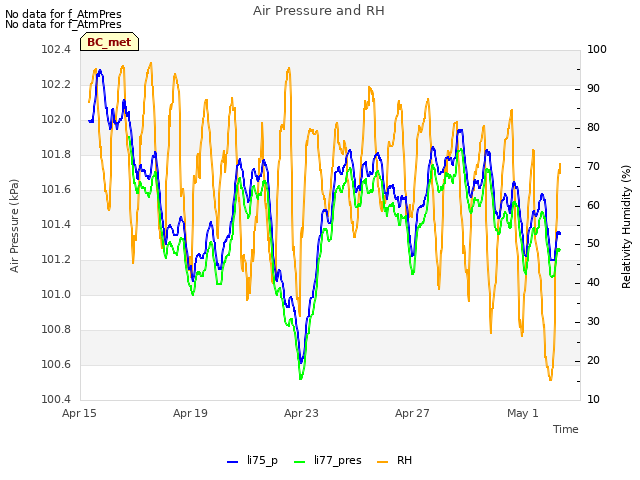

Explore the graph:Air Pressure and RH in a new window

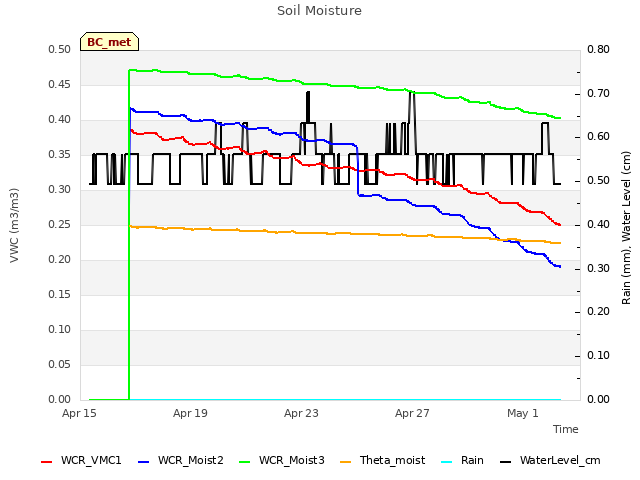

Explore the graph:Soil Moisture in a new window

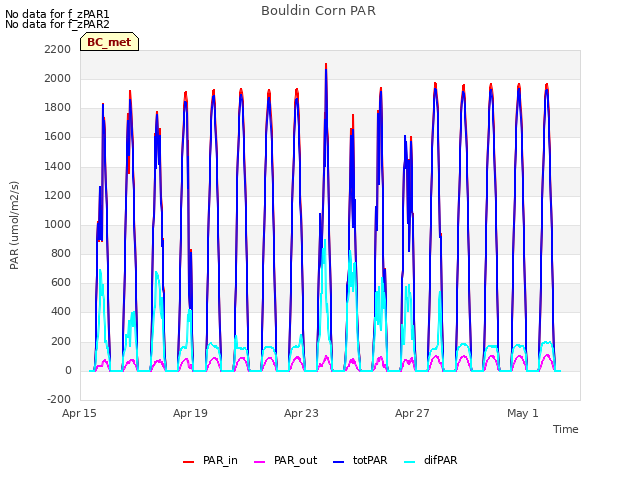

Explore the graph:Bouldin Corn PAR in a new window

Explore the graph:NDVI channels in a new window

Explore the graph:PRI Channels in a new window

Explore the graph:Soil Temperatures Set A in a new window

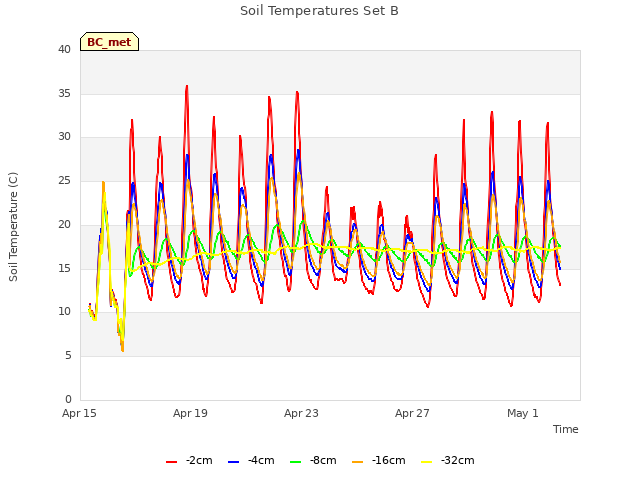

Explore the graph:Soil Temperatures Set B in a new window

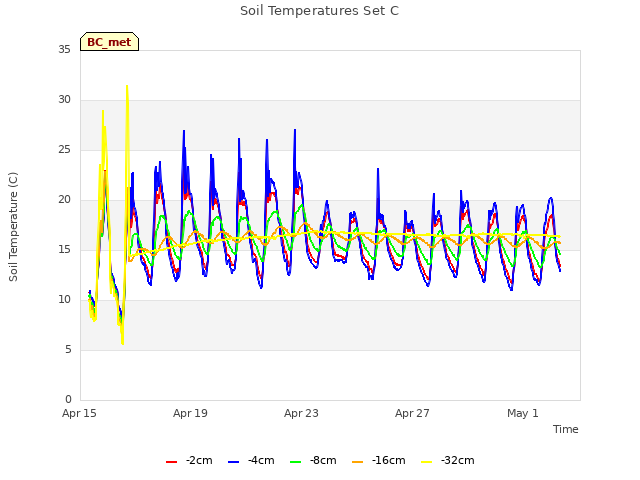

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:SRS NDVI and PRI in a new window

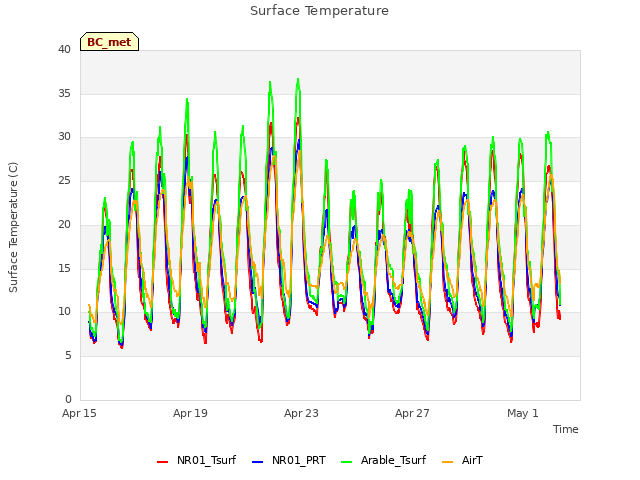

Explore the graph:Surface Temperature in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

Explore the graph:LI-7500 CO2 and H2O in a new window

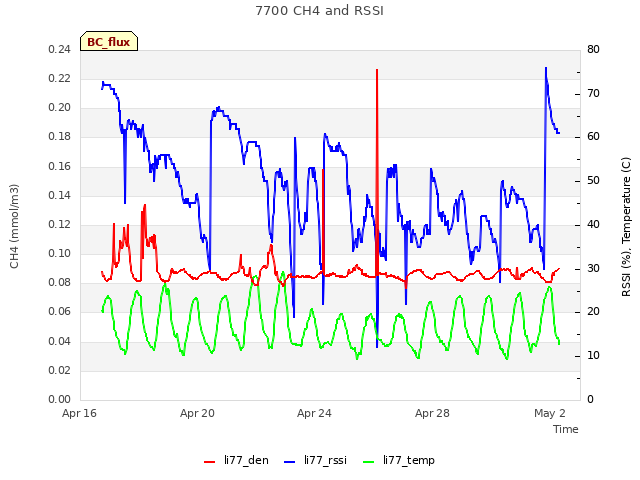

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Wind in a new window

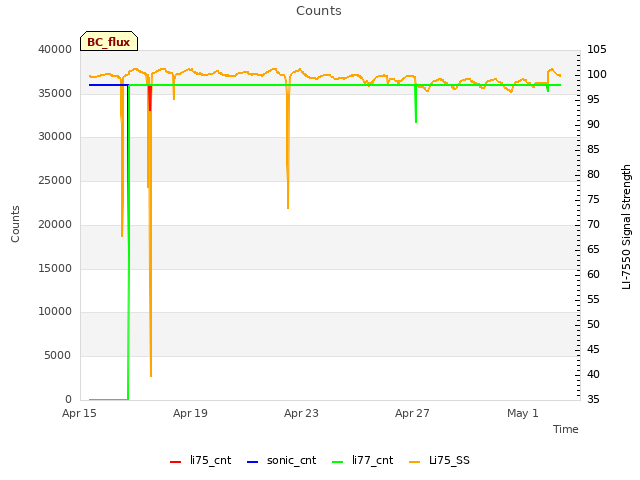

Explore the graph:Counts in a new window

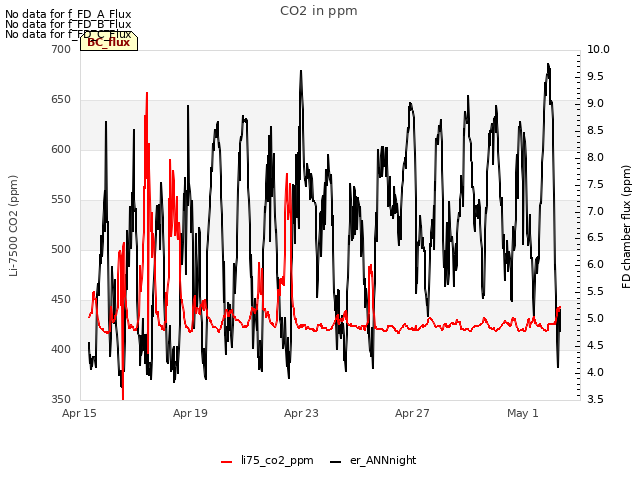

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

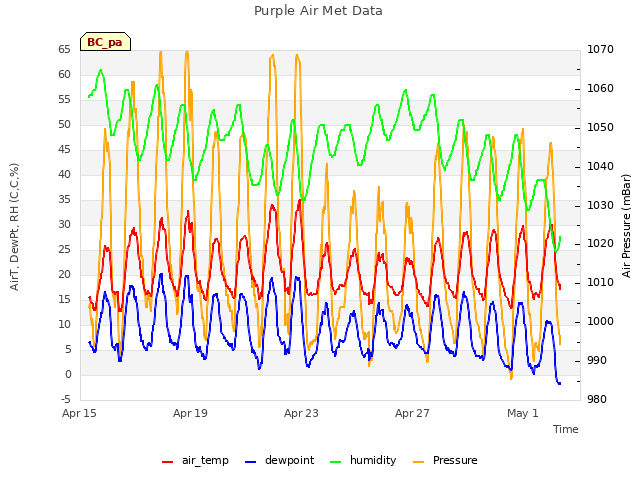

Explore the graph:Purple Air Met Data in a new window

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

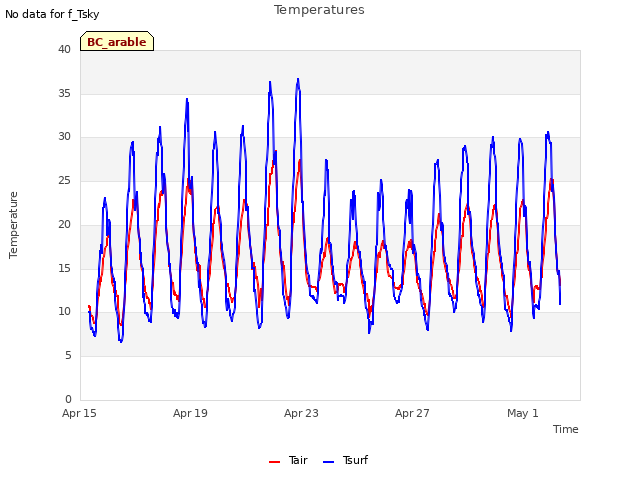

Explore the graph:Temperatures in a new window
