West Pond: 2020-11-03 09:30:00 (DOY 308)
Author: Daphne Szutu
Others: Ariane

Summary: Regular data collection/cleaning, 7700 pump had no power--fixed, water level much lower, moved and lowered miniDOT from air into water

2020-11-03
West Pond

Ariane and I arrived at 9:30 PST. It was a sunny and mild day with clear skies and haze at the horizons. The inlet was on but there was no water flowing. Joe said Bryan turned it off because they were worried about the river water salinity this late in the season. The water level has gone down a lot—the staff gauge read 13cm. The wetland has mostly yellow reeds now, with about ¼ of the plants still green.

The miniDOT was hanging in the air. I moved it from the east side of the tower to the west side, next to the staff gauge, where I could lower it into a puddle. This sensor needs a longer plastic chain to be easily accessible.

I downloaded met, camera, USB GHG, and miniDOT data. I swapped desiccant for the water level sensor and miniDOT. Ari cleaned flux and rad sensors. The lower 7700 mirror was pretty dusty. The wash reservoir was full, even though the RSSI was close to 0.

The wash pump was not working. I disconnected and reconnected the power cable between the wash box and the 7700, and afterwards the pump ran successfully. There was a little corrosion on the cable head at the wash box. The yellow plastic near the head is also cracked from the tube bending downward.

LI-7500 readings:
CO2 415ppm
H2O 520ppm
T 20.4C
P 101.9kPa
SS 94--> 101
LI7700 readings:
CH4 1.7ppm-->1.9 after cleaning
RSSI 1--> 74 after cleaning

We left at 10:10 PST.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

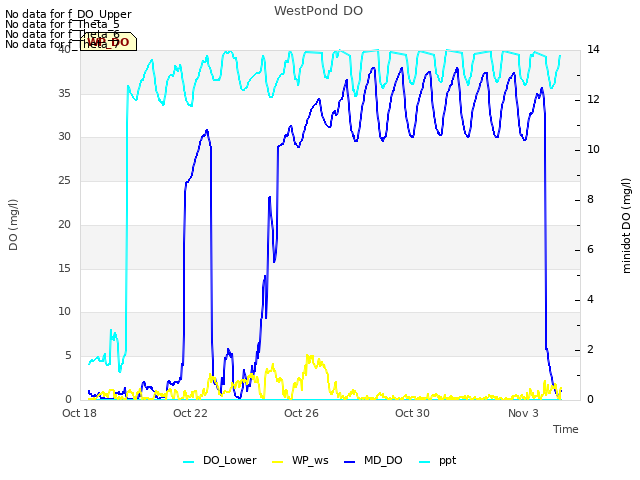

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

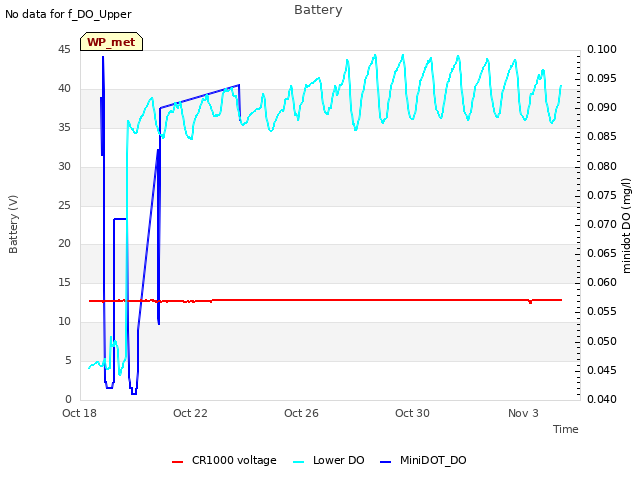

Explore the graph:Battery in a new window

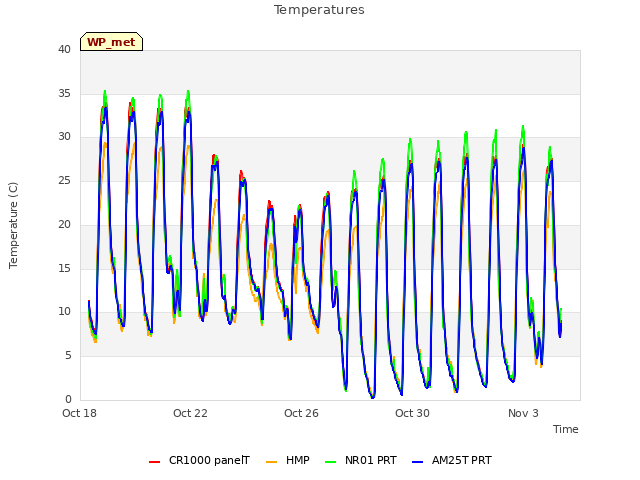

Explore the graph:Temperatures in a new window

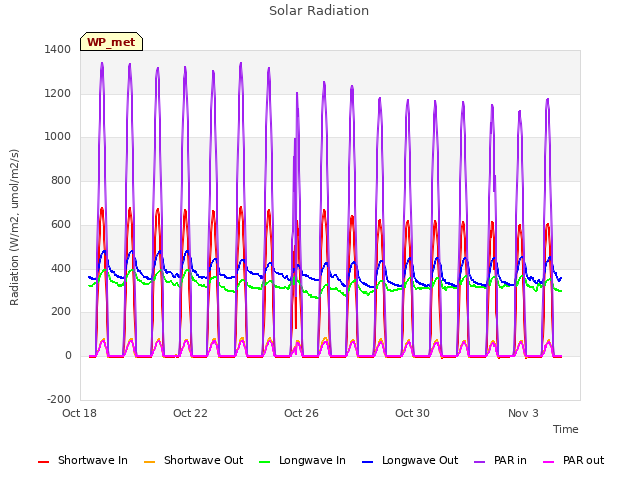

Explore the graph:Solar Radiation in a new window

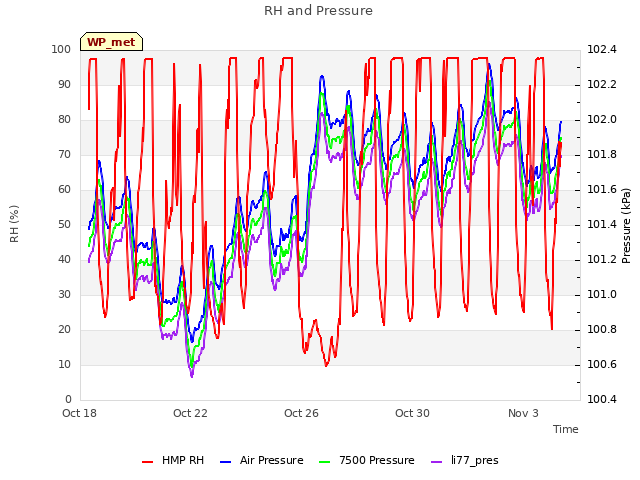

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

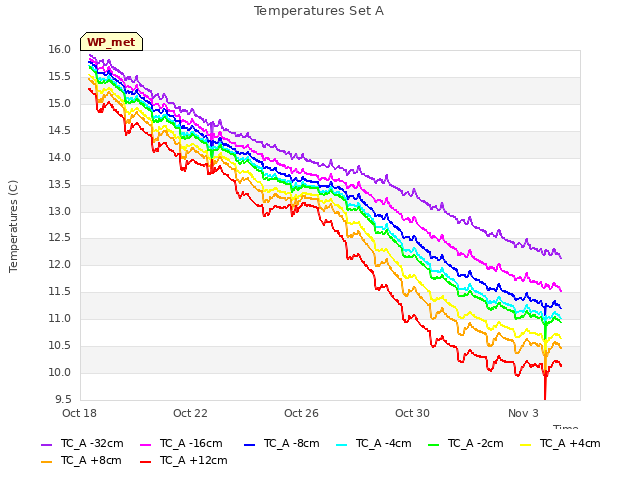

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

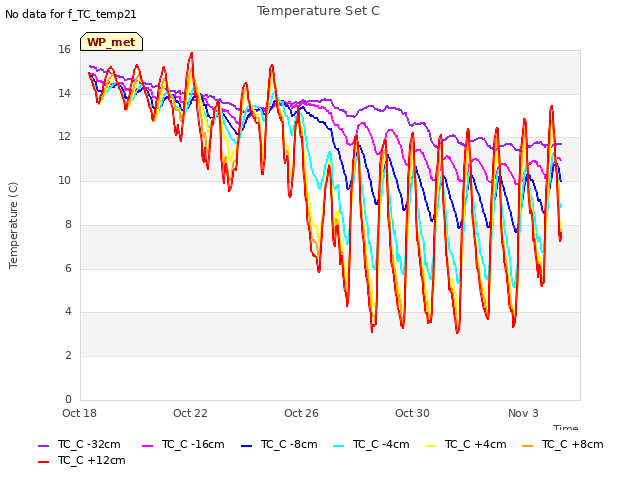

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

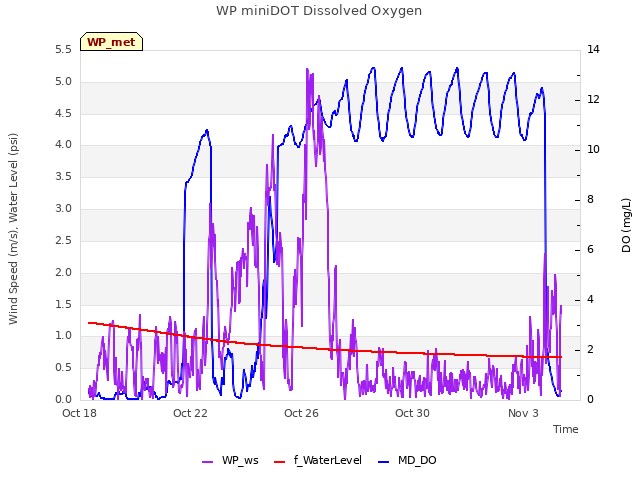

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

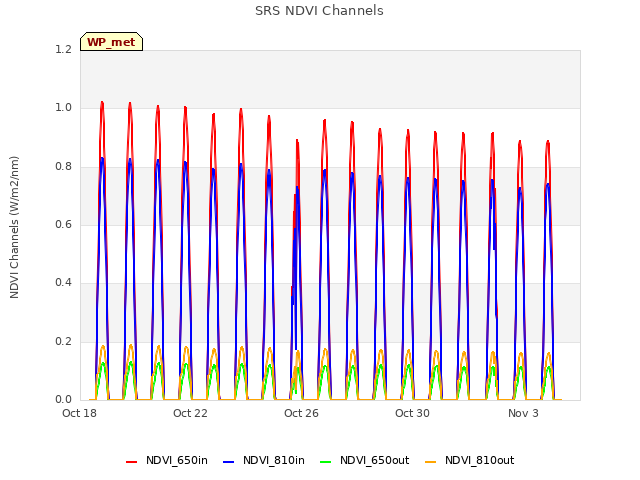

Explore the graph:SRS NDVI Channels in a new window

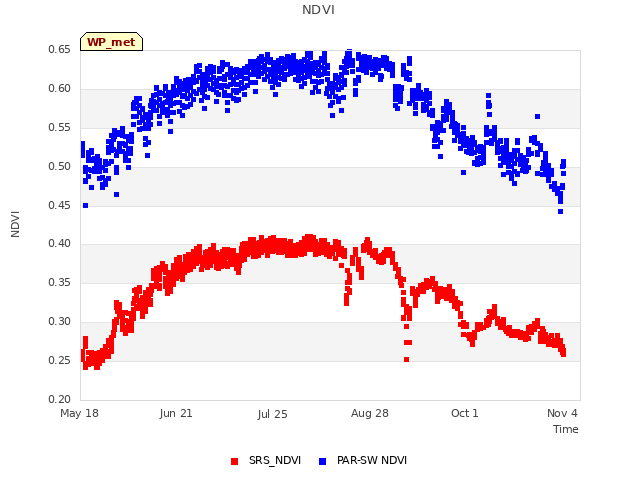

Explore the graph:NDVI in a new window

5 WP_flux graphs found

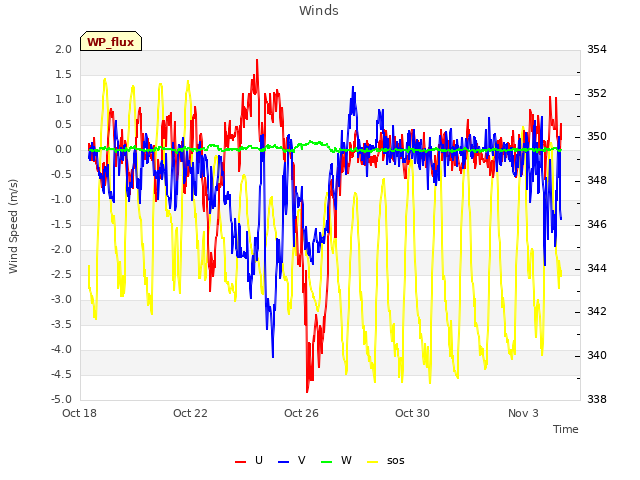

Explore the graph:Winds in a new window

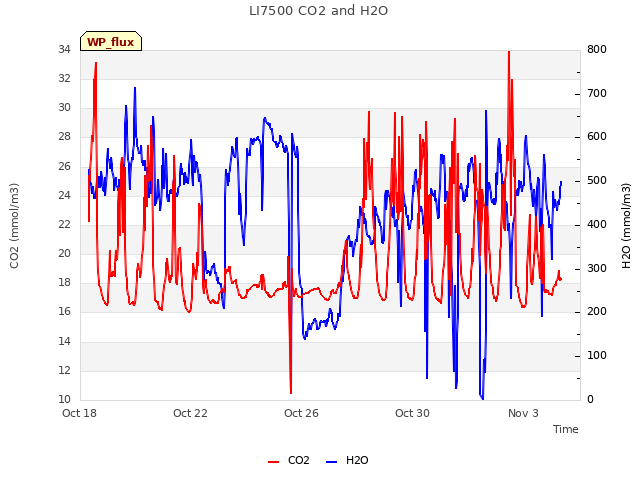

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

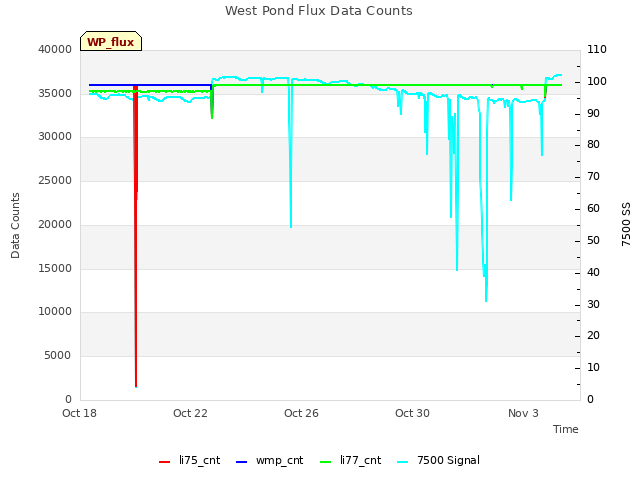

Explore the graph:West Pond Flux Data Counts in a new window

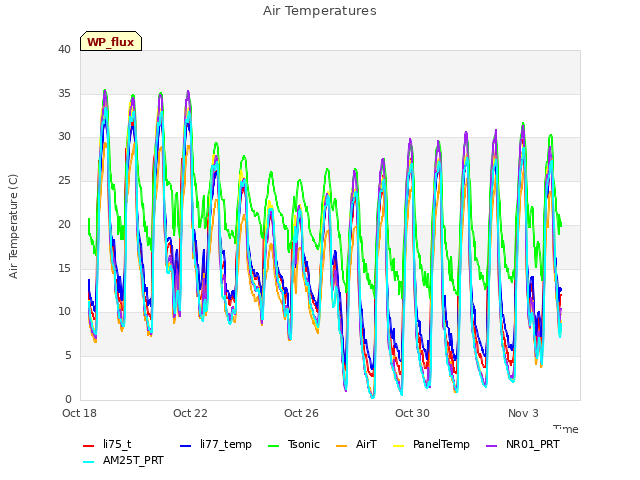

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
