Sherman Wetland: 2019-08-07 10:05:00 (DOY 219)
Author: Daphne Szutu
Others: Robert, Ariane

Summary: Regular data collection/cleaning, very windy, lots of bird poop

2019-08-07
Sherman Wetland

Robert, Ariane, and I arrived at 10:05. It was windy and sunny with mostly clear skies. Ariane lost her baseball cap to the wind. The water level is up again, and there is water under the tower. The water level was 66 cm. Some of the plants near the tower were looking brown, probably from water stress when the water level was low.

Robert cleaned flux and rad sensors—there was lots of bird poop on the 7700 mirror. Ariane cleaned the precip bucket, which also had a lot of bird poop. The wash reservoir was empty; we refilled it. I downloaded met, cam, and USB GHG data.

LI-7500 readings:
CO2 393ppm
H2O 720ppm
T 22.8C
P 101.2kPa
SS 98 --> 100
LI7700 readings:
CH4 2.1 ppm
RSSI 21--> 80 after cleaning

We left at 10:25.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

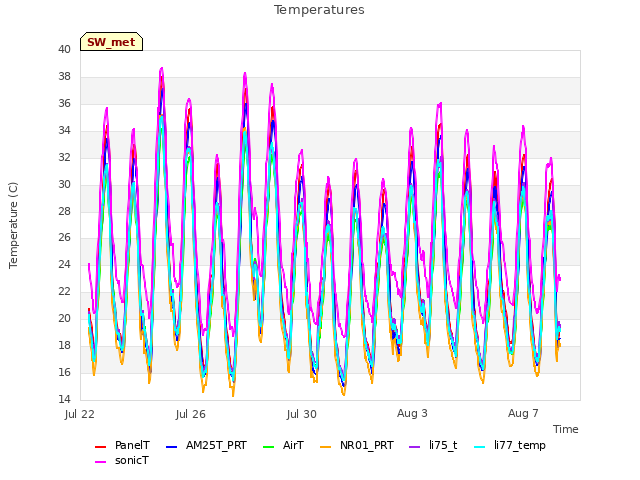

Explore the graph:Temperatures in a new window

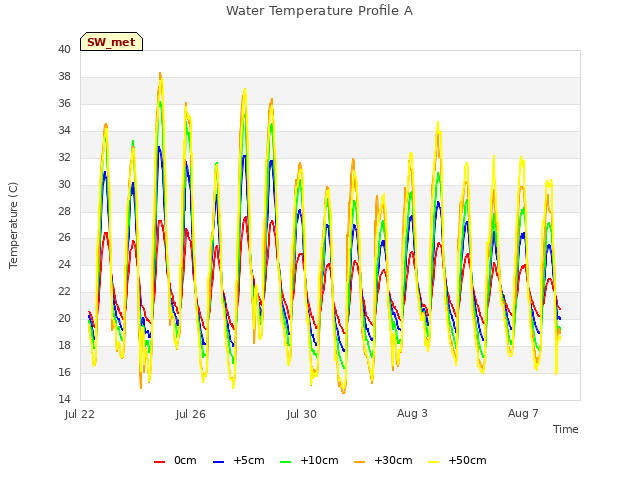

Explore the graph:Water Temperature Profile A in a new window

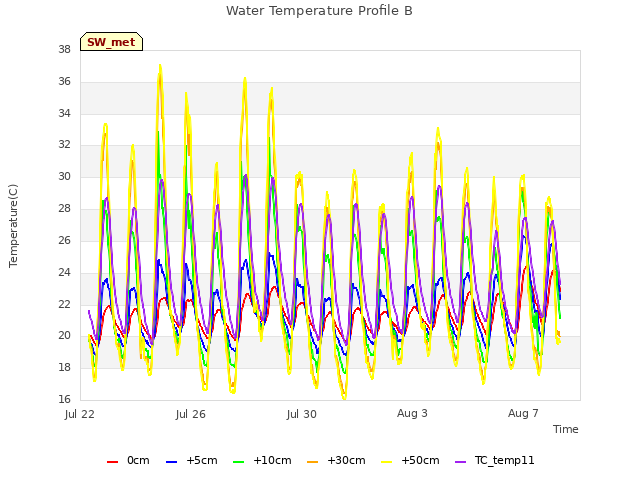

Explore the graph:Water Temperature Profile B in a new window

Explore the graph:Soil Temperature Profile C2 in a new window

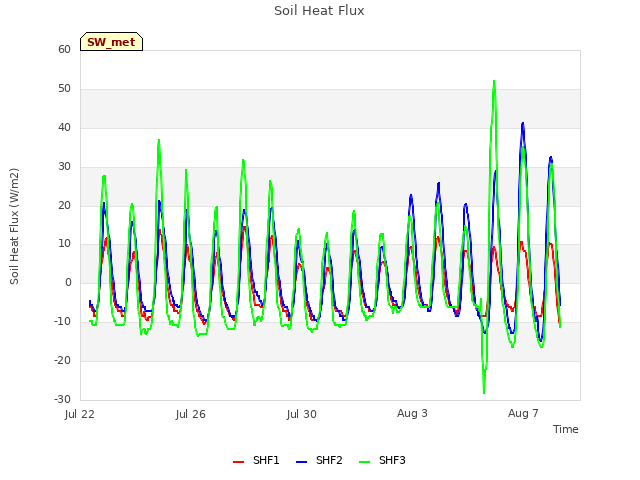

Explore the graph:Soil Heat Flux in a new window

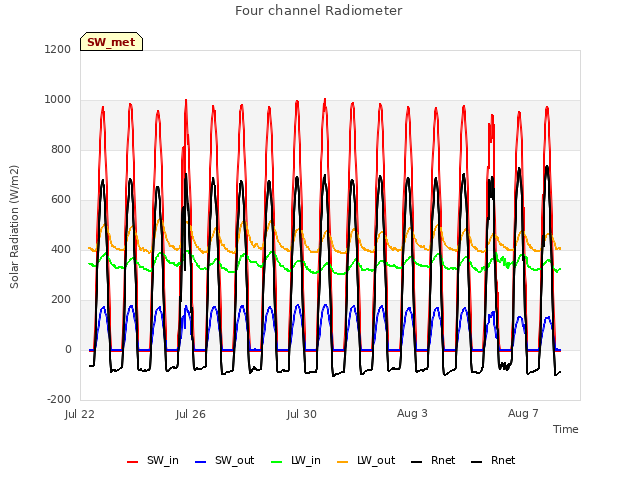

Explore the graph:Four channel Radiometer in a new window

Explore the graph:Sherman Wetland PAR in a new window

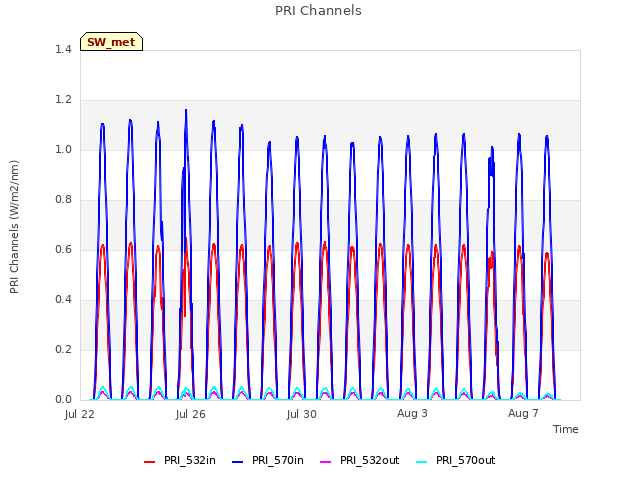

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:Water level and Rain in a new window

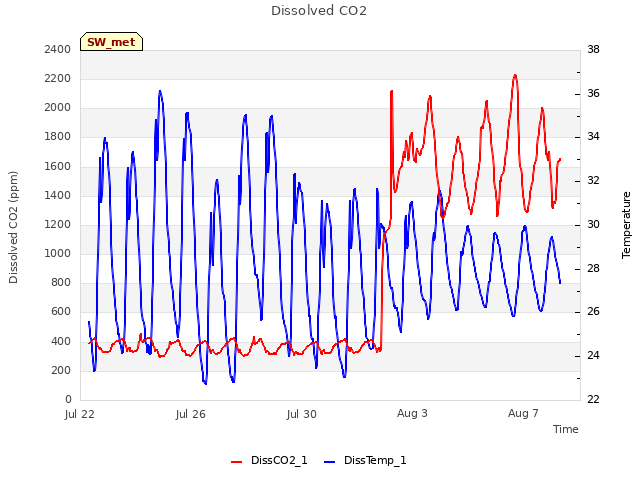

Explore the graph:Dissolved CO2 in a new window

Explore the graph:Air Pressure in a new window

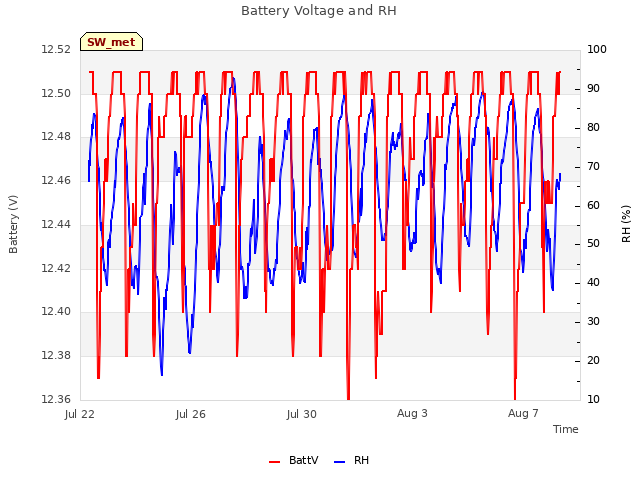

Explore the graph:Battery Voltage and RH in a new window

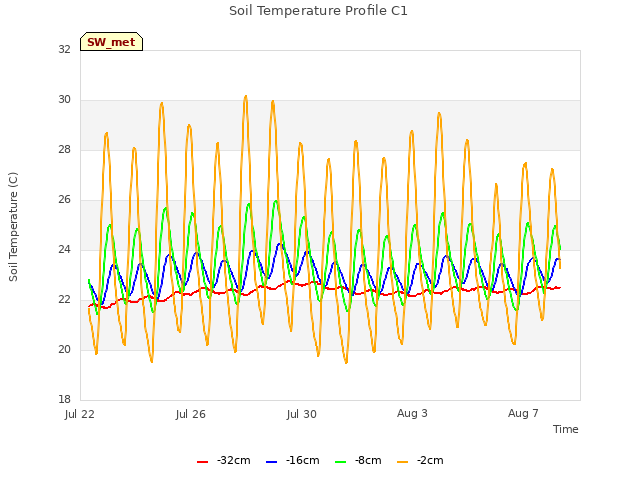

Explore the graph:Soil Temperature Profile C1 in a new window

Explore the graph:SRS NDVI and PRI in a new window

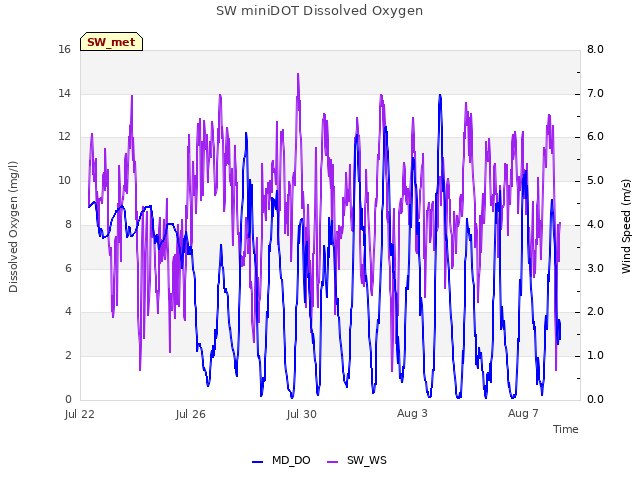

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

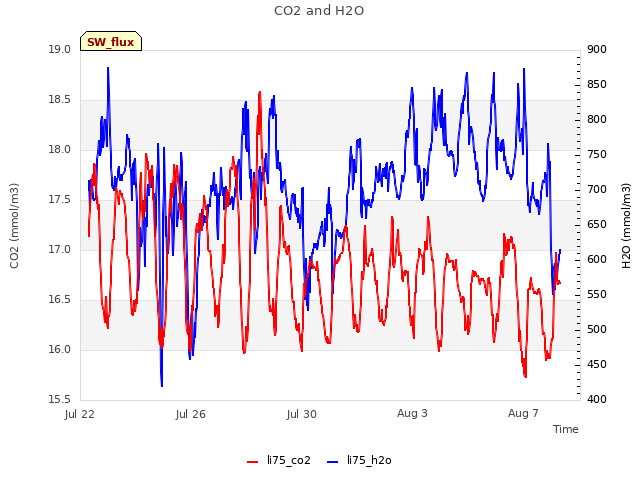

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

3 SW_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window
