East End: 2019-08-07 12:15:00 (DOY 219)
Author: Daphne Szutu
Others: Robert, Ariane

Summary: Regular data collection/cleaning, installed water level desiccant tube from Sherman Barn

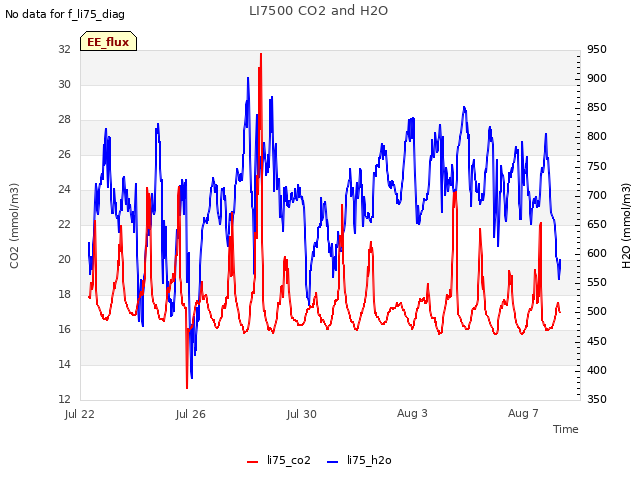

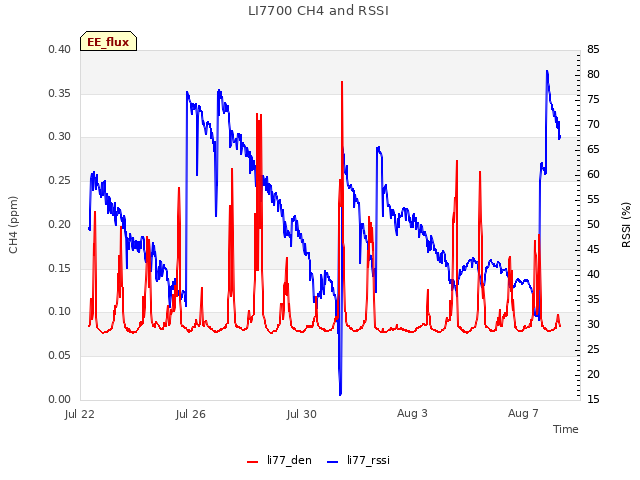

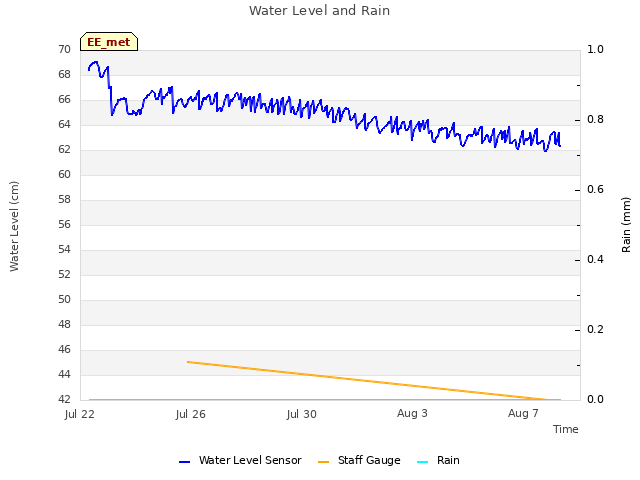

2019-08-07 East End Robert, Ariane, and I arrived at 12:15. It was sunny and breezy with a clear sky. The water level was 42 cm. The wash reservoir was ¼ full; we refilled it. There were some wasps in the wash reservoir. I downloaded met, camera, and USB GHG data. We cleaned the flux and rad sensors. The water level sensor here is missing its desiccant tube, so I installed one that I had taken from Sherman Barn because I assume it’s more humid at this site. LI-7500 readings: CO2 392ppm H2O 734ppm T 27.3C P 101.1kPa SS 96--> 97 after cleaning LI7700 readings: CH4 1.94ppm RSSI 56--> 82 after cleaning We left at 12:35.

0 photos found

Graphs display: days

11 sets found

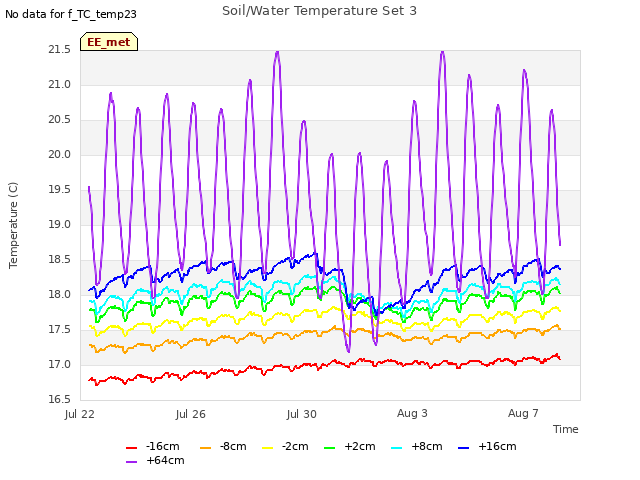

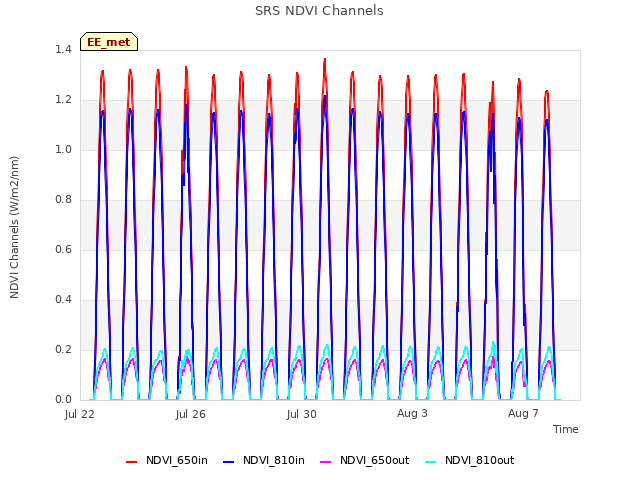

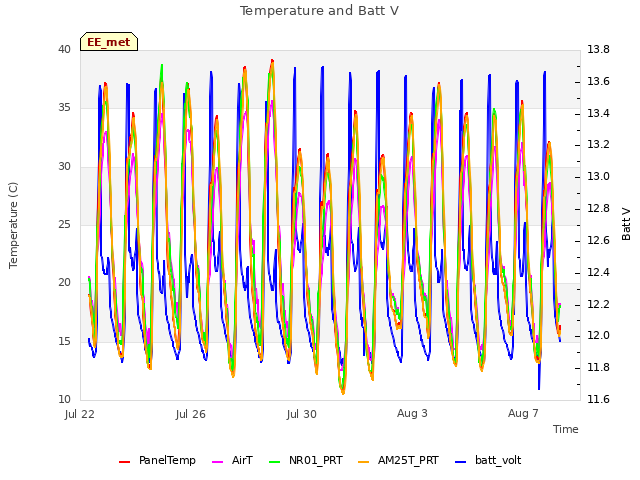

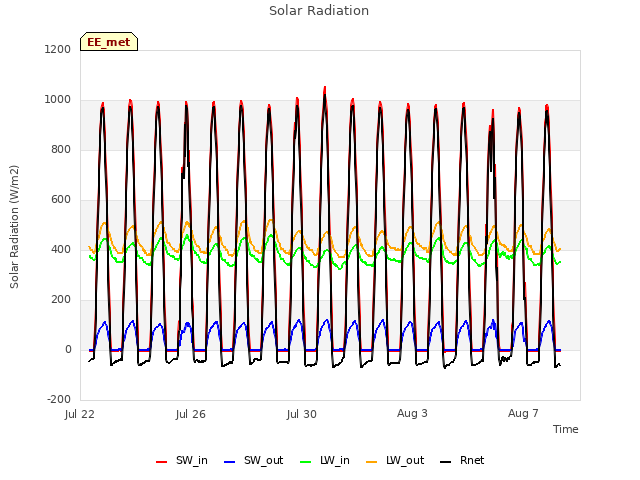

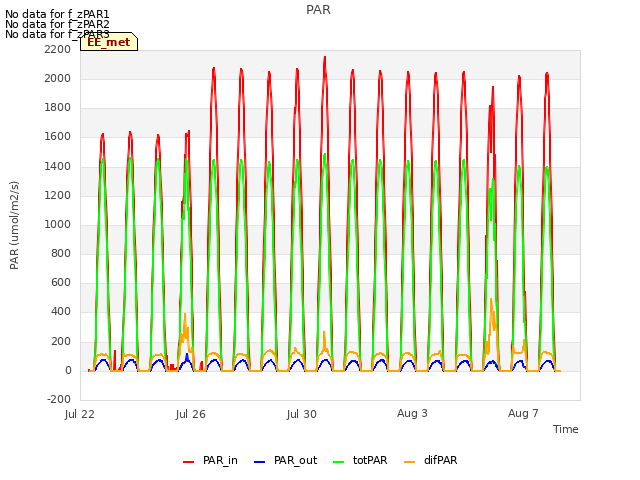

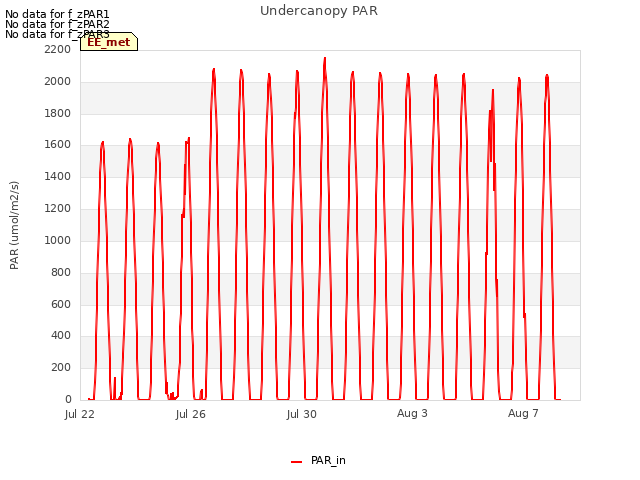

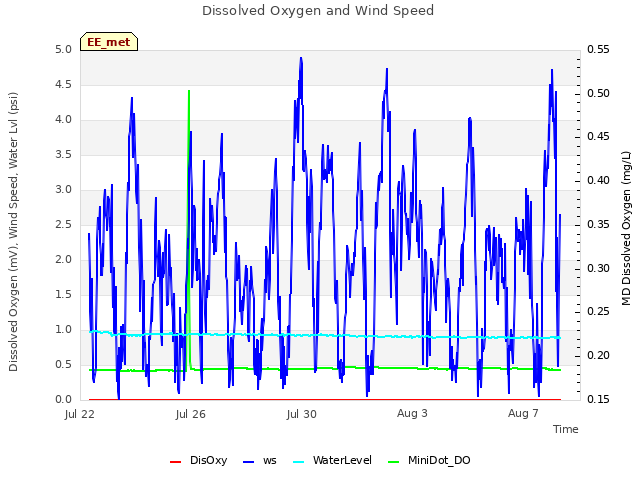

14 EE_met graphs found

Can't check EE_mixed

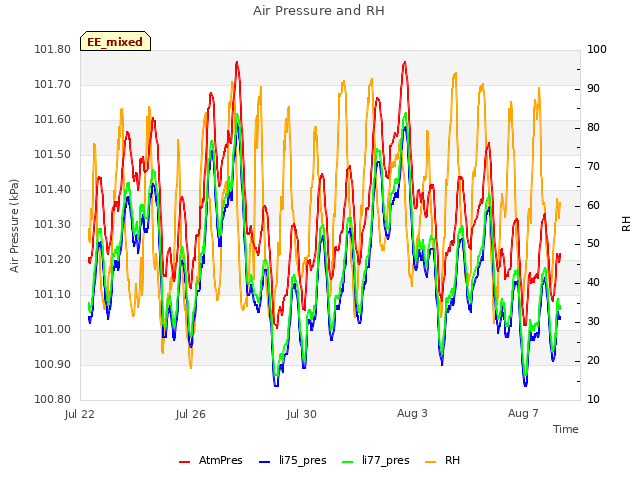

1 EE_mixed graphs found

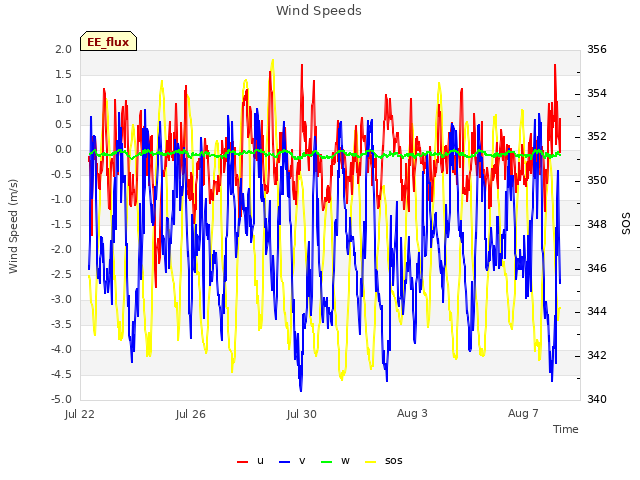

8 EE_flux graphs found

Can't check MBWPEESWGT_mixed

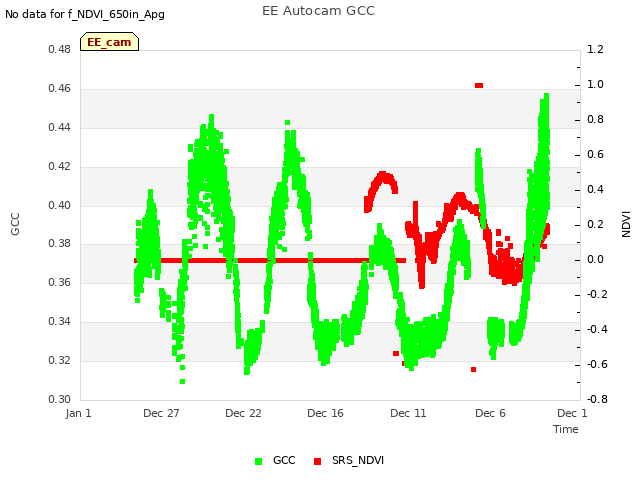

1 EE_cam graphs found

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

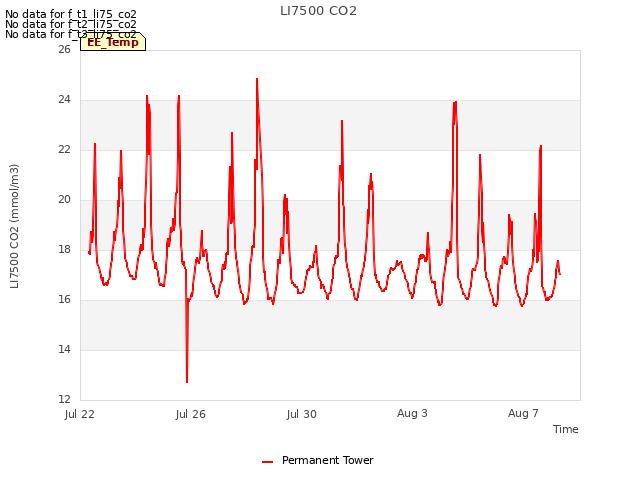

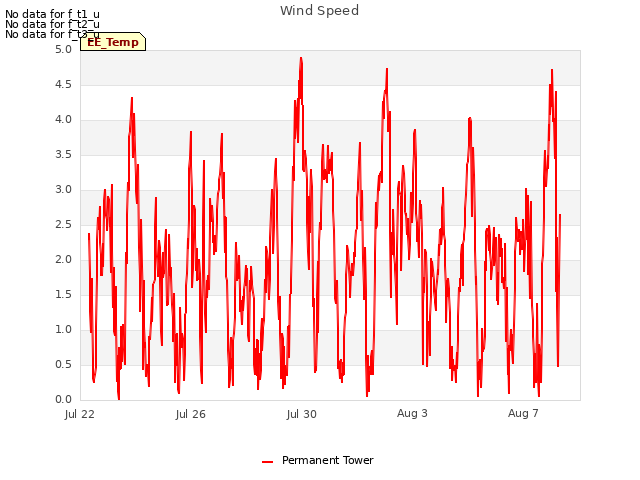

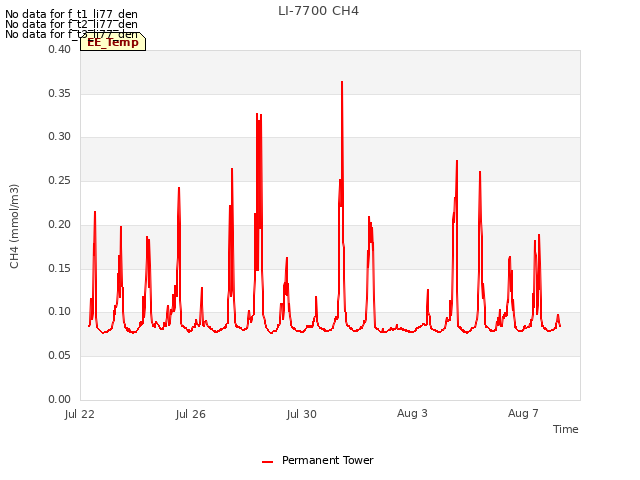

5 EE_Temp graphs found

Can't check EE_minidot
1 EE_minidot graphs found

Can't check MBSWEEWPBCBA

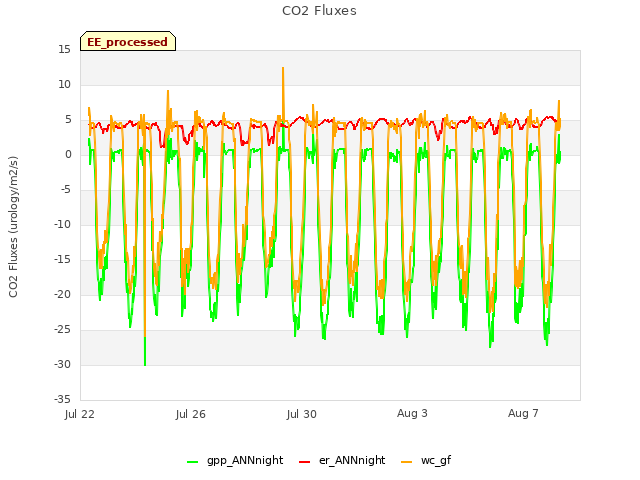

1 EE_processed graphs found
