East End: 2019-03-14 13:25:00 (DOY 73)
Author: Camilo Rey-Sanchez
Others: Daphne, Alex

Summary: Regular data collection and cleaning

2019-03-14
East End

We arrived at 13:25. It was sunny and breezy, with clear skies and some cirrus clouds. Wetland is mostly brown with some tules coming up. We forgot to measure water level.

Wash reservoir was 10 % full and was refilled. Camilo swapped the desiccant in the water level sensor. Daphne downloaded met, camera, and USB GHG data. There were photos starting 2019-03-03; not sure what happened to photos 2019-02-28 to 2019-03-02. Alex cleaned the flux and rad sensors. Camilo took reference GCC photo.

LI-7500 readings:
CO2 430ppm
H2O 250ppm
T 18.1C
P 102.4kPa
SS 106--> 106 after cleaning
LI7700 readings:
CH4 1.9ppm
RSSI 43--> 73 after cleaning

We left at 13:45.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

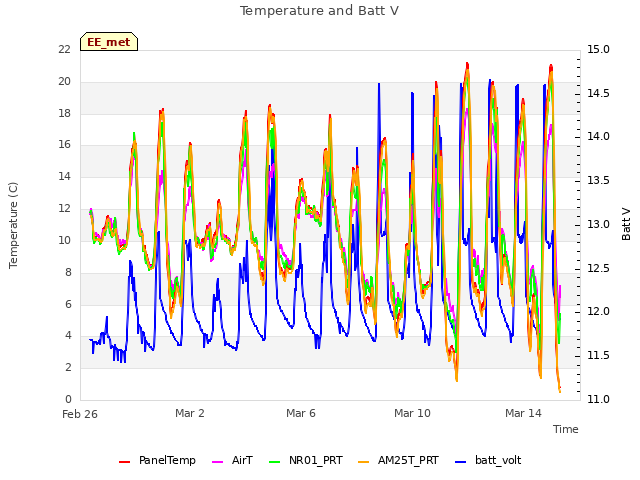

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

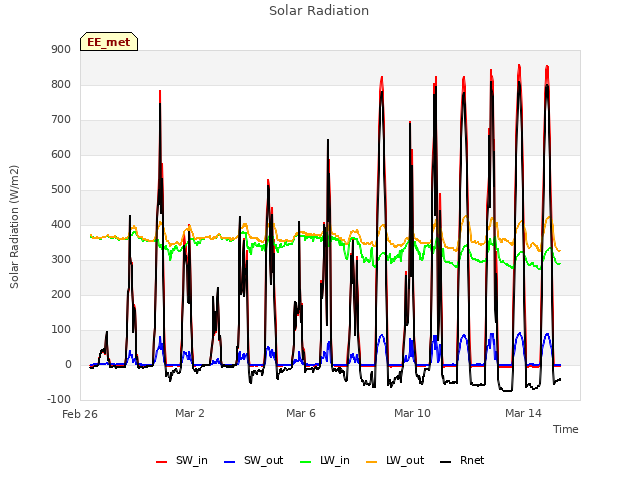

Explore the graph:Solar Radiation in a new window

Explore the graph:PAR in a new window

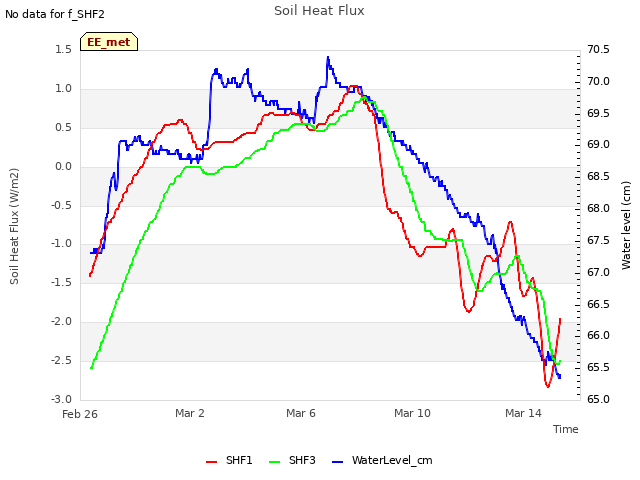

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Water Level and Rain in a new window

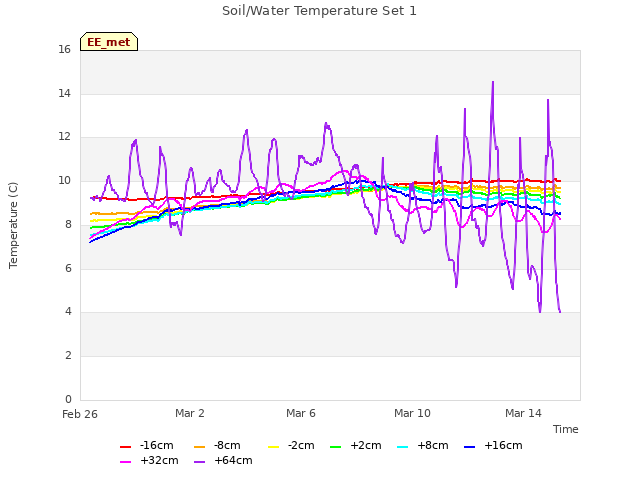

Explore the graph:Soil/Water Temperature Set 1 in a new window

Explore the graph:Soil/Water Temperature Set 2 in a new window

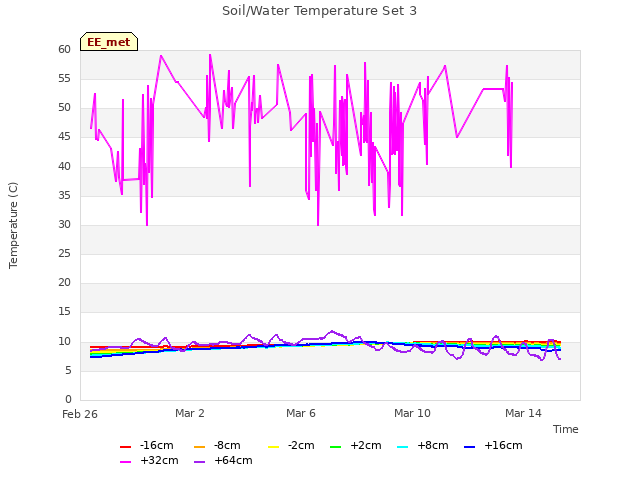

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

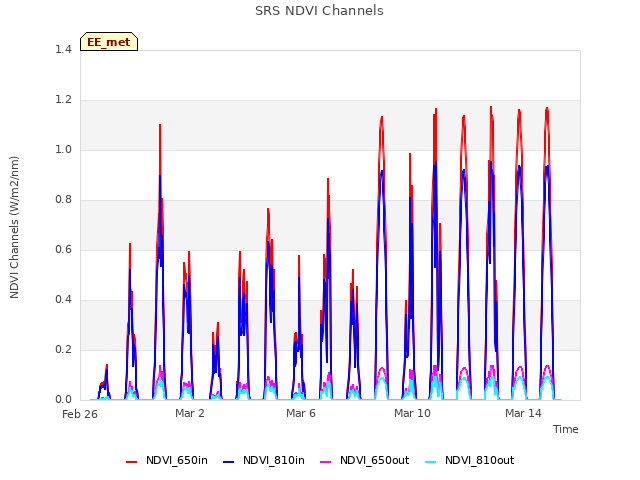

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:NDVI in a new window

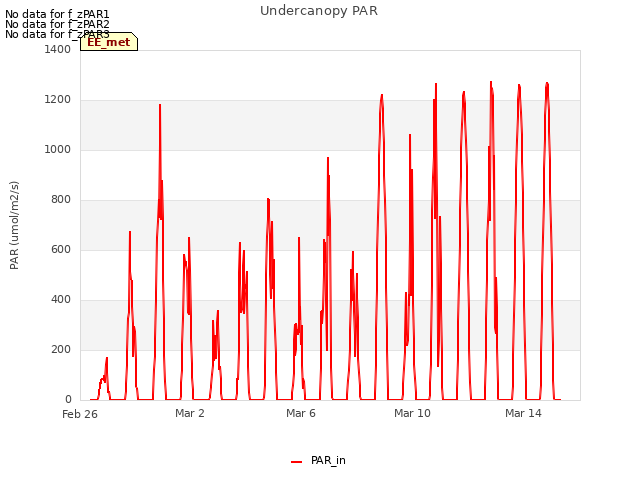

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

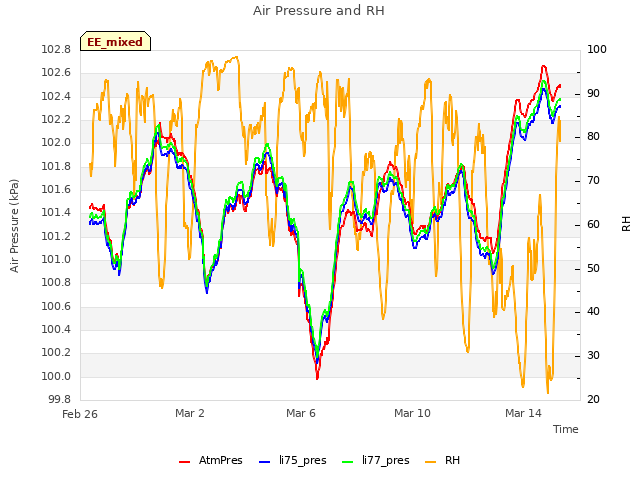

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

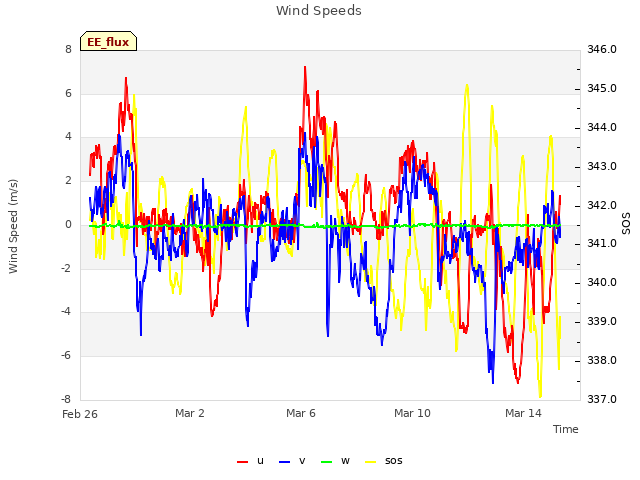

Explore the graph:Wind Speeds in a new window

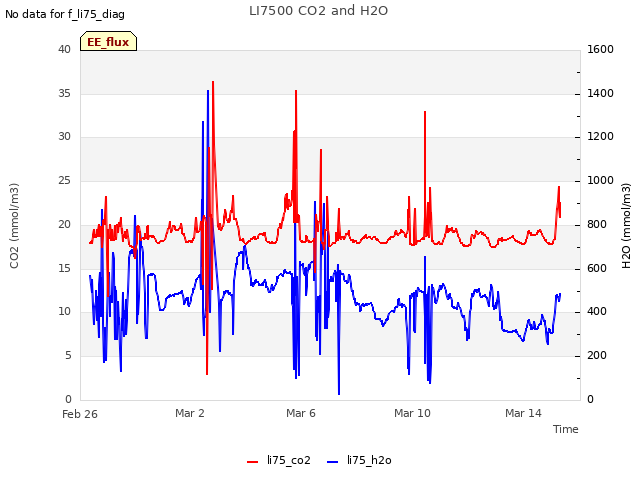

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

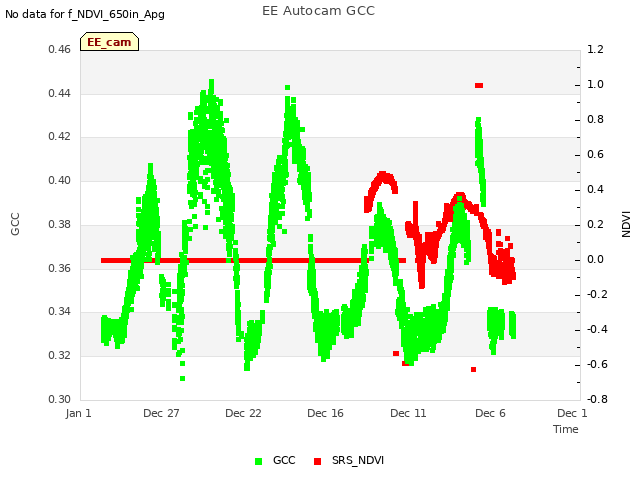

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

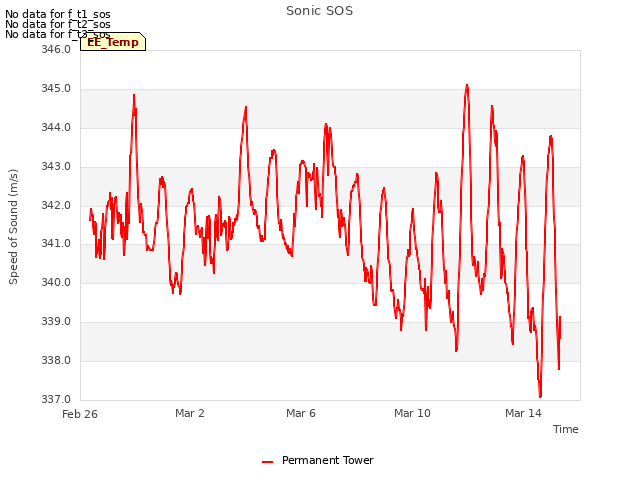

Explore the graph:Sonic SOS in a new window

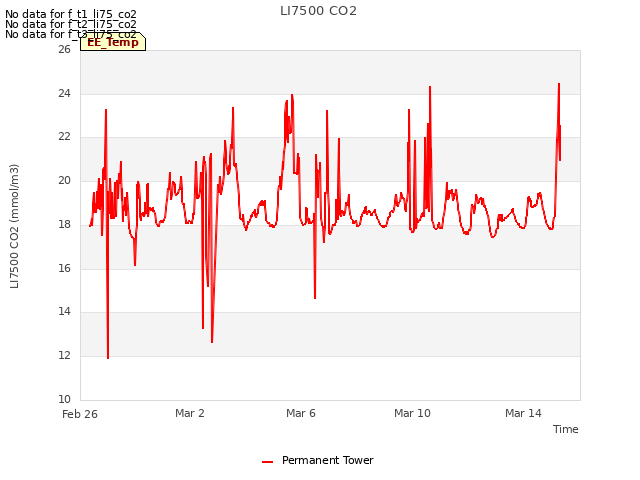

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

Explore the graph:LI-7700 CH4 in a new window

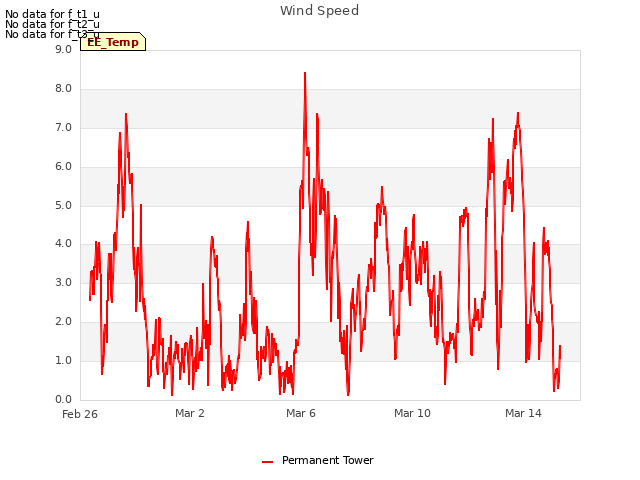

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

Explore the graph:CO2 Fluxes in a new window
