Twitchell Alfalfa: 2017-06-05 11:15:00 (DOY 156)
Author: Joe Verfaillie
Others: Daphne

Summary: Data collection, swapped 7500, problems with USB drive.

Twitchell Alfalfa
2017-06-05

I arrived about 11:15 with Daphne. It was clear and sunny but with a little haze and not much wind. They were mowing the field last time we were here. Now it has been baled and the bales have been removed from the western half of the field. There was water in the ditch along the south edge of the field.

We swapped the 7500:
sn 75H-2176 came off: 343.8ppm CO2, 858.3mmol/m3 H2O, 27.4C, 101.32kPa, 75.9SS
sn 1594 went up: 409.7ppm CO2, 456.9mmol/m3 H2O, 27.75C, 101.5kPa, 100.1SS
The config file and pressure coefficients were updated. There were lots of spider webs on the one that came down and the sonic.

We had trouble with the USB stick on this tower. The stick did not seem to eject properly then the new stick did not mount properly. Resetting the box allowed the new stick to mount and start recording data. Initially we could not get the files to move off the USB stick that was removed. Repairing the drive seemed to work but somehow made the stick read only. We were able to copy the existing files off the disk, but could not remove or reformat the drive for use elsewhere.

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

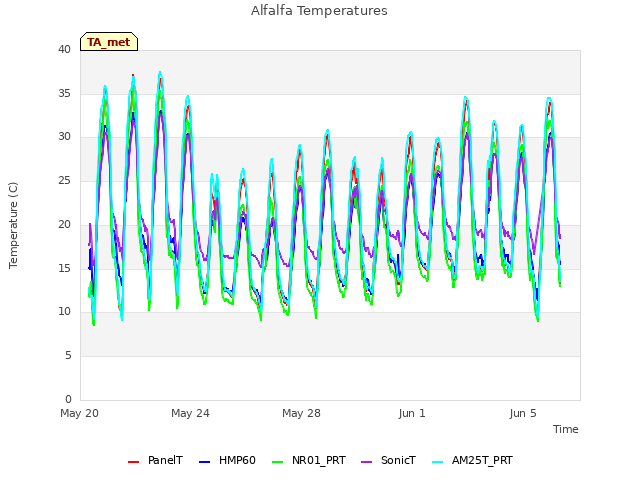

Explore the graph:Alfalfa Temperatures in a new window

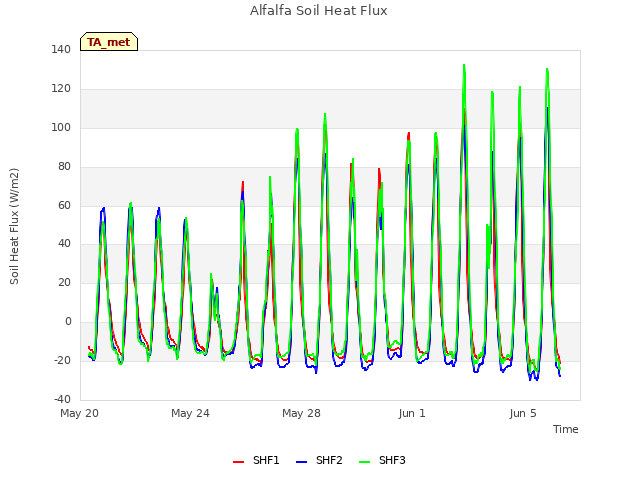

Explore the graph:Alfalfa Soil Heat Flux in a new window

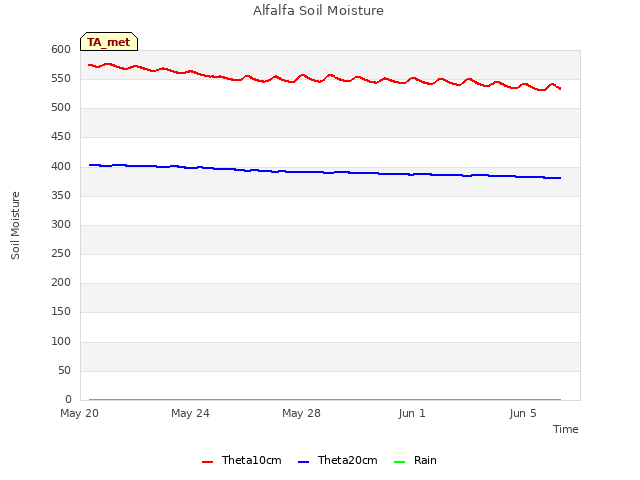

Explore the graph:Alfalfa Soil Moisture in a new window

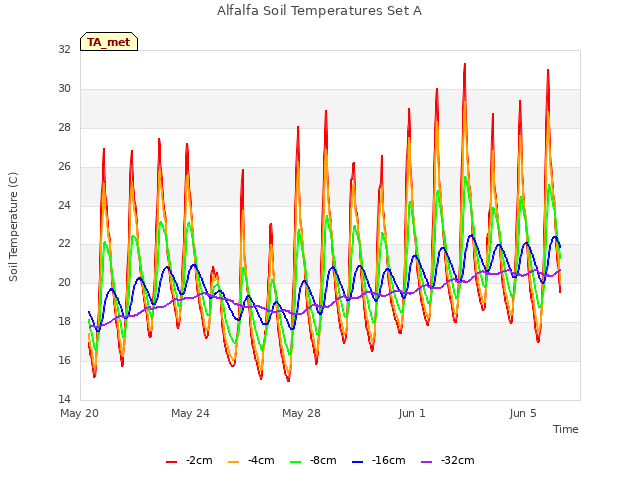

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

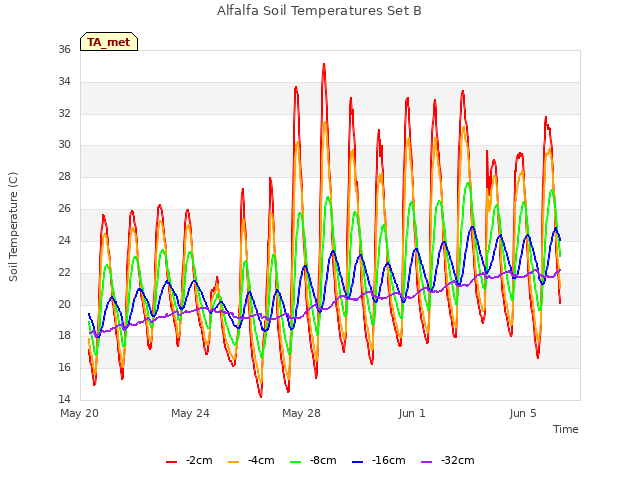

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

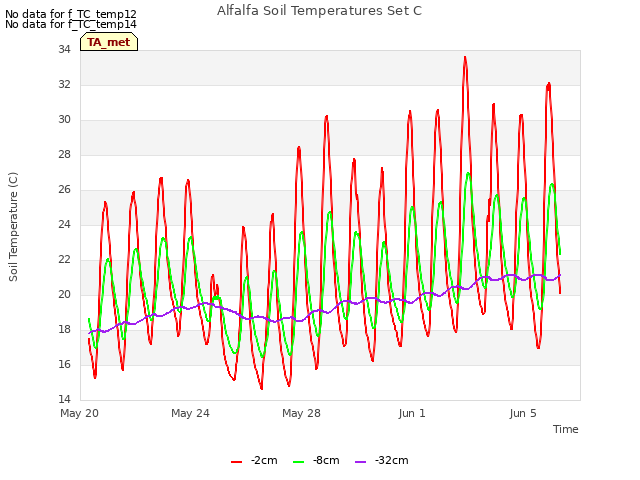

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

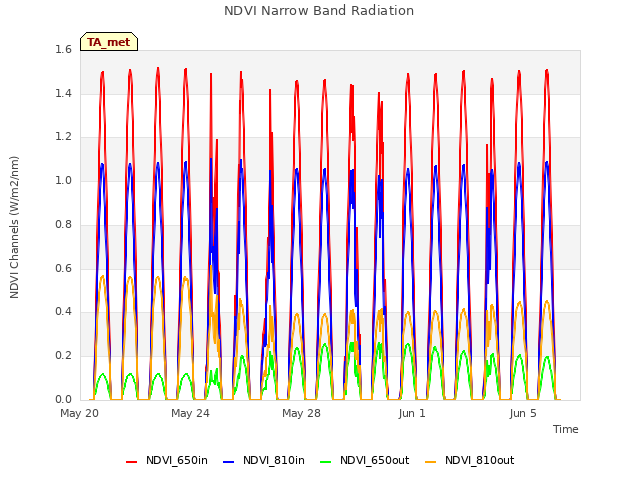

Explore the graph:NDVI Narrow Band Radiation in a new window

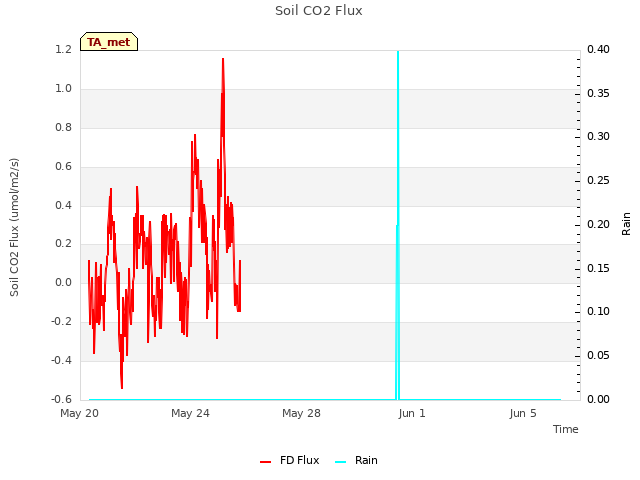

Explore the graph:Soil CO2 Flux in a new window

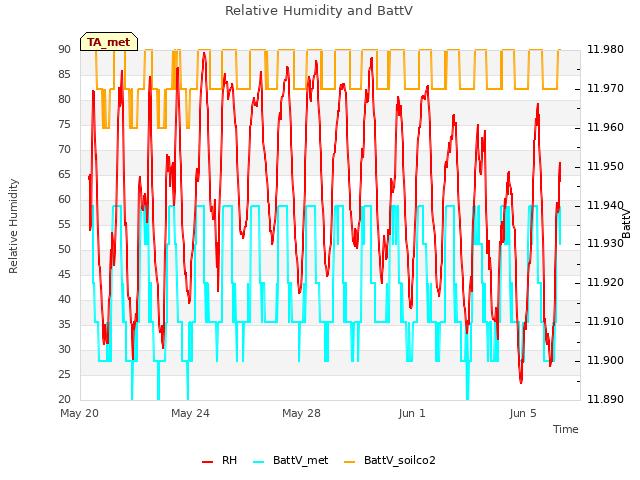

Explore the graph:Relative Humidity and BattV in a new window

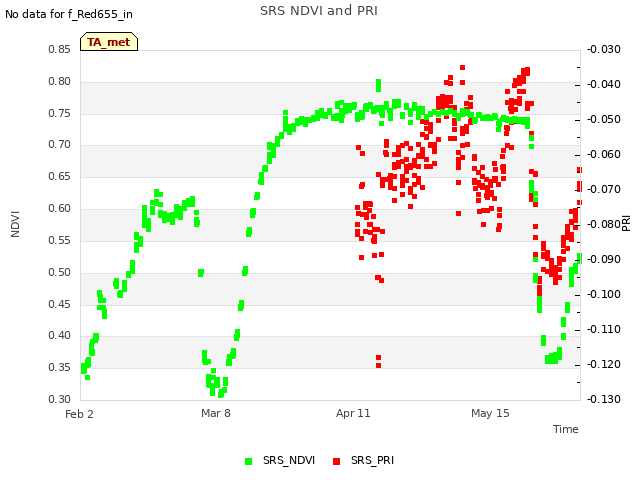

Explore the graph:SRS NDVI and PRI in a new window

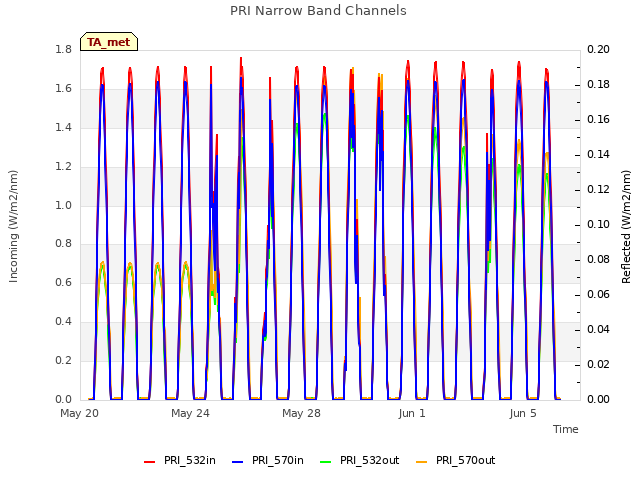

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

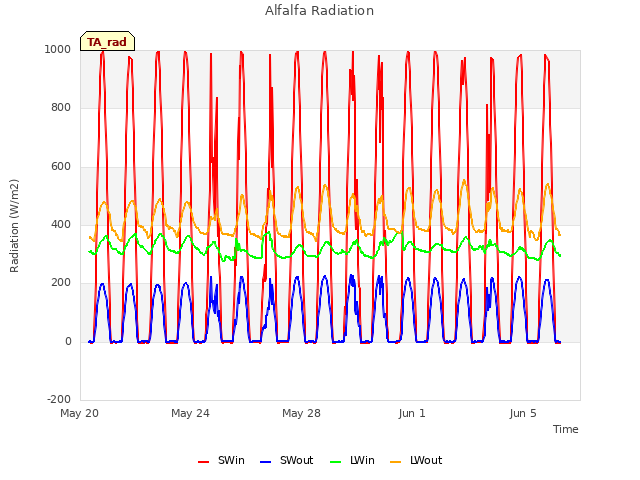

Explore the graph:Alfalfa Radiation in a new window

Explore the graph:Alfalfa LED NDVI Sensor in a new window

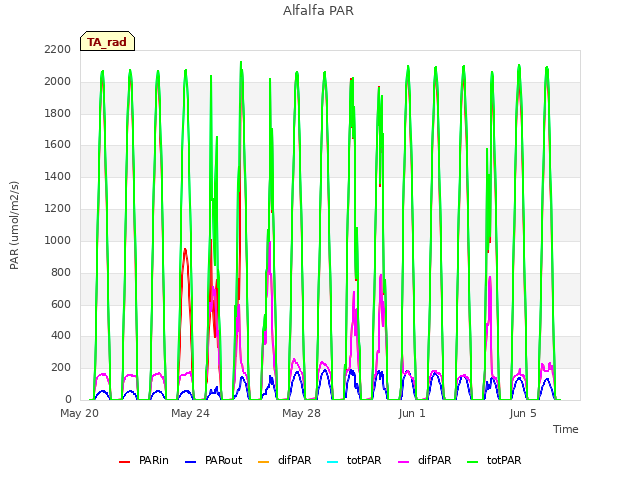

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

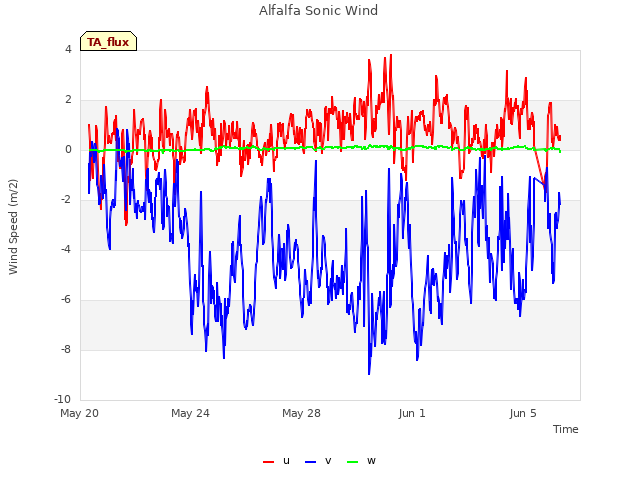

Explore the graph:Alfalfa Sonic Wind in a new window

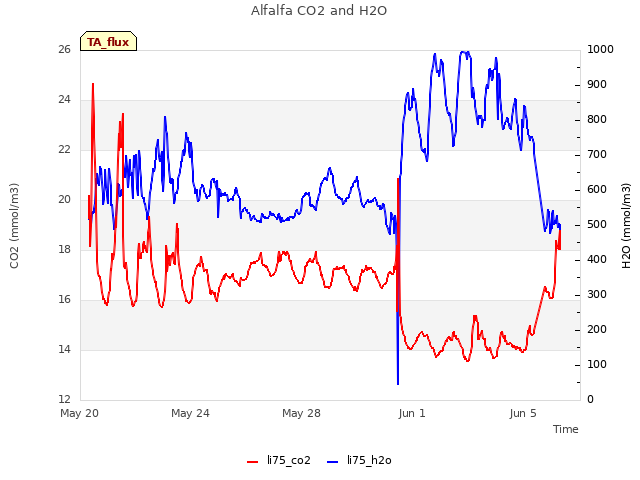

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

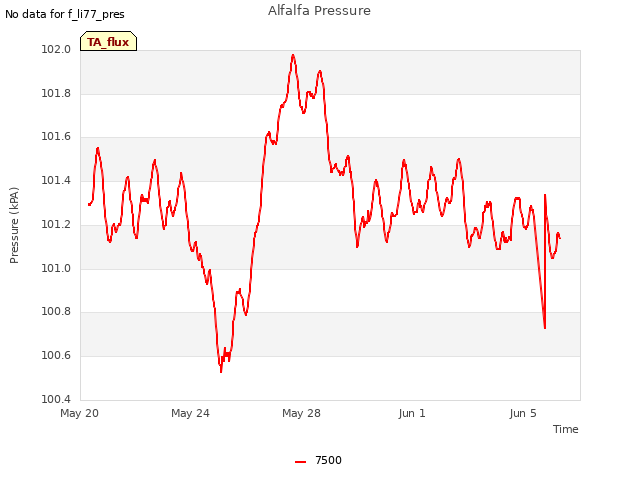

Explore the graph:Alfalfa Pressure in a new window

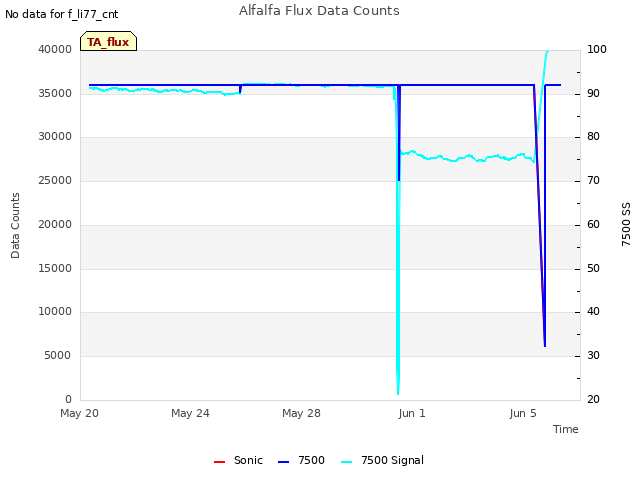

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

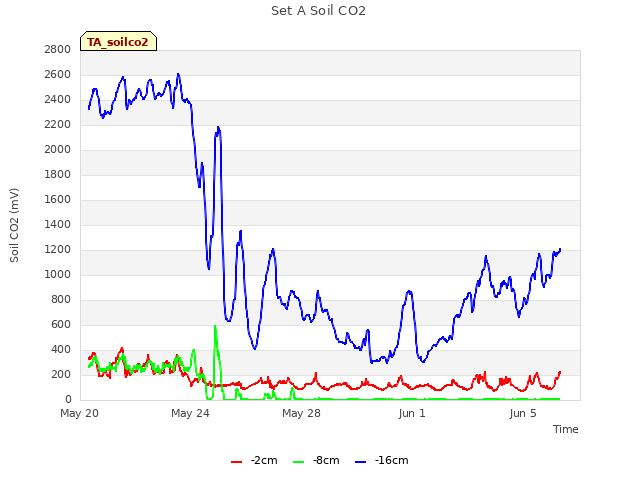

Explore the graph:Set A Soil CO2 in a new window

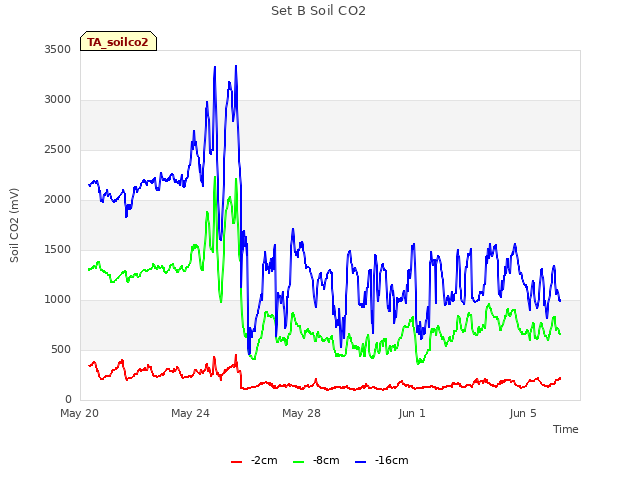

Explore the graph:Set B Soil CO2 in a new window

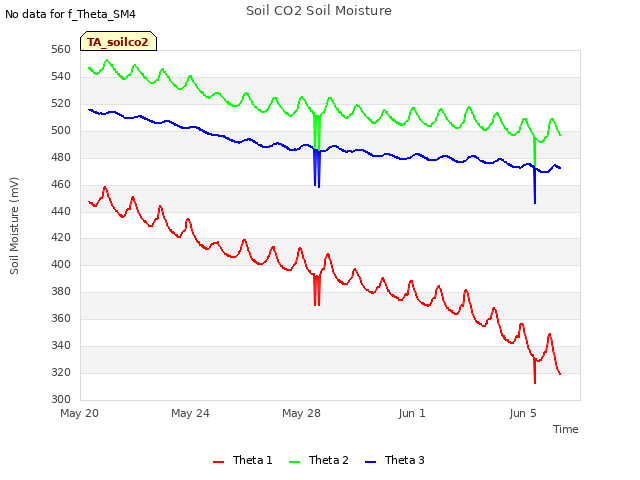

Explore the graph:Soil CO2 Soil Moisture in a new window

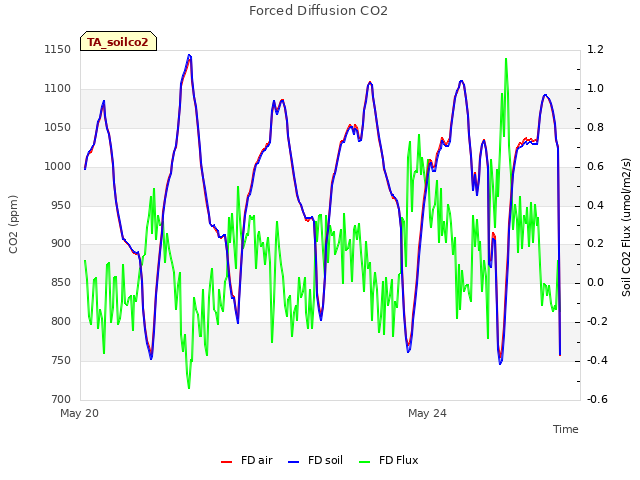

Explore the graph:Forced Diffusion CO2 in a new window

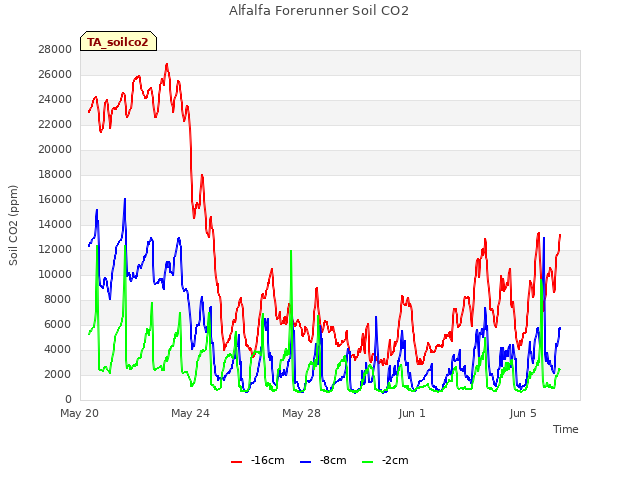

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

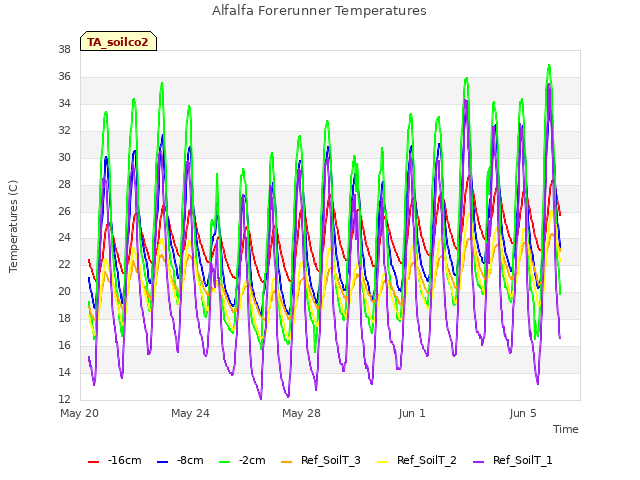

Explore the graph:Alfalfa Forerunner Temperatures in a new window

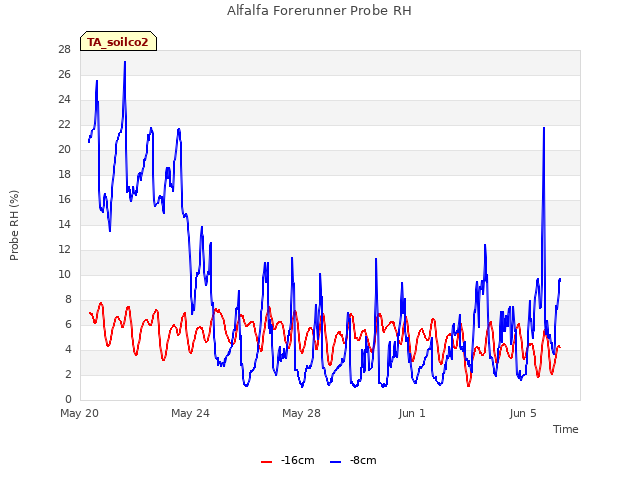

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

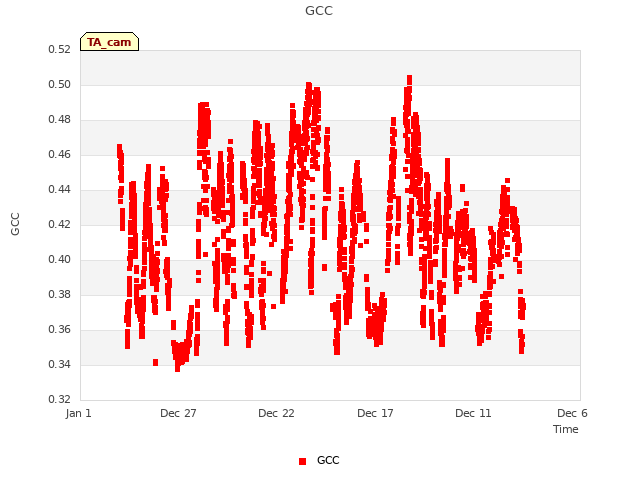

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
