West Pond: 2017-06-05 11:50:00 (DOY 156)
Author: Joe Verfaillie
Others: Daphne

Summary: Data collection, added NDVI sensors, swapped water CO2 sensor.

West Pond
2017-06-05

I arrived about 11:50 with Daphne. It was sunny, warm and hazy with little to no wind. The tules behind the solar panels are almost as high as the panels.

Since the TA USB stick is not working we have no spare to swap so we moved the files off the existing stick and replaced it.
The 7500 read: 409.7ppm CO2, 560.2mmol/m3 H2O, 29.4C, 100.8kPa, 99.0SS – 100.1 after cleaning
The 7700 read: 2.05ppm CH4, 44.5RSSI – 87.9 after cleaning

We installed two SRS NDVI hemispherical sensors on the tower – sn 1066703780 was install in the incoming position and sn 2046503378 was installed in the reflected position. The met program was updated after collecting the data.

We also swapped the Eosense water CO2 sensor. The existing sensor has been giving odd numbers. We removed sn GP20150109 and installed sn GP20140017

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

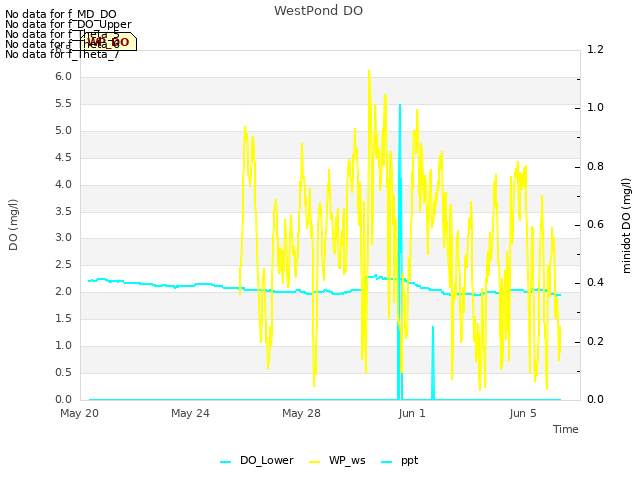

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

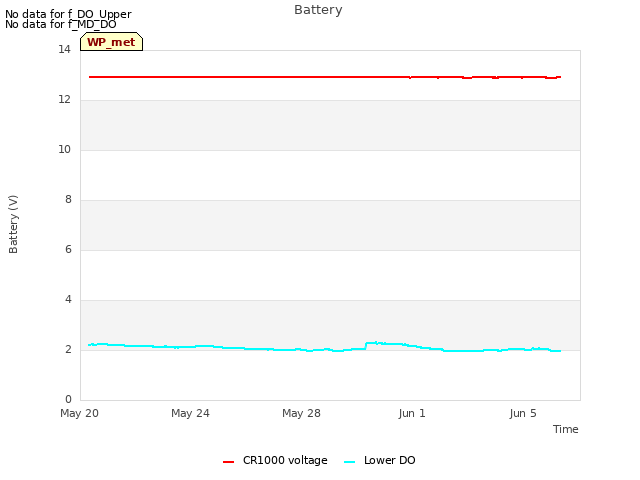

Explore the graph:Battery in a new window

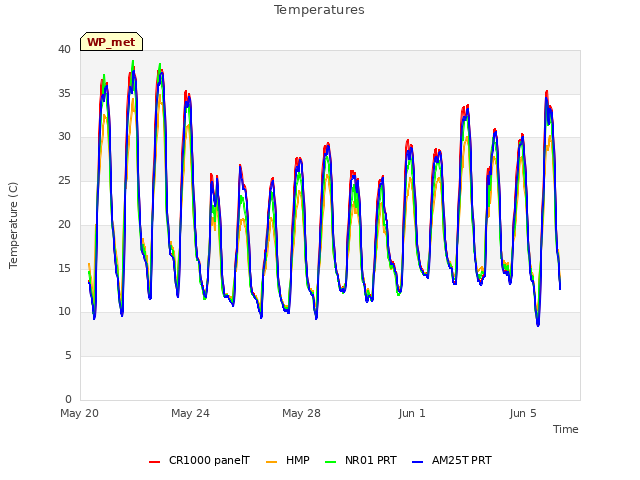

Explore the graph:Temperatures in a new window

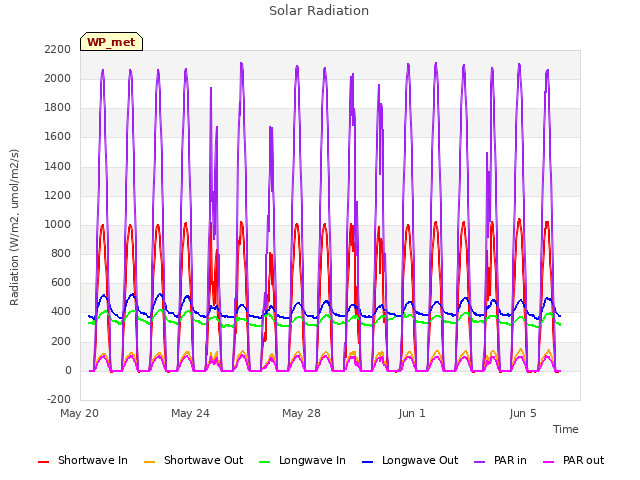

Explore the graph:Solar Radiation in a new window

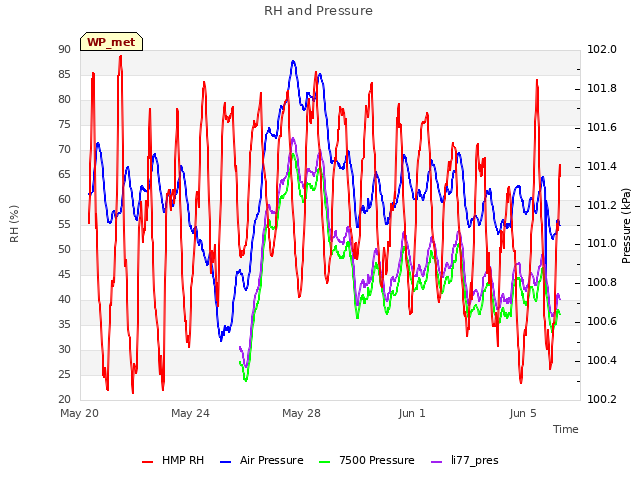

Explore the graph:RH and Pressure in a new window

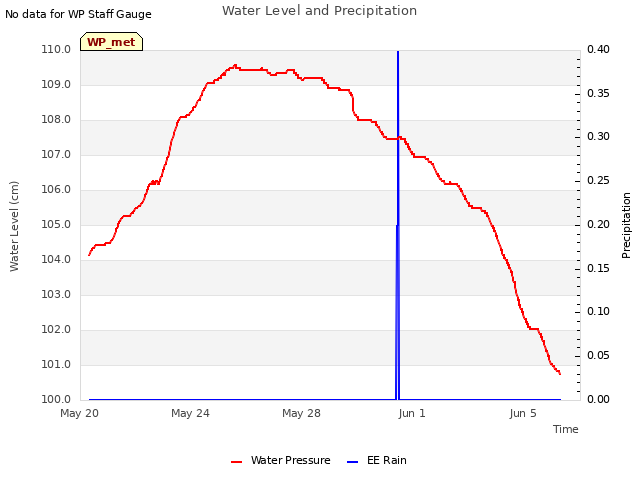

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

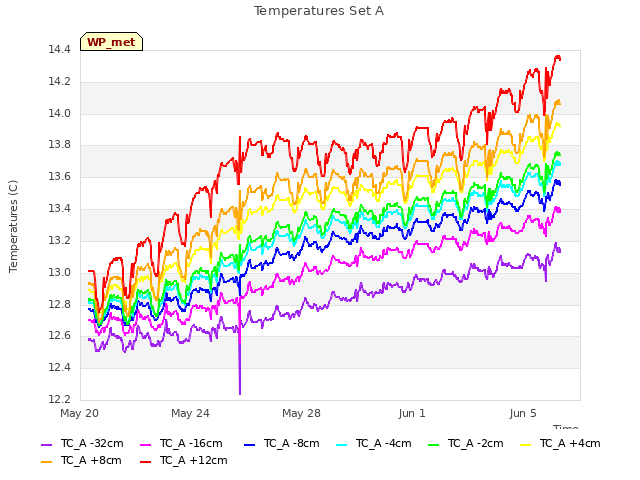

Explore the graph:Temperatures Set A in a new window

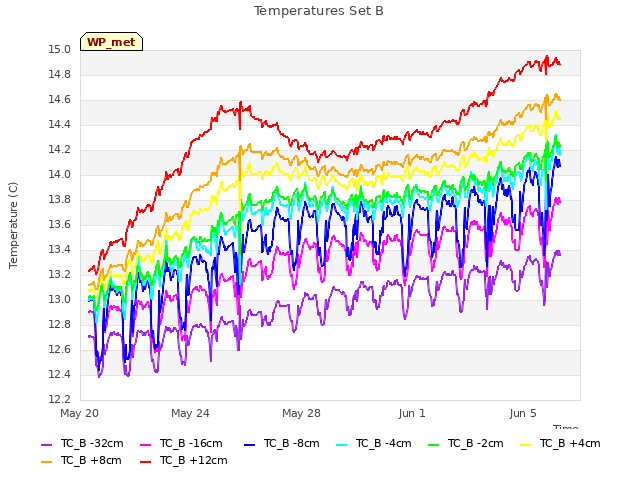

Explore the graph:Temperatures Set B in a new window

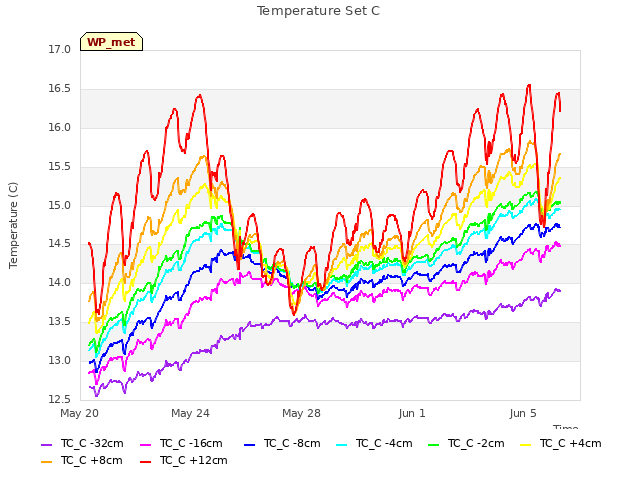

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

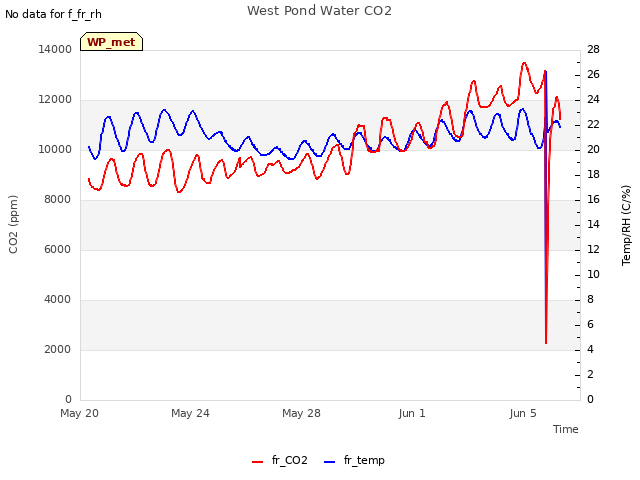

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

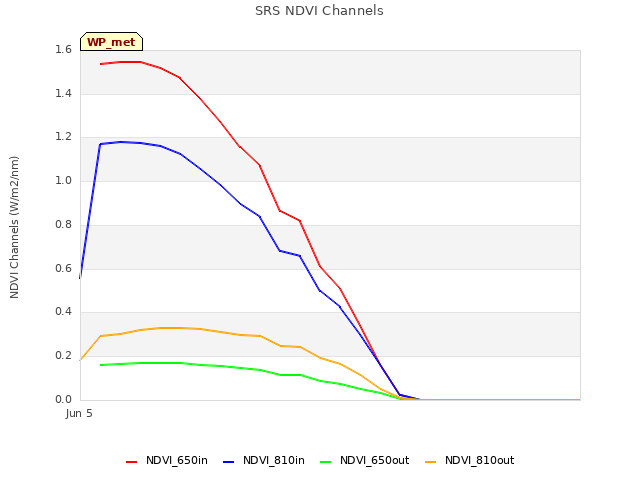

Explore the graph:SRS NDVI Channels in a new window

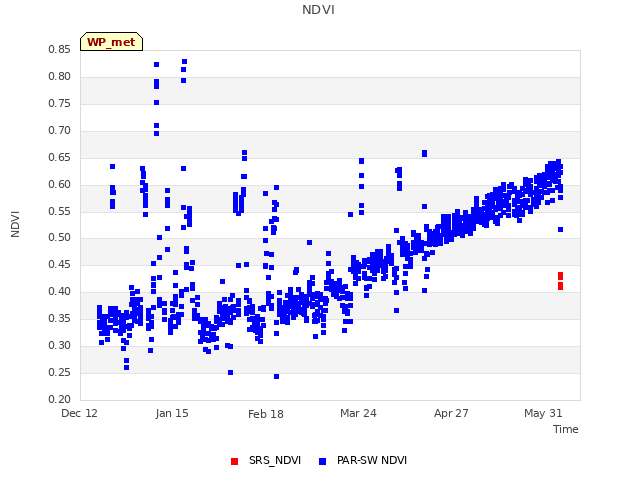

Explore the graph:NDVI in a new window

5 WP_flux graphs found

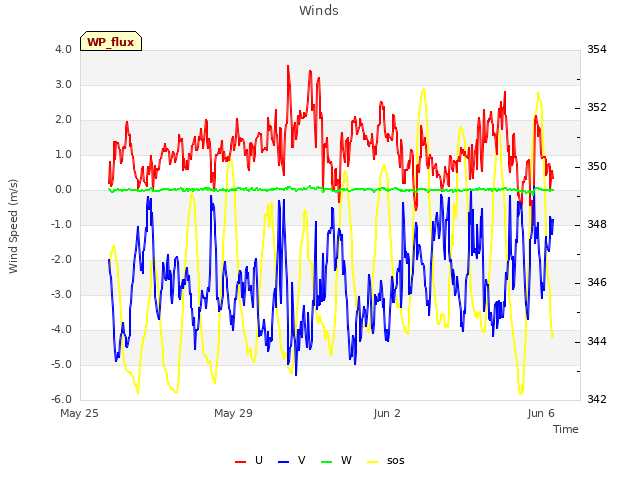

Explore the graph:Winds in a new window

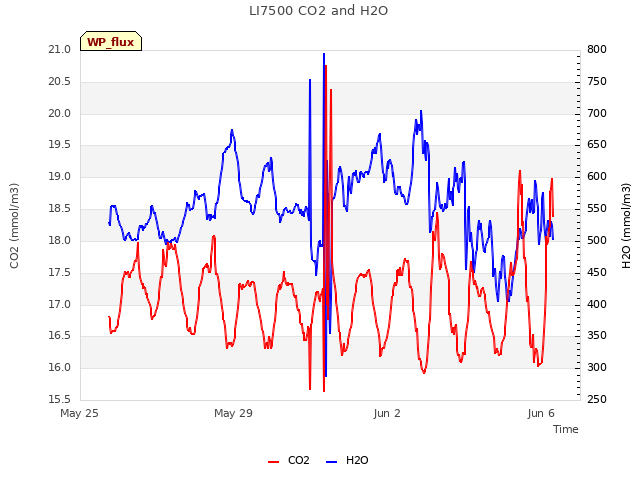

Explore the graph:LI7500 CO2 and H2O in a new window

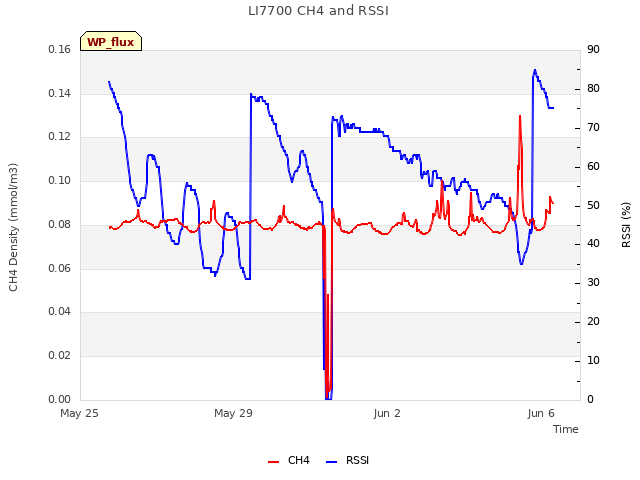

Explore the graph:LI7700 CH4 and RSSI in a new window

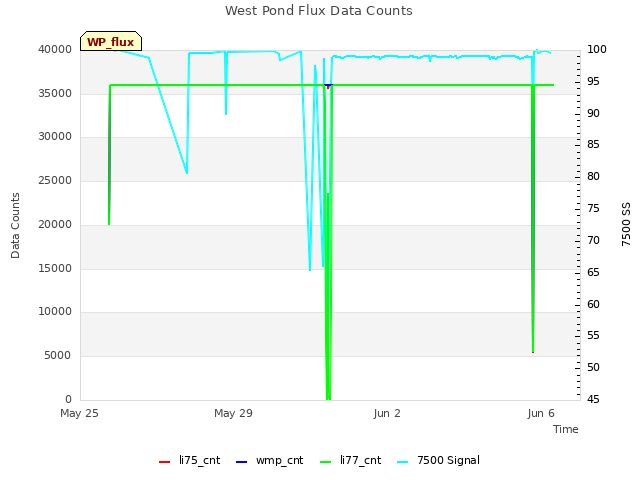

Explore the graph:West Pond Flux Data Counts in a new window

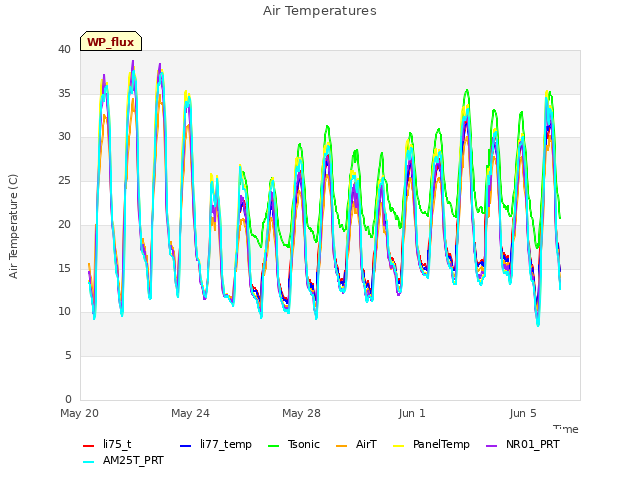

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

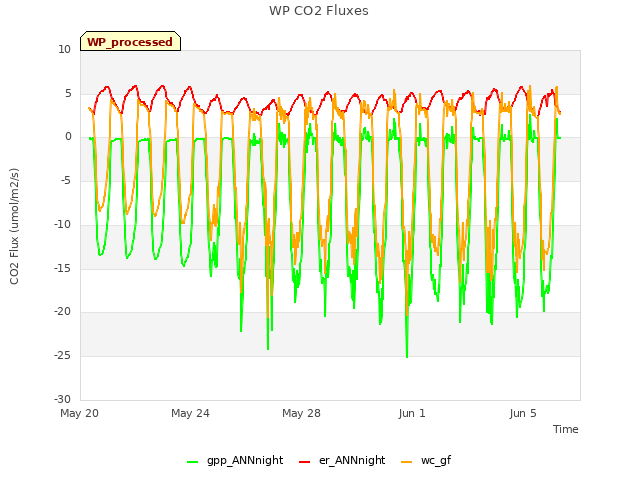

Explore the graph:WP CO2 Fluxes in a new window
