Twitchell Rice: 2014-03-27 13:00:00 (DOY 86)
Author: Cove Sturtevant
Others: Patty

Summary: Field drained. TC Soil T1_04 bad.

Twitchell Rice
2014-03-27

We arrived about 13:00 PDT. Overcast, cool (13 C), and calmish. The field is drained and covered with a very short layer of old rice plant material except for the area ~10 meters to the WNW of the tower which has a large patch of tules growing in it. We downloaded data and checked the readings.

7500 readings:
CO2 = 399 ppm (same after cleaning)
H2O = 500 mmol m-3 (same after cleaning)
signal strength = 80.67% (81.8% after cleaning)

7700 readings:
CH4 = 1.94 ppm variable (same after cleaning)
RSSI = 60% (68% after cleaning)
Topped off reservoir.

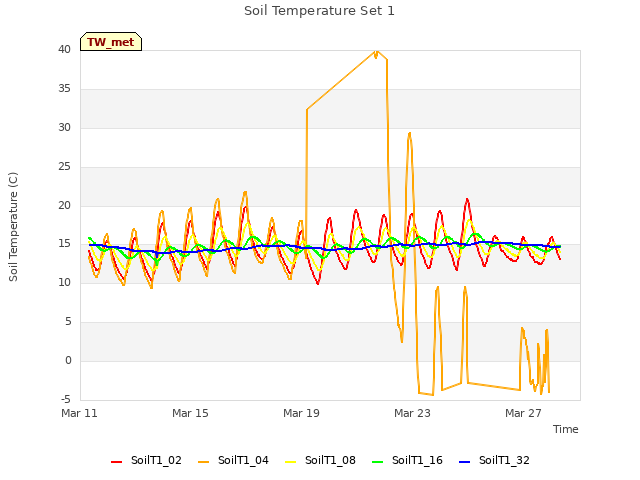

Met looked good except for Soil T1_04 which was reading 4 C. Cleaned radiation sensors.

1 photos found

view of field site
view of field site

Graphs display:
6 sets found

12 TW_met graphs found

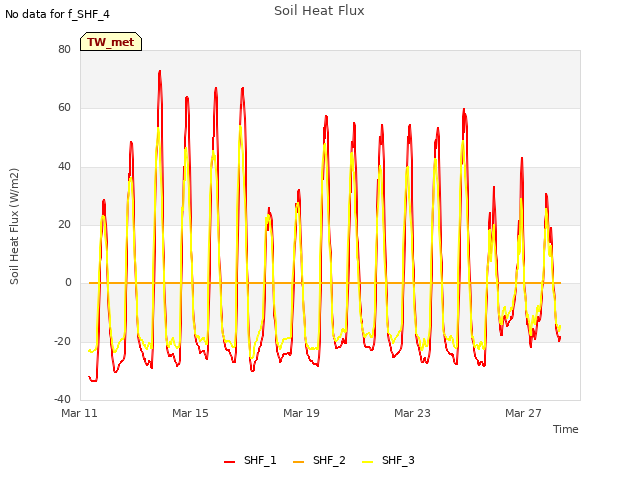

Soil Heat Flux

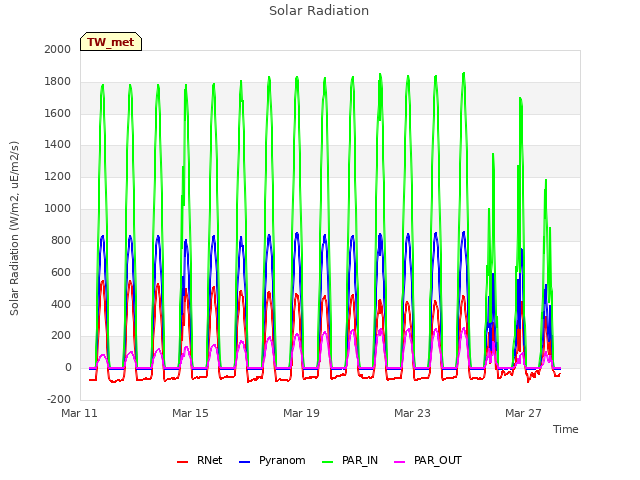

Solar Radiation

Air Temperature

Soil Temperature Set 1

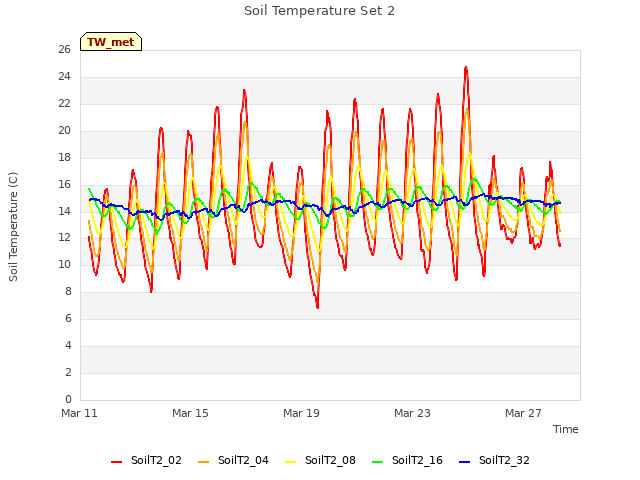

Soil Temperature Set 2

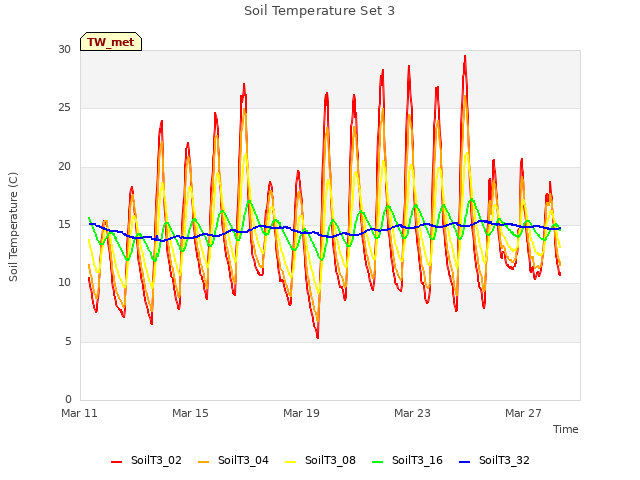

Soil Temperature Set 3

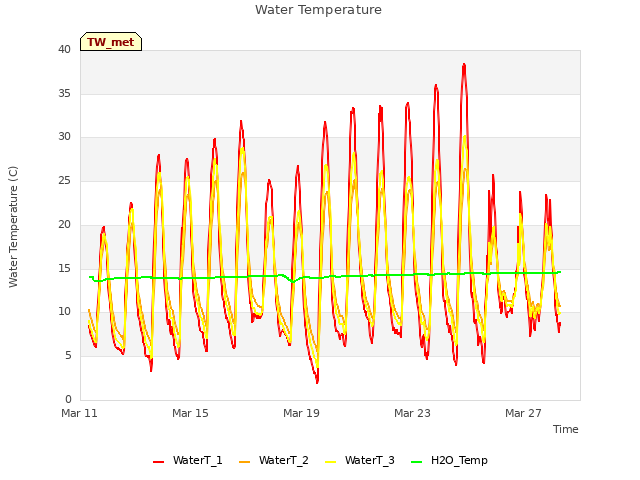

Water Temperature

RH and Pressure

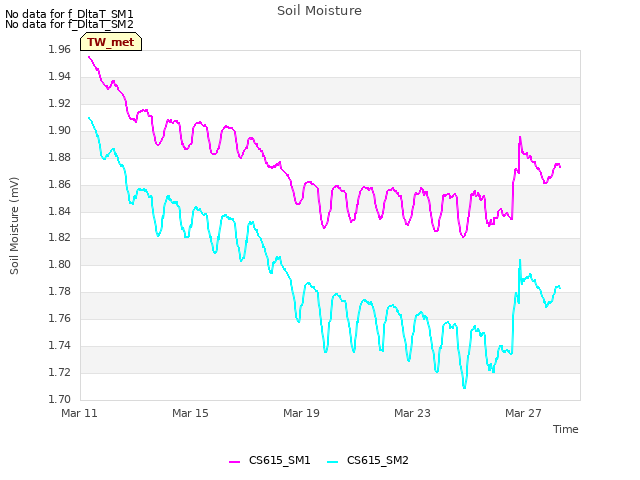

Soil Moisture

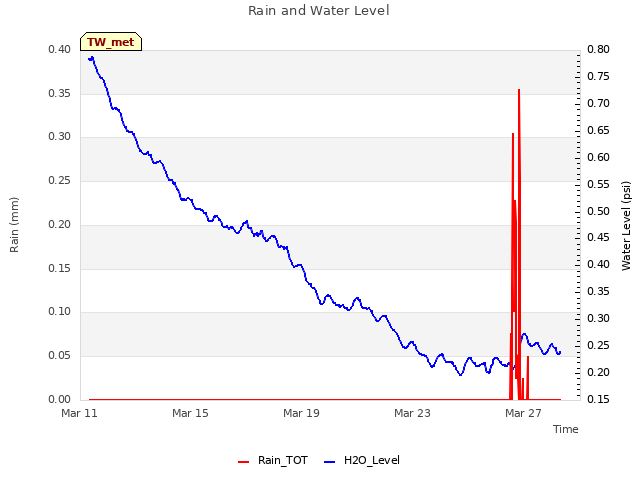

Rain and Water Level

Disolved Oxygen

LED NDVI Channels

5 TW_flux graphs found

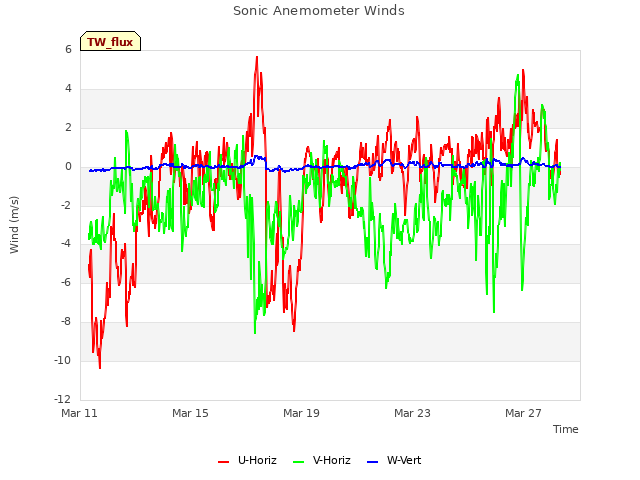

Sonic Anemometer Winds

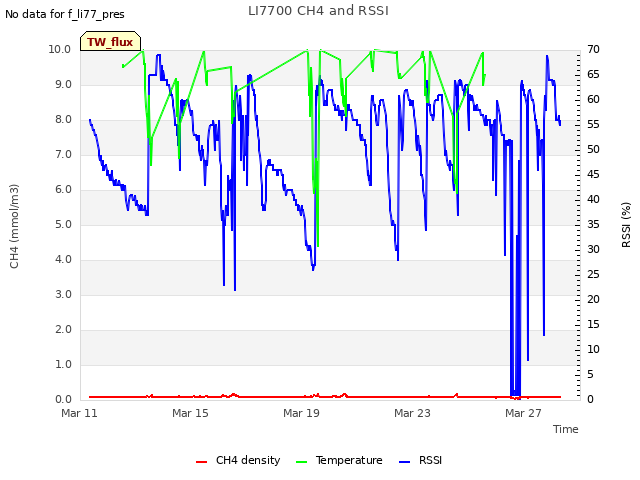

LI7700 CH4 and RSSI

Twitchell CH4

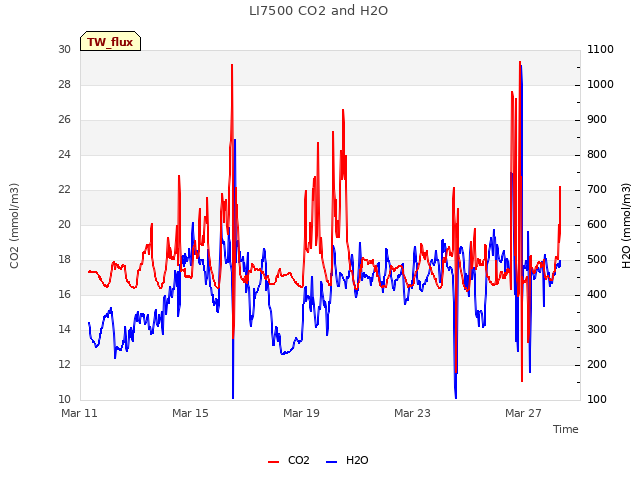

LI7500 CO2 and H2O

Twitchel Rice Flux Counts

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

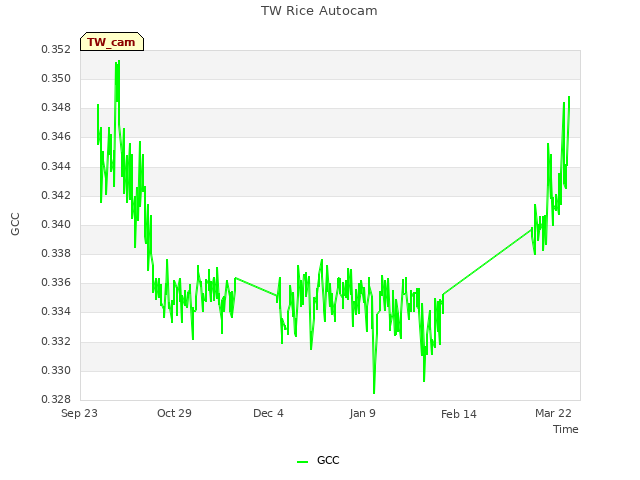

TW Rice Autocam

Can't check TATWBABCSB_cam
