Tonzi: 2014-03-27 00:00:00 (DOY 86)
Author: Siyan Ma
Others: Dennis

Summary: oak leaf-out, grass green, no cows at either site, Checked CO2 probes at Vaira - ok, Removed last of sap flow east station, swapped CO2 profile CO2 tank, zcam 1 down, Moved CO2 probes at Tonzi


When: Date: 3/27/2014 , Day: 86 , Watch Time: 10:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan Dennis
Weather: cloudy, shower about 10 minutes
Phenology: oak leaf-out; grass green; no cows at both sites.

Green pasture and Vaira siteThick grass and herbsWindow of Zcam sensorLooking down on green oak savanna from tower top

Summary
  1. Checked flux and met data from PC at Tower, Floor, and Vaira, but no data were downloaded this time.
  2. Dennis put a new tank of CO2 for calibrating the CO2 profile system.
  3. Dennis cleaned up the sap flow sensors near the road well.
  4. Relocated probes at Tonzi-open profiles to Tonzi-Tree2.
  5. Read dendrometers.
  6. Measured grass height.
  7. Measured groundwater well.
  8. Collected grass samples for LAI at Tonzi and Vaira.

Vaira_Grass Site
  1. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  2. Checked soil CO2 profiles: all probes were dry.
  3. Checked levels of Radiation sensors, clear up surfaces.YES!
  4. Checked rain gage, make sure not clogged. YES!
  5. Cleaned the surface of Li-7500. YES!
  6. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. checked Winflux data from PC.

Screen shot of tower flux data logger table
  1. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES! Reconnected the broken (black) wires.
  2. Checked rain gage, make sure not clogged. YES!
  3. Cleaned the surface of Li-7500. YES!
  4. Checked CO2 profile: Dennis put a new tank of CO2 for calibrating the CO2 profile system.

Tank
N2,700,10
CO2,1900,5,402.68ppm
Is the pump running‌ YES!
Screen shot of Li-800 calibration pre-cal

Screen shot of Li-800 calibration zero pre-cal

Screen shot of Li-800 calibration span pre-cal
6. closed gate and set up fence. YES!
Toniz_Floor Site
  1. Checked EC system

Screen shot of floor flux data logger table
  1. Checked met data from PC. YES!

CR23X3 – floor-Met
CR23X6 – tower-Met
CR10X2 – floor-Met
Soil CO2 profile: CR23X5 – soil CO2 profile
Screen shot of soil co2 data logger table

Screen shot of tower met data logger table

Screen shot of soil moisture data logger table

Screen shot of floor met data logger table
  1. Closed gate and set up fence. YES!

Soilco2
Moved soil CO2 sensors:
1%, sn z2720012, moved from Open -2cm to Tree2 -4cm
1%, sn x4840007, moved from Open -4cm to Tree2 -2cm
3%, sn f4960020, moved from Open -8cm to Tree2 -8cm
need more U PVC connectors

Veg Height (cm): Tape measure from ground to top of plant
6, 4, 7, 10, 4, 7, 5, 7, 4, 5, 7, 7, avg = 6.1, stdev = 1.78

Field Data

CO2 Profile Tanks

DateTankPressure (psi)ppm
2014-03-27CO21900402.68
2014-03-27N27000

Well Depth

DateLocationDepth (feet)
2014-03-27TZ_floor30.8
2014-03-27TZ_road38.8
2014-03-27TZ_tower34.7

No TZ Moisture Point data found

No VR Moisture Point data found

Grass Height TZ 12

DateHeight reps (cm)LocationAverageSampSTDEV
2014-03-276 4 7 10 4 7 5 7 4 5 7 7 GH_ALL6.08121.71

Grass Height VR 16

DateHeight reps (cm)LocationAverageSampSTDEV
2014-03-2720 20 21 20 GH_FENCED20.2540.43
2014-03-2713 18 22 16 5 14 12 17 18 24 17 24 13 13 16 18 GH_OUT16.25164.64

Tree DBH

DateTag#Reading (mm)
2014-03-2710222.9
2014-03-27219.8
2014-03-2724516.3
2014-03-27322.1
2014-03-2741.1
2014-03-27525.5
2014-03-27720
2014-03-277217.1
2014-03-277923
2014-03-27811.2

No water potential data found

Biomass TZ Grass

DaterepAREA
(cm2)		LEAFNO
(count)		LEAFAREA
(cm2)		Green
WETWT
(g)		Green
DRYWT
(g)		Brown
WETWT
(g)		Brown
DRYWT
(g)		LAI
(m2/m2)		 Green
WETWT/AREA
(g/m2)		 Green
DRYWT/AREA
(g/m2)		 Brown
WETWT/AREA
(g/m2)		 Brown
DRYWT/AREA
(g/m2)
2014-03-270400 108 6.34 0.62 0.27587.0457.4100
2014-03-271400 223 3.22 1.07 0.56144.3947.9800
2014-03-272400 205 3.77 0.98 0.51183.947.800
2014-03-27SUM
2014-03-27CNT3 3 3 3 333
2014-03-27AVG 0.45305.1151.06

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

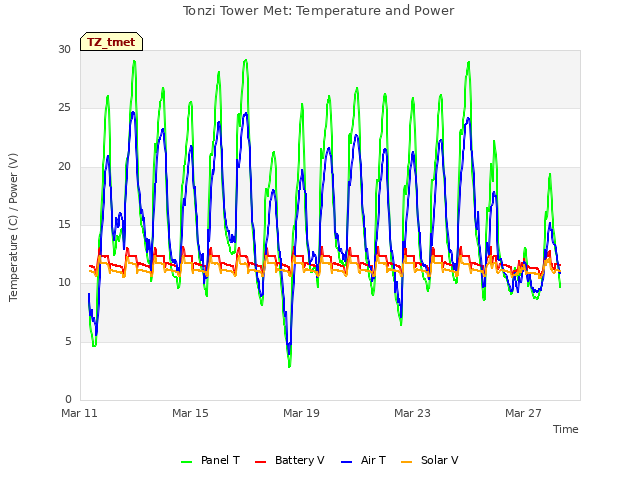

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

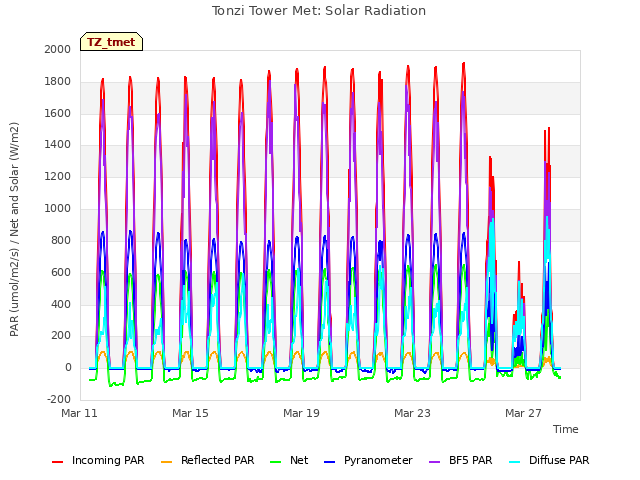

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

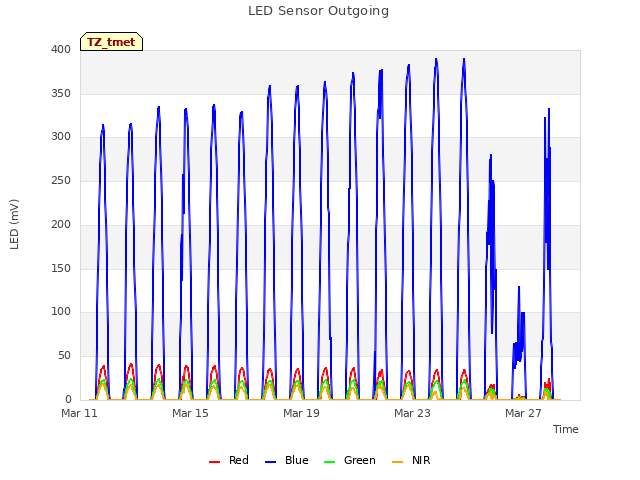

Explore the graph:LED Sensor Outgoing in a new window

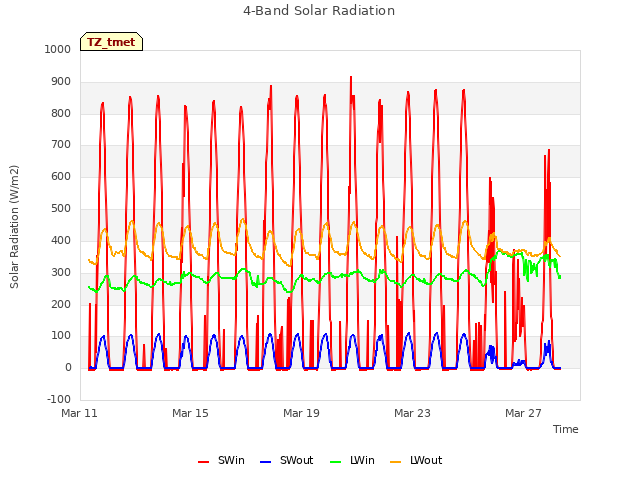

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

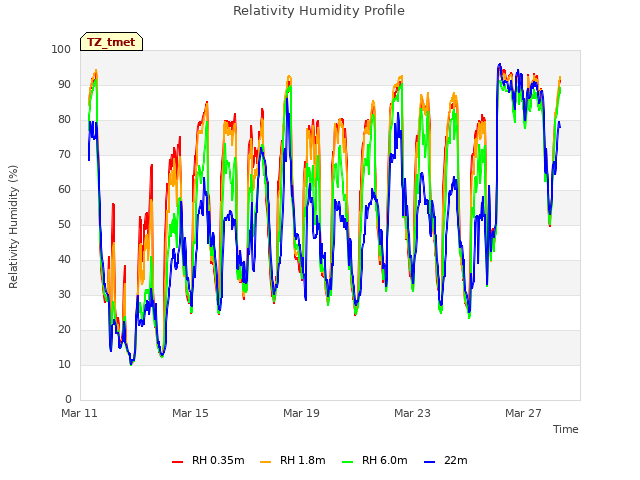

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

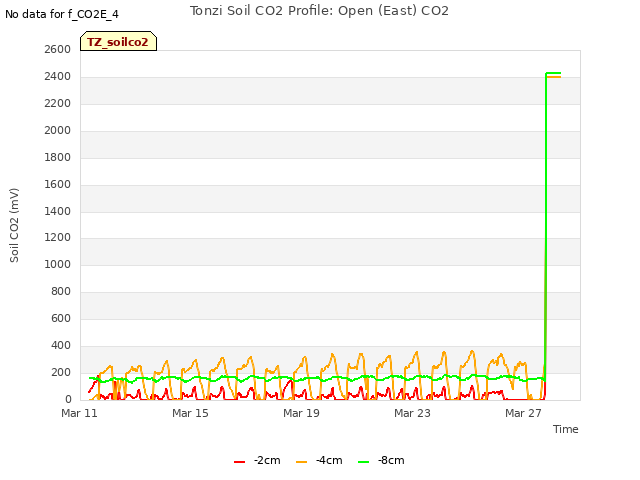

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

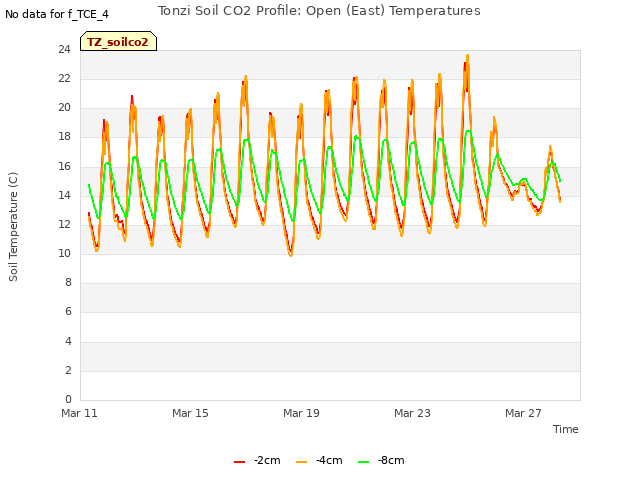

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

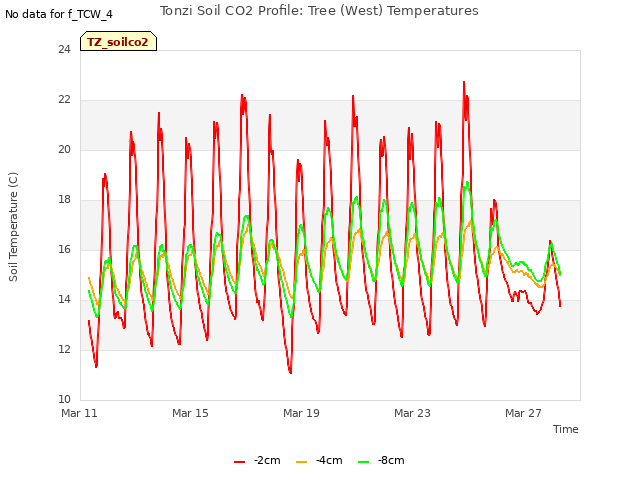

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

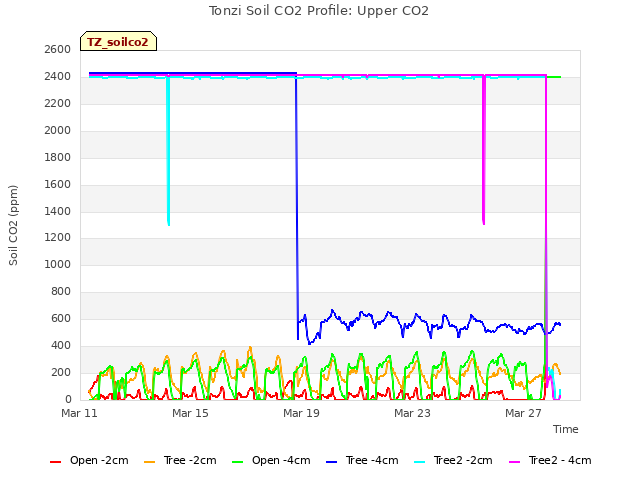

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

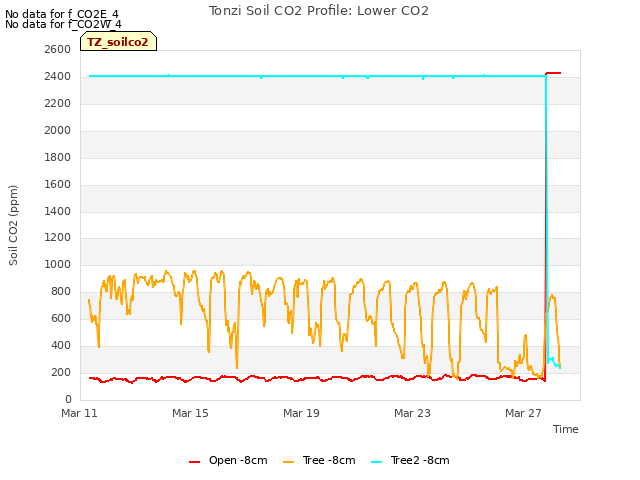

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

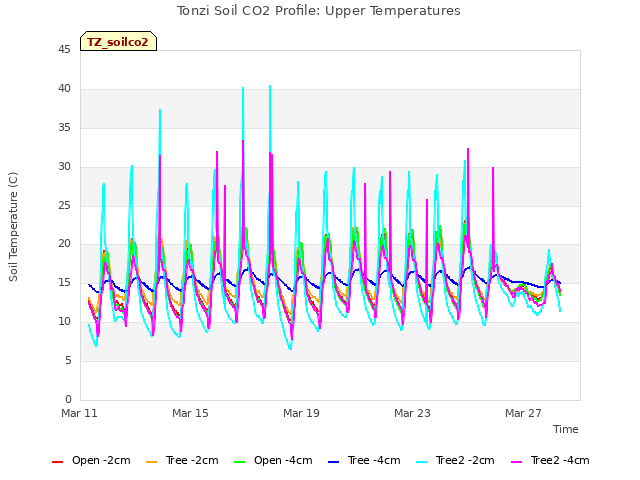

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

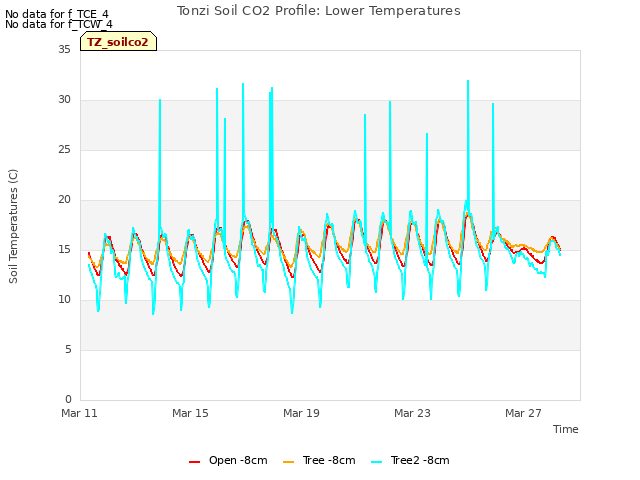

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

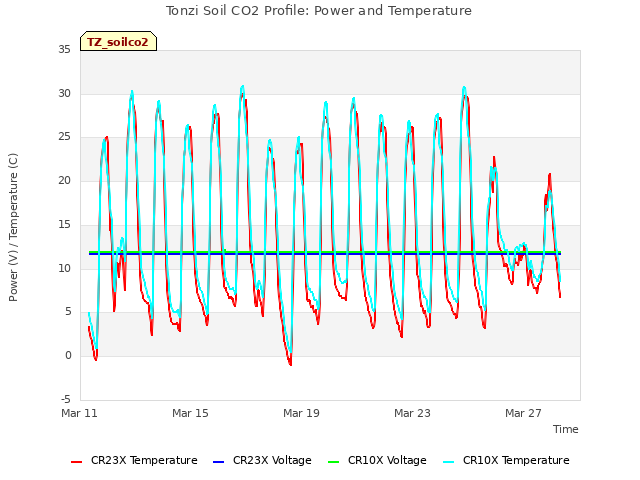

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

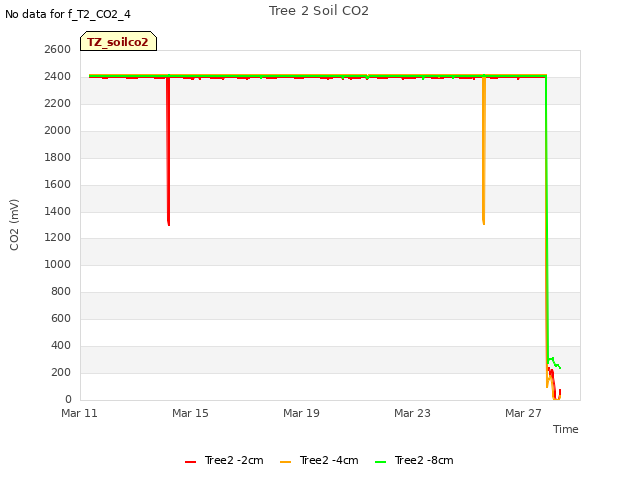

Explore the graph:Tree 2 Soil CO2 in a new window

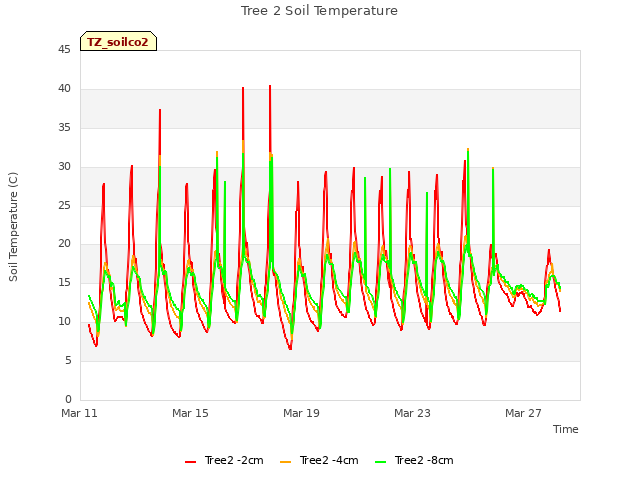

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

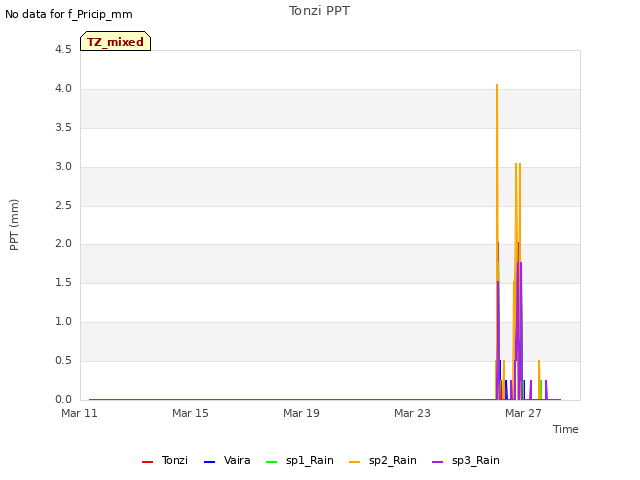

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

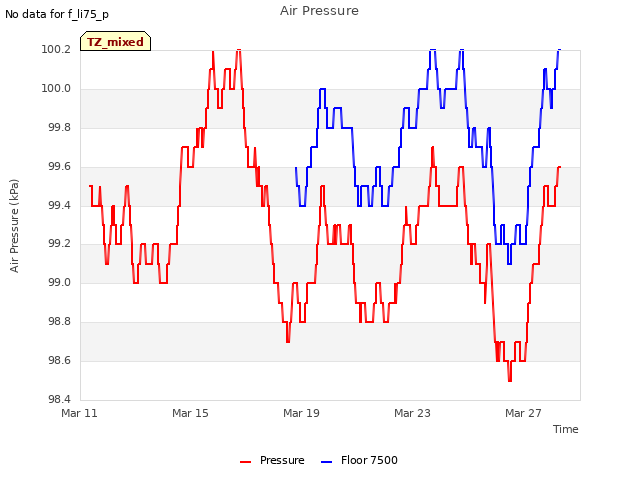

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

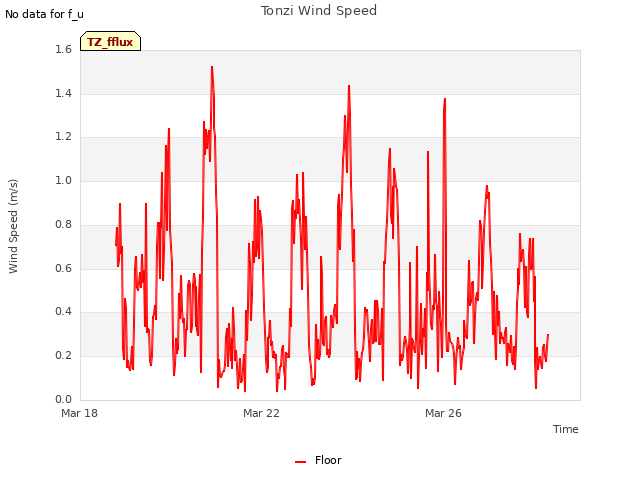

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

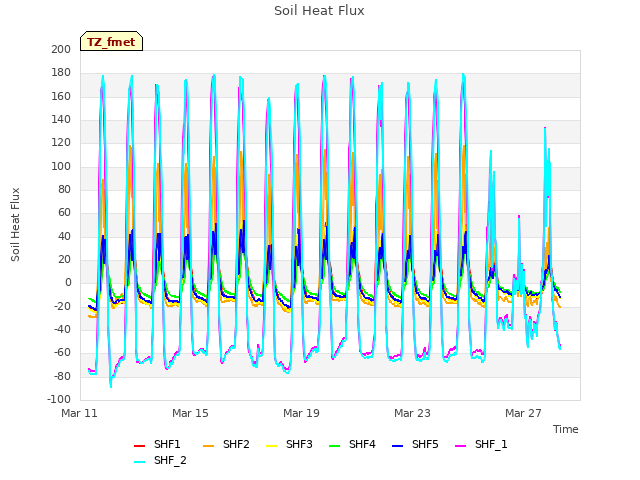

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

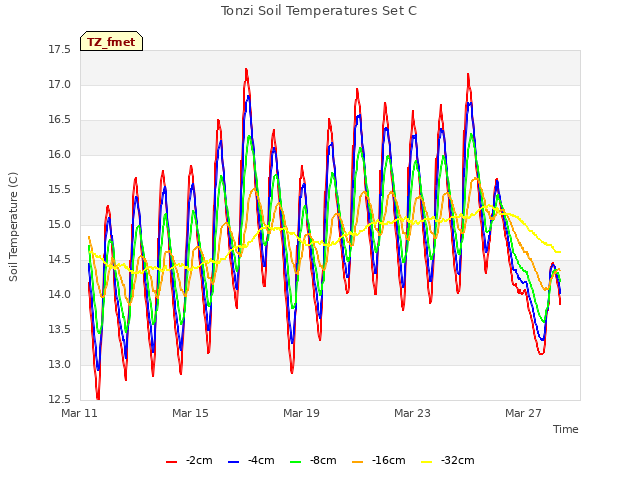

Explore the graph:Tonzi Soil Temperatures Set C in a new window

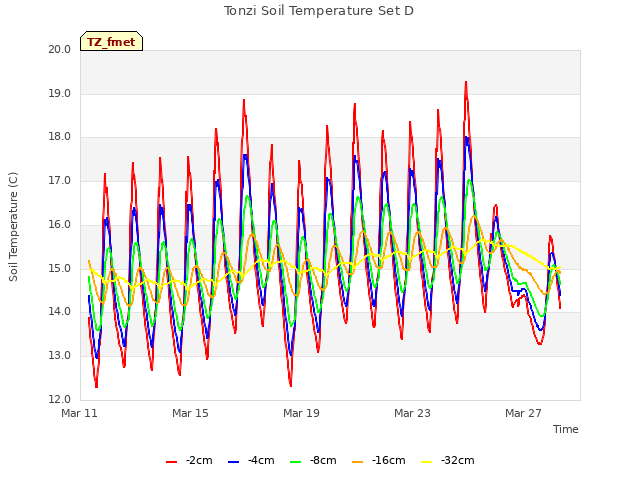

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

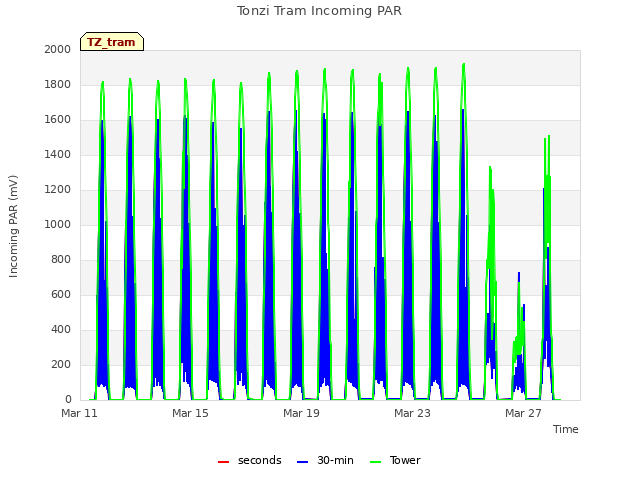

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

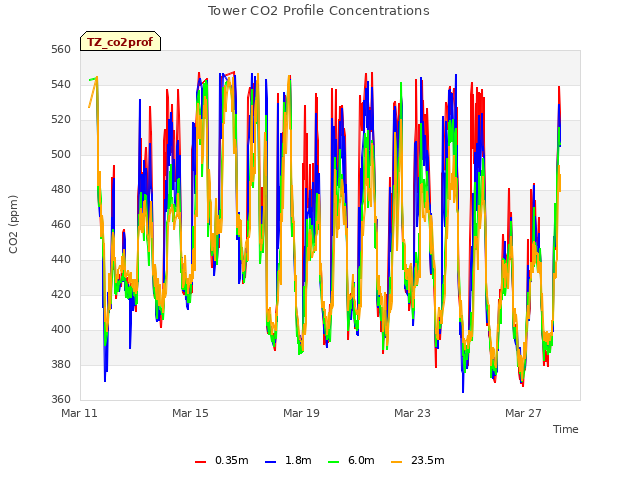

Explore the graph:Tower CO2 Profile Concentrations in a new window

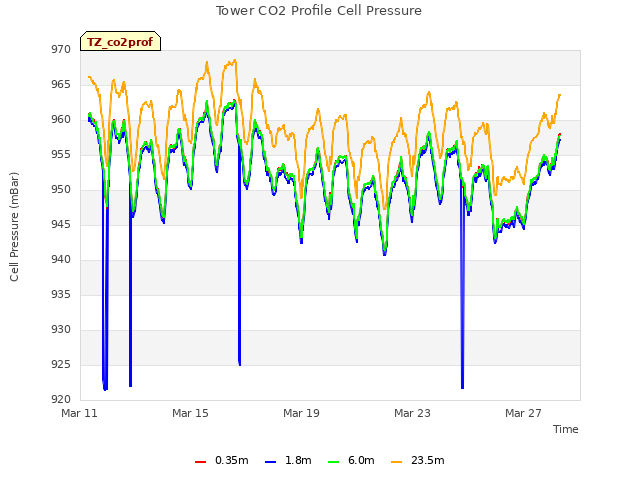

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

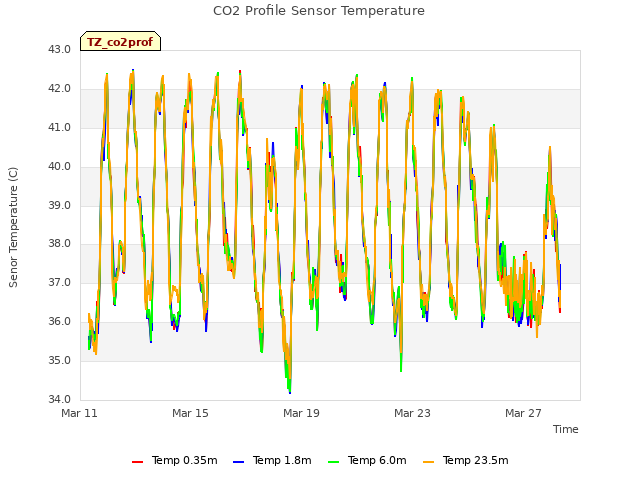

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

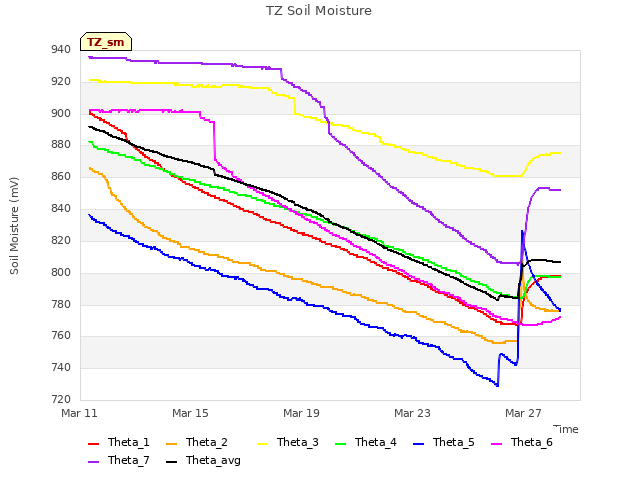

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

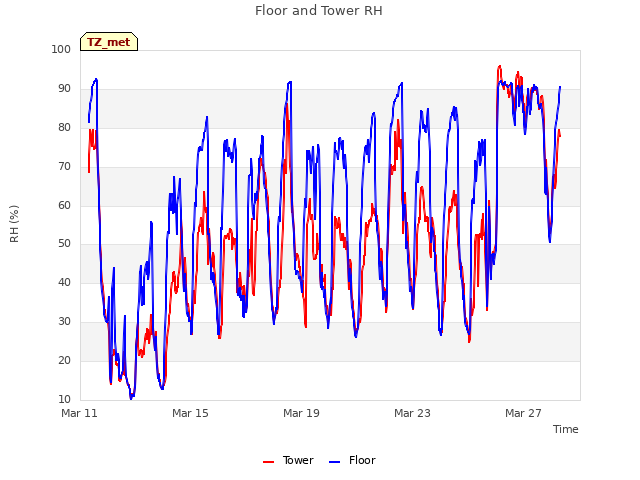

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

Explore the graph:Soil Moisture And Rain in a new window

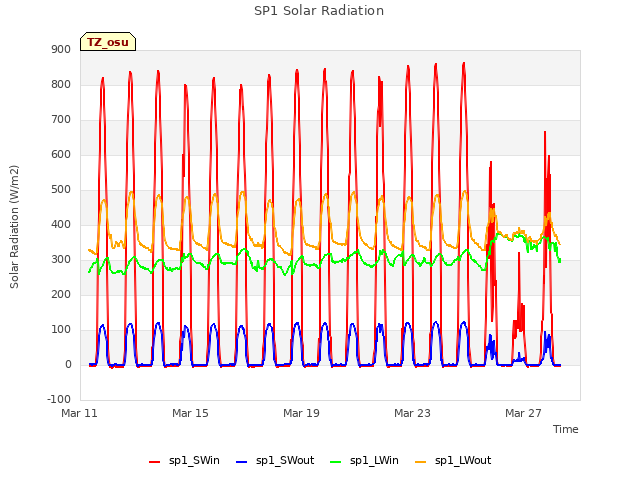

Explore the graph:SP1 Solar Radiation in a new window

Explore the graph:SP1 Soil Temperature Profile in a new window

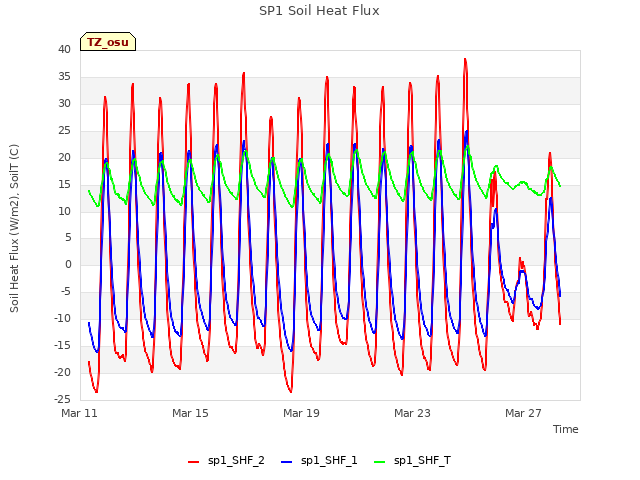

Explore the graph:SP1 Soil Heat Flux in a new window

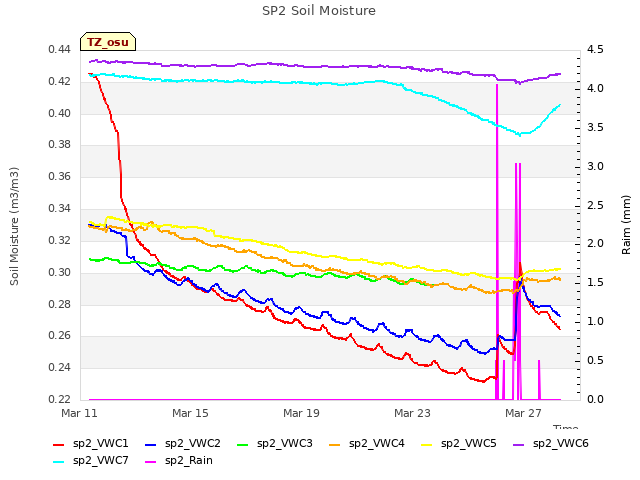

Explore the graph:SP2 Soil Moisture in a new window

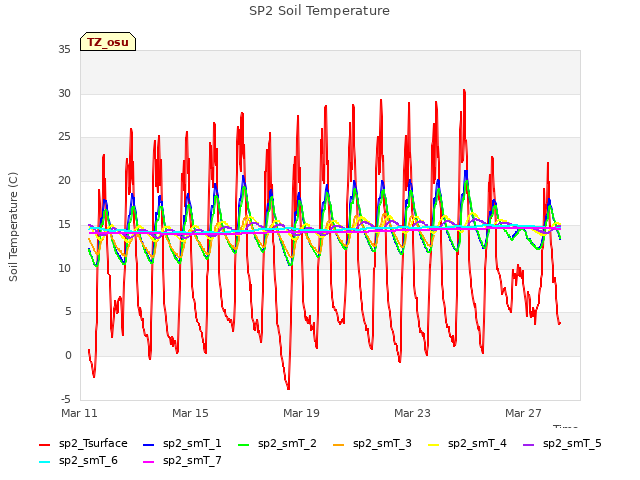

Explore the graph:SP2 Soil Temperature in a new window

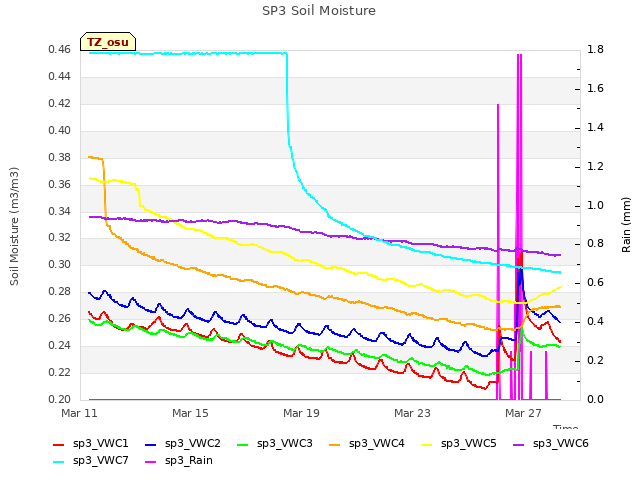

Explore the graph:SP3 Soil Moisture in a new window

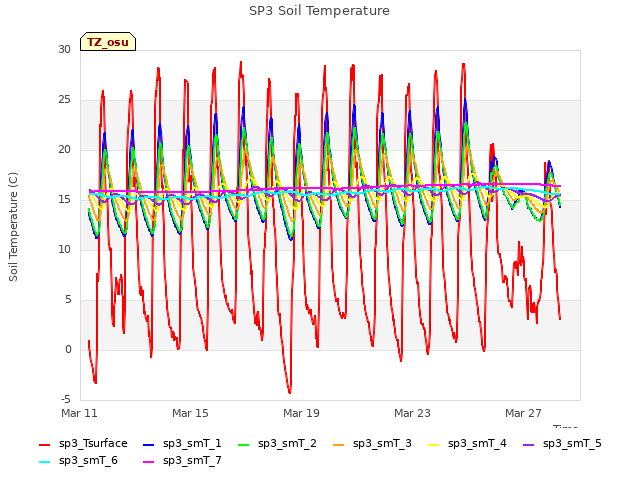

Explore the graph:SP3 Soil Temperature in a new window

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
