Sherman Island: 2013-01-03 11:20:00 (DOY 3)
Author: Cove Sturtevant
Others: Joe

Summary: Standard fieldwork. Downloaded data. Swapped out LGR 40 um filter. All good.

Sherman
2013-01-03

We arrived about 11:20 PST. It was a wee chilly, about 8 °C, clear with a mild breeze. The field was moist and cow trampled, with bare ground in some places and a very short green grass layer otherwise. Our cow friends were present and we shared holiday stories. We were challenged by a guy in a dump truck on the way in, but he seemed satisfied when we said we were from Berkeley.

Joe checked the tower and downloaded the data and autocam while I did spectral, well depth, and moisture point. There remains a steady stream of ants into the wooden box, but they don’t seem to be bothering anything.

LGR readings: 10:24, 22.54 °C, 115.05 Torr (adjusted to 146.8 Torr), 13.896 us, 10 Hz, 2.99 ppm
The 40 um filter was completely blocked so Joe swapped it out for a new one.

7500 readings:
CO2: 18.77 mmol m-3
H2O: 366 mmol m-3
diag: 247
sos = 339 m s-1

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

Explore the graph:Solar Radiation in a new window

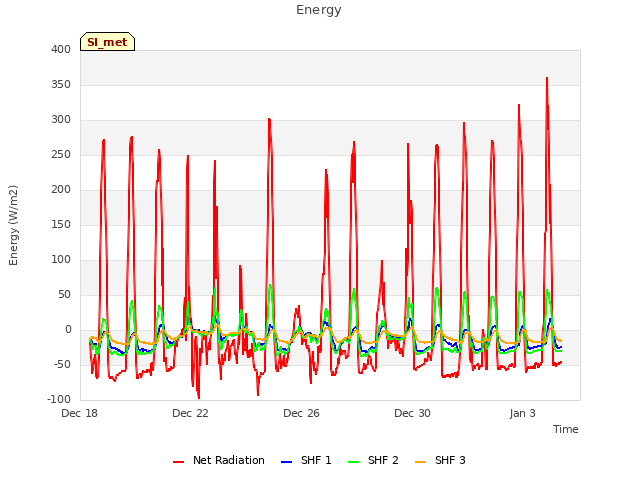

Explore the graph:Energy in a new window

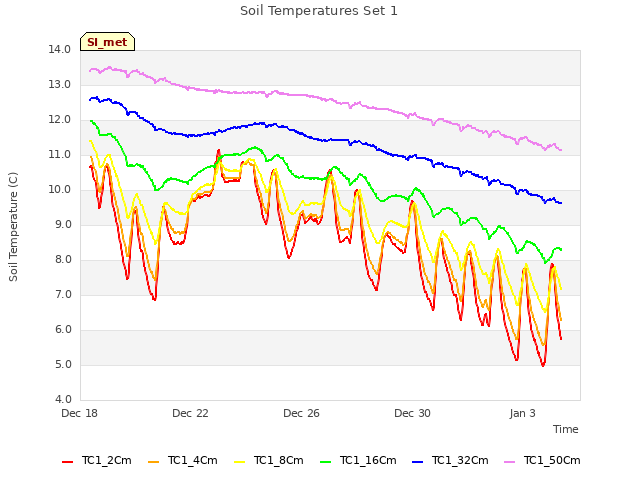

Explore the graph:Soil Temperatures Set 1 in a new window

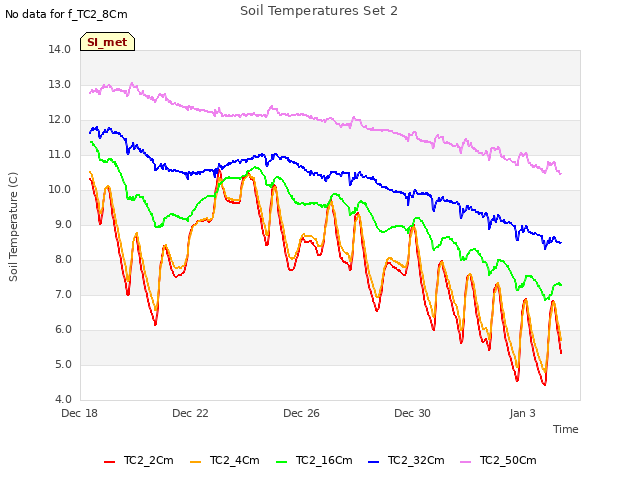

Explore the graph:Soil Temperatures Set 2 in a new window

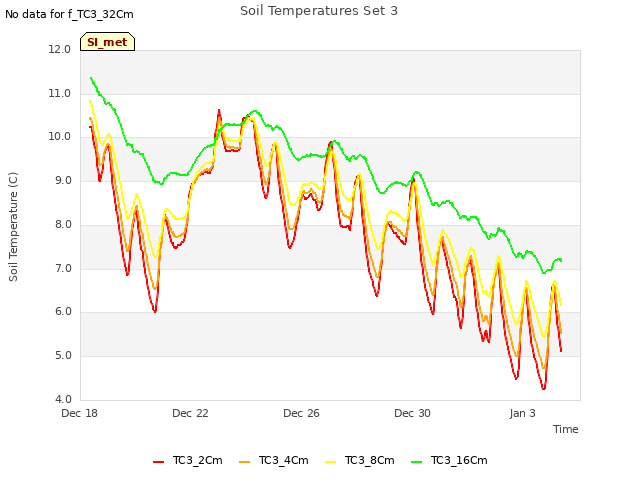

Explore the graph:Soil Temperatures Set 3 in a new window

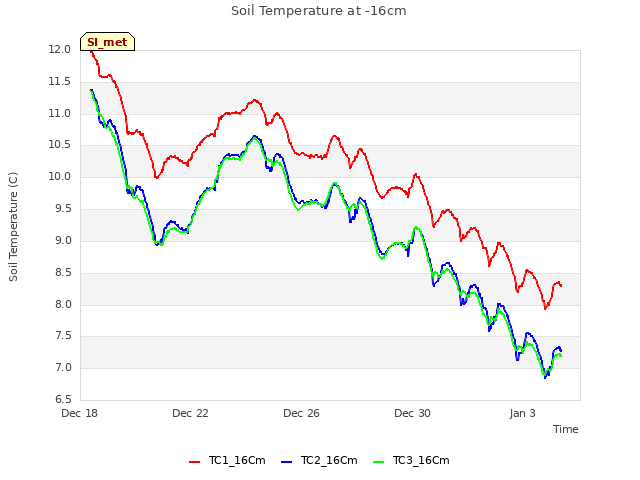

Explore the graph:Soil Temperature at -16cm in a new window

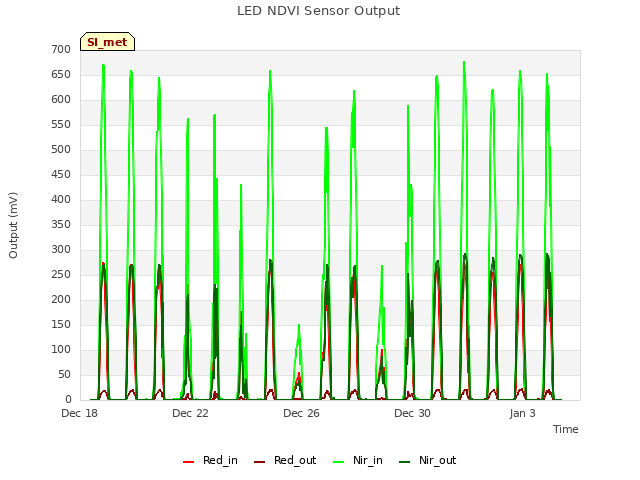

Explore the graph:LED NDVI Sensor Output in a new window

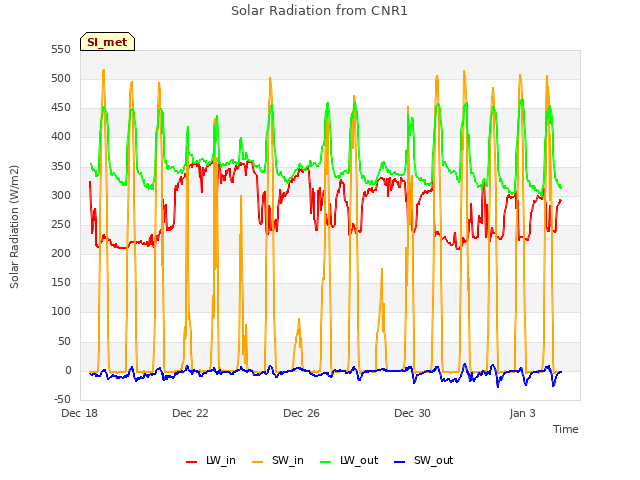

Explore the graph:Solar Radiation from CNR1 in a new window

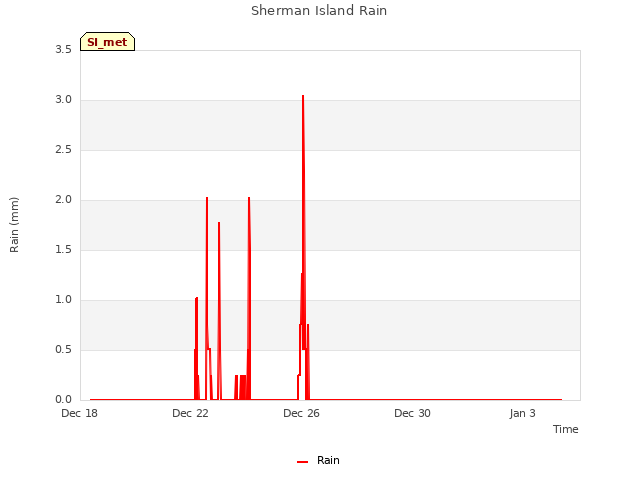

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

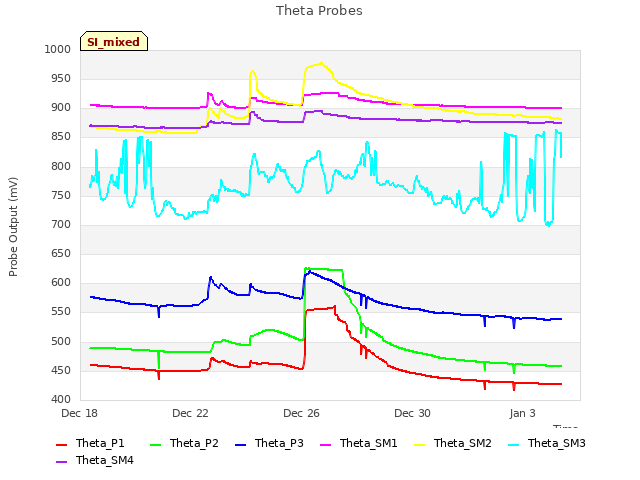

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

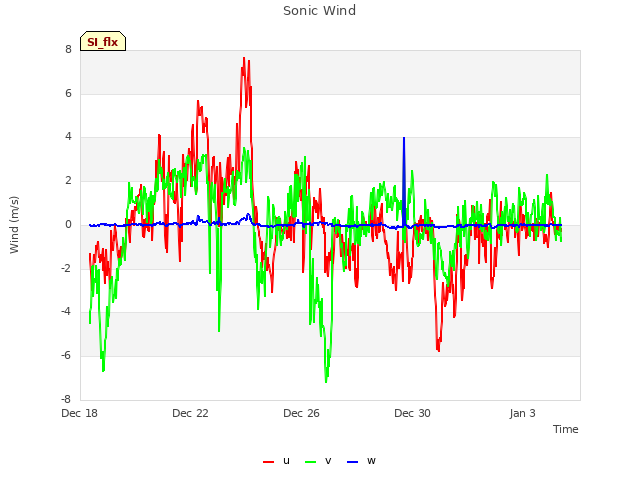

Explore the graph:Sonic Wind in a new window

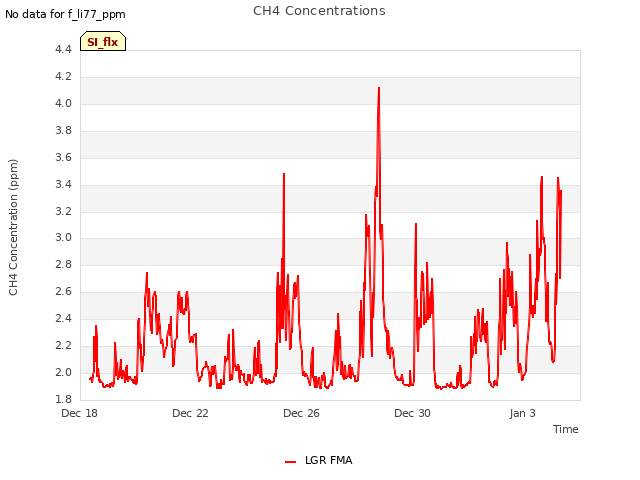

Explore the graph:CH4 Concentrations in a new window

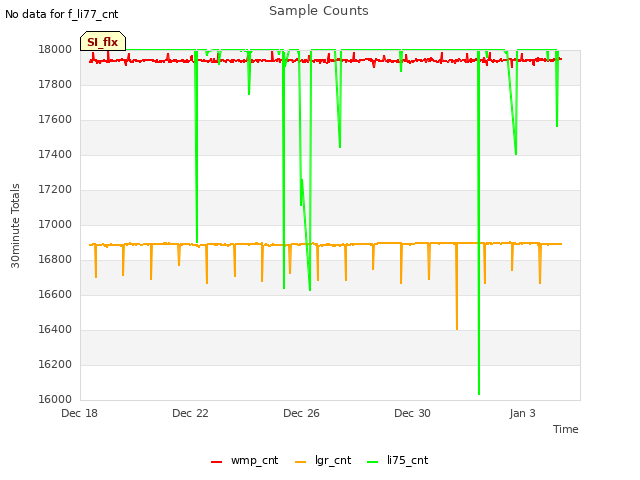

Explore the graph:Sample Counts in a new window

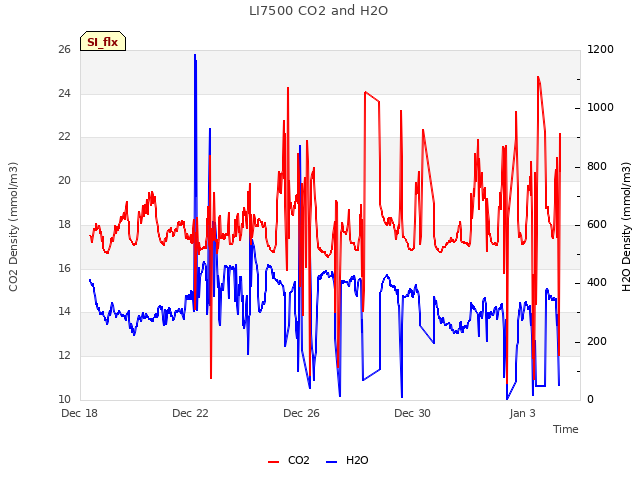

Explore the graph:LI7500 CO2 and H2O in a new window

3 SI_soilco2 graphs found

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

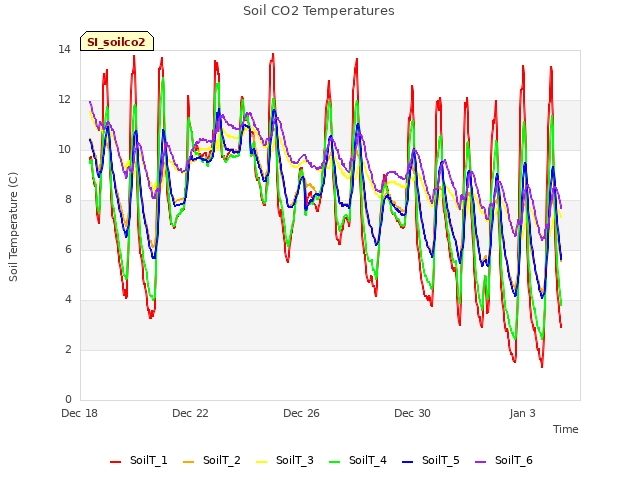

Explore the graph:Soil CO2 Temperatures in a new window

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
