Twitchell Rice: 2011-07-14 09:30:00 (DOY 195)
Author: Jaclyn Hatala
Others: Jose Luis Sanchez, Maribel Jaquez

Summary: Reinstalled well pressure transducer, reconnected atm pressure sensor, normal round of canopy measurements

Arrived at Twitchell around 9:30am. Was the most pleasant July day I've ever spent in the Delta, as temperatures were quite cool - around 15C when we arrived. Light winds from the west.

Instruments/Data: Reinstalled the well pressure transducer after Joe fixed the chewed-upon cable in the lab. Transducer is now 75cm below the top of the well. Reconnected the atmospheric pressure sensor in the datalogger, which Joe accidentally disconnected last week. Picked up the SD data card from inside the Twitchell box that was left there last week. Cleaned sensors of many spider webs.

Field measurements: We took 5 clip plots for LAI/biomass in the lab, took 5 canopy spectral reflectance measurements, and took LAI-2000 measurments along the transect. Tried to fly the kite to take aerial photographs, but wind was to intermittent to fly.

1 photos found

UC Davis in the field
UC Davis in the field

Graphs display:
6 sets found

12 TW_met graphs found

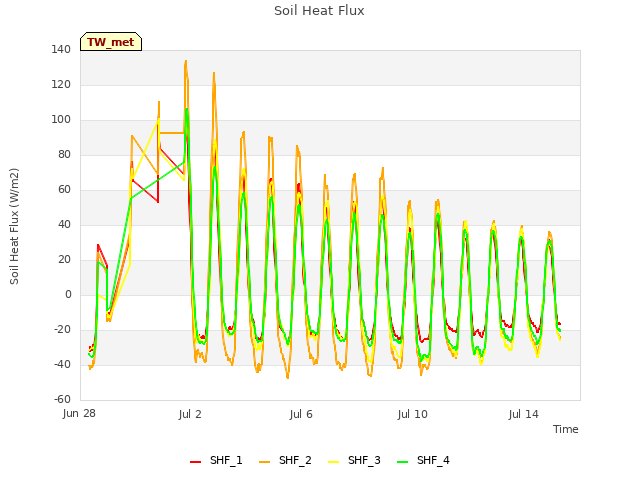

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Solar Radiation in a new window

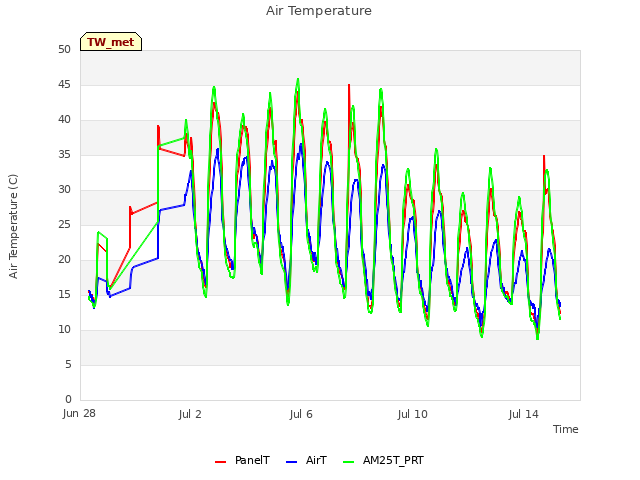

Explore the graph:Air Temperature in a new window

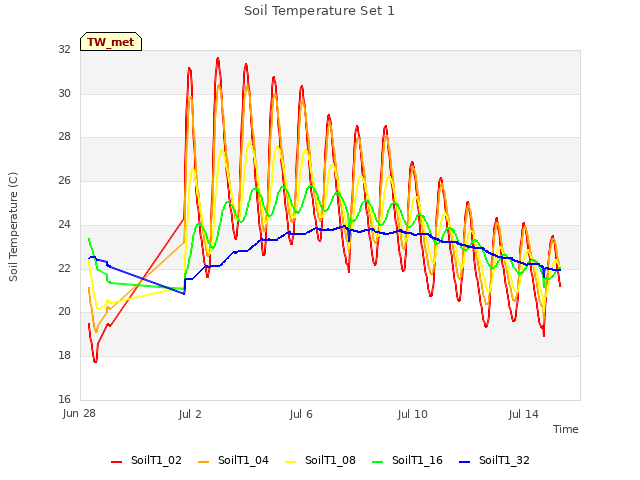

Explore the graph:Soil Temperature Set 1 in a new window

Explore the graph:Soil Temperature Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

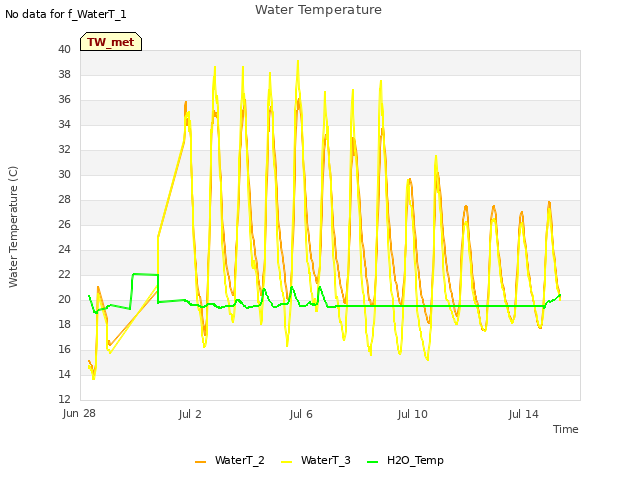

Explore the graph:Water Temperature in a new window

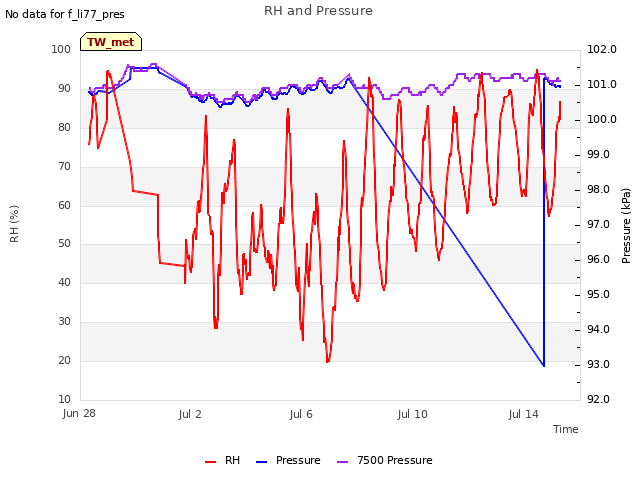

Explore the graph:RH and Pressure in a new window

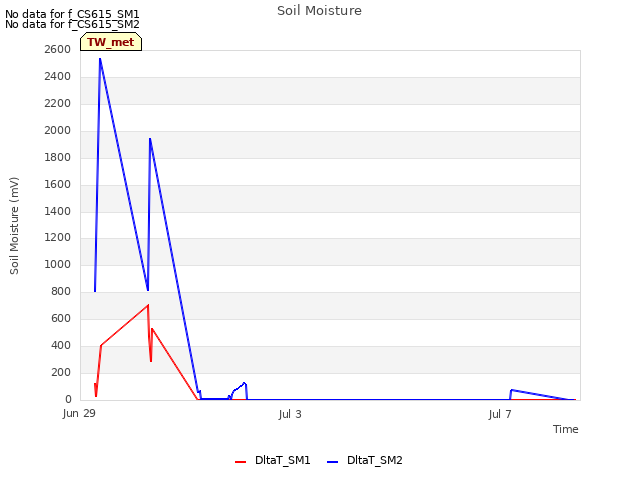

Explore the graph:Soil Moisture in a new window

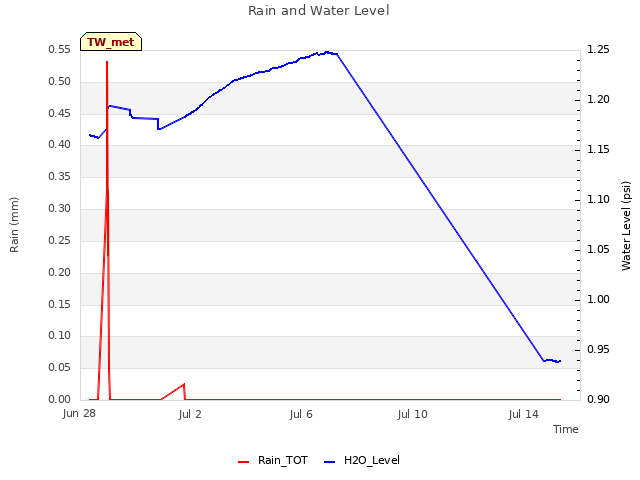

Explore the graph:Rain and Water Level in a new window

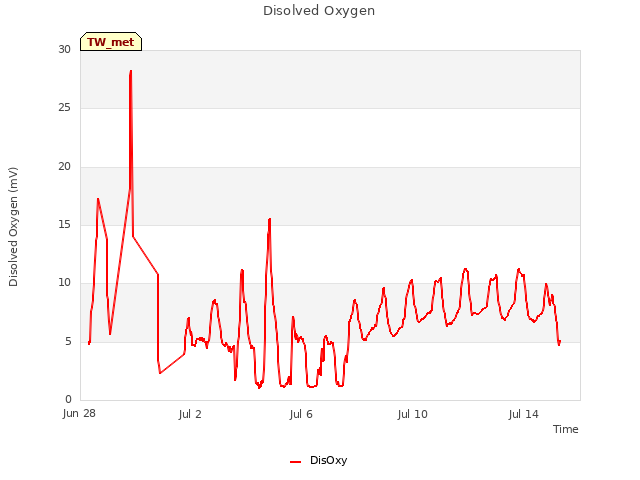

Explore the graph:Disolved Oxygen in a new window

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

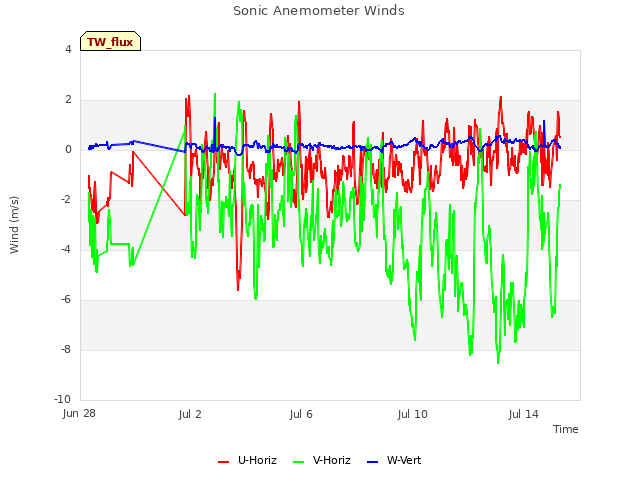

Explore the graph:Sonic Anemometer Winds in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

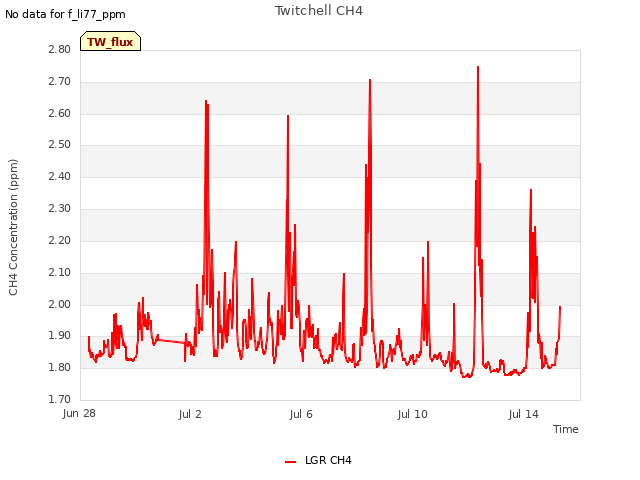

Explore the graph:Twitchell CH4 in a new window

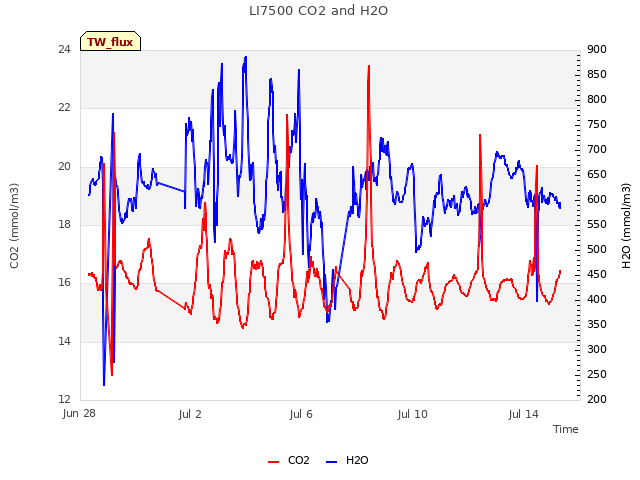

Explore the graph:LI7500 CO2 and H2O in a new window

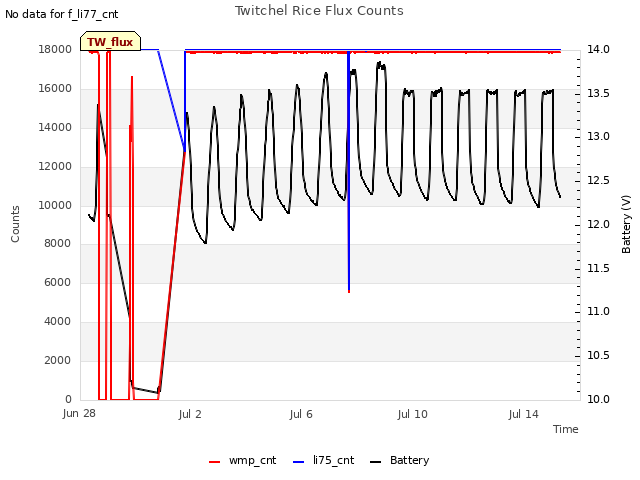

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

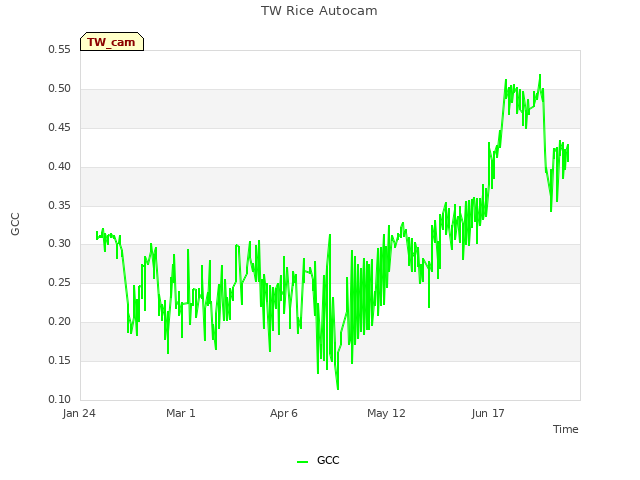

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
