Hill Slough: 2024-02-12 16:30:00 (DOY 43)
Author: Daphne Szutu
Others: Kyle

Summary: High tide, glass-like water surface, removed wildlife microphone, wiped EXO sensors

2024-02-12
Hill Slough

Kyle and I arrived at 16:30 PST. It was calm and mostly cloudy with piece-y, wave-like clouds (mackerel sky). It was near high tide and the staff gauge read 6.55ft at 16:50 PST. The bottom step leading up to the walkway was inundated so we had to jump up to the second step.The water was much closer than usual to the bottom of the walkway, so it felt like we were on a lakeside dock. We moved the upper boardwalk back up (it had been moved lower down for storm prep) and left it there since there don’t seem to be any crazy winds in the current forecast.

I downloaded met, cam, and USB GHG data. Kyle cleaned flux and rad sensors and refilled the wash reservoir, which had been about half full. I changed the eddy clock +45sec from 16:44:30 to 16:45:15 to match the laptop time and restarted logging.

I removed the Song Meter Micro (wildlife microphone). I will download its files back in the lab and we can put it back up at Gilbert Tract during the next site visit.

I measured porewater and surface water conductivity using the handheld YSI probe.

Sample, Temperature-compensated conductivity, Temperature
Porewater_flush, 7.72 mS, 14.9 degC
Porewater, 7.30 mS, 13.5 degC
Surface, 1.882 mS, 13.6 degC

The 7500 read: 426ppm CO2, 393mmol/m3 H2O, 18.2C, 102.0kPa, 99SS—99 after cleaning
The 7700 read: 2.2ppm CH4, 46RSSI – 90 after cleaning

At the channel, we pulled up the EXO to check it since the auto-wiper has been sent back to the factory. There was another pile of fish roe on the side of the sensors, and the optical sensors (fDOM, turbidity) had a brown film over them. I wiped off all of the sensors and rinsed the fish roe off. I also tested two mini-USB cables with the EXO DCP adapter. The black one worked to communicate between the EXO and the laptop, so I left it coiled up in the CR23X enclosure.

We left at 17:05 PST.

4 photos found

Some sort of plastic decking on the road across from our tower, running to the east. Maybe they
Some sort of plastic decking on the road across from our tower, running to the east. Maybe they're doing sort of construction out there?

Eddy sensors
Eddy sensors

Rad sensors over still water
Rad sensors over still water

Gradient dawn light
Gradient dawn light

Graphs display:
4 sets found

20 HS_met graphs found

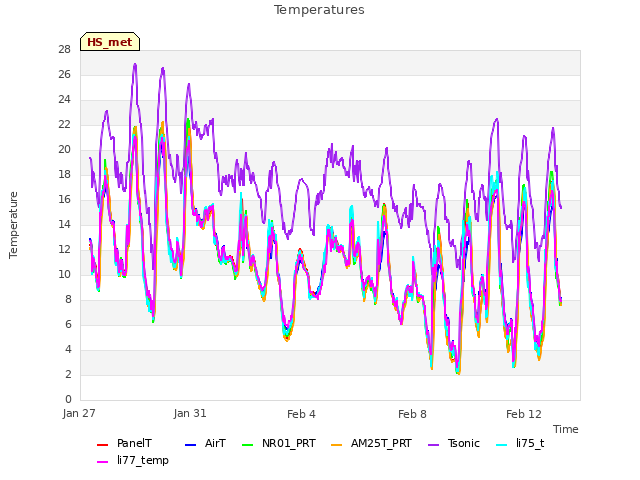

Explore the graph:Temperatures in a new window

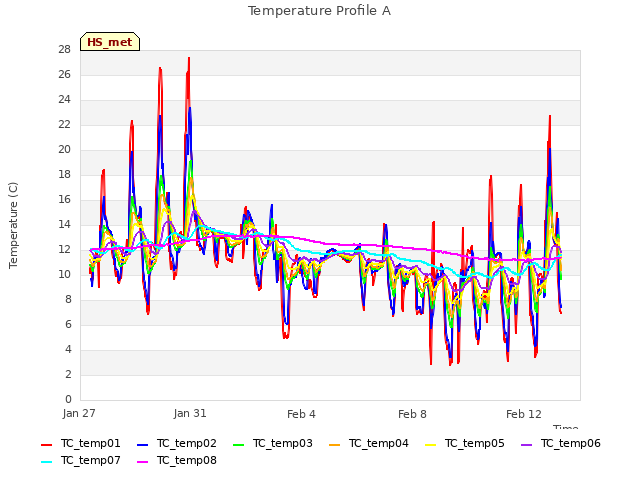

Explore the graph:Temperature Profile A in a new window

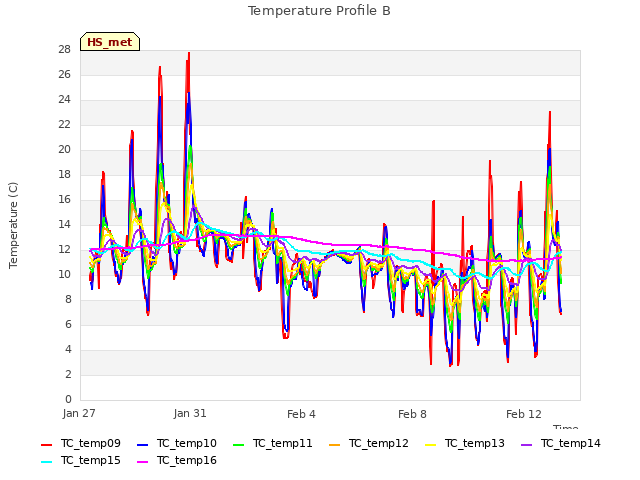

Explore the graph:Temperature Profile B in a new window

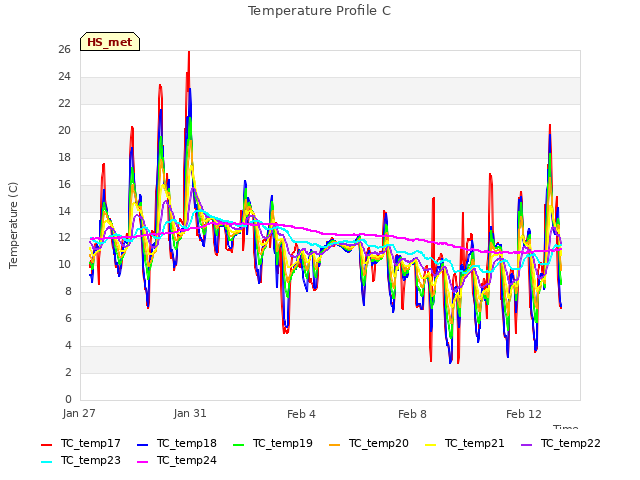

Explore the graph:Temperature Profile C in a new window

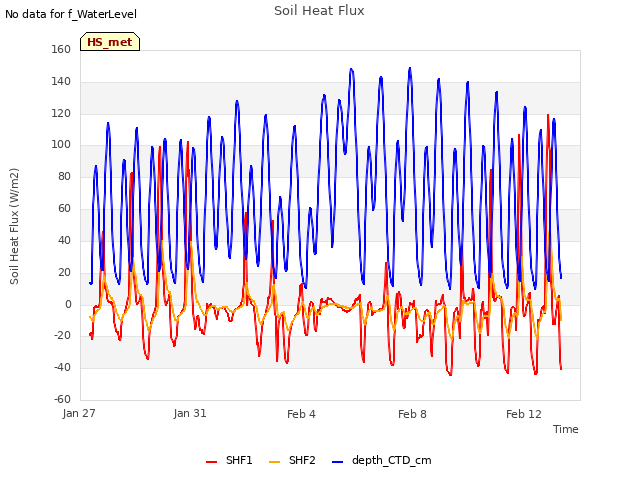

Explore the graph:Soil Heat Flux in a new window

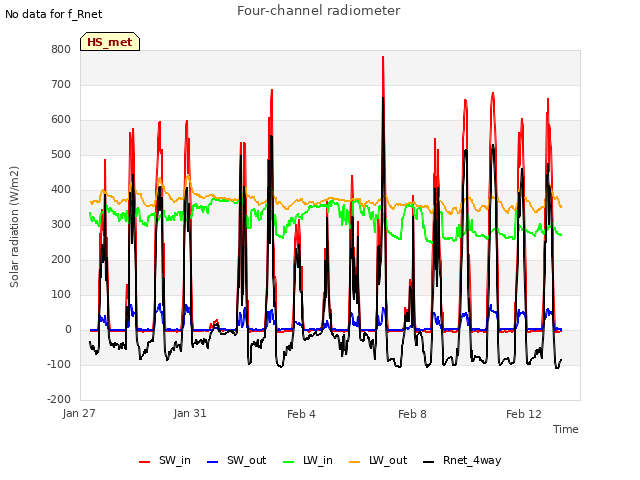

Explore the graph:Four-channel radiometer in a new window

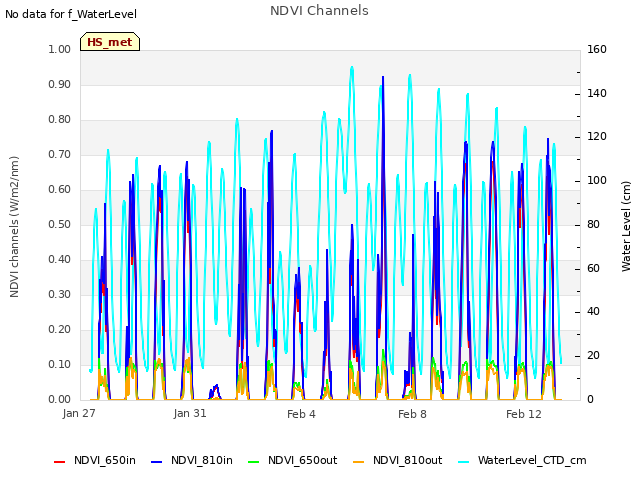

Explore the graph:NDVI Channels in a new window

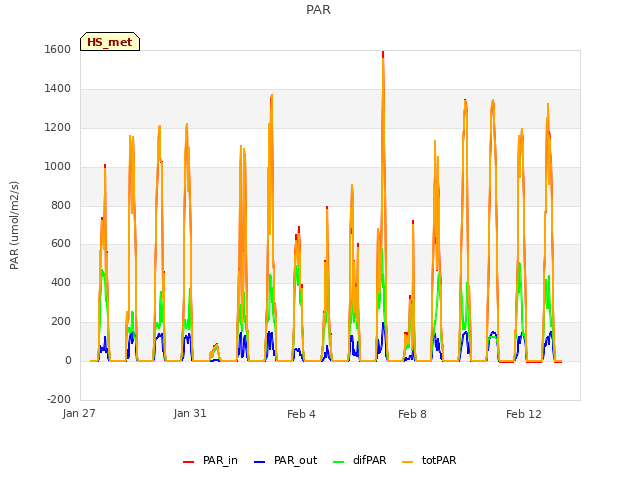

Explore the graph:PAR in a new window

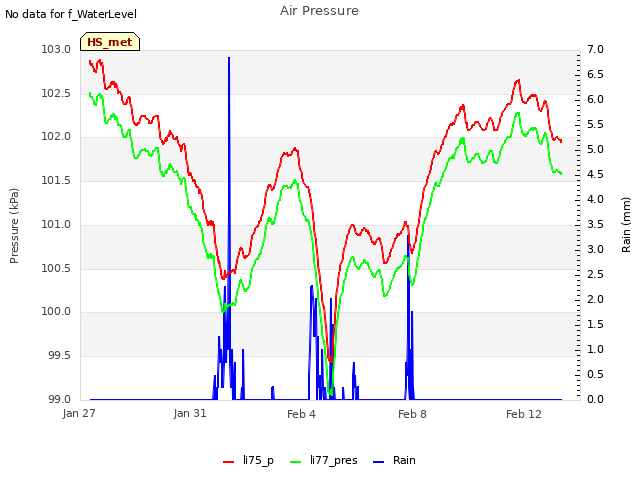

Explore the graph:Air Pressure in a new window

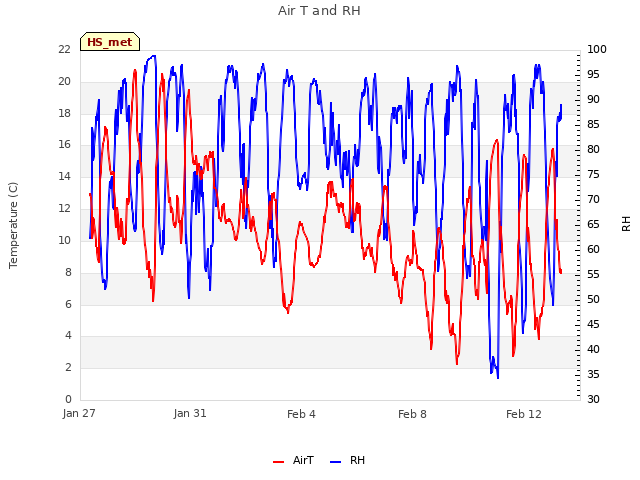

Explore the graph:Air T and RH in a new window

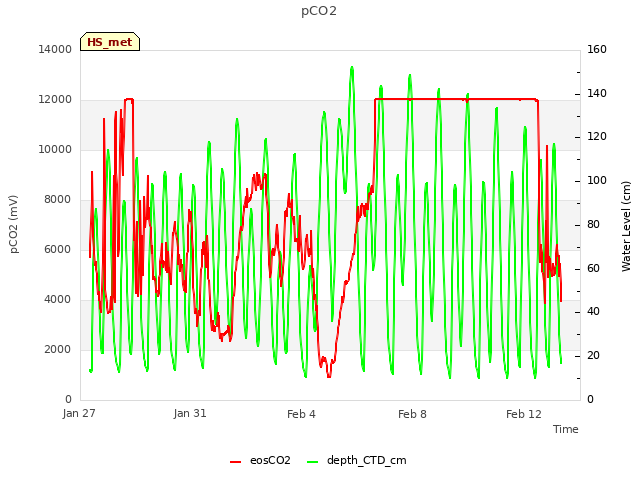

Explore the graph:pCO2 in a new window

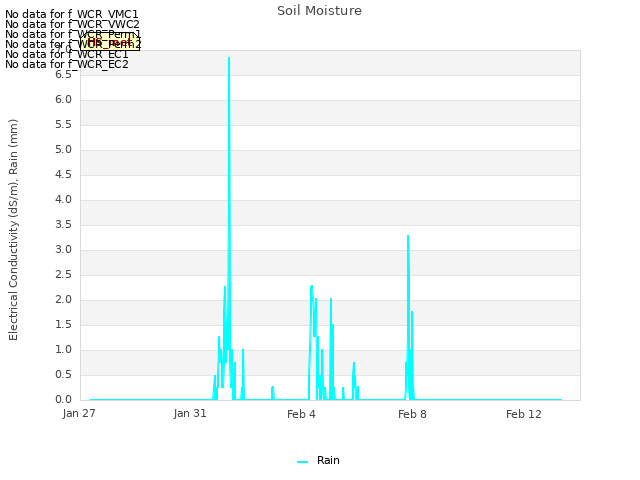

Explore the graph:Soil Moisture in a new window

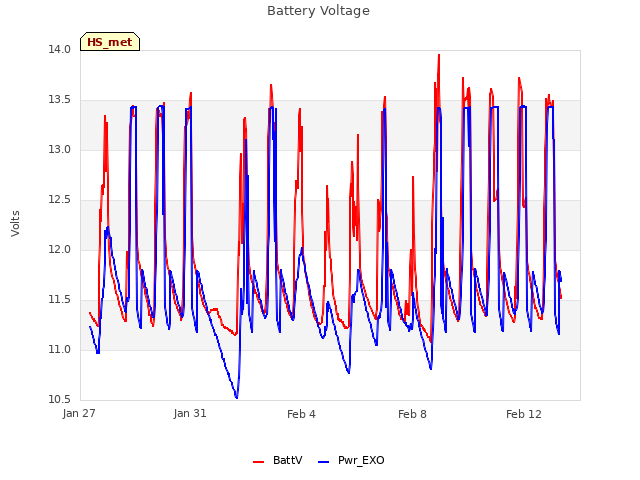

Explore the graph:Battery Voltage in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

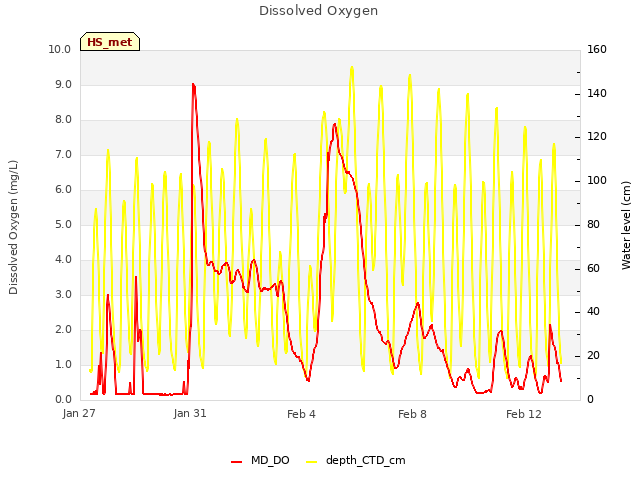

Explore the graph:Dissolved Oxygen in a new window

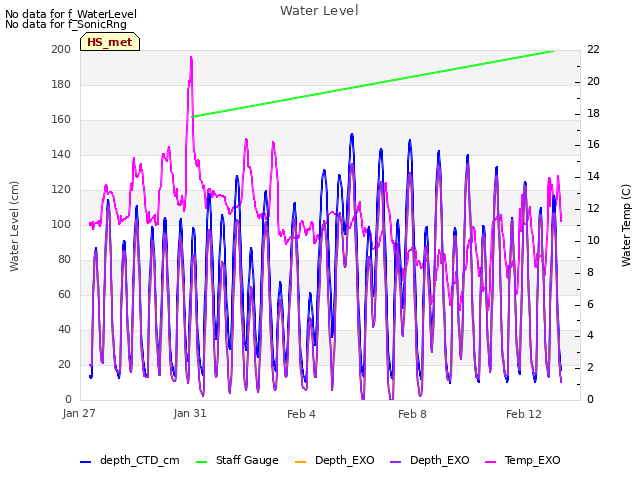

Explore the graph:Water Level in a new window

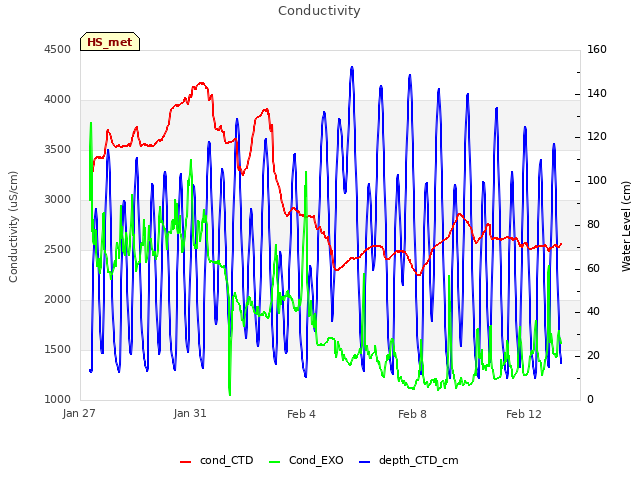

Explore the graph:Conductivity in a new window

Explore the graph:EXO pH + ORP in a new window

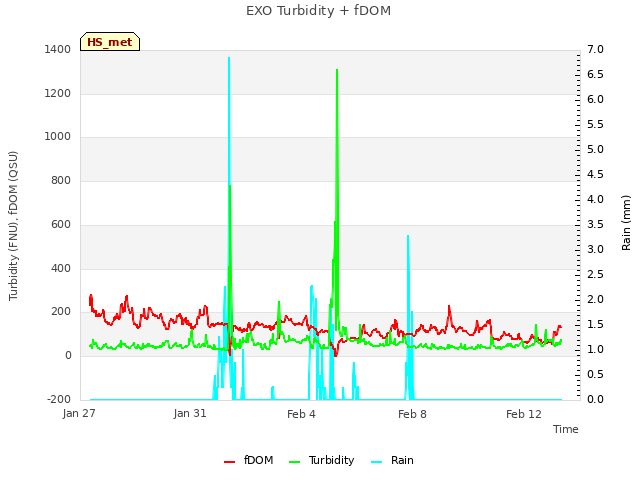

Explore the graph:EXO Turbidity + fDOM in a new window

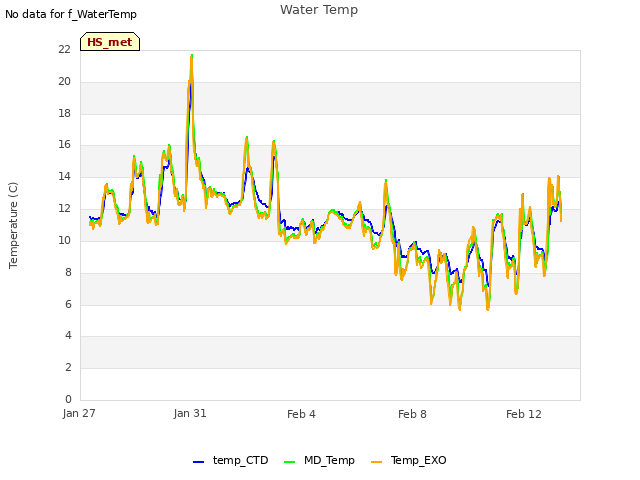

Explore the graph:Water Temp in a new window

4 HS_flux graphs found

Explore the graph:CO2 and H2O in a new window

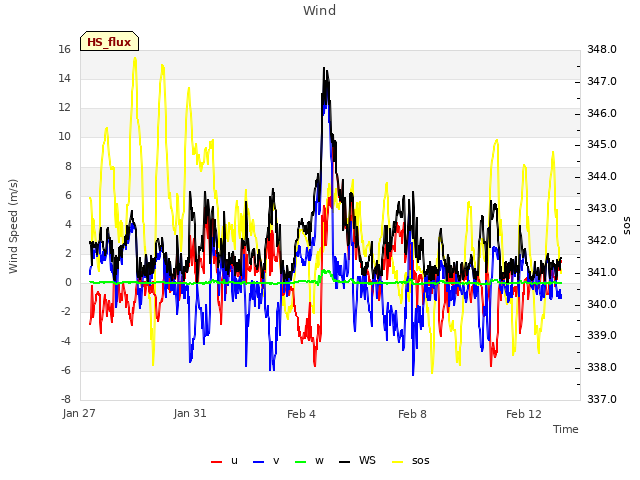

Explore the graph:Wind in a new window

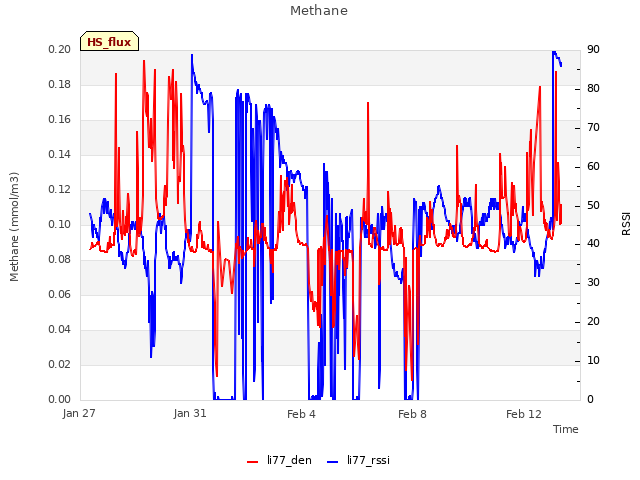

Explore the graph:Methane in a new window

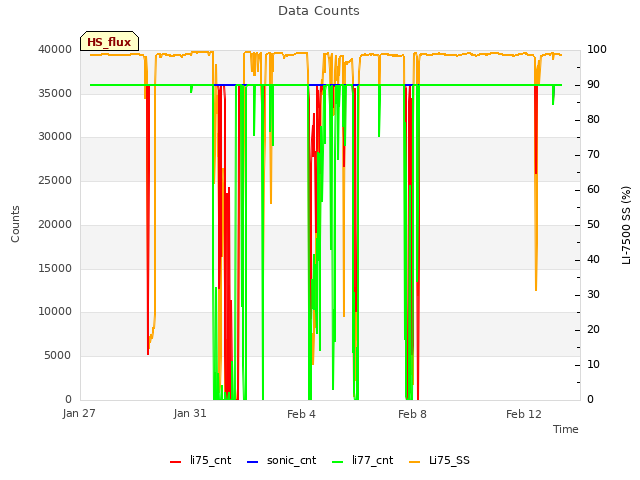

Explore the graph:Data Counts in a new window

1 HS_cam graphs found

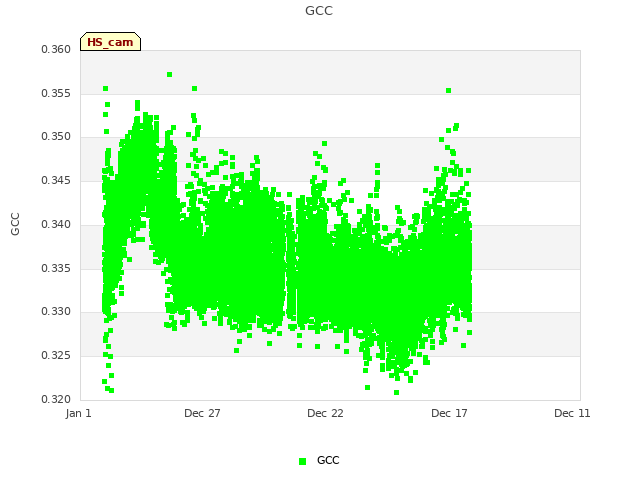

Explore the graph:GCC in a new window

Can't check HS_Processed
2 HS_Processed graphs found

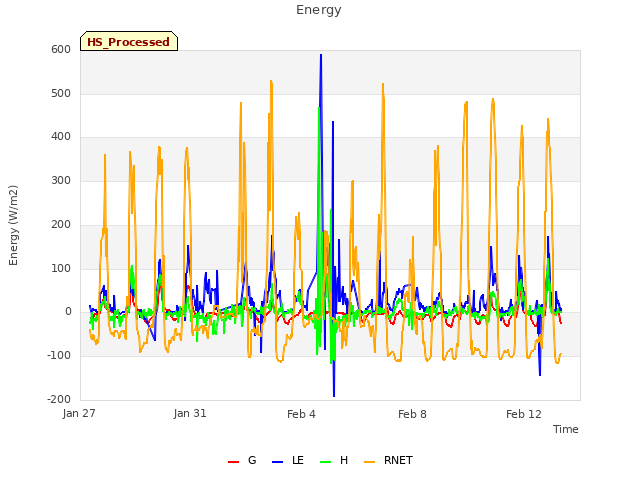

Explore the graph:Energy in a new window

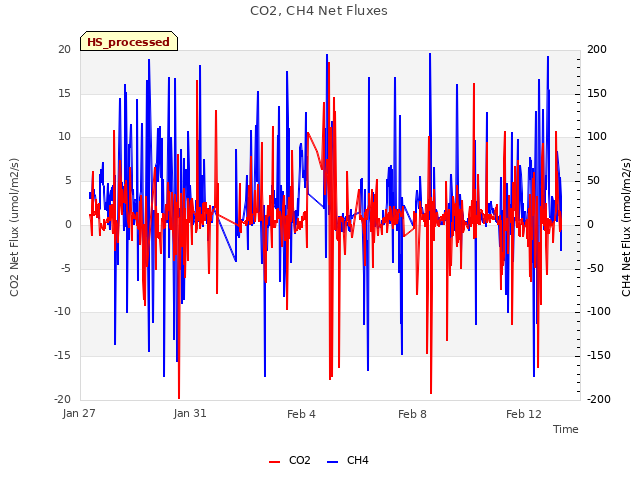

Explore the graph:CO2, CH4 Net Fluxes in a new window
