Gilbert Tract: 2023-06-15 16:05:00 (DOY 166)
Author: Daphne Szutu
Others: Robert

Summary: Regular data collection/cleaning, too windy for 7700 calibration

2023-06-15
Gilbert Tract

Robert and I arrived at 16:05 PDT. It was windy and sunny; it was warm in the sun but the gusts are cool. We were planning to do the 7700 calibration today but I decided it was too windy, so we just did the regular data collection. I'll keep an eye on the wind forecast for the next few weeks for a less windy day. There were some dried-out weeds by the side of the road. The wetland looks very green. The staff gauge read 87cm at 15:10 PST.

There were piles of dead ants and some live ants in the met box. I left them some mothballs.

I downloaded met, cam, USB GHG, and miniDOT data. I swapped the miniDOT desiccant. Robert reported that the miniDOT was closed very tightly when he tried to open it. Robert also cleaned flux and rad sensors. I’m not sure if he topped off the wash reservoir.

The 7500 read: 397ppm CO2, 770mmol/m3 H2O, 24.5C, 100.7kPa, 99SS --> 103 after cleaning
The 7700 read: 2.05ppm CH4, 36RSSI –> 85 after cleaning

We went to the channel to download Flo’s data around 16:25 PDT. The water level was high but it was hard to tell which way the water in the channel was flowing. There are tall cattails on the bank. I reset Flo’s clock, download its data, and restarted data collection. The pitch and roll were both within +/- 5 degrees.

We left around 16:40 PDT.

0 photos found

Graphs display:
8 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 GT_met graphs found

Explore the graph:Temperatures in a new window

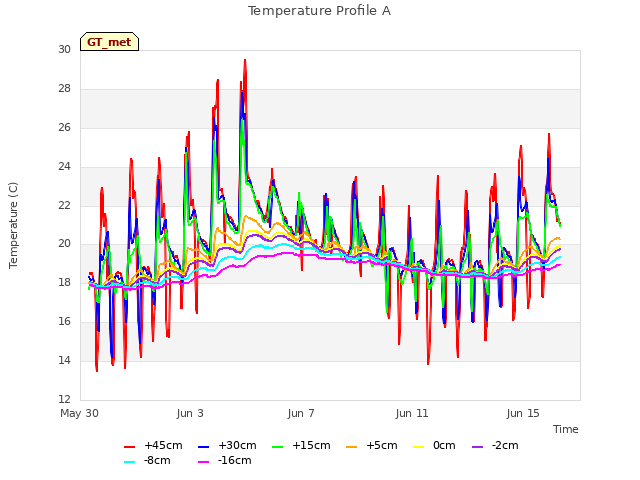

Explore the graph:Temperature Profile A in a new window

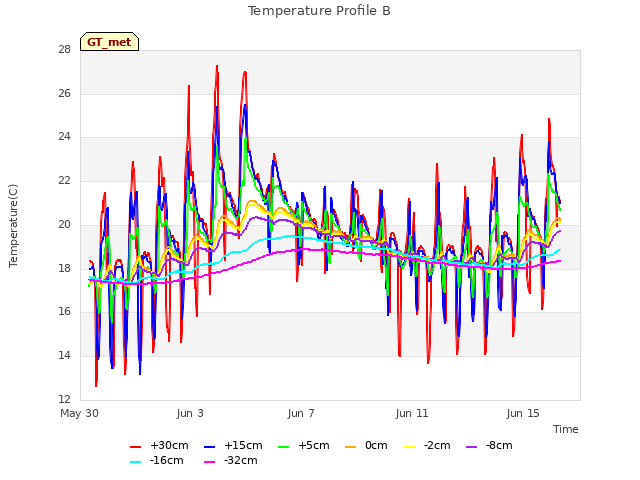

Explore the graph:Temperature Profile B in a new window

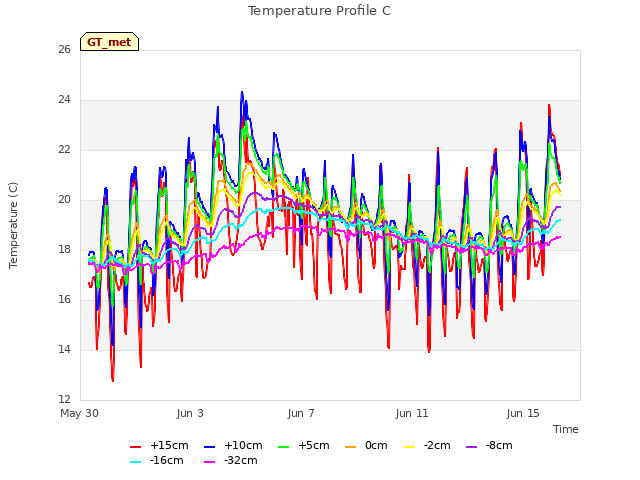

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

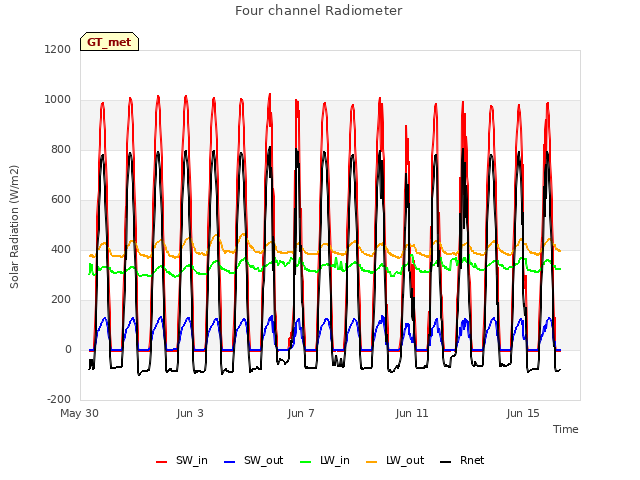

Explore the graph:Four channel Radiometer in a new window

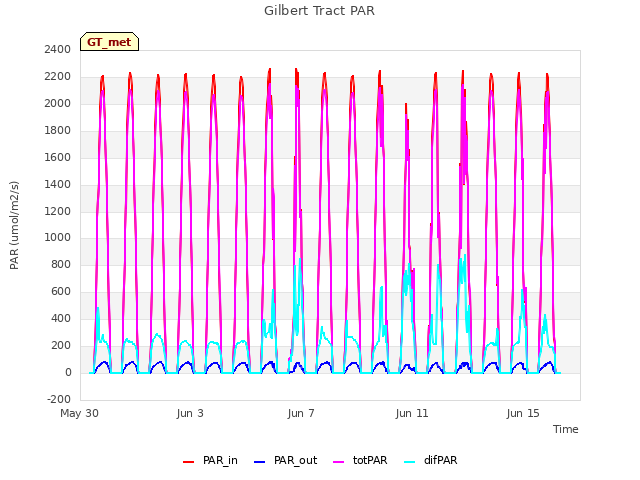

Explore the graph:Gilbert Tract PAR in a new window

Explore the graph:PRI Channels in a new window

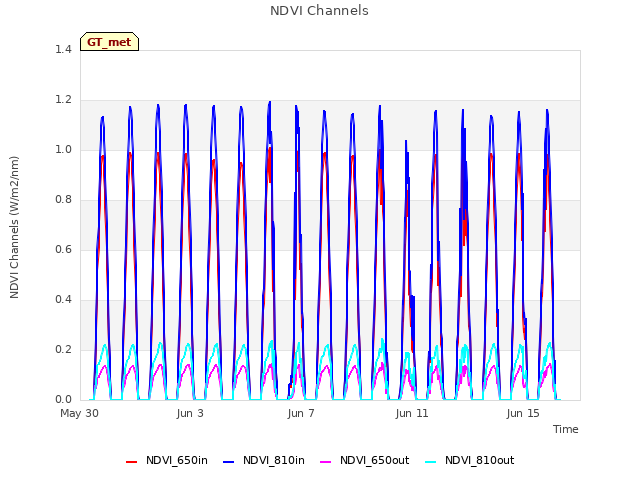

Explore the graph:NDVI Channels in a new window

Explore the graph:Water level and Rain in a new window

Explore the graph:Dissolved CO2 in a new window

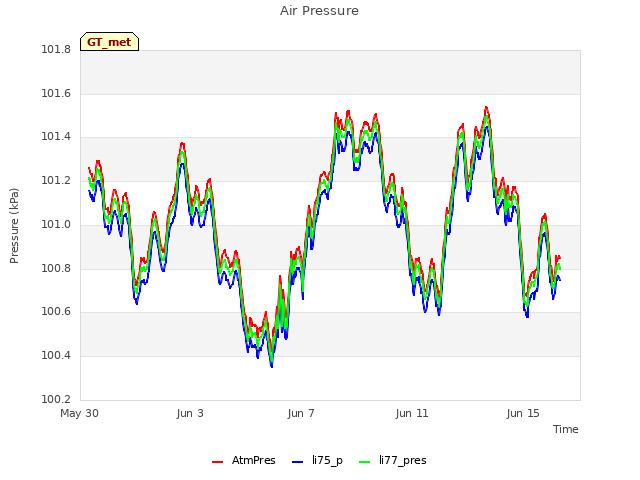

Explore the graph:Air Pressure in a new window

Explore the graph:Battery Voltage and RH in a new window

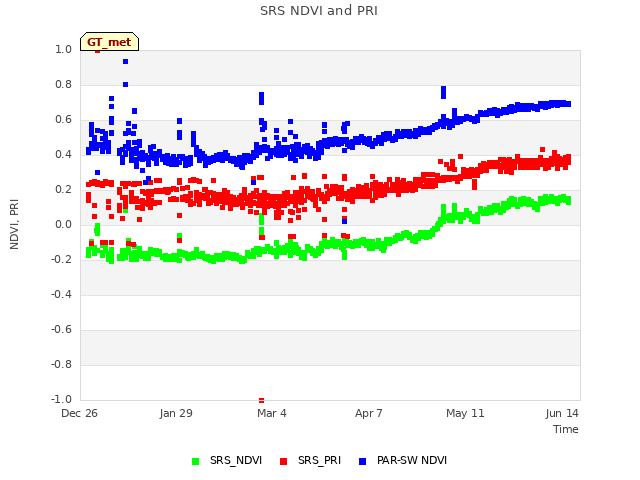

Explore the graph:SRS NDVI and PRI in a new window

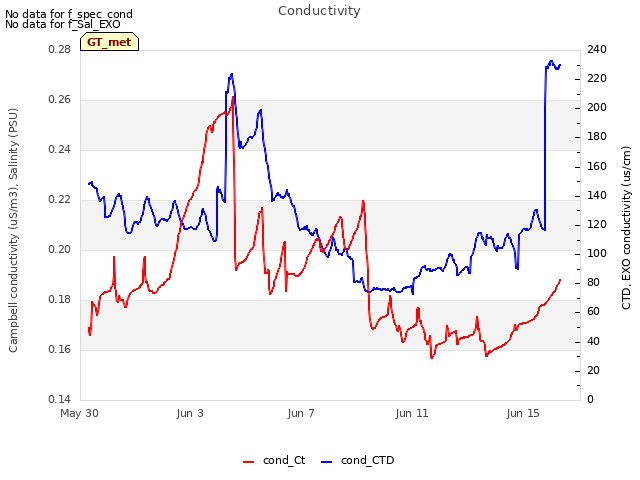

Explore the graph:Conductivity in a new window

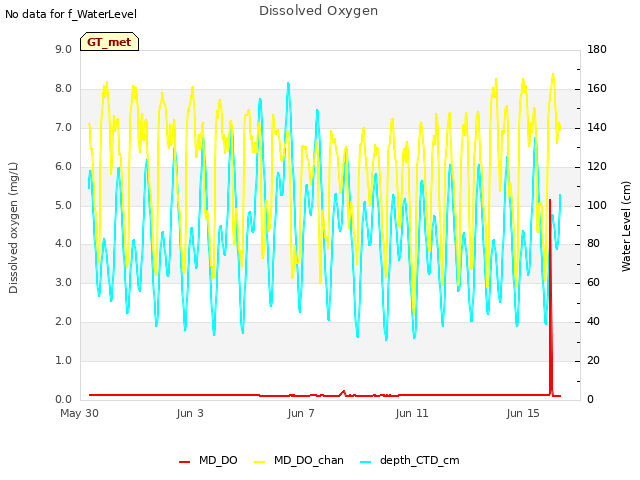

Explore the graph:Dissolved Oxygen in a new window

4 GT_flux graphs found

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

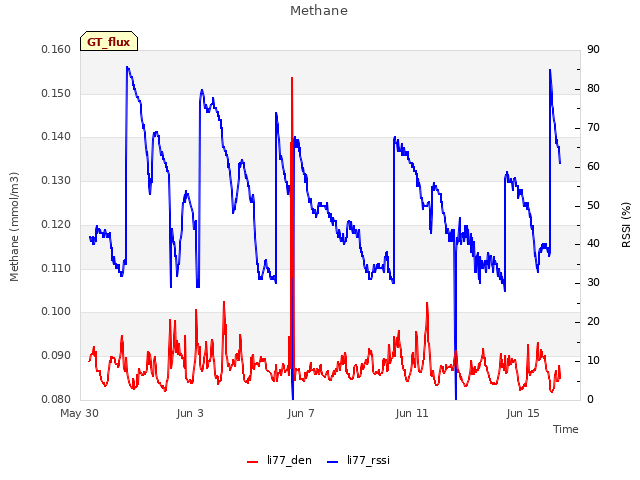

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

3 GT_adcp graphs found

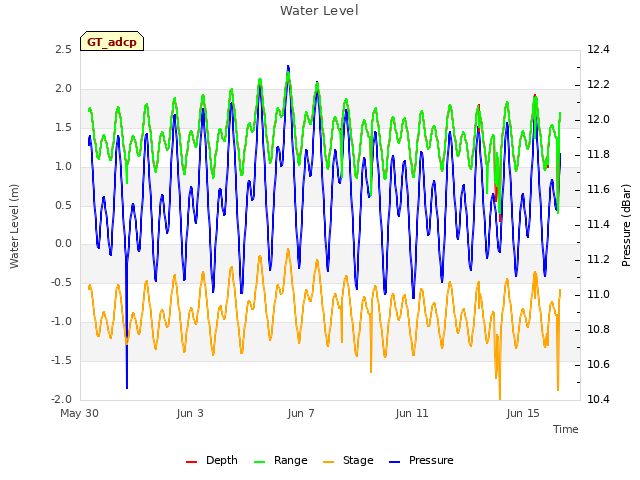

Explore the graph:Water Level in a new window

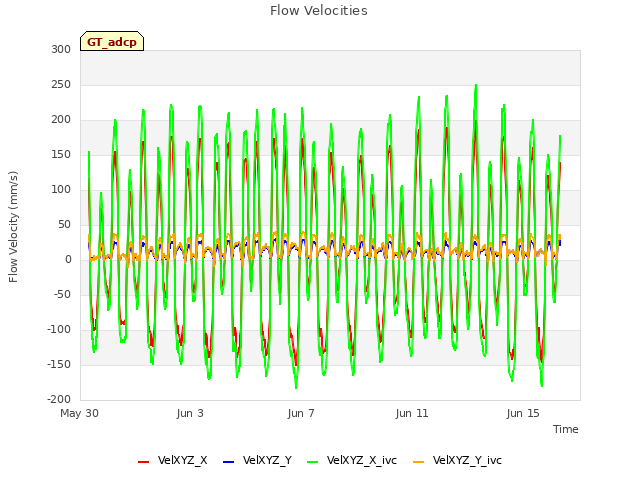

Explore the graph:Flow Velocities in a new window

Explore the graph:Flow Rate in a new window

1 GT_cam graphs found

Explore the graph:GCC in a new window

2 GT_usgs graphs found

Explore the graph:Jersey Island EC, Turbidity in a new window

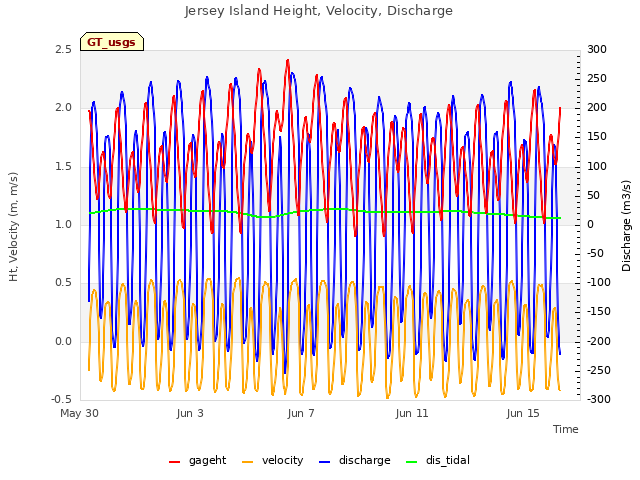

Explore the graph:Jersey Island Height, Velocity, Discharge in a new window

No data found for GT_chanexo.
