Field Notes

<--2022-09-28 14:15:00 | 2022-11-03 15:30:00-->
Other sites visited today: Gilbert Tract | Mayberry | West Pond
Phenocam link: Searching...

East End: 2022-10-19 13:54:00 (DOY 292)
Author: Daphne Szutu
Others: Robert, Kyle

Summary: Regular data collection/cleaning, low water level, sleepy wasps, left a water jug behind, met Jaime again

2022-10-19
East End

Robert, Kyle D., and I arrived at 13:54 PDT. It was warm and still with scattered thin clouds. We saw some small groups of sheep here and there on the interior gravel road, although we didn’t drive through any closed sheep fences. Some more wasps here buzzing about, but they mostly ignored us. There was no water at the tower and the water sensors were all dry.

The tules by the road still look green and good. From the top of the tower, the footprint is mostly cattails, which were about 1/2 yellow. I couldn't see many tules except by the solar panels. Those seemed to be about 1/2 brown as well. It was hard to say because the color of the tules is much darker to begin with.

Robert cleaned the flux and rad sensors. The wash reservoir was about 3/4 full; Robert refilled it and we left the reservoir lid open since there were many wasps inside. I think we left the water jug here because we were missing a jug when we got back to the lab.

I downloaded met, cam, and USB GHG data. I downloaded the miniDOT data and changed its desiccant. I checked the conductivity sensor as part of its routine check every 3 months. I pushed a little mud and a roly poly out of the orifice.

Jaime stopped by in his truck to introduce himself. I confirmed I have his current mobile number.

The 7500 read: 415ppm CO2, 500mmol/m3 H2O, 30.7C, 101.5kPa, 99SS -- 102 after cleaning
The 7700 read: 2.09ppm CH4, 42RSSI – 80 after cleaning

We left at 14:20 PDT.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

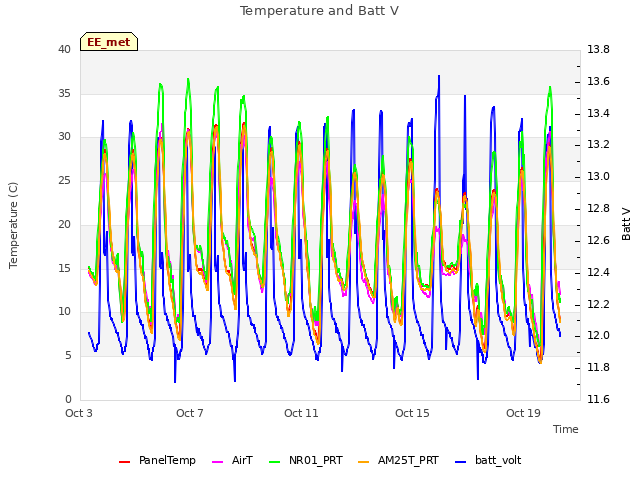

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

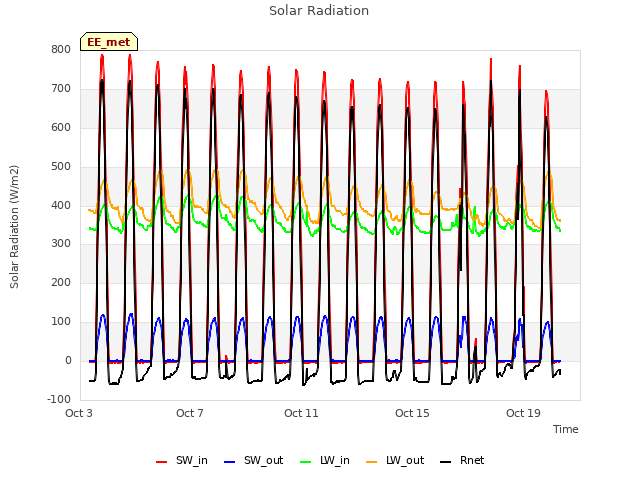

Explore the graph:Solar Radiation in a new window

Explore the graph:PAR in a new window

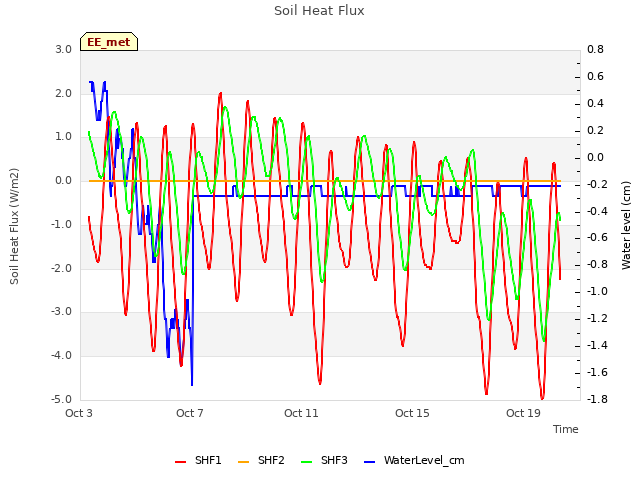

Explore the graph:Soil Heat Flux in a new window

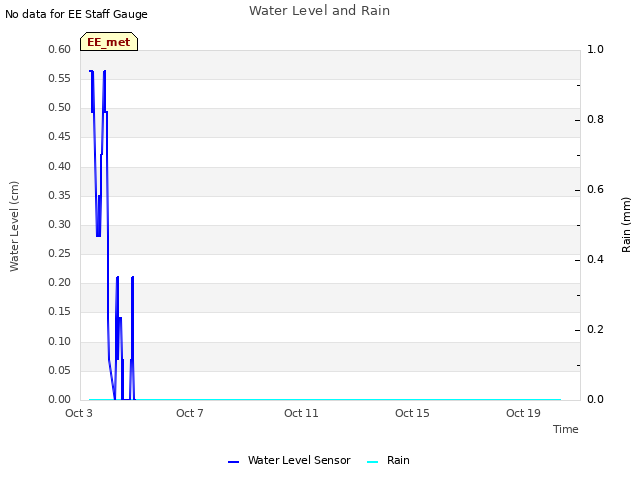

Explore the graph:Water Level and Rain in a new window

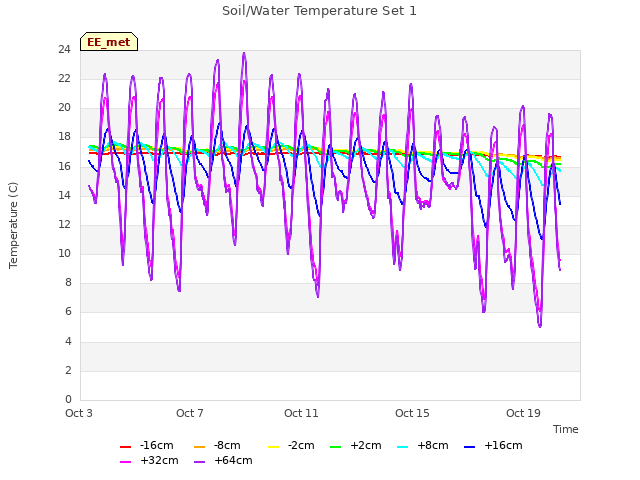

Explore the graph:Soil/Water Temperature Set 1 in a new window

Explore the graph:Soil/Water Temperature Set 2 in a new window

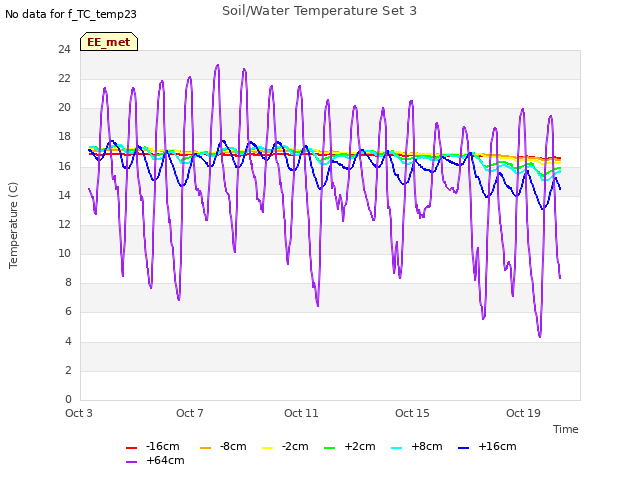

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

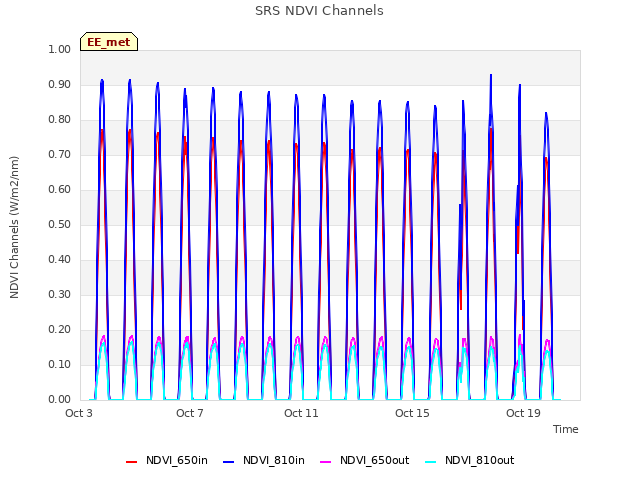

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

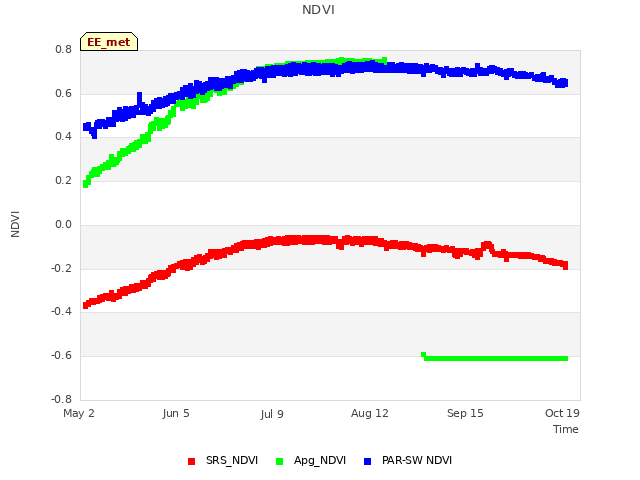

Explore the graph:NDVI in a new window

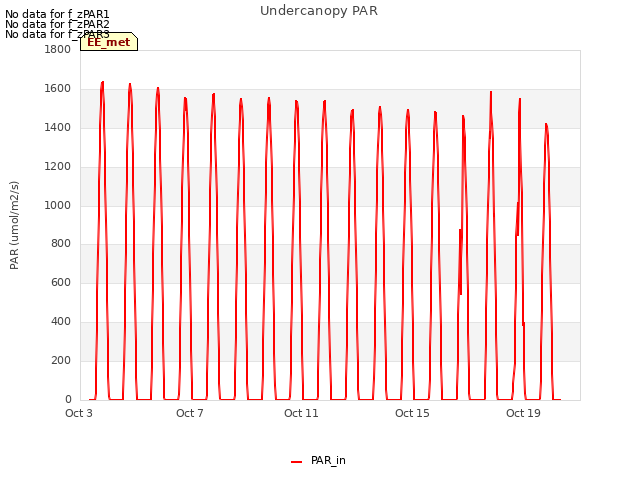

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

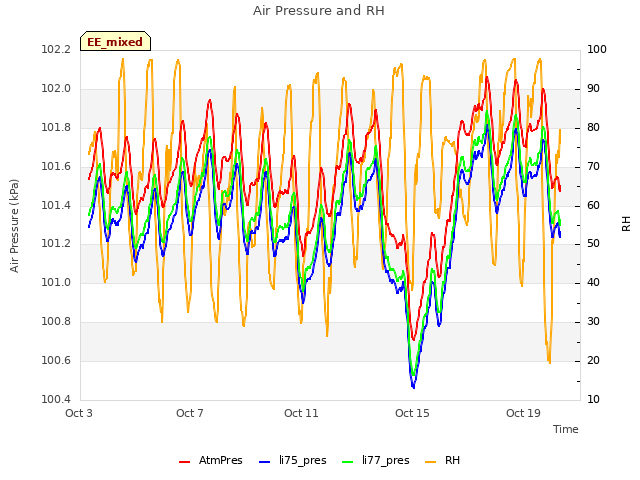

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

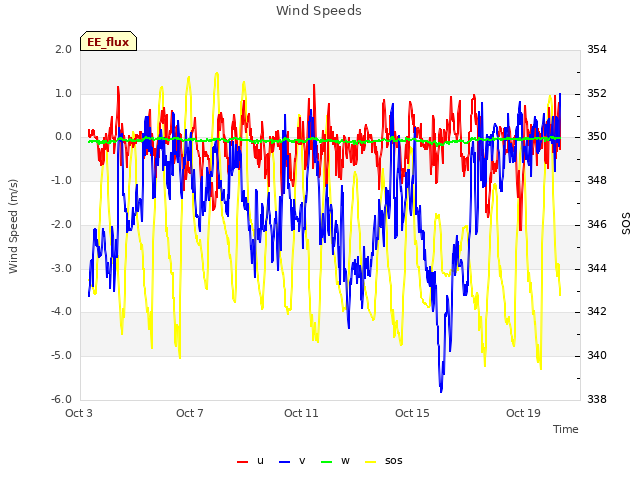

Explore the graph:Wind Speeds in a new window

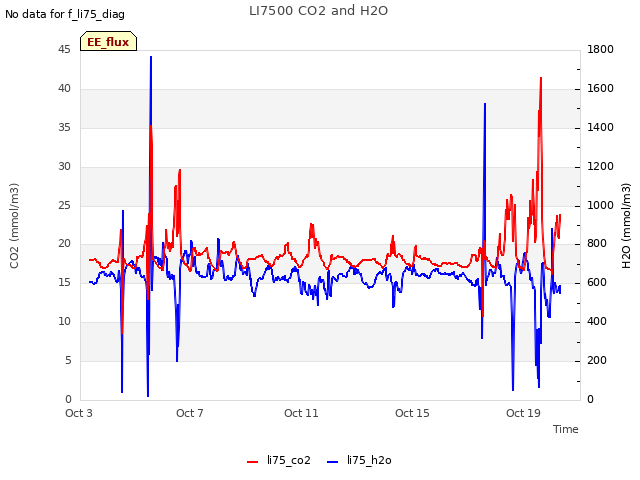

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

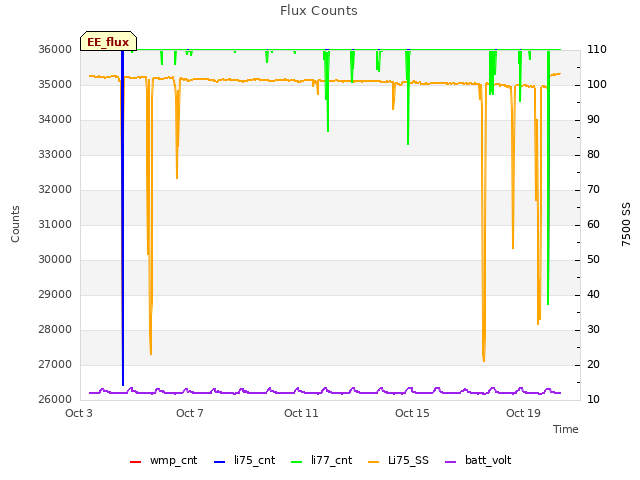

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

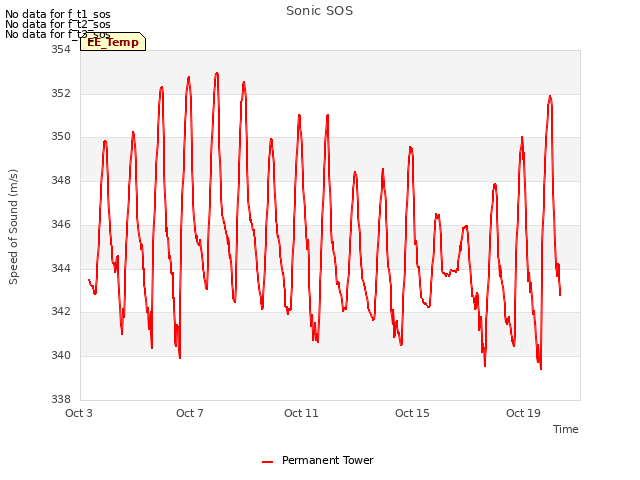

Explore the graph:Sonic SOS in a new window

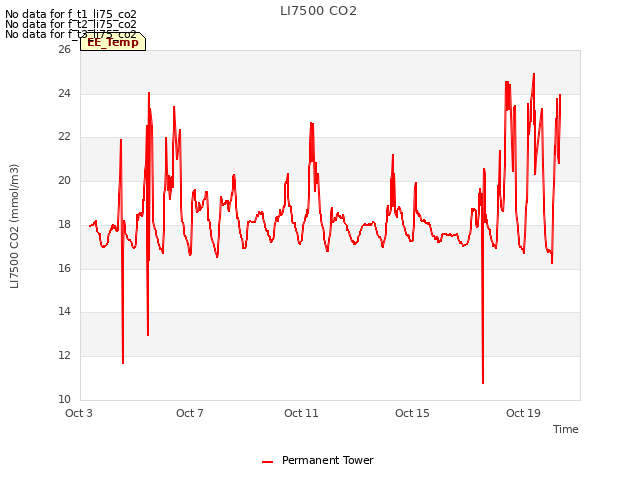

Explore the graph:LI7500 CO2 in a new window

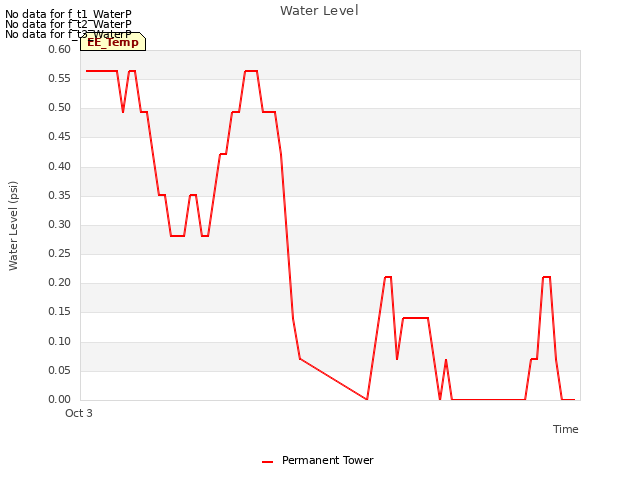

Explore the graph:Water Level in a new window

Explore the graph:LI-7700 CH4 in a new window

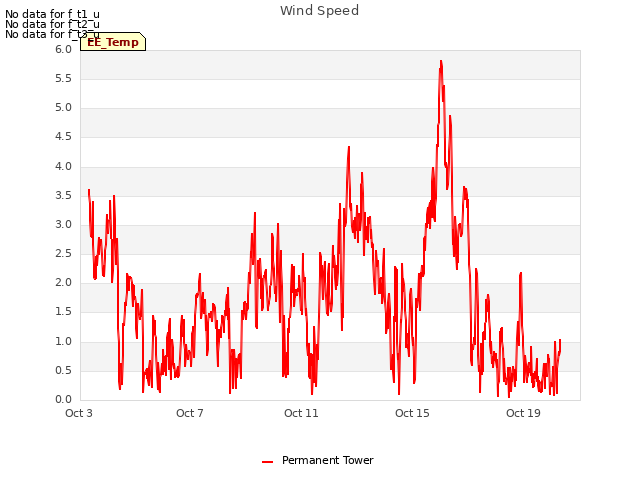

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

Explore the graph:CO2 Fluxes in a new window
