Field Notes

<--2022-09-15 13:55:00 | 2022-10-19 13:54:00-->
Other sites visited today: Gilbert Tract | Mayberry | West Pond

East End: 2022-09-28 14:15:00 (DOY 271)
Author: Daphne Szutu
Others: Robert

Summary: Regular data collection/cleaning, wetland starting to senesce, cleaned precip bucket

2022-09-28
East End

Robert and I arrived at 14:15 PDT along with Patrick, our guest of the day. Patrick is an MBA student who is interested in carbon sequestration start-ups after graduation. It was a beautiful fall day, sunny and warm. There was a breeze if you were not surrounded by wetland plants. There were some wasps buzzing around but they weren't aggressive about it.

Approaching the tower along the gravel road, we noticed the tules on the west side of the road were 1/2 brown, which the tules on the east side of the road are still mostly green. At the tower, Robert observed that the tules looked quite brown but the cattails were still mostly green.

The water level is still low here, below the staff gauge. The miniDOT and conductivity sensors are still dry.

I downloaded met, cam, and USB GHG data. Patrick cleaned flux and rad sensors and put a new bird spike on the 7500. The old one had broken last time when swapping 7500s for calibration. I changed the eddy clock +30sec from 13:28:10 to 13:28:40 to match the laptop time and restarted logging. The reservoir was 90% full; we refilled it. Robert cleaned out the precip bucket, which had some bird poop in the funnel.

We left at 14:40 PDT.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

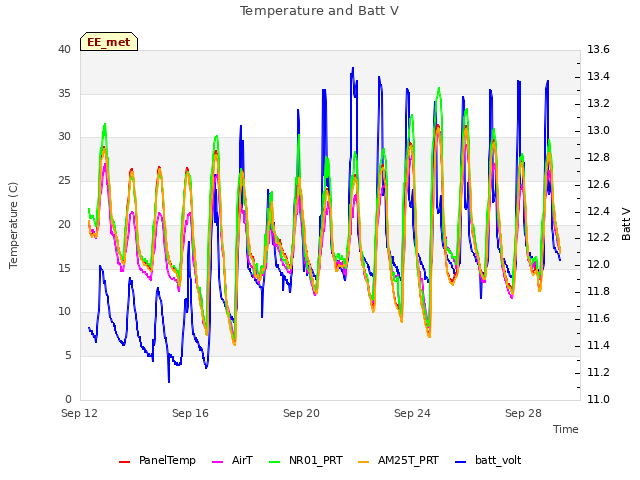

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

Explore the graph:Solar Radiation in a new window

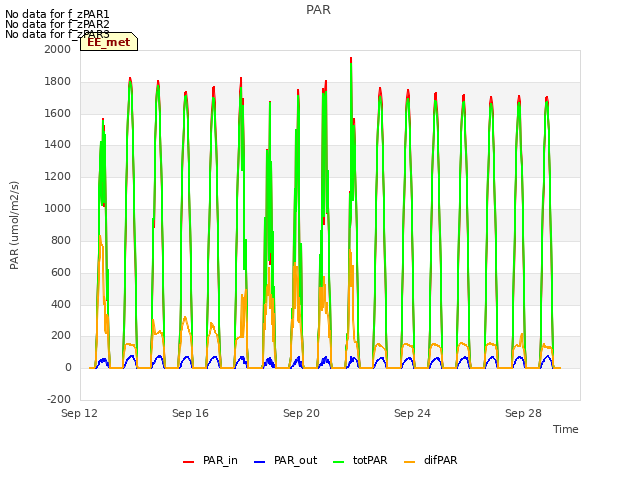

Explore the graph:PAR in a new window

Explore the graph:Soil Heat Flux in a new window

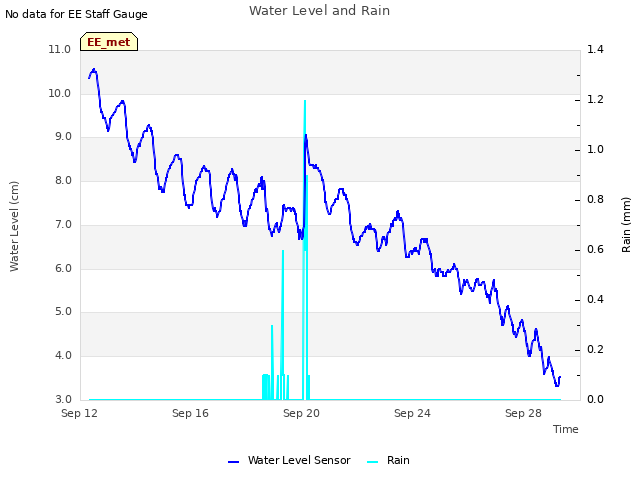

Explore the graph:Water Level and Rain in a new window

Explore the graph:Soil/Water Temperature Set 1 in a new window

Explore the graph:Soil/Water Temperature Set 2 in a new window

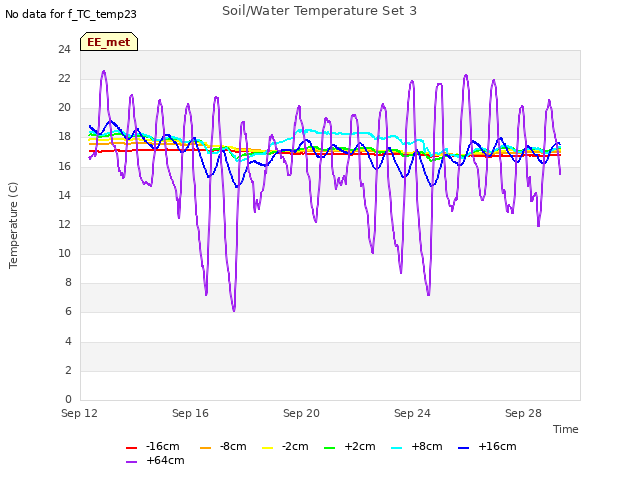

Explore the graph:Soil/Water Temperature Set 3 in a new window

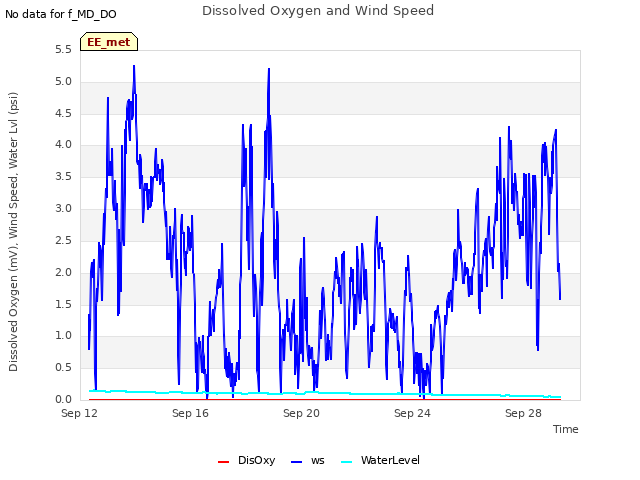

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

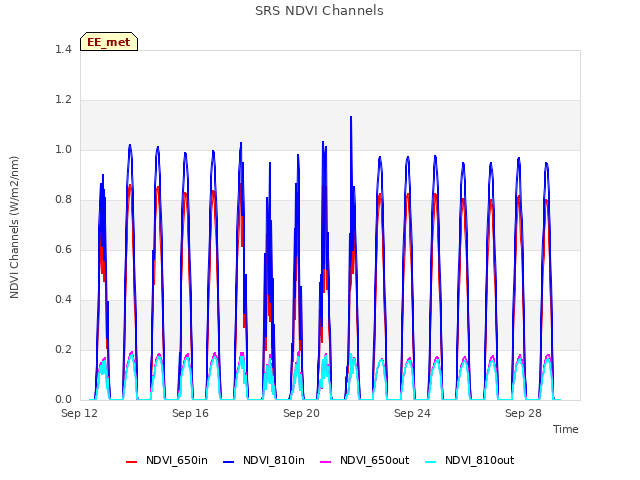

Explore the graph:SRS NDVI Channels in a new window

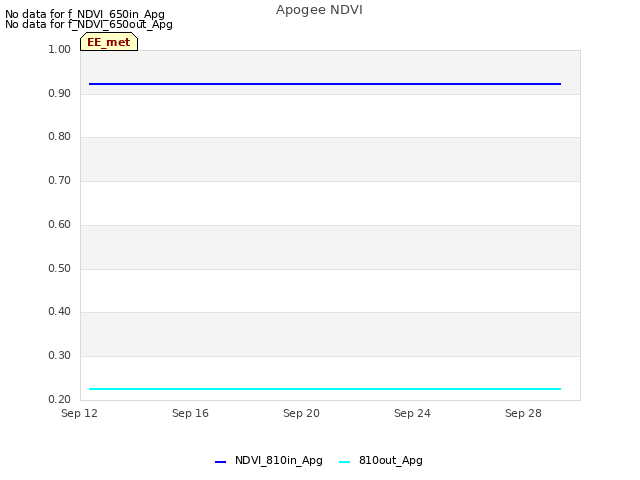

Explore the graph:Apogee NDVI in a new window

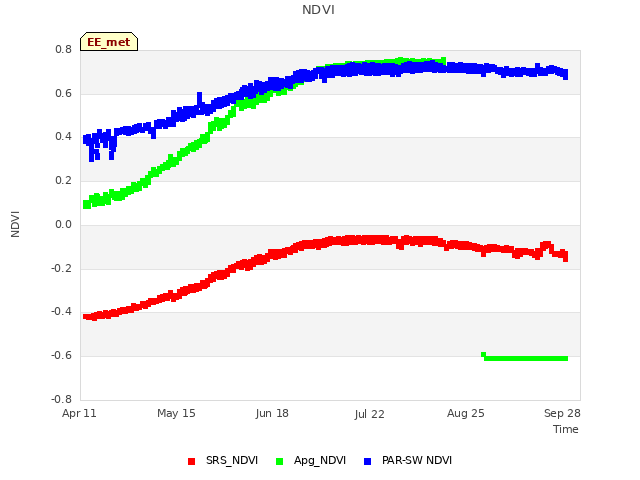

Explore the graph:NDVI in a new window

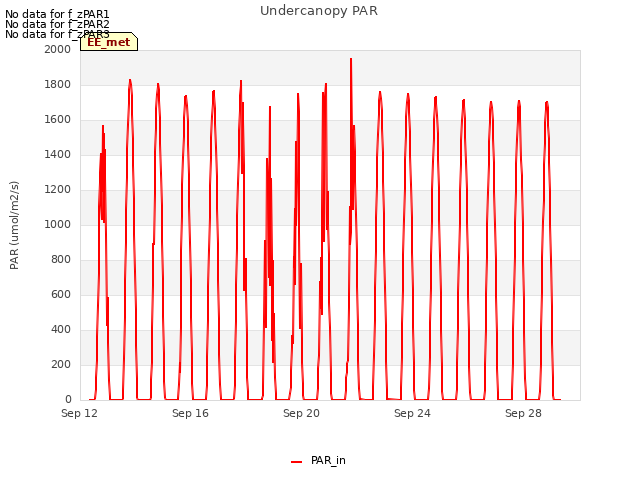

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

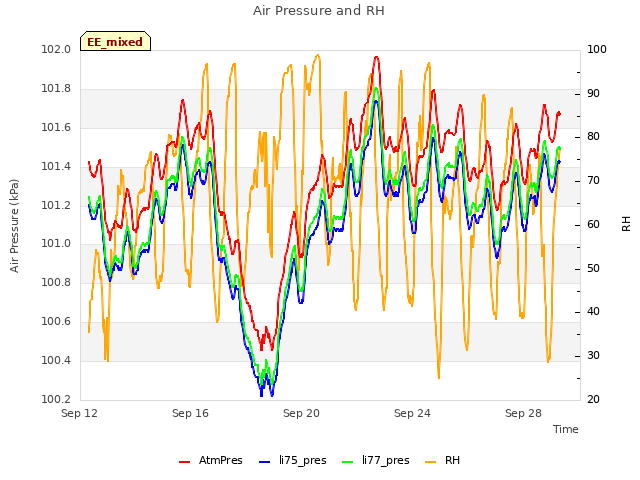

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

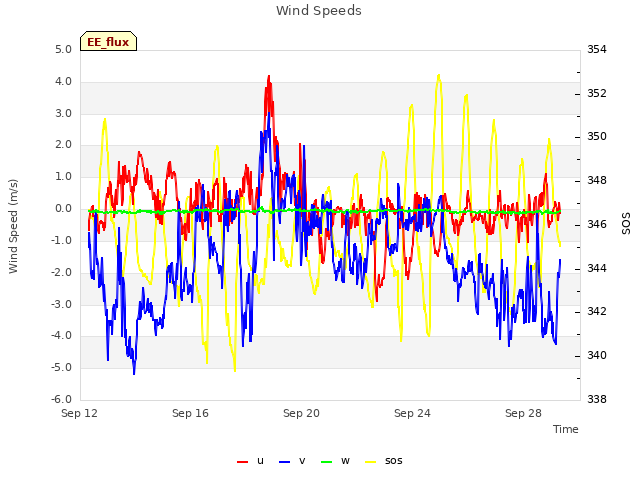

Explore the graph:Wind Speeds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

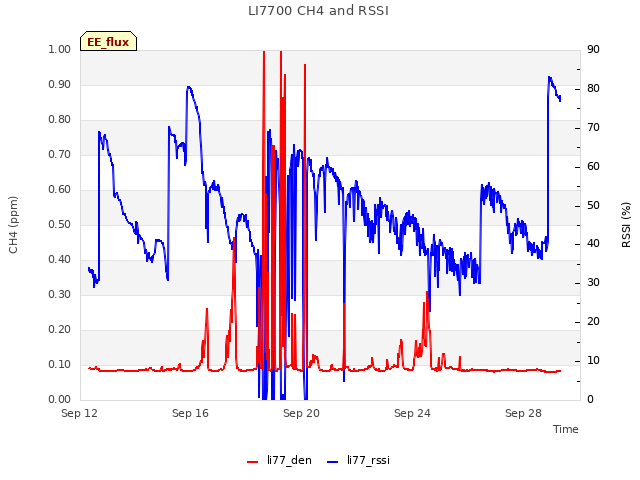

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Explore the graph:Sonic SOS in a new window

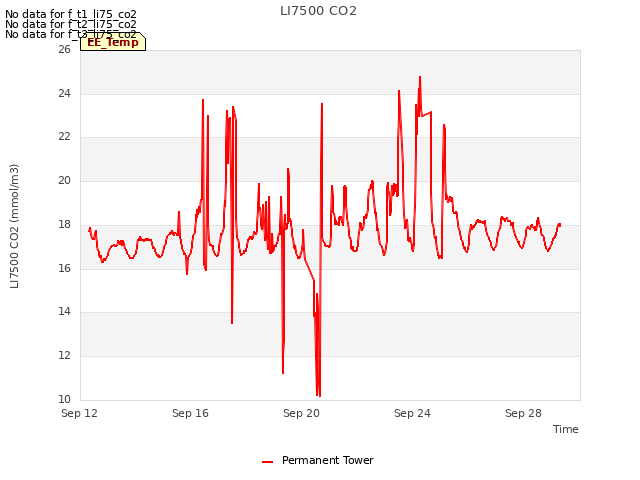

Explore the graph:LI7500 CO2 in a new window

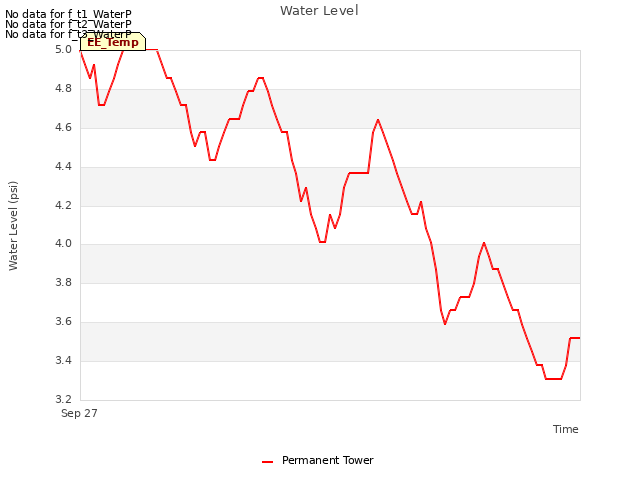

Explore the graph:Water Level in a new window

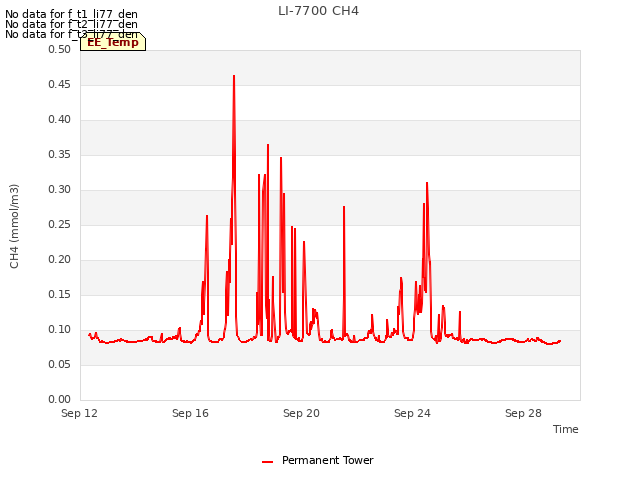

Explore the graph:LI-7700 CH4 in a new window

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

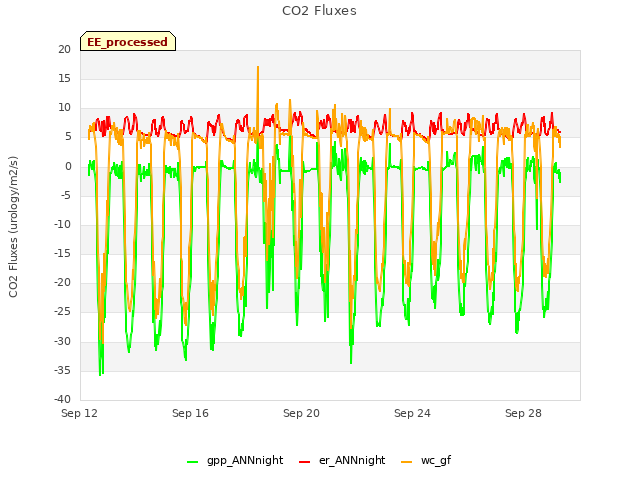

Explore the graph:CO2 Fluxes in a new window
