Field Notes

<--2021-09-03 14:00:00 | 2021-10-07 11:10:00-->
Other sites visited today: Hill Slough | Bouldin Corn | Bouldin Alfalfa | East End | Mayberry

West Pond: 2021-09-23 11:30:00 (DOY 266)
Author: Daphne Szutu
Others: Ari

Summary: Regular data collection/cleaning, low water level, wasps, changed eddy clock +3min

2021-09-23
West Pond

Ari and I arrived at 11:30 PDT. It was hot and still at the tower. There were wasps buzzing around, but fewer than last visit. The water level is still below the soil surface, and the inlet was off. I’m not sure if Bryan et al. are still planning to do the levee work in the near future, but this site will probably stay relatively dry while the drought is ongoing.

The miniDOT and conductivity sensors are both in the air. I checked the conductivity sensor as part of its routine check and the orifice was clear, although it doesn’t matter much now because it’s hanging in the air.

I downloaded met, camera, USB GHG, and miniDOT data. I changed the eddy clock +3min to match the laptop time. We swapped the desiccant for the miniDOT and the water level sensor. Ari cleaned flux and rad sensors and I topped off the wash reservoir.

LI-7500 readings:
CO2 404ppm
H2O 560ppm
T 31.1C
P 101.3kPa
SS 93--> 98 after cleaning
LI7700 readings:
CH4 2.07
RSSI 54--> 83 after cleaning

We left at 11:50 PDT.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

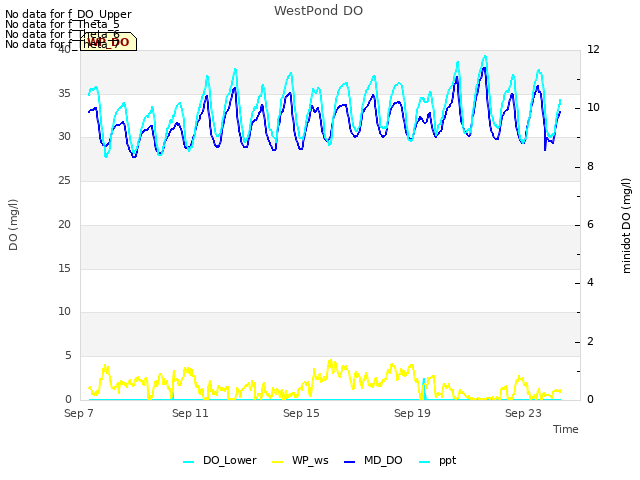

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

Explore the graph:Battery in a new window

Explore the graph:Temperatures in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

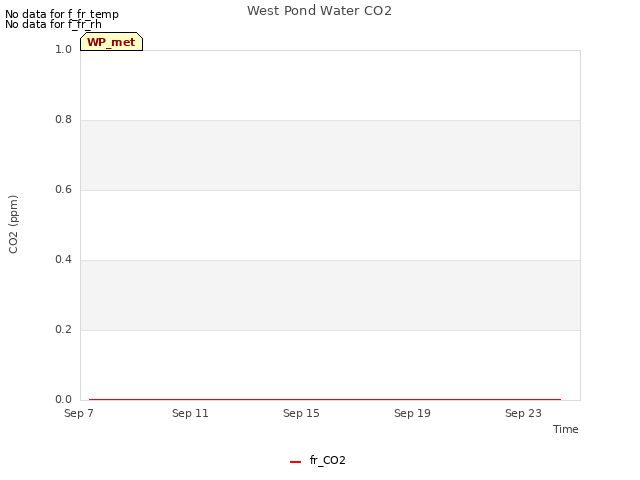

Explore the graph:West Pond Water CO2 in a new window

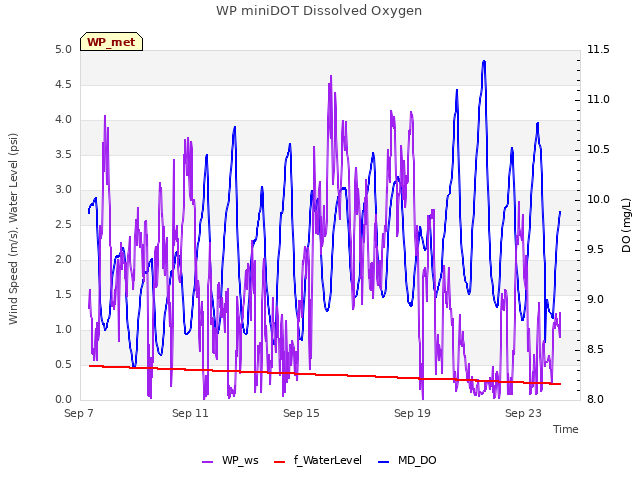

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

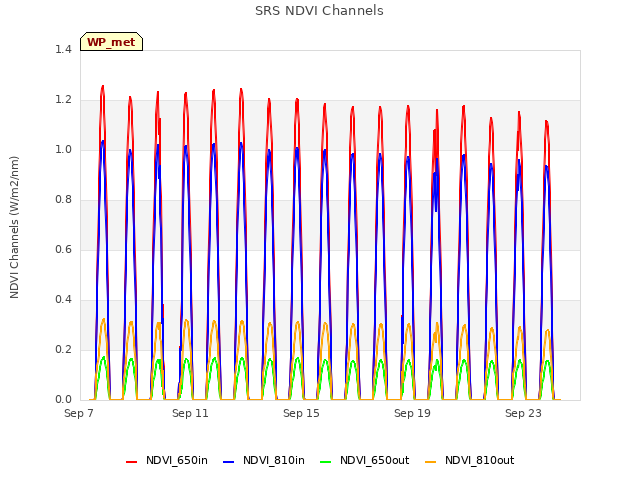

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:NDVI in a new window

5 WP_flux graphs found

Explore the graph:Winds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

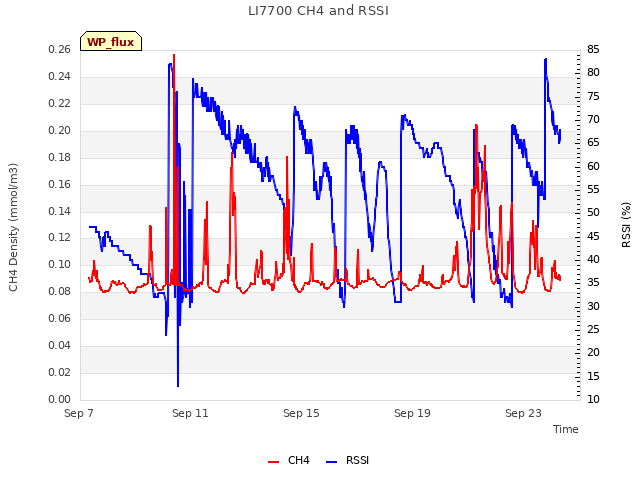

Explore the graph:LI7700 CH4 and RSSI in a new window

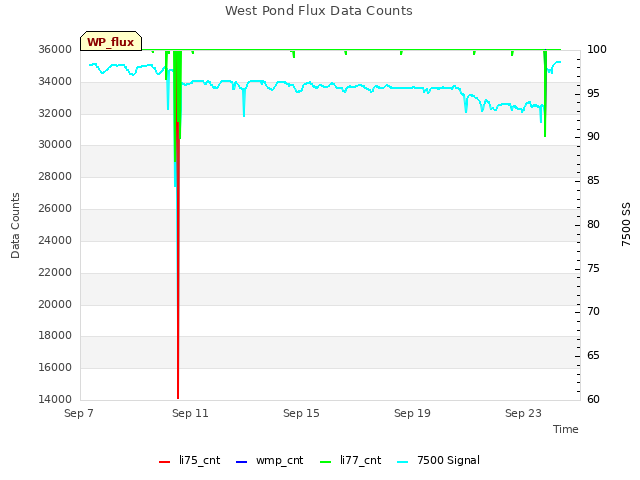

Explore the graph:West Pond Flux Data Counts in a new window

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

4 WP_arable graphs found

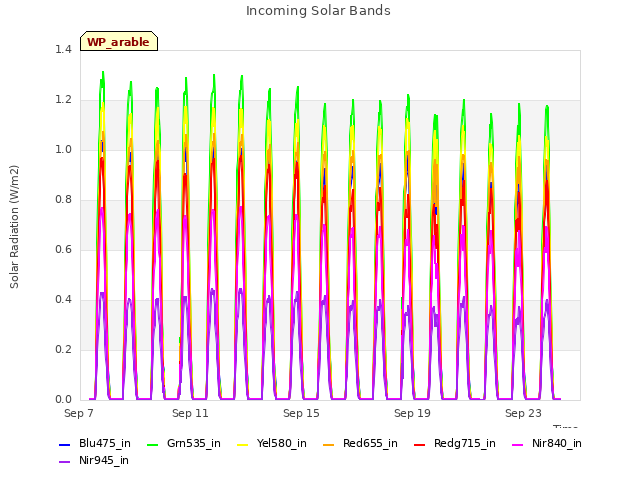

Explore the graph:Incoming Solar Bands in a new window

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Temperatures in a new window
