Bouldin Alfalfa: 2021-09-23 09:30:00 (DOY 266)
Author: Daphne Szutu
Others: Ari

Summary: Regular data collection/cleaning, trimmed alfalfa under towers, rest of alfalfa is tall and ready to be mowed, spectral, veg height

2021-09-23
Bouldin Alfalfa

Ari and I arrived at 9:30 PDT to the bouncer tower. It was warming up, but still comfortable in the shade. The horizons were hazy and there was a slight breeze. The alfalfa is knee/thigh high and ready for harvesting. The fields north of us were already mowed and baled. We prophylactically trimmed the alfalfa under the bouncer tower, the PL Arable post, and the main tower because I think they will mow soon. Joe’s serrated sickle and a pair of grass shears both work better than the hedge shears.

I downloaded the bouncer data by swapping microSD cards and using CardConvert to convert the card data to the laptop. We cleaned the small solar panel, which had some bird poop.

We arrived at the main tower at 9:50 PDT. I downloaded met, camera, and USB GHG data. I had trouble connecting to the 7550 at first, but I think I had not properly plugged in the USB end of the USB-ethernet dongle. The number of 7550 files seemed reasonable and the eddy clocks looked good. I also checked the 10sec Temp/RH data on the camera card, which looked reasonable.

I downloaded the FD data and cleared its memory. I downloaded the IRT data by swapping microSD cards and using CardConvert to convert the fast data to TOB1 and the slow data to TOA5.

Ari cleaned flux and rad sensors, took spectral measurements, and took veg height measurements.

LI-7500 readings:
CO2 426ppm
H2O 600ppm
T 23.3C
P 101.3kPa
SS 98--> 100 after cleaning
LI7700 readings:
CH4 2.1
RSSI 42--> 91 after cleaning

We left at 10:50 PDT.

Next Mowing: 2021-10-13

Veg Height (cm): Tape measure from ground to top of plant - Alfalfa tall and ready to be mowed
66, 64, 46, 80, 57, 64, 63, 56, 61, 78, avg = 63.5, stdev = 10

1 photos found

Ariane doing field work
Ariane doing field work

Graphs display:
7 sets found

5 BA_flux graphs found

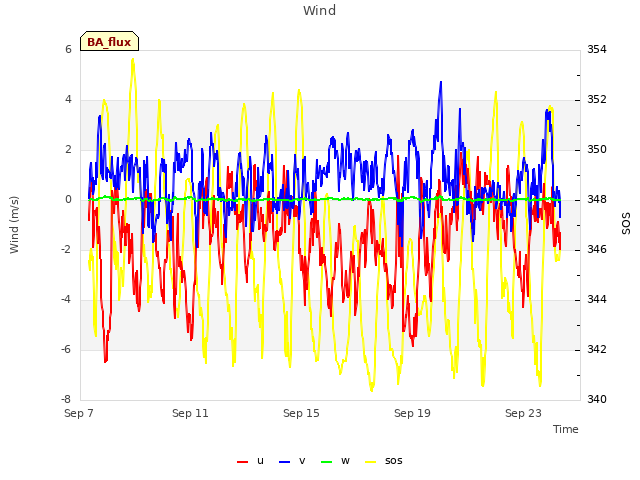

Explore the graph:Wind in a new window

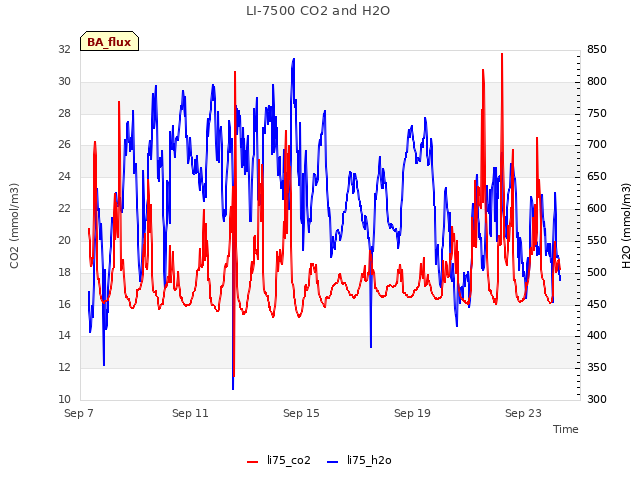

Explore the graph:LI-7500 CO2 and H2O in a new window

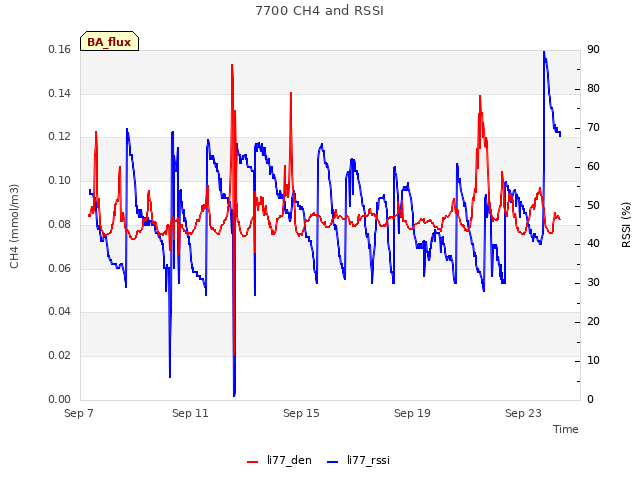

Explore the graph:7700 CH4 and RSSI in a new window

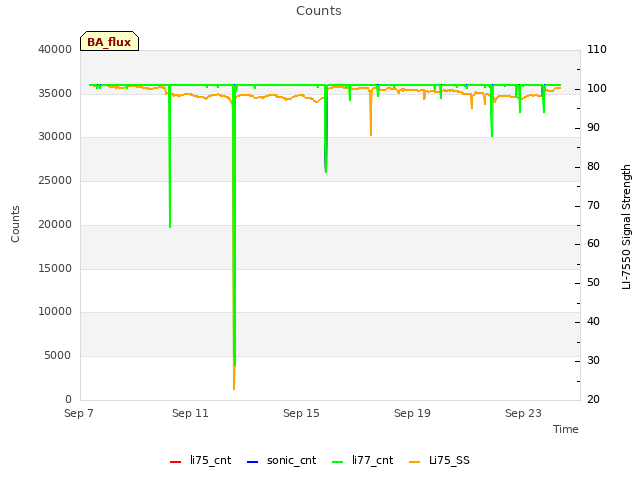

Explore the graph:Counts in a new window

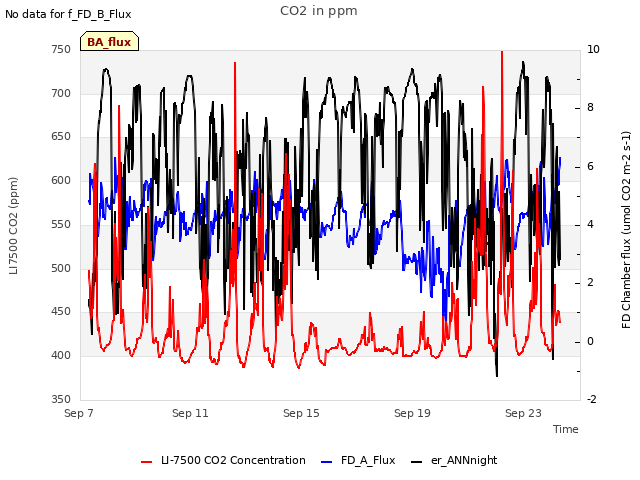

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

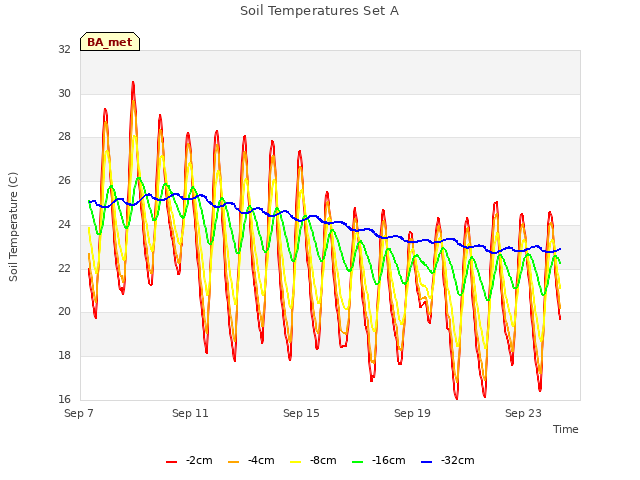

Explore the graph:Soil Temperatures Set A in a new window

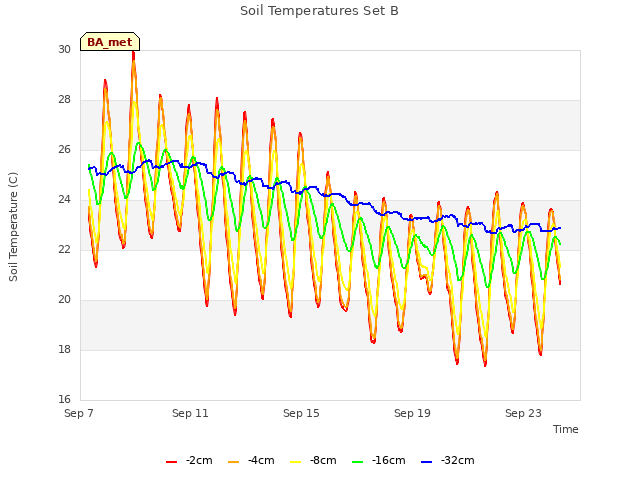

Explore the graph:Soil Temperatures Set B in a new window

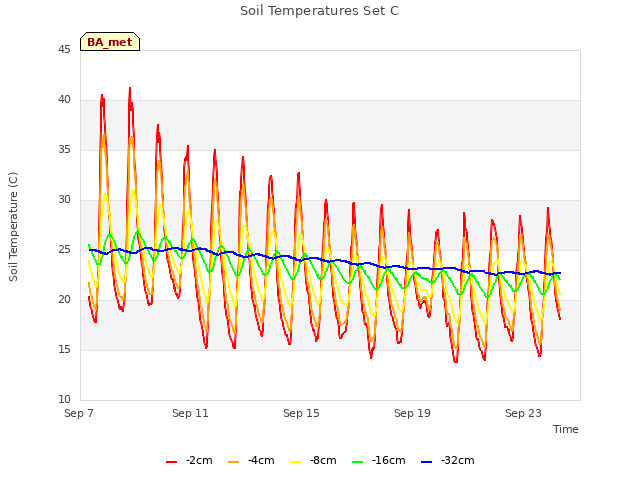

Explore the graph:Soil Temperatures Set C in a new window

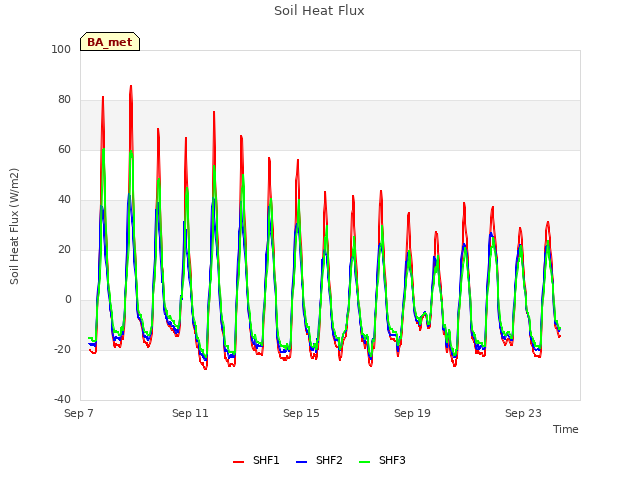

Explore the graph:Soil Heat Flux in a new window

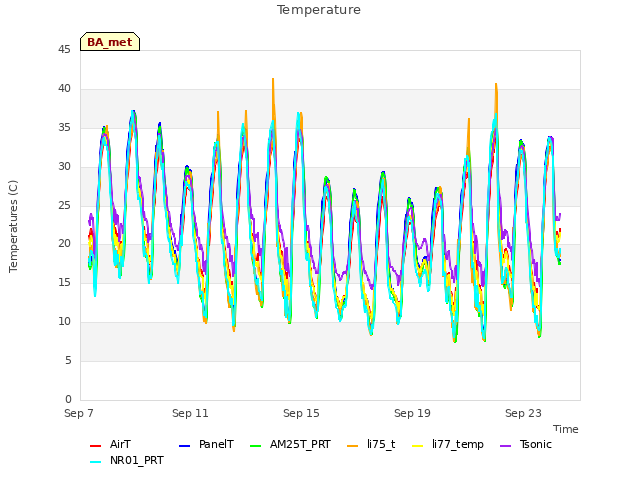

Explore the graph:Temperature in a new window

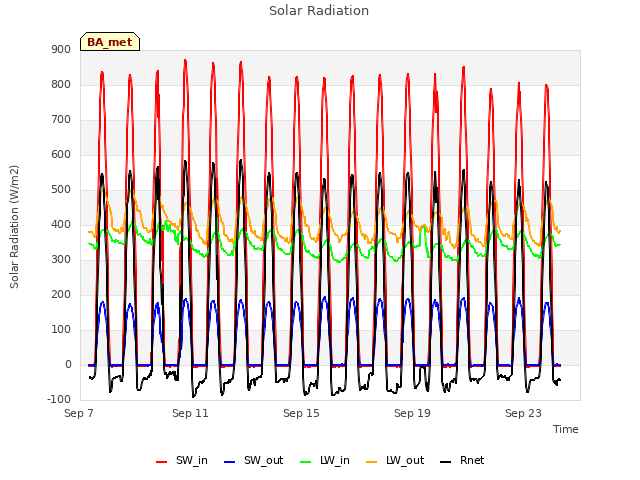

Explore the graph:Solar Radiation in a new window

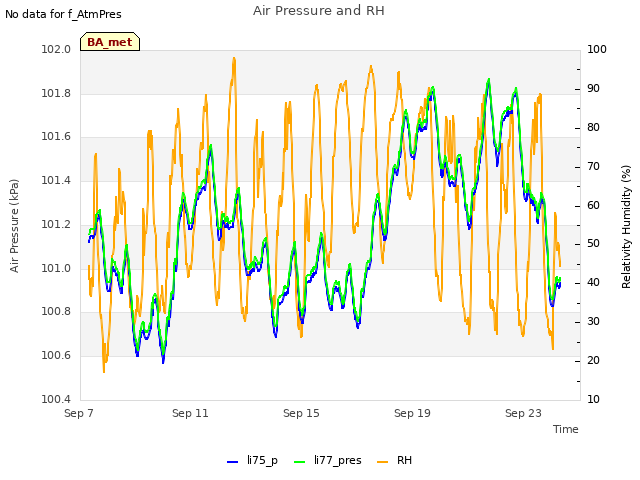

Explore the graph:Air Pressure and RH in a new window

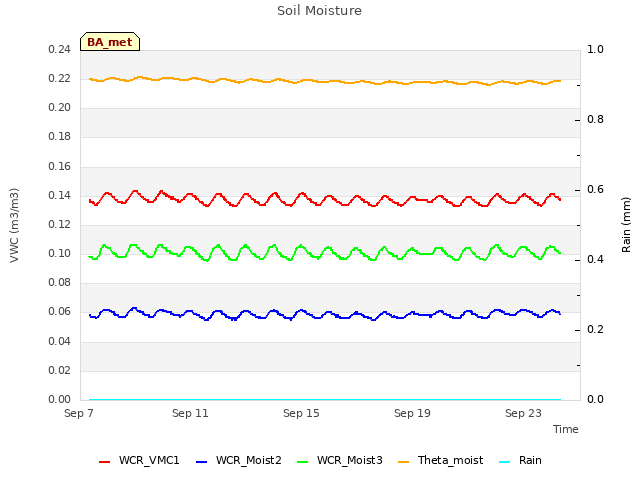

Explore the graph:Soil Moisture in a new window

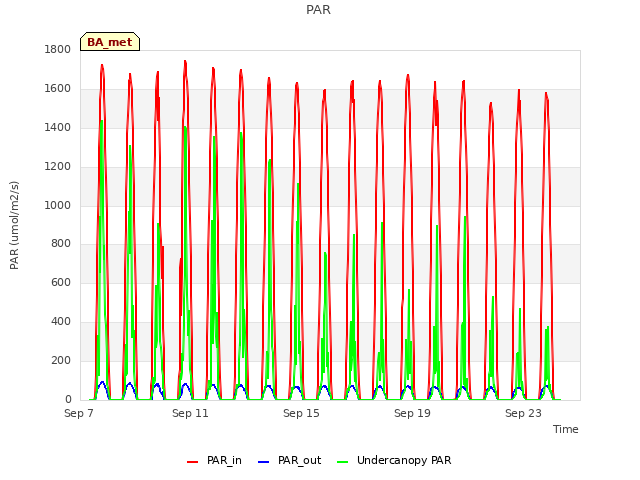

Explore the graph:PAR in a new window

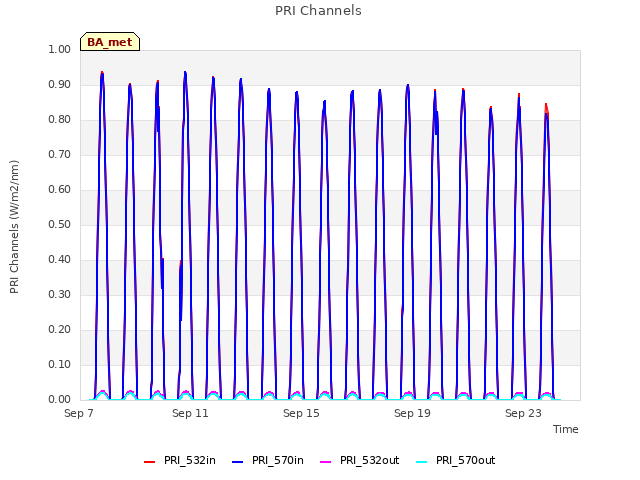

Explore the graph:PRI Channels in a new window

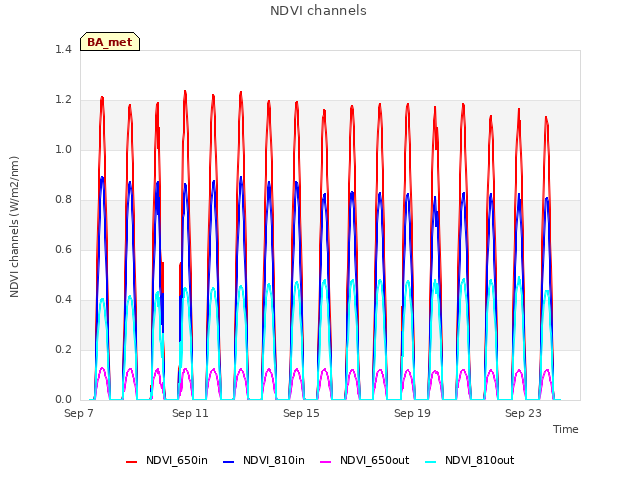

Explore the graph:NDVI channels in a new window

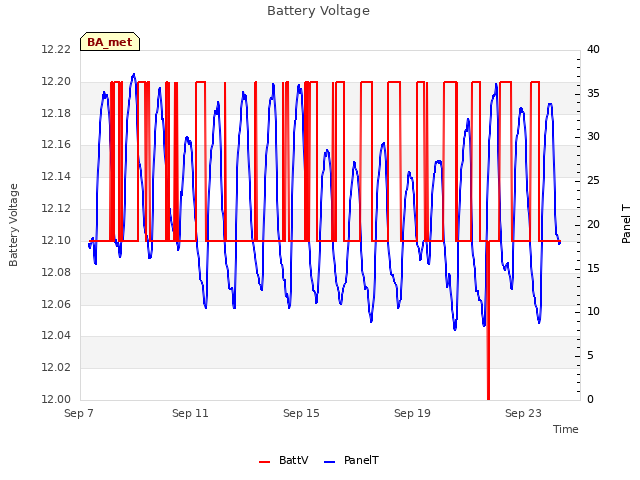

Explore the graph:Battery Voltage in a new window

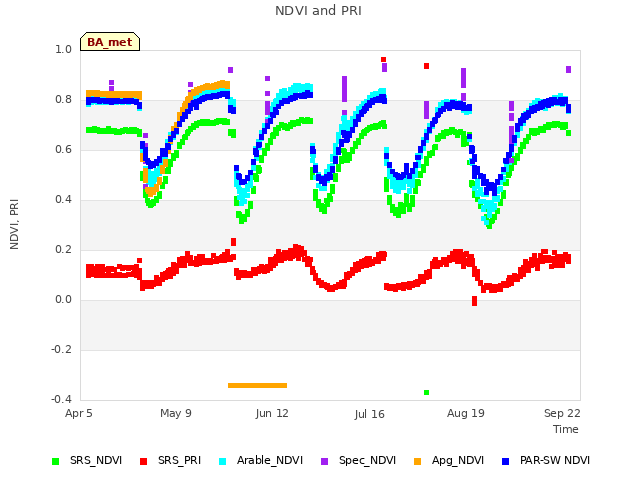

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

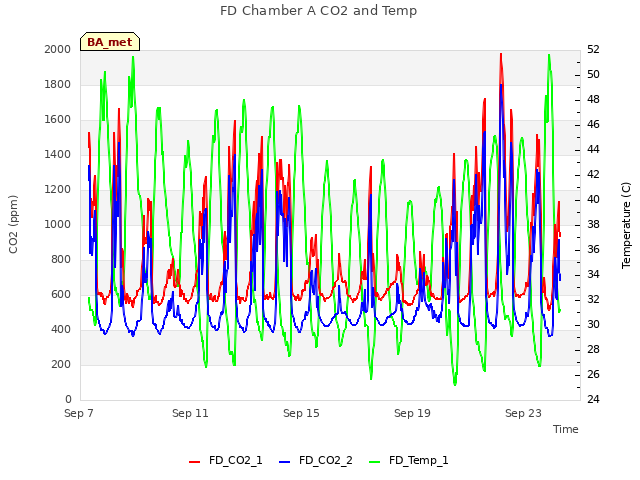

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

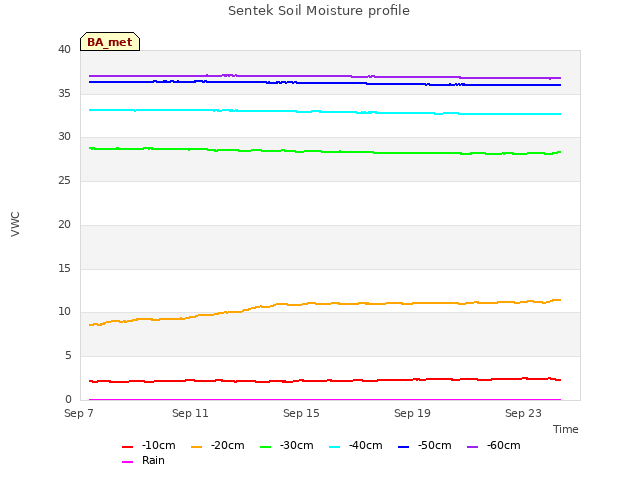

Explore the graph:Sentek Soil Moisture profile in a new window

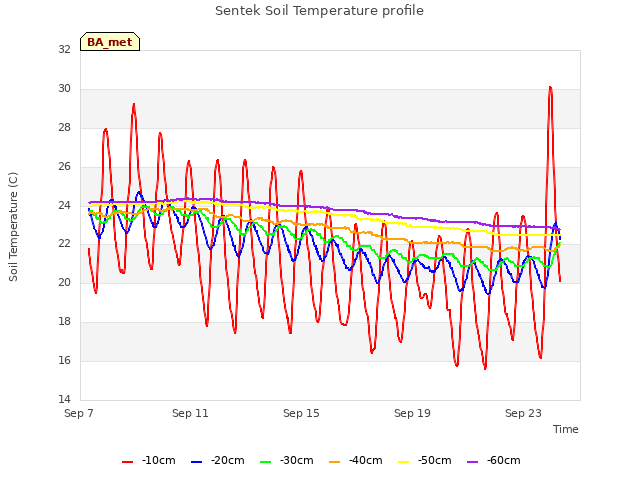

Explore the graph:Sentek Soil Temperature profile in a new window

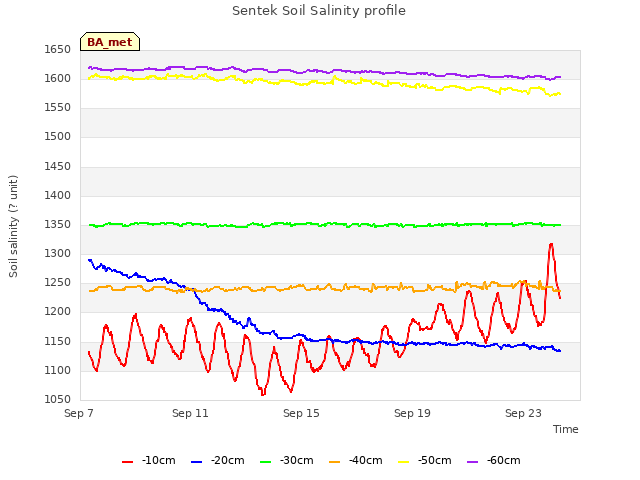

Explore the graph:Sentek Soil Salinity profile in a new window

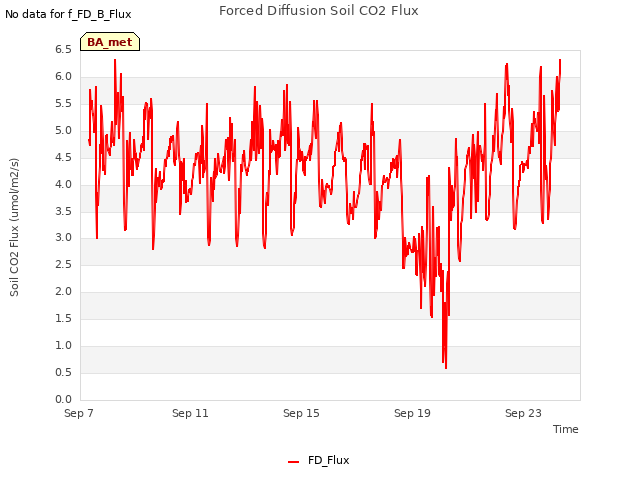

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

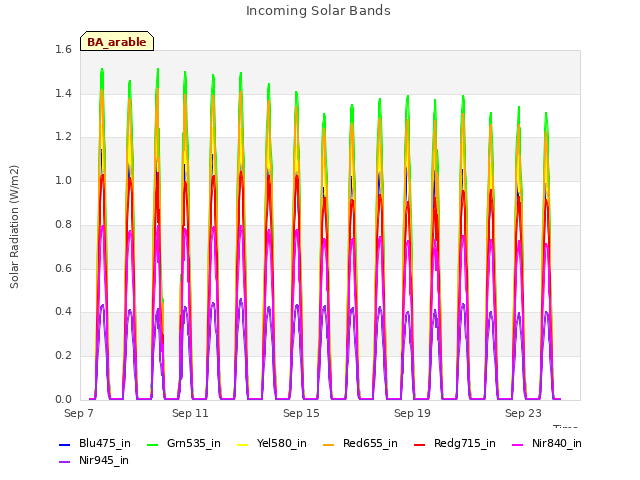

Explore the graph:Incoming Solar Bands in a new window

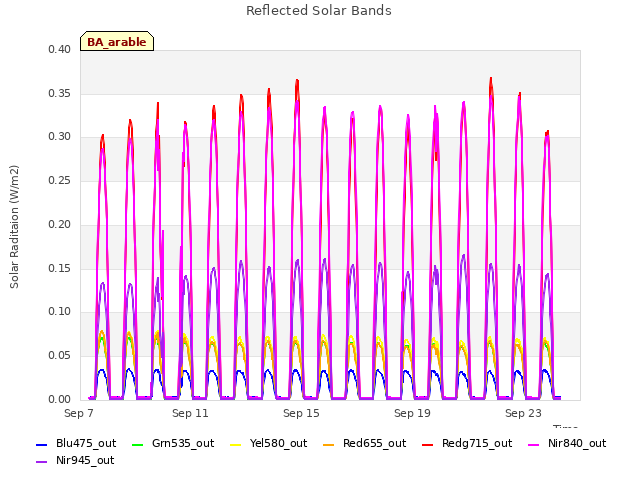

Explore the graph:Reflected Solar Bands in a new window

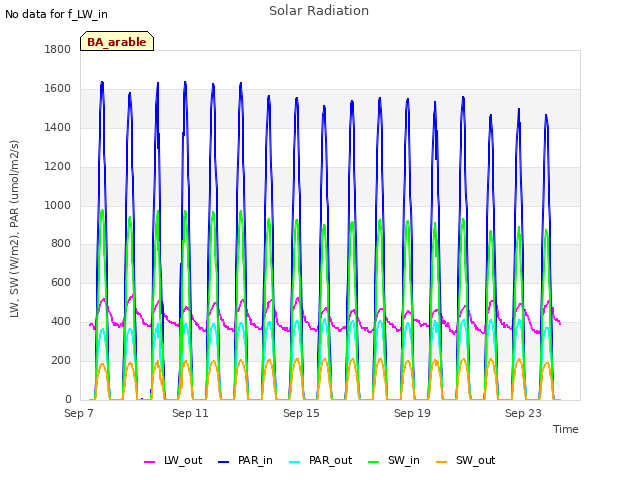

Explore the graph:Solar Radiation in a new window

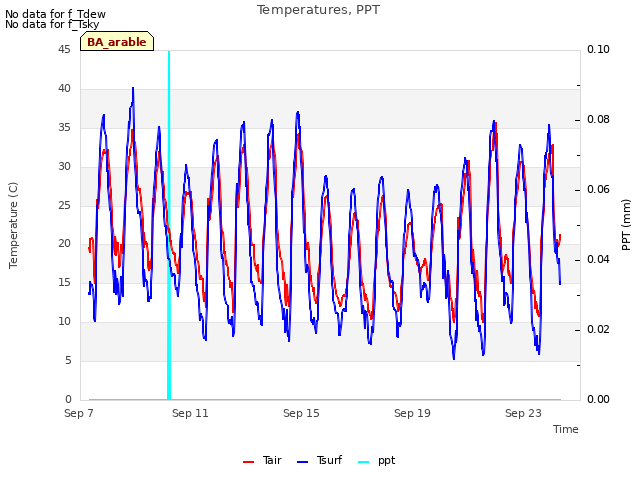

Explore the graph:Temperatures, PPT in a new window

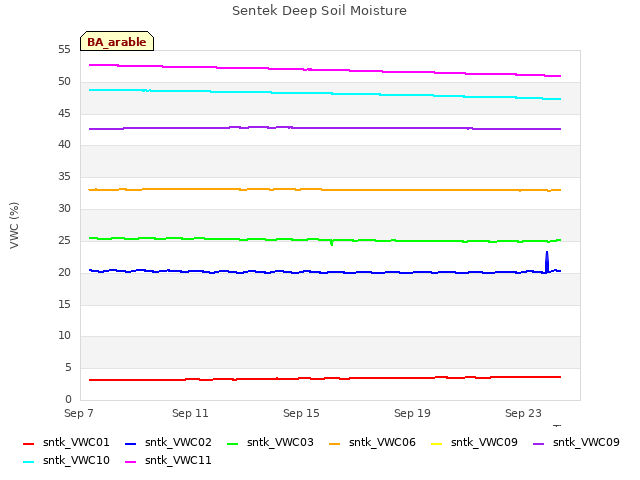

Explore the graph:Sentek Deep Soil Moisture in a new window

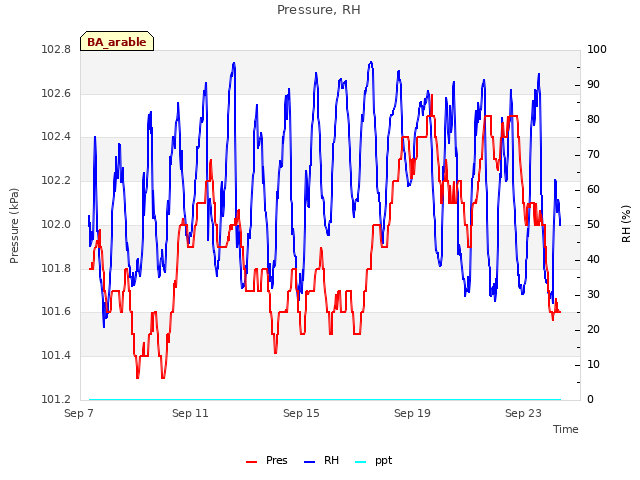

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

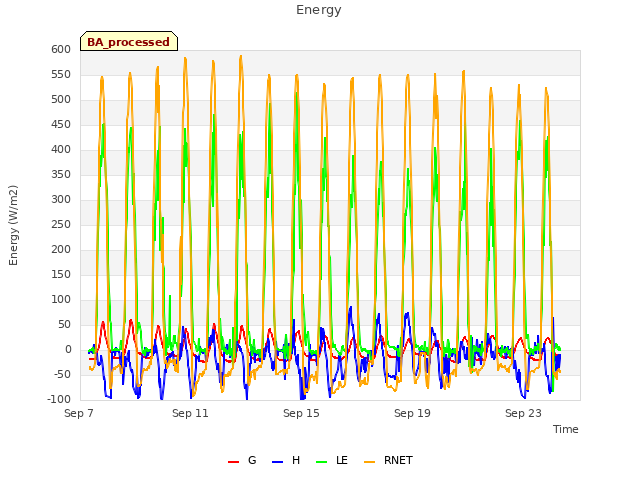

Explore the graph:Energy in a new window

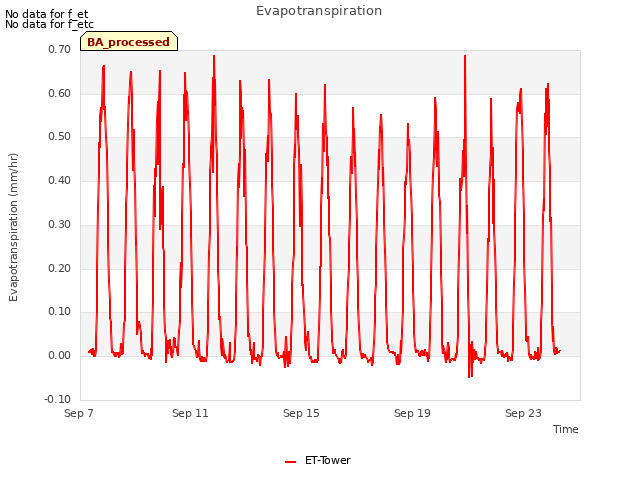

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
