West Pond: 2021-09-03 14:00:00 (DOY 246)
Author: Daphne Szutu
Others: Carlos

Summary: Regular data collection/cleaning, hella wasps, changed eddy clock +1min

2021-09-03
West Pond

Carlos and I arrived at 14:00 PDT. It was hot and sunny with hazy skies. There were hella wasps flying around the tower and the sensors, but I didn’t see any specific nests or congregating areas. The water level was below the soil surface, and with all the wasps around I did not climb down the scaffolding to get a closer look at the staff gauge. The plants were still looking good despite the low water levels.

I downloaded met, cam, and USB GHG data. The reservoir was mostly full; I topped it off. Carlos cleaned flux and rad sensors.

I changed the eddy clock +1min to match the laptop time. I reset the 7550 and checked that the clock still looked good.

LI-7500 readings:
CO2 406ppm
H2O 660ppm
T 29.7C
P 101.2kPa
SS 97 --> 98 after cleaning
LI7700 readings:
CH4 2.1
RSSI 67 --> 83 after cleaning

We left at 14:25 PDT.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

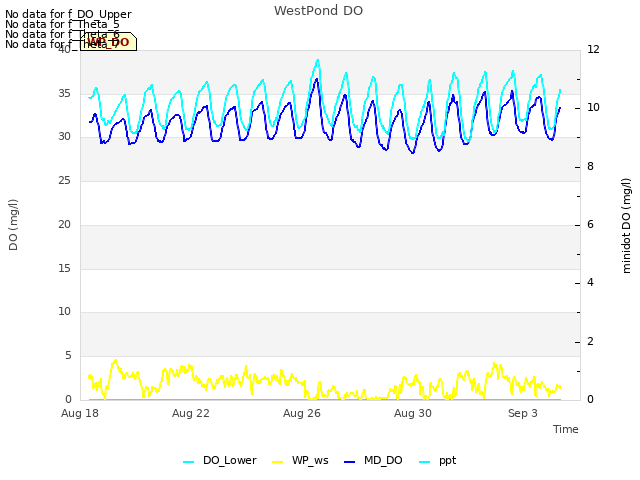

WestPond DO

14 WP_met graphs found

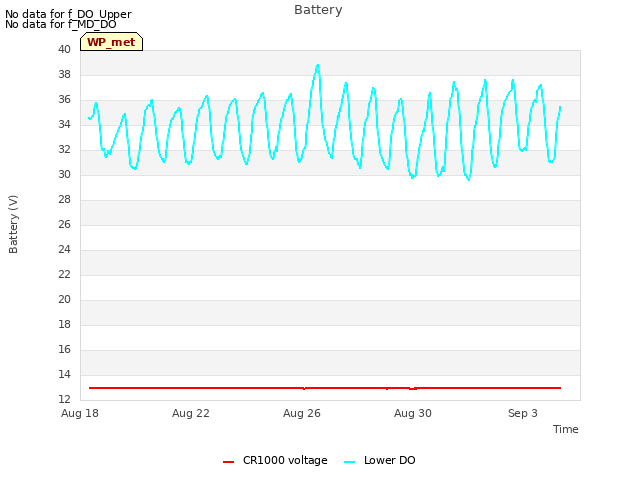

Battery

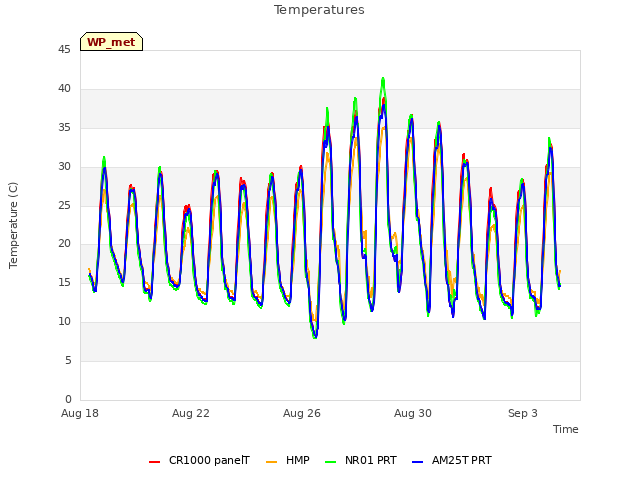

Temperatures

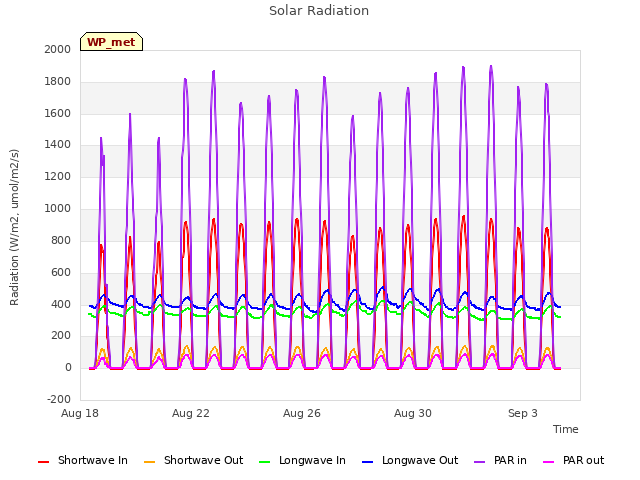

Solar Radiation

RH and Pressure

Water Level and Precipitation

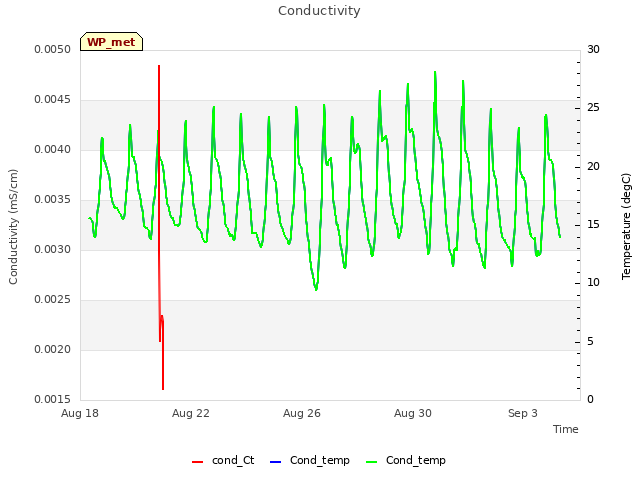

Conductivity

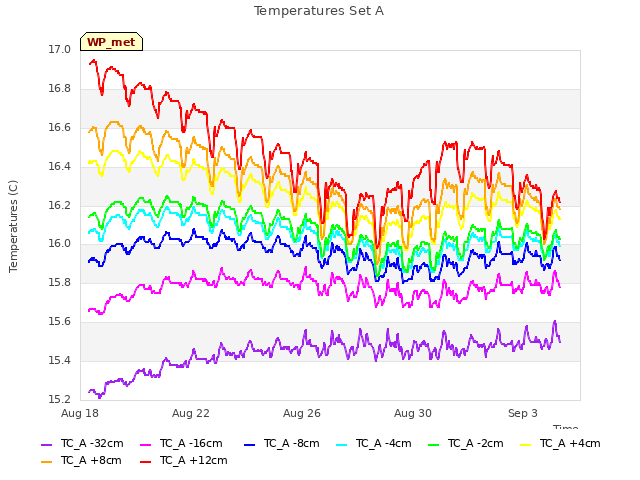

Temperatures Set A

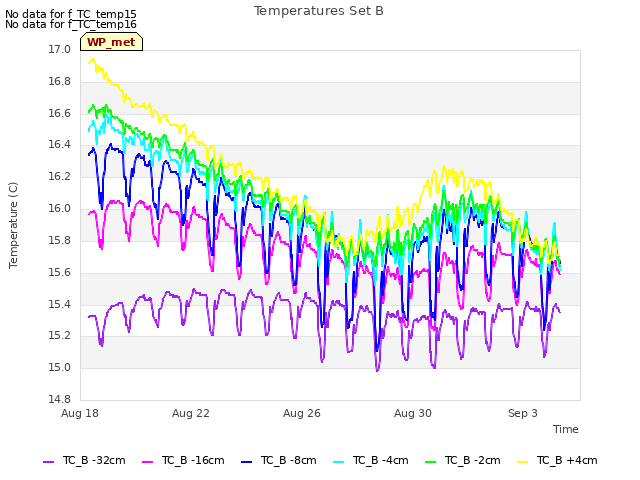

Temperatures Set B

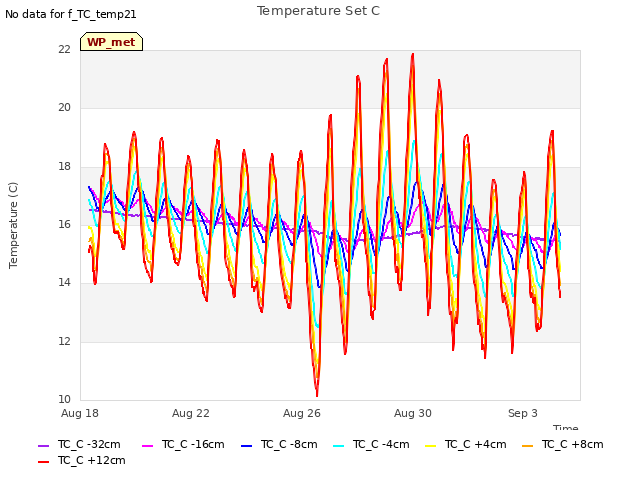

Temperature Set C

Water CO2 and Temp

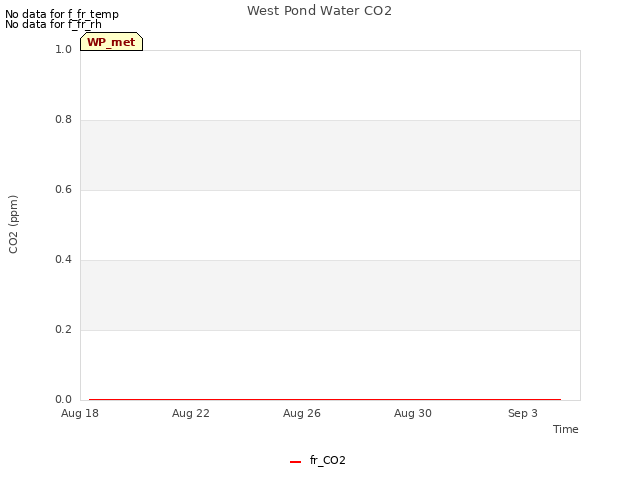

West Pond Water CO2

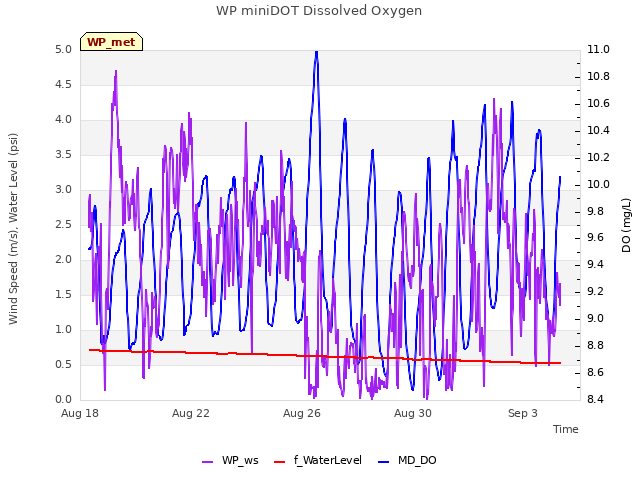

WP miniDOT Dissolved Oxygen

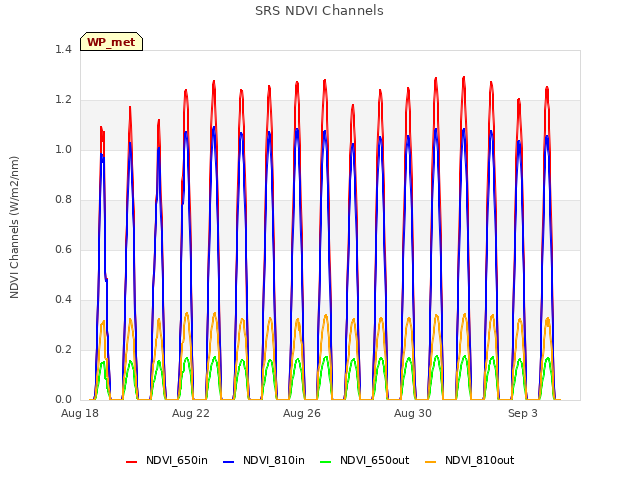

SRS NDVI Channels

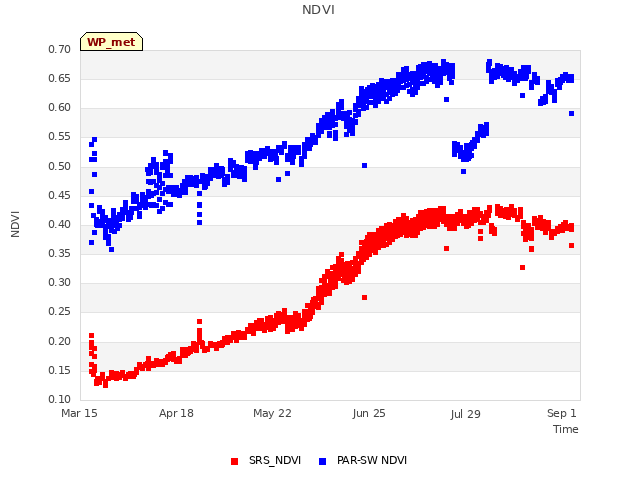

NDVI

5 WP_flux graphs found

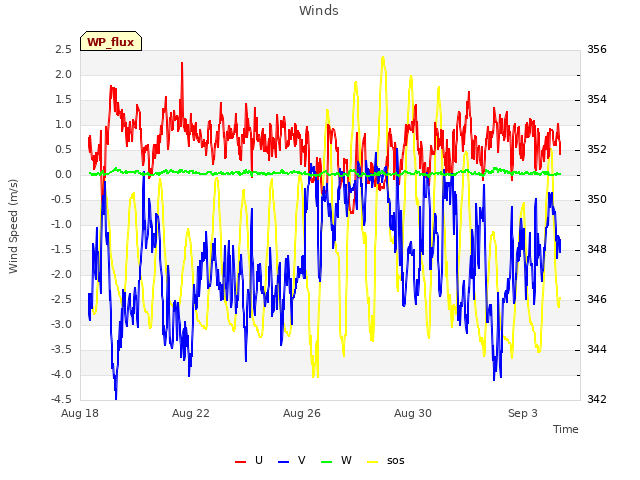

Winds

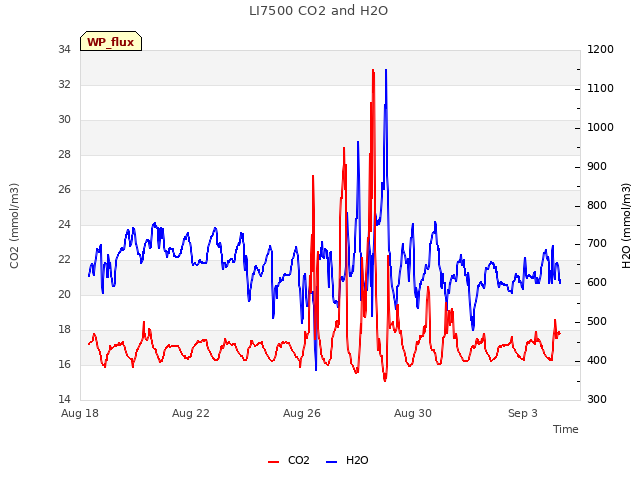

LI7500 CO2 and H2O

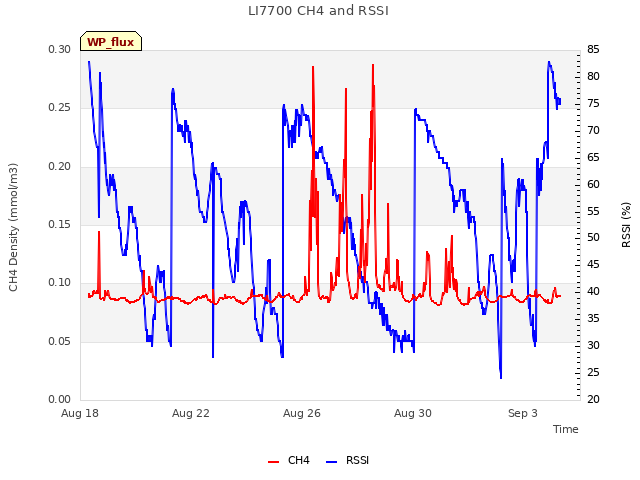

LI7700 CH4 and RSSI

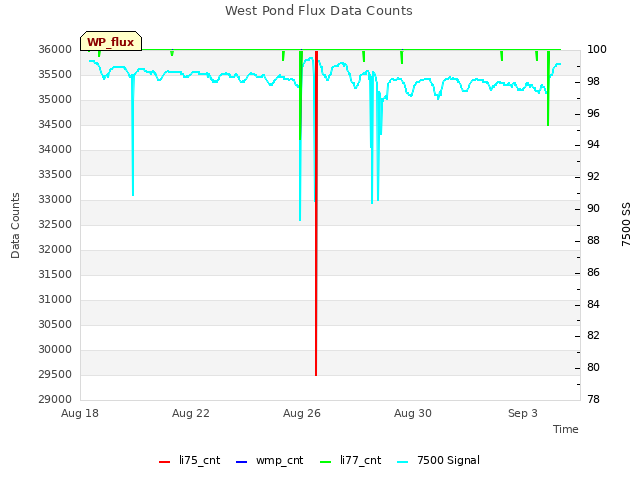

West Pond Flux Data Counts

Air Temperatures

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

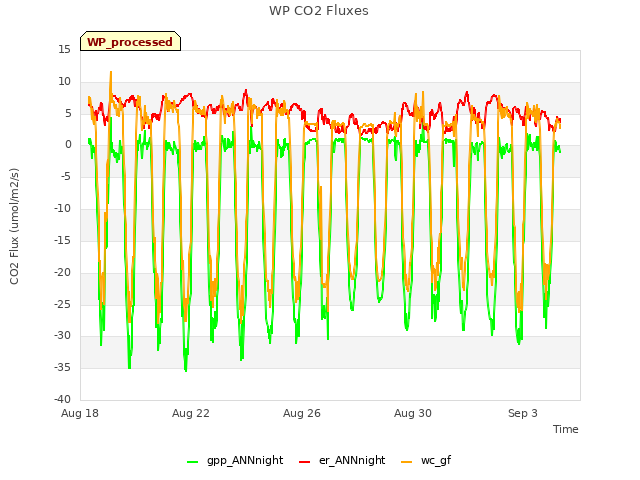

WP CO2 Fluxes

4 WP_arable graphs found

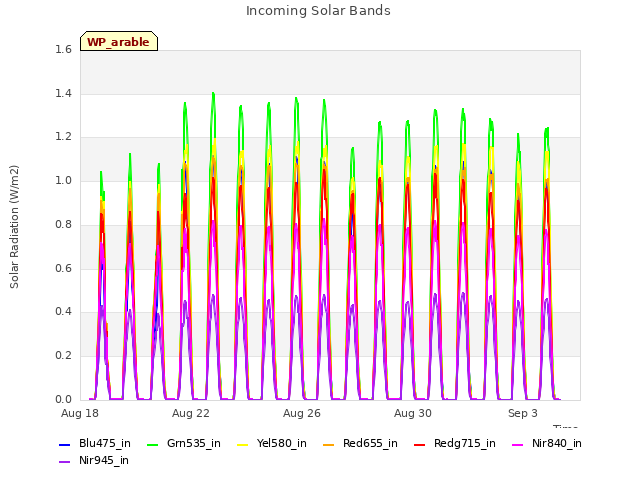

Incoming Solar Bands

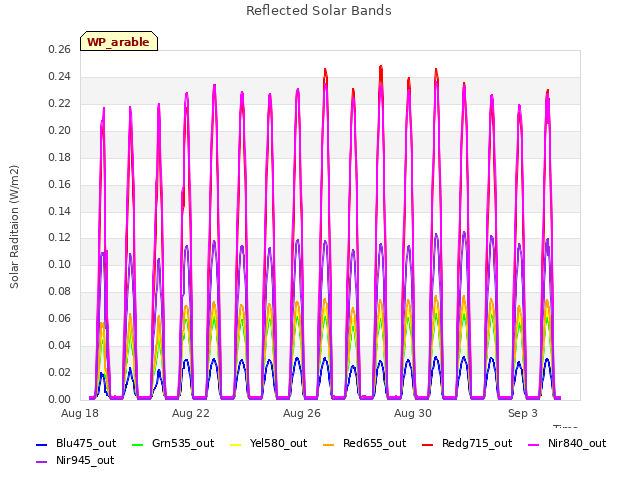

Reflected Solar Bands

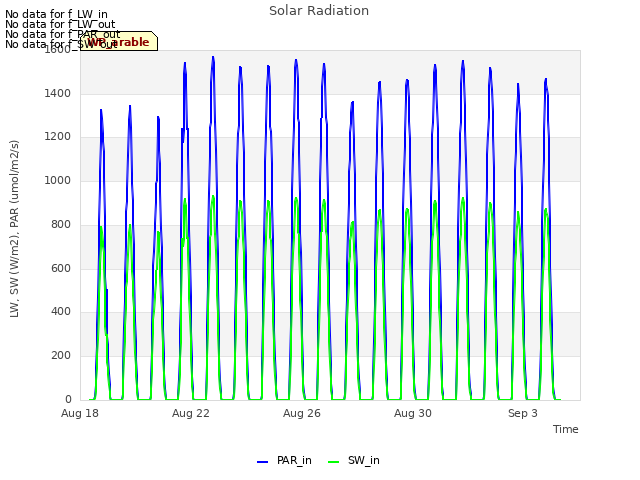

Solar Radiation

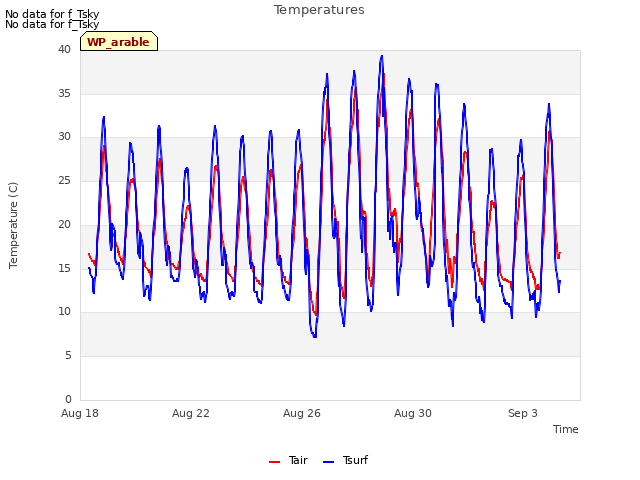

Temperatures
