Bouldin Corn: 2021-03-16 11:20:00 (DOY 75)
Author: Daphne Szutu
Others:

Summary: Regular data collection/cleaning, changed met box grounding lug

2021-03-16
Bouldin Corn

I arrived at 11:20 PDT. It was a cool day with gauzy clouds and a cold breeze. There were large groups of ducks or geese in the air. I parked outside the red gate and walked in. I know Joe has a secret way in, but I decided to wait until the roads are drier to explore that way.

I downloaded met, camera, and USB GHG data. I downloaded FD data and cleared its memory. I downloaded PA data and power-cycled the sensor. The wash reservoir was 90% full; I topped it off. I cleaned flux and rad sensors.

I changed the grounding lug, so the met box is now properly grounded. Next time I should bring a flathead screwdriver to tighten the set screw a bit more.

LI-7500 readings:
CO2 190ppm
H2O 363ppm
T 14.5C
P 101.8kPa
SS 101-->102 after cleaning
LI7700 readings:
CH4 2.17 after cleaning
RSSI 64-->73 after cleaning

I left at 11:55 PDT.

0 photos found

Graphs display:
6 sets found

17 BC_met graphs found

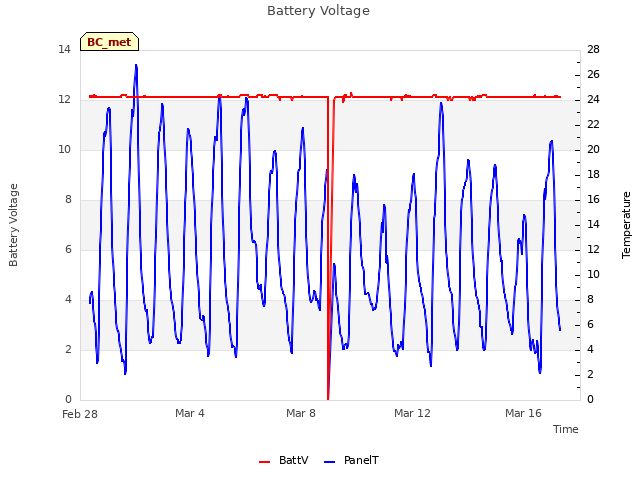

Explore the graph:Battery Voltage in a new window

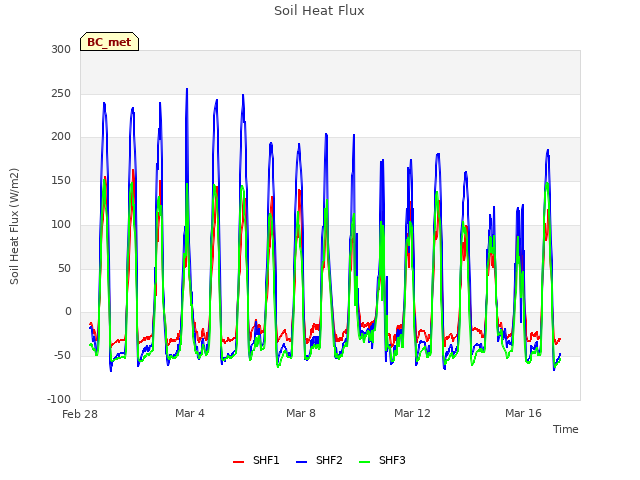

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

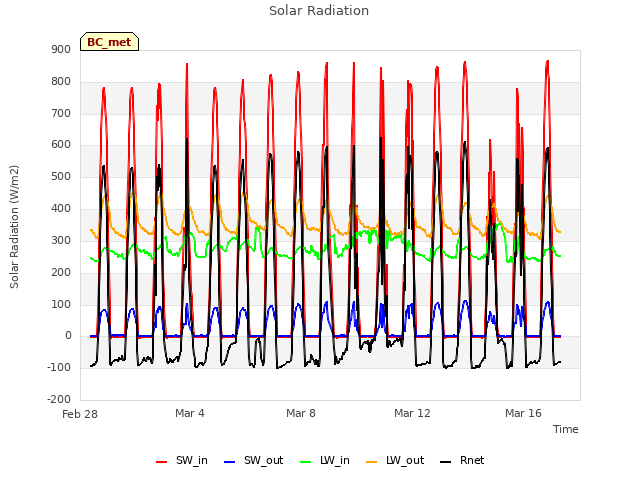

Explore the graph:Solar Radiation in a new window

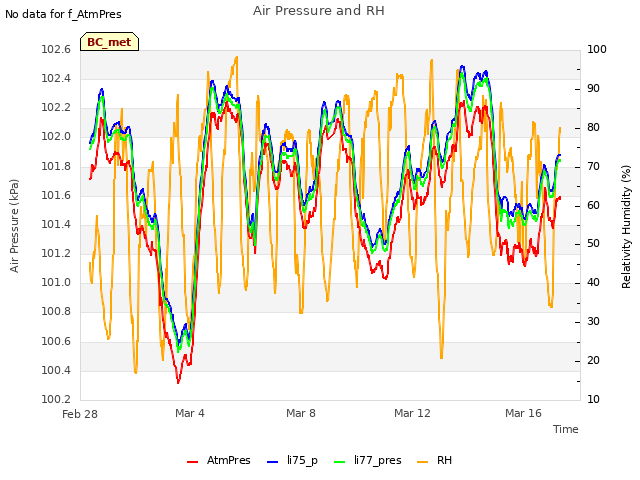

Explore the graph:Air Pressure and RH in a new window

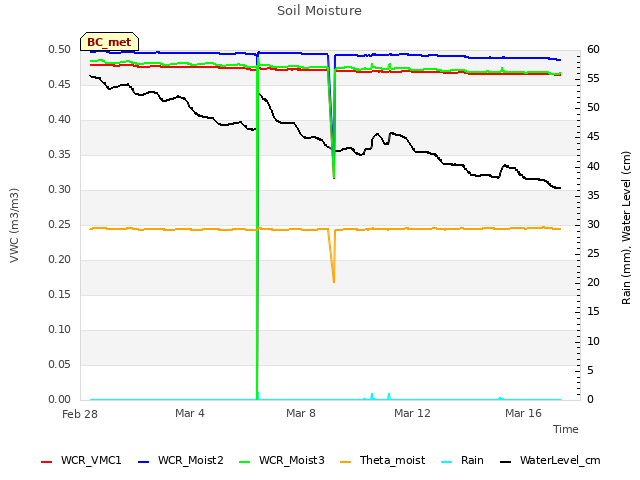

Explore the graph:Soil Moisture in a new window

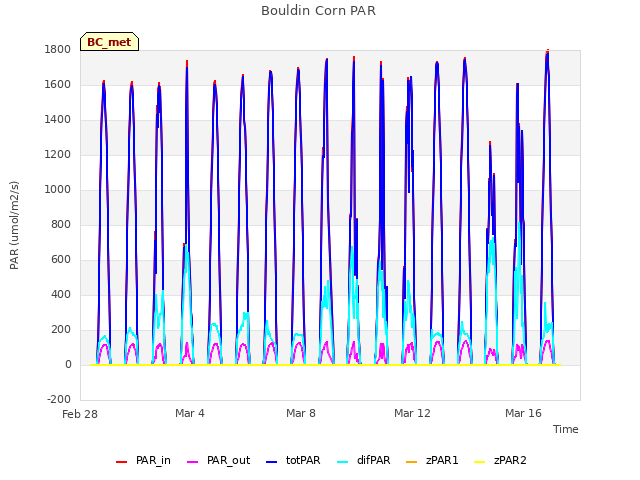

Explore the graph:Bouldin Corn PAR in a new window

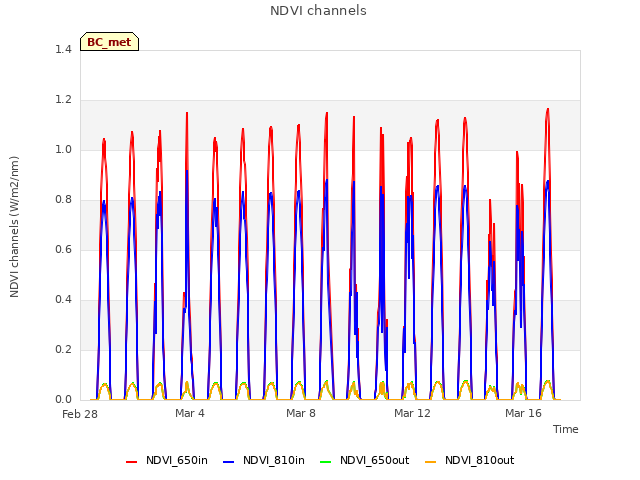

Explore the graph:NDVI channels in a new window

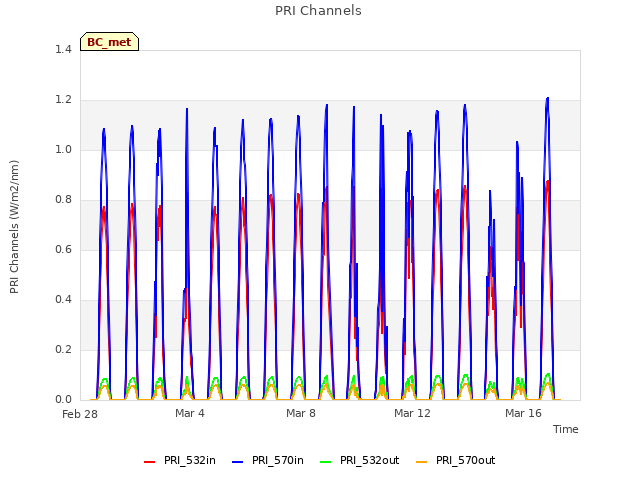

Explore the graph:PRI Channels in a new window

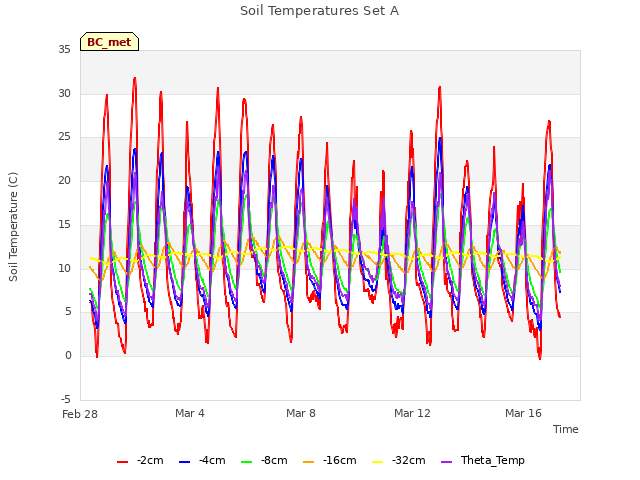

Explore the graph:Soil Temperatures Set A in a new window

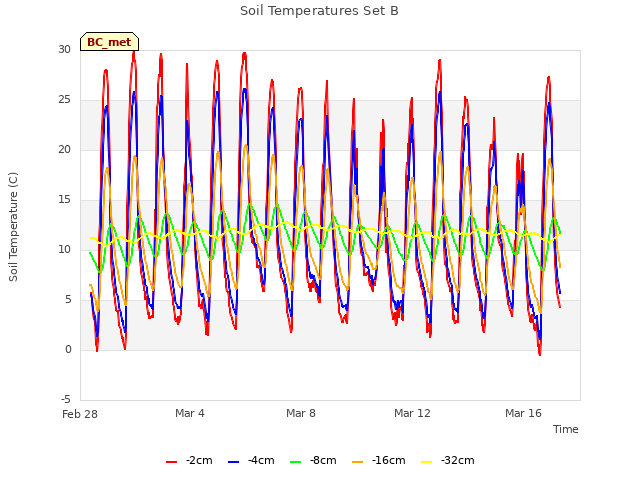

Explore the graph:Soil Temperatures Set B in a new window

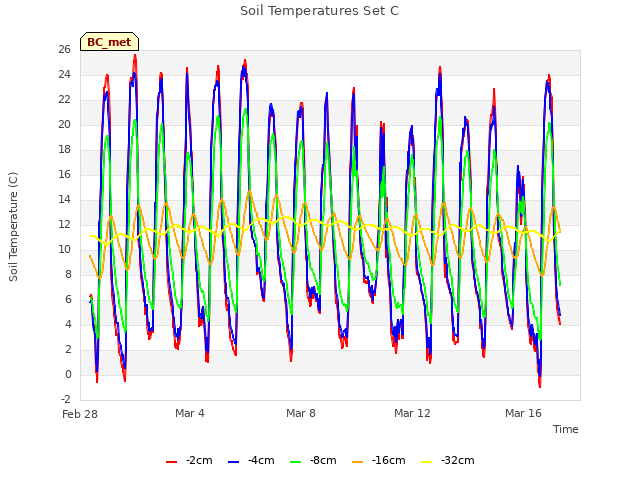

Explore the graph:Soil Temperatures Set C in a new window

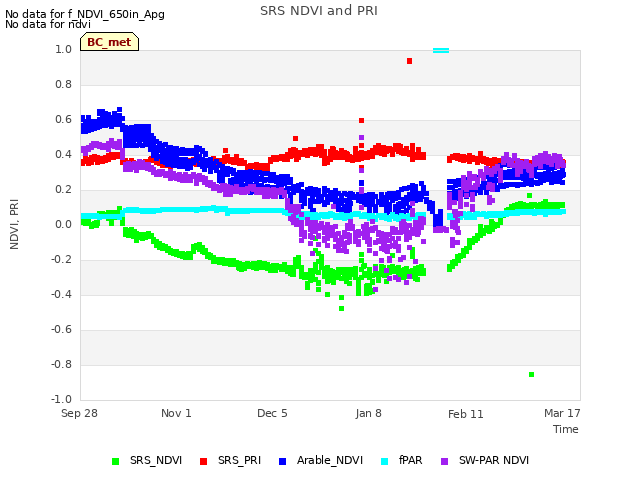

Explore the graph:SRS NDVI and PRI in a new window

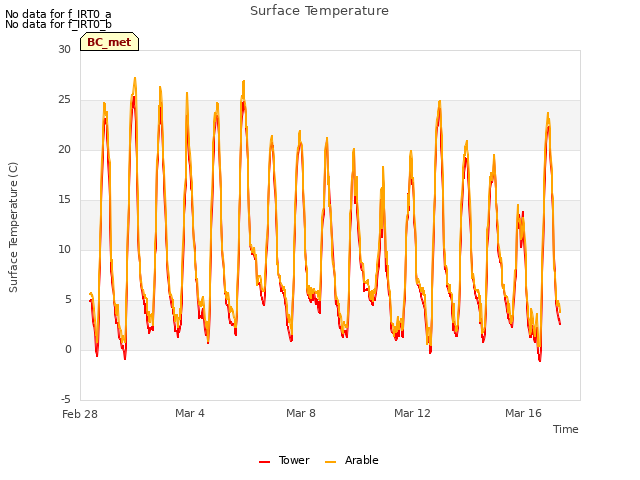

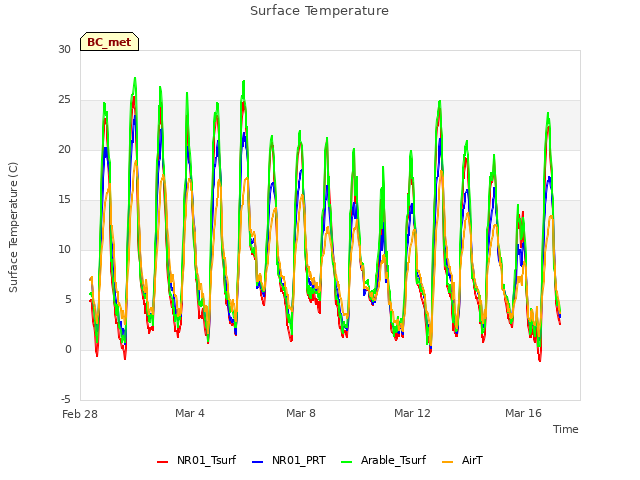

Explore the graph:Surface Temperature in a new window

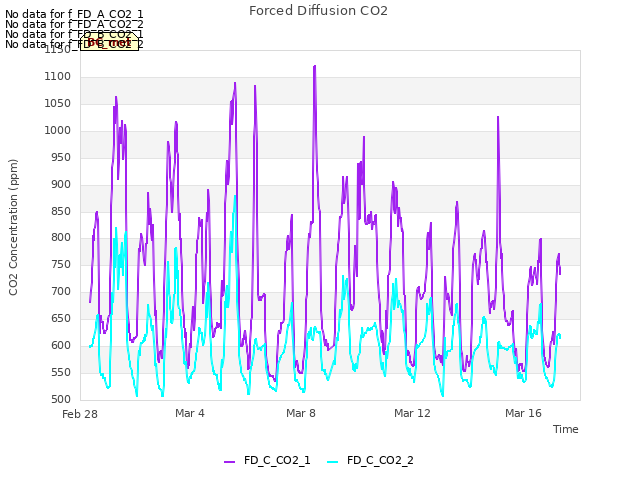

Explore the graph:Forced Diffusion CO2 in a new window

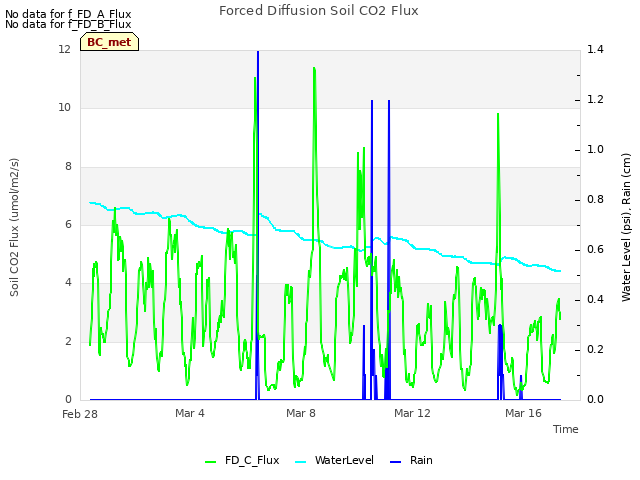

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Surface Temperature in a new window

5 BC_flux graphs found

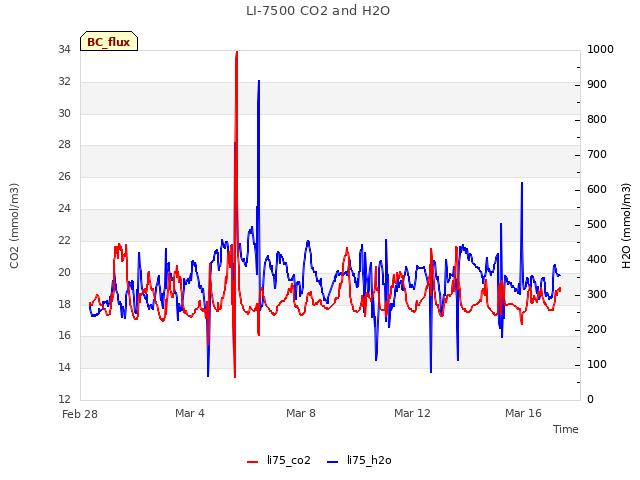

Explore the graph:LI-7500 CO2 and H2O in a new window

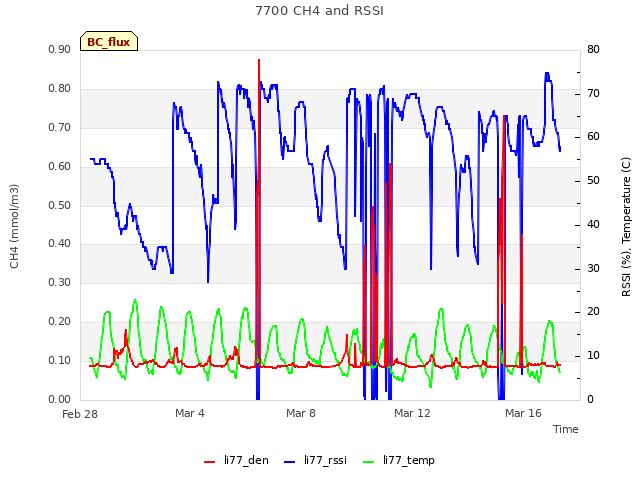

Explore the graph:7700 CH4 and RSSI in a new window

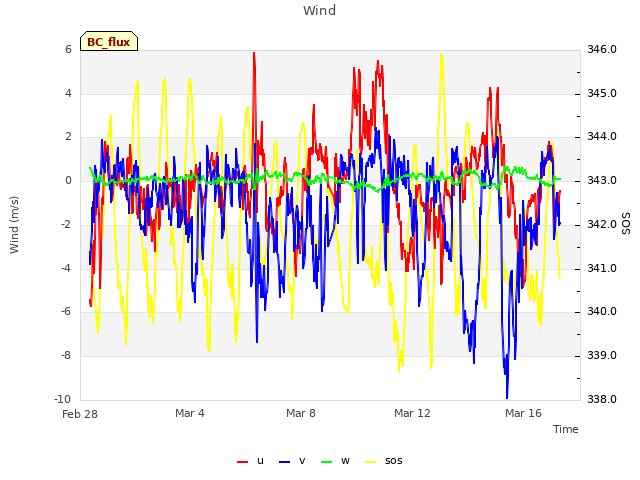

Explore the graph:Wind in a new window

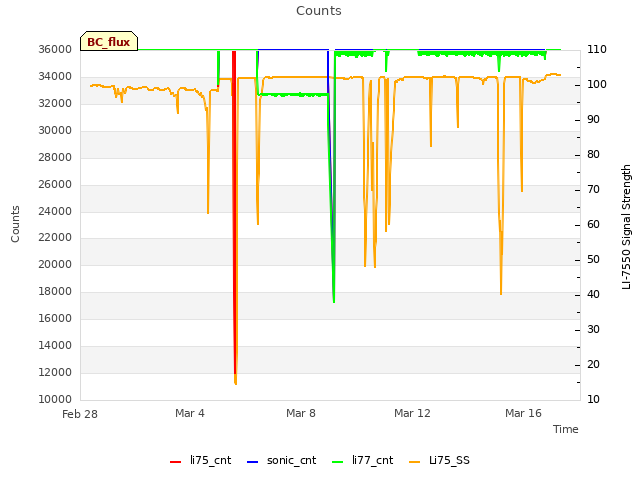

Explore the graph:Counts in a new window

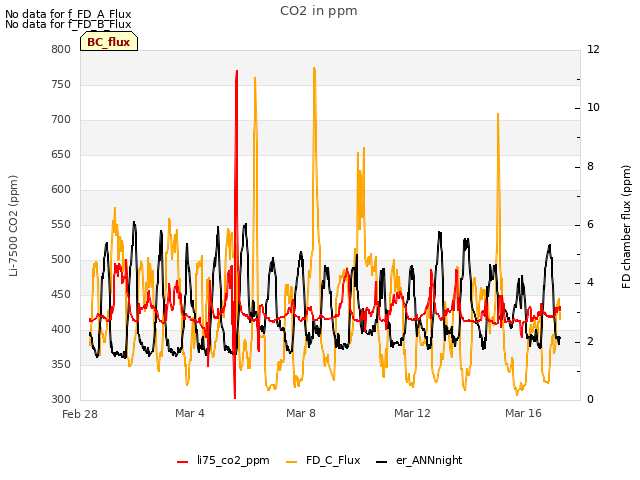

Explore the graph:CO2 in ppm in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BC_pa graphs found

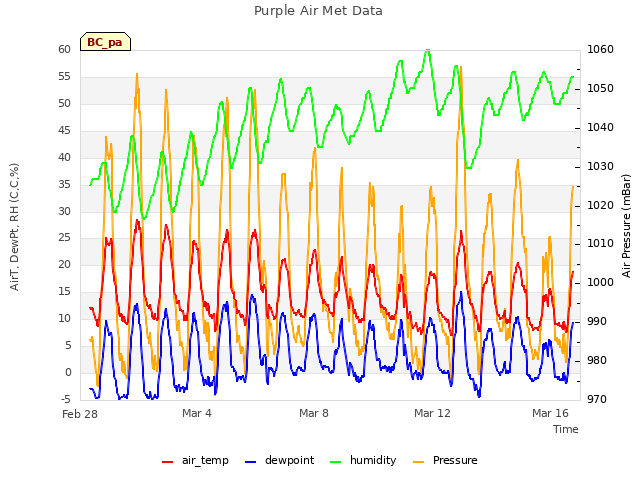

Explore the graph:Purple Air Met Data in a new window

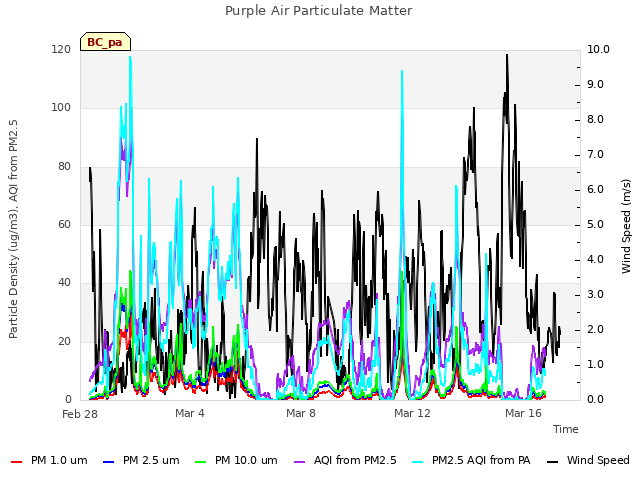

Explore the graph:Purple Air Particulate Matter in a new window

1 BC_arable graphs found

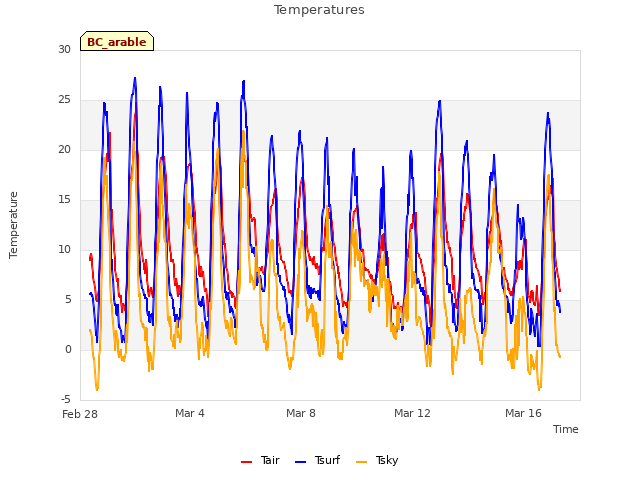

Explore the graph:Temperatures in a new window
