Sherman Wetland: 2020-08-11 08:50:00 (DOY 224)
Author: Daphne Szutu
Others: Metta

Summary: Permanent tower: Regular data collection/cleaning, water level still dropping, water sensors out of water, cleaned precip tipper--extra tips
Temporary tower: Regular data collection/cleaning

2020-08-11
Sherman Wetland

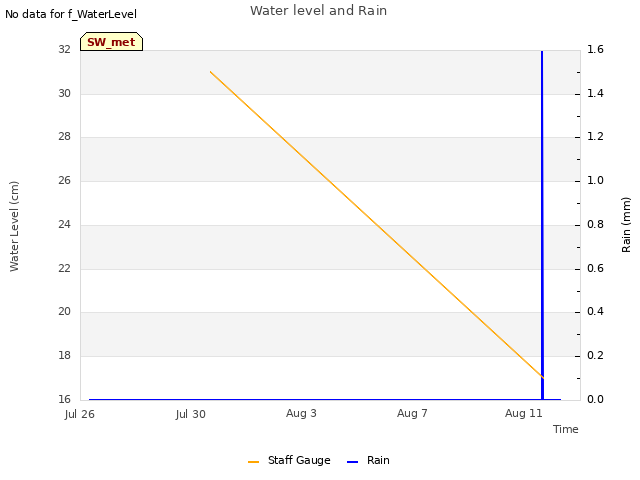

Metta and I arrived at 8:50 PDT. It was windy, sunny, and mostly clear, with low clouds to the west and north. The water level has gone down even moreâ€”you can see the channel outlines to the west of the tower. Most of the reeds were yellowing at the tips. Weeds are taking over the island west of the tower. The staff gauge read 17 cm.

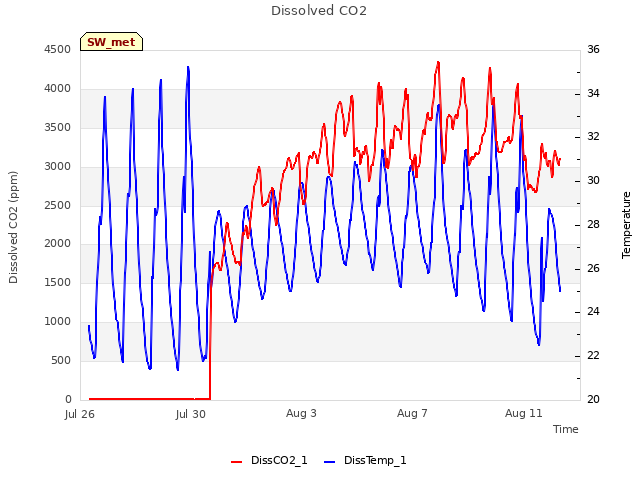

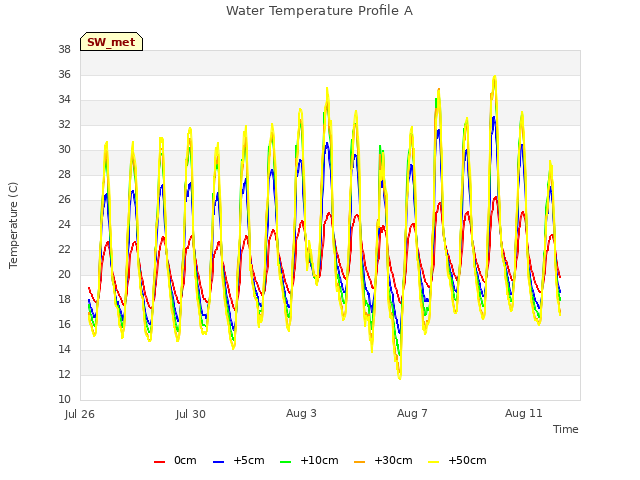

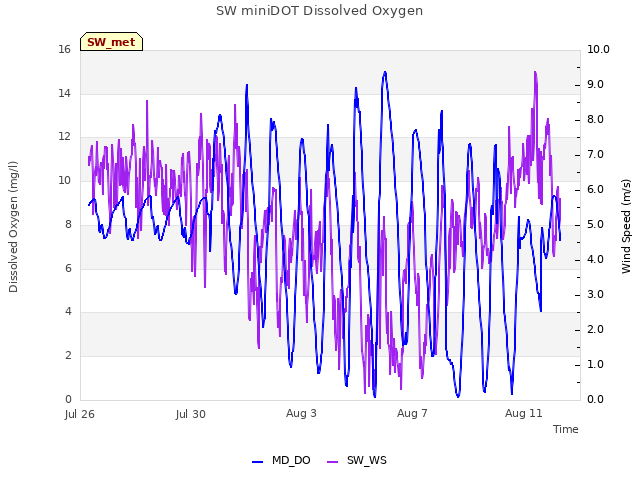

The eosGP and miniDOT were out of the water again. I lowered the eosGP slightly into the water, but the miniDOT was at the end of its leash. If the low water levels continue, we should swap in a longer string.

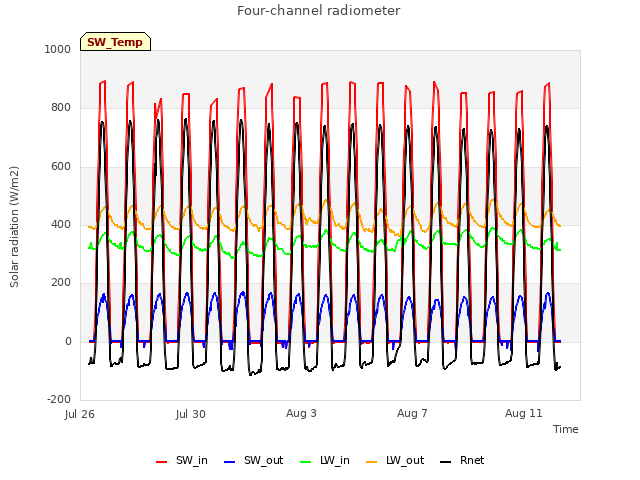

I downloaded met, camera, and USB GHG data. I topped off the wash reservoir and cleaned flux and rad sensors. I also cleaned out the precip funnel and tipper inside the bucketâ€”a lot of extraneous tips that need to be cleaned from the met data.

Next time I need a green scrubby pad to really clean the staff gauge. Scrubbing it with a rag makes a hole in the rag.

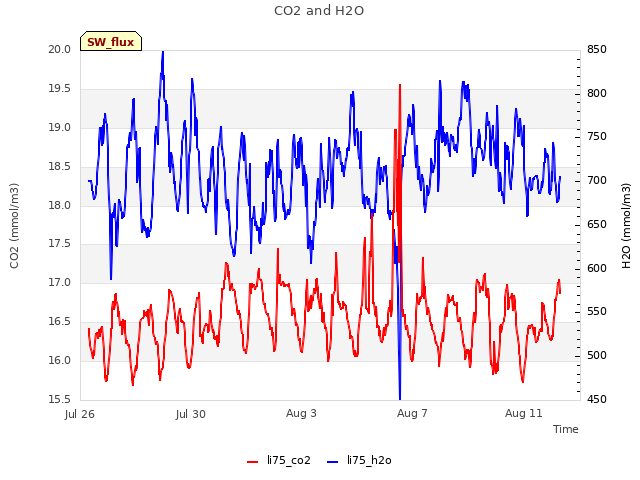

LI-7500 readings:
CO2 392ppm
H2O 708ppm
T 18.7C

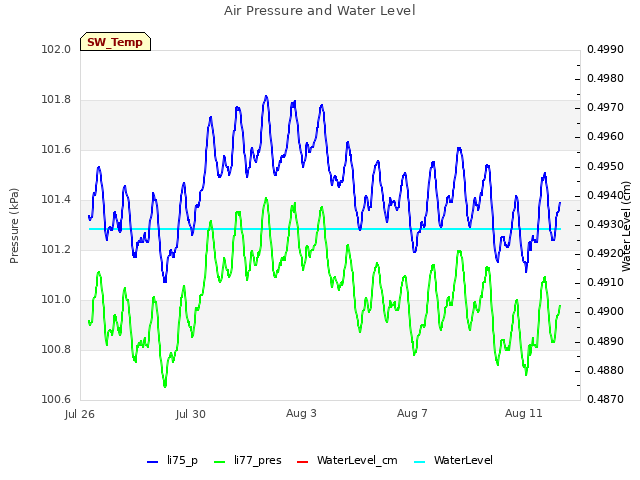

P 101.2kPa
SS 96--> 98 after cleaning

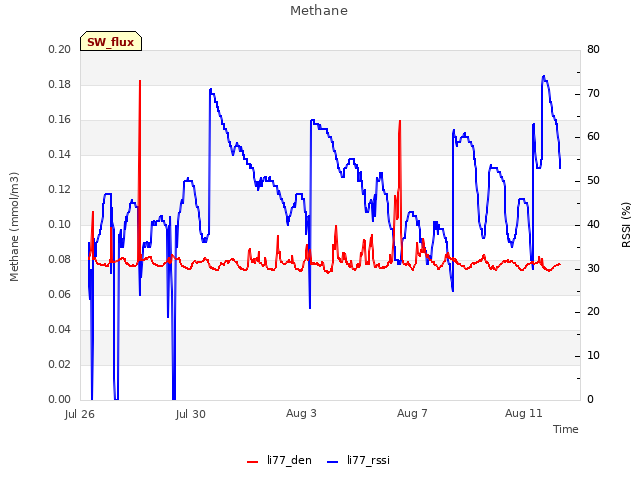

LI7700 readings:
CH4 1.83 ppm
RSSI 54--> 74 after cleaning
We left at 9:20 PDT.

2020-08-11
Sherman Wetland Temporary Tower

Metta and I arrived at 9:30 PDT. It was windy, sunny, and mostly clear, with low clouds to the west and north. There was no water under or around the tower. About Â½ of the reeds have yellowing tips. There were a clump of wasps in the met box, but they were cold and not moving much.

I collect met, cam, and USB GHG data. I made sure to clear the picam after download this time. I cleaned flux and rad sensors. The wash reservoir was full.

LI-7500 readings:
CO2 400pm
H2O 677ppm
T 19.9C
P 101.5kPa

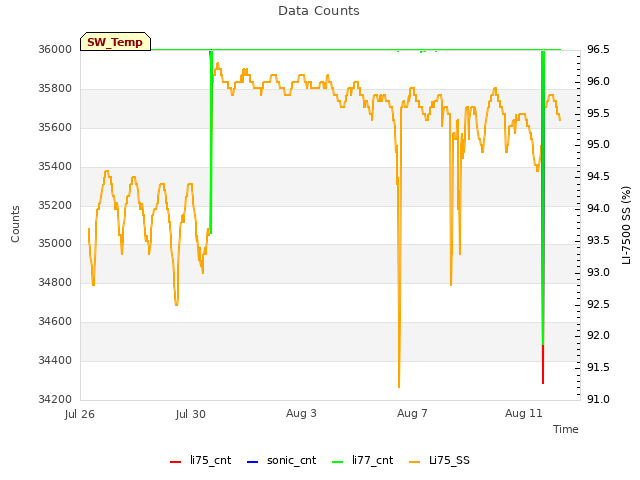

SS 94--> 95 after cleaning
LI7700 readings:
CH4 1.92ppm
RSSI 65--> 71 after cleaning

We left at 10:00 PDT.

0 photos found

7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

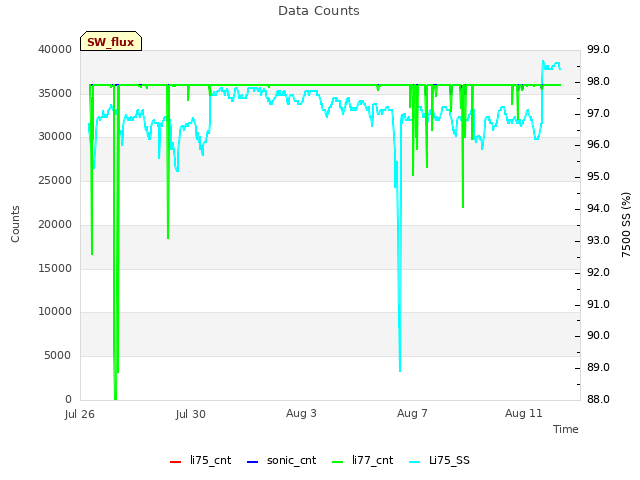

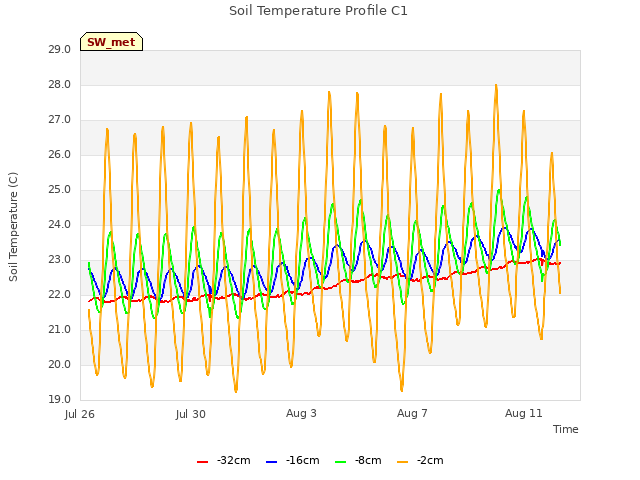

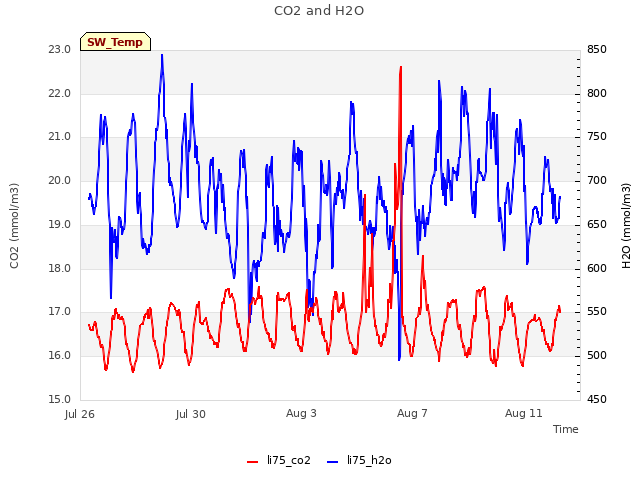

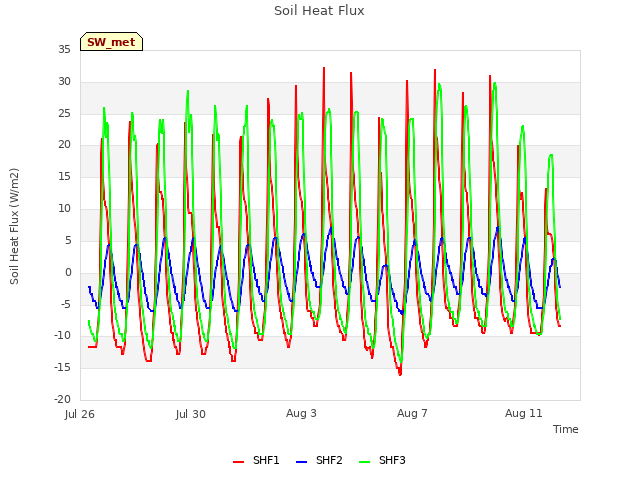

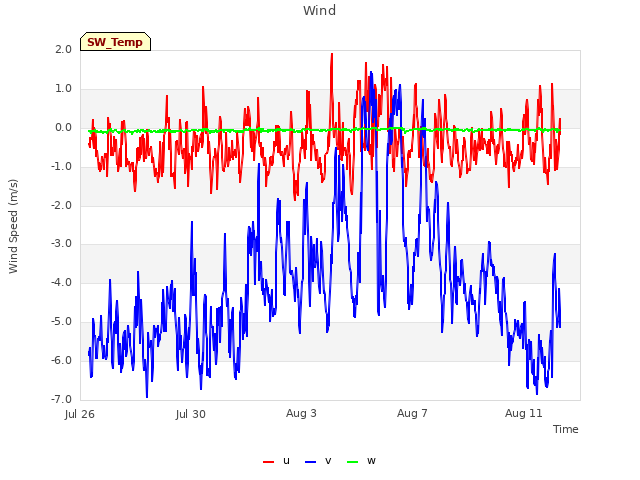

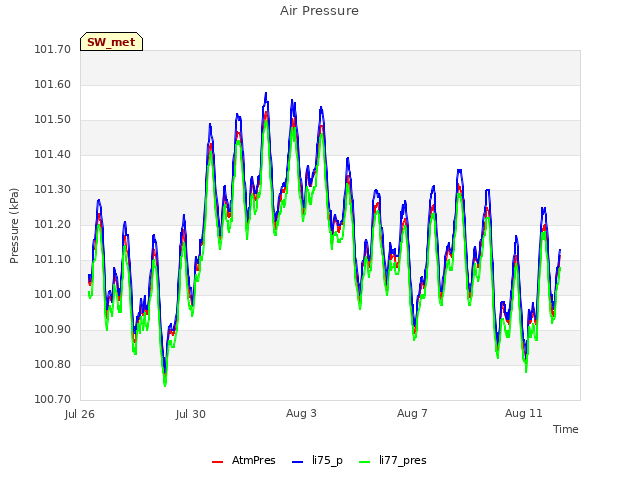

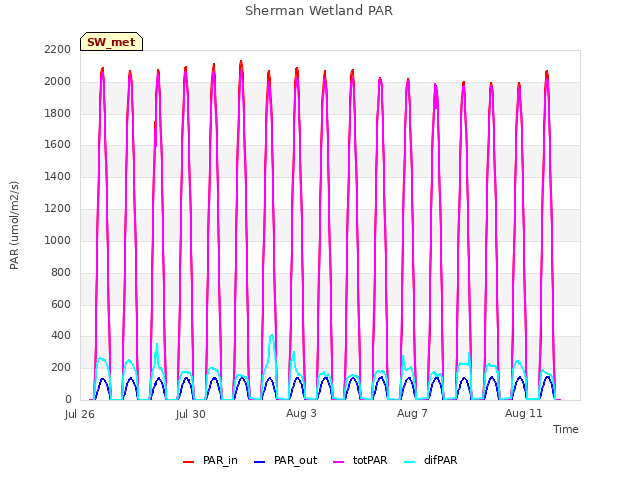

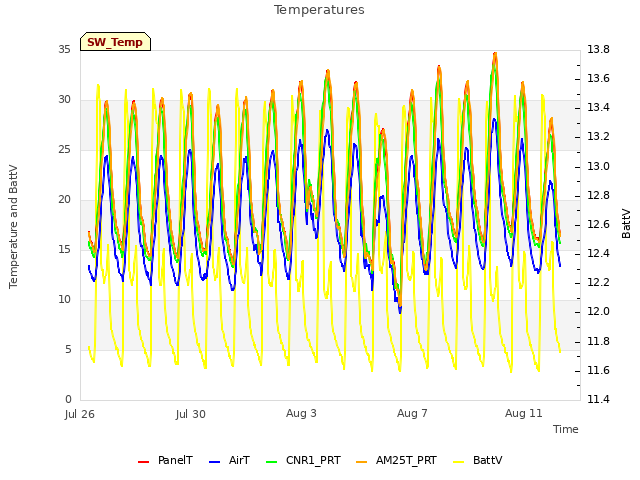

16 SW_met graphs found
