Bouldin Alfalfa: 2020-08-11 13:25:00 (DOY 224)
Author: Daphne Szutu
Others:

Summary: Quick stop to rebury zPAR sensor

2020-08-11
Bouldin Alfalfa

I arrived at 13:25 PDT. It was a mild and breezy day. It smelled faintly like a fish shop, until I realized someone had left their fish leftovers of bones and guts on top of the met box (i.e., a bird on the scaffolding or tower post above the met box). I rinsed most of it away. There were no bales on the field, and the alfalfa was about 5-10cm tall. There were wasps flying around the SE post of the tower, but I didn’t see any nests.

This was just a quick stop to check on the zPAR sensor. The Arable photos showed it had been dragged out again by the raking. I buried the cable again, this time leaving less slack in the cable near the sensor head, so the sensor is in a slightly different position now (about 5cm closer to the tower). I checked the datalogger numbers: zPAR was 9 and PARin was 16. zPAR seemed a little low given that the sensor was mostly exposed.

I cleaned the solar panels and left some mothballs in the met box for the ants there. The met and GHG numbers looked ok, and the wash reservoir was full. The Apogee NDVI numbers seemed reasonable. I cleaned the 7700.

LI-7500 readings:
CO2 386ppm
H2O 764ppm
T 28.5C
P 101.1kPa
SS 101
LI7700 readings:
CH4 1.90ppm
RSSI 36-->78 after cleaning

I left at 14:05.

Next Mowing: 2020-09-05

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

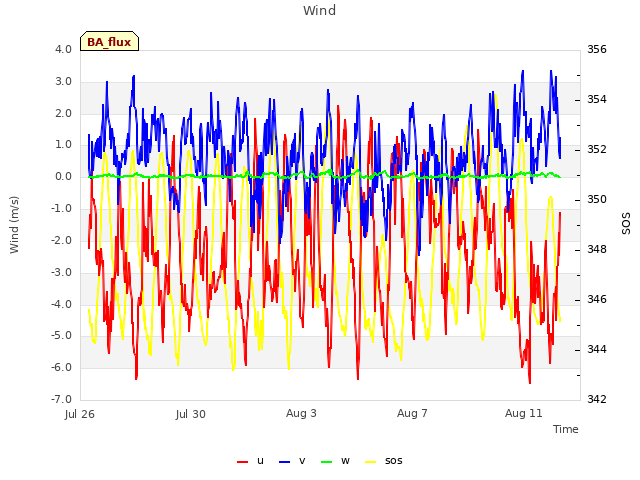

Explore the graph:Wind in a new window

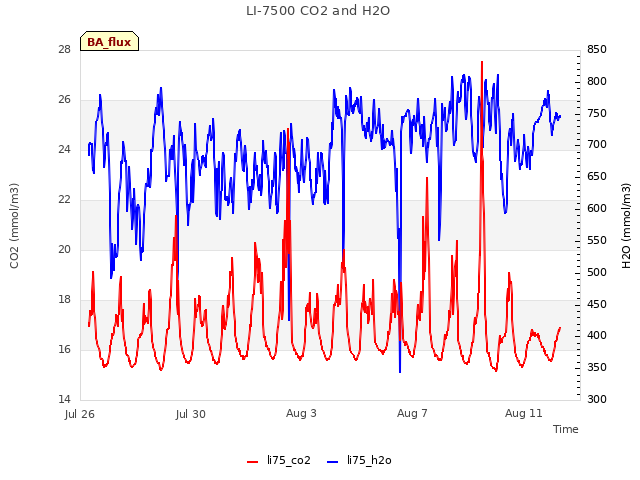

Explore the graph:LI-7500 CO2 and H2O in a new window

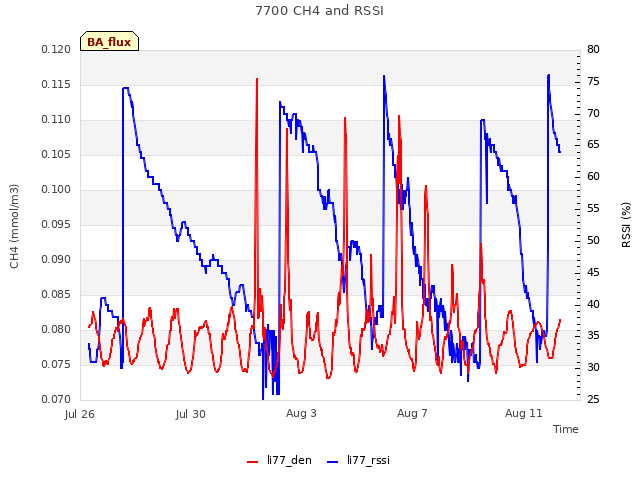

Explore the graph:7700 CH4 and RSSI in a new window

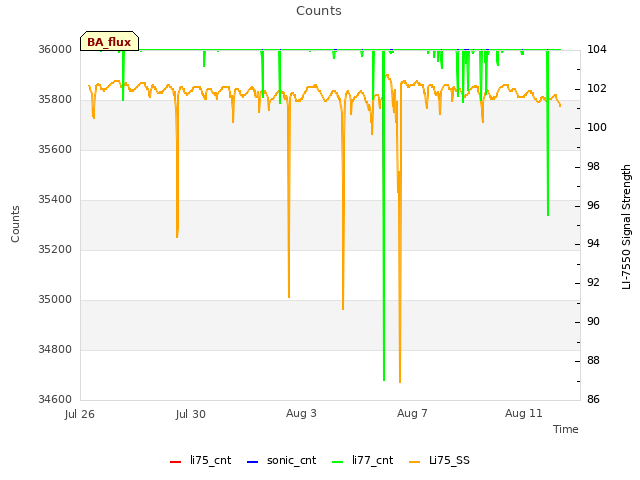

Explore the graph:Counts in a new window

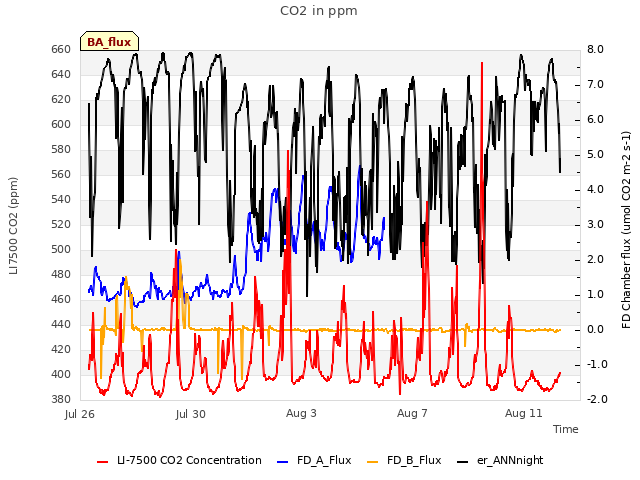

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

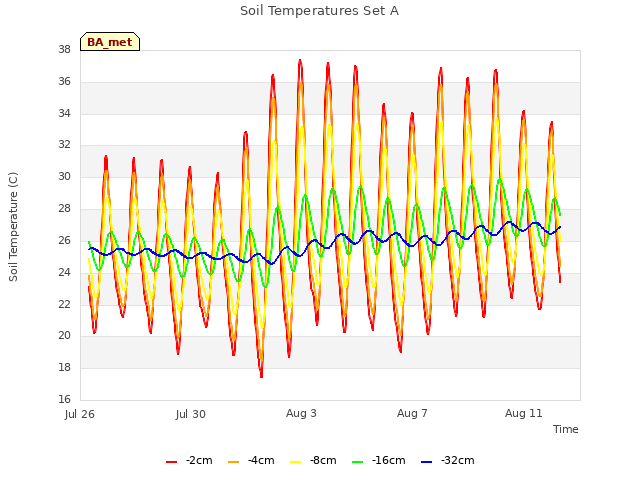

Explore the graph:Soil Temperatures Set A in a new window

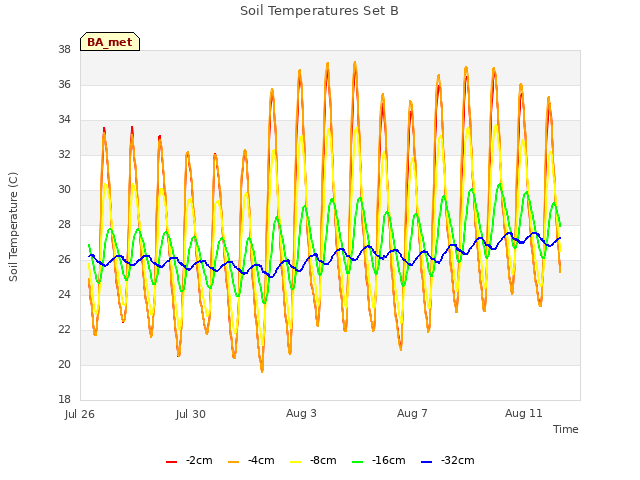

Explore the graph:Soil Temperatures Set B in a new window

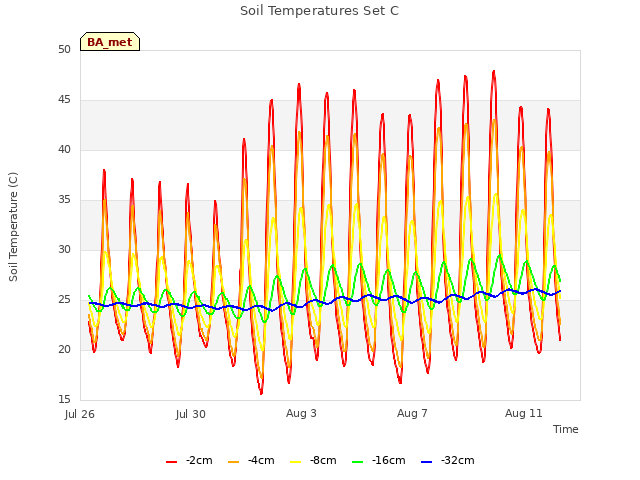

Explore the graph:Soil Temperatures Set C in a new window

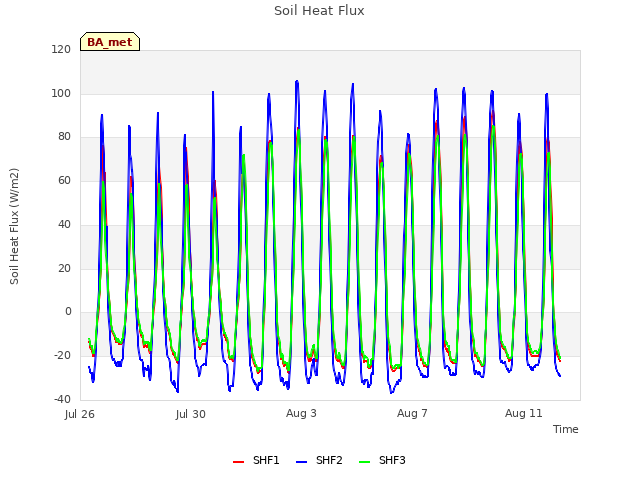

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

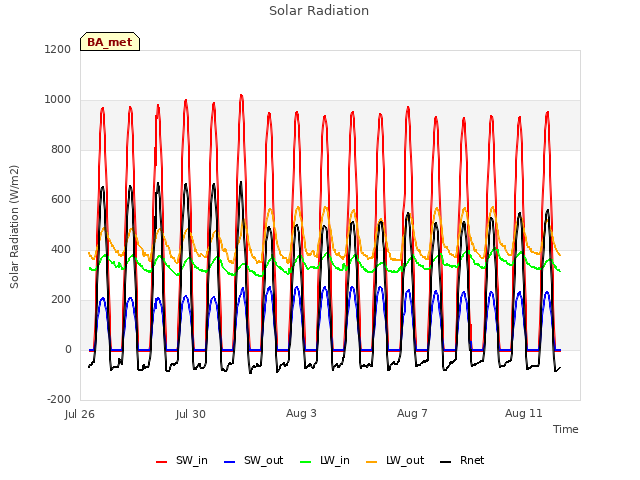

Explore the graph:Solar Radiation in a new window

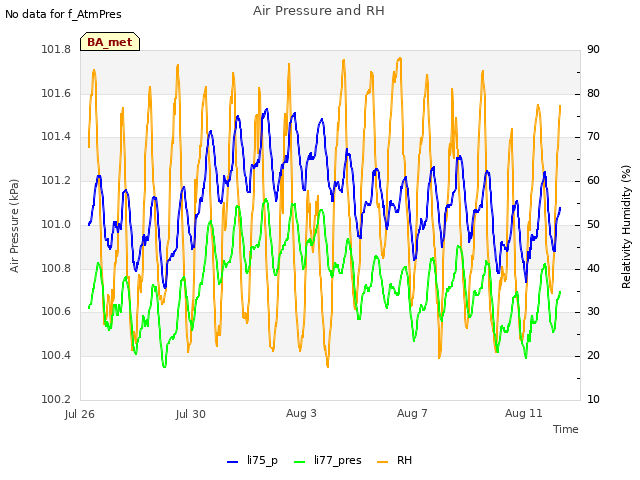

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

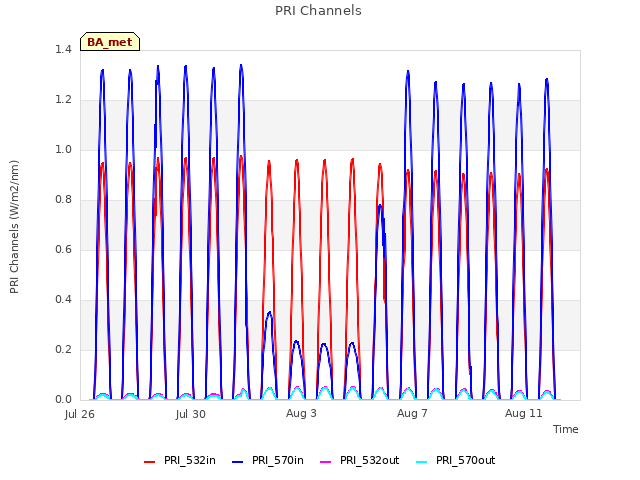

Explore the graph:PRI Channels in a new window

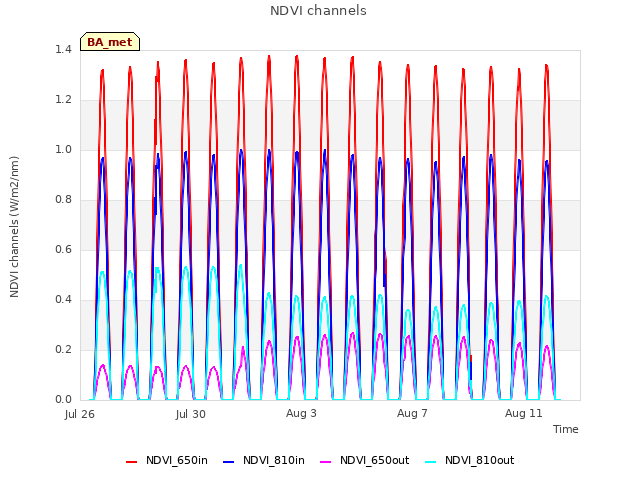

Explore the graph:NDVI channels in a new window

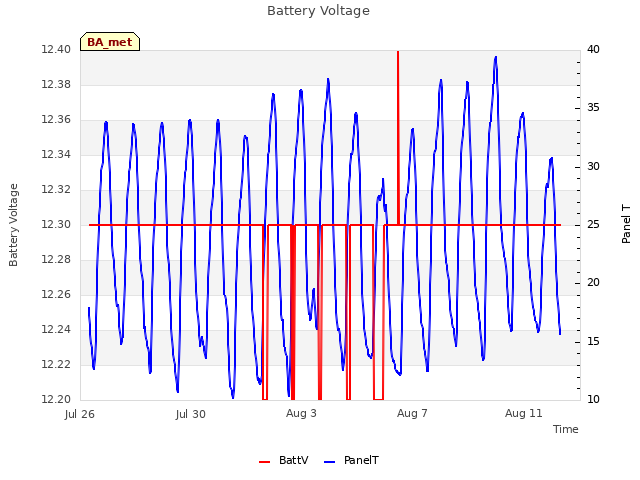

Explore the graph:Battery Voltage in a new window

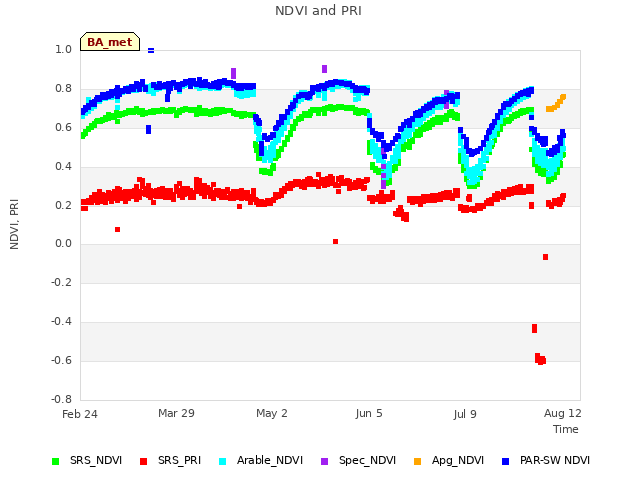

Explore the graph:NDVI and PRI in a new window

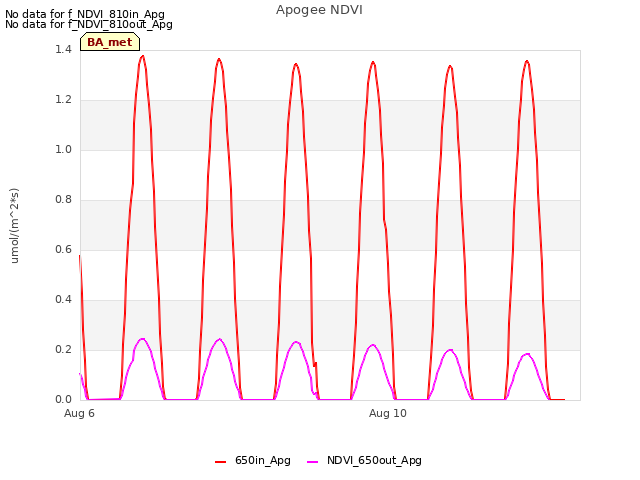

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

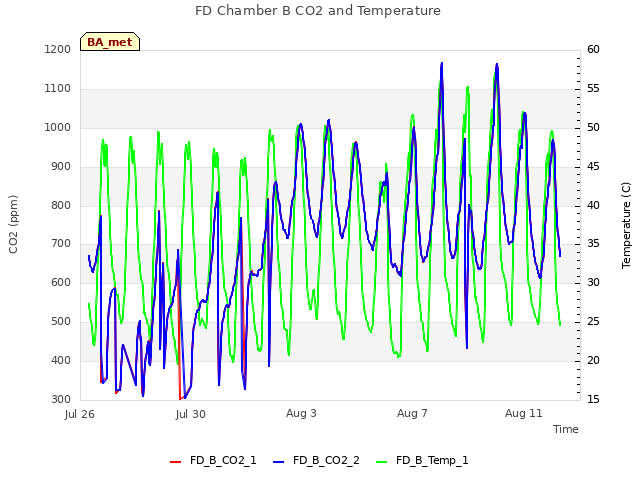

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

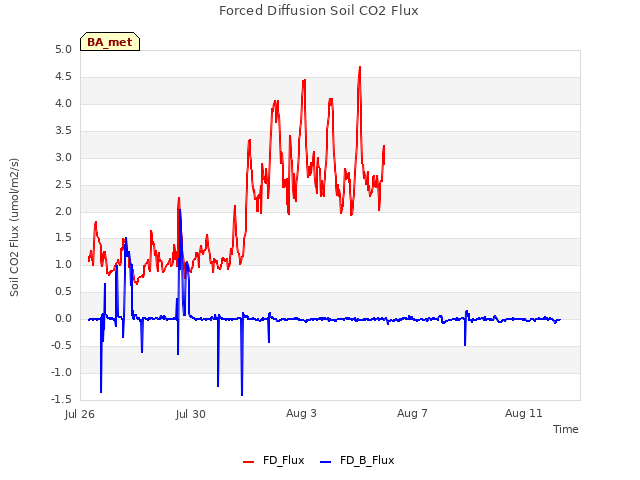

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

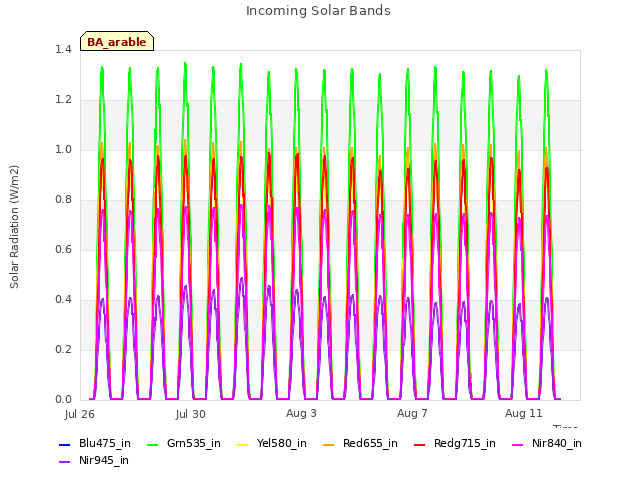

Explore the graph:Incoming Solar Bands in a new window

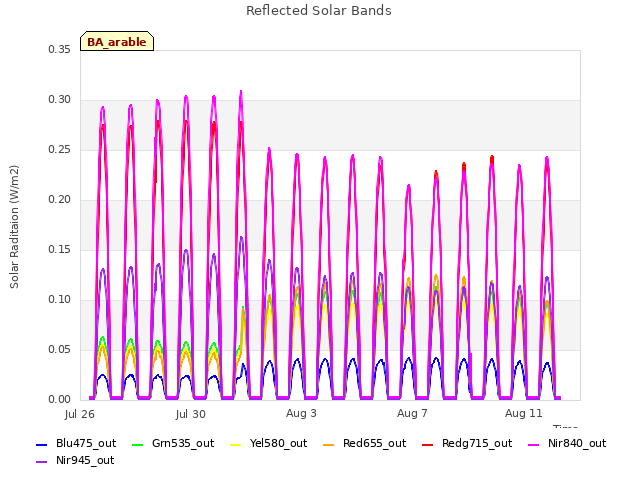

Explore the graph:Reflected Solar Bands in a new window

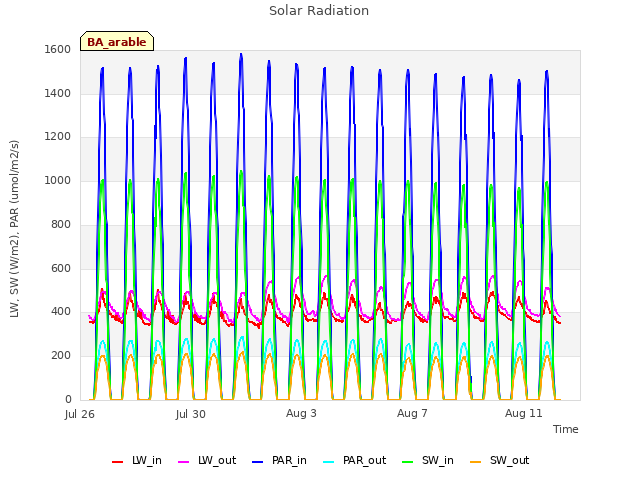

Explore the graph:Solar Radiation in a new window

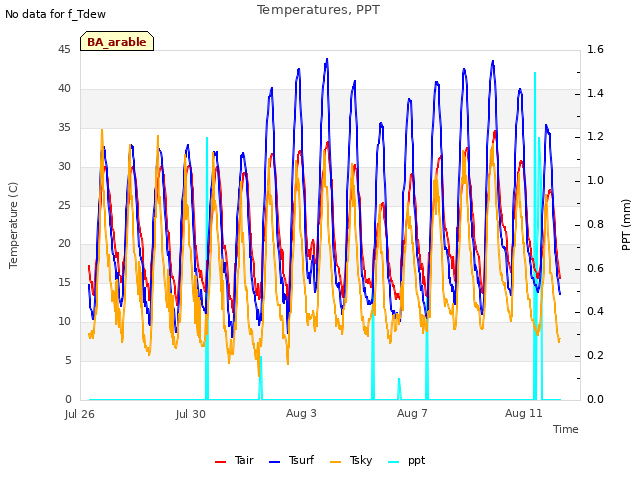

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

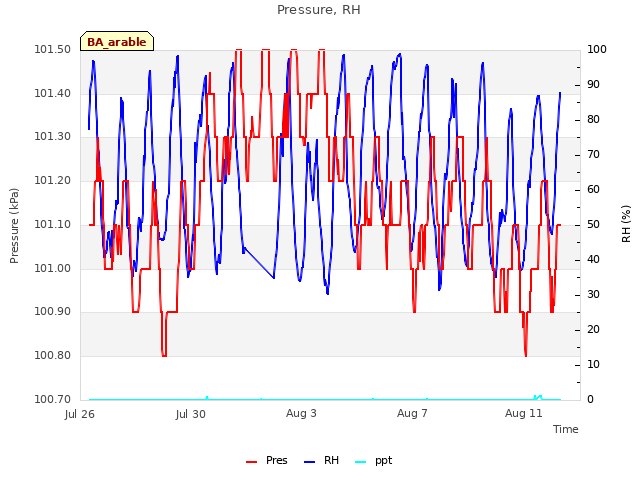

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Explore the graph:Energy in a new window

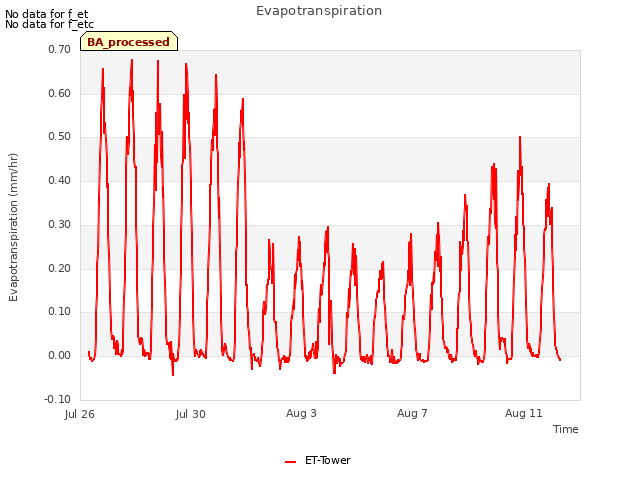

Explore the graph:Evapotranspiration in a new window
