West Pond: 2020-05-01 11:40:00 (DOY 122)
Author: Daphne Szutu
Others: Mike

Summary: Regular data collection/cleaning, breezy, water level is up a lot, missing last few days of camera data, first site visit in a month

2020-05-01
West Pond

Mike and I arrived at 11:40 PDT. It was a warm day with a little breeze. The wetland is starting to green up with dark-green tules poking up out of the litter. The main gate was locked, but we have the right combo to open it. The dirt road has also grown in a lot—I parked by the EP inlet. This is our 7th week of sheltering in place, with at least 4 more weeks to go.

Surprisingly, the water level was way higher, 55cm. It’s come up about 50cm in the last month. I took some videos and photos with a 360 camera.

There were many ants and ant eggs in the datalogger box. I let them disperse for a while while I checked the inlets. Bryan said he had turned them on because we were complaining about the low water level, and the levee work will probably not happen this spring/summer. He said he left them open, and if they were still open I could close them. The EP inlet was closed already. The WP inlet was open but no water was flowing, so I closed it.

I downloaded met, camera, and USB GHG data. I reset the 7550 box because we had seen consistently low 7700 counts here, although there was no flashing time sync error. The camera had run out of storage space because it had started taking photos multiple times a minute on 2020-04-28 so we are missing the last few days of photos. The reservoir was 1/3 empty; I refilled it. I cleaned flux and rad sensors and left some mothballs in the datalogger box.

LI-7500 readings:
CO2 411ppm
H2O 312ppm
T 25.8C
P 101.8kPa
SS 95--> forgot to write after cleaning
LI7700 readings:
CH4 1.99ppm
RSSI 31--> 75 after cleaning

We left at 12:25 PDT.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

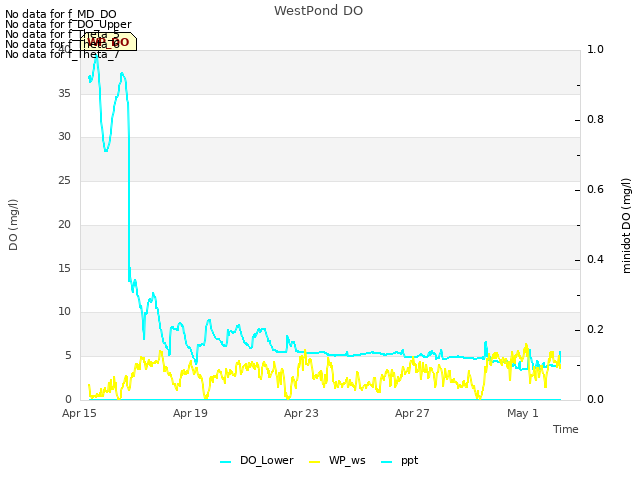

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

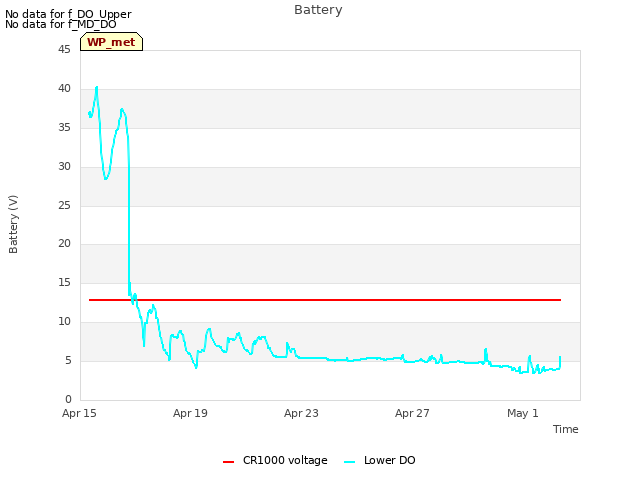

Explore the graph:Battery in a new window

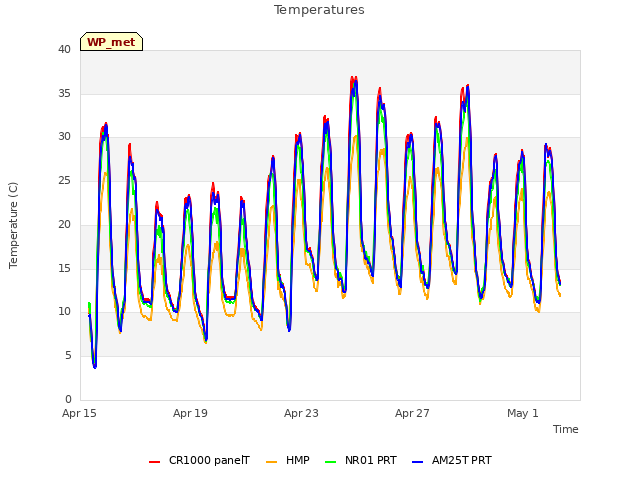

Explore the graph:Temperatures in a new window

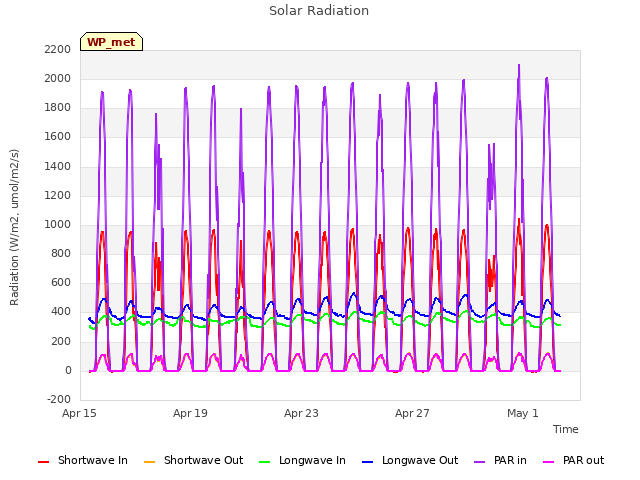

Explore the graph:Solar Radiation in a new window

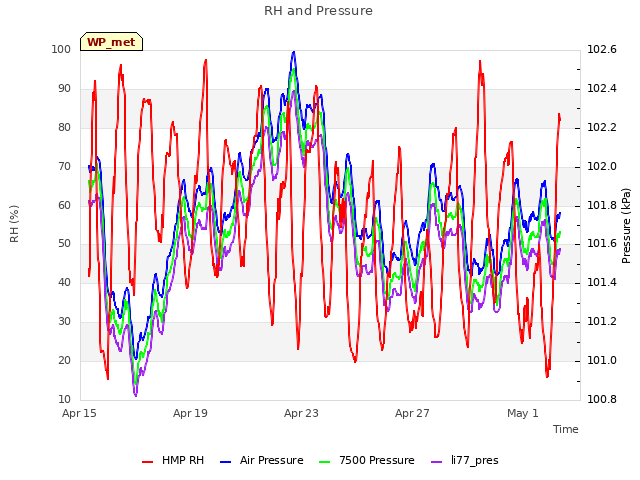

Explore the graph:RH and Pressure in a new window

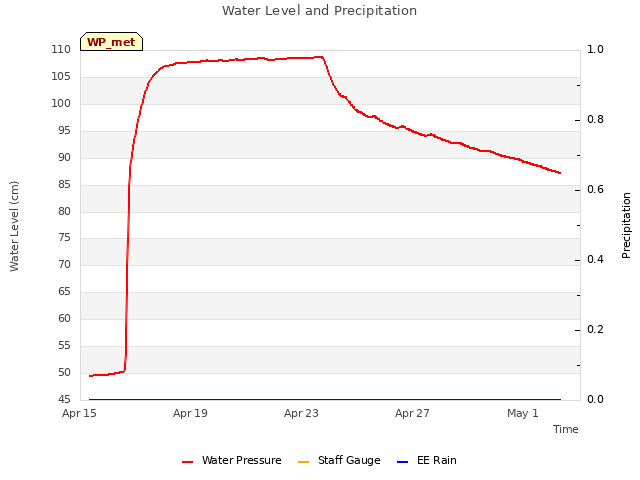

Explore the graph:Water Level and Precipitation in a new window

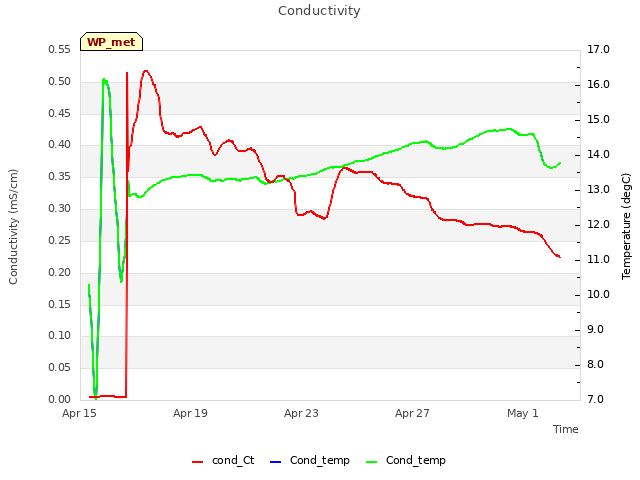

Explore the graph:Conductivity in a new window

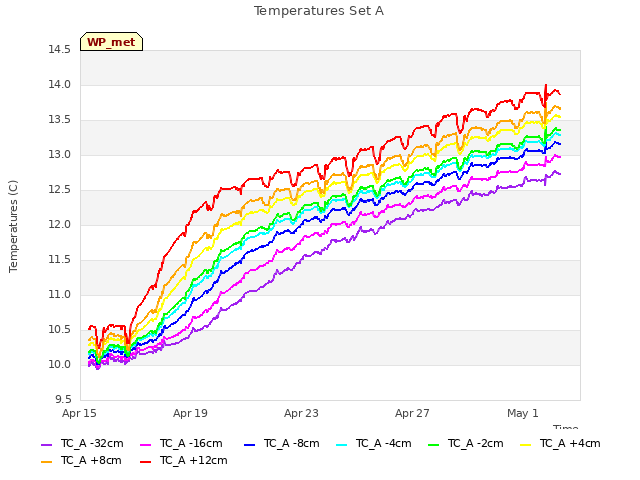

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

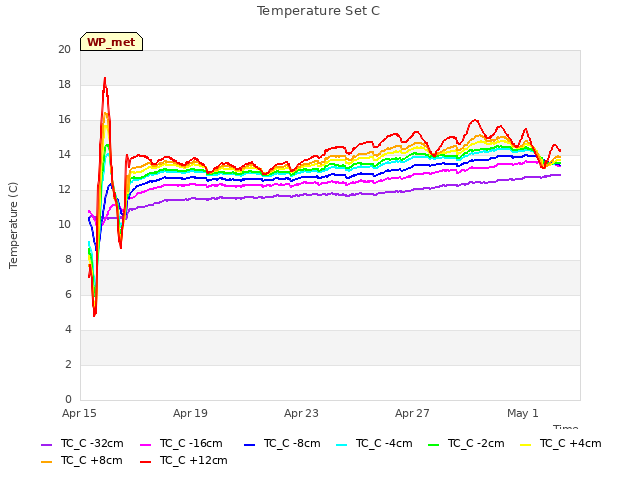

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

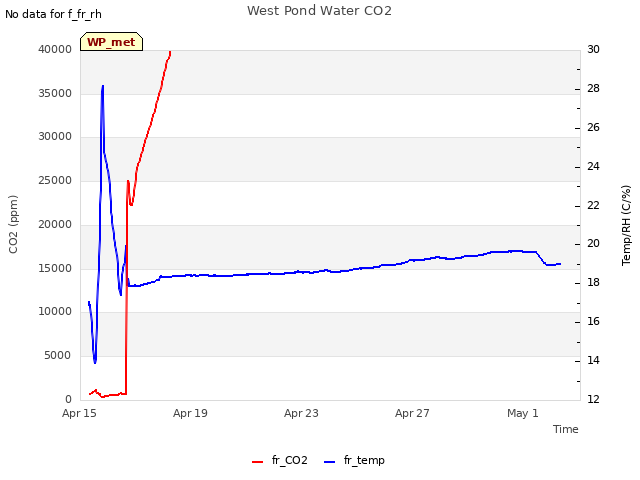

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

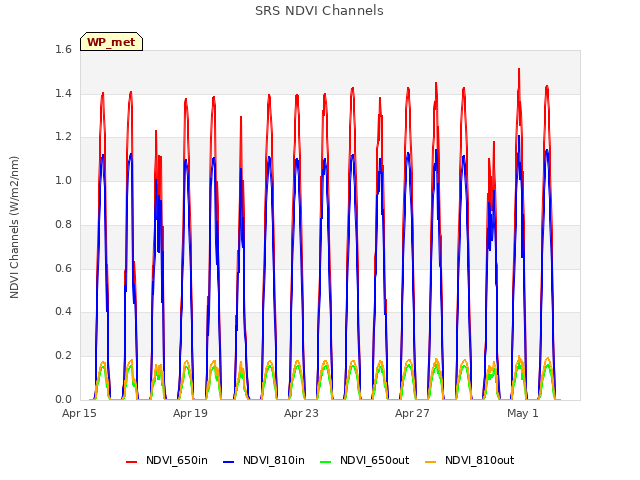

Explore the graph:SRS NDVI Channels in a new window

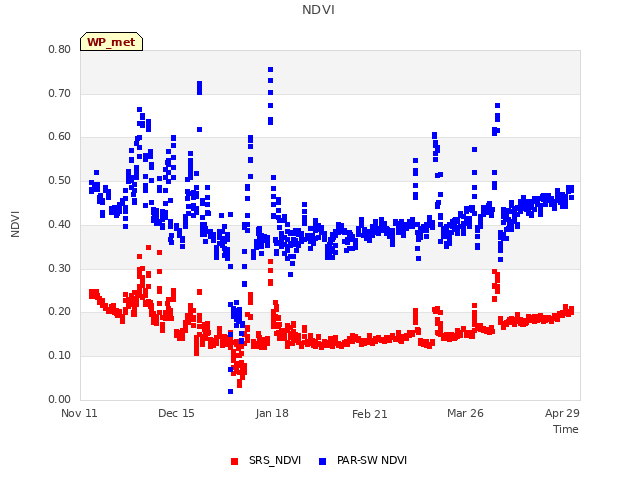

Explore the graph:NDVI in a new window

5 WP_flux graphs found

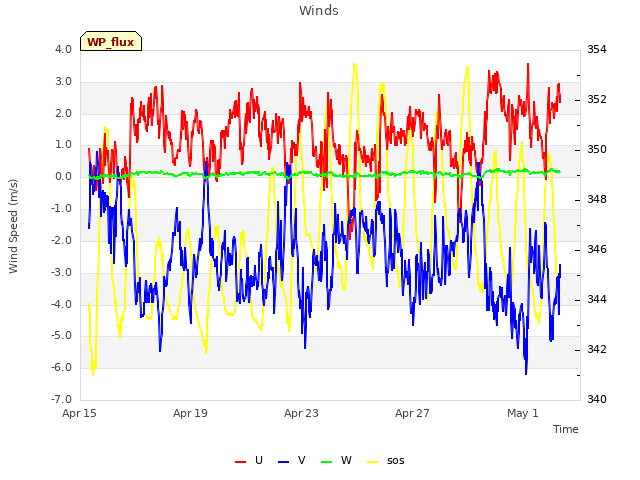

Explore the graph:Winds in a new window

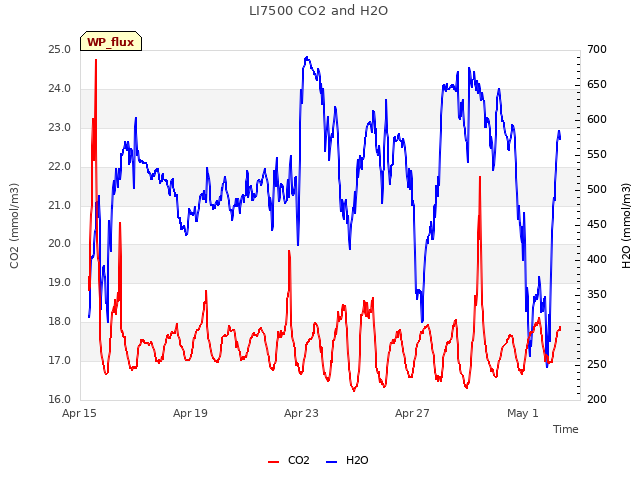

Explore the graph:LI7500 CO2 and H2O in a new window

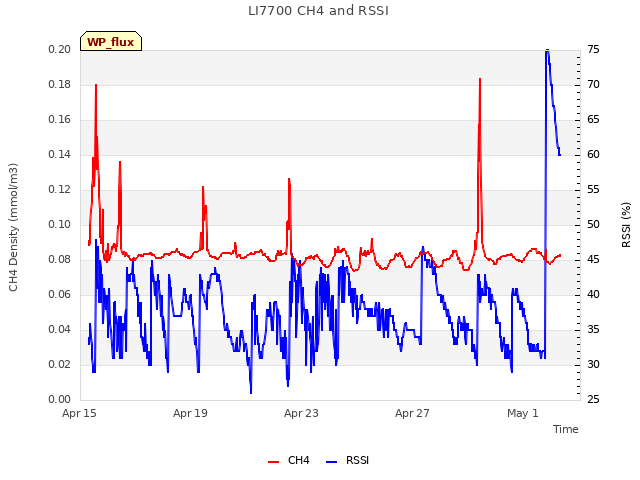

Explore the graph:LI7700 CH4 and RSSI in a new window

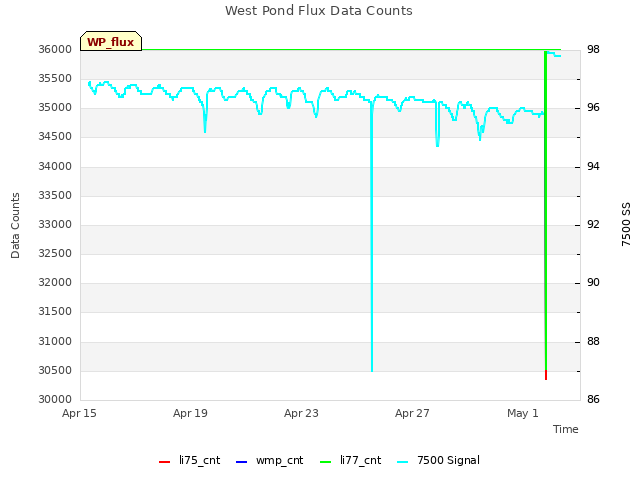

Explore the graph:West Pond Flux Data Counts in a new window

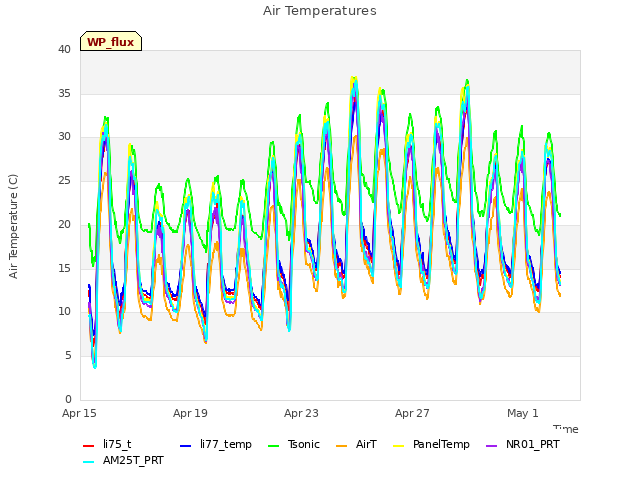

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

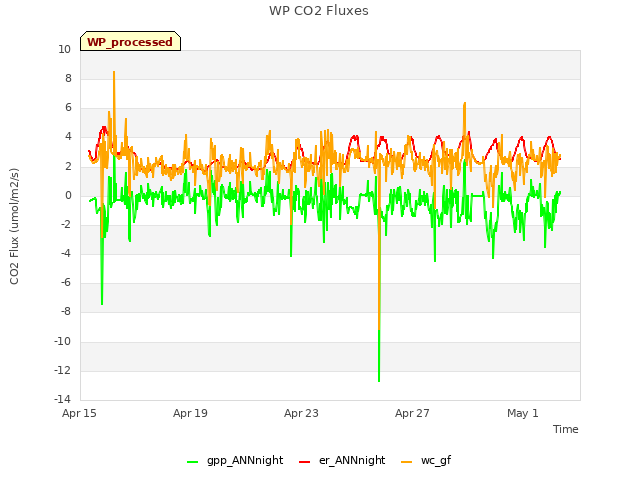

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
