East End: 2019-11-14 13:20:00 (DOY 318)
Author: Daphne Szutu
Others: Alex

Summary: Regular data collection/cleaning, downloaded miniDOT, collected last batch of litter bags

2019-11-14
East End

Alex and I arrived at 13:20. It was an overcast, cool, and breezy day, with constant cattail fluff eddies going past the tower. The wetland is mostly brown. The water level was 34 cm.

Alex got in the wetland to look for their last batch of litter bags. The pathways had all grown in, so it was difficult to find the rods. [Alex – more details]

I downloaded met, USB GHG, camera, and miniDOT data. I swapped the miniDOT desiccant and cleaned the flux and rad sensors. The wash reservoir was mostly empty; I refilled it.

LI-7500 readings:
CO2 323ppm
H2O 766ppm
T 19.2C
P 101.7kPa
SS 66--> 98
LI7700 readings:
CH4 1.97ppm
RSSI 43--> 81 after cleaning

I left at 14:05 to head to EP and WP. Ariane and I came back at 16:00 to pick up Alex and the litterbags. We chatted a bit with Bruce, waved to Jaime as he drove by, and left at 17:10 right as it was getting dark.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

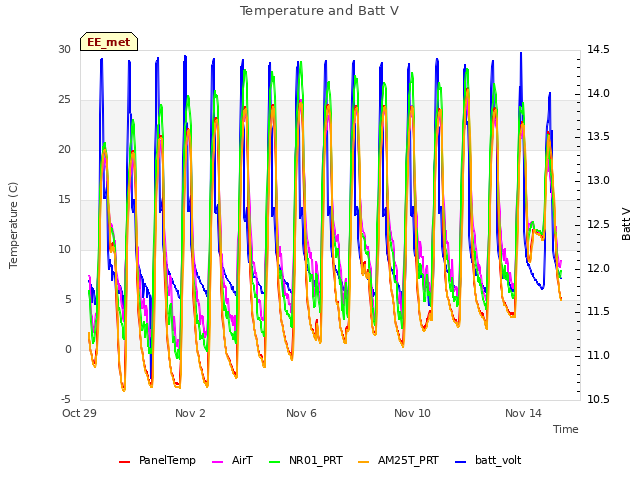

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

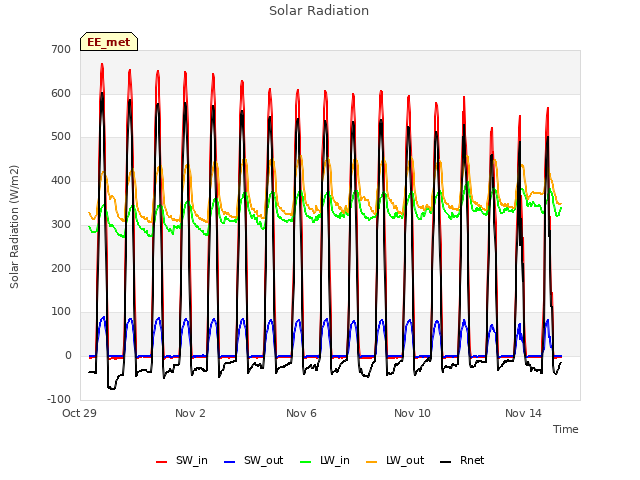

Explore the graph:Solar Radiation in a new window

Explore the graph:PAR in a new window

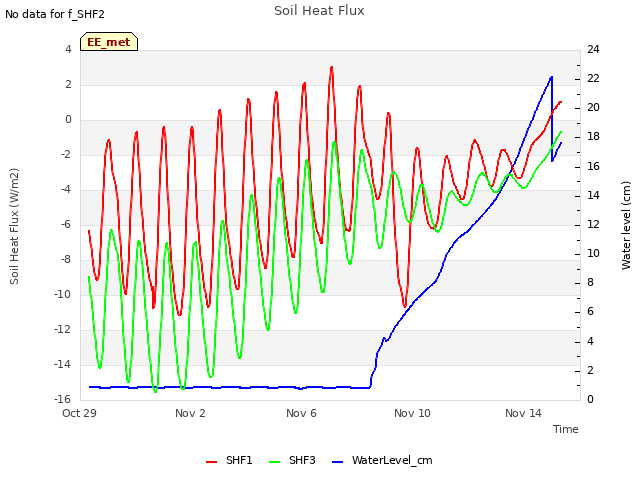

Explore the graph:Soil Heat Flux in a new window

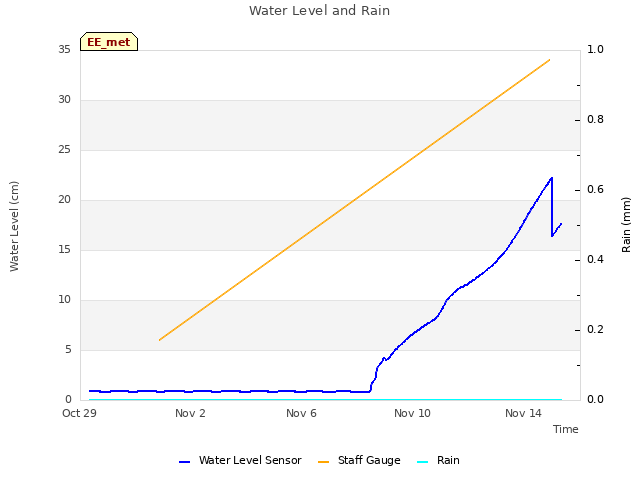

Explore the graph:Water Level and Rain in a new window

Explore the graph:Soil/Water Temperature Set 1 in a new window

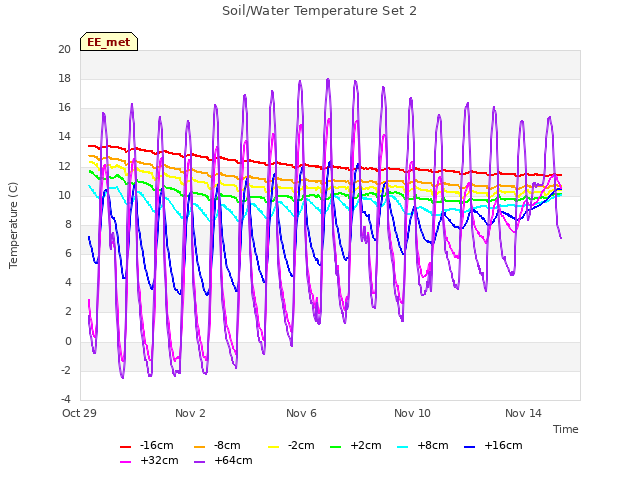

Explore the graph:Soil/Water Temperature Set 2 in a new window

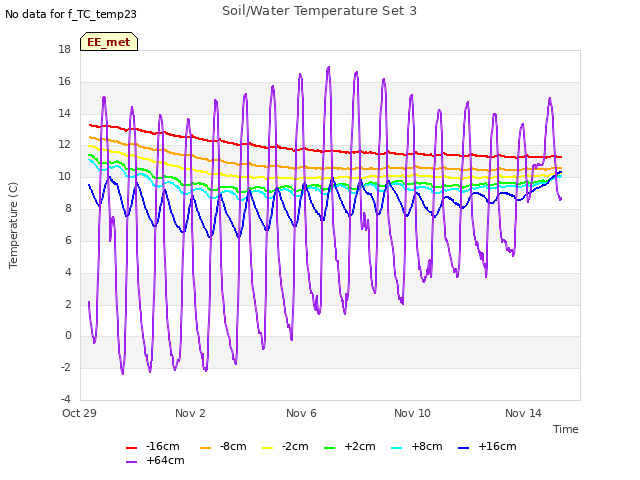

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

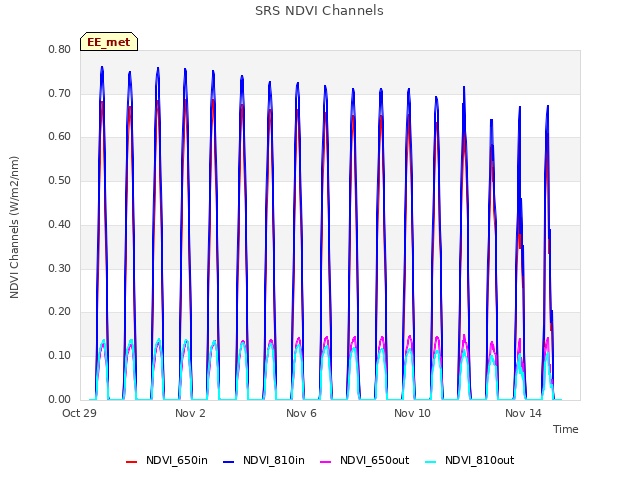

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:NDVI in a new window

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

Explore the graph:Wind Speeds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

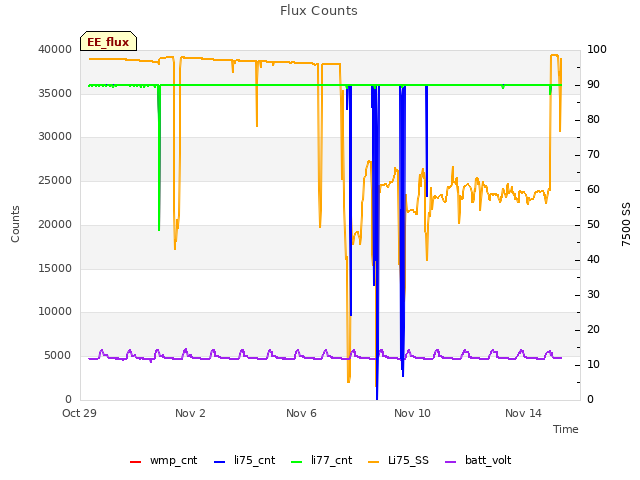

Explore the graph:Flux Counts in a new window

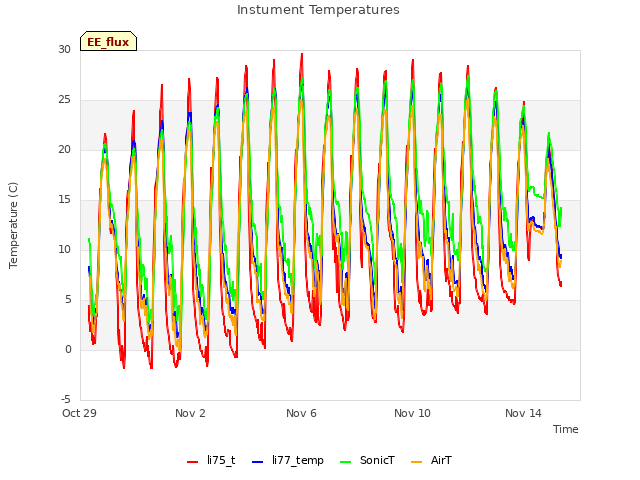

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

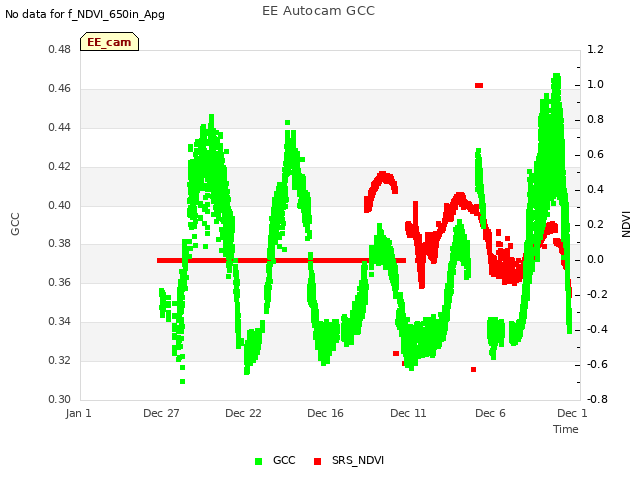

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Explore the graph:Sonic SOS in a new window

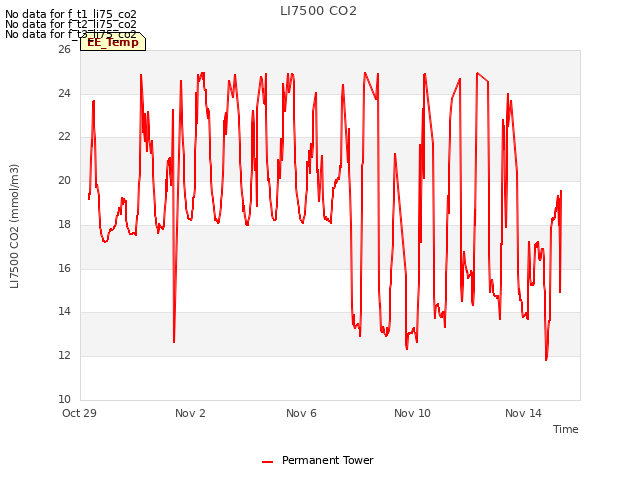

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

Explore the graph:LI-7700 CH4 in a new window

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

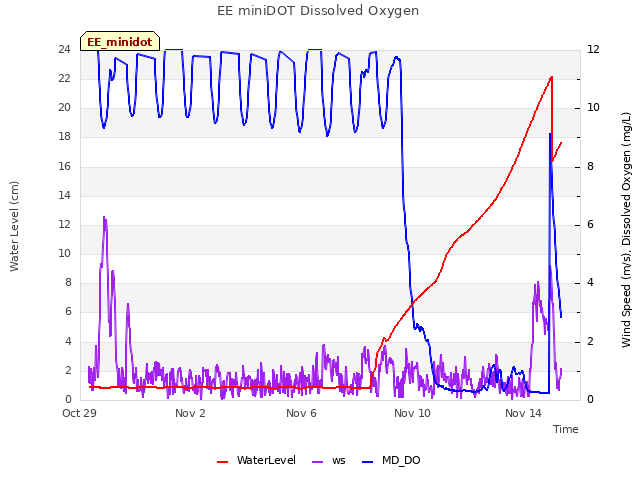

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

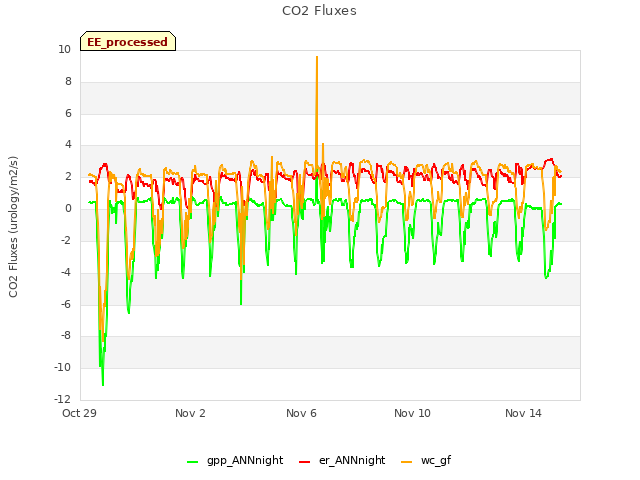

Explore the graph:CO2 Fluxes in a new window
