East End: 2019-06-04 09:48:00 (DOY 155)
Author: Alex Valach
Others: Kuno, Karen

Summary: Removed 2nd batch of litter bags and regular data download and cleaning

Arrived 09:48am, left 11:15am.

Sunny, warm, light breeze, hazy, clear sky.
Water level was 50 cm (only sank down to the middle of my wellie near the tower and about knee height further in, so generally quite dry). Water was covered in a thick carpet of Azolla and some Lemna under the canopy.
(Note 2020-10-14 by DS - The staff gauge noted here is probably a typo. According to the water level sensor and his physical description of the water level, the staff gauge was probably around 15).

Still not very green (approx. 70%).

Wash reservoir almost empty.

Collected met, EC, Cam data.

CO2: 443.7
T: 25.2
H2O: 799
P: 101.2
SS 96 -> 97.5

CH4: 2.08
RSSI: 47 -> 82.4

Just wrote an essay on the litter bag removal, but didn't save, so here's the gist:
Removed 2nd batch (6 months deployment), incl. poles F-J.
Pole J had lost 3 bags, but we found them.
Some bags were out of the water and very dry.
Many bags had roots growing into them and were very dark or covered in rust coloured stuff (which also coloured the mesh of the bags).
Found small worm on one bag, generally lots of critters, and well covered under other decomposing litter.
Placed in individual ziploc bags, stored in cool box and then in cold store.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

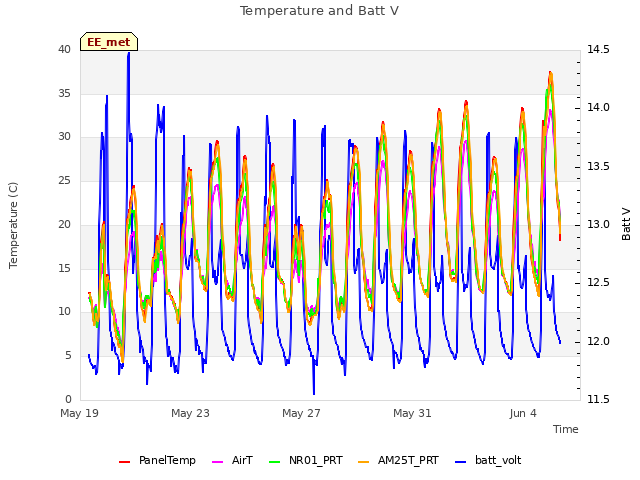

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

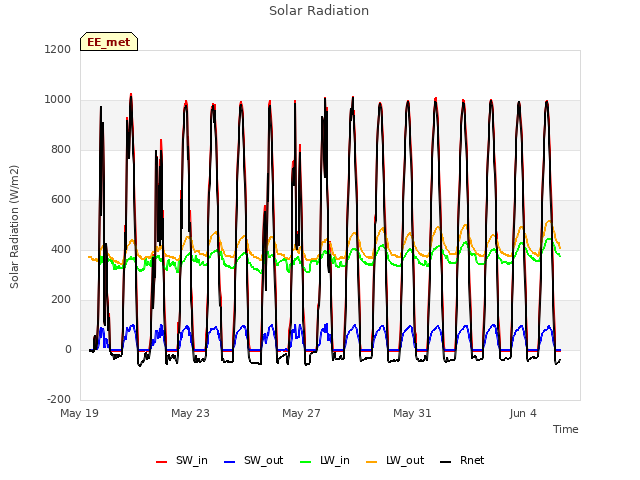

Explore the graph:Solar Radiation in a new window

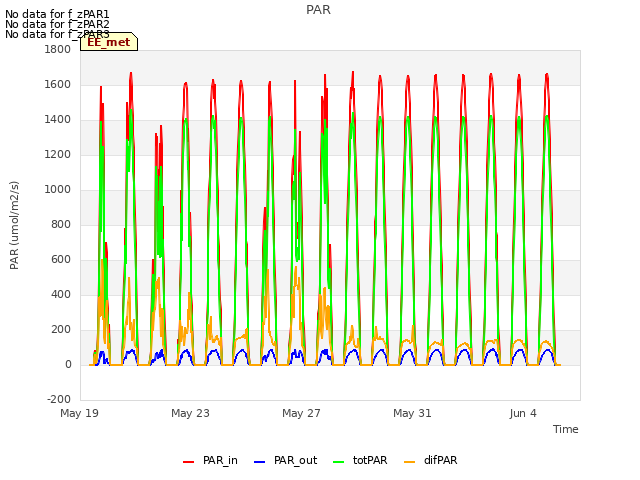

Explore the graph:PAR in a new window

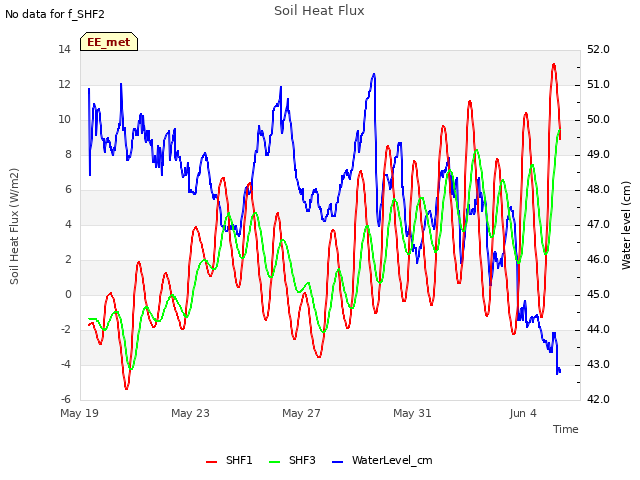

Explore the graph:Soil Heat Flux in a new window

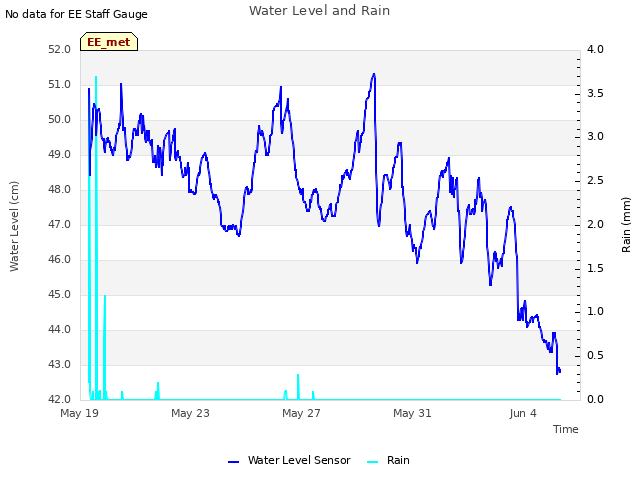

Explore the graph:Water Level and Rain in a new window

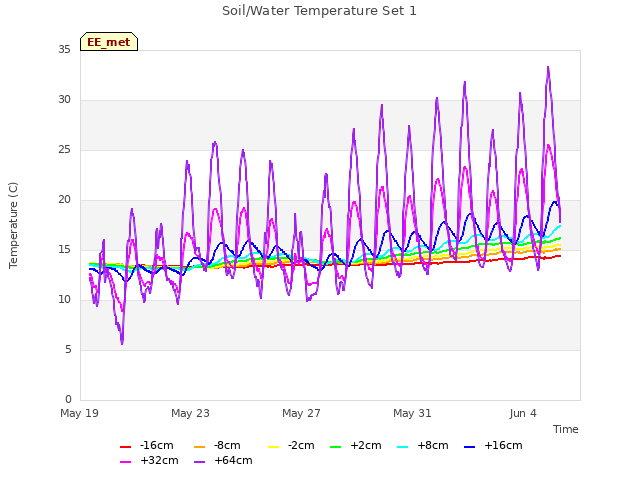

Explore the graph:Soil/Water Temperature Set 1 in a new window

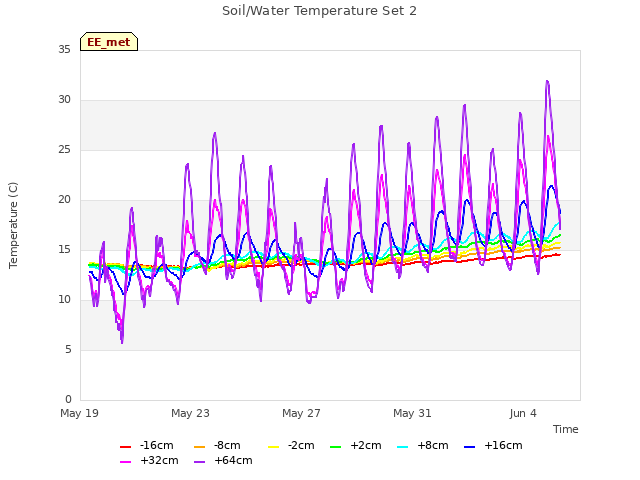

Explore the graph:Soil/Water Temperature Set 2 in a new window

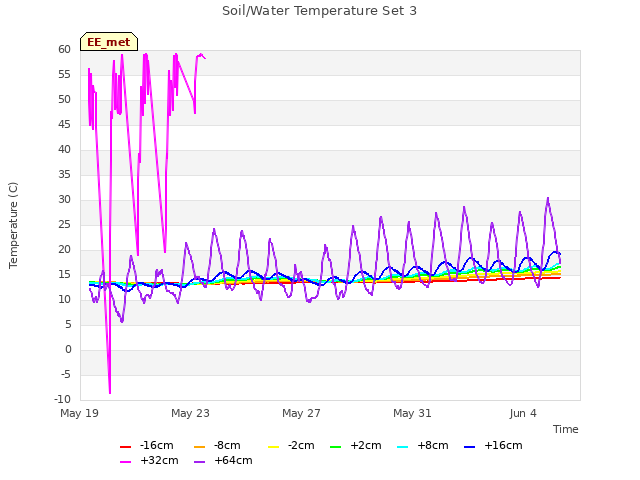

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

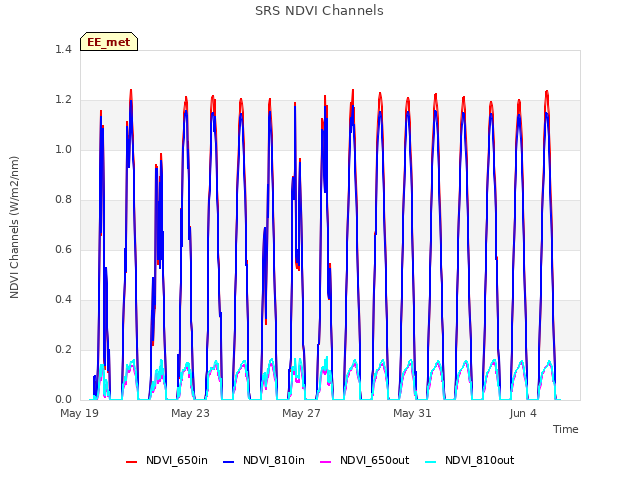

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

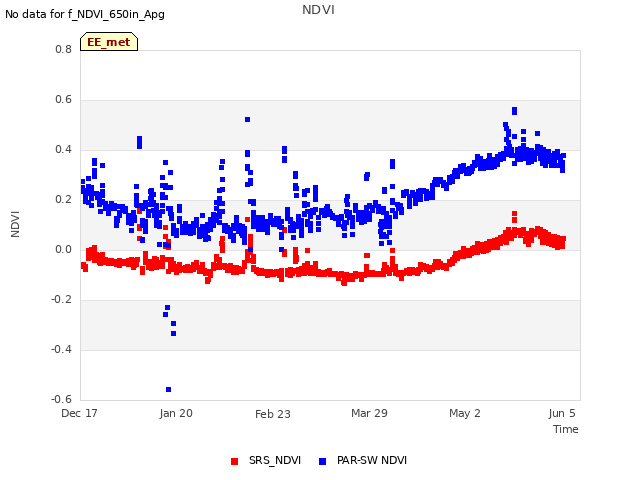

Explore the graph:NDVI in a new window

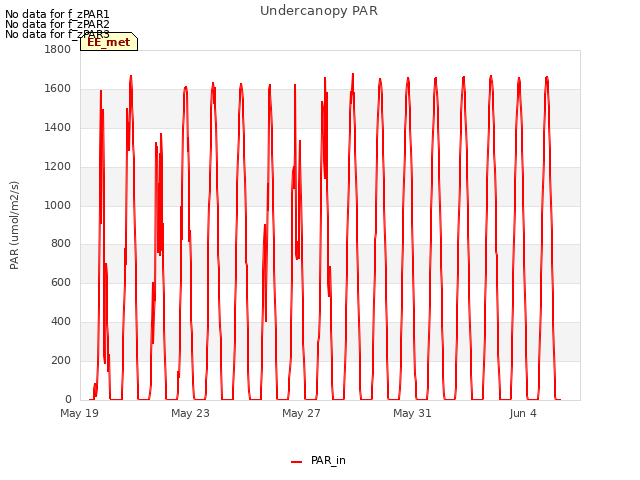

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

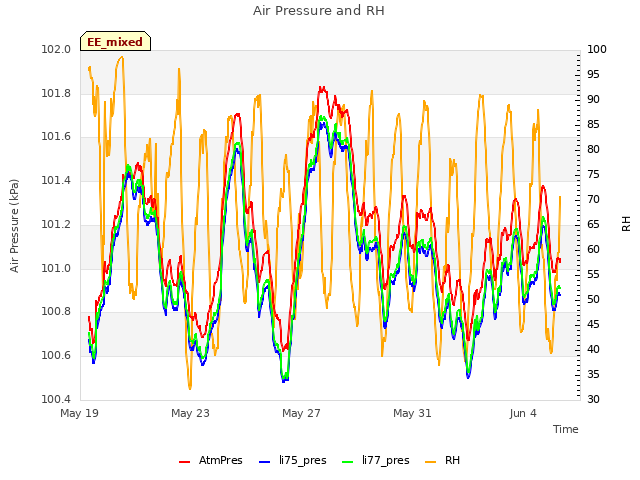

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

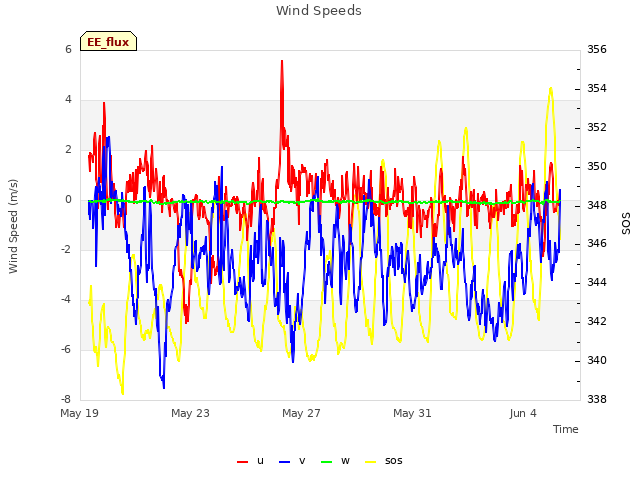

Explore the graph:Wind Speeds in a new window

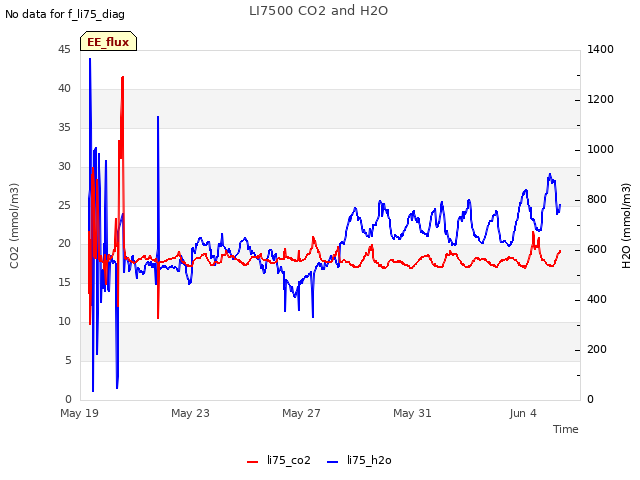

Explore the graph:LI7500 CO2 and H2O in a new window

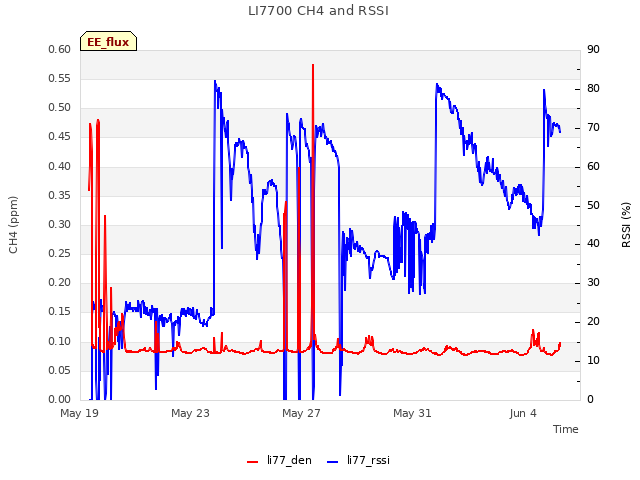

Explore the graph:LI7700 CH4 and RSSI in a new window

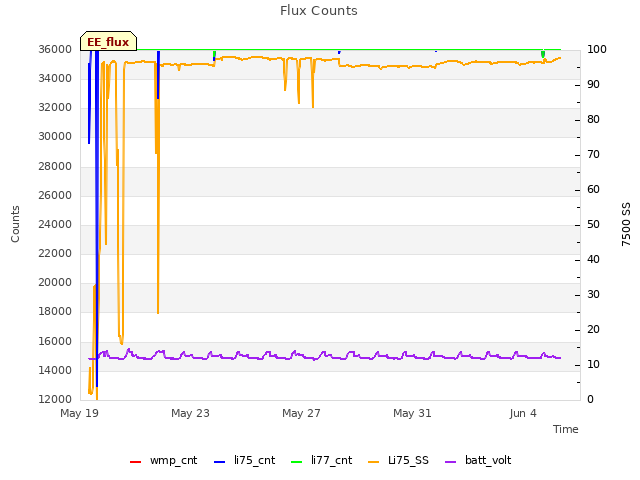

Explore the graph:Flux Counts in a new window

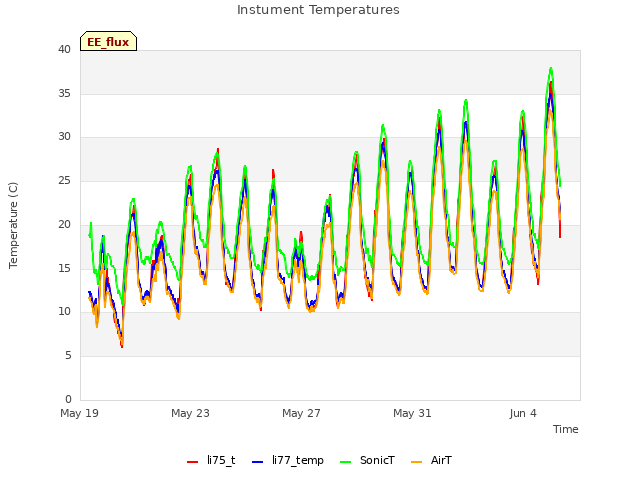

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

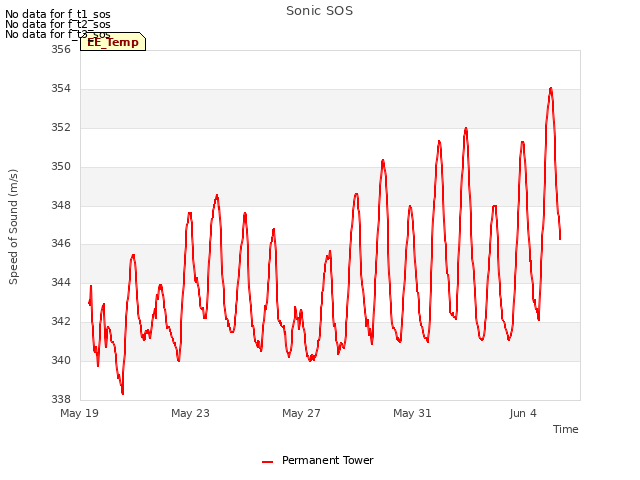

Explore the graph:Sonic SOS in a new window

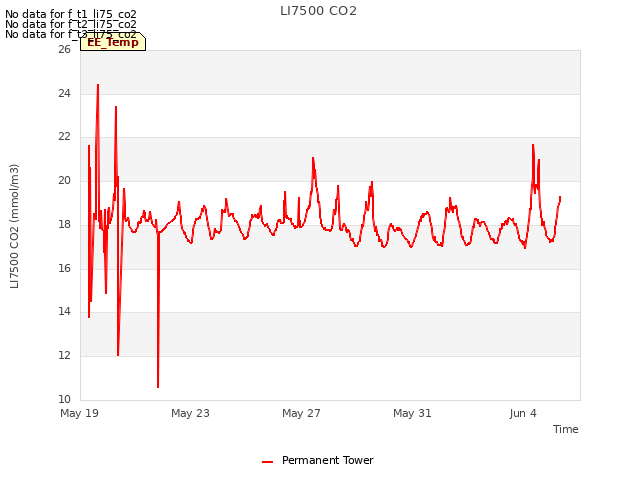

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

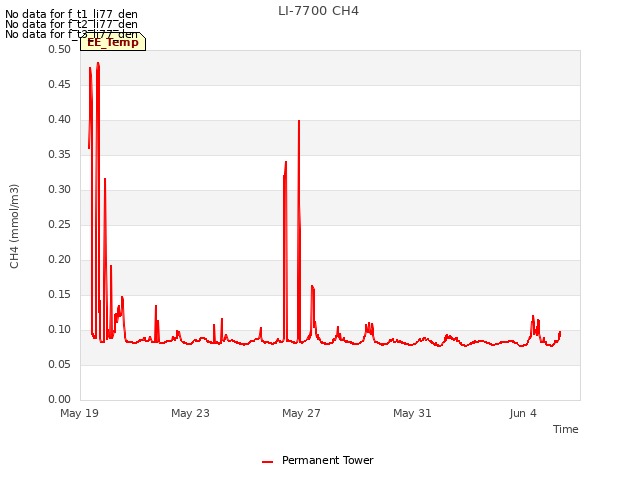

Explore the graph:LI-7700 CH4 in a new window

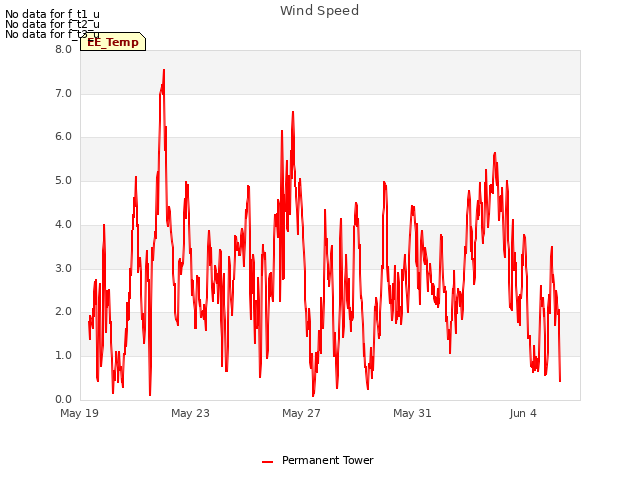

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

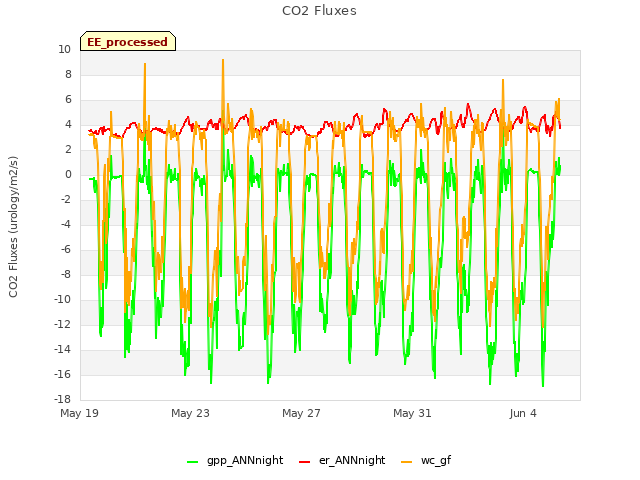

Explore the graph:CO2 Fluxes in a new window
