Bouldin Alfalfa: 2018-11-28 15:20:00 (DOY 332)
Author: Daphne Szutu
Others: Kyle, Kuno

Summary: Regular data collection/cleaning, swapped Arable, slippery dirt roads, first rains last week

2018-11-28
Bouldin Alfalfa

Kyle, Kuno, and I arrived at 15:20. It was partly sunny, mild, with dramatic and stormy clouds. It has been raining in the past few days and a large storm is expected later that night. The dirt road was a bit slippery (4WD recommended), but the field was fine to drive on.

I collected met, camera, USB GHG, and FD data. Kuno cleaned flux and rad sensors. The wash reservoir was empty and we refilled it only ¾ full (ran out of water).

Kyle swapped the Arable (sn A000591 came down and sn A000251 went up) and took veg height measurements.

LI-7500 readings:
CO2 428ppm
H2O 690ppm
T 16.6C
P 100.8kPa
SS 106-->106 after cleaning

LI7700 readings:
CH4 2.0ppm
RSSI 15 --> 82 after cleaning

We left at 15:40.

Next Mowing: 2019-01-22

Veg Height (cm): Tape measure from ground to top of plant - Measured by KH
19, 20, 14, 24, 24, 10, 20, 16, 30, 23, 23, 26, 26, 28, 12, 18, 20, 13, 16, 21, avg = 20.2, stdev = 5.49

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

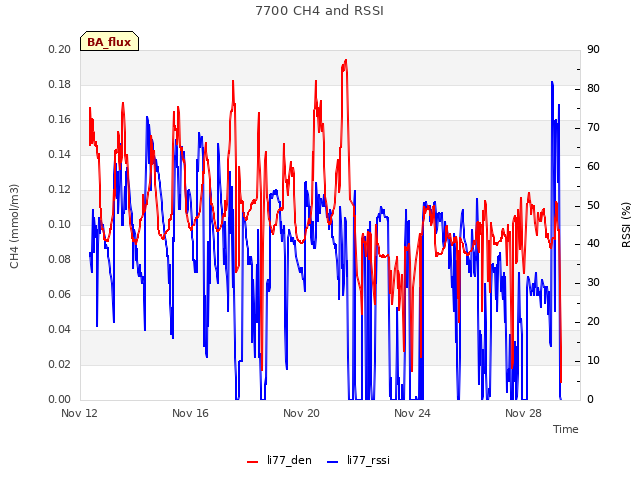

Explore the graph:7700 CH4 and RSSI in a new window

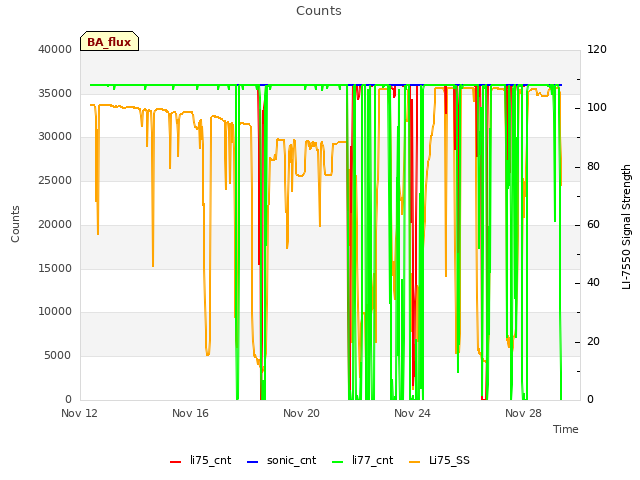

Explore the graph:Counts in a new window

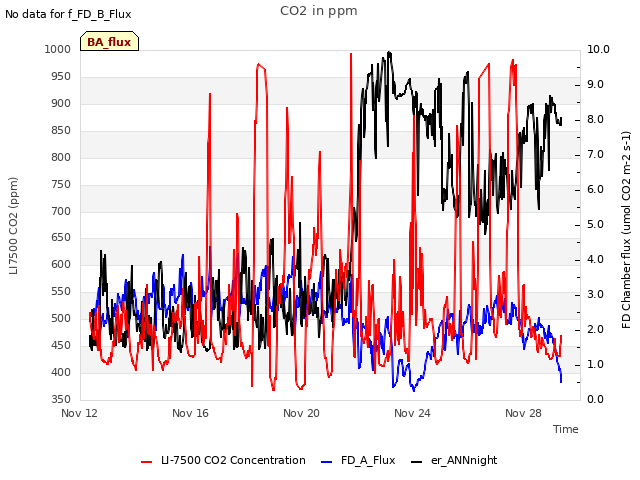

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

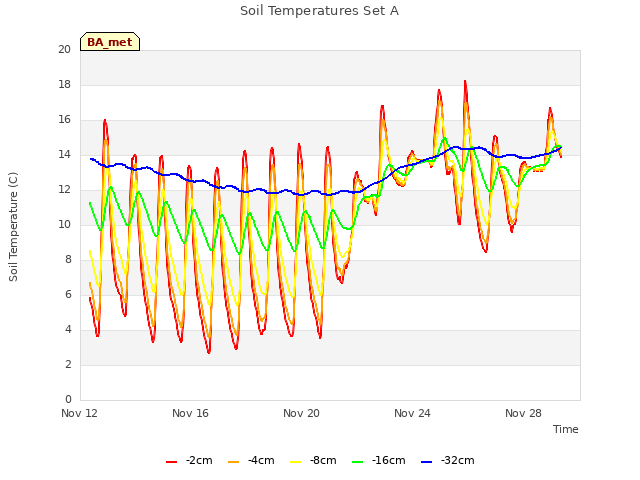

Explore the graph:Soil Temperatures Set A in a new window

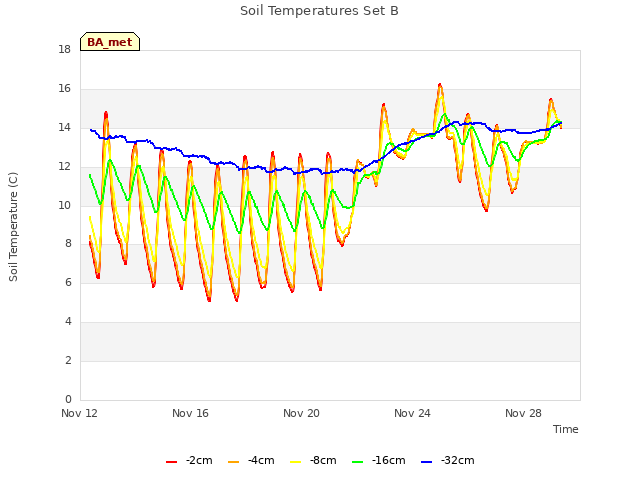

Explore the graph:Soil Temperatures Set B in a new window

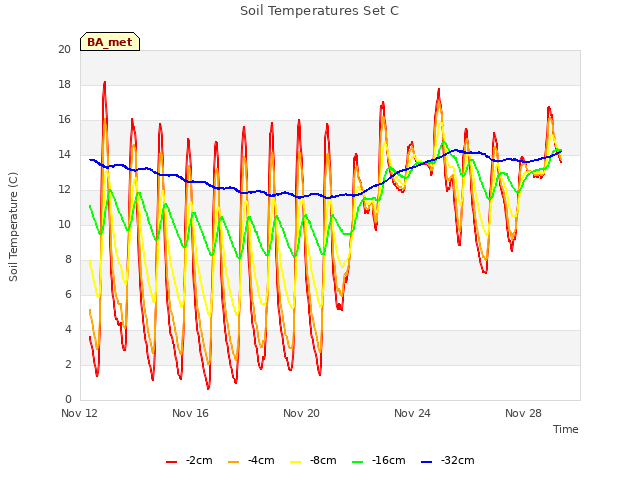

Explore the graph:Soil Temperatures Set C in a new window

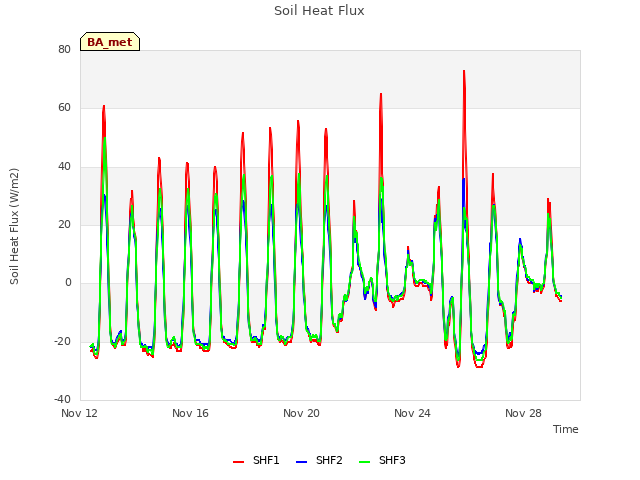

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Temperature in a new window

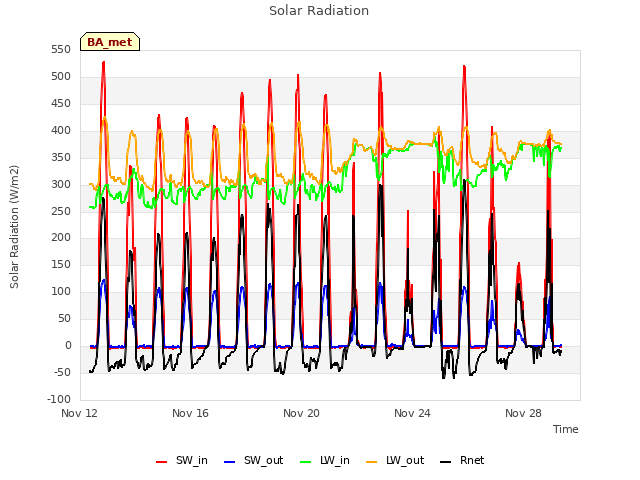

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

Explore the graph:Soil Moisture in a new window

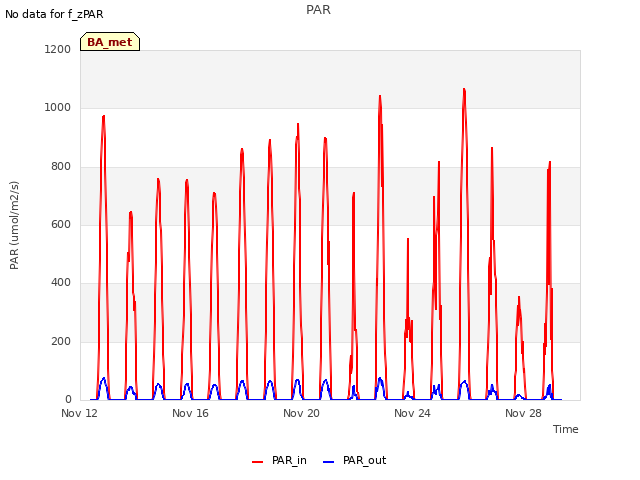

Explore the graph:PAR in a new window

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI channels in a new window

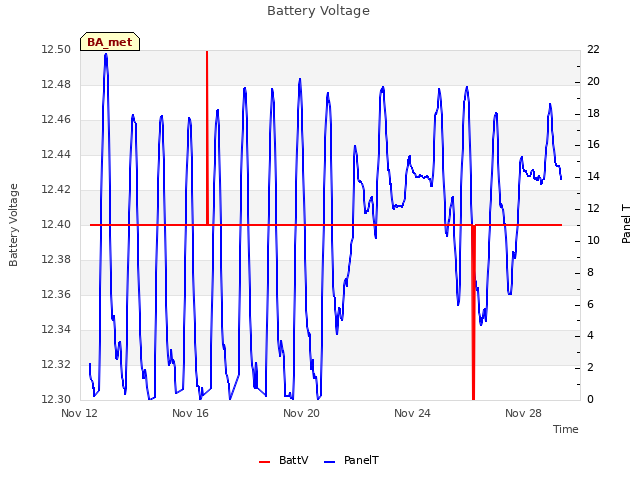

Explore the graph:Battery Voltage in a new window

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

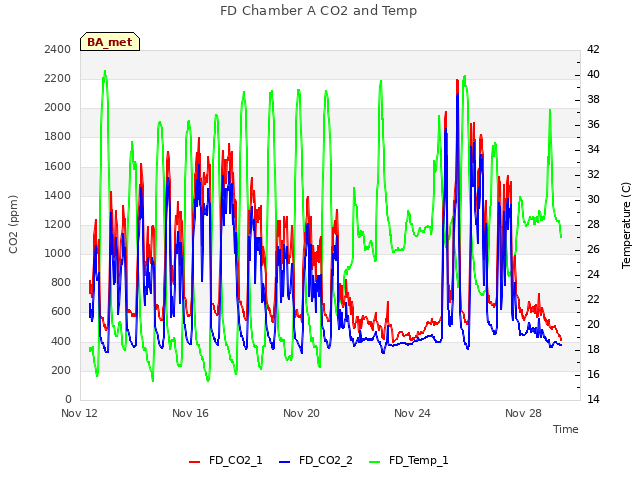

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

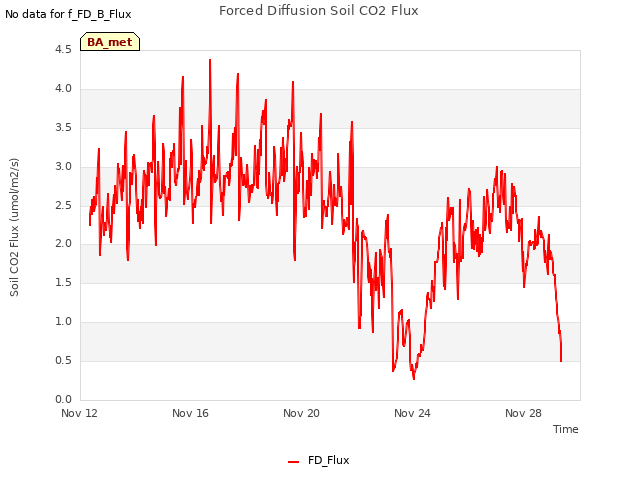

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

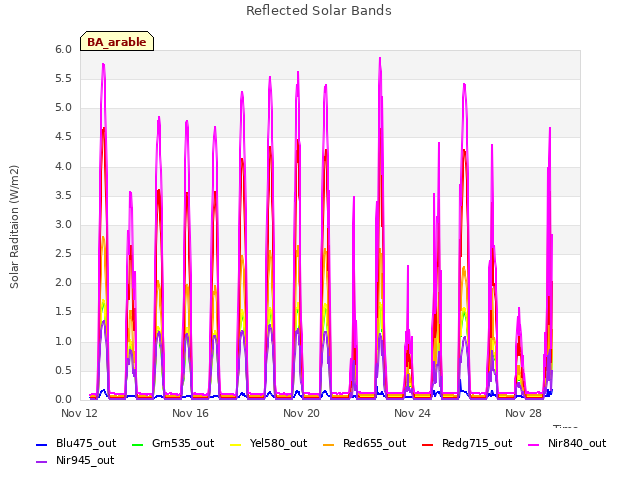

Explore the graph:Reflected Solar Bands in a new window

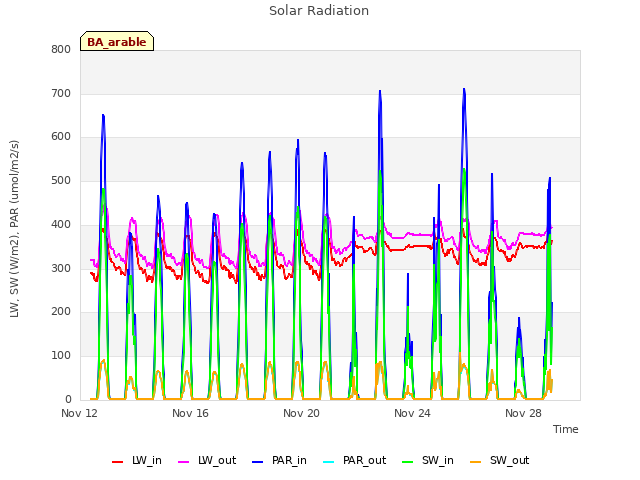

Explore the graph:Solar Radiation in a new window

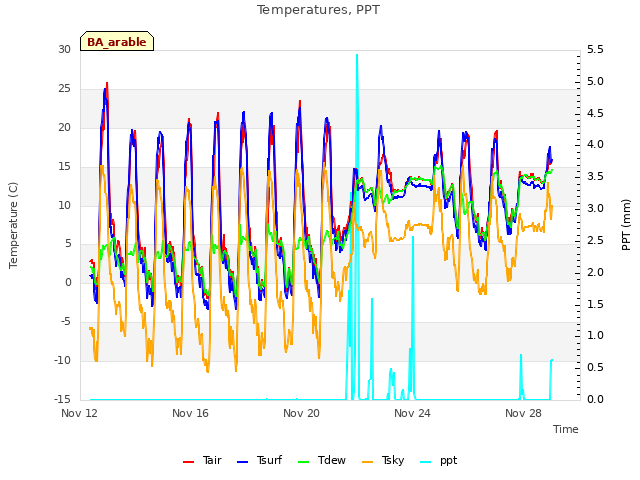

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

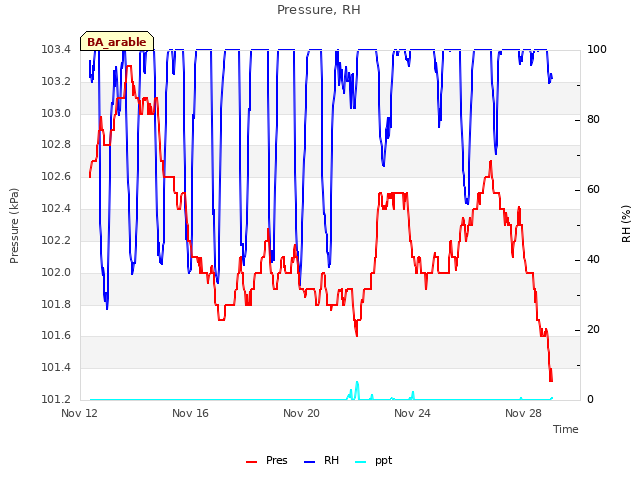

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

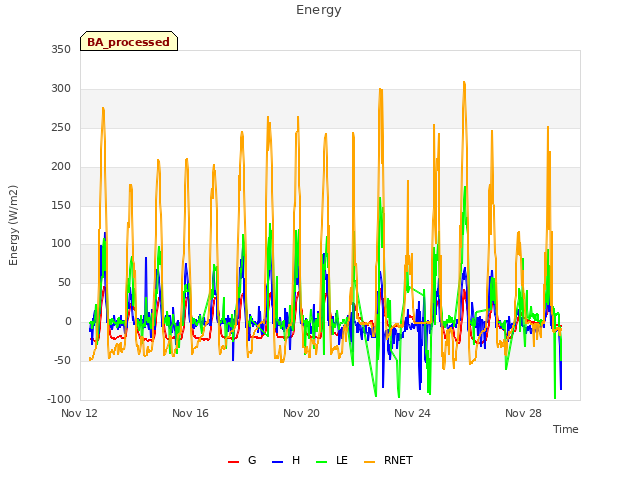

Explore the graph:Energy in a new window

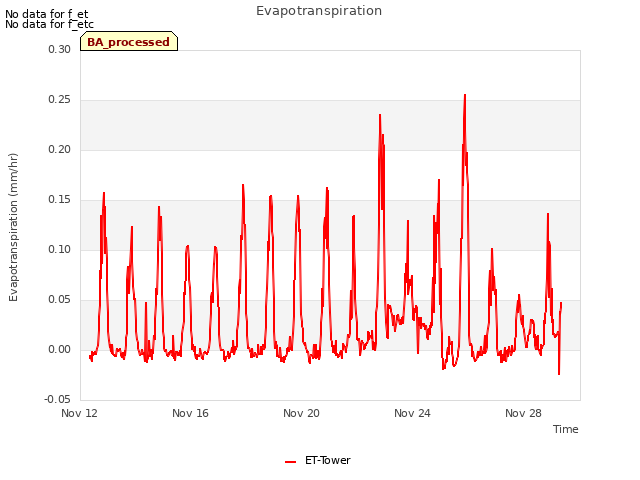

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
