Bouldin Alfalfa: 2018-11-07 09:30:00 (DOY 311)
Author: Joe Verfaillie
Others:

Summary: Installed 7700, checked/set Stardot clock.

Bouldin Alfalfa
2018-11-07

I arrived at 9:30. It was cool and dry with a light wind from the northwest.

I tried to retest the tipping bucket but I forgot the bottle to dribble the water at a slow rate. I put a hole is one of the bottles I had with me but the hole was too big and the water flow was too fast. The bucket only got 78tips.

I installed the LI-7700 sn TG1-0421. The 7700 has had its power board upgraded and was calibrated in the lab. It was reading 2.64ppm CH4 and 78.3 RSSI. I made sure it was connected and the columns being recorded looked okay. Daphne set its heater settings in the lab. It was showing intermittent time sync errors. I set the 7700 clock to slave and reset the box. This seemed to fix it.

I checked the clock on the Stardot camera. I thought it might be an hour and ten minutes off, but it was only ten minutes off. The time zone was PST8. When its clock read 9:37 I reset it to 9:47.

Next Mowing: 2019-01-22

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

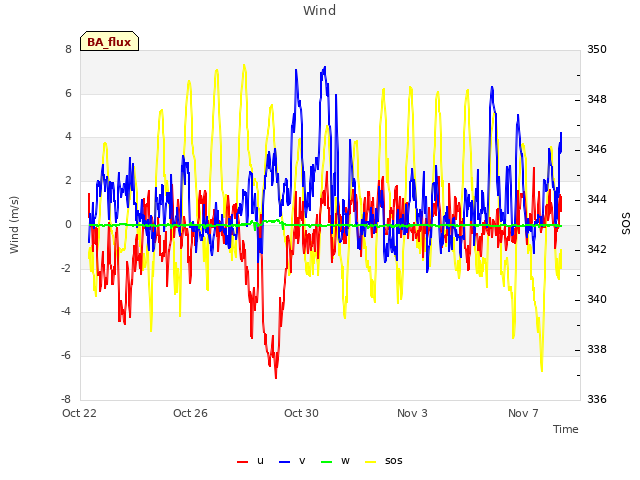

Explore the graph:Wind in a new window

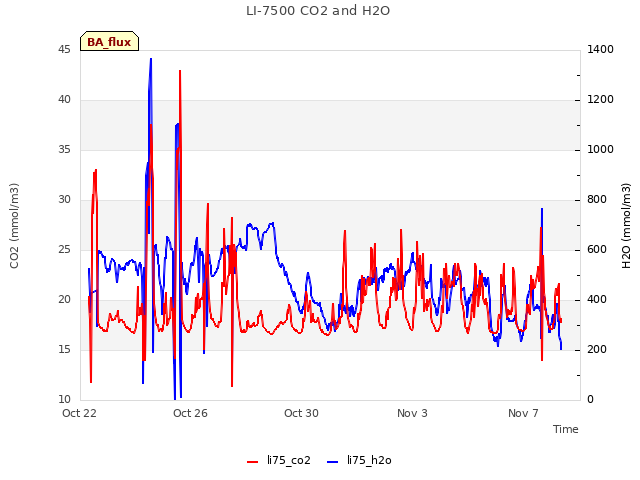

Explore the graph:LI-7500 CO2 and H2O in a new window

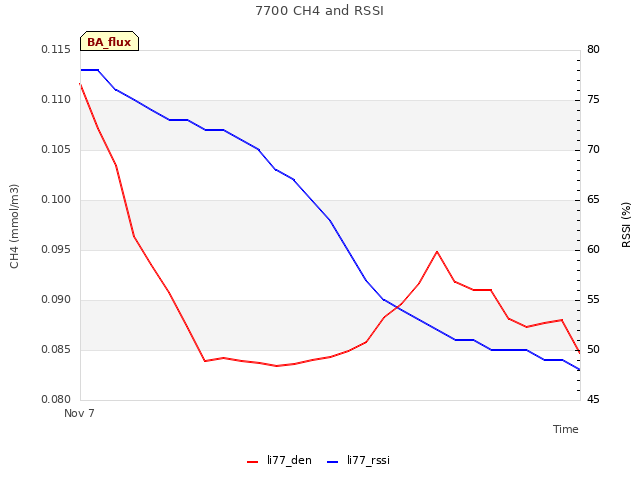

Explore the graph:7700 CH4 and RSSI in a new window

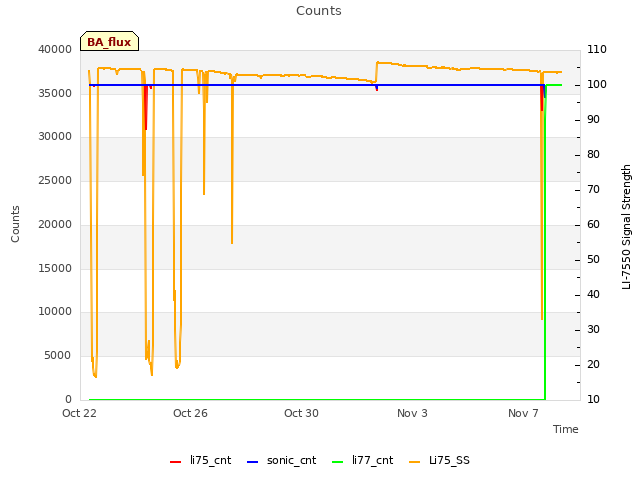

Explore the graph:Counts in a new window

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

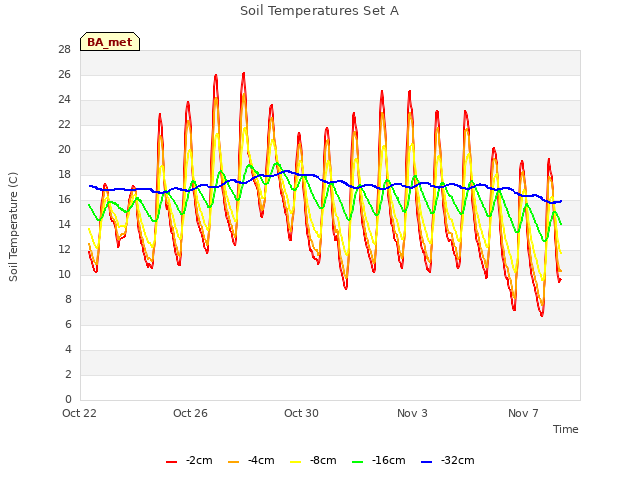

Explore the graph:Soil Temperatures Set A in a new window

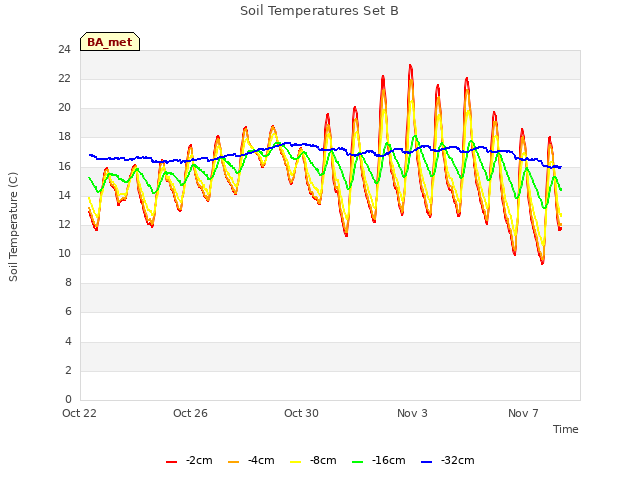

Explore the graph:Soil Temperatures Set B in a new window

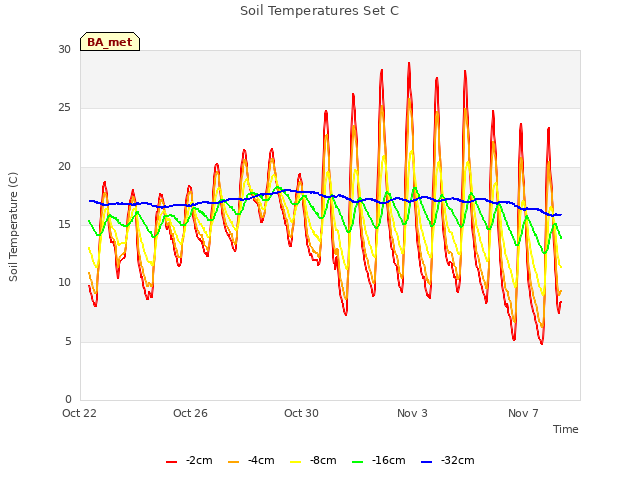

Explore the graph:Soil Temperatures Set C in a new window

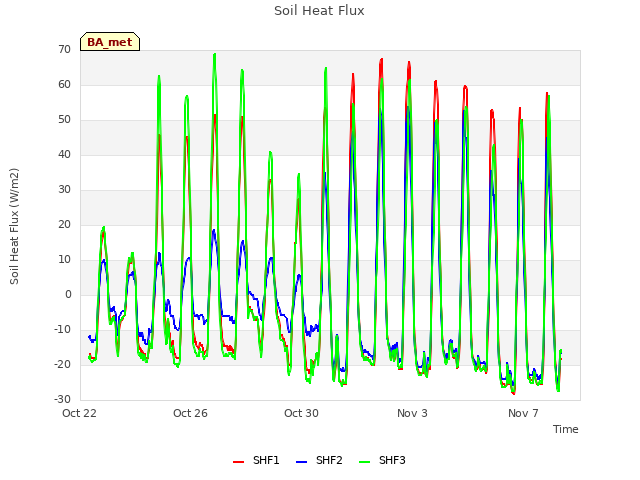

Explore the graph:Soil Heat Flux in a new window

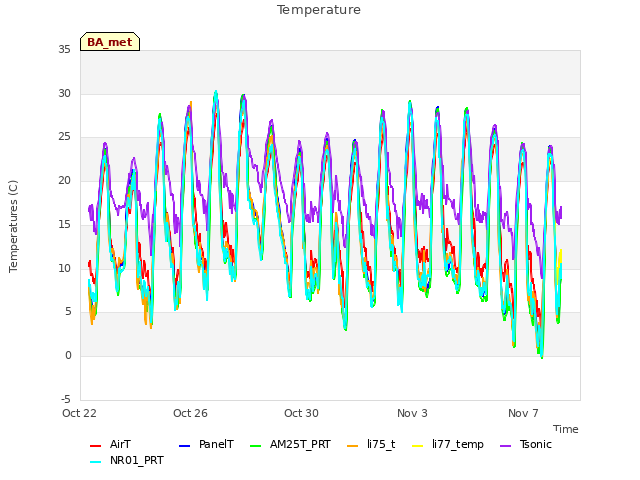

Explore the graph:Temperature in a new window

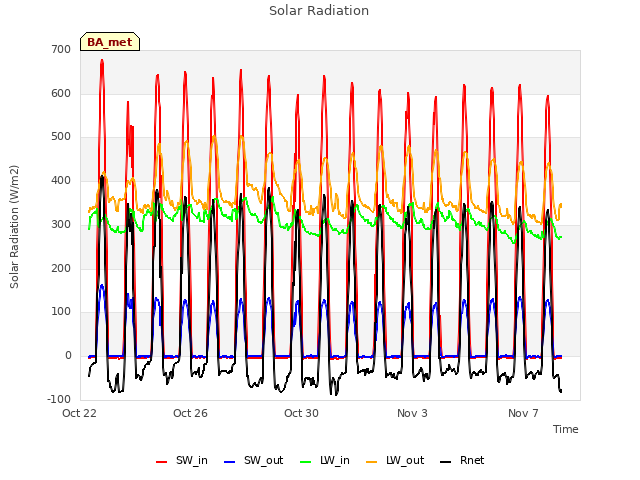

Explore the graph:Solar Radiation in a new window

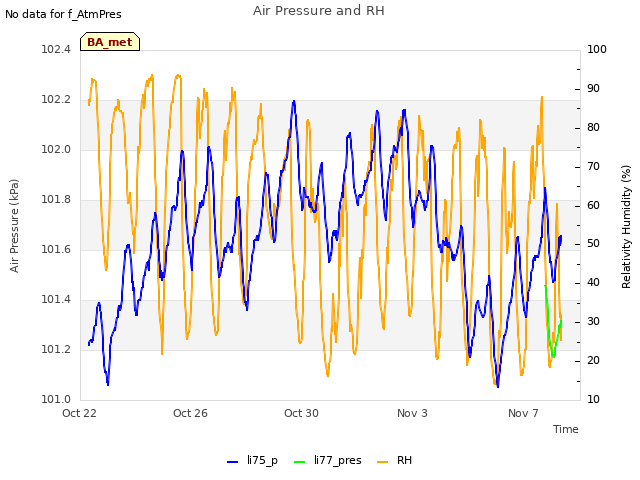

Explore the graph:Air Pressure and RH in a new window

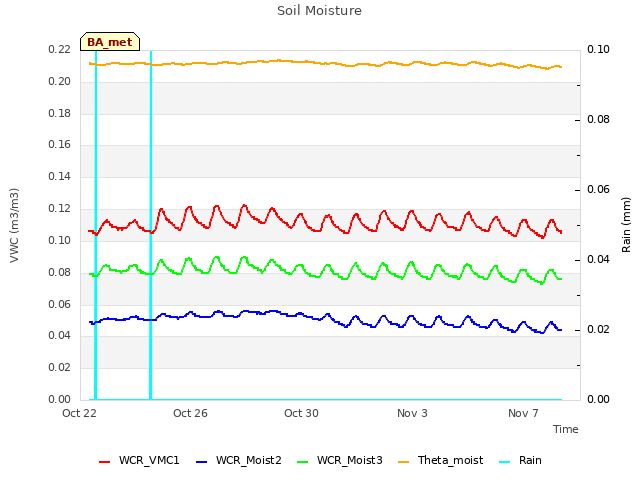

Explore the graph:Soil Moisture in a new window

Explore the graph:PAR in a new window

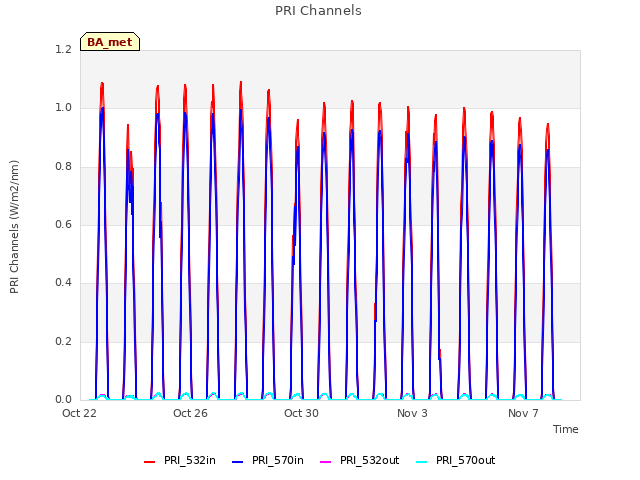

Explore the graph:PRI Channels in a new window

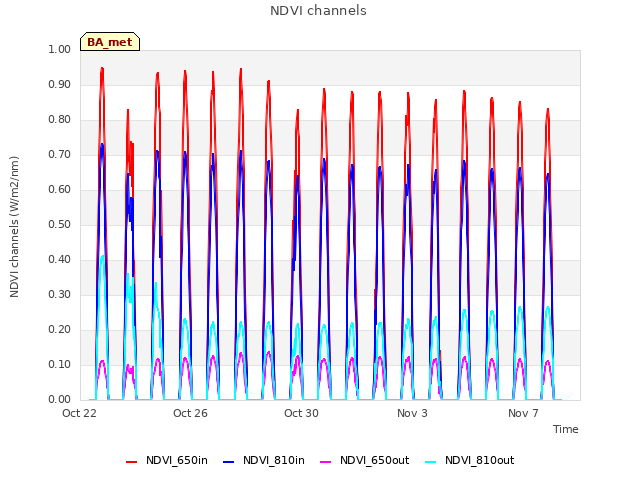

Explore the graph:NDVI channels in a new window

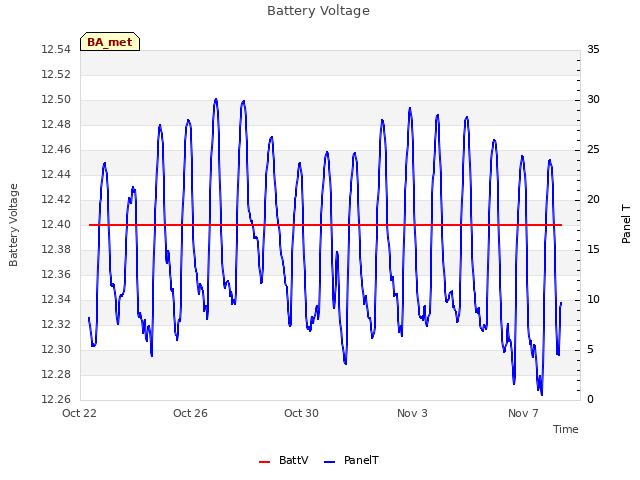

Explore the graph:Battery Voltage in a new window

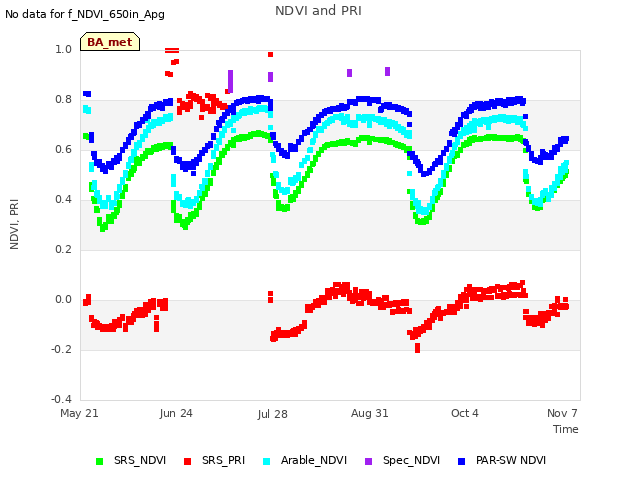

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

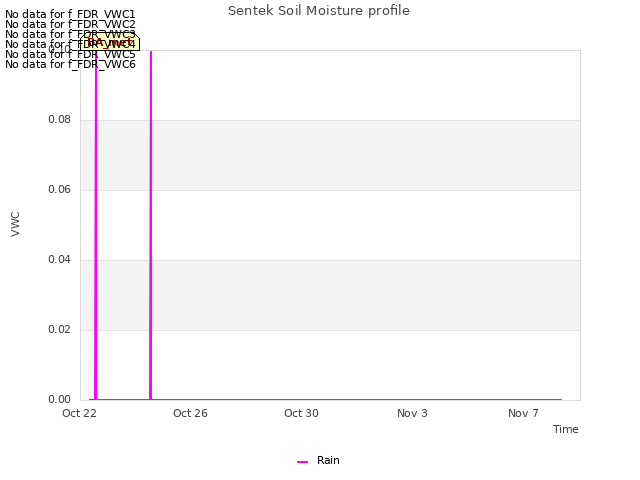

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

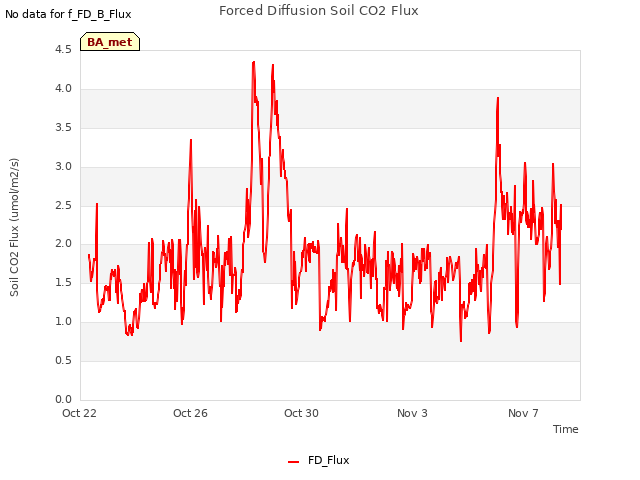

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

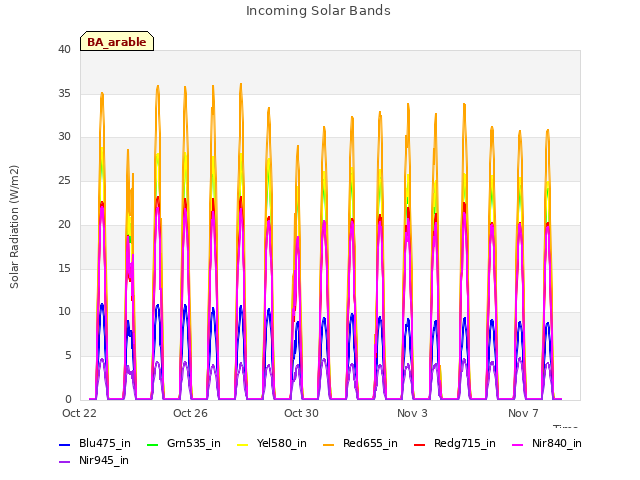

Explore the graph:Incoming Solar Bands in a new window

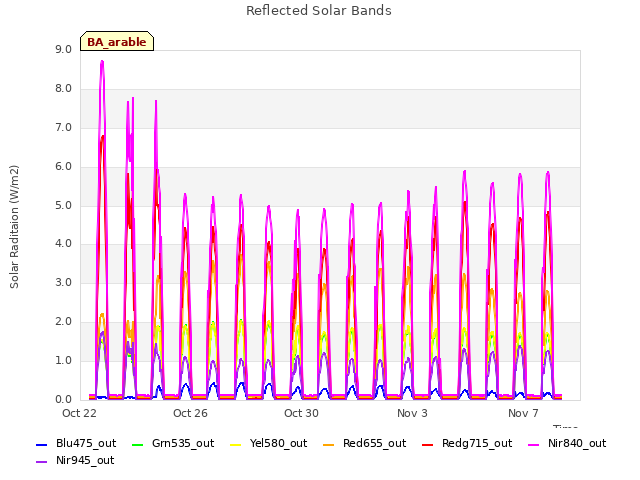

Explore the graph:Reflected Solar Bands in a new window

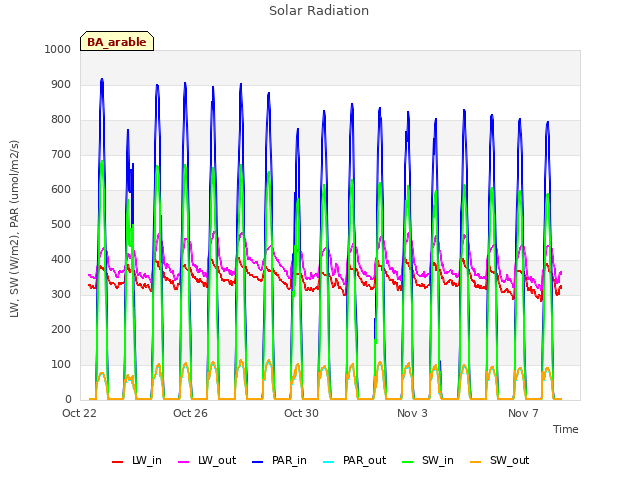

Explore the graph:Solar Radiation in a new window

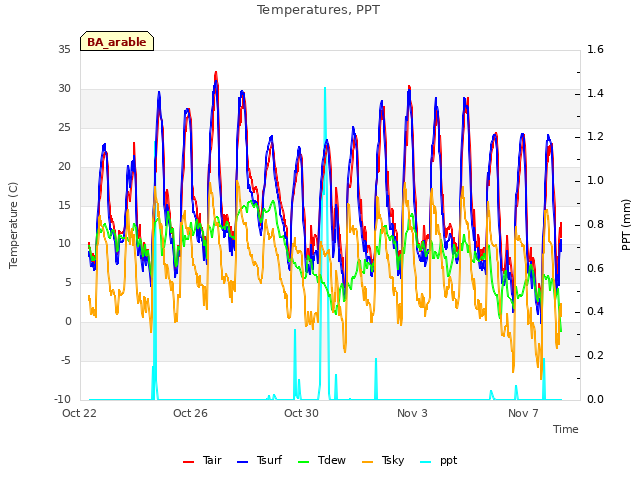

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

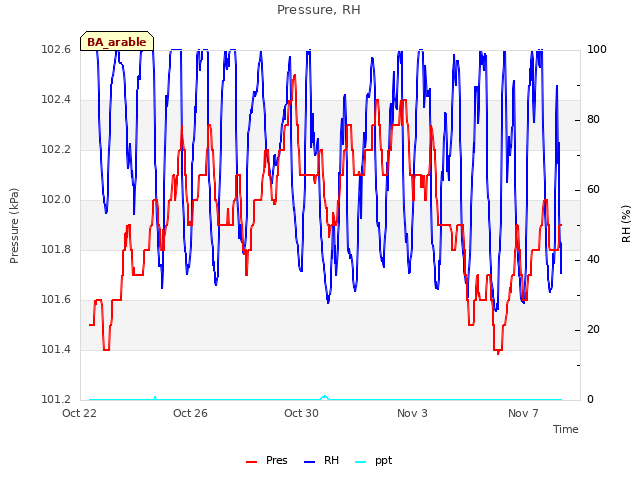

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

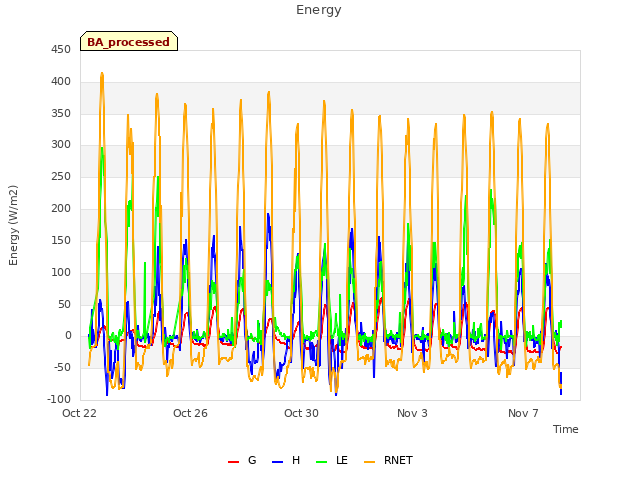

Explore the graph:Energy in a new window

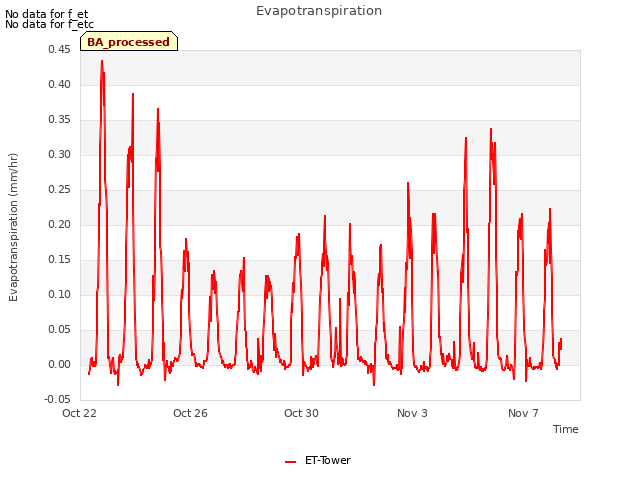

Explore the graph:Evapotranspiration in a new window
