Field Notes

<--2018-03-19 11:00:00 | 2018-04-19 14:10:00-->
Other sites visited today: Twitchell Alfalfa | West Pond | East End | Sherman Wetland | Mayberry | Bouldin Corn

Bouldin Alfalfa: 2018-04-05 14:40:00 (DOY 95)
Author: Daphne Szutu
Others: Elke, Kyle

Summary: Regular data collection/cleaning, field mowed and baled, swap 7500A for calibration, update stardot file names, fix Licor GHG columns

2018-04-05
Bouldin Alfalfa

We arrived at 14:40. It was overcast and cool with a gentle breeze. The field has been mowed and baled; they were picking up the bales while we were at the site. Kyle trimmed the alfalfa under the tower. We did not do LAI, clip plots, or veg height measurements.

At least two fields have been converted from corn to alfalfa this year. These are the fields on either side of the road when you turn off Highway 12.

The camera was pointing a bit high when we arrived (view was 1/3 ground and 2/3 sky); Elke adjusted the camera until the view was 1/3 sky and 2/3 ground). I also changed the camera names to the long name (“bouldinalfalfa” instead of “BA”), but I think I need to check again to make sure the date in the name is in the correct format.

We swapped the 7500: sn 75H-2667 came down, and sn 0065 went up. I uploaded a new configuration file and updated the pressure coefficients. I also changed sonic output to 7550 (instead of connected to Smartflux2). I reset the LI-7550 box and collected Licor GHG data.

Elke cleaned the flux and rad sensors. I collected met and camera data. Kyle refilled the wash reservoir.

LI-7500 readings (sn 75H-2667 --> sn 75H-2667 cleaned --> sn 0065)
CO2 408ppm --> 411 --> 411
H2O 480ppm --> 460 --> 473
T 18.8C --> 19.2 --> 18.6
P 101.7 kPa --> 101.7 --> 102.1
SS 106 --> 107.8 --> 100

LI7700 readings:
CH4 1.95ppm
RSSI 46 --> 80 after cleaning

We left at 15:15.

Next Mowing: 2018-04-23

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

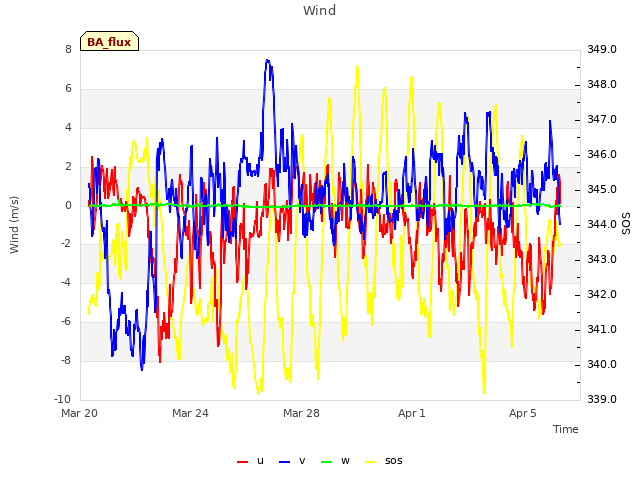

Wind

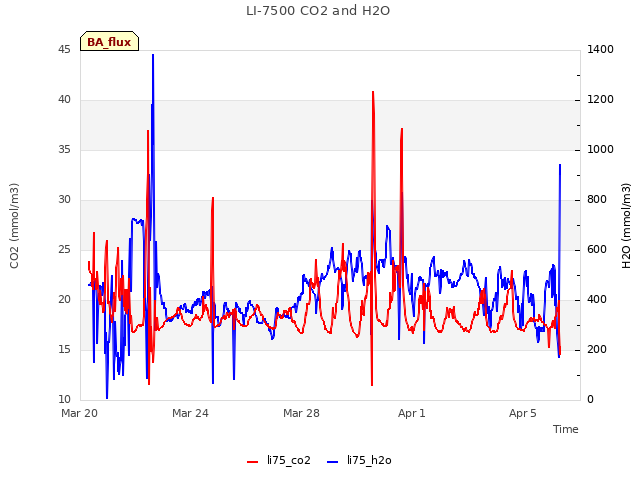

LI-7500 CO2 and H2O

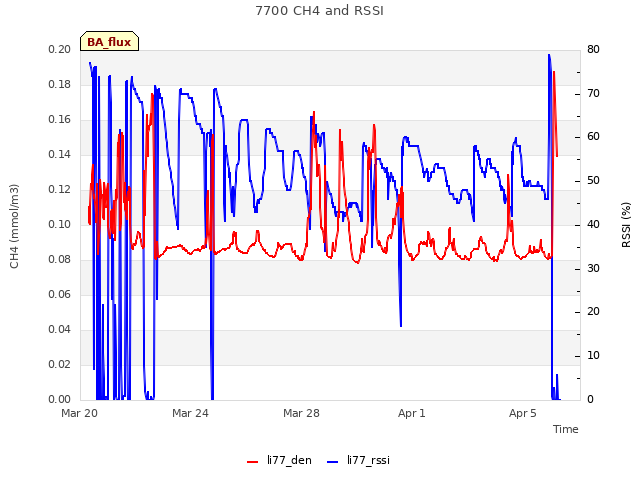

7700 CH4 and RSSI

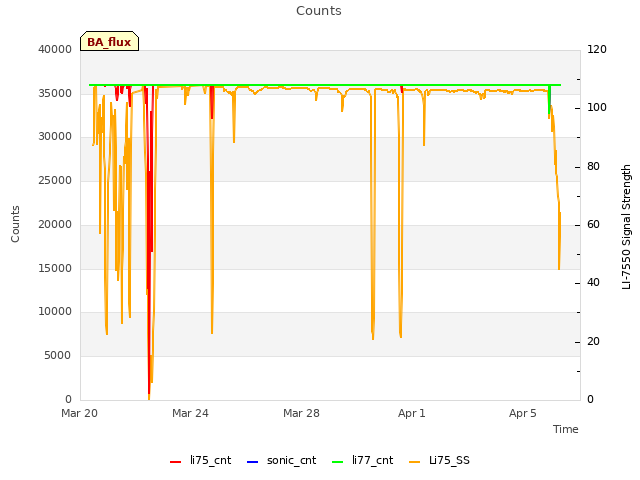

Counts

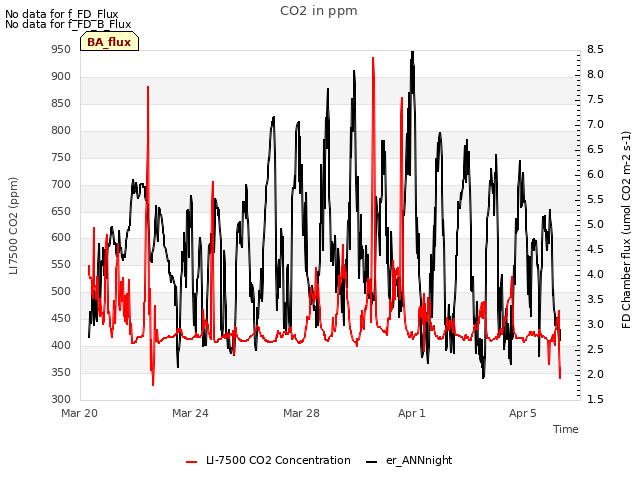

CO2 in ppm

21 BA_met graphs found

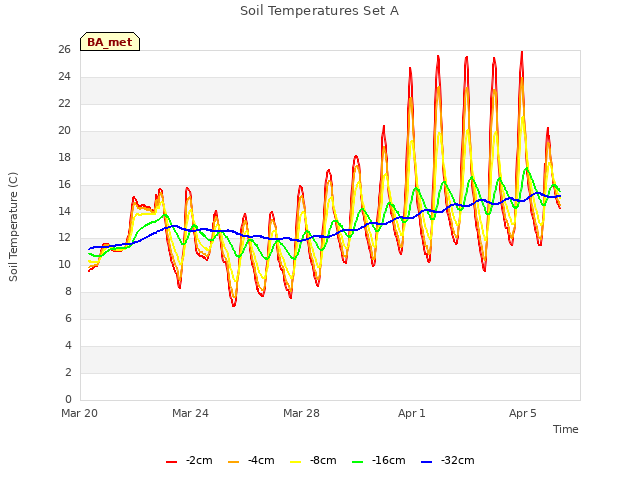

Soil Temperatures Set A

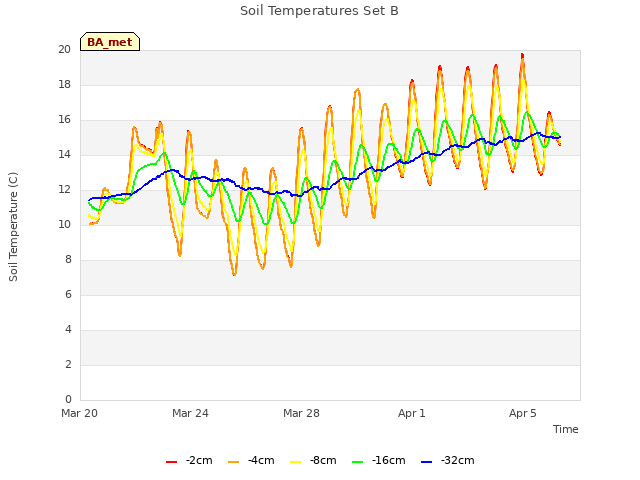

Soil Temperatures Set B

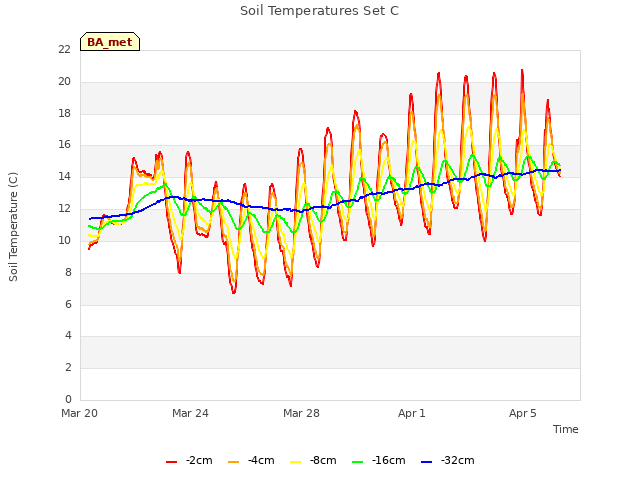

Soil Temperatures Set C

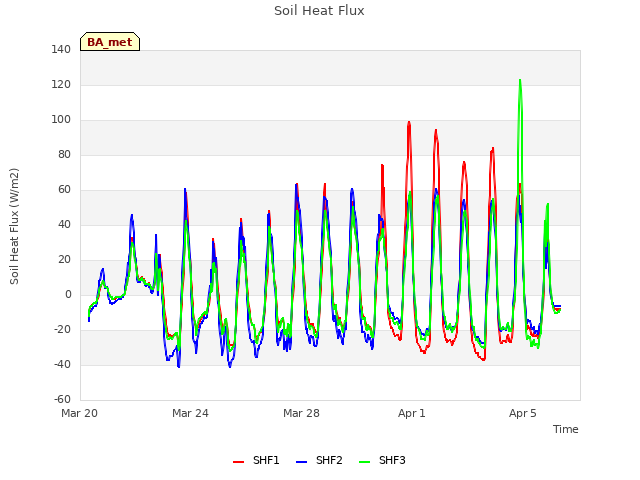

Soil Heat Flux

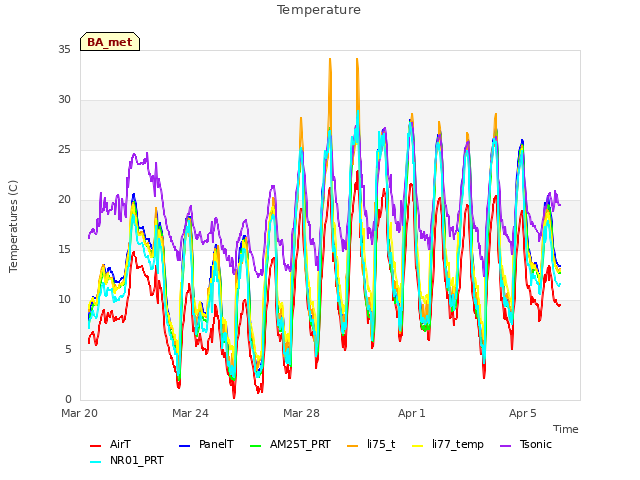

Temperature

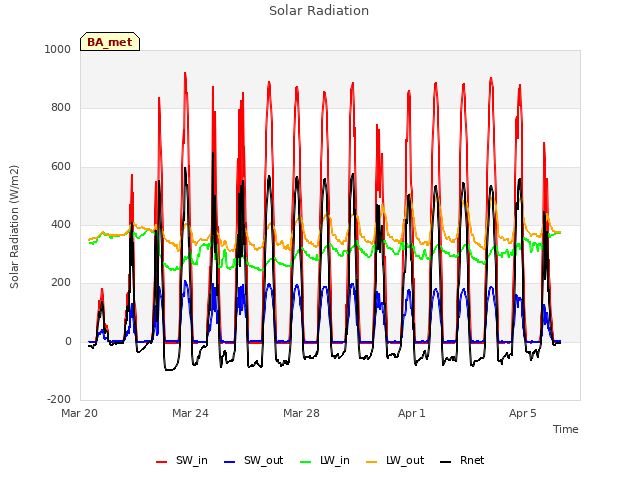

Solar Radiation

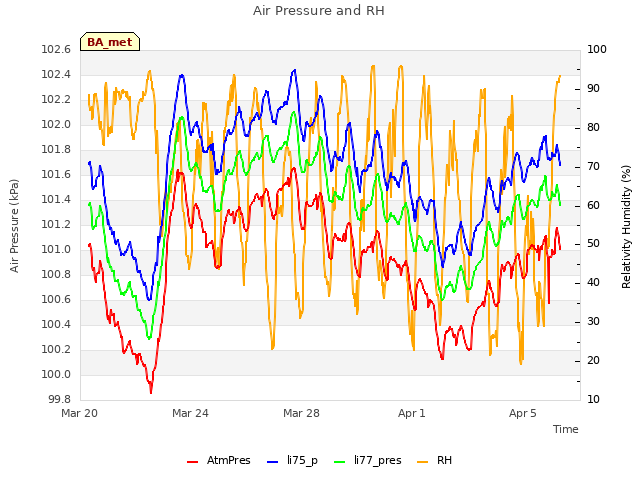

Air Pressure and RH

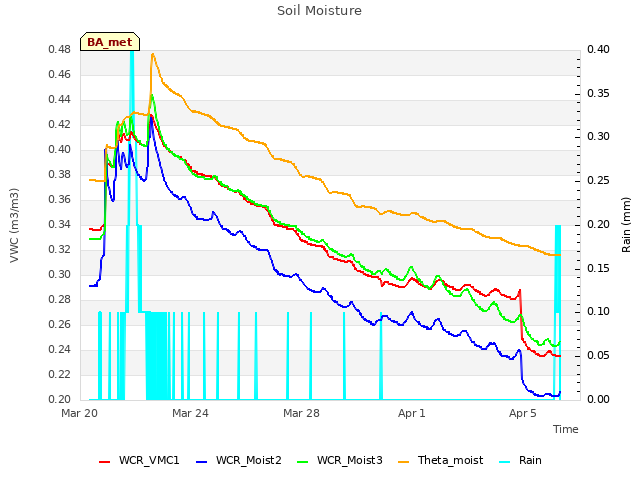

Soil Moisture

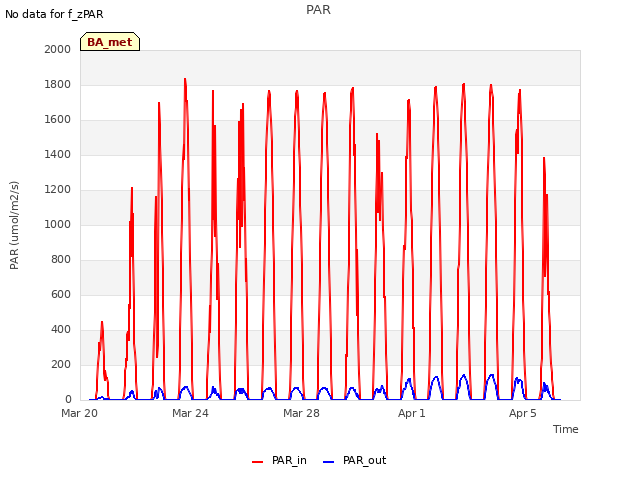

PAR

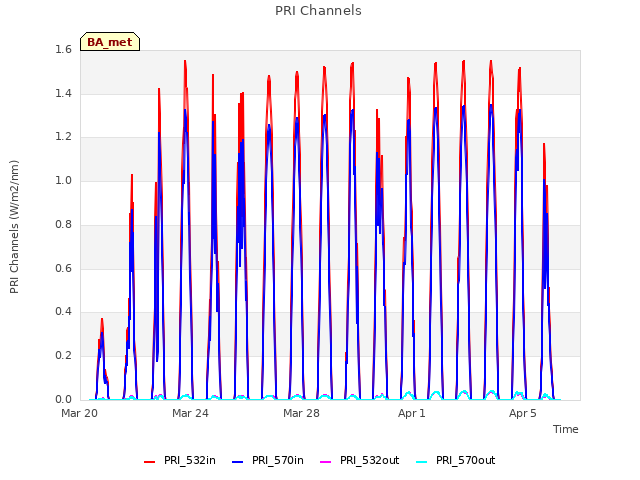

PRI Channels

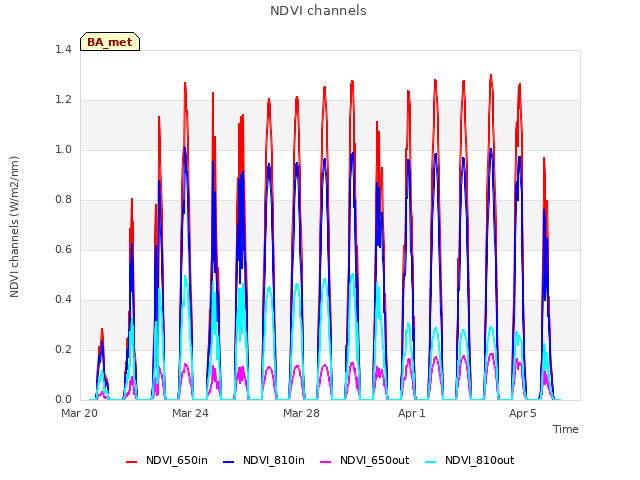

NDVI channels

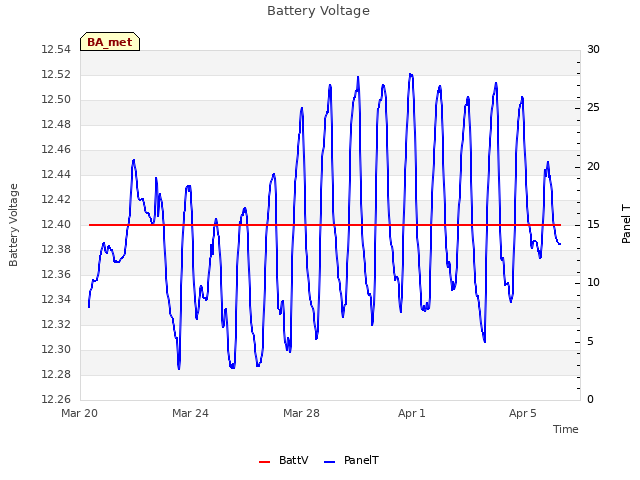

Battery Voltage

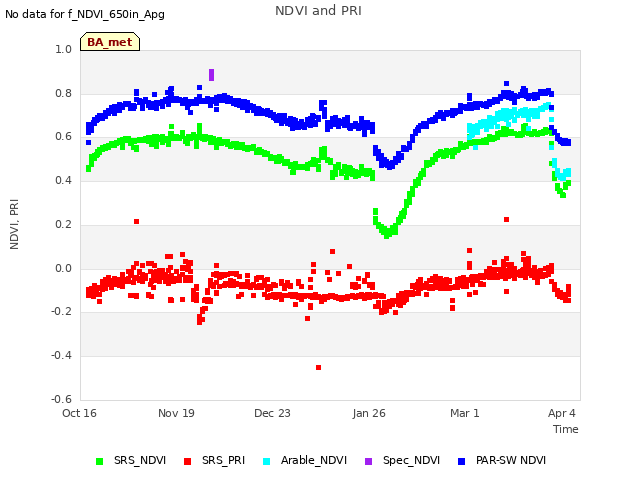

NDVI and PRI

Apogee NDVI

FD Chamber A CO2 and Temp

FD Chamber B CO2 and Temperature

Surface Temperature

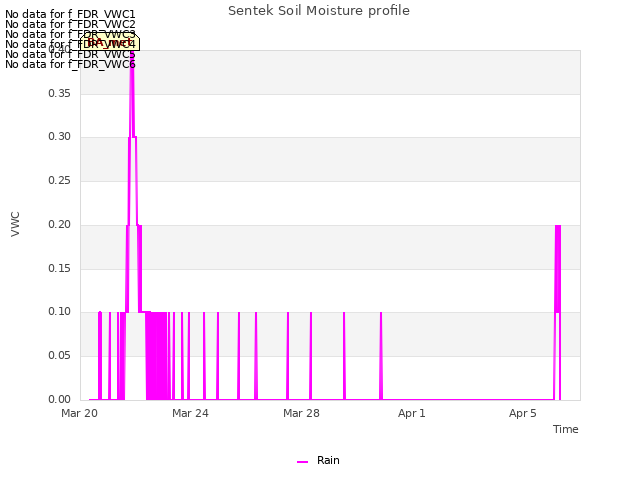

Sentek Soil Moisture profile

Sentek Soil Temperature profile

Sentek Soil Salinity profile

Forced Diffusion Soil CO2 Flux

6 BA_arable graphs found

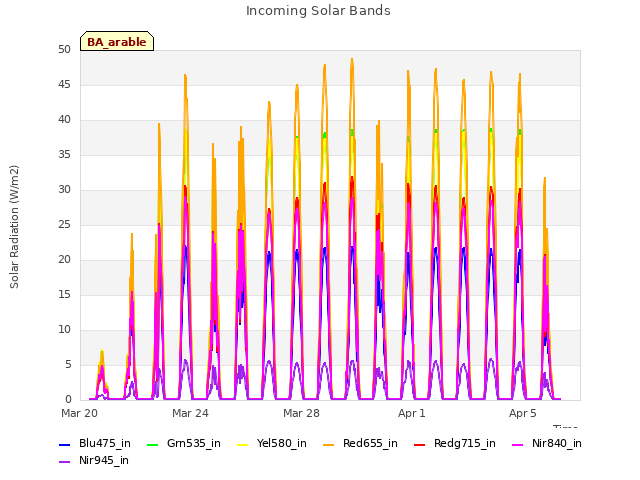

Incoming Solar Bands

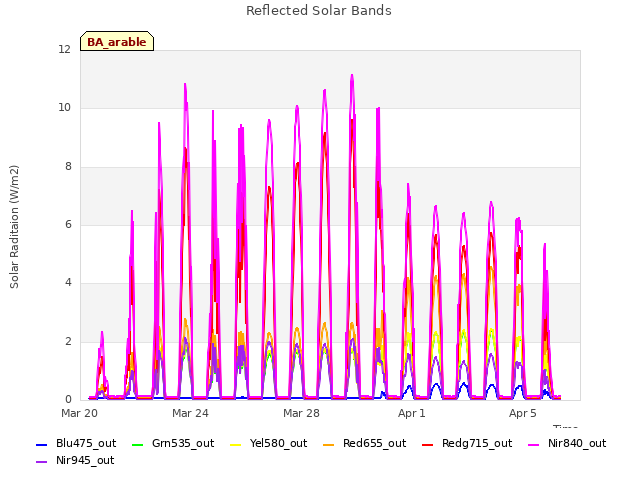

Reflected Solar Bands

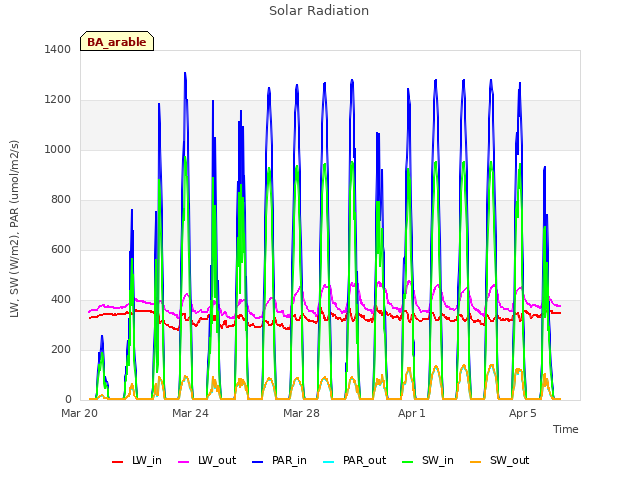

Solar Radiation

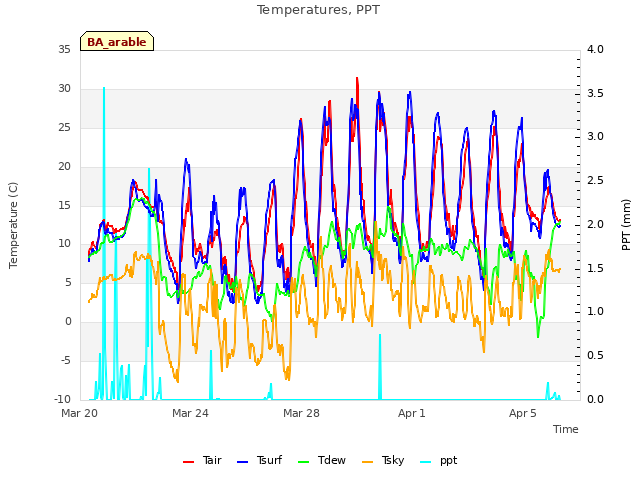

Temperatures, PPT

Sentek Deep Soil Moisture

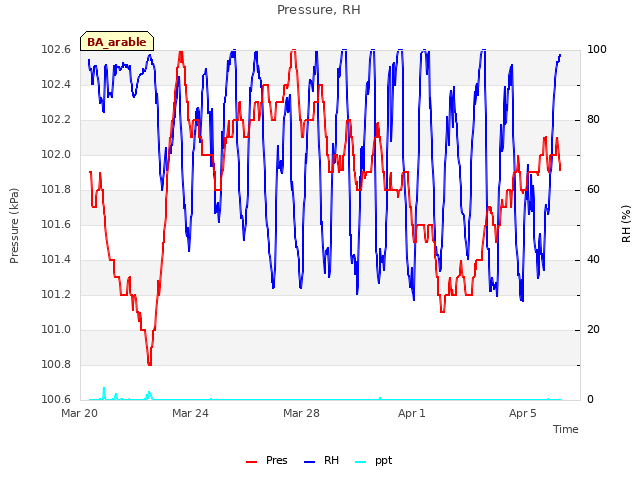

Pressure, RH

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

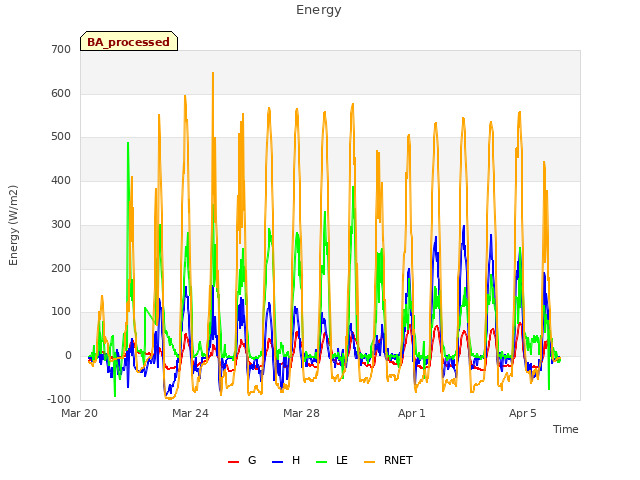

Energy

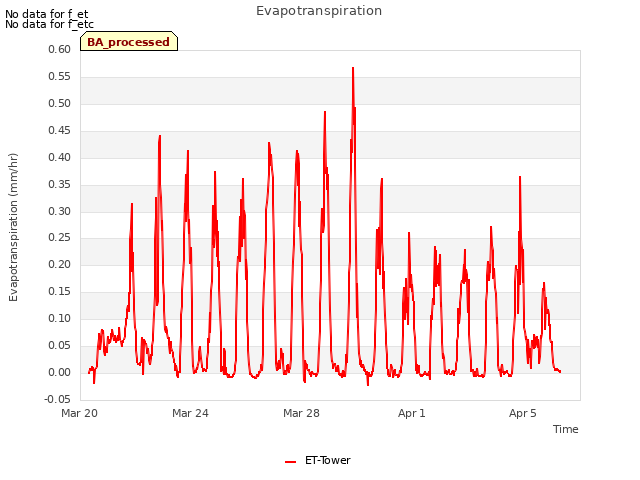

Evapotranspiration

No data found for BA_adex.
