West Pond: 2018-04-05 11:20:00 (DOY 95)
Author: Daphne Szutu
Others: Elke, Kyle
Summary: Regular data collection/cleaning, swap 7700 for calibration

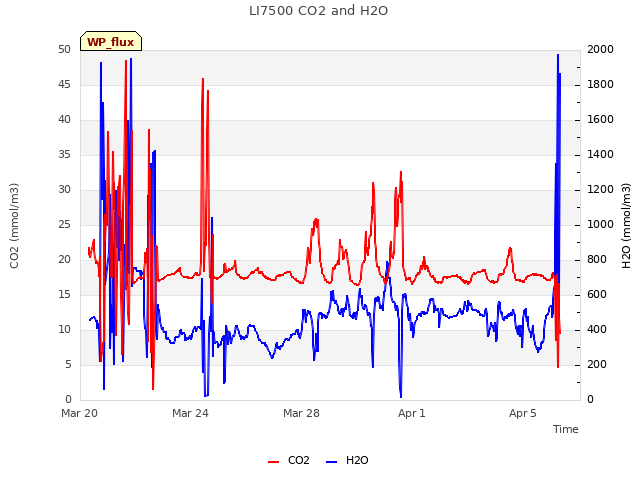

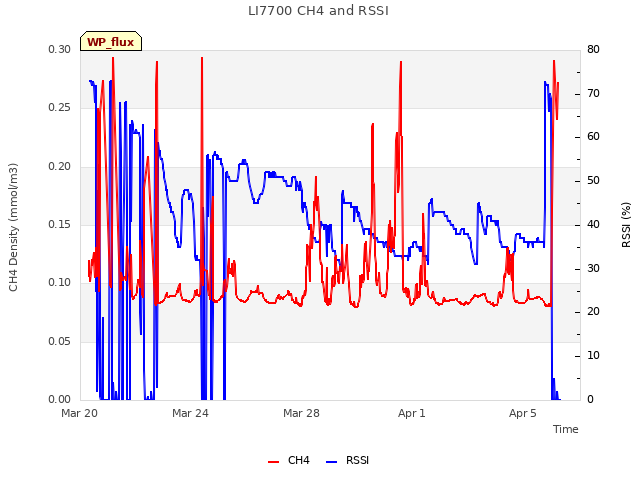

| 2018-04-05 West Pond We arrived at 11:20. It was cool, windy, and overcast. We noticed someone had tried to cut open the shipping container by the tower road, but the container doors were still chained together. Some tule are coming up in the canopy, but none above the litter yet. The water was not visible and all the water sensors were out of the water (CO2, salinity, O2). I downloaded met and USB GHG data. I didn’t bring the SD card reader, so I did not get the camera data, but Kyle checked that the camera was on and taking photos. I refilled the wash reservoir; it was mostly full. Kyle cleaned the EC and rad sensors. We swapped the 7700: sn TG1-0424 came down and sn TG1-0224 went up. I had to manually connect the 7700 in the LI-7550 interface, and changed the 7700 clock from slave to automatic mode. I reset the box and all looks fine. LI-7500 readings: CO2 412ppm H2O 471ppm T 17.1C P 101.9 kPa SS 97 --> 98 after cleaning LI7700 readings (sn TG1-0424 --> sn TG1-0424 clean --> sn TG1-0224): CH4 1.97ppm --> 1.94 --> 1.92 RSSI 34 --> 70 --> 72 We left at 11:40. |
0 photos found
8 sets found
Can't check WP_DO

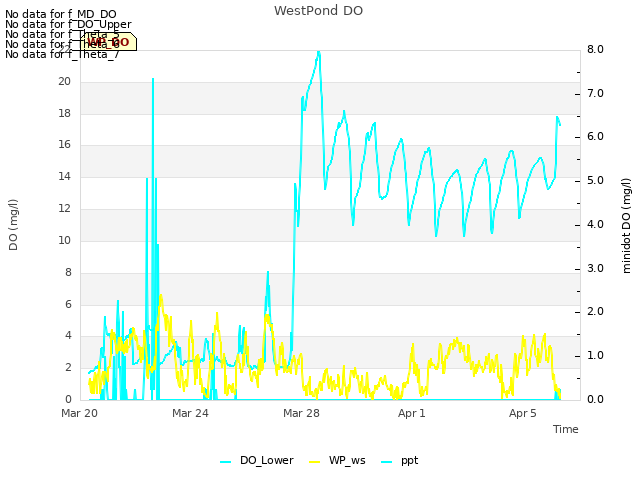

1 WP_DO graphs found

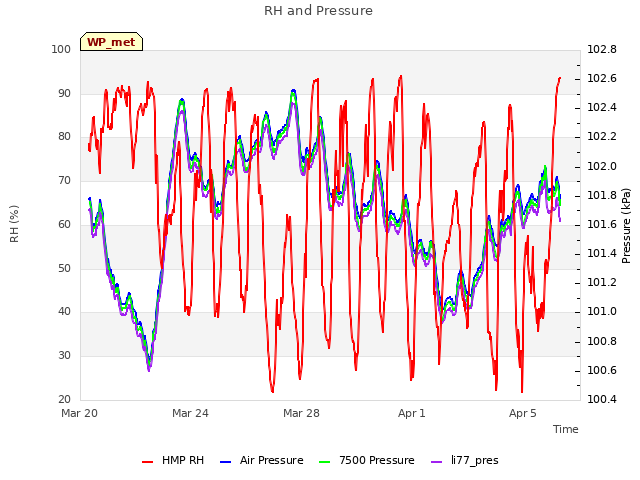

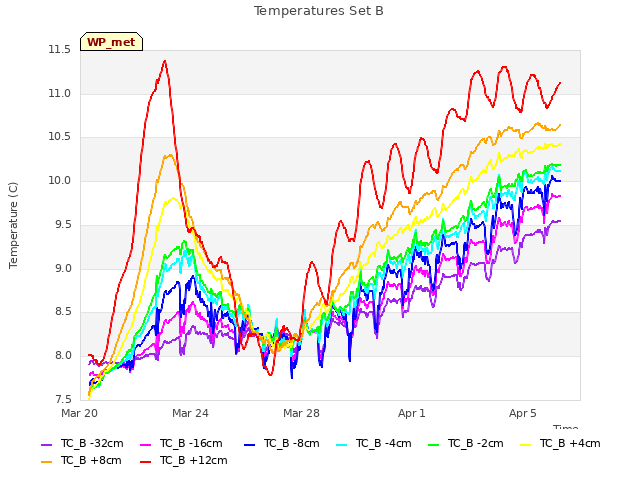

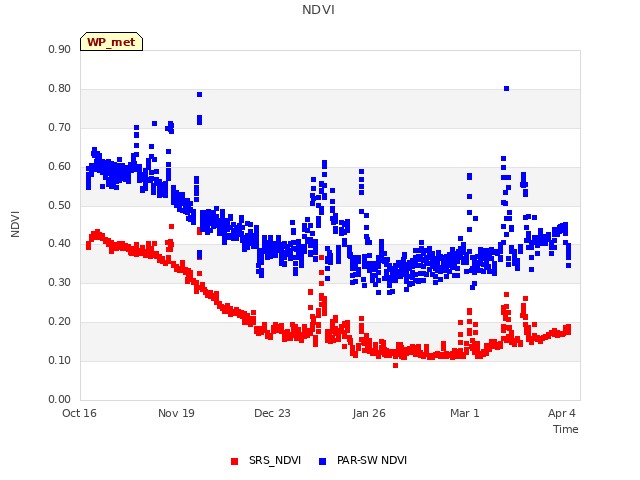

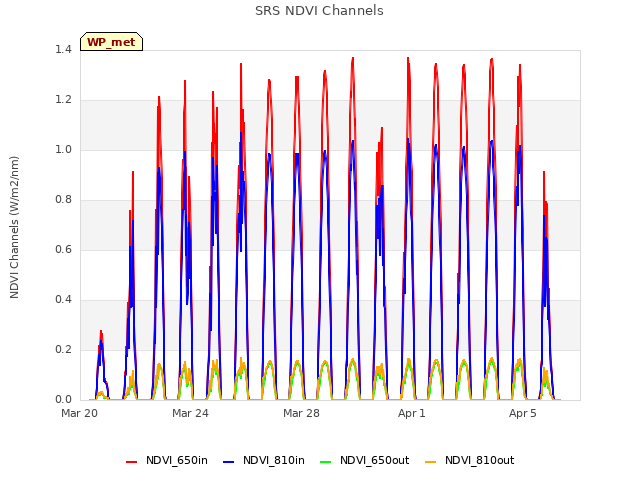

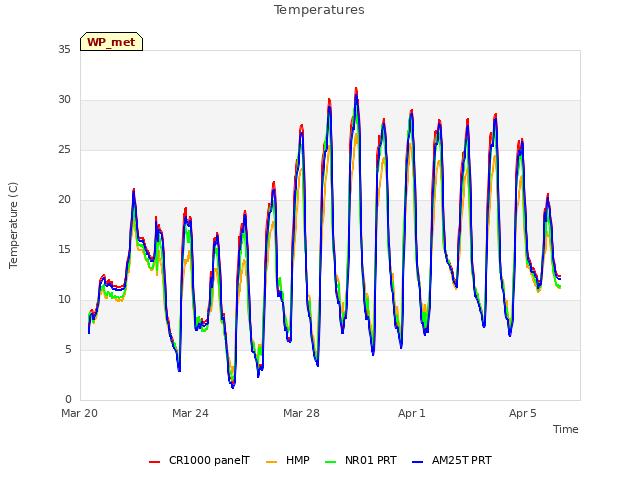

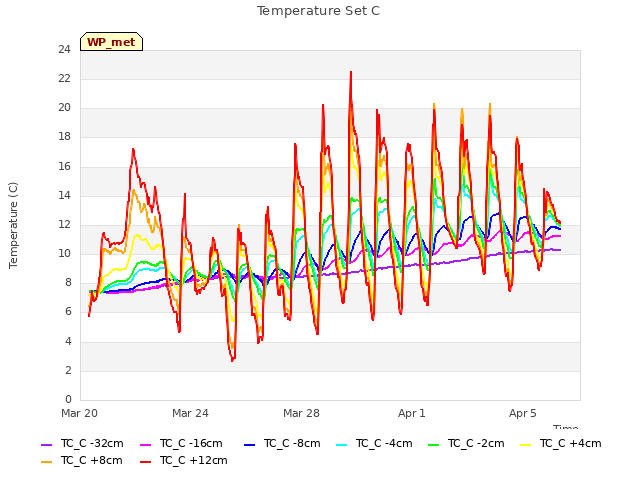

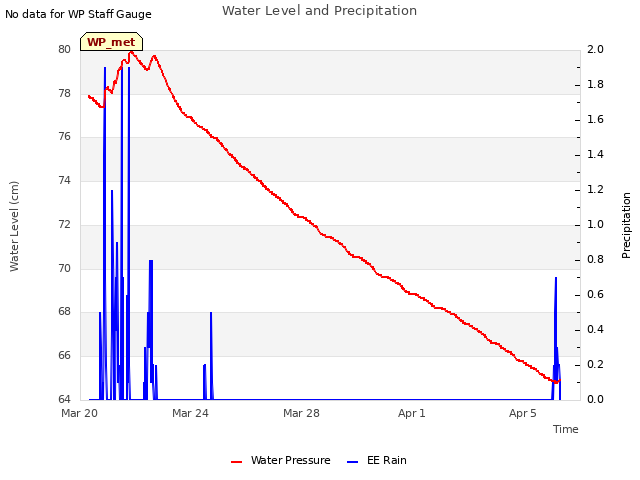

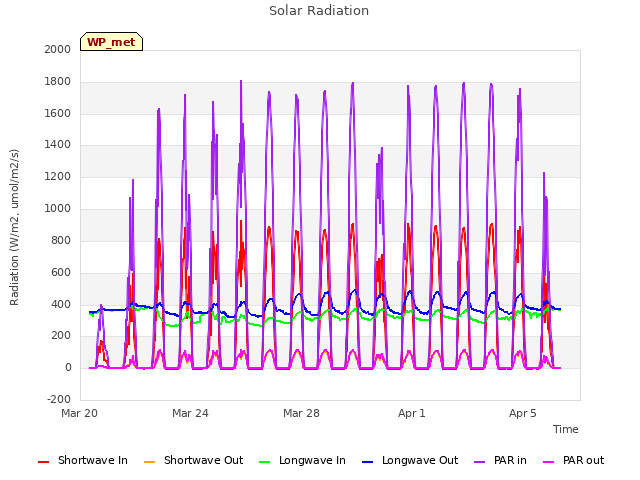

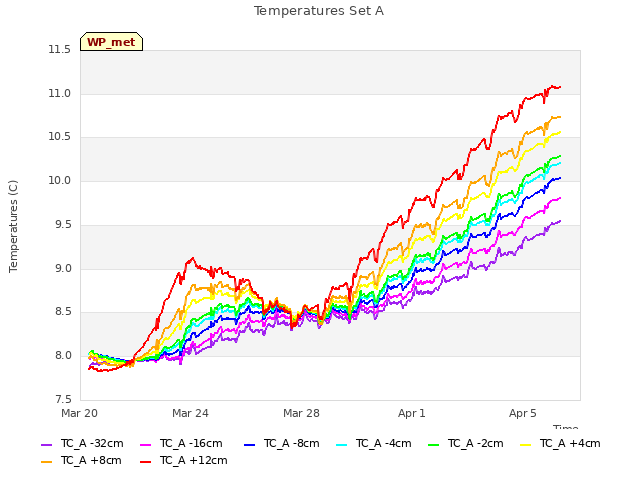

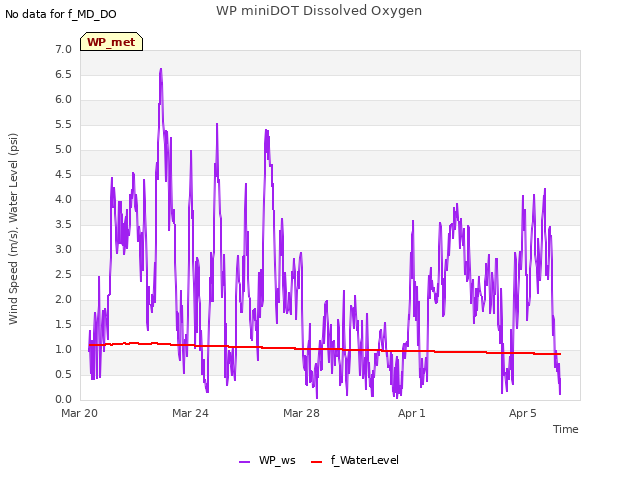

14 WP_met graphs found

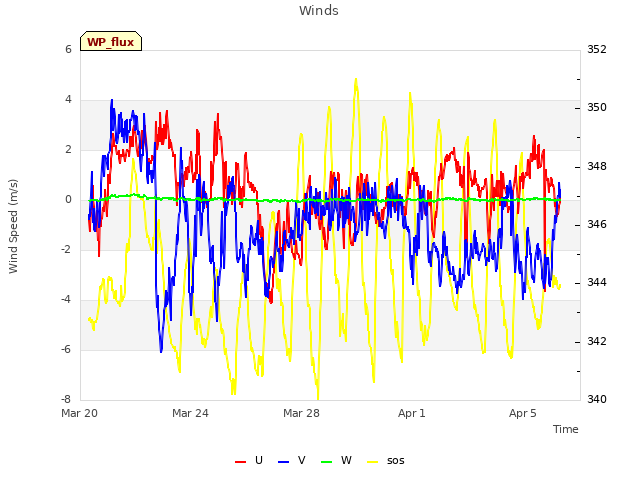

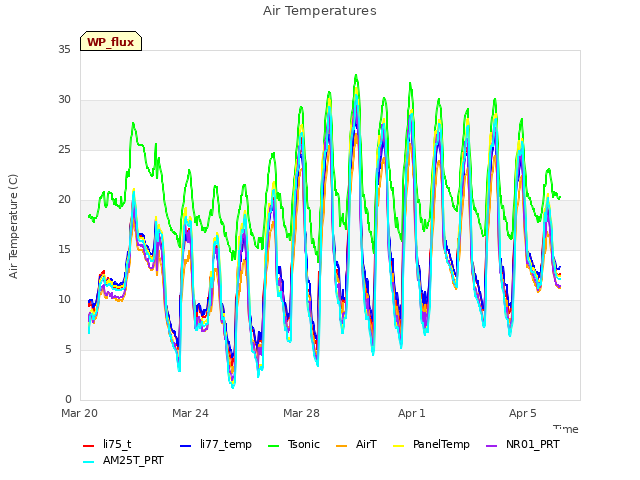

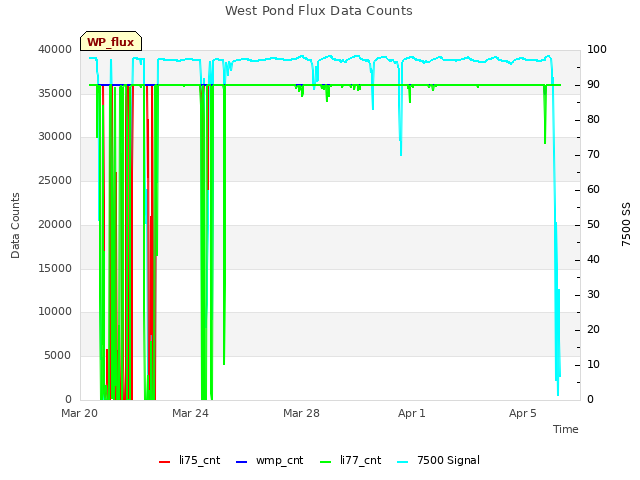

5 WP_flux graphs found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA

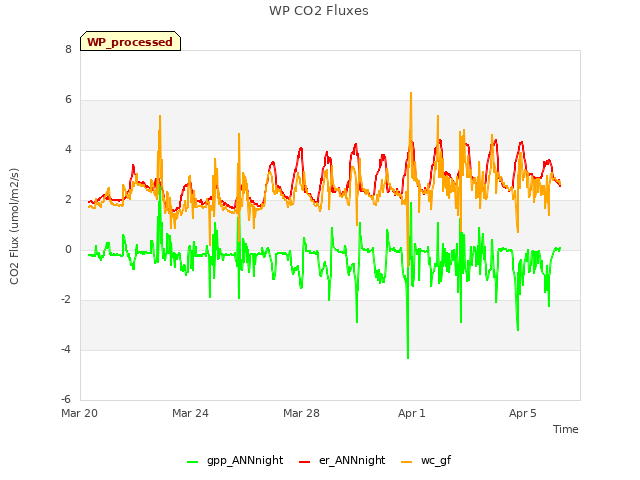

1 WP_processed graphs found
No data found for WP_arable.
