Field Notes

Bouldin Corn: 2018-04-05 13:55:00 (DOY 95)
Author: Daphne Szutu
Others: Elke, Kyle

Summary: Regular data collection/cleaning, swap 7500 for calibration, swap 7700 for calibration

2018-04-05
Bouldin Corn

We arrived at 13:55. The fields were dry but still soft. It was overcast and cool with a gentle breeze.

We swapped the 7500 (sn 0035 came down, sn 75H-2668 went up) and the 7700 (sn TG1-0211 came down, sn TG1-0155 went up). I collected met and camera data. Elke cleaned the rad and flux sensors. Kyle refilled the wash reservoir.

After we swapped the 7500, I uploaded a new configuration file and updated the pressure coefficients. After we swapped the 7700, I had to manually connect the sensor in the LI-7550 software. I changed the 7700 clock settings from slave to automatic. We confirmed the pump and spin wash worked, and then reset the LI-7550 box.

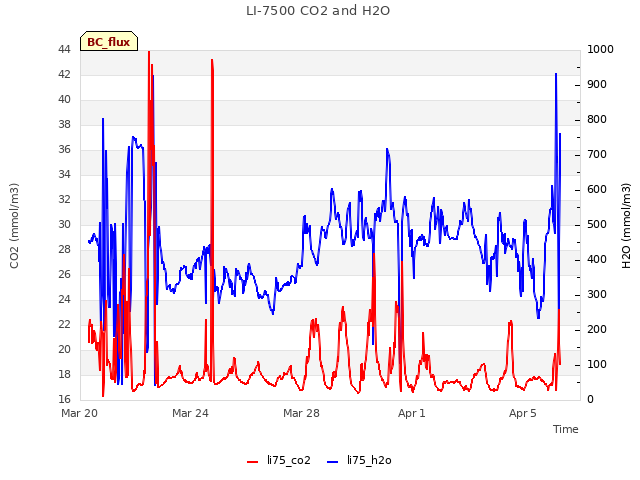

LI-7500 readings (sn 0035 --> sn 0035 cleaned --> sn 75H-2668)

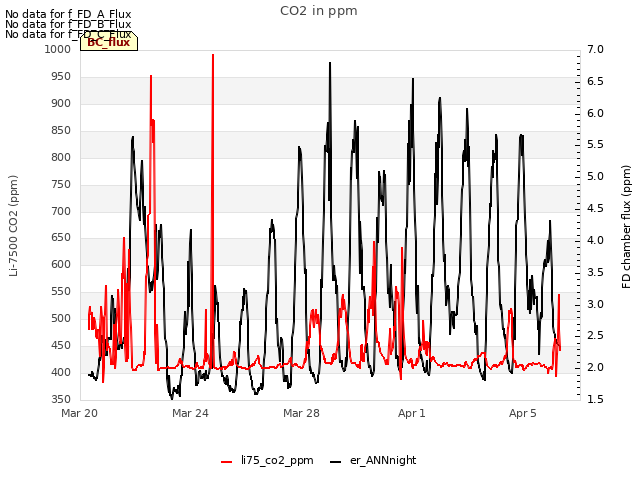

CO2 405ppm --> 407 --> 409
H2O 477ppm --> 469 --> 467
T 17.7C --> ?? --> 17.9
P 101.2 kPa --> ?? --> 101.2

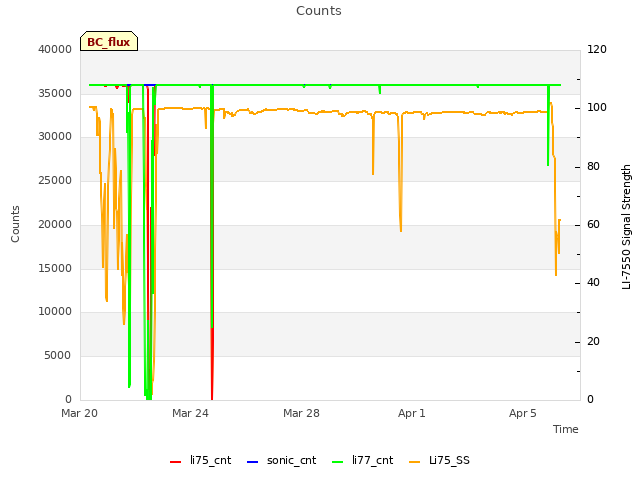

SS 98 --> 99 --> 101.6

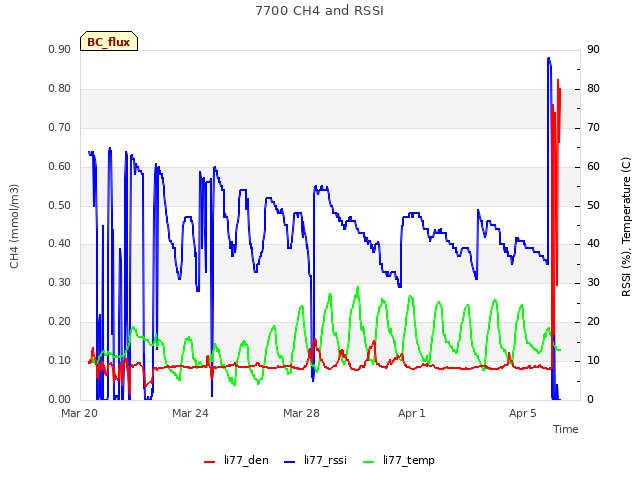

LI7700 readings (sn TG1-0211 --> sn TG1-0211 cleaned --> sn TG1-0155):
CH4 1.91ppm --> 1.92 --> 1.94
RSSI 35 --> 67 --> 84

We left at 14:25.

0 photos found

6 sets found

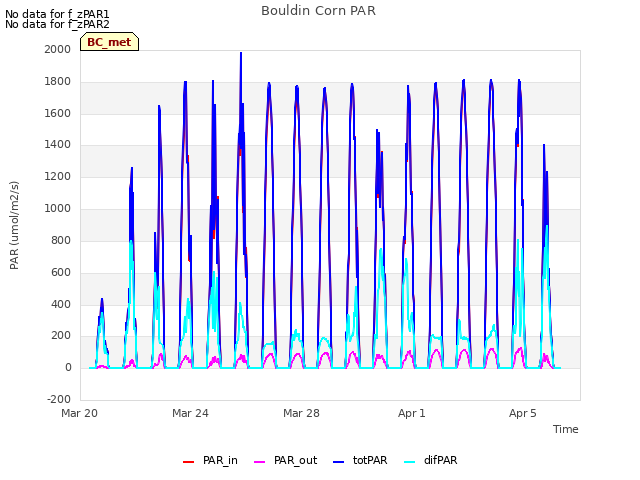

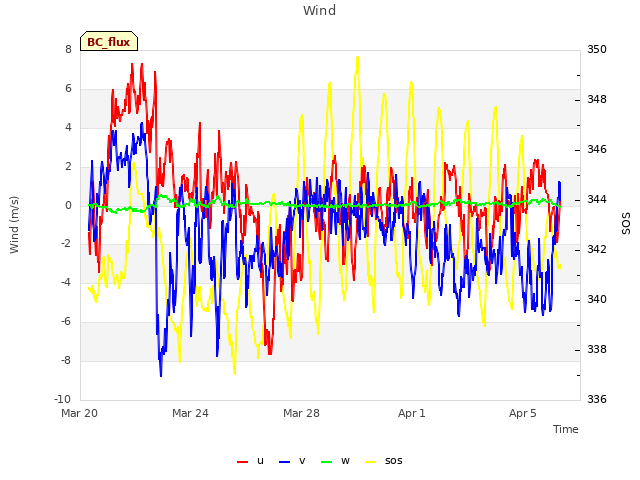

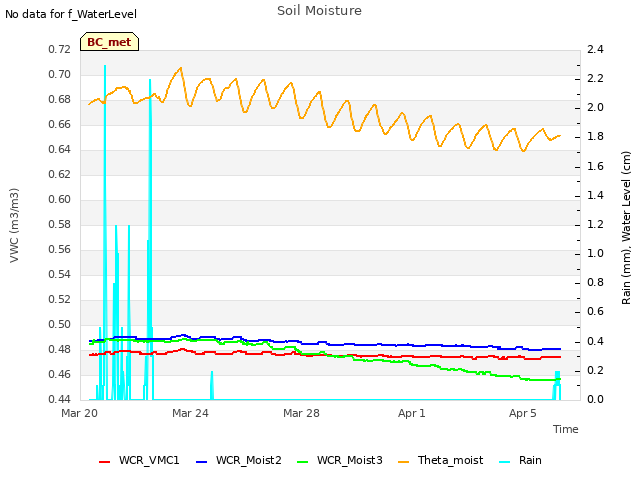

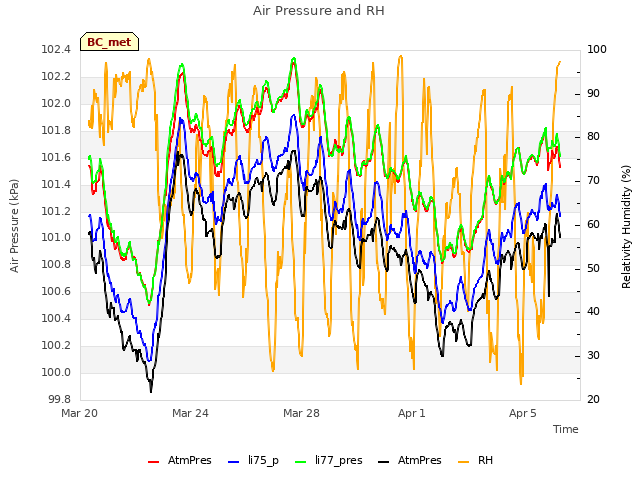

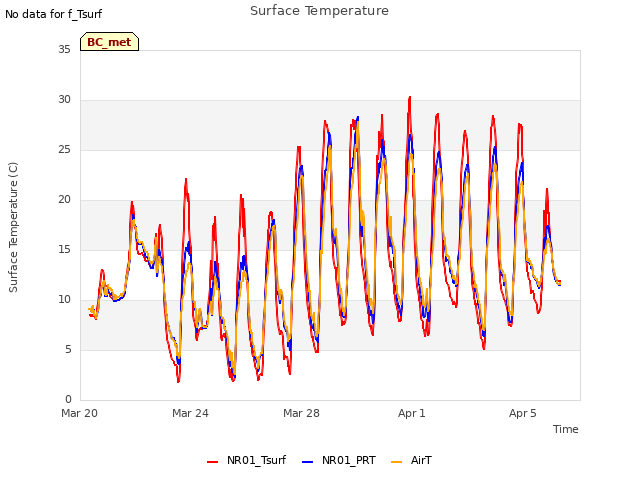

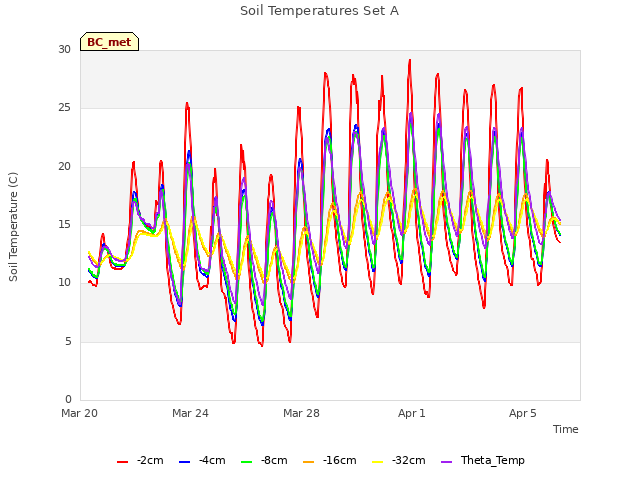

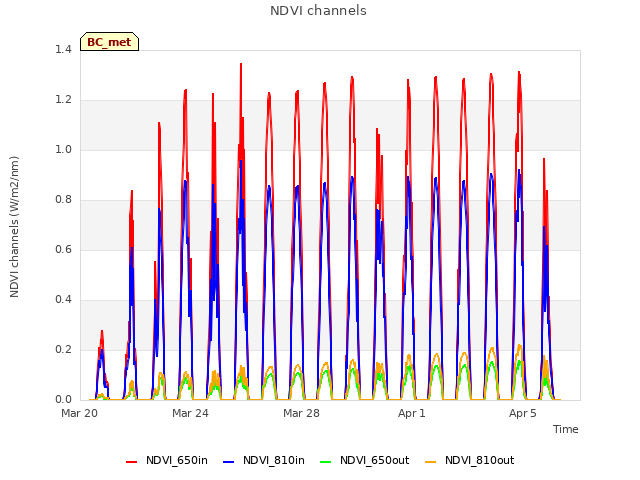

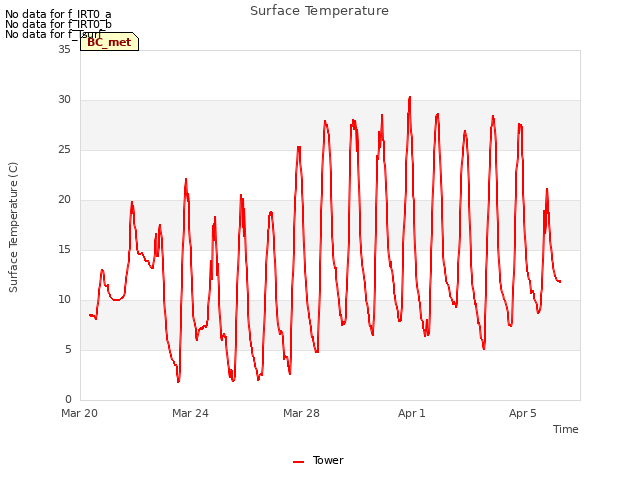

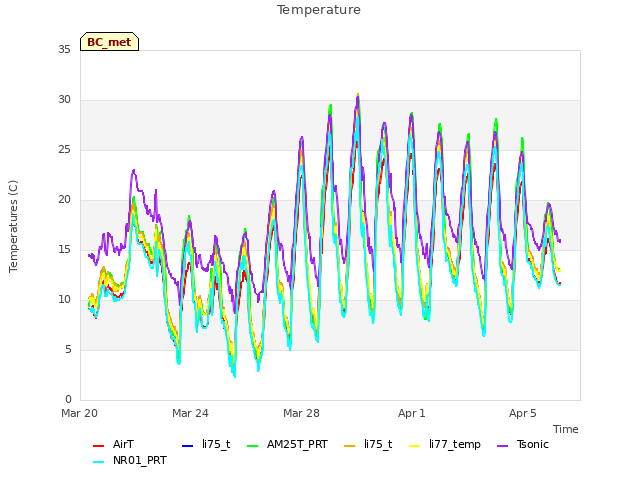

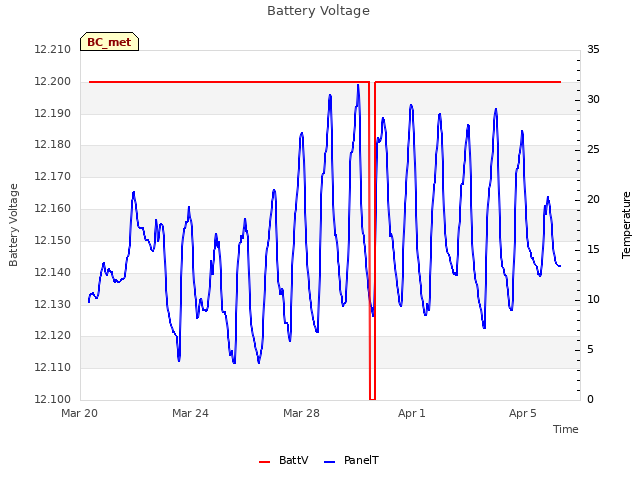

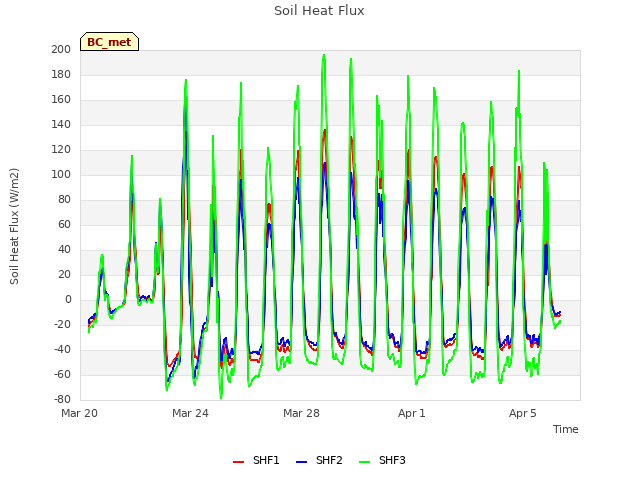

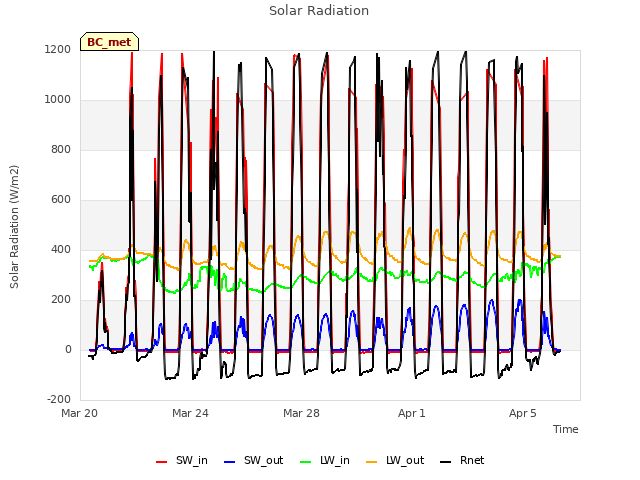

17 BC_met graphs found
