West Pond: 2017-04-11 12:25:00 (DOY 101)
Author: Daphne Szutu
Others: Elke Eichelmann, Isabel Reche

Summary: Regular data collection/cleaning, tower is tilted, not sure if HMP fan is working

2017-04-11
West Pond

We arrived at 12:25. It was cool, overcast, and windy. The wetland is still brown but some green pockets of tule visible. The tower is visibly tilted now and we should probably straighten it.

We're not sure if the HMP fan is working. Next time we should check the voltage of the fan (12V or 24V?) and make sure it's connected to a compatible power source.

We refilled the wash reservoir; it was 4/5 full. Elke cleaned the EC and radiation sensors. I downloaded the met, camera, and USB GHG data.

We reset the 7550 box.

The camera wasn't turning on initially and showed a "Charge the batteries." message, but it turned on after opening and closing the card/battery door again.

LI7500 readings:
CO2 404.7 umol/mol
H2O 510.3 mmol/m3
T 18.5 Celsius
P 101.1 kPa
SS 99.5 -> 100.0 after cleaning

LI7700 readings:
CH4: 2.05
RSSI: 33.6 -> 75.0 after cleaning

We left at 12:45.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

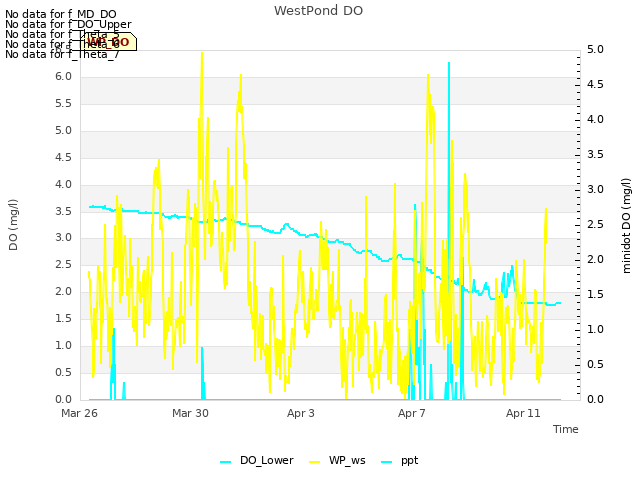

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

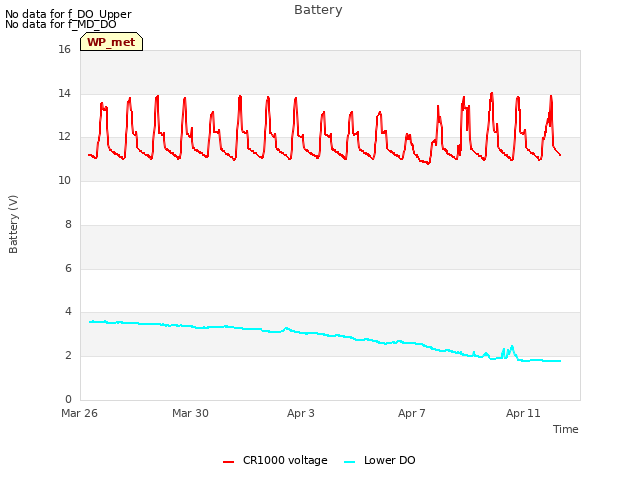

Explore the graph:Battery in a new window

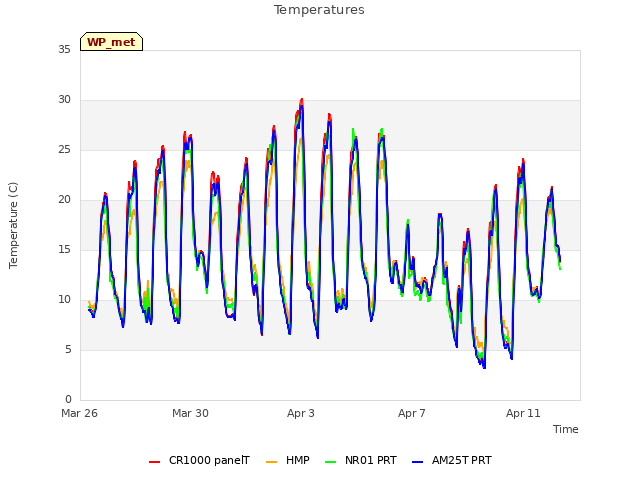

Explore the graph:Temperatures in a new window

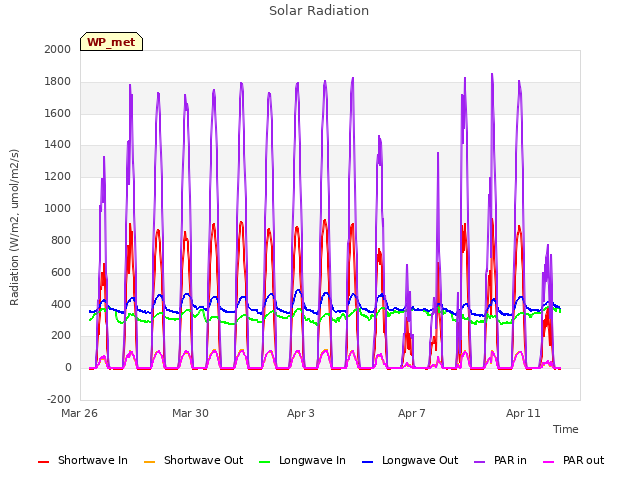

Explore the graph:Solar Radiation in a new window

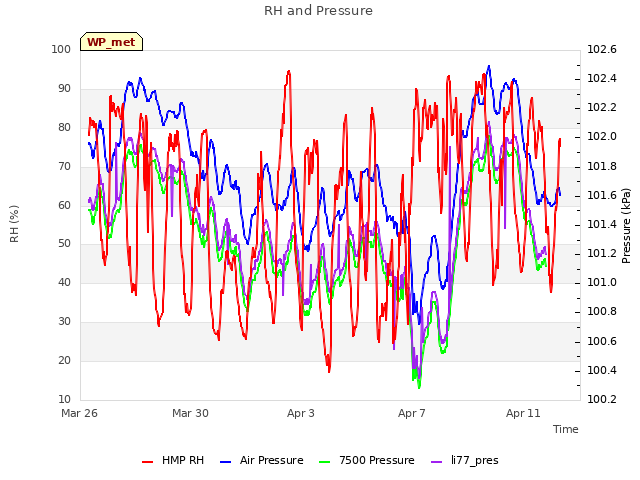

Explore the graph:RH and Pressure in a new window

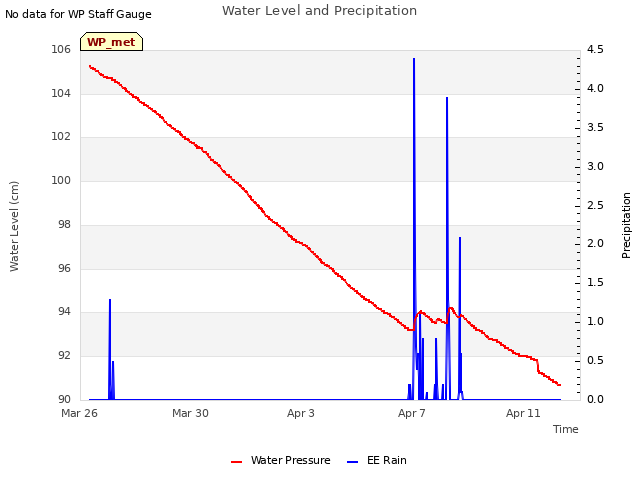

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

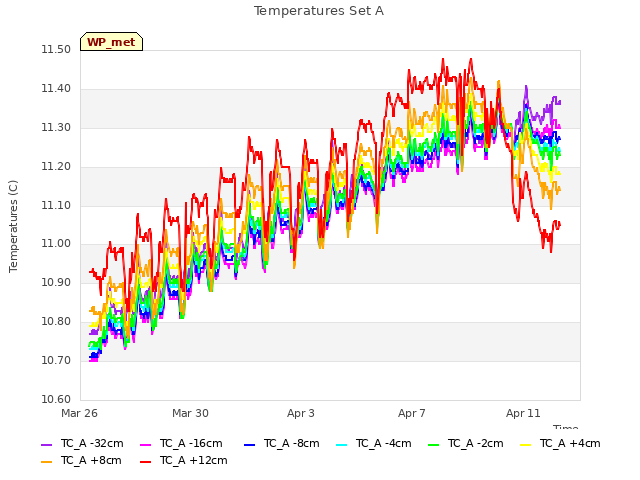

Explore the graph:Temperatures Set A in a new window

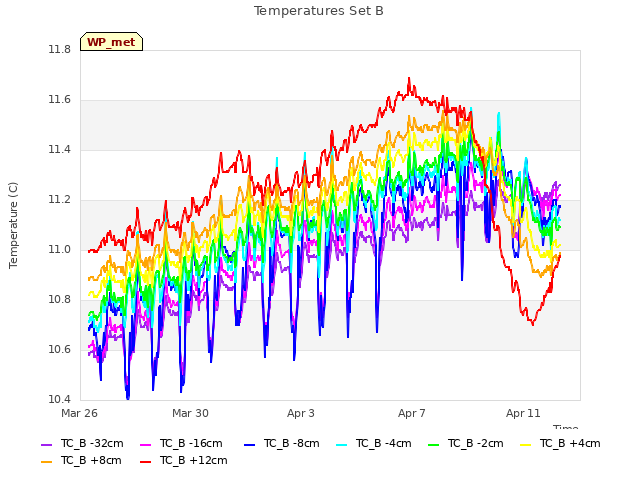

Explore the graph:Temperatures Set B in a new window

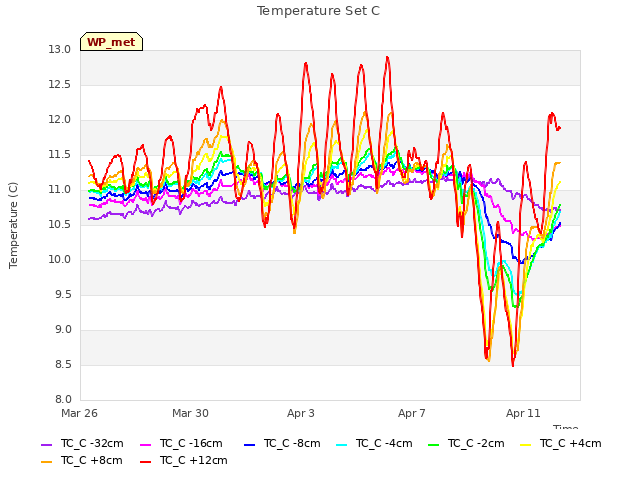

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

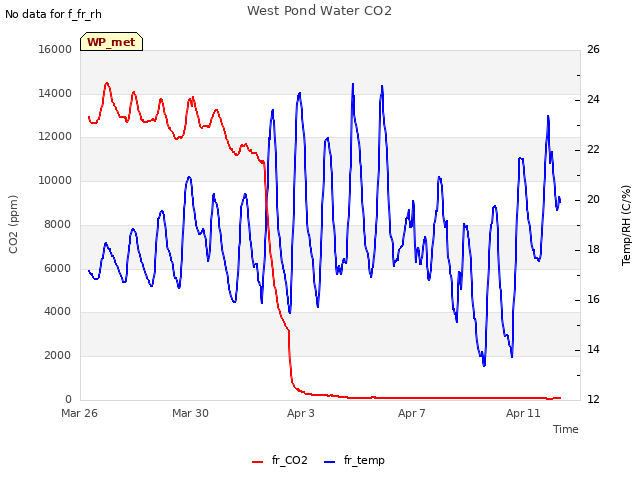

Explore the graph:West Pond Water CO2 in a new window

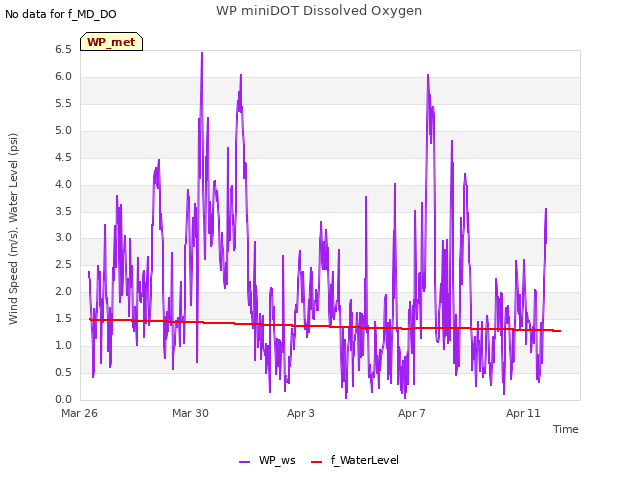

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

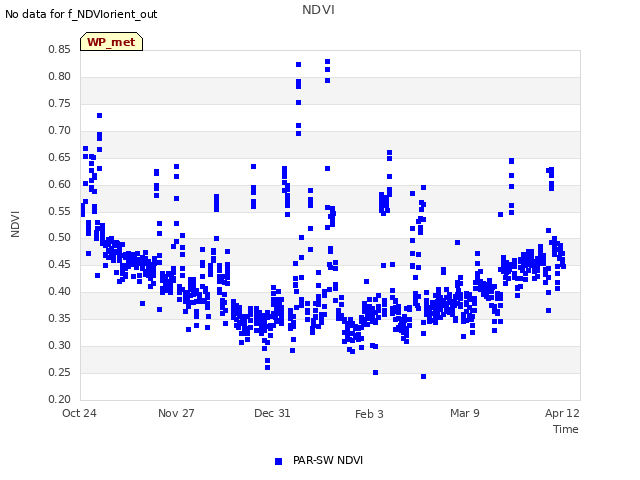

Explore the graph:NDVI in a new window

5 WP_flux graphs found

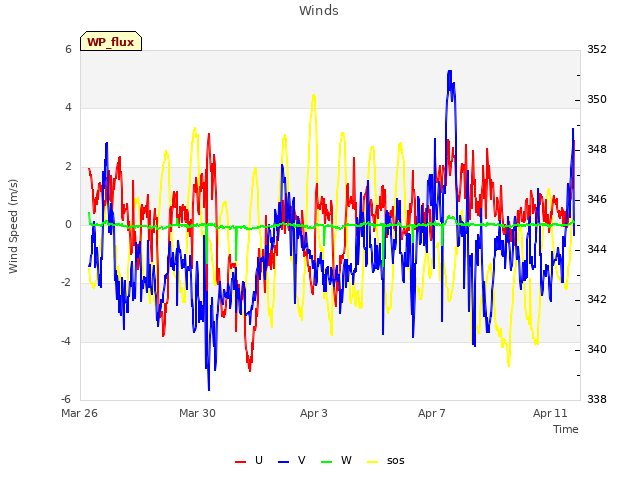

Explore the graph:Winds in a new window

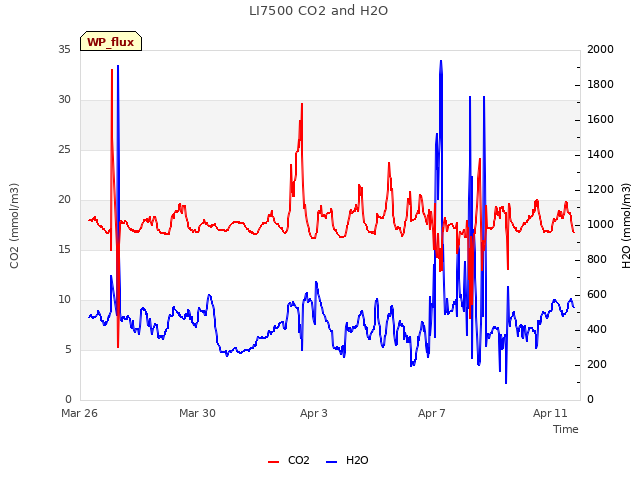

Explore the graph:LI7500 CO2 and H2O in a new window

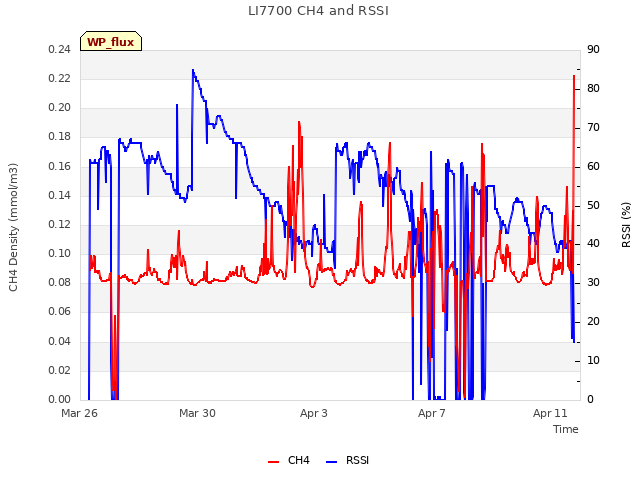

Explore the graph:LI7700 CH4 and RSSI in a new window

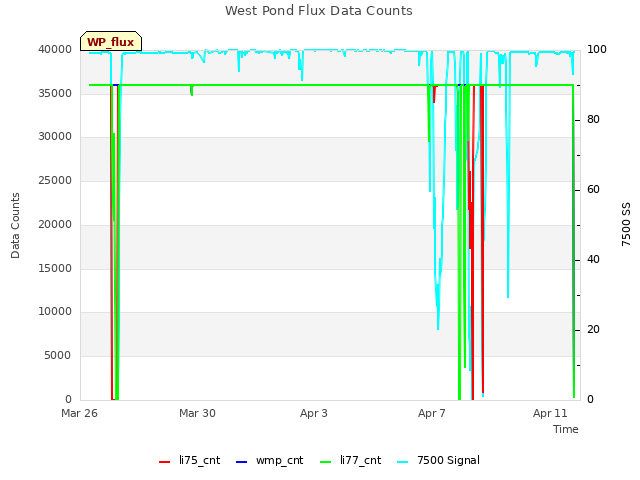

Explore the graph:West Pond Flux Data Counts in a new window

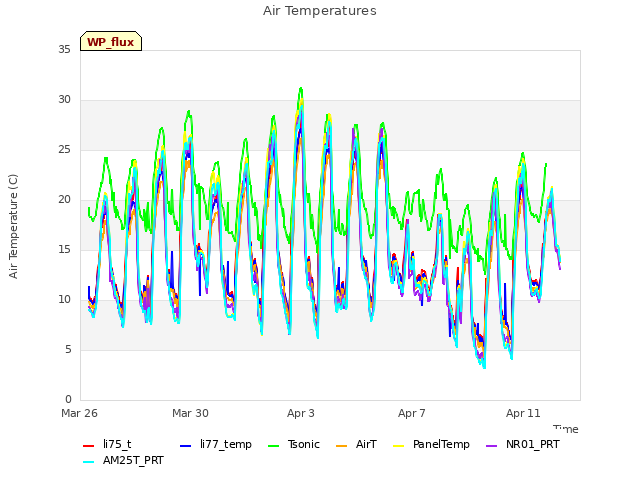

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

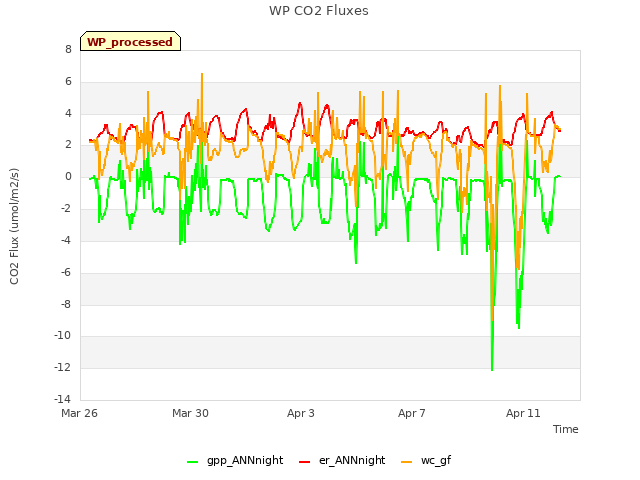

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
