Field Notes

<--2017-03-23 12:20:00 | 2017-04-11 12:25:00-->
Other sites visited today: East End | Bouldin Alfalfa | Mayberry | Sherman Wetland | Twitchell Alfalfa
Phenocam link: Searching...

West Pond: 2017-03-29 12:50:00 (DOY 88)
Author: Daphne Szutu
Others: Elke Eichelmann, Kyle Hemes

Summary: Regular data collection/cleaning, swapped HMP60 shield/fan

2017-03-29
West Pond

We arrived at 12:50. It was clear and sunny, warm with a light breeze. We parked on the grassy road about halfway to the tower. The water level seems a little low. The tule were ~2m tall. Elke annihilated some of the willows growing by the tower boardwalk.

We cleaned the radiation and EC sensors and Kyle swapped the HMP60 shield/fan because the previous fan was not working.

I refilled the wash reservoir; it was 3/4 full. There were many ants in the reservoir box.

I collected met, USB GHG, and camera data and put 2 mothballs in the datalogger box.

LI7500 readings:
CO2 411.6 umol/mol
H2O 480.8 mmol/m3
T 23.5 Celsius
P 101.7 kPa
SS 99.2 -> 102.0 after cleaning

LI7700 readings:
CH4: 1.9
RSSI: 54.3 -> 85.0 after cleaning

We left at 13:25.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

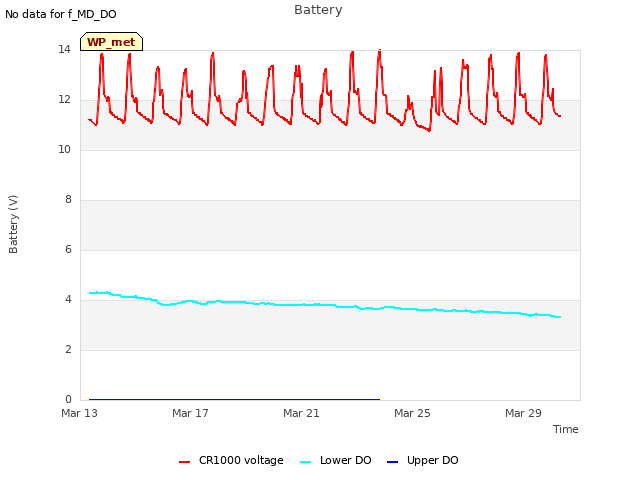

Explore the graph:Battery in a new window

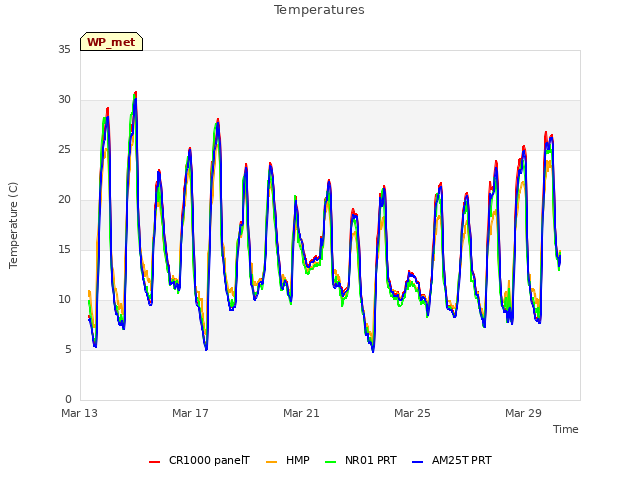

Explore the graph:Temperatures in a new window

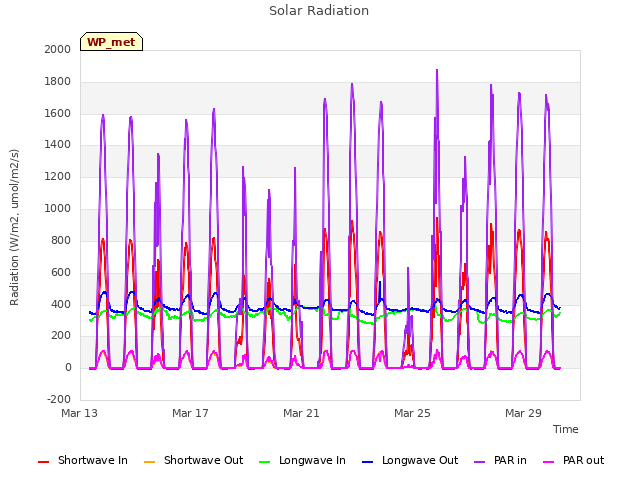

Explore the graph:Solar Radiation in a new window

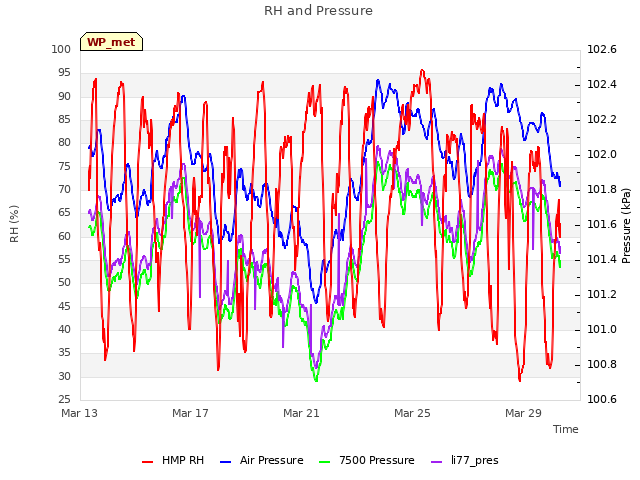

Explore the graph:RH and Pressure in a new window

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

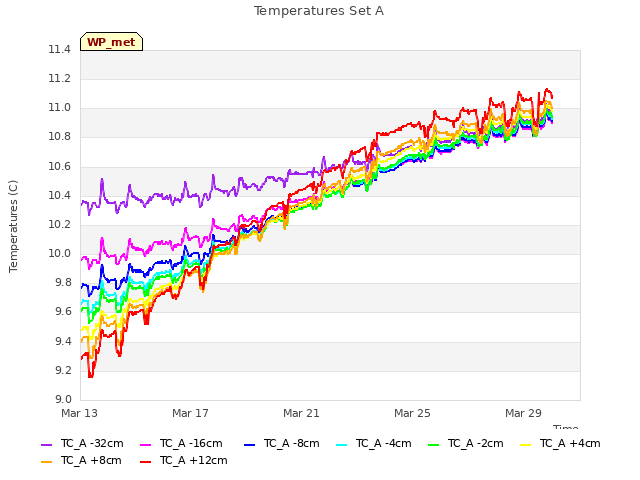

Explore the graph:Temperatures Set A in a new window

Explore the graph:Temperatures Set B in a new window

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

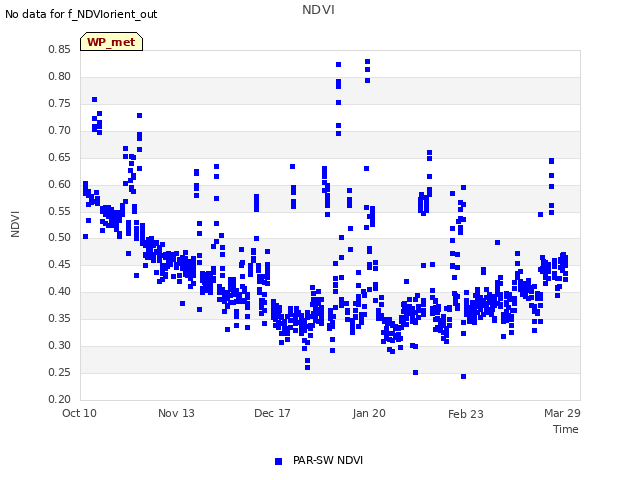

Explore the graph:NDVI in a new window

5 WP_flux graphs found

Explore the graph:Winds in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

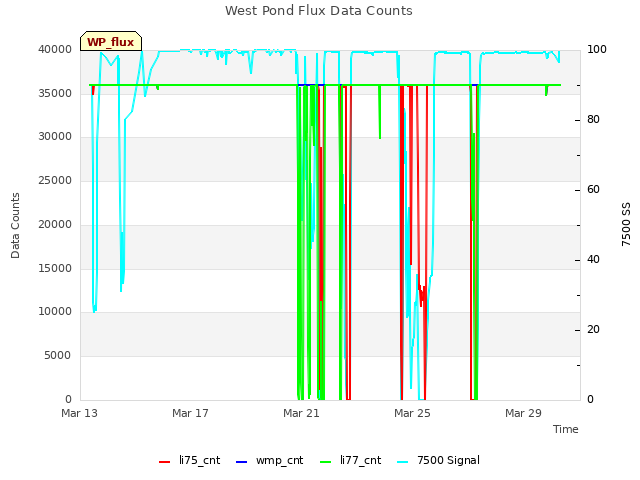

Explore the graph:West Pond Flux Data Counts in a new window

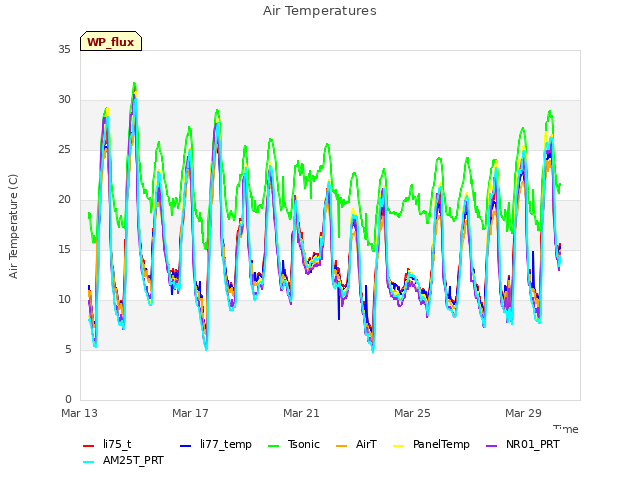

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
